USR-G805s
Dual SIM Router
The USR-G805S is a versatile and reliable 4G LTE industrial router designed to provide secure and stable wireless connectivity for a wide range of industrial IoT applications. Supporting multiple LTE bands (TDD-LTE, FDD-LTE), it ensures global compatibility for seamless mobile network access. The router is equipped with one WAN and four LAN ports, offering robust wired connectivity, and an optional Wi-Fi module for wireless support. It also supports VPN protocols (PPTP, L2TP, IPSec) for secure data transmission, making it ideal for remote access and control applications.
USR-G805 | Industrial Dual SIM Router
Qualcomm Solution, Single SIM, 5 Ethernet Ports, 4G/Wi-Fi/Wired WAN Backup
USR-G805s is the latest dual-card single-standby router lunched by PUSR. The main control and 4G module of this product adopt Qualcomm solution, metal shell, with 5 network ports, support dual WAN ports, SMS, VLAN and rich VPN functions. The router implements a variety of network backup functions: SIM1, WAN-cellular, and Wi-Fi-cellular, maximizing the stability of user networking, rich VPN functions can ensure the safe transmission of data, using the router, users can experience high compatibility and high stability.
Key Features
- Qualcomm Solution: Performance assurance.
- Dual WAN Ports: Connecting different networks.
- Rich VPN Protocols: IPsec, OpenVPN, GRE, PPTP, L2TP to ensure data security.
- SMS: Remote management of router.
- 5 Ethernet Ports: 1WAN+1WAN/LAN+3LAN.
- Global Frequency: Compatible with mainstream carries worldwide.
Ordering Guide
PUSR offers two sub-model products for selection. Customers can choose the model according to the actual application scenarios.
Qualcomm Solution, Performance Assurance
The core Wi-Fi chip (master control) and 4G cellular module adopt the industry-leading Qualcomm solution to ensure the performance and stability of the device during using.
Rich Networking, multiple WAN connectivity backup
Cellular, wired and Wi-Fi internet access modes can be switched freely. Service can be recovered in time when a network exception occurs.
Ethernet & Wi-Fi terminal can connect to the router for data transmission.
Your Data Security, Our Responsibility
- 1. Comprehensive VPN protocols support ensures your data security, including OpenVPN, IPsec, PPTP, L2TP and GRE.
- 2. Multiple encryption method make financial-grade data transmission.
Enhanced OpenVPN Design
- 1. Easy to use, but also professional.
- 2. Allows to connect to three different OpenVPN servers as a client and also function as an OpenVPN server.
- 3. One-click import .ovpn config-file and PKCS#12 cert-file import Say goodbye to the complex parameter.
- 4. Available to OpenVPNR CloudConnexaTm, OpenVPN Access Server, OpenVPN @AWS EC2,Open source OpenVPN, OPNsense, pfSense and other OpenVPN Servers.
Device Management Platform
PUSR device management is an all-in-one, user-friendly IoT platform providing an easy way to stay on top of your connected solution. It is a powerful tool that allows for remote access and management of connected PUSR router and the device connected to PUSR router like PLC, HMI, IP camera and etc.
Industrial Grade Design, High Reliability
- Watchdog: Hardware & software dual watchdog. 7*24h stable operation without downtime.
- EMC Protection: Surge & EFT & ESD protection, Level 2.
- Wide Operation Temperature: -20℃ ~ +70℃.
- Metal Housing: IP30 protection, better heat dissipation.

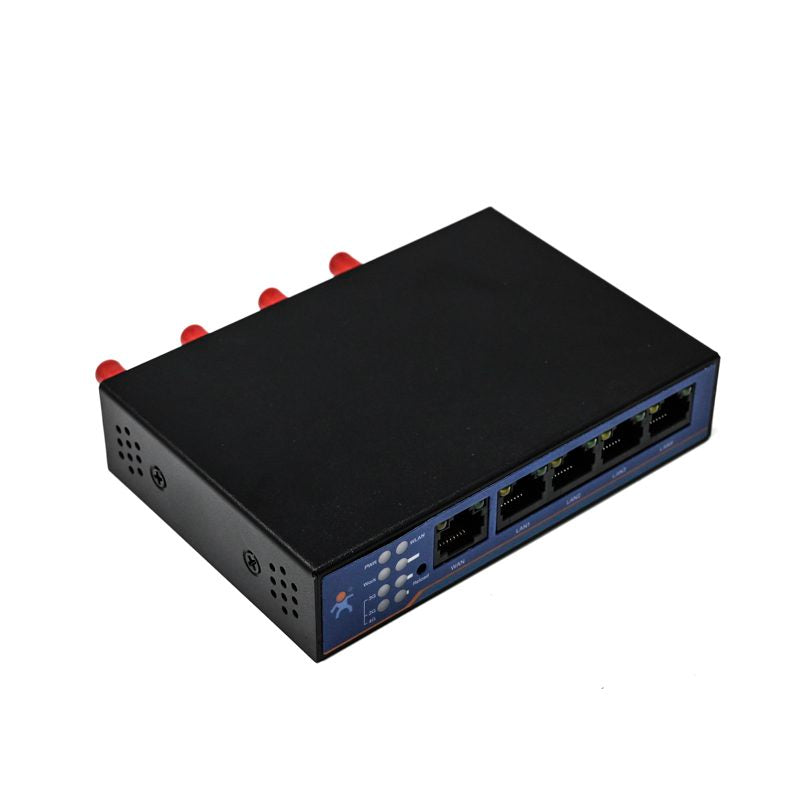

Dimensions and Details
- Dimensions: 127*84*27mm.
- Installation: Wall mounting, desktop placement.

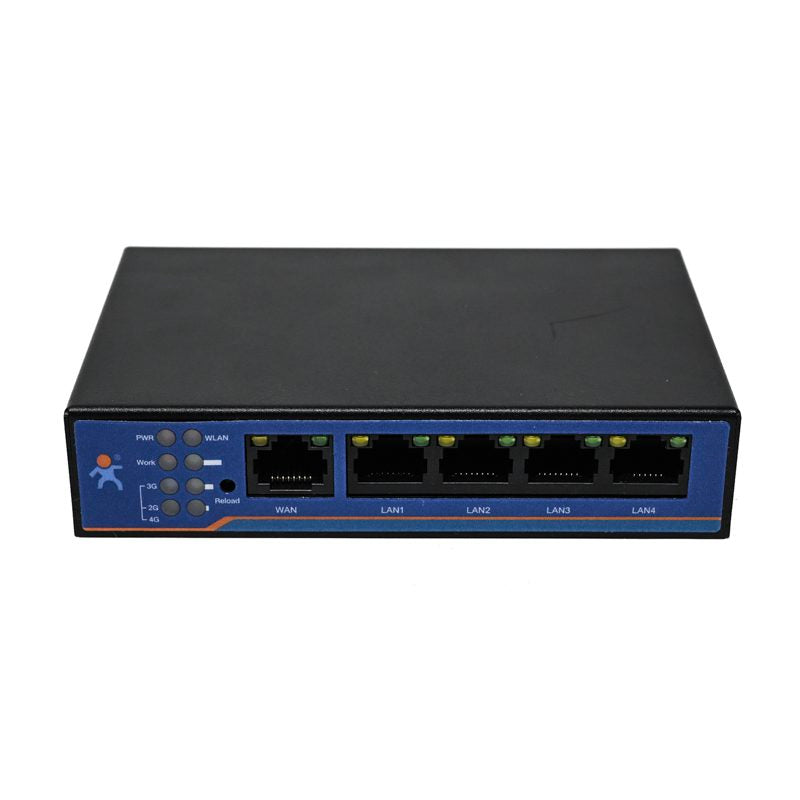

- Ethernet Ports: 1WAN, 1WAN/LAN(Configurable),3LAN.

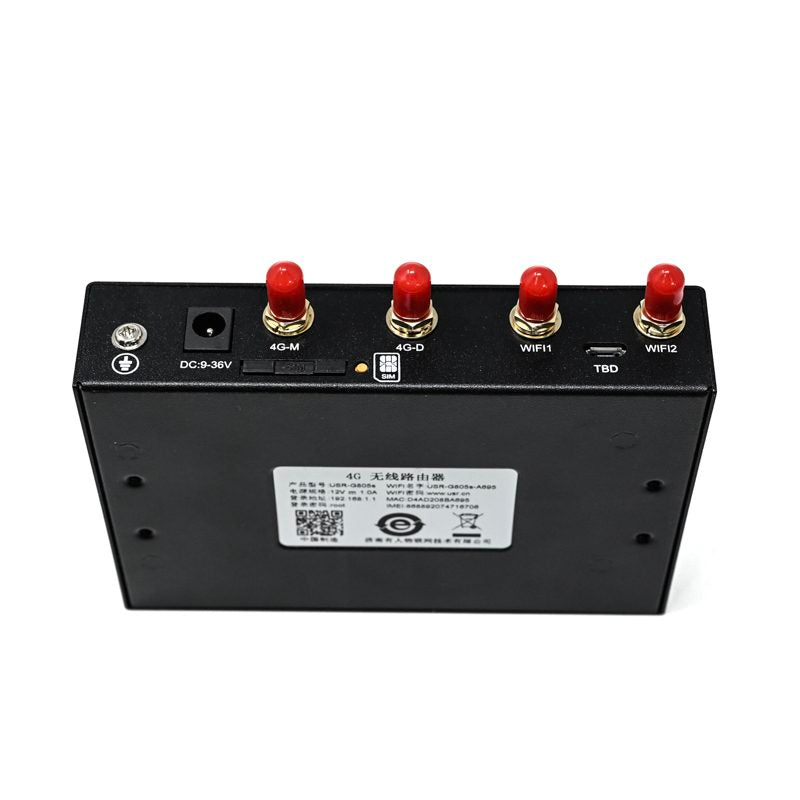

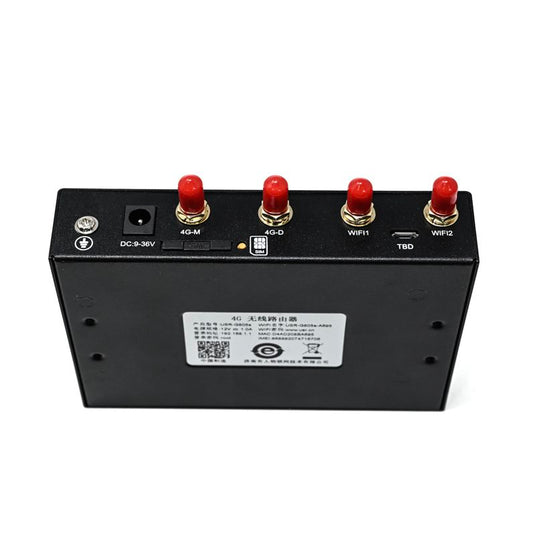

- SIM Slot: 2*nano-SIM(4FF).
- Antenna connector: SMA male for Wi-Fi, SMA female for 4G.

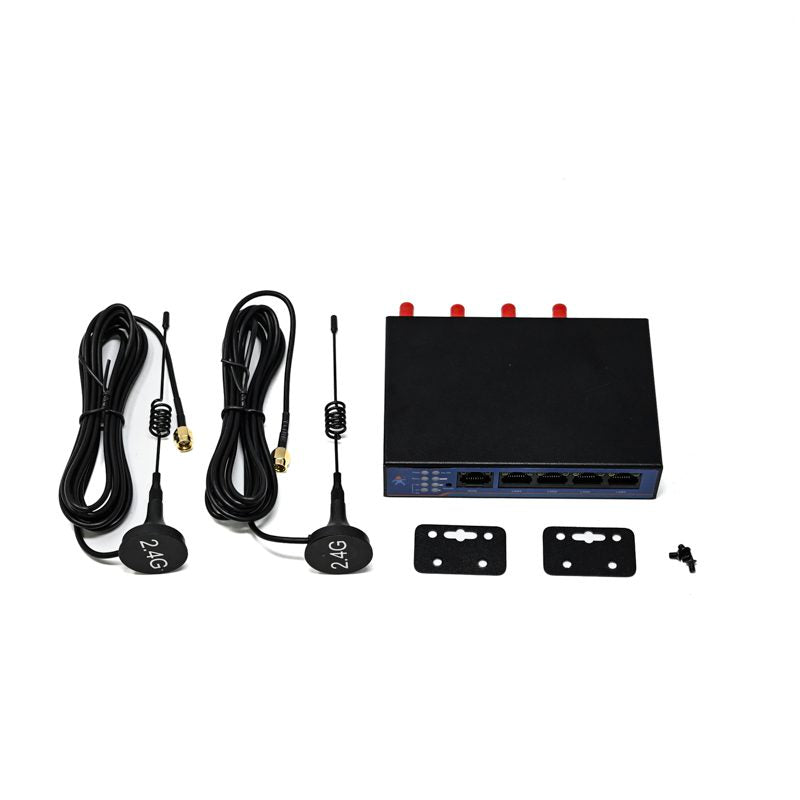

Delivery List
· USR-G805s*1
· Wi-Fi antenna*1
· 4G antenna*1
**Power Adapter is not included in the box.
Please use this link to add it to your cart: 12V 1A (12W) Power Adapter
Application
PUSR's industrial routers are designed to handle harsh environments and withstand a wide temperature range. USR-G805s are rugged and provide multiple and reliable Internet connectivity for various IoT applications. This router can be applied to these scenarios: ATM machine, charging pile, electric tower, smart retail, remote management of PLC and etc.
PARAMETER
USR-G805 Specifications |
|
|---|---|
| Cellular Interface | |
| Frequency |
4G LTE LTE-FDD: B1/2/3/4/5/7/8/12/13/18/19/20/25/26/28/66; LTE-TDD: B34/38/39/40/41; WCDMA：B1/2/4/5/6/8/19; GSM/EDGE:B2/3/5/8;
|
| Maximum Transmission Data Rate |
LTE-FDD (Mbps) :150 (DL)/50 (UL) LTE-TDD (Mbps):130 (DL)/30 (UL) |
| Antennas | 1 × SMA-K Connectors (Center PIN: SMA Female) |
| SIM Slot | 1 x (3 V/1.8 V)Nano-SIM(4FF) Push-push type slot |
| Ethernet Interface | |
| WAN | 2 x WAN ports, RJ45, 10/100 Mbps, the WAN2 port can be configure as LAN port, supports auto MDI/MDIX crossover, Ethernet Isolation 1.5 KV |
| LAN | 3 x RJ45 port, 10/100 Mbps, supports auto MDI/MDIX crossover, Ethernet Isolation 1.5 KV |
| Indicators | |
| PWR | red, always on after powered on |
| WLAN | green, always solid on when Wi-Fi is enabled and working properly |
| NET |
ON: Signal strength 25-31 (signal strong) Blinking: Signal strength 15-24 (signal strength is basically normal, and equipment maybe disconnect with the base station) OFF: Signal strength 1-14 (Signal strength is weak, please check antenna and the signal strength of current location) |
| Wi-Fi Interface | |
| Antennas | 1 × SMA-K Connectors (Center PIN: SMAMale) |
| Standards | IEEE802.11b/g/n (2.4GHz) |
| Modes | AP/AP+STA/AP+WDS repeater |
| Data speed | Up to150 Mbps |
| Security | Wi-Fi security withmixec-psk,psk+ccmp, psk2, psk2+tkip |
| Transmission distance | 150 meters by line of sight. Actual transmission distance depends on environment of the site. |
| Power Supply | |
| Adapter | DC 12V/1A |
| Connector | DC Power Jack Barrel Type Female 5.5*2.1mm Round socket |
| Input Voltage Range | DC9-36V |
| Power Consumption | Max 700mA@12C, Average376mA@12V |
| Physical Characteristics | |
| Casing material | Metal shell, ingress protection IP30 |
| Dimensions | 127.0 x 84.0 x 27.0 mm (L*W*H, excluding antenna pedestal, terminal block, and DIN rail) |
| Installation | Desktop, wall mounting |
| EMC | Static IEC61000-4-2, level 2 Pulsed Electric Field IEC61000-4-4, level 2 Surge IEC61000-4-5, level 2 |
| Operating Temperature | -20°C ~ +70°C |
| Storage Temperature | -40°C ~ +125°C (Non-condensing) |
| Relative Humidity | 5% ~ 95% (Non-condensing) |
| Others | |
| Reload button | 1 x Reload |
| TBD | Debug interface (TTL Level) |
| Ground protection | Screw |
| Built-in | Watchdog |
| Software | |
| Network Protocols | PPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, HTTP, DNS, ARP, NTP, Telnet, SSH, DDNS, etc. |
| VPN | L2TP, PPTP, OpenVPN, IPsec, GRE |
| Security | Access Control, DMZ, Port Forwarding, SYN-Flood Protection, Filtering (IP & MAC & Domain) |
| Management | Web UI, PUSR cloud |
| Reliability | WAN Failover, Dual SIM Backup |
| Certificate | |
| In Progress | CE, *FCC, *WEEE, RoHS, *RCM, *WPC |
