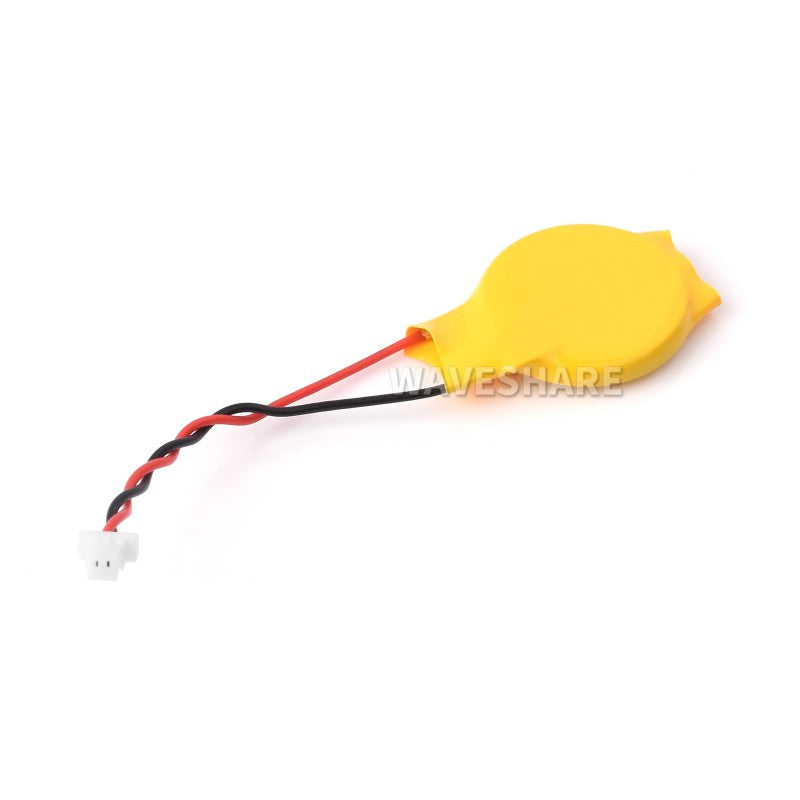

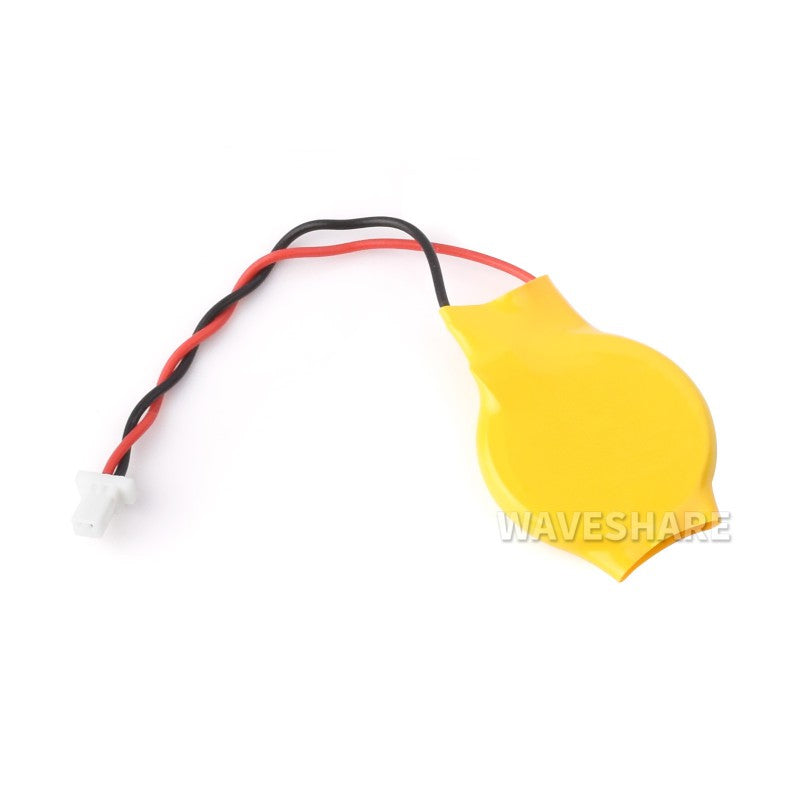

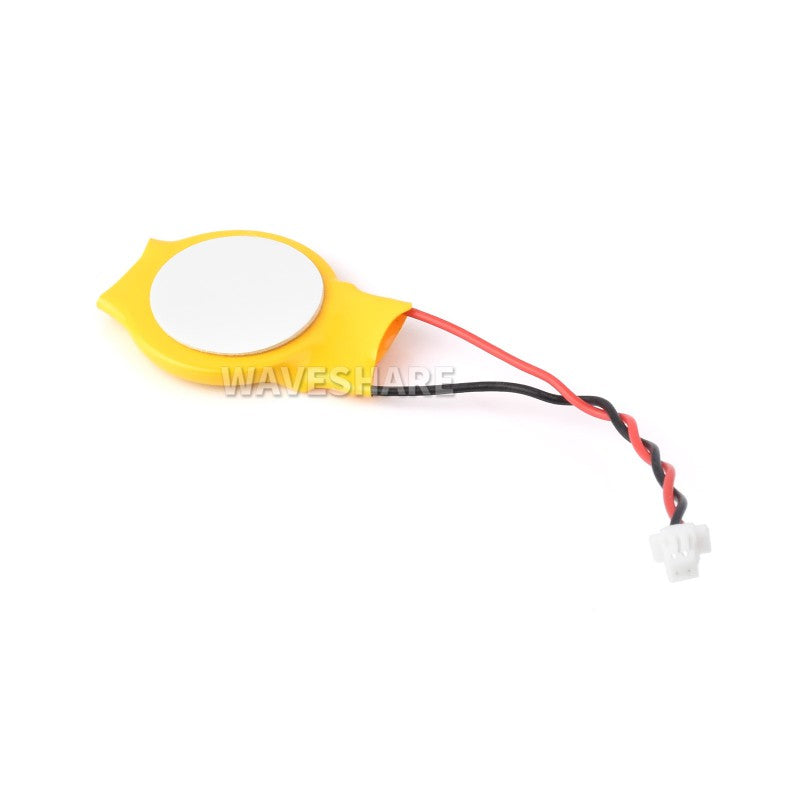

2PIN JST connector, Available in 25mAh / 64mAh / 180mAh Capacity
SAFETY CAUTIONS
Li-ion and Li-po batteries are quite unstable. They may cause fire, personal injury, or property damage, if they're not properly recharged or used.
Do not reversely connect the polarities when recharging or discharging the battery. Do not use inferior charger/charging panel to recharge the battery.
Do not mix use old batteries with new ones, avoid using batteries of different brands.
When buying Lithium battery, should always make sure the battery specification is compatible with the expansion board. Choose batteries from formal manufacturer, and ensure the batteries will work stably and safely by aging test.
Lithium batteries have limited cycle life, they will also deteriorate as time goes by. Should be replaced with new ones when the batteries reaching their max cycle life, or working over two years, whichever comes first.
Should be placed carefully and properly, keep it away from inflammables and explosives articles, away from children, avoid any safety accident caused by careless storage.
Specifications
Version
RTC-Battery-A
RTC-Battery-B
RTC-Battery-C
Battery Model
LIR2025
ML2032
CR2032
Battery Capacity
25mAh
64mAh
180mAh
Battery Dimensions
20.2mm diameter, 2.6mm thickness
20.2mm diameter, 3.3mm thickness
Rated voltage
3.6V
3V
Max voltage
4.2V
3.3V
battery lifespan
After 300 recharge and discharge cycles, the capacity remains above 80% of the initial level
