Magician Lite Robot
Multi-functional Lightweight Intelligent Robotic Arm for K12
The Magician Lite is a multi-functional, lightweight intelligent robotic arm designed specifically for K12 education. Students can interact with the Magician Lite through software, hardware, and expansion interfaces to maximize creative freedom. By building, programming, and playing, learners gain hands-on exposure to AI and robotics concepts while understanding how robots are applied in real-world scenarios.
In addition, DOBOT hosts robotics competitions that encourage students to explore robotics further and develop a long-term interest in technology and innovation.
Excellent Performance & Safe to Use
The Magician Lite weighs only 2.4 kg, making it compact, portable, and easy to deploy in classrooms and learning labs. It offers a repeatability of 0.2 mm, a payload capacity of 0.25 kg, and a working radius of 340 mm.
The robot supports multiple interchangeable end tools such as a soft gripper, suction cup, and pen holder. Built-in collision detection ensures safe interaction, making it suitable for children and beginner users.
Magic Box for Unlimited Capabilities
Magician Lite includes an external controller known as the “Magic Box,” which separates motion control algorithms from user-defined tasks. This architecture allows easier programming, enhanced flexibility, and smoother creative workflows.
The robot supports Bluetooth connectivity and features 12 expansion interfaces, ensuring high openness and compatibility with various hardware modules and educational accessories.
Graphical Programming (Software)

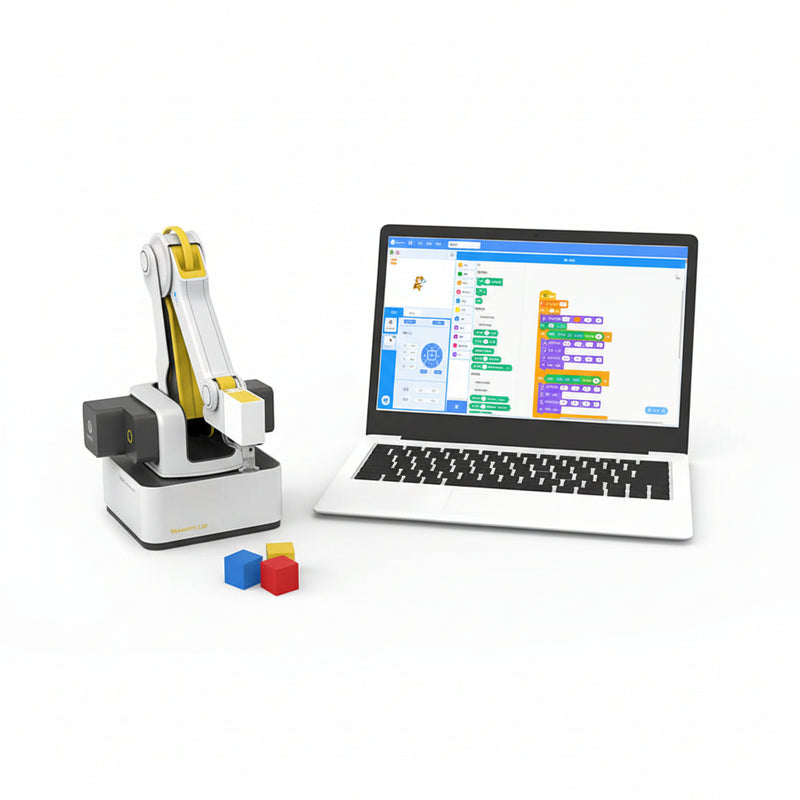

With the DOBOT Scratch software platform, students can program the robot using drag-and-drop coding blocks. This graphical programming approach allows learners to create games, animations, and robotic actions while intuitively understanding programming logic and AI behavior.
All-Age Project-Based Teaching
Magician Lite comes with a complete curriculum system that is divided into three stages from beginner-level to advanced learner-level. The curriculum offers a variety of teaching demos that focus on experiential, project-based and exploratory-based learning. By participating in the DOBOT robotic competitions, students not only put their knowledge to test, but also get to perfect their comprehensive ability, engineering ability and innovation ability.
Magician Lite offers project-based teaching demos that are interactive, practical and interest-oriented,aiming to foster children’s logical thinking, hands-on skills and creativity.
Built to be open and widely compatible, Magician Lite can power legions of miniature immersive application scenarios, which not only help children better understand how AI and robots work in real settings, but also turn them into real-world problem solvers.
Specifications
| DOBOT Magician Lite | |
| Degree of Freedom | 4 |
| Maximum Load | 250 g |

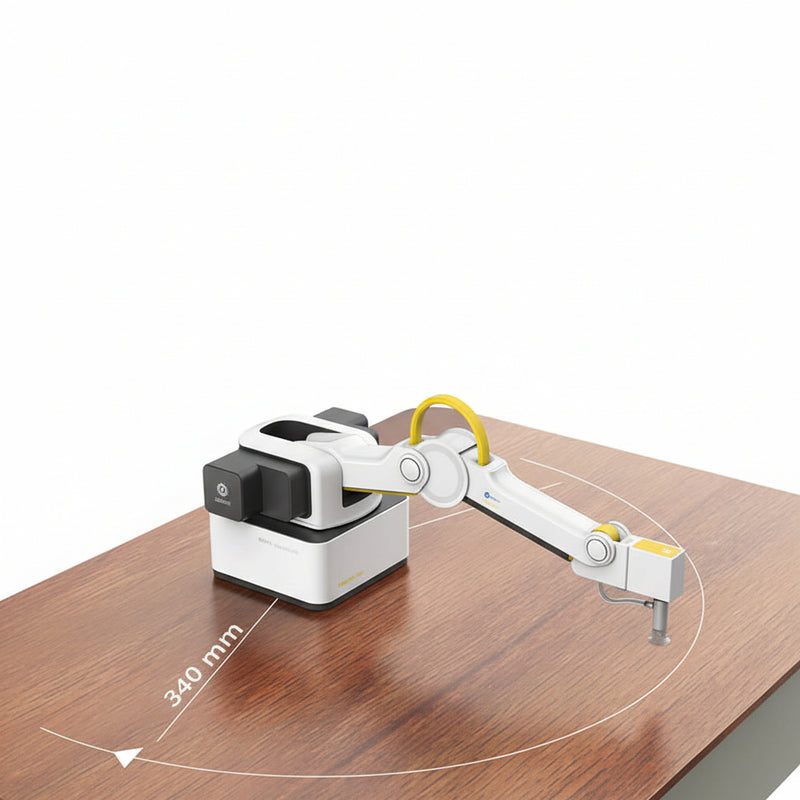

| Max Reach | 340 mm |
| Repeatability | ±0.2 mm |
| Voltage | 100–240V AC, 50/60 Hz |
| Power Input | 12V ~ 5A DC |
| Working Environment | -5° ~ 45°C |
| Power | 60W Max |
| Communication | USB Virtual Serial Port / Serial Port |
| Software | DobotStudio / DobotLab |
| Weight | 2.4 kg |

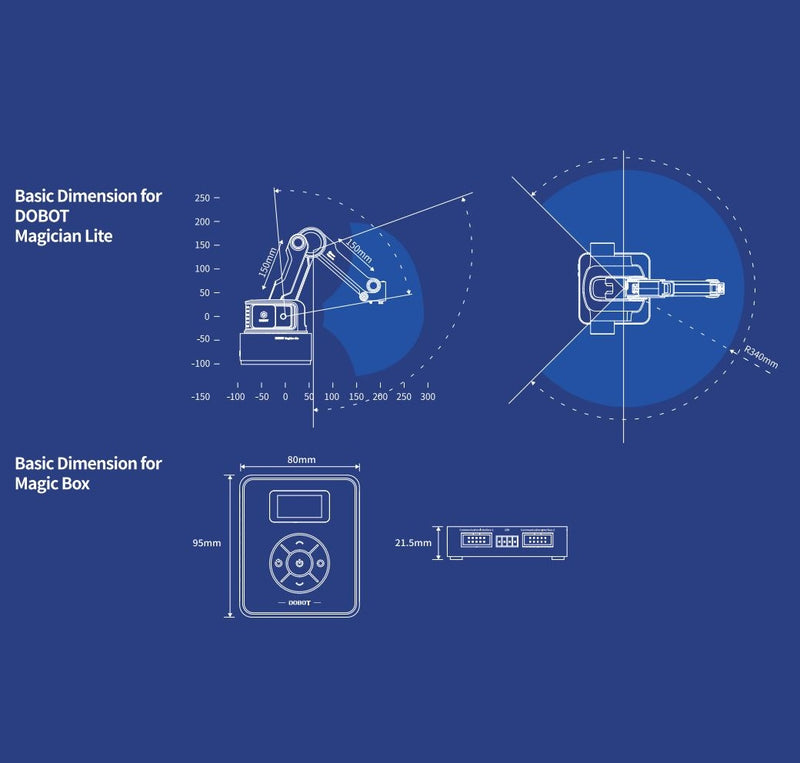

| Rear Arm / Forearm | 150 mm |
| Base Size | 146 × 146 mm |
| Magic Box | |
| MCU | ARM 32-bit Cortex-M4 |
| Main Frequency | 168 MHz |
| Voltage | 100–240V AC, 50/60 Hz |
| Power Input | 12V ~ 5A DC |
| Working Environment | -5° ~ 45°C |
| Power | 60W Max |
| Communication | USB / Serial / Bluetooth |
| Programming Language | MicroPython |
| Software | DobotStudio / DobotLab |
| Weight | 98 g |
| Size | 95 × 80 × 21.5 mm |
| Axis Motion | |
| Axis 1 – Base | -135° to +135° |
| Axis 2 – Rear Arm | -5° to +80° |
| Axis 3 – Fore Arm | -10° to +85° |
| Axis 4 – End Tools | -145° to +145° |
| J1–J3 Max Speed | 300°/s |
| J4 Max Speed | 200°/s |
| End Tools | |

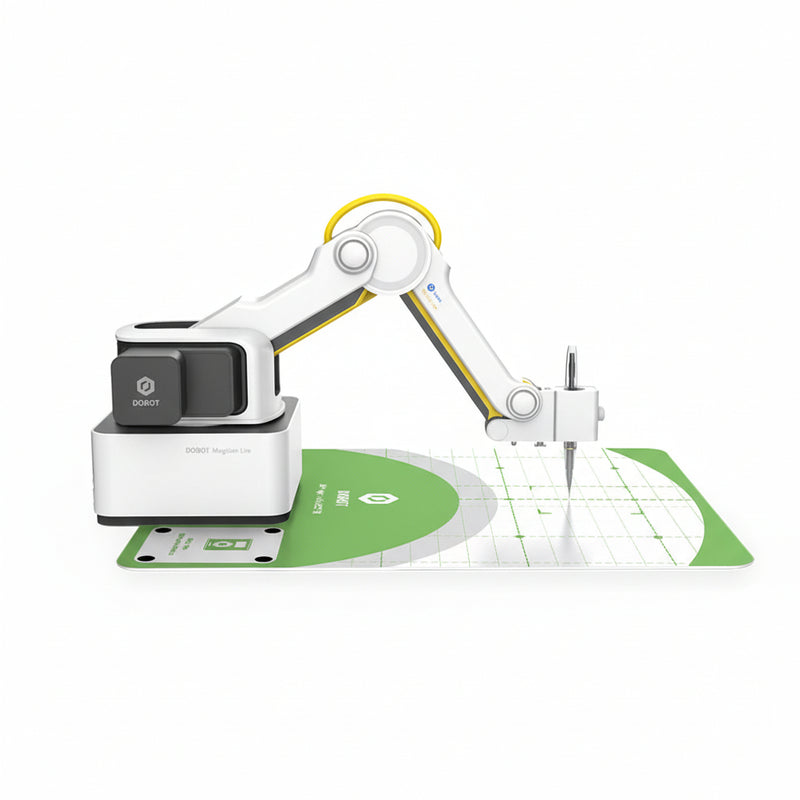

| Pen Holder | Pen Diameter: 8–12 mm |

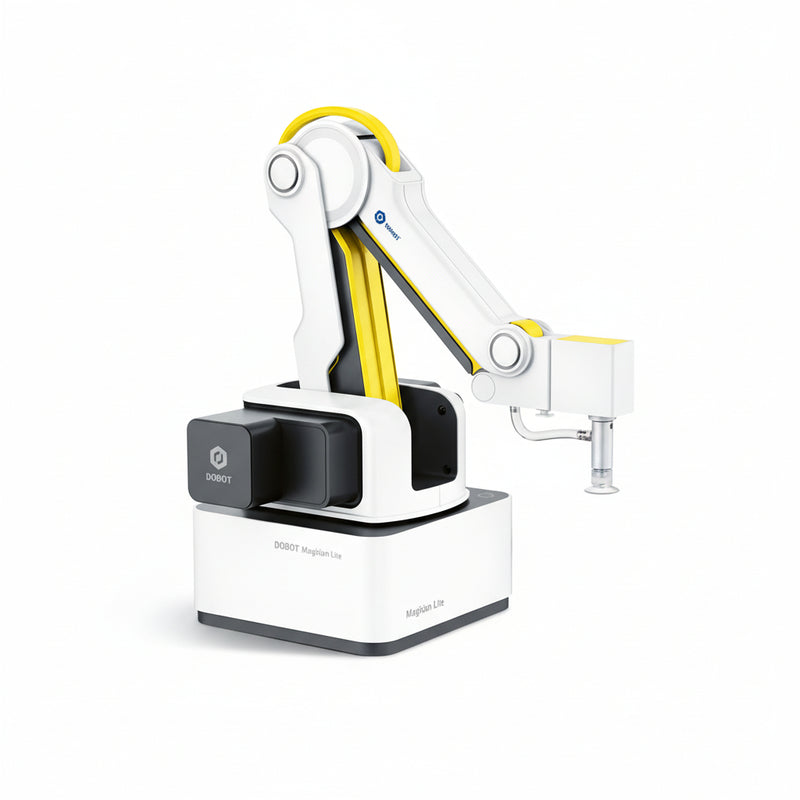

| Suction Cup | 10 mm / 20 mm, Negative Pressure |

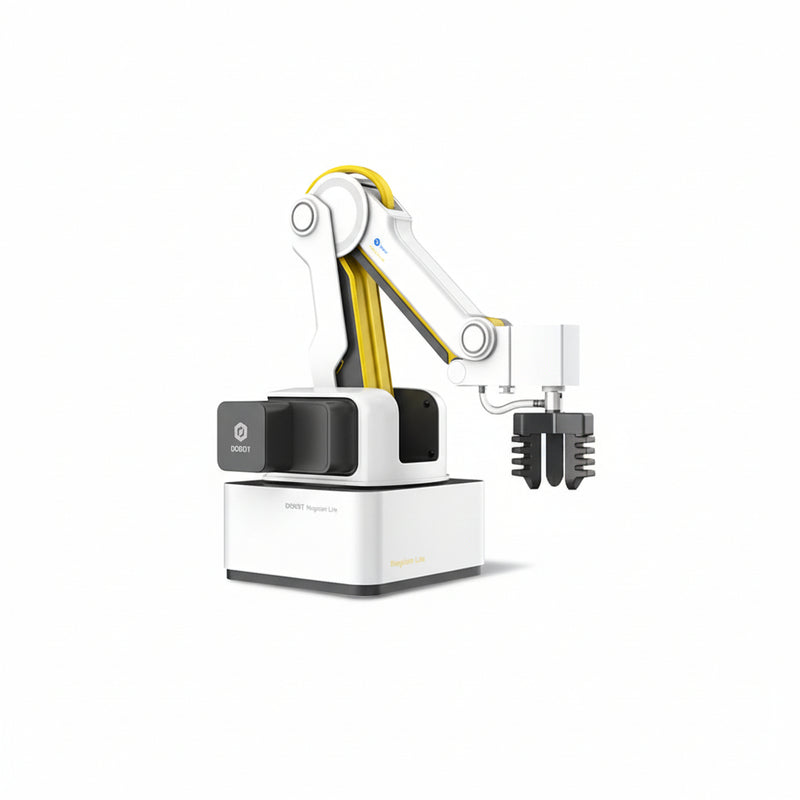

| Soft Gripper | Max opening 50 mm |
| Expansion Interface | |
| Power Interface | 2 × 4PIN, 12V ~ 3A DC |
| Multi-Functional Communication | 2 × 10PIN Serial |
| I/O Interface | GPIO, AD, PWM, I2C (3.3V / 5V) |
| Stepper Motor Interface | 2-Phase, 12V 1A |
| 12V Power Interface | 2 × 2PIN, 12V 3A Max |
| AI Camera Kit | |
| Dimensions | 50 × 44 × 25 mm |
| CMOS | 1/4 inch |
| Image Pixels | 1 MP |
| Image Format | YUV / MJPG |
| Resolution | 240×320 / 640×480 / 1280×720 |
| Frame Rate | 1280×720 @ 30fps |
| Operating Voltage | DC 5V |
| Working Temperature | 0°C ~ 50°C |
| Functions | Face recognition, image recognition, OCR, speech recognition |
What's in the Box?
| Item | Quantity |
|---|---|
| Magician Lite Robot | 1 |
| Building Block Kit | 1 |
| Tool Kit | 1 |
| Soft Gripper | 1 |
| Pen Holder | 1 |
| Suction Cup | 1 |
| Magic Controller | 1 |
| Power Box | 1 |
| Camera Kit | 1 |
| Cable Set | 1 |
| Quick Start Guide | 1 |
