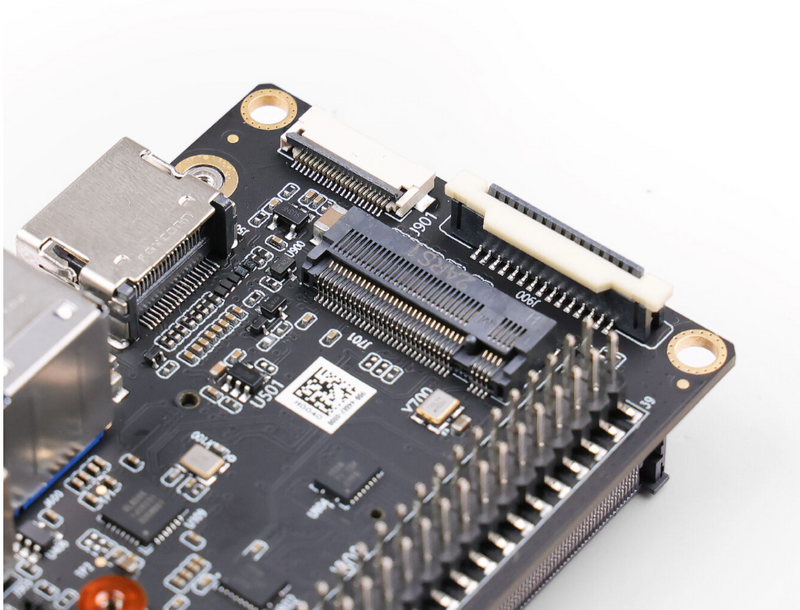

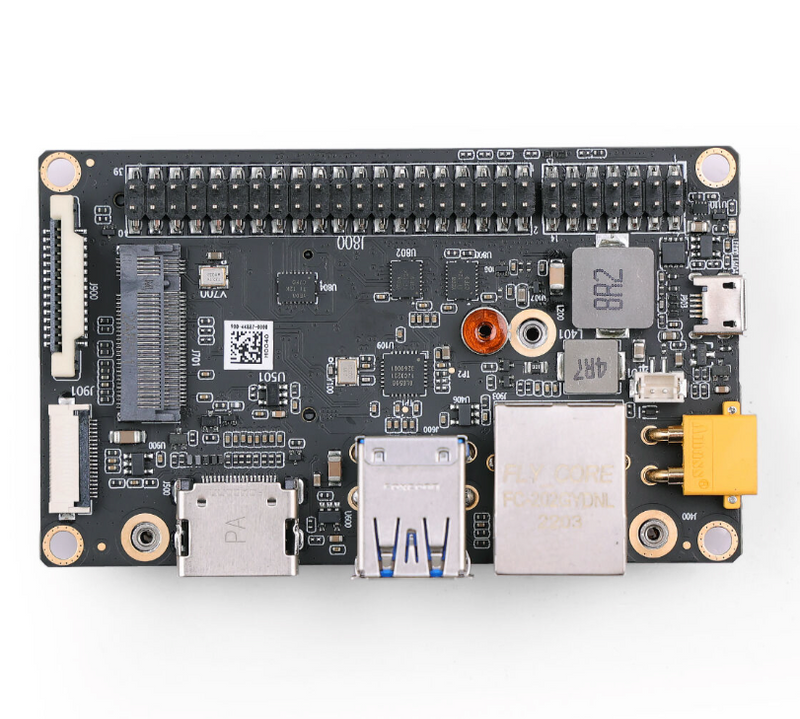

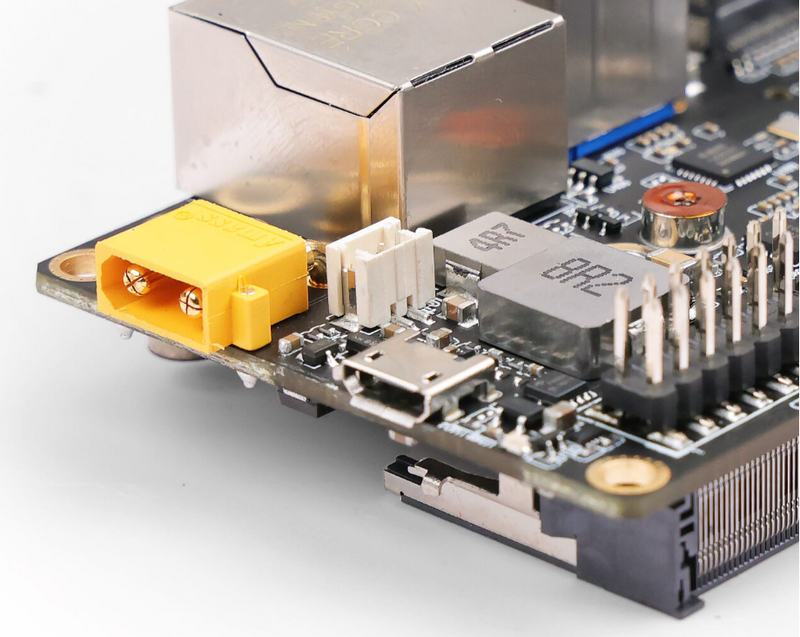

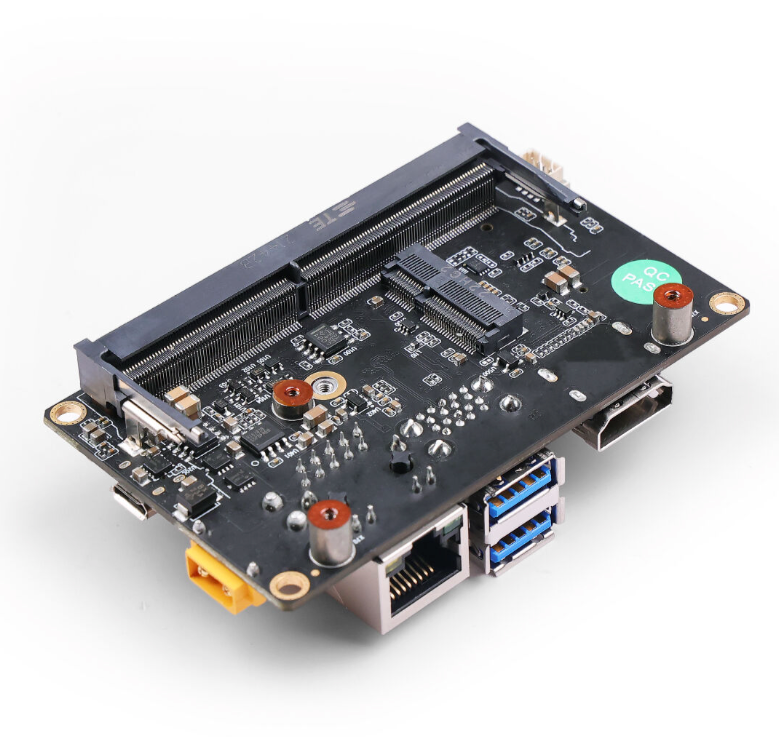

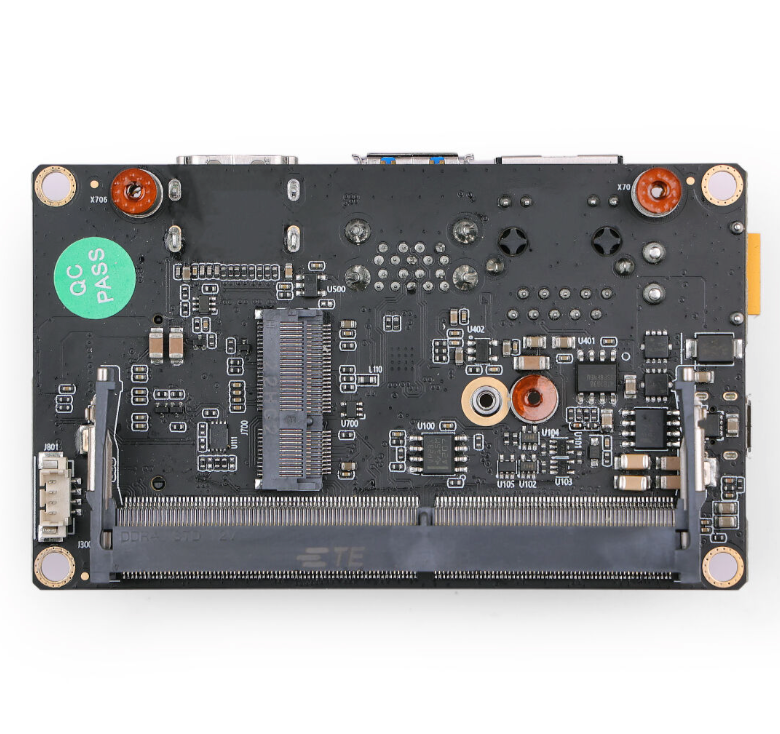

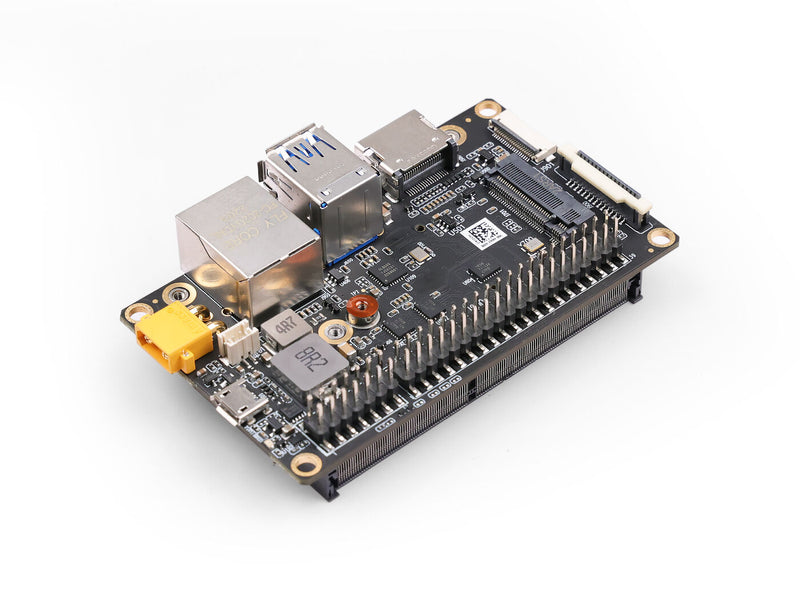

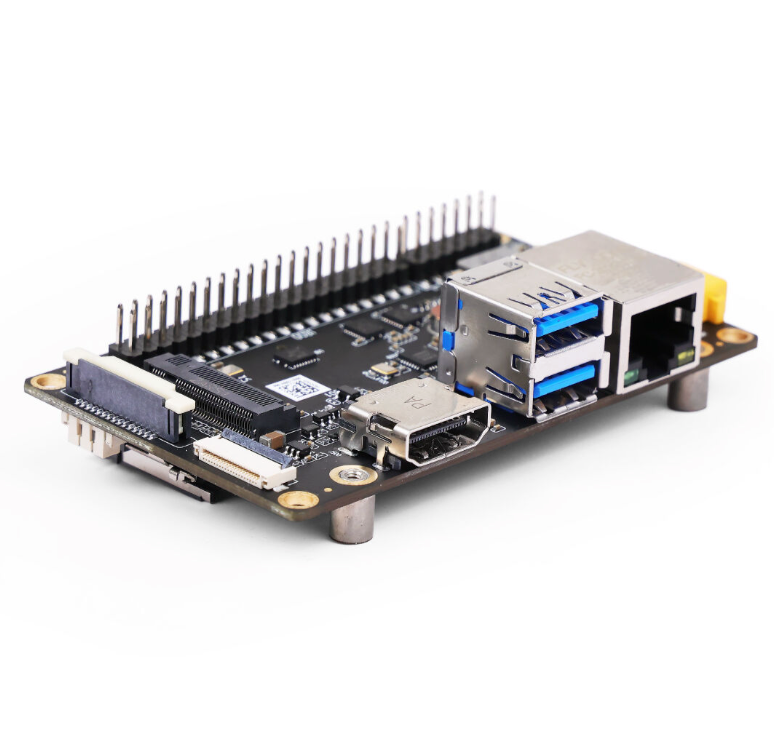

A603 Jetson Carrier Board is a powerful extension board that supports Jetson Orin™ NX/Nano modules. It features 1 GbE port, M.2 Key M for SSD, M.2 Key E for WiFi/BlueTooth, CSI, and HDMI for high-quality video capture and display. It also contains 4x USB ports, fan, RTC, flexible 9-20V power supply. By the compact design, it can be flexible and easy to integrate into a variety of edge computing applications, saving space.
Features
- NVIDIA Jetson Carrier Board: Support NVIDIA Jetson Orin™ NX/Nano Module
- Versatile Connectivity: Offer 1x Gigabit Ethernet for networking, 2x USB 3.0 Type A, 1x USB 3.0 0.5mm pitch 20P ZIF, and 1x USB 2.0 Micro-AB for data transfer
- Advanced Peripherals Supported: Assemble 1x 15 pins CSI camera connector, 1x HDMI display, 1x fan, 1x RTC,1x M.2 PCIe Key E, and 1x M.2 Key M interface for flexible Storage and Expansion
- Wide Range of Input Voltages: From 9-20V DC with input @ 7A, providing flexibility in power supply options
- Compact and Durable during Operation: Design in small size of 87mm*52mm*26mm to save operation space, and maintain function in the temperature range from -25°C to 65℃
Description
A603 Jetson Carrier Board features networking capability that is equipped with a Gigabit Ethernet (10/100/1000) port for fast data transfer speed. It also comes with two USB 3.0 Type-A ports, one USB 3.0 0.5mm pitch 20P ZIF, and one USB 2.0 Micro-AB for versatile connectivity options.
This extension board supports NVIDIA Jetson Orin™ NX/Nano module, allowing multiple peripherals. It can enable users to capture and display high-quality video content with the 15-pin CSI camera connector and the HDMI port.
You can expand storage and wireless connectivity with onboard M.2 KEY M and PCIE M.2 Key E interfaces. There also includes a FAN connector (5V PWM) for cooling purposes and one RTC socket for reliable timekeeping.
The board supports a wide input range of 9-20V DC and has been designed in small size of 87mm*52mm*26mm, making it flexible and easy to integrate into a variety of applications, saving space.
It maintains operation in the temperature range from -25°C to 65℃, which offers a robust mechanical construction.
Applications
- Home robots
- UAVs
- Unmanned boats
- Robotics and drones
- Industrial automation and control systems
- Digital signage and media players
- IoT (Internet of Things) and embedded systems
- Education and prototyping projects
Specification
|
Product Name |
A603 |
|
Jetson Module Supported |
Orin™ NX/Nano |
|
Networking |
1x GigabitEthernet (10/100/1000) |
|
USB |
2x USB 3.0 Type A (Integrated USB 2.0) 1x USB 3.0 0.5mm pitch 20P ZIF 1x USB 2.0 Micro-AB |
|
Camera |
1x 15 pins CSI Camera connect |
|
Display |
1 x HDMI |
|
Fan |
1x FAN connector（5V PWM） |
|
M.2 KEY M |
1x M.2 KEY M 2242 Interface |
|
M.2 Key E |
1x M.2 Key E PCIE 2230 |
|
Multifunctional port |
1* 40-Pin header(2*I2C,1*UART,1*I2S,2*SPI), 1* 14-Pin header(1*UART,1*CAN) |
|
RTC |
1 x RTC socket(rechargeable 3V Lithium Battery Connector) |
|
Power |
wide input 9-20V DC Input @ 7A |
|
Power Adapter |
DC Jack 19V 4.74A(Barrel Jack 5.5/2.5mm) |
|
Mechanical |
(LxW) 87 x 52（mm） |
|
Operating Temperature |
-25℃~65℃ |
Hardware Overview
Part List
|
A603 Carrier Board Jetson Orin™ NX/Nano |
x1 |
