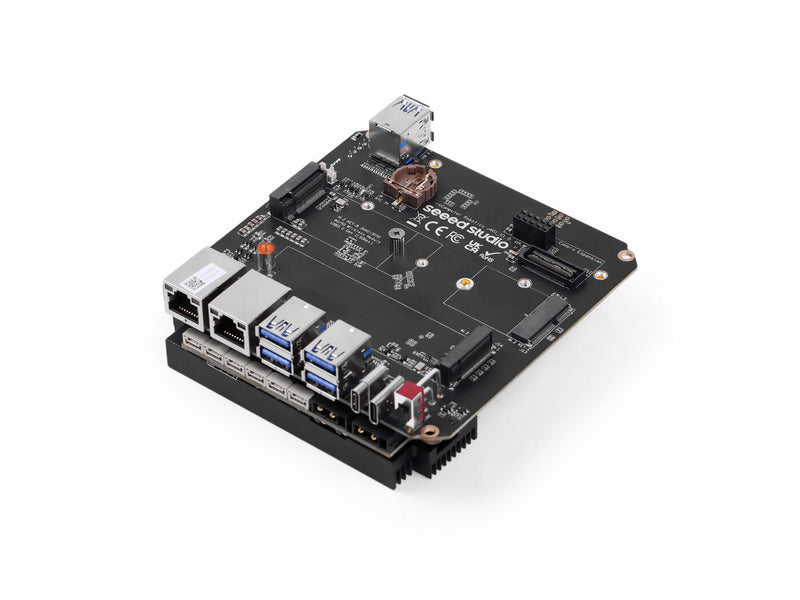

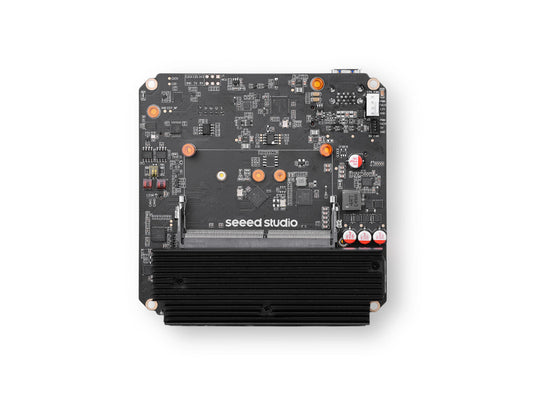

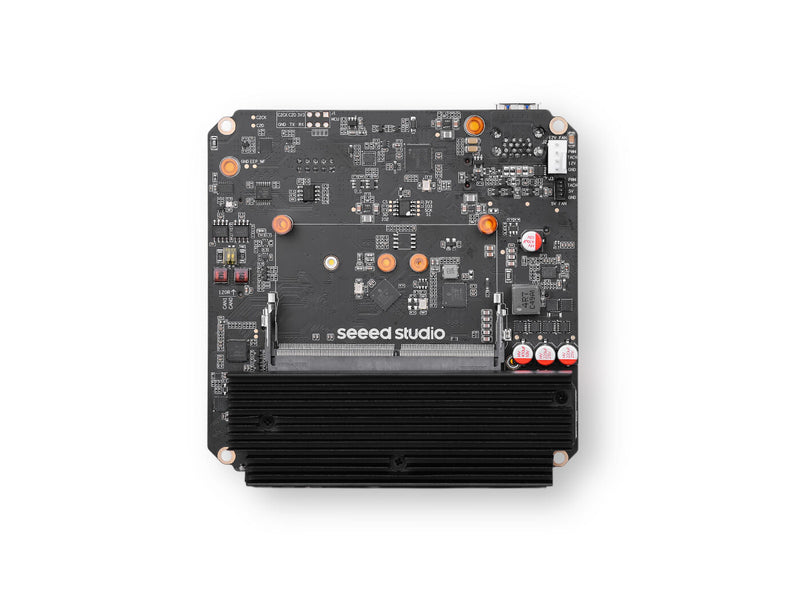

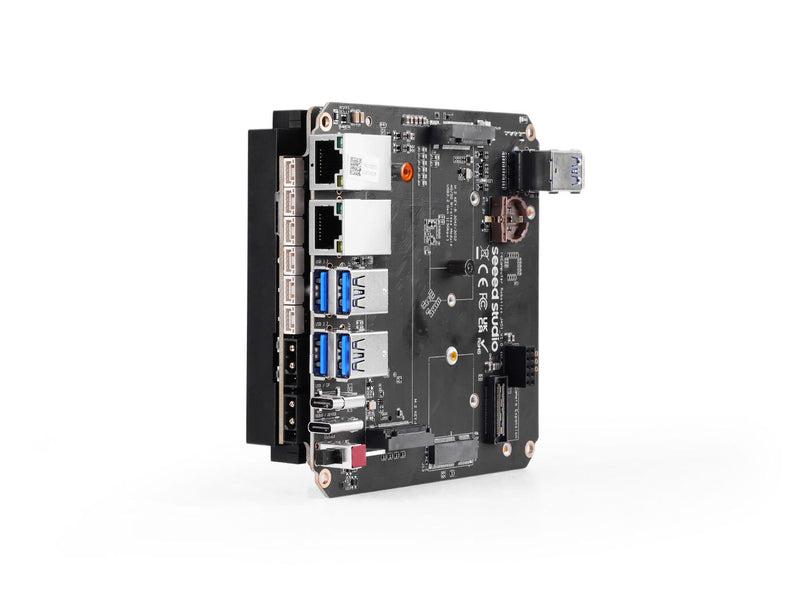

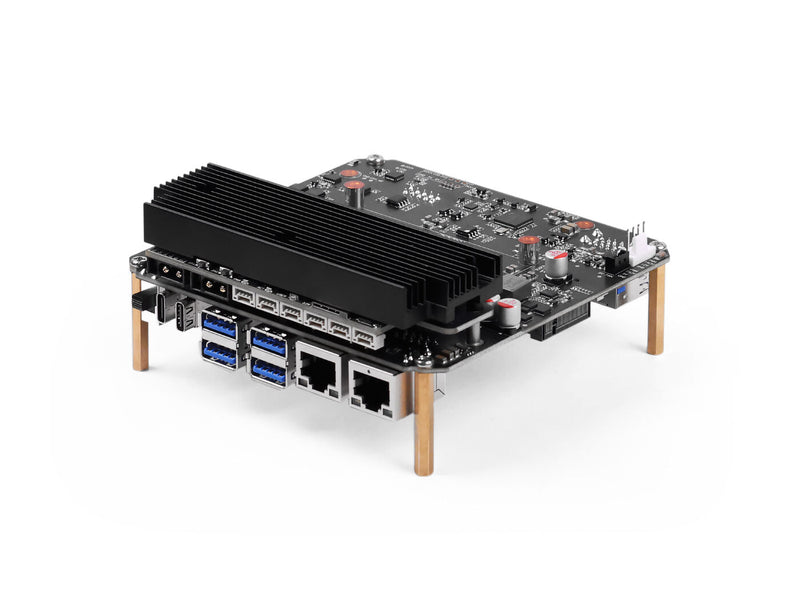

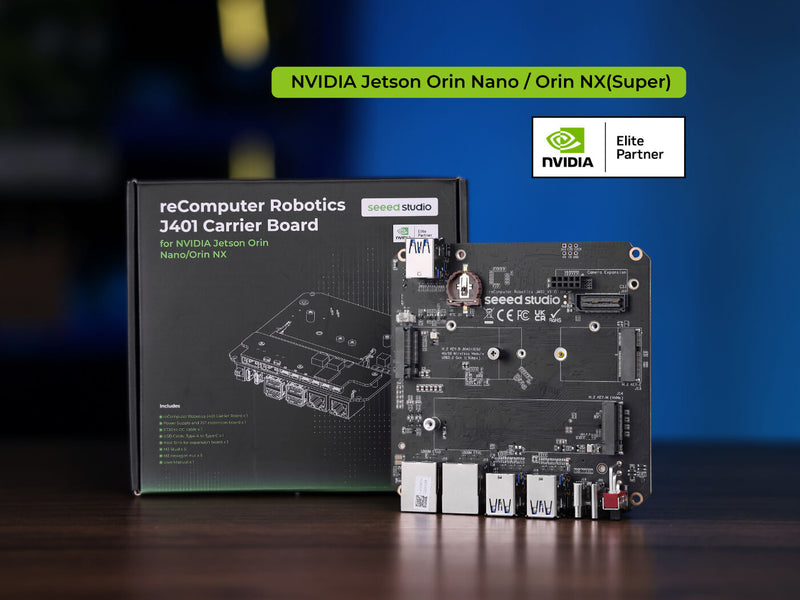

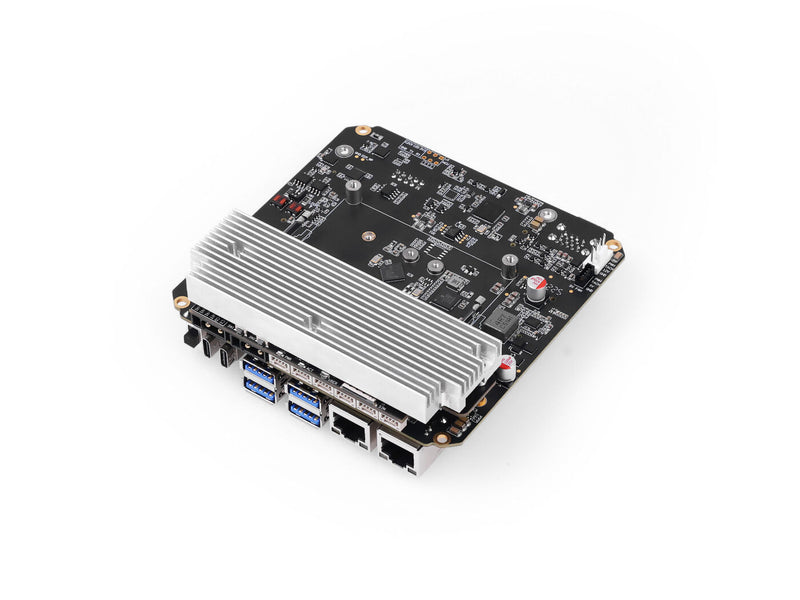

reComputer Robotics J401 Carrier Board for Jetson Orin Nano/Orin NX
The reComputer Robotics J401 is a compact, high-performance edge AI carrier board designed for advanced robotics. Compatible with NVIDIA Jetson Orin Nano/Orin NX modules in Super/MAXN mode, it delivers up to 157 TOPS of AI performance. Pre-installed with JetPack 6.2 and Linux BSP, it ensures seamless deployment, serving as a powerful robotic brain capable of processing complex data from various sensors.
Feature
| Robust Hardware Design | Compact, high-performance AI computer supporting Jetson Orin Nano/NX (Super/MAXN mode), up to 157 TOPS |
| Interfaces for Robotics | Dual RJ45, M.2 slots (5G/Wi-Fi/BT), 6x USB 3.2, 2x CAN, GMSL2 (optional), I2C, UART |
| Software Setup | Pre-Installed JetPack 6.2 and Linux BSP |
| Application | Ideal for rapid development of autonomous robots and AI projects |
| Operating Temperature | -20°C to 60°C @25W mode, -20°C to 55°C @40W mode |
Jetson Modules Performance with Super Mode
Enhanced power management
Improved higher frame rate processing
Reduced inference time
Specification
| Parameter | Specification |
|---|---|
| Supported Jetson Module | Jetson Orin Nano / Orin NX |
| Supported Module Power | 7W, 10W, 15W, 20W, 25W, 40W |
| Storage | 1x M.2 Key M PCIe |
| Networking | 1x M.2 Key E (Wi-Fi/Bluetooth) 1x M.2 Key B (5G Module) |
| Ethernet | 2x RJ45 Gigabit Ethernet |
| USB | 6x USB 3.2 Type-A (5Gbps) 1x USB 3.0 Type-C (Host / DP 1.4) 1x USB 2.0 Type-C (Device / Debug) |
| Camera | 1x 4-in-1 GMSL2 (Mini Fakra, optional) |
| CAN | 2x CAN0 (XT30 2+2), 3x CAN1 (4-Pin GH-1.25) |
| Display | 1x DP 1.4 (via Type-C Host) |
| UART | 1x UART (4-Pin GH-1.25 Header) |
| I2C | 2x I2C (4-Pin GH-1.25 Header) |
| Fan Connectors | 1x 4-Pin (5V PWM), 1x 4-Pin (12V PWM) |
| Extension Port | 1x Camera Expansion Header (for GMSL2 board) |
| RTC | 1x 2-pin RTC header, 1x RTC Socket |
| LED | 3x LED (PWR, ACT, User) |
| Pinhole Buttons | 1x Power, 1x Reset |
| DIP Switch | 1x REC |
| Antenna Holes | 5x Antenna Holes |
| Power | 19–54V via XT30 (2+2); XT30 to 5525 DC cable included |
| JetPack Version | JetPack 6.2 |

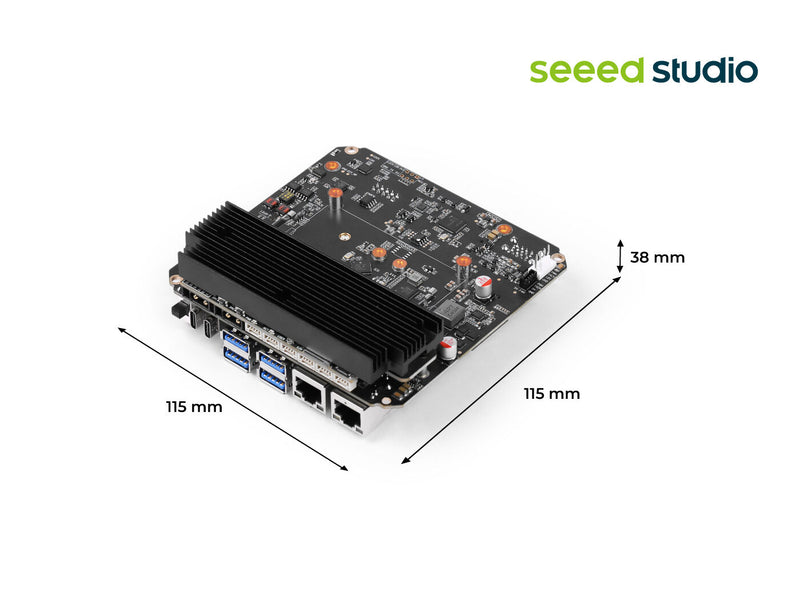

| Dimensions | 115mm x 115mm x 38mm |
| Weight | 200g |
| Installation | Desk or Wall-Mounting |
| Operating Temperature | -20℃ to 60℃ (25W Mode), -20℃ to 55℃ (MAXN Mode, with heatsink + fan) |
| Warranty | 2 Years |
| Certifications | RoHS, REACH, CE, FCC, UKCA, KC |
Hardware Overview
Application

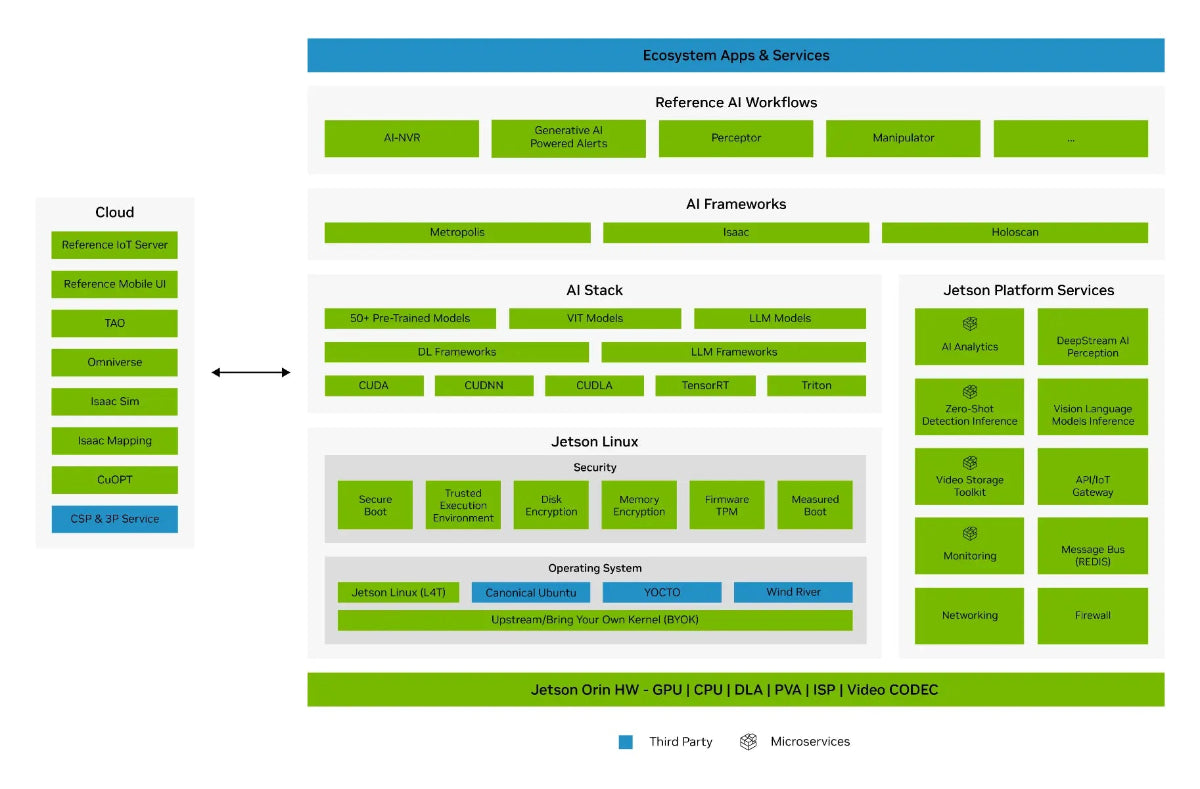

The NVIDIA AI software stack is designed for accelerate AI application and deployment:
Designed for Edge AI Computer Vision Applications:
Jetson Platform Services provide a platform to simplify development, deployment and management of Edge AI applications on NVIDIA Jetson like BEV sensing demo with 4 USB cameras.
Designed for demanding AI applications:
Such as AMR, smart retail, industrial automation, and video surveillance, smart video analysis scenario
We have Jetson-example prepared for you! It offers one-line deploy projects edge AI applications of generative AI including Ollama, Llama3; computer vision including YOLOv8, and others. We have configured all environment for you to provides single command deployment of projects.
Documents
Mechanical Document-reComputer Robotics PCBA
Seeed Nvidia Jetson Product Catalog
Seeed Nvidia Jetson Success Cases
reComputer_Robotics_J401_Thermal_Design_Guide
Wiki & Learn
[Wiki] reComputer Jetson Robotics J401 Hardware and Getting Started

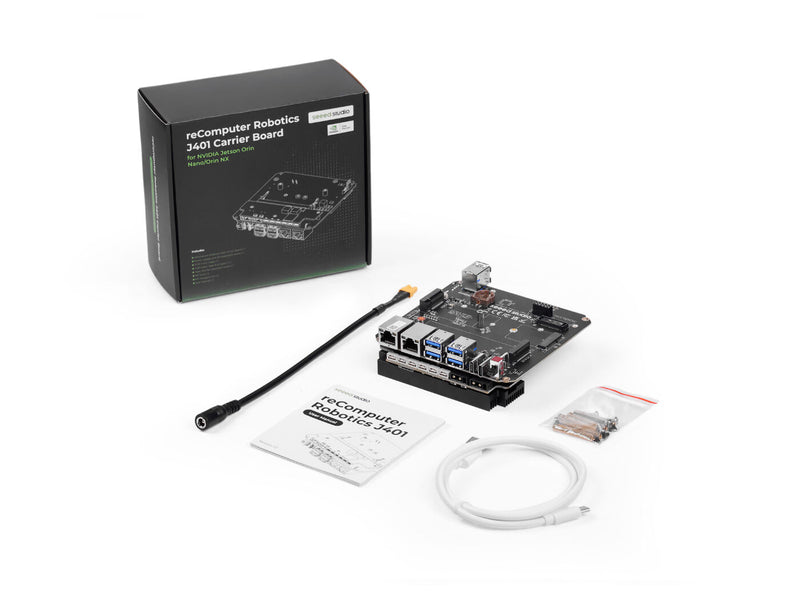

Part List
reComputer Robotics J401 Carrier Board x 1
XT30 to DC cable x 1
USB Cable, Type A to Type C x 1
Heat Sink for expansion board x1
Screws & Studs Pack x1
User Manual x 1
