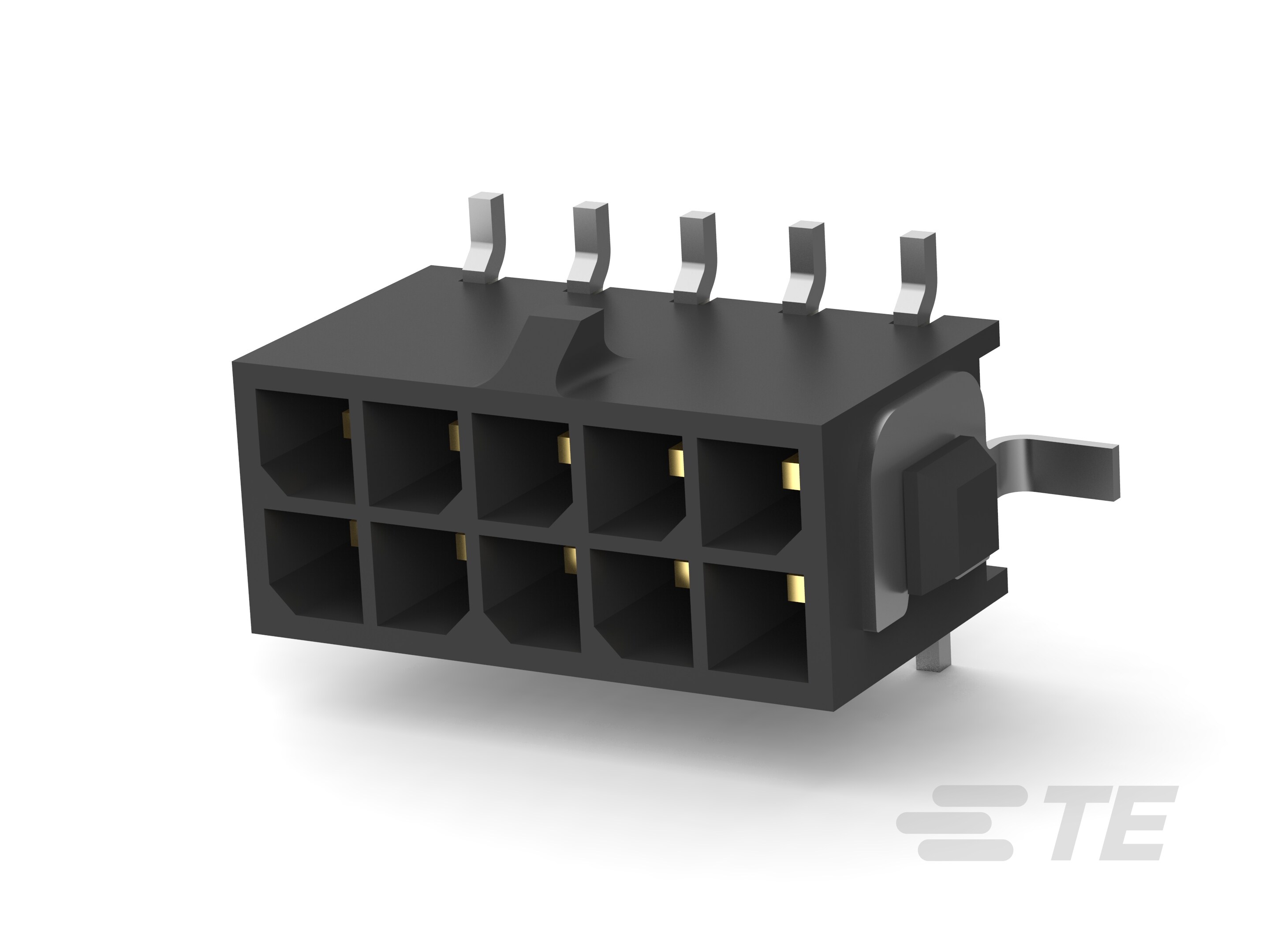

TE Connectivity AMP Part Number 4-794637-0 - Micro Mate-N-Lok 10P Micro Modular Assy VRT
Enhance your electronic connection solutions with the TE Connectivity AMP Micro Mate-N-Lok 10P Micro Modular Assembly. Designed for reliable wire-to-wire and wire-to-board connections, this connector system offers precision, durability, and versatility for various applications.
Product Type: Connector
Category: Pin & Socket Connectors
Manufacturer: TE CONNECTIVITY/AMP BRAND
Part Number: 4-794637-0
Country of Origin: CN
UOM: EA (Each)
ECCN: EAR99
RoHS Compliant: Yes
Package Type: Reel
The Micro Mate-N-Lok connector system features contacts on a 3 mm (0.118 inch) centerline, supporting current ratings up to 5 Amps per line. It accommodates wire sizes from 30-18 AWG (0.05-0.9 mm²) with insulation diameters up to 1.52 mm. The system supports multiple configurations including wire-to-wire, wire-to-panel, and wire-to-board, with options for single-row and dual-row layouts.
Key Features and Benefits
Wire-to-wire and wire-to-board pin and receptacle connector system
Contacts available in strip form or loose piece
Supports both panel mount and free-hanging configurations
Dual beam receptacle contact design for improved reliability
PCB mount pin header assemblies in vertical and right-angle styles
Available in low-profile design (<4.7 mm)
Discrete wire interconnects for 2-12 (single row) and 2-24 (dual row) positions
Housing options for 18 AWG wire up to 6 positions
UL, CSA, and VDE approved for safety and compliance
Technical Specifications
Wire Size Range (AWG / mm²)
Insulation Diameter Range
Receptacle Part No.
Pin Part No.
Plating
Application Tooling
Hand Tool
26-30 / 0.12-0.05
.035-.060 / 0.89-1.52
794607
794611
Tin / 15μ Gold
2151142-1
91502-1
20-24 / 0.50-0.20
.035-.060 / 0.89-1.52
794606
794610
Tin / 15μ Gold
2151022-1
91501-1
22-18 / 0.3-0.9
.059-.110 / 1.50-2.79
2008625
-
Tin / 15μ Gold
2266495-1
2217299-1 (18AWG)
Product Applications
Household appliances
Lighting
Factory automation
Data storage
Gaming
Vending
Garage door openers
Security systems
Product Images
For detailed specifications and installation instructions, please refer to the datasheet.
Note: Datasheet was not processed please search the internet for the part number for more details.
