TE CONNECTIVITY/AMP BRAND P&S Connectors HDR ASSY 14 POS 30AU VERT SMT
Part Number: 4-794638-4
Manufacturer: TE CONNECTIVITY/AMP BRAND
Country of Origin: CN
Unit of Measure: Each (EA)
ECCN: EAR99
Package Type: Reel
RoHS Compliant: Yes
Product Category: Connector | Pin & Socket Connectors
This high-quality connector from TE CONNECTIVITY/AMP BRAND is designed for reliable wire-to-wire and wire-to-board connections, featuring 14 positions with vertical surface mount configuration. It is suitable for a variety of electronic applications requiring secure and durable pin and socket connections.
Product Features
Wire-to-wire and wire-to-board pin and receptacle connector system
Contacts on 3 mm (0.118) centerline spacing
Available in strip form or loose piece
Panel mount or free-hanging versions
Dual beam receptacle contact design for enhanced reliability
PCB mount pin header assemblies in vertical and right-angle styles
Surface mount and through-hole configurations with multiple board mount options
Low profile design (<4.7 mm)
Suitable for 30-18 AWG wire with insulation diameters up to 1.52 mm
UL, CSA, and VDE approved
Specifications & Applications
The connector supports current ratings up to 5 Amps per line, making it ideal for household appliances, lighting, factory automation, data storage, gaming, vending machines, garage door openers, and security systems.
Contact & Compatibility Details
Wire Size Range AWG (mm²)
Insulation Diameter Range
Receptacle Part No.
Pin Part No.
Plating
Application Tooling
Hand Tool
26-30 (0.12-0.05)
.035-.060 (0.89-1.52)
794607
794611
Tin, 15μ Gold, 30μ Gold
2151142-1
91502-1
20-24 (0.50-0.20)
.035-.060 (0.89-1.52)
794606
794610
Tin, 15μ Gold, 30μ Gold
2151022-1
91501-1
22-18 (0.3-0.9)
.059-.110 (1.50-2.79)
2008625
-
Tin, 15μ Gold, 30μ Gold
2266495-1
2217299-1 (18AWG)

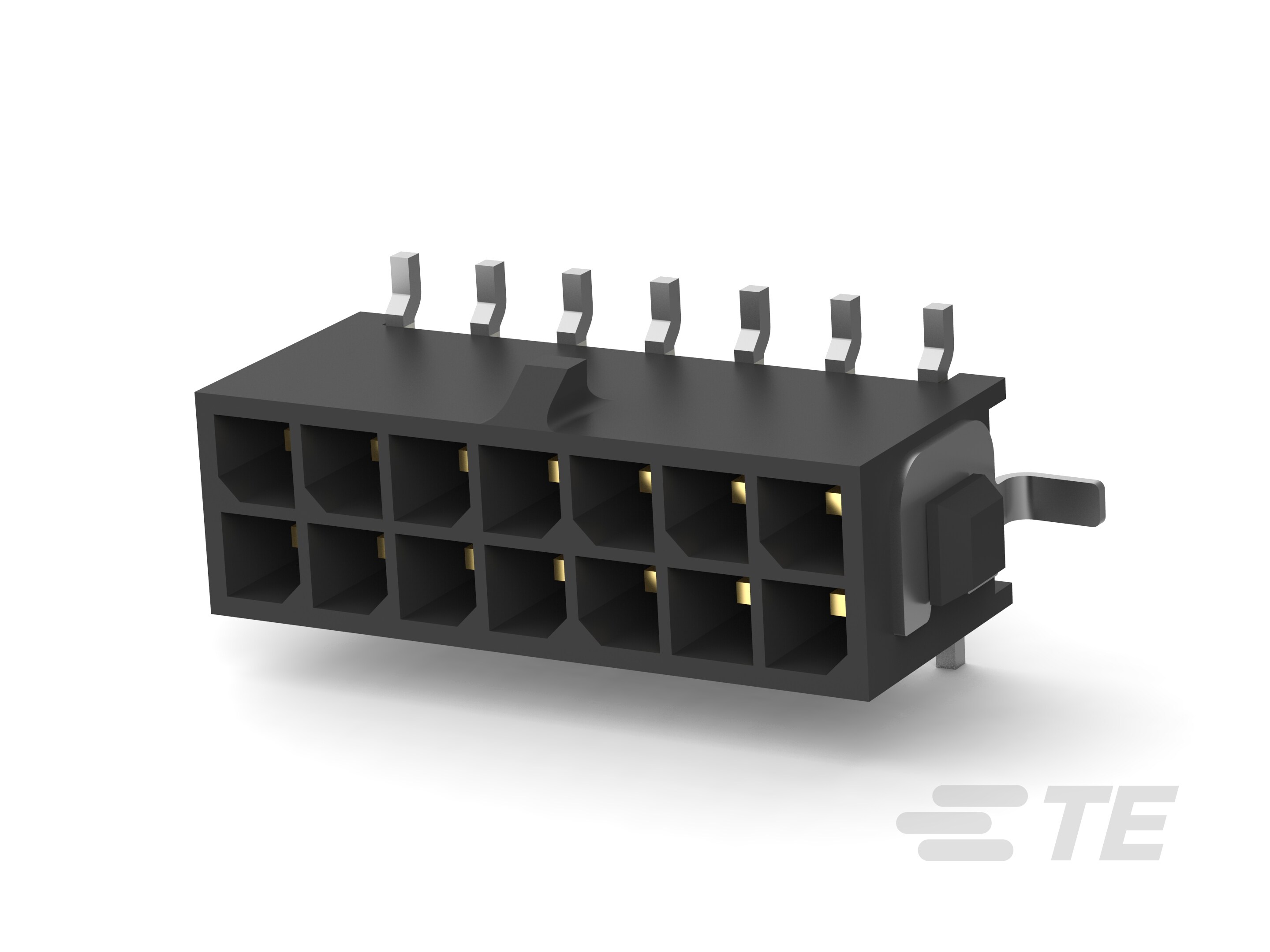

Product Images
Additional Resources
For detailed specifications and installation instructions, please refer to the Datasheet.
Note: The datasheet was not processed; please search the internet for the part number 4-794638-4 for more details.
