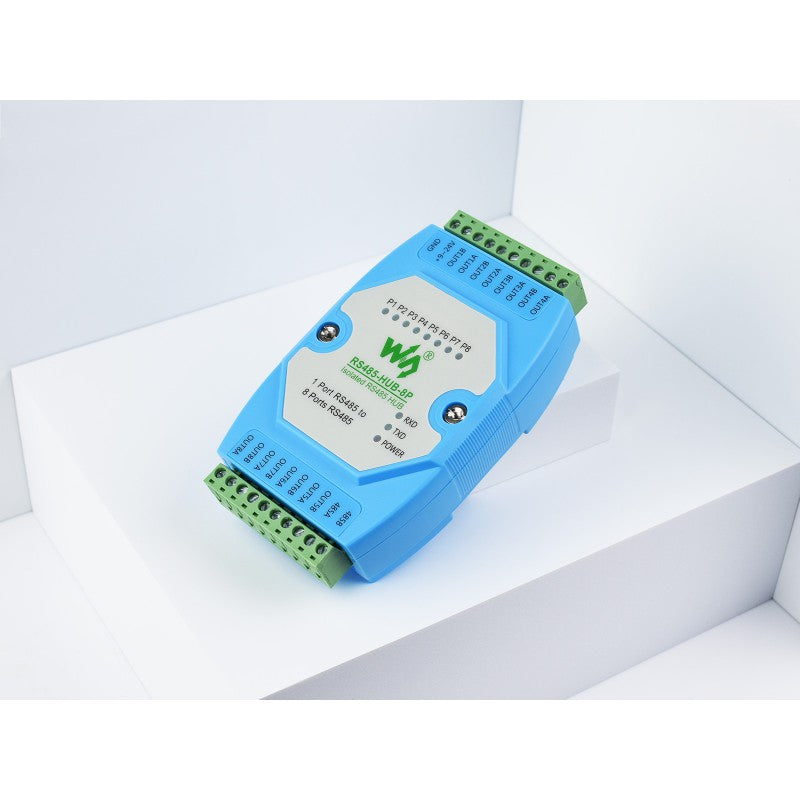

Industrial-grade Isolated 8-ch RS485 Hub, Rail-mount Support, Wide Baud rate Range
Isolated 8-ch RS485 hub
Extends 8-ch RS485 slave ports via 1-ch RS485 master port,
Features
RS485-HUB-8P is an industrial grade isolated RS485 hub that can expand 8-ch RS485 slave ports through 1-ch RS485 master port, can realize relay, extension and isolation functions of RS485 network, with screw terminal for power input. Rail-mount case design, easy to install, and cost-effective. It is suitable for applications like data acquisition, IoT gateway, safety & security IoT, and intelligent instrument monitoring.
Specifications
Interface standard
Compliant with RS485 standard
Physical interface
RS485 screw terminals
Baud rate
300~460800bps (self-adaptive)
supported nodes
Each RS485 port supports up to 32 nodes
Communication distance
1200m (9600bps), the higher rate the shorter distance
Operating mode
RS485 two-wire (A, B), half-duplex transparent transmission
Power supply
DC 9~24V
Operating temperature
-45 ~ +85℃
Environment humidity
<95%RH
Transmission medium
Normal parallel cables/twisted-pair cables
Primary function
Supports RS485 network relay, extension and isolation functions
Connection diagram
The isolated RS485 master port can be connected to the RS485 host device, and the extended 8-ch isolated RS485 port can be connected to various RS485 slave devices, such as RS485 sensors, etc.
Generally the RS485 requires a hand-in-hand connection, if a star connection (master station as the center) is required, this RS485 hub can effectively isolate the connection interference between multiple RS485.
Industrial isolation protection
Built-in photoelectric isolation protection circuit, can effectively isolate RS485 master and slave devices to avoid the damage of ground potential difference between devices, anti-electrostatic, lightningproof & anti-surge, which is suitable for the industrial environment with high reliability and safety requirements.
Wide baud rate range
Supports 300～460800bps wide baud rate communication range (self-adaptive)

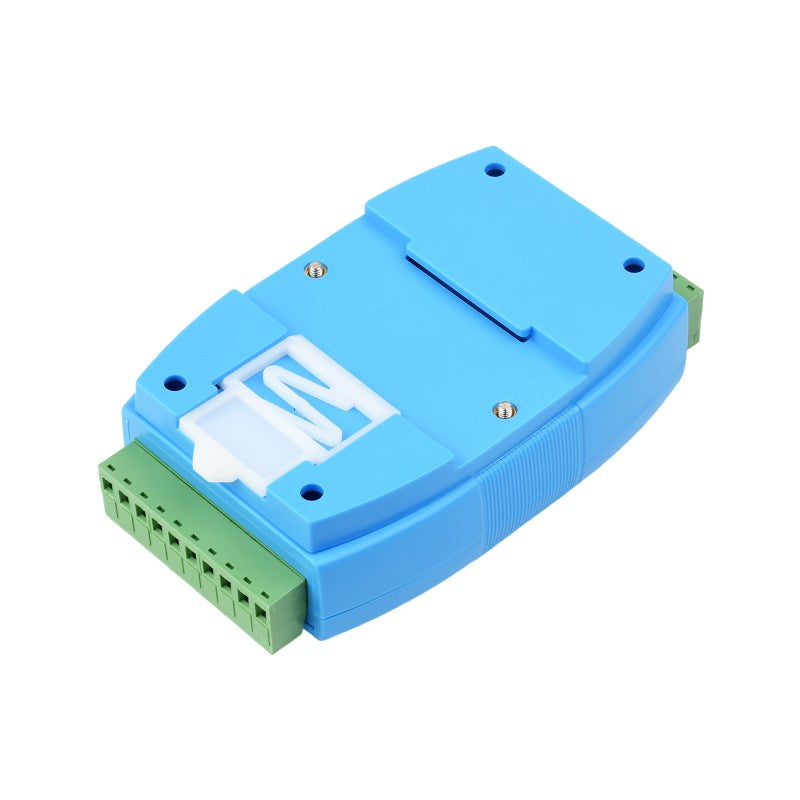

Rail-Mount Support

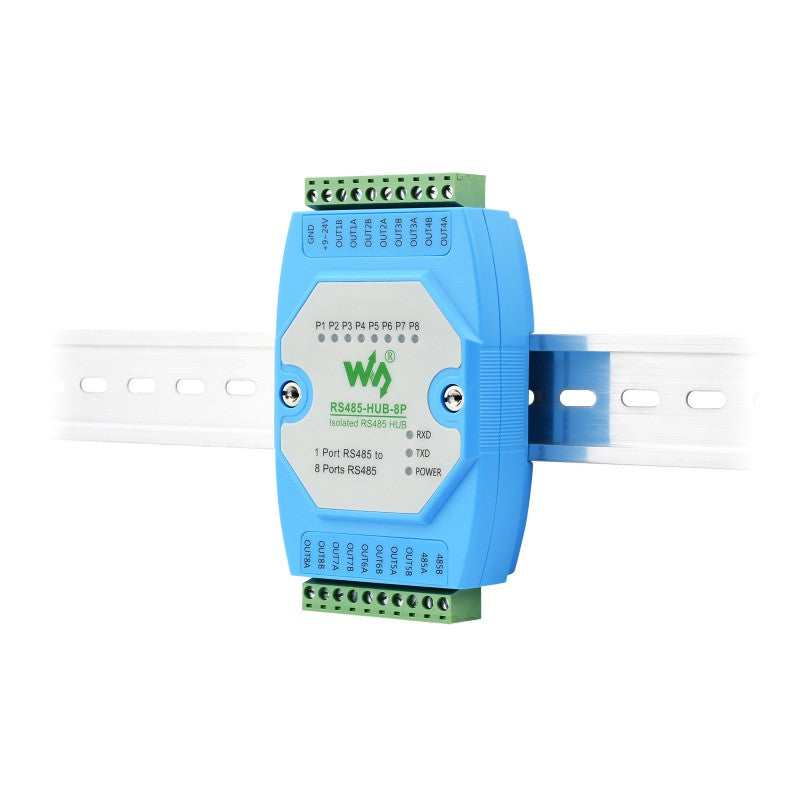

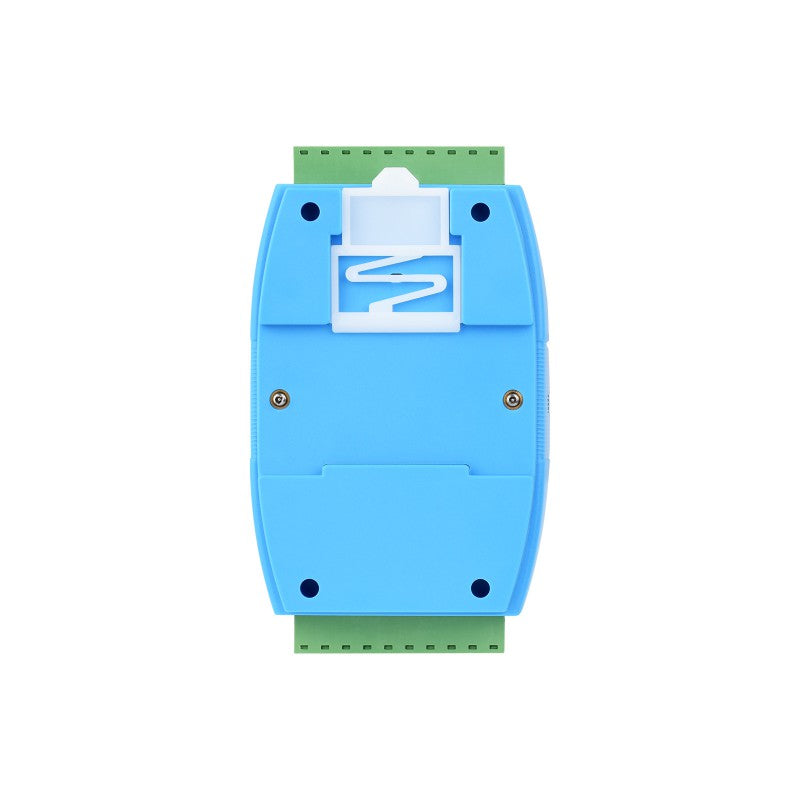

Supports 35mm standard guide rail, with rail-mount buckle, easy to install.

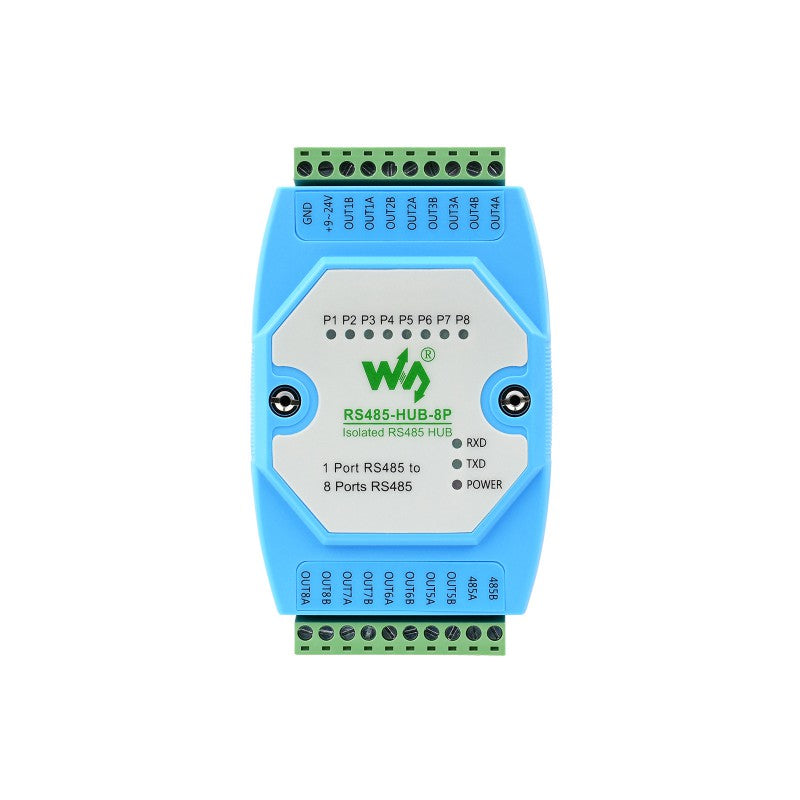

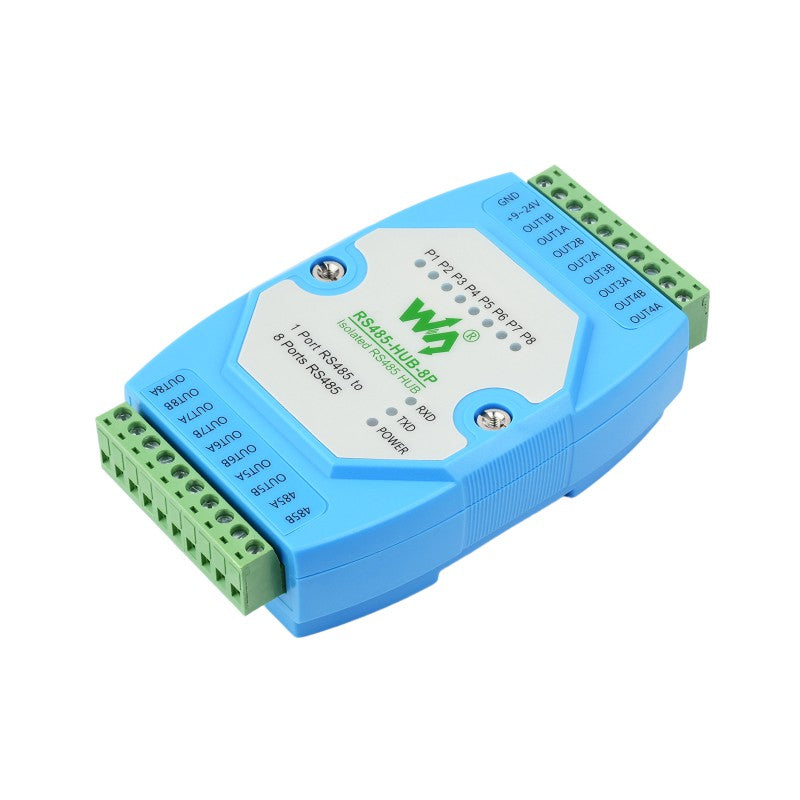

Interface introduction
Dimensions
Resources
Wiki: www.waveshare.com/wiki/RS485-HUB-8P
Package Contains:
Weight: 0.147 kg
RS485-HUB-8P x1 (The power supply of this product is not included, please purchase the power supply separately according to your need.)
