1.54" OLED Display Module (128 X 64)

SKU: ELC2061-W

₹ 999.99 ₹ 1,199.99

Out of stock

Select variant

SPI White (7 Pin)
📦 Min order 1

Enter your email or your WhatsApp number.
Chat with us on WhatsApp We reply quickly! Contact Us
1.54" OLED Display Module (128 X 64)SPI White (7 Pin)₹ 999.99
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

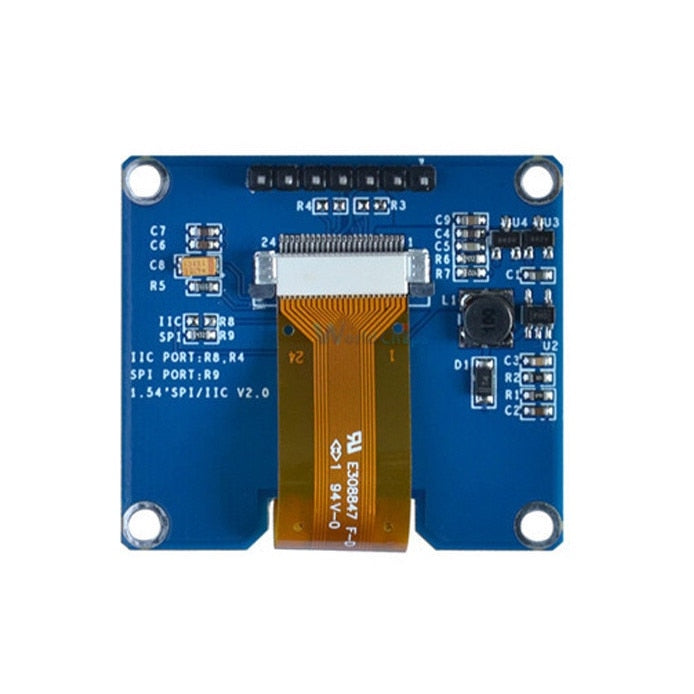

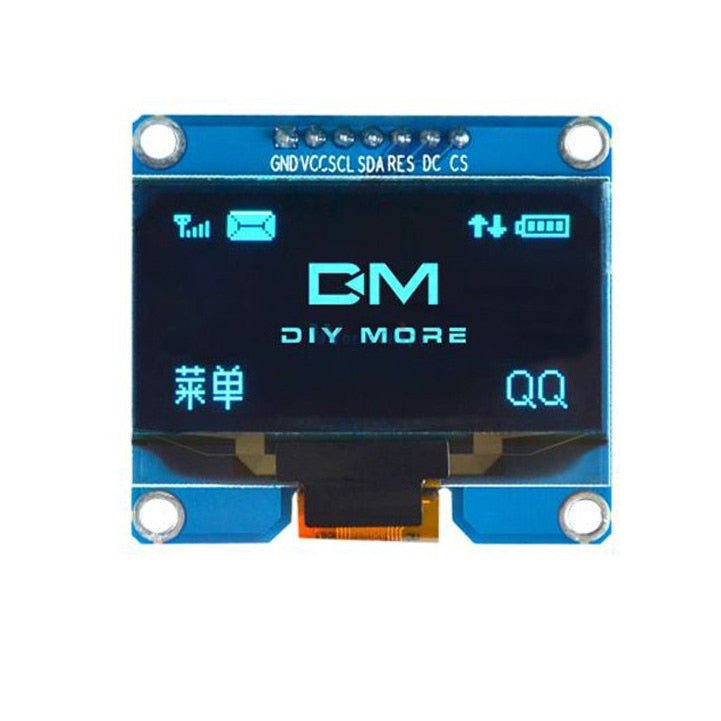

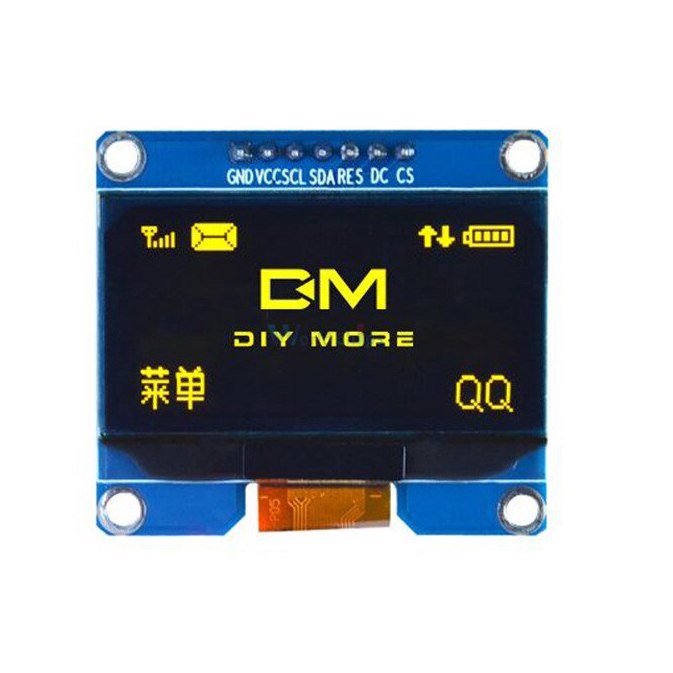

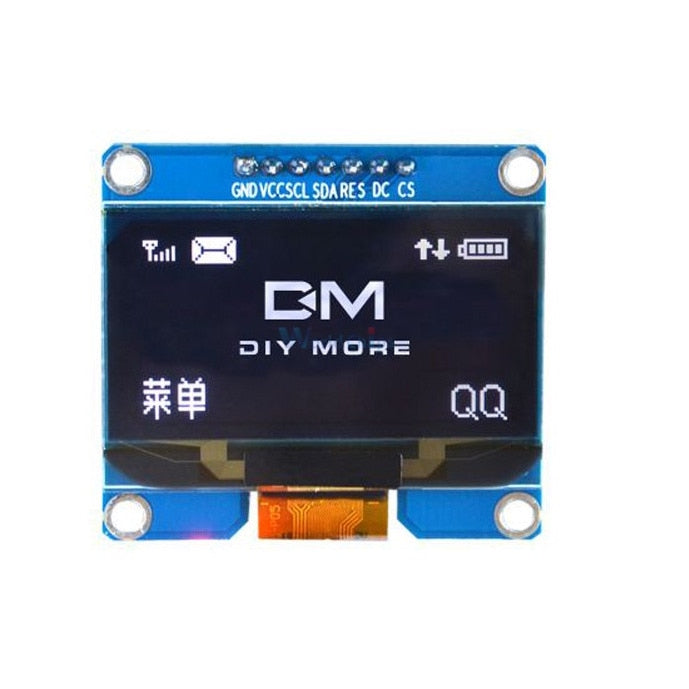

This is a dot matrix 128x64 COG graphic type OLED module. The size of the active area is 1.54” diagonal with module dimension 42.04 x 27.22 mm.

This 1.54 inches OLED module has built-in IC SPD0301, and boasts high contrast ratio 10,000 : 1, operating in 7 Pin SPI format.

Product Introduction:

  • Size: 1.54 inch
  • Resolution: 128 X 64

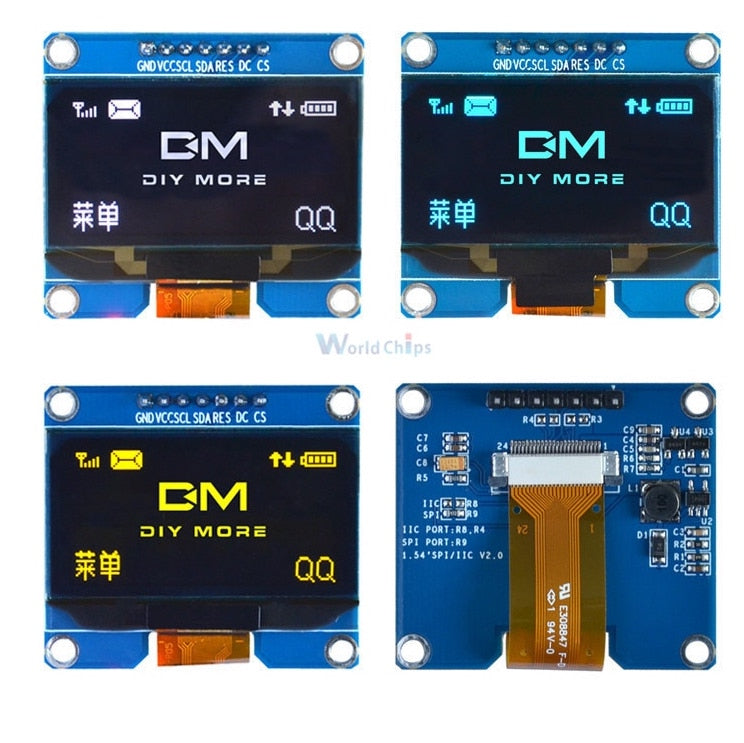

  • Display Color: Yellow/ Blue/ White
  • Driving IC: SPD0301; compatible with SSD1309
  • Voltage: 3.3V - 5V

SPI Interface Definition:

  • Pin 1 - GND (power ground)
  • Pin 2 - VCC (power positive)
  • Pin 3 - CLK / SCL (clock)
  • Pin 4 - MOSI / SDA (data)
  • Pin 5 - RES (reset)
  • Pin 6 - DC (data/command)
  • Pin 7 - CS (chip selection, if not used, it can be directly connected with ground)

Package includes: 1x 1.54inch OLED Display Module SPI Interface 3.3-5V SSD1309 (Yellow/ Blue/ White)

What is the size and resolution of the display?
The active area is 1.54 inches diagonally with a 128 x 64 pixel resolution. The module measures 42.04 by 27.22 mm.
What interface does the module use and what are the pin definitions?
It uses a 7 pin SPI interface. Pin 1 GND, Pin 2 VCC, Pin 3 CLK SCL, Pin 4 MOSI SDA, Pin 5 RES, Pin 6 DC, Pin 7 CS.
What voltage does this module operate on and is it compatible with 3.3V and 5V logic?
The module operates from 3.3V to 5V. This makes it compatible with common microcontroller boards.
Which display colors are available for this module?
The display is available in Yellow, Blue, and White.
What comes in the package and is the driving IC compatible with SSD1309 designs?
The package includes one 1.54 inch OLED Display Module with SPI interface and 3.3 to 5V operation. The module uses the SPD0301 driving IC and is noted as compatible with SSD1309 based designs.
