Waveshare

11inch Capacitive Touch Display 1920x1200 HDMI IPS - 10-Point Touch

SKU: WVSH0605

ā‚¹ 12,499.99

Out of stock

šŸ“¦ Min order 1

Enter your email or your WhatsApp number.
Chat with us on WhatsApp We reply quickly! Contact Us
11inch Capacitive Touch Display 1920x1200 HDMI IPS - 10-Point Touchā‚¹ 12,499.99
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

Details

11inch High Resolution Capacitive Touch Display, 1920Ɨ1200 Resolution, 10-Point Touch, Optical Bonding Toughened Glass Panel, HDMI Display Interface, IPS Panel
11" High Resolution Capacitive Touch Display

High Resolutionā€ƒ|ā€ƒMulti-Point Touchā€ƒ|ā€ƒLandscape / Portrait rotation

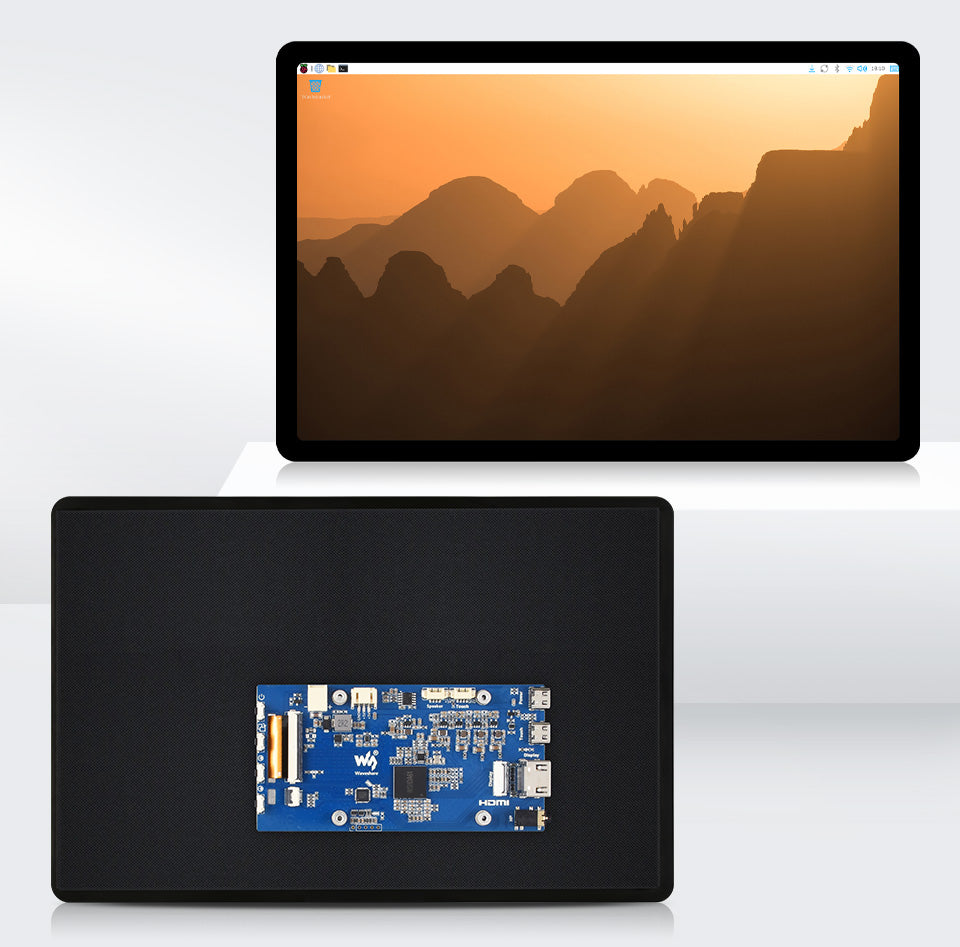

11inch Capacitive Touch Display, front and back view

  • Size 11ā€³
  • Resolution 1920 Ɨ 1200
  • Display Interface HDMI
  • Display Panel IPS
  • Viewing Angle 170Ā°

  • Touch Type Capacitive
  • Touch Points 10-Point
  • Touch Port USB Type-C
  • Touch Panel Toughened Glass
  • Panel CoatingAF

  • Touch Panel TechIn-Cell
  • Touch Panel Tech Optical Bonding
  • OSD Menu Brightness Adjustment
  • Display Orientation Landscape/Portrait
  • Brightness 300cd/掔
  • Sound Speaker Header
  • Audio Output 3.5mm Jack


    Device & System Support

    Raspberry Pi
    Supports Raspberry Pi OS, 10-point touch, driver free
    Supports Ubuntu / Kali / Win10 IoT, single point touch, driver free
    Supports Retropie, driver free

    Supports all versions of Raspberry Pi

    Jetson Series
    Supports Ubuntu, single point touch, driver free
    Supports Jetson Nano / TX2 / Xavier NX / Orin series boards

    PC
    Supports Windows 11 / 10 / 8.1 / 8 / 7, 10-point touch, driver free

    Connection Examples
    11inch Capacitive Touch Display, connecting with Raspberry Pi 4B

    Working with Raspberry Pi 5 / 4B

    11inch Capacitive Touch Display, connecting with Raspberry Pi 3B+

    Working with Raspberry Pi 3B+

    11inch Capacitive Touch Display, connecting with Jeston series boards

    Working with Jeston series board
    (You need to prepare additional DP-to-HDMI adapter or cable)

    11inch Capacitive Touch Display, connecting with PC

    Working with PC

    * for reference only, the above controller boards or hosts are NOT included

    How to Install
    the accessories for installing 11inch Capacitive Touch Display with Raspberry Pi 5

    Prepare the accessories as shown above, here we take Raspberry Pi 5 as an example


    Install 11inch Capacitive Touch Display with Raspberry Pi 5, step 1

    Step 1:
    Connect the cable ā‘ , ā‘”, and ā‘¢ to the corresponding positions as shown in the picture above.

    Install 11inch Capacitive Touch Display with Raspberry Pi 5, step 2

    Step 2:
    Install the Raspberry Pi 5 on the PCB board of the LCD, connect the HDMI adapter to the cable ā‘  (select HDMI adapter ā‘£ or ā‘¤ according to your Raspberry Pi model) and then connect it to the Micro HDMI port of the Pi.

    Install 11inch Capacitive Touch Display with Raspberry Pi 5, step 3

    Step 3:
    Connect the cable ā‘” to the USB port of the Pi and connect the cable ā‘¢ to the GPIO 5V and GND pins as shown above.

    Install 11inch Capacitive Touch Display with Raspberry Pi 5, step 4

    Step 4:
    Complete the assembly as shown in the picture and ensure all connections are correct, then connect to a 5V power supply and power on.

    * for reference only, the Raspberry Pi 5 is NOT included

    Technology upgrade, higher resolution

    1920 Ɨ 1200 high resolution, provides clear image and vivid color display effect

    11inch Capacitive Touch Display, supports higher resolution

    IPS Display Panel

    Excellent Display Performance With 170Ā° Wide Viewing Angle

    11inch Capacitive Touch Display, wide viewing angle IPS display panel
    Capacitive 10-Point Touch
    11inch Capacitive Touch Display, 10-Point capacitive touch
    1. up to 10-point touch, depending on the operating system
    2. up to 7H hardness toughened glass panel
    3. In-Cell integrated touch + optical bonding technology for a thinner, clearer, and more dust-resistant display
    4. Adopts anti-fingerprint panel coating, easy to clean

    In-Cell Touch Panel Technology

    Featuring a simplified structure with Ultra-narrow bezel and Slim thickness,
    while offering rapid response.

    11inch Capacitive Touch Display, allows freely rotating the display orientation

    Normal Display

    11inch Capacitive Touch Display, allows freely rotating the display orientation

    In-Cell Touch Display


    Freely rotate the display orientation

    One-button switch between landscape and portrait display to meet the needs of different usage scenarios

    11inch Capacitive Touch Display, allows freely rotating the display orientation
    Interface Introduction

    11inch Capacitive Touch Display, interface introduction

    Dimensions
    11inch Capacitive Touch Display, outline dimensions

    Ā

    Support touch screen customization

    Support the following ways to customize the touch screen display in bulk order

    Over a decade
    Waveshare grows with display
    Ā

    * Waveshare has been focusing on display design for over 15 years.

    Resources & Services
    Wiki: docs.waveshare.com/11EP-CAPLCD
    PartNumber Display Touch Audio Device Support
    Resolu-tion Display Port Display Panel View Angle Touch Type Touch Port Toughened Glass Panel Optical Bonding Spe-
    aker    		 Signal Output Pi JETSON NANO PC
    2.8inch RPi LCD (A) 320Ɨ240 SPI TFT ā€“ Resistive SPI Ɨ Ɨ Ɨ Ɨ āˆš Ɨ Ɨ
    3.2inch RPi LCD (B) 320Ɨ240 SPI TFT ā€“ Resistive SPI Ɨ Ɨ Ɨ Ɨ āˆš Ɨ Ɨ
    3.5inch RPi LCD (A) 480Ɨ320 SPI TFT ā€“ Resistive SPI Ɨ Ɨ Ɨ Ɨ āˆš Ɨ Ɨ
    3.5inch RPi LCD (B) 480Ɨ320 SPI IPS 160Ā° Resistive SPI Ɨ Ɨ Ɨ Ɨ āˆš Ɨ Ɨ
    3.5inch RPi LCD (C) 480Ɨ320 High-Speed SPI TFT ā€“ Resistive SPI Ɨ Ɨ Ɨ Ɨ āˆš Ɨ Ɨ
    3.5inch RPi LCD (F) 320Ɨ480 SPI IPS 170Ā° Capacitive I2C āˆš Ɨ Ɨ Ɨ āˆš Ɨ Ɨ
    3.5inch RPi LCD (G) 320Ɨ480 SPI IPS 170Ā° Resistive SPI Ɨ Ɨ Ɨ Ɨ āˆš Ɨ Ɨ
    4inch RPi LCD (A) 480Ɨ320 SPI TFT ā€“ Resistive SPI Ɨ Ɨ Ɨ Ɨ āˆš Ɨ Ɨ
    2.8inch DPI LCD 480Ɨ640 DPI IPS 160Ā° Capacitive I2C āˆš āˆš Ɨ Ɨ āˆš Ɨ Ɨ
    3.5inch DPI LCD 640Ɨ480 DPI IPS 170Ā° Capacitive I2C āˆš Ɨ Ɨ Ɨ āˆš Ɨ Ɨ
    4inch DPI LCD (C) 720Ɨ720 DPI IPS 170Ā° Capacitive I2C āˆš āˆš Ɨ Ɨ āˆš Ɨ Ɨ
    5inch DPI LCD 800Ɨ480 DPI IPS 160Ā° ā€“ ā€“ Ɨ Ɨ Ɨ Ɨ āˆš Ɨ Ɨ
    7inch DPI LCD 1024Ɨ600 DPI IPS 170Ā° ā€“ ā€“ Ɨ Ɨ Ɨ Ɨ āˆš Ɨ Ɨ
    2.8inch DSI LCD 480Ɨ640 DSI IPS 160Ā° Capacitive I2C āˆš āˆš Ɨ Ɨ āˆš Ɨ Ɨ
    3.4inch DSI LCD (C) 800Ɨ800 DSI IPS 170Ā° Capacitive I2C āˆš āˆš Ɨ Ɨ āˆš Ɨ Ɨ
    3.4-DSI-TOUCH-C 800Ɨ800 DSI IPS 170Ā° Capacitive I2C āˆš āˆš Ɨ Ɨ āˆš Ɨ Ɨ
    3.5inch DSI LCD (E) 640Ɨ480 DSI IPS 170Ā° Capacitive I2C āˆš Ɨ Ɨ Ɨ āˆš Ɨ Ɨ
    3.5inch DSI LCD (H) 480Ɨ800 DSI IPS 170Ā° Capacitive I2C āˆš Ɨ Ɨ Ɨ āˆš Ɨ Ɨ
    4inch DSI LCD 480Ɨ800 DSI IPS 170Ā° Capacitive I2C āˆš āˆš Ɨ Ɨ āˆš Ɨ Ɨ
    4inch DSI LCD (C) 720Ɨ720 DSI IPS 170Ā° Capacitive I2C āˆš āˆš Ɨ Ɨ āˆš Ɨ Ɨ
    4-DSI-TOUCH-A 480 Ɨ 800 DSI IPS 170Ā° Capacitive I2C āˆš āˆš Ɨ Ɨ āˆš Ɨ Ɨ
    4-DSI-TOUCH-C 720Ɨ720 DSI IPS 170Ā° Capacitive I2C āˆš āˆš Ɨ Ɨ āˆš Ɨ Ɨ
    4.3inch DSI LCD 800Ɨ480 DSI IPS 160Ā° Capacitive I2C āˆš Ɨ Ɨ Ɨ āˆš Ɨ Ɨ
    4.3inch DSI LCD (with case) 800Ɨ480 DSI IPS 160Ā° Capacitive I2C āˆš Ɨ Ɨ Ɨ āˆš Ɨ Ɨ
    4.3inch DSI QLED 800Ɨ480 DSI IPS(QLED) 160Ā° Capacitive I2C āˆš Ɨ Ɨ Ɨ āˆš Ɨ Ɨ
    4.3-DSI-TOUCH-A 480 Ɨ 800 DSI IPS 170Ā° Capacitive I2C āˆš āˆš Ɨ Ɨ āˆš Ɨ Ɨ
    5inch DSI LCD 800Ɨ480 DSI TFT ā€“ Capacitive I2C āˆš Ɨ Ɨ Ɨ āˆš Ɨ Ɨ
    5inch DSI LCD (B) 800Ɨ480 DSI IPS 160Ā° Capacitive I2C āˆš Ɨ Ɨ Ɨ āˆš Ɨ Ɨ
    5inch DSI LCD (C) 1024Ɨ600 DSI IPS 178Ā° Capacitive I2C āˆš Ɨ Ɨ Ɨ āˆš Ɨ Ɨ
    5inch DSI LCD (D) 720Ɨ1280 DSI IPS 178Ā° Capacitive I2C āˆš āˆš Ɨ Ɨ āˆš Ɨ Ɨ
    5-DSI-TOUCH-A 720Ɨ1280 DSI IPS 178Ā° Capacitive I2C āˆš āˆš Ɨ Ɨ āˆš Ɨ Ɨ
    5-DSI-TOUCH-B 720Ɨ1280 DSI IPS 178Ā° Capacitive I2C āˆš āˆš Ɨ Ɨ āˆš Ɨ Ɨ
    5inch Raspberry Pi Touch Display 2 720Ɨ1280 DSI IPS 160Ā° Capacitive I2C Ɨ Ɨ Ɨ Ɨ āˆš Ɨ Ɨ
    6.25inch DSI LCD 720Ɨ1560 DSI IPS 178Ā° Capacitive I2C āˆš āˆš Ɨ Ɨ āˆš Ɨ Ɨ
    6.25inch DSI LCD (B) 720Ɨ1560 DSI IPS 178Ā° Capacitive I2C āˆš āˆš Ɨ Ɨ āˆš Ɨ Ɨ
    7inch DSI LCD 800Ɨ480 DSI TFT ā€“ Capacitive I2C āˆš Ɨ Ɨ Ɨ āˆš Ɨ Ɨ
    7inch DSI LCD (with case A) 800Ɨ480 DSI TFT ā€“ Capacitive I2C āˆš Ɨ Ɨ Ɨ āˆš Ɨ Ɨ
    7inch DSI LCD (with cam) 800Ɨ480 DSI TFT ā€“ Capacitive I2C āˆš Ɨ Ɨ Ɨ āˆš Ɨ Ɨ
    7inch DSI LCD (with cam and case) 800Ɨ480 DSI TFT ā€“ Capacitive I2C āˆš Ɨ Ɨ Ɨ āˆš Ɨ Ɨ
    7inch DSI LCD (B) 800Ɨ480 DSI IPS 170Ā° Capacitive I2C āˆš Ɨ Ɨ Ɨ āˆš Ɨ Ɨ
    7inch DSI LCD (B) (with case A) 800Ɨ480 DSI IPS 170Ā° Capacitive I2C āˆš Ɨ Ɨ Ɨ āˆš Ɨ Ɨ
    7inch DSI LCD (C) 1024Ɨ600 DSI IPS 170Ā° Capacitive I2C āˆš Ɨ Ɨ Ɨ āˆš Ɨ Ɨ
    7inch DSI LCD (C) (with case A) 1024Ɨ600 DSI IPS 170Ā° Capacitive I2C āˆš Ɨ Ɨ Ɨ āˆš Ɨ Ɨ
    7inch DSI LCD (E) 1280Ɨ800 DSI IPS 178Ā° Capacitive I2C āˆš āˆš Ɨ Ɨ āˆš Ɨ Ɨ
    7-DSI-TOUCH-A 720Ɨ1280 DSI IPS 170Ā° Capacitive I2C āˆš āˆš Ɨ Ɨ āˆš Ɨ Ɨ
    7-DSI-TOUCH-C 1024Ɨ600 DSI IPS 170Ā° Capacitive I2C Ɨ Ɨ Ɨ Ɨ āˆš Ɨ Ɨ
    7inch DSI LCD (H) 1280Ɨ720 DSI IPS 170Ā° Capacitive I2C āˆš āˆš Ɨ Ɨ āˆš Ɨ Ɨ
    7.9inch DSI LCD 400Ɨ1280 DSI IPS 170Ā° Capacitive I2C āˆš Ɨ Ɨ Ɨ āˆš Ɨ Ɨ
    8-DSI-TOUCH-A 800Ɨ1280 DSI IPS 178Ā° Capacitive I2C āˆš āˆš Ɨ Ɨ āˆš Ɨ Ɨ
    8inch DSI LCD 800Ɨ480 DSI TFT ā€“ Capacitive I2C āˆš Ɨ Ɨ Ɨ āˆš Ɨ Ɨ
    8inch DSI LCD (with cam) 800Ɨ480 DSI TFT ā€“ Capacitive I2C āˆš Ɨ Ɨ Ɨ āˆš Ɨ Ɨ
    8inch DSI LCD (C) 1280Ɨ800 DSI IPS 178Ā° Capacitive I2C āˆš āˆš Ɨ Ɨ āˆš Ɨ Ɨ
    8.8inch DSI LCD 480Ɨ1920 DSI IPS 178Ā° Capacitive I2C āˆš āˆš Ɨ Ɨ āˆš Ɨ Ɨ
    8.8-DSI-TOUCH-A 480Ɨ1920 DSI IPS 178Ā° Capacitive I2C āˆš āˆš Ɨ Ɨ āˆš Ɨ Ɨ
    9-DSI-TOUCH-B 720Ɨ1280 DSI IPS 160Ā° Capacitive I2C āˆš Ɨ Ɨ Ɨ āˆš Ɨ Ɨ
    10.1-DSI-TOUCH-A 800Ɨ1280 DSI IPS 178Ā° Capacitive I2C āˆš āˆš Ɨ Ɨ āˆš Ɨ Ɨ
    10.1-DSI-TOUCH-B 720Ɨ1280 DSI IPS 170Ā° Capacitive I2C āˆš Ɨ Ɨ Ɨ āˆš Ɨ Ɨ
    10.1inch DSI LCD (C) 1280Ɨ800 DSI IPS 178Ā° Capacitive I2C āˆš āˆš Ɨ Ɨ āˆš Ɨ Ɨ
    11.9inch DSI LCD 320Ɨ1480 DSI IPS 170Ā° Capacitive I2C āˆš Ɨ Ɨ Ɨ āˆš Ɨ Ɨ
    12.3-DSI-TOUCH-A 720Ɨ1920 DSI IPS 178Ā° Capacitive I2C āˆš āˆš Ɨ Ɨ āˆš Ɨ Ɨ
    13.3inch DSI LCD 1920Ɨ1080 DSI IPS 178Ā° Capacitive I2C āˆš Ɨ Ɨ Ɨ āˆš Ɨ Ɨ
    2.8inch HDMI LCD (H) 480Ɨ640 HDMI IPS 160Ā° Capacitive USB-C / I2C āˆš āˆš Ɨ Ɨ āˆš āˆš āˆš
    3.2inch HDMI LCD (H) 480Ɨ800 HDMI IPS 160Ā° Ɨ Ɨ Ɨ Ɨ Ɨ Ɨ āˆš āˆš Display ONLY
    3.4inch 800x800 LCD 800x800 HDMI IPS 170Ā° Capacitive Type-C āˆš āˆš Ɨ āˆš āˆš āˆš āˆš
    3.5inch HDMI LCD 480Ɨ320 HDMI IPS 160Ā° Resistive SPI Ɨ Ɨ Ɨ āˆš āˆš Ɨ Display ONLY
    3.5inch 480x800 LCD 480Ɨ800 HDMI IPS 170Ā° Capacitive USB-C Ɨ Ɨ Ɨ Ɨ āˆš āˆš āˆš
    4inch 720x720 LCD 720x720 HDMI IPS 170Ā° Capacitive Type-C āˆš āˆš Ɨ āˆš āˆš āˆš āˆš
    4inch HDMI LCD 480Ɨ800 HDMI IPS 170Ā° Resistive SPI Ɨ Ɨ Ɨ Ɨ āˆš Ɨ Display ONLY
    4inch HDMI LCD (C) 720Ɨ720 HDMI IPS 170Ā° Capacitive USB-C / I2C āˆš āˆš Ɨ āˆš āˆš āˆš āˆš
    4inch HDMI LCD (H) 480Ɨ800 HDMI IPS 170Ā° Resistive SPI Ɨ Ɨ Ɨ āˆš āˆš Ɨ Display ONLY
    4.3inch HDMI LCD (B) 800Ɨ480 HDMI IPS 160Ā° Capacitive USB Ɨ Ɨ Ɨ āˆš āˆš āˆš āˆš
    5DP-CAPLCD-H 1024Ɨ600 HDMI IPS 178Ā° Capacitive Type-C āˆš Ɨ Ɨ āˆš āˆš āˆš āˆš
    5DP-CAPLCD-B 1024Ɨ600 HDMI IPS 178Ā° Capacitive Type-C āˆš āˆš Ɨ āˆš āˆš āˆš āˆš
    5DP-CAPLCD-G 1024Ɨ600 HDMI IPS 178Ā° Resistive Type-C āˆš Ɨ Ɨ āˆš āˆš āˆš āˆš
    5inch HDMI LCD 800Ɨ480 HDMI TFT ā€“ Resistive SPI Ɨ Ɨ Ɨ Ɨ āˆš Ɨ Ɨ
    5inch HDMI LCD (with bicolor case) 800Ɨ480 HDMI TFT ā€“ Resistive SPI Ɨ Ɨ Ɨ Ɨ āˆš Ɨ Ɨ
    5inch HDMI LCD (B) 800Ɨ480 HDMI TFT ā€“ Resistive USB Ɨ Ɨ Ɨ Ɨ āˆš Ɨ āˆš
    5inch HDMI LCD (B) (with bicolor case) 800Ɨ480 HDMI TFT ā€“ Resistive USB Ɨ Ɨ Ɨ Ɨ āˆš Ɨ āˆš
    5inch HDMI LCD (G) 800Ɨ480 HDMI/VGA TFT ā€“ Resistive USB Ɨ Ɨ Ɨ āˆš āˆš Ɨ āˆš
    5inch HDMI LCD (H) 800Ɨ480 HDMI/VGA TFT ā€“ Capacitive USB āˆš Ɨ Ɨ āˆš āˆš āˆš āˆš
    5inch HDMI LCD (H) V4 800Ɨ480 HDMI TFT ā€“ Capacitive USB āˆš Ɨ Ɨ Ɨ āˆš Ɨ āˆš
    5inch HDMI AMOLED 960Ɨ544 HDMI AMOLED 170Ā° Capacitive USB āˆš āˆš Ɨ āˆš āˆš āˆš āˆš
    5inch 1080x1080 LCD 1080Ɨ1080 HDMI IPS 160Ā° Capacitive Type-C āˆš āˆš āˆš āˆš āˆš āˆš āˆš
    5inch 720x1280 LCD 720Ɨ1280 HDMI IPS 178Ā° Capacitive Type-C āˆš āˆš āˆš Ɨ āˆš āˆš āˆš
    5.5inch HDMI AMOLED 1080Ɨ1920 HDMI AMOLED 170Ā° Capacitive USB āˆš āˆš Ɨ āˆš āˆš āˆš āˆš
    5.5inch HDMI AMOLED (with case A) 1080Ɨ1920 HDMI AMOLED 170Ā° Capacitive USB āˆš āˆš Ɨ āˆš āˆš Ɨ Ɨ
    5.5inch 1440x2560 LCD 1440Ɨ2560 HDMI IPS 170Ā° Capacitive USB āˆš āˆš Ɨ āˆš āˆš Ɨ āˆš
    5.5inch 1440x2560 LCD (with case A) 1440Ɨ2560 HDMI IPS 170Ā° Capacitive USB āˆš āˆš Ɨ āˆš āˆš Ɨ Ɨ
    6.25inch 720x1560 LCD 720Ɨ1560 HDMI IPS 178Ā° Capacitive Type-C āˆš āˆš āˆš Ɨ āˆš āˆš āˆš
    PI5-HMI-7A 720Ɨ1280 HDMI IPS 170Ā° Capacitive Type-C āˆš āˆš Ɨ Ɨ āˆš Ɨ Ɨ
    7EP-CAPLCD 1280Ɨ800 HDMI IPS 178Ā° Capacitive USB āˆš āˆš āˆš āˆš āˆš āˆš āˆš
    7EP-CAPLCD Monitor 1280Ɨ800 HDMI/Type-C IPS 178Ā° Capacitive Type-C āˆš āˆš āˆš āˆš āˆš āˆš āˆš
    7inch HDMI LCD 1024Ɨ600 HDMI IPS 170Ā° Resistive SPI Ɨ Ɨ Ɨ Ɨ āˆš Ɨ Display ONLY
    7inch HDMI LCD (B) 800Ɨ480 HDMI TFT ā€“ Capacitive USB Ɨ Ɨ Ɨ Ɨ āˆš Ɨ āˆš
    7inch 1080x1080 LCD 1080Ɨ1080 HDMI IPS 160Ā° Capacitive Type-C āˆš āˆš Ɨ āˆš āˆš āˆš āˆš
    7inch HDMI LCD (B) (with bicolor case) 800Ɨ480 HDMI TFT ā€“ Capacitive USB Ɨ Ɨ Ɨ Ɨ āˆš Ɨ āˆš
    7inch HDMI LCD (C) 1024Ɨ600 HDMI IPS 170Ā° Capacitive USB Ɨ Ɨ Ɨ Ɨ āˆš Ɨ āˆš
    7inch HDMI LCD (C) (with bicolor case) 1024Ɨ600 HDMI IPS 170Ā° Capacitive USB Ɨ Ɨ Ɨ Ɨ āˆš Ɨ āˆš
    7inch HDMI LCD (H) 1024Ɨ600 HDMI/VGA IPS 170Ā° Capacitive USB Ɨ Ɨ Ɨ āˆš āˆš āˆš āˆš
    7inch HDMI LCD (H) (with case) 1024Ɨ600 HDMI/VGA IPS 170Ā° Capacitive USB āˆš Ɨ Ɨ āˆš āˆš āˆš āˆš
    7HP-CAPQLED 1024Ɨ600 HDMI IPS (QLED) 170Ā° Capacitive USB āˆš Ɨ Ɨ āˆš āˆš āˆš āˆš
    7.9inch HDMI LCD 400Ɨ1280 HDMI IPS 170Ā° Capacitive USB āˆš Ɨ Ɨ āˆš āˆš āˆš āˆš
    7.9inch Side Monitor 400Ɨ1280 HDMI IPS 170Ā° Ɨ Ɨ āˆš Ɨ āˆš Ɨ āˆš āˆš āˆš
    7.9inch Touch Monitor 400Ɨ1280 HDMI IPS 170Ā° Capacitive USB āˆš Ɨ āˆš Ɨ āˆš āˆš āˆš
    PI5-HMI-080D 1280Ɨ800 HDMI IPS 178Ā° Capacitive Type-C āˆš āˆš Ɨ Ɨ āˆš Ɨ Ɨ
    8DP-CAPLCD 1280Ɨ800 HDMI IPS 178Ā° Capacitive USB āˆš āˆš Ɨ āˆš āˆš āˆš āˆš
    8HP-CAPLCD Monitor 1280Ɨ800 HDMI/Type-C IPS 178Ā° Capacitive USB āˆš āˆš āˆš āˆš āˆš āˆš āˆš
    8inch 768x1024 LCD 768Ɨ1024 HDMI IPS 178Ā° Capacitive Type-C āˆš Ɨ āˆš āˆš āˆš āˆš āˆš
    8inch 1536x2048 LCD 1536Ɨ2048 HDMI IPS 178Ā° Capacitive Type-C āˆš āˆš āˆš āˆš āˆš āˆš āˆš
    8.8inch Side Monitor 480Ɨ1920 HDMI IPS 170Ā° Ɨ Ɨ Ɨ Ɨ āˆš Ɨ āˆš āˆš Display ONLY
    9HP-CAPQLED-B 1280Ɨ720 HDMI IPS (QLED) 178Ā° Capacitive USB āˆš Ɨ Ɨ āˆš āˆš āˆš āˆš
    9.3inch 1600x600 LCD 1600Ɨ600 HDMI IPS 178Ā° Capacitive Type-C āˆš āˆš āˆš āˆš āˆš āˆš āˆš
    9.7inch 768x1024 LCD 768Ɨ1024 HDMI IPS 178Ā° Capacitive Type-C āˆš Ɨ āˆš āˆš āˆš āˆš āˆš
    PI5-HMI-101D 1280Ɨ800 HDMI IPS 178Ā° Capacitive Type-C āˆš āˆš Ɨ Ɨ āˆš Ɨ Ɨ
    10.1inch HDMI LCD 1024Ɨ600 HDMI IPS 170Ā° Resistive SPI Ɨ Ɨ Ɨ Ɨ āˆš Ɨ Display ONLY
    10.1inch HDMI LCD (B) (with case) 1280Ɨ800 HDMI IPS 170Ā° Capacitive USB āˆš Ɨ Ɨ Ɨ āˆš Ɨ āˆš
    10.1inch HDMI LCD (E) 1024Ɨ600 HDMI IPS 170Ā° Capacitive USB āˆš āˆš Ɨ āˆš āˆš āˆš āˆš
    10.1inch HDMI LCD (G) (with case) 1920Ɨ1200 HDMI IPS 160Ā° Capacitive USB āˆš āˆš āˆš āˆš āˆš āˆš āˆš
    10.1inch HDMI LCD (H) (with case) 1024Ɨ600 HDMI/VGA TFT ā€“ Capacitive USB Ɨ Ɨ Ɨ Ɨ āˆš āˆš āˆš
    10.1inch HDMI LCD (F) (with case) 1024Ɨ600 HDMI/VGA IPS 170Ā° Capacitive USB āˆš Ɨ āˆš Ɨ āˆš āˆš āˆš
    10.1EP-CAPLCD 1920Ɨ1200 HDMI IPS 178Ā° Capacitive Type-C āˆš āˆš āˆš āˆš āˆš āˆš āˆš
    10.1DP-CAPLCD 1280Ɨ800 HDMI IPS 178Ā° Capacitive USB āˆš āˆš Ɨ āˆš āˆš āˆš āˆš
    10.1HP-CAPQLED 1280Ɨ720 HDMI IPS (QLED) 170Ā° Capacitive USB āˆš Ɨ Ɨ āˆš āˆš āˆš āˆš
    10.1HP-CAPLCD Monitor 1280Ɨ800 HDMI/Type-C IPS 178Ā° Capacitive USB āˆš āˆš āˆš āˆš āˆš āˆš āˆš
    10.4HP-CAPQLED 1600Ɨ720 HDMI IPS(QLED) 178Ā° Capacitive Type-C āˆš āˆš āˆš āˆš āˆš āˆš āˆš
    10.5inch HDMI AMOLED 2560Ɨ1600 HDMI AMOLED 160Ā° Capacitive USB āˆš āˆš āˆš āˆš āˆš āˆš āˆš
    11EP-CAPLCD 1920Ɨ1200 HDMI IPS 170Ā° Capacitive Type-C āˆš (&In-Cell) āˆš āˆš āˆš āˆš āˆš āˆš
    11.6inch 1768x828 LCD 1768Ɨ828 HDMI/Type-C IPS 178Ā° Capacitive Type-C In-Cell Ɨ Ɨ āˆš āˆš āˆš āˆš
    11.6inch HDMI LCD (H) 1920Ɨ1080 HDMI IPS 178Ā° Capacitive USB āˆš āˆš Ɨ āˆš āˆš āˆš āˆš
    11.6inch HDMI LCD (H) (with case) 1920Ɨ1080 HDMI/VGA IPS 178Ā° Capacitive USB āˆš āˆš āˆš āˆš āˆš āˆš āˆš
    11.9inch HDMI LCD 320Ɨ1480 HDMI IPS 170Ā° Capacitive USB āˆš Ɨ Ɨ āˆš āˆš āˆš āˆš
    11.9inch Side Monitor 320Ɨ1480 HDMI IPS 170Ā° Ɨ Ɨ āˆš Ɨ āˆš Ɨ āˆš āˆš āˆš
    11.9inch Touch Monitor 320Ɨ1480 HDMI IPS 170Ā° Capacitive USB āˆš Ɨ āˆš Ɨ āˆš āˆš āˆš
    12.3inch 1920x720 LCD 1920Ɨ720 HDMI/Type-C IPS 178Ā° Capacitive Type-C In-Cell Ɨ Ɨ āˆš āˆš āˆš āˆš
    12.3inch HDMI LCD 1920Ɨ720 HDMI IPS 178Ā° Capacitive USB āˆš āˆš āˆš āˆš āˆš āˆš āˆš
    13.3inch HDMI LCD (H) 1920Ɨ1080 HDMI IPS 178Ā° Capacitive USB āˆš Ɨ Ɨ āˆš āˆš āˆš āˆš
    13.3inch HDMI LCD (H) (with case) 1920Ɨ1080 HDMI/VGA IPS 178Ā° Capacitive USB āˆš Ɨ āˆš āˆš āˆš āˆš āˆš
    13.3inch HDMI LCD (H) (with case) V2 1920Ɨ1080 HDMI/VGA IPS 178Ā° Capacitive USB āˆš Ɨ āˆš āˆš āˆš āˆš āˆš
    13.3inch QHD AMOLED 2560Ɨ1440 HDMI/Type-C AMOLED 178Ā° Capacitive Type-C āˆš āˆš āˆš āˆš āˆš āˆš āˆš
    13.3inch FHD AMOLED 1920Ɨ1080 HDMI/Type-C AMOLED 178Ā° Capacitive Type-C āˆš āˆš āˆš āˆš āˆš āˆš āˆš
    13.3inch FHD Monitor 1920Ɨ1080 HDMI/Type-C IPS 178Ā° Capacitive Type-C āˆš Ɨ Ɨ āˆš āˆš āˆš āˆš
    14inch Dual Monitor 1920Ɨ1080 HDMI/Type-C IPS 178Ā° Ɨ Ɨ Ɨ Ɨ āˆš āˆš āˆš āˆš āˆš
    15.6inch FHD Monitor (C) 1920Ɨ1080 mini HDMI/Type-C IPS 178Ā° Capacitive Type-C āˆš āˆš āˆš āˆš āˆš āˆš āˆš
    15.6inch Dual Monitor 1920Ɨ1080 HDMI/Type-C IPS 178Ā° Ɨ Ɨ Ɨ Ɨ āˆš āˆš āˆš āˆš āˆš
    15.6inch HDMI LCD 1920Ɨ1080 HDMI IPS 178Ā° Capacitive USB āˆš Ɨ Ɨ āˆš āˆš āˆš āˆš
    15.6inch HDMI LCD (H) (with case) 1920Ɨ1080 HDMI/VGA IPS 178Ā° Capacitive USB āˆš Ɨ āˆš āˆš āˆš āˆš āˆš
    15.6inch FHD Monitor 1920Ɨ1080 HDMI/Type-C IPS 178Ā° Capacitive Type-C / USB āˆš Ɨ āˆš āˆš āˆš āˆš āˆš
    15.6HP-CAPQLED 1920Ɨ1080 HDMI IPS(QLED) 178Ā° Capacitive USB āˆš āˆš Ɨ āˆš āˆš āˆš āˆš
    15.6inch QLED Monitor 1920Ɨ1080 HDMI IPS(QLED) 178Ā° Capacitive Type-C āˆš āˆš āˆš āˆš āˆš āˆš āˆš
    18.5inch Dual Monitor 1920Ɨ1080 HDMI/Type-C IPS 178Ā° Ɨ Ɨ Ɨ Ɨ āˆš āˆš āˆš āˆš āˆš
    18.5inch FHD LCD 1080Ɨ1920 HDMI/Type-C IPS 178Ā° Capacitive Type-C āˆš āˆš Ɨ āˆš āˆš āˆš āˆš
    21.5inch FHD LCD 1920Ɨ1080 HDMI IPS 170Ā° Capacitive Type-C āˆš āˆš Ɨ āˆš āˆš āˆš āˆš
    21.5inch FHD Monitor 1080Ɨ1920 HDMI IPS 170Ā° Capacitive Type-C āˆš āˆš āˆš Ɨ āˆš āˆš āˆš
    23.8inch FHD Monitor 1080Ɨ1920 HDMI IPS 178Ā° Capacitive Type-C āˆš āˆš āˆš āˆš āˆš āˆš āˆš
    27inch FHD Monitor 1080Ɨ1920 HDMI IPS 178Ā° Capacitive Type-C āˆš āˆš āˆš āˆš āˆš āˆš āˆš

    Have a look :
    RPi LCD Comparing

    Weight: 0.683 kg

    Quick Overview

    1. 11EP-CAPLCD host x1
    2. HDMI flat cable ~1m x1
    3. USB Type-A male port to Type-C male port cable ~1m x1
    4. Micro HDMI Adapter x1
    5. HDMI Adapter x1
    6. HDMI to Micro HDMI Adapter x1
    7. USB Type-A to MX1.25 4PIN cable 120mm x1
    8. Capacitive touch pen x1
    9. 3PIN cable 70mm x1
    10. HDMI-Cable-120mm x2
    11. Cleaning cloth x1
    12. OPTIONS 5V 3A power supply Ɨ1
    13. Screws pack x1
    11EP-CAPLCD
    What video and touch interfaces does this display use?
    Video is transmitted via HDMI and touch data is carried by a USB Type-C port.
    Can the monitor be used in both landscape and portrait orientations?
    Yes, it supports landscape and portrait rotation.
    How many touch points does the display support?
    It supports 10-point capacitive touch.
    What is the screen resolution and panel type?
    It features a 1920x1200 resolution on an IPS panel.
    What is the viewing angle of the display?
    The viewing angle is 170 degrees.
    A
    Admin
    Welcome to the discussion thread for 11inch Capacitive Touch Display 1920x1200 HDMI IPS - 10-Point Touch
    Feel free to ask questions, share tips or report issues.
    Add Post

    For more discussion Click Here

    Discover More In:

    Bulk Order Essentials ā†’ Semiconductors ā†’

    Category: View all Touch Display Monitor

    Fill out the form below and our team will get back to you with bulk pricing.

    Description
    Ask AI about this product
    Open in ChatGPT Open in Claude Open in Gemini

    Details

    11inch High Resolution Capacitive Touch Display, 1920Ɨ1200 Resolution, 10-Point Touch, Optical Bonding Toughened Glass Panel, HDMI Display Interface, IPS Panel
    11" High Resolution Capacitive Touch Display

    High Resolutionā€ƒ|ā€ƒMulti-Point Touchā€ƒ|ā€ƒLandscape / Portrait rotation

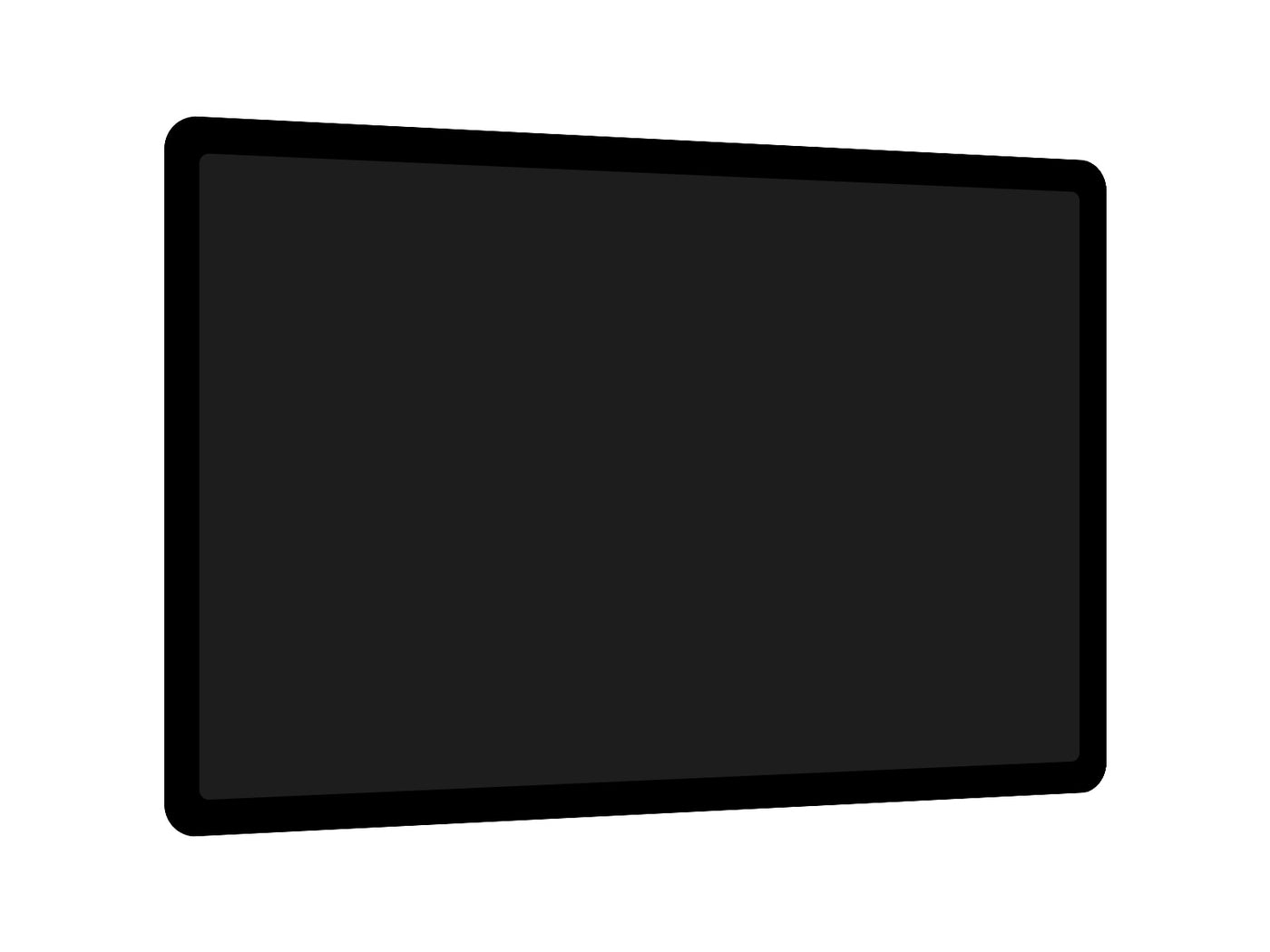

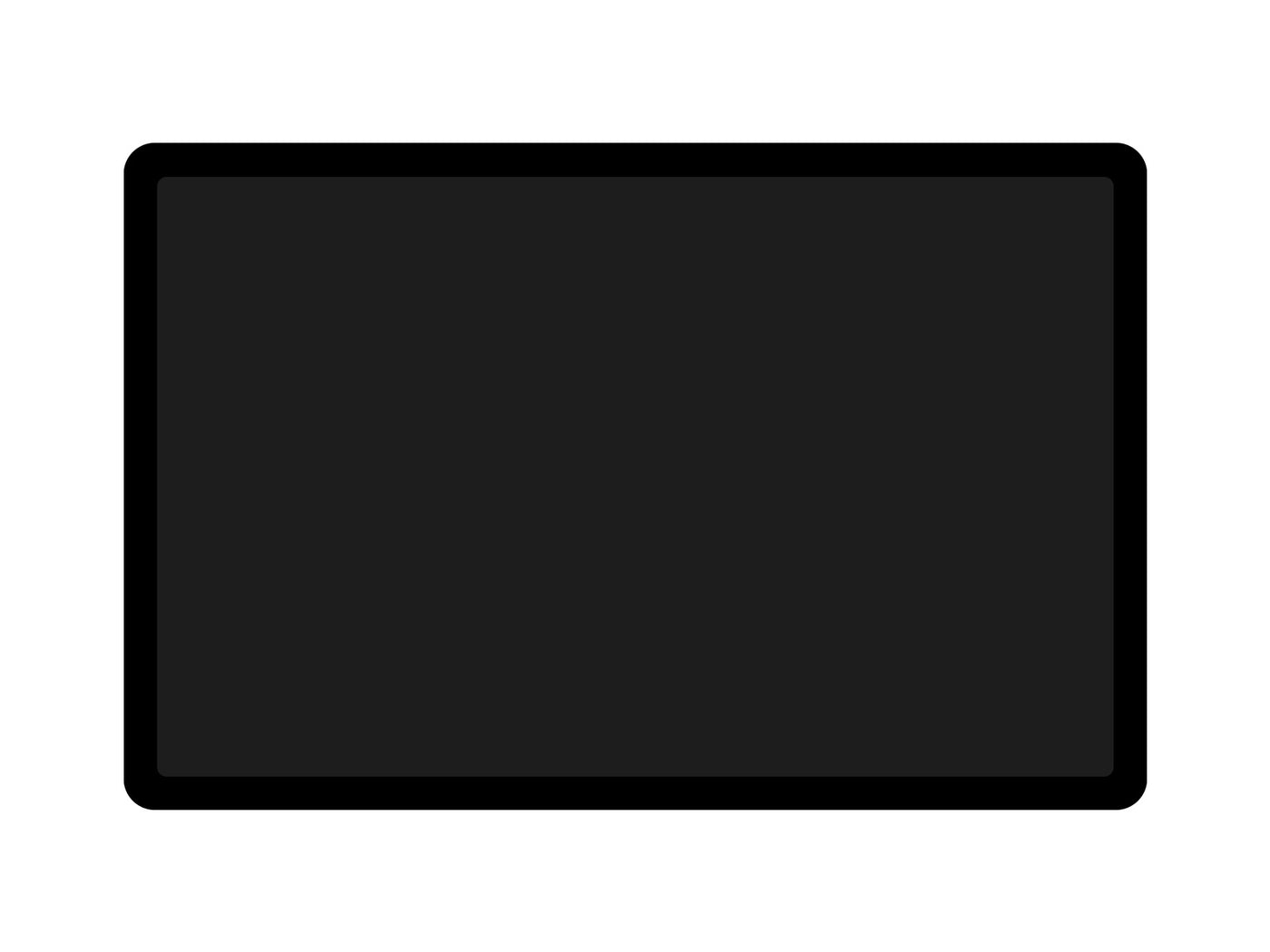

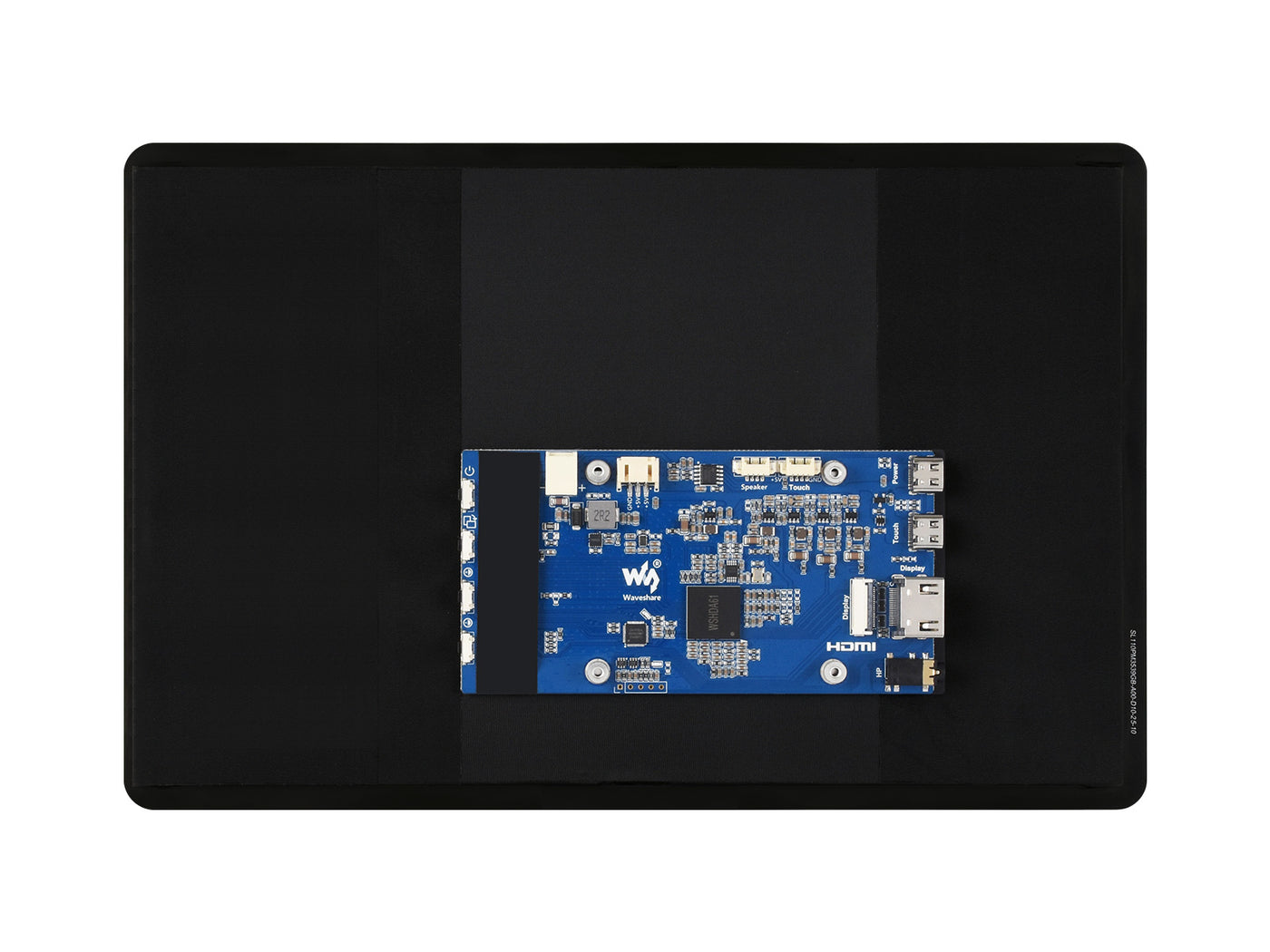

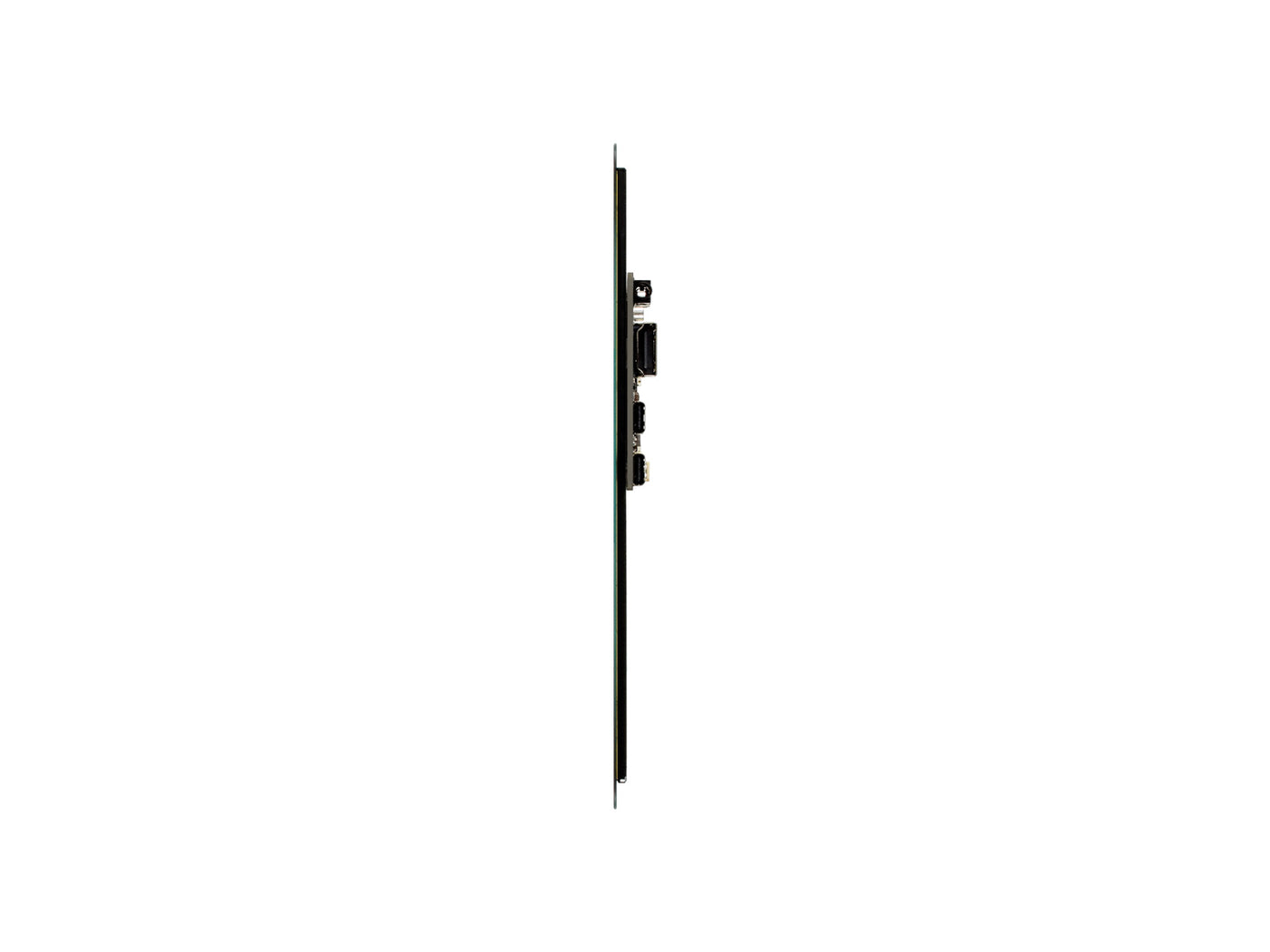

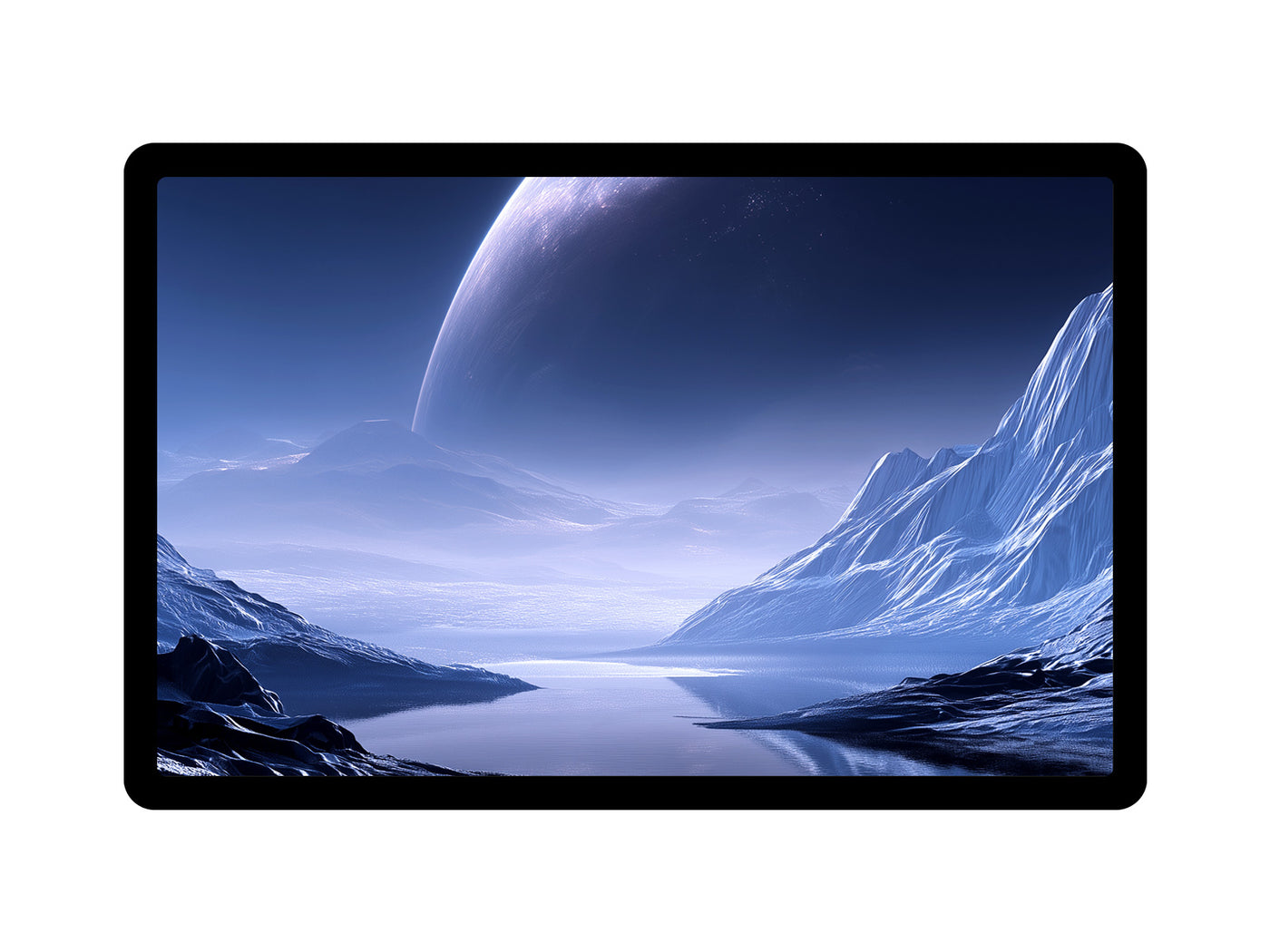

    11inch Capacitive Touch Display, front and back view

    • Size 11ā€³
    • Resolution 1920 Ɨ 1200
    • Display Interface HDMI
    • Display Panel IPS
    • Viewing Angle 170Ā°

    • Touch Type Capacitive
    • Touch Points 10-Point
    • Touch Port USB Type-C
    • Touch Panel Toughened Glass
    • Panel CoatingAF

    • Touch Panel TechIn-Cell
    • Touch Panel Tech Optical Bonding
    • OSD Menu Brightness Adjustment
    • Display Orientation Landscape/Portrait
    • Brightness 300cd/掔
    • Sound Speaker Header
    • Audio Output 3.5mm Jack


      Device & System Support

      Raspberry Pi
      Supports Raspberry Pi OS, 10-point touch, driver free
      Supports Ubuntu / Kali / Win10 IoT, single point touch, driver free
      Supports Retropie, driver free

      Supports all versions of Raspberry Pi

      Jetson Series
      Supports Ubuntu, single point touch, driver free
      Supports Jetson Nano / TX2 / Xavier NX / Orin series boards

      PC
      Supports Windows 11 / 10 / 8.1 / 8 / 7, 10-point touch, driver free

      Connection Examples
      11inch Capacitive Touch Display, connecting with Raspberry Pi 4B

      Working with Raspberry Pi 5 / 4B

      11inch Capacitive Touch Display, connecting with Raspberry Pi 3B+

      Working with Raspberry Pi 3B+

      11inch Capacitive Touch Display, connecting with Jeston series boards

      Working with Jeston series board
      (You need to prepare additional DP-to-HDMI adapter or cable)

      11inch Capacitive Touch Display, connecting with PC

      Working with PC

      * for reference only, the above controller boards or hosts are NOT included

      How to Install
      the accessories for installing 11inch Capacitive Touch Display with Raspberry Pi 5

      Prepare the accessories as shown above, here we take Raspberry Pi 5 as an example


      Install 11inch Capacitive Touch Display with Raspberry Pi 5, step 1

      Step 1:
      Connect the cable ā‘ , ā‘”, and ā‘¢ to the corresponding positions as shown in the picture above.

      Install 11inch Capacitive Touch Display with Raspberry Pi 5, step 2

      Step 2:
      Install the Raspberry Pi 5 on the PCB board of the LCD, connect the HDMI adapter to the cable ā‘  (select HDMI adapter ā‘£ or ā‘¤ according to your Raspberry Pi model) and then connect it to the Micro HDMI port of the Pi.

      Install 11inch Capacitive Touch Display with Raspberry Pi 5, step 3

      Step 3:
      Connect the cable ā‘” to the USB port of the Pi and connect the cable ā‘¢ to the GPIO 5V and GND pins as shown above.

      Install 11inch Capacitive Touch Display with Raspberry Pi 5, step 4

      Step 4:
      Complete the assembly as shown in the picture and ensure all connections are correct, then connect to a 5V power supply and power on.

      * for reference only, the Raspberry Pi 5 is NOT included

      Technology upgrade, higher resolution

      1920 Ɨ 1200 high resolution, provides clear image and vivid color display effect

      11inch Capacitive Touch Display, supports higher resolution

      IPS Display Panel

      Excellent Display Performance With 170Ā° Wide Viewing Angle

      11inch Capacitive Touch Display, wide viewing angle IPS display panel
      Capacitive 10-Point Touch
      11inch Capacitive Touch Display, 10-Point capacitive touch
      1. up to 10-point touch, depending on the operating system
      2. up to 7H hardness toughened glass panel
      3. In-Cell integrated touch + optical bonding technology for a thinner, clearer, and more dust-resistant display
      4. Adopts anti-fingerprint panel coating, easy to clean

      In-Cell Touch Panel Technology

      Featuring a simplified structure with Ultra-narrow bezel and Slim thickness,
      while offering rapid response.

      11inch Capacitive Touch Display, allows freely rotating the display orientation

      Normal Display

      11inch Capacitive Touch Display, allows freely rotating the display orientation

      In-Cell Touch Display


      Freely rotate the display orientation

      One-button switch between landscape and portrait display to meet the needs of different usage scenarios

      11inch Capacitive Touch Display, allows freely rotating the display orientation
      Interface Introduction

      11inch Capacitive Touch Display, interface introduction

      Dimensions
      11inch Capacitive Touch Display, outline dimensions

      Ā

      Support touch screen customization

      Support the following ways to customize the touch screen display in bulk order

      Over a decade
      Waveshare grows with display
      Ā

      * Waveshare has been focusing on display design for over 15 years.

      Resources & Services
      Wiki: docs.waveshare.com/11EP-CAPLCD
      PartNumber Display Touch Audio Device Support
      Resolu-tion Display Port Display Panel View Angle Touch Type Touch Port Toughened Glass Panel Optical Bonding Spe-
      aker      		 Signal Output Pi JETSON NANO PC
      2.8inch RPi LCD (A) 320Ɨ240 SPI TFT ā€“ Resistive SPI Ɨ Ɨ Ɨ Ɨ āˆš Ɨ Ɨ
      3.2inch RPi LCD (B) 320Ɨ240 SPI TFT ā€“ Resistive SPI Ɨ Ɨ Ɨ Ɨ āˆš Ɨ Ɨ
      3.5inch RPi LCD (A) 480Ɨ320 SPI TFT ā€“ Resistive SPI Ɨ Ɨ Ɨ Ɨ āˆš Ɨ Ɨ
      3.5inch RPi LCD (B) 480Ɨ320 SPI IPS 160Ā° Resistive SPI Ɨ Ɨ Ɨ Ɨ āˆš Ɨ Ɨ
      3.5inch RPi LCD (C) 480Ɨ320 High-Speed SPI TFT ā€“ Resistive SPI Ɨ Ɨ Ɨ Ɨ āˆš Ɨ Ɨ
      3.5inch RPi LCD (F) 320Ɨ480 SPI IPS 170Ā° Capacitive I2C āˆš Ɨ Ɨ Ɨ āˆš Ɨ Ɨ
      3.5inch RPi LCD (G) 320Ɨ480 SPI IPS 170Ā° Resistive SPI Ɨ Ɨ Ɨ Ɨ āˆš Ɨ Ɨ
      4inch RPi LCD (A) 480Ɨ320 SPI TFT ā€“ Resistive SPI Ɨ Ɨ Ɨ Ɨ āˆš Ɨ Ɨ
      2.8inch DPI LCD 480Ɨ640 DPI IPS 160Ā° Capacitive I2C āˆš āˆš Ɨ Ɨ āˆš Ɨ Ɨ
      3.5inch DPI LCD 640Ɨ480 DPI IPS 170Ā° Capacitive I2C āˆš Ɨ Ɨ Ɨ āˆš Ɨ Ɨ
      4inch DPI LCD (C) 720Ɨ720 DPI IPS 170Ā° Capacitive I2C āˆš āˆš Ɨ Ɨ āˆš Ɨ Ɨ
      5inch DPI LCD 800Ɨ480 DPI IPS 160Ā° ā€“ ā€“ Ɨ Ɨ Ɨ Ɨ āˆš Ɨ Ɨ
      7inch DPI LCD 1024Ɨ600 DPI IPS 170Ā° ā€“ ā€“ Ɨ Ɨ Ɨ Ɨ āˆš Ɨ Ɨ
      2.8inch DSI LCD 480Ɨ640 DSI IPS 160Ā° Capacitive I2C āˆš āˆš Ɨ Ɨ āˆš Ɨ Ɨ
      3.4inch DSI LCD (C) 800Ɨ800 DSI IPS 170Ā° Capacitive I2C āˆš āˆš Ɨ Ɨ āˆš Ɨ Ɨ
      3.4-DSI-TOUCH-C 800Ɨ800 DSI IPS 170Ā° Capacitive I2C āˆš āˆš Ɨ Ɨ āˆš Ɨ Ɨ
      3.5inch DSI LCD (E) 640Ɨ480 DSI IPS 170Ā° Capacitive I2C āˆš Ɨ Ɨ Ɨ āˆš Ɨ Ɨ
      3.5inch DSI LCD (H) 480Ɨ800 DSI IPS 170Ā° Capacitive I2C āˆš Ɨ Ɨ Ɨ āˆš Ɨ Ɨ
      4inch DSI LCD 480Ɨ800 DSI IPS 170Ā° Capacitive I2C āˆš āˆš Ɨ Ɨ āˆš Ɨ Ɨ
      4inch DSI LCD (C) 720Ɨ720 DSI IPS 170Ā° Capacitive I2C āˆš āˆš Ɨ Ɨ āˆš Ɨ Ɨ
      4-DSI-TOUCH-A 480 Ɨ 800 DSI IPS 170Ā° Capacitive I2C āˆš āˆš Ɨ Ɨ āˆš Ɨ Ɨ
      4-DSI-TOUCH-C 720Ɨ720 DSI IPS 170Ā° Capacitive I2C āˆš āˆš Ɨ Ɨ āˆš Ɨ Ɨ
      4.3inch DSI LCD 800Ɨ480 DSI IPS 160Ā° Capacitive I2C āˆš Ɨ Ɨ Ɨ āˆš Ɨ Ɨ
      4.3inch DSI LCD (with case) 800Ɨ480 DSI IPS 160Ā° Capacitive I2C āˆš Ɨ Ɨ Ɨ āˆš Ɨ Ɨ
      4.3inch DSI QLED 800Ɨ480 DSI IPS(QLED) 160Ā° Capacitive I2C āˆš Ɨ Ɨ Ɨ āˆš Ɨ Ɨ
      4.3-DSI-TOUCH-A 480 Ɨ 800 DSI IPS 170Ā° Capacitive I2C āˆš āˆš Ɨ Ɨ āˆš Ɨ Ɨ
      5inch DSI LCD 800Ɨ480 DSI TFT ā€“ Capacitive I2C āˆš Ɨ Ɨ Ɨ āˆš Ɨ Ɨ
      5inch DSI LCD (B) 800Ɨ480 DSI IPS 160Ā° Capacitive I2C āˆš Ɨ Ɨ Ɨ āˆš Ɨ Ɨ
      5inch DSI LCD (C) 1024Ɨ600 DSI IPS 178Ā° Capacitive I2C āˆš Ɨ Ɨ Ɨ āˆš Ɨ Ɨ
      5inch DSI LCD (D) 720Ɨ1280 DSI IPS 178Ā° Capacitive I2C āˆš āˆš Ɨ Ɨ āˆš Ɨ Ɨ
      5-DSI-TOUCH-A 720Ɨ1280 DSI IPS 178Ā° Capacitive I2C āˆš āˆš Ɨ Ɨ āˆš Ɨ Ɨ
      5-DSI-TOUCH-B 720Ɨ1280 DSI IPS 178Ā° Capacitive I2C āˆš āˆš Ɨ Ɨ āˆš Ɨ Ɨ
      5inch Raspberry Pi Touch Display 2 720Ɨ1280 DSI IPS 160Ā° Capacitive I2C Ɨ Ɨ Ɨ Ɨ āˆš Ɨ Ɨ
      6.25inch DSI LCD 720Ɨ1560 DSI IPS 178Ā° Capacitive I2C āˆš āˆš Ɨ Ɨ āˆš Ɨ Ɨ
      6.25inch DSI LCD (B) 720Ɨ1560 DSI IPS 178Ā° Capacitive I2C āˆš āˆš Ɨ Ɨ āˆš Ɨ Ɨ
      7inch DSI LCD 800Ɨ480 DSI TFT ā€“ Capacitive I2C āˆš Ɨ Ɨ Ɨ āˆš Ɨ Ɨ
      7inch DSI LCD (with case A) 800Ɨ480 DSI TFT ā€“ Capacitive I2C āˆš Ɨ Ɨ Ɨ āˆš Ɨ Ɨ
      7inch DSI LCD (with cam) 800Ɨ480 DSI TFT ā€“ Capacitive I2C āˆš Ɨ Ɨ Ɨ āˆš Ɨ Ɨ
      7inch DSI LCD (with cam and case) 800Ɨ480 DSI TFT ā€“ Capacitive I2C āˆš Ɨ Ɨ Ɨ āˆš Ɨ Ɨ
      7inch DSI LCD (B) 800Ɨ480 DSI IPS 170Ā° Capacitive I2C āˆš Ɨ Ɨ Ɨ āˆš Ɨ Ɨ
      7inch DSI LCD (B) (with case A) 800Ɨ480 DSI IPS 170Ā° Capacitive I2C āˆš Ɨ Ɨ Ɨ āˆš Ɨ Ɨ
      7inch DSI LCD (C) 1024Ɨ600 DSI IPS 170Ā° Capacitive I2C āˆš Ɨ Ɨ Ɨ āˆš Ɨ Ɨ
      7inch DSI LCD (C) (with case A) 1024Ɨ600 DSI IPS 170Ā° Capacitive I2C āˆš Ɨ Ɨ Ɨ āˆš Ɨ Ɨ
      7inch DSI LCD (E) 1280Ɨ800 DSI IPS 178Ā° Capacitive I2C āˆš āˆš Ɨ Ɨ āˆš Ɨ Ɨ
      7-DSI-TOUCH-A 720Ɨ1280 DSI IPS 170Ā° Capacitive I2C āˆš āˆš Ɨ Ɨ āˆš Ɨ Ɨ
      7-DSI-TOUCH-C 1024Ɨ600 DSI IPS 170Ā° Capacitive I2C Ɨ Ɨ Ɨ Ɨ āˆš Ɨ Ɨ
      7inch DSI LCD (H) 1280Ɨ720 DSI IPS 170Ā° Capacitive I2C āˆš āˆš Ɨ Ɨ āˆš Ɨ Ɨ
      7.9inch DSI LCD 400Ɨ1280 DSI IPS 170Ā° Capacitive I2C āˆš Ɨ Ɨ Ɨ āˆš Ɨ Ɨ
      8-DSI-TOUCH-A 800Ɨ1280 DSI IPS 178Ā° Capacitive I2C āˆš āˆš Ɨ Ɨ āˆš Ɨ Ɨ
      8inch DSI LCD 800Ɨ480 DSI TFT ā€“ Capacitive I2C āˆš Ɨ Ɨ Ɨ āˆš Ɨ Ɨ
      8inch DSI LCD (with cam) 800Ɨ480 DSI TFT ā€“ Capacitive I2C āˆš Ɨ Ɨ Ɨ āˆš Ɨ Ɨ
      8inch DSI LCD (C) 1280Ɨ800 DSI IPS 178Ā° Capacitive I2C āˆš āˆš Ɨ Ɨ āˆš Ɨ Ɨ
      8.8inch DSI LCD 480Ɨ1920 DSI IPS 178Ā° Capacitive I2C āˆš āˆš Ɨ Ɨ āˆš Ɨ Ɨ
      8.8-DSI-TOUCH-A 480Ɨ1920 DSI IPS 178Ā° Capacitive I2C āˆš āˆš Ɨ Ɨ āˆš Ɨ Ɨ
      9-DSI-TOUCH-B 720Ɨ1280 DSI IPS 160Ā° Capacitive I2C āˆš Ɨ Ɨ Ɨ āˆš Ɨ Ɨ
      10.1-DSI-TOUCH-A 800Ɨ1280 DSI IPS 178Ā° Capacitive I2C āˆš āˆš Ɨ Ɨ āˆš Ɨ Ɨ
      10.1-DSI-TOUCH-B 720Ɨ1280 DSI IPS 170Ā° Capacitive I2C āˆš Ɨ Ɨ Ɨ āˆš Ɨ Ɨ
      10.1inch DSI LCD (C) 1280Ɨ800 DSI IPS 178Ā° Capacitive I2C āˆš āˆš Ɨ Ɨ āˆš Ɨ Ɨ
      11.9inch DSI LCD 320Ɨ1480 DSI IPS 170Ā° Capacitive I2C āˆš Ɨ Ɨ Ɨ āˆš Ɨ Ɨ
      12.3-DSI-TOUCH-A 720Ɨ1920 DSI IPS 178Ā° Capacitive I2C āˆš āˆš Ɨ Ɨ āˆš Ɨ Ɨ
      13.3inch DSI LCD 1920Ɨ1080 DSI IPS 178Ā° Capacitive I2C āˆš Ɨ Ɨ Ɨ āˆš Ɨ Ɨ
      2.8inch HDMI LCD (H) 480Ɨ640 HDMI IPS 160Ā° Capacitive USB-C / I2C āˆš āˆš Ɨ Ɨ āˆš āˆš āˆš
      3.2inch HDMI LCD (H) 480Ɨ800 HDMI IPS 160Ā° Ɨ Ɨ Ɨ Ɨ Ɨ Ɨ āˆš āˆš Display ONLY
      3.4inch 800x800 LCD 800x800 HDMI IPS 170Ā° Capacitive Type-C āˆš āˆš Ɨ āˆš āˆš āˆš āˆš
      3.5inch HDMI LCD 480Ɨ320 HDMI IPS 160Ā° Resistive SPI Ɨ Ɨ Ɨ āˆš āˆš Ɨ Display ONLY
      3.5inch 480x800 LCD 480Ɨ800 HDMI IPS 170Ā° Capacitive USB-C Ɨ Ɨ Ɨ Ɨ āˆš āˆš āˆš
      4inch 720x720 LCD 720x720 HDMI IPS 170Ā° Capacitive Type-C āˆš āˆš Ɨ āˆš āˆš āˆš āˆš
      4inch HDMI LCD 480Ɨ800 HDMI IPS 170Ā° Resistive SPI Ɨ Ɨ Ɨ Ɨ āˆš Ɨ Display ONLY
      4inch HDMI LCD (C) 720Ɨ720 HDMI IPS 170Ā° Capacitive USB-C / I2C āˆš āˆš Ɨ āˆš āˆš āˆš āˆš
      4inch HDMI LCD (H) 480Ɨ800 HDMI IPS 170Ā° Resistive SPI Ɨ Ɨ Ɨ āˆš āˆš Ɨ Display ONLY
      4.3inch HDMI LCD (B) 800Ɨ480 HDMI IPS 160Ā° Capacitive USB Ɨ Ɨ Ɨ āˆš āˆš āˆš āˆš
      5DP-CAPLCD-H 1024Ɨ600 HDMI IPS 178Ā° Capacitive Type-C āˆš Ɨ Ɨ āˆš āˆš āˆš āˆš
      5DP-CAPLCD-B 1024Ɨ600 HDMI IPS 178Ā° Capacitive Type-C āˆš āˆš Ɨ āˆš āˆš āˆš āˆš
      5DP-CAPLCD-G 1024Ɨ600 HDMI IPS 178Ā° Resistive Type-C āˆš Ɨ Ɨ āˆš āˆš āˆš āˆš
      5inch HDMI LCD 800Ɨ480 HDMI TFT ā€“ Resistive SPI Ɨ Ɨ Ɨ Ɨ āˆš Ɨ Ɨ
      5inch HDMI LCD (with bicolor case) 800Ɨ480 HDMI TFT ā€“ Resistive SPI Ɨ Ɨ Ɨ Ɨ āˆš Ɨ Ɨ
      5inch HDMI LCD (B) 800Ɨ480 HDMI TFT ā€“ Resistive USB Ɨ Ɨ Ɨ Ɨ āˆš Ɨ āˆš
      5inch HDMI LCD (B) (with bicolor case) 800Ɨ480 HDMI TFT ā€“ Resistive USB Ɨ Ɨ Ɨ Ɨ āˆš Ɨ āˆš
      5inch HDMI LCD (G) 800Ɨ480 HDMI/VGA TFT ā€“ Resistive USB Ɨ Ɨ Ɨ āˆš āˆš Ɨ āˆš
      5inch HDMI LCD (H) 800Ɨ480 HDMI/VGA TFT ā€“ Capacitive USB āˆš Ɨ Ɨ āˆš āˆš āˆš āˆš
      5inch HDMI LCD (H) V4 800Ɨ480 HDMI TFT ā€“ Capacitive USB āˆš Ɨ Ɨ Ɨ āˆš Ɨ āˆš
      5inch HDMI AMOLED 960Ɨ544 HDMI AMOLED 170Ā° Capacitive USB āˆš āˆš Ɨ āˆš āˆš āˆš āˆš
      5inch 1080x1080 LCD 1080Ɨ1080 HDMI IPS 160Ā° Capacitive Type-C āˆš āˆš āˆš āˆš āˆš āˆš āˆš
      5inch 720x1280 LCD 720Ɨ1280 HDMI IPS 178Ā° Capacitive Type-C āˆš āˆš āˆš Ɨ āˆš āˆš āˆš
      5.5inch HDMI AMOLED 1080Ɨ1920 HDMI AMOLED 170Ā° Capacitive USB āˆš āˆš Ɨ āˆš āˆš āˆš āˆš
      5.5inch HDMI AMOLED (with case A) 1080Ɨ1920 HDMI AMOLED 170Ā° Capacitive USB āˆš āˆš Ɨ āˆš āˆš Ɨ Ɨ
      5.5inch 1440x2560 LCD 1440Ɨ2560 HDMI IPS 170Ā° Capacitive USB āˆš āˆš Ɨ āˆš āˆš Ɨ āˆš
      5.5inch 1440x2560 LCD (with case A) 1440Ɨ2560 HDMI IPS 170Ā° Capacitive USB āˆš āˆš Ɨ āˆš āˆš Ɨ Ɨ
      6.25inch 720x1560 LCD 720Ɨ1560 HDMI IPS 178Ā° Capacitive Type-C āˆš āˆš āˆš Ɨ āˆš āˆš āˆš
      PI5-HMI-7A 720Ɨ1280 HDMI IPS 170Ā° Capacitive Type-C āˆš āˆš Ɨ Ɨ āˆš Ɨ Ɨ
      7EP-CAPLCD 1280Ɨ800 HDMI IPS 178Ā° Capacitive USB āˆš āˆš āˆš āˆš āˆš āˆš āˆš
      7EP-CAPLCD Monitor 1280Ɨ800 HDMI/Type-C IPS 178Ā° Capacitive Type-C āˆš āˆš āˆš āˆš āˆš āˆš āˆš
      7inch HDMI LCD 1024Ɨ600 HDMI IPS 170Ā° Resistive SPI Ɨ Ɨ Ɨ Ɨ āˆš Ɨ Display ONLY
      7inch HDMI LCD (B) 800Ɨ480 HDMI TFT ā€“ Capacitive USB Ɨ Ɨ Ɨ Ɨ āˆš Ɨ āˆš
      7inch 1080x1080 LCD 1080Ɨ1080 HDMI IPS 160Ā° Capacitive Type-C āˆš āˆš Ɨ āˆš āˆš āˆš āˆš
      7inch HDMI LCD (B) (with bicolor case) 800Ɨ480 HDMI TFT ā€“ Capacitive USB Ɨ Ɨ Ɨ Ɨ āˆš Ɨ āˆš
      7inch HDMI LCD (C) 1024Ɨ600 HDMI IPS 170Ā° Capacitive USB Ɨ Ɨ Ɨ Ɨ āˆš Ɨ āˆš
      7inch HDMI LCD (C) (with bicolor case) 1024Ɨ600 HDMI IPS 170Ā° Capacitive USB Ɨ Ɨ Ɨ Ɨ āˆš Ɨ āˆš
      7inch HDMI LCD (H) 1024Ɨ600 HDMI/VGA IPS 170Ā° Capacitive USB Ɨ Ɨ Ɨ āˆš āˆš āˆš āˆš
      7inch HDMI LCD (H) (with case) 1024Ɨ600 HDMI/VGA IPS 170Ā° Capacitive USB āˆš Ɨ Ɨ āˆš āˆš āˆš āˆš
      7HP-CAPQLED 1024Ɨ600 HDMI IPS (QLED) 170Ā° Capacitive USB āˆš Ɨ Ɨ āˆš āˆš āˆš āˆš
      7.9inch HDMI LCD 400Ɨ1280 HDMI IPS 170Ā° Capacitive USB āˆš Ɨ Ɨ āˆš āˆš āˆš āˆš
      7.9inch Side Monitor 400Ɨ1280 HDMI IPS 170Ā° Ɨ Ɨ āˆš Ɨ āˆš Ɨ āˆš āˆš āˆš
      7.9inch Touch Monitor 400Ɨ1280 HDMI IPS 170Ā° Capacitive USB āˆš Ɨ āˆš Ɨ āˆš āˆš āˆš
      PI5-HMI-080D 1280Ɨ800 HDMI IPS 178Ā° Capacitive Type-C āˆš āˆš Ɨ Ɨ āˆš Ɨ Ɨ
      8DP-CAPLCD 1280Ɨ800 HDMI IPS 178Ā° Capacitive USB āˆš āˆš Ɨ āˆš āˆš āˆš āˆš
      8HP-CAPLCD Monitor 1280Ɨ800 HDMI/Type-C IPS 178Ā° Capacitive USB āˆš āˆš āˆš āˆš āˆš āˆš āˆš
      8inch 768x1024 LCD 768Ɨ1024 HDMI IPS 178Ā° Capacitive Type-C āˆš Ɨ āˆš āˆš āˆš āˆš āˆš
      8inch 1536x2048 LCD 1536Ɨ2048 HDMI IPS 178Ā° Capacitive Type-C āˆš āˆš āˆš āˆš āˆš āˆš āˆš
      8.8inch Side Monitor 480Ɨ1920 HDMI IPS 170Ā° Ɨ Ɨ Ɨ Ɨ āˆš Ɨ āˆš āˆš Display ONLY
      9HP-CAPQLED-B 1280Ɨ720 HDMI IPS (QLED) 178Ā° Capacitive USB āˆš Ɨ Ɨ āˆš āˆš āˆš āˆš
      9.3inch 1600x600 LCD 1600Ɨ600 HDMI IPS 178Ā° Capacitive Type-C āˆš āˆš āˆš āˆš āˆš āˆš āˆš
      9.7inch 768x1024 LCD 768Ɨ1024 HDMI IPS 178Ā° Capacitive Type-C āˆš Ɨ āˆš āˆš āˆš āˆš āˆš
      PI5-HMI-101D 1280Ɨ800 HDMI IPS 178Ā° Capacitive Type-C āˆš āˆš Ɨ Ɨ āˆš Ɨ Ɨ
      10.1inch HDMI LCD 1024Ɨ600 HDMI IPS 170Ā° Resistive SPI Ɨ Ɨ Ɨ Ɨ āˆš Ɨ Display ONLY
      10.1inch HDMI LCD (B) (with case) 1280Ɨ800 HDMI IPS 170Ā° Capacitive USB āˆš Ɨ Ɨ Ɨ āˆš Ɨ āˆš
      10.1inch HDMI LCD (E) 1024Ɨ600 HDMI IPS 170Ā° Capacitive USB āˆš āˆš Ɨ āˆš āˆš āˆš āˆš
      10.1inch HDMI LCD (G) (with case) 1920Ɨ1200 HDMI IPS 160Ā° Capacitive USB āˆš āˆš āˆš āˆš āˆš āˆš āˆš
      10.1inch HDMI LCD (H) (with case) 1024Ɨ600 HDMI/VGA TFT ā€“ Capacitive USB Ɨ Ɨ Ɨ Ɨ āˆš āˆš āˆš
      10.1inch HDMI LCD (F) (with case) 1024Ɨ600 HDMI/VGA IPS 170Ā° Capacitive USB āˆš Ɨ āˆš Ɨ āˆš āˆš āˆš
      10.1EP-CAPLCD 1920Ɨ1200 HDMI IPS 178Ā° Capacitive Type-C āˆš āˆš āˆš āˆš āˆš āˆš āˆš
      10.1DP-CAPLCD 1280Ɨ800 HDMI IPS 178Ā° Capacitive USB āˆš āˆš Ɨ āˆš āˆš āˆš āˆš
      10.1HP-CAPQLED 1280Ɨ720 HDMI IPS (QLED) 170Ā° Capacitive USB āˆš Ɨ Ɨ āˆš āˆš āˆš āˆš
      10.1HP-CAPLCD Monitor 1280Ɨ800 HDMI/Type-C IPS 178Ā° Capacitive USB āˆš āˆš āˆš āˆš āˆš āˆš āˆš
      10.4HP-CAPQLED 1600Ɨ720 HDMI IPS(QLED) 178Ā° Capacitive Type-C āˆš āˆš āˆš āˆš āˆš āˆš āˆš
      10.5inch HDMI AMOLED 2560Ɨ1600 HDMI AMOLED 160Ā° Capacitive USB āˆš āˆš āˆš āˆš āˆš āˆš āˆš
      11EP-CAPLCD 1920Ɨ1200 HDMI IPS 170Ā° Capacitive Type-C āˆš (&In-Cell) āˆš āˆš āˆš āˆš āˆš āˆš
      11.6inch 1768x828 LCD 1768Ɨ828 HDMI/Type-C IPS 178Ā° Capacitive Type-C In-Cell Ɨ Ɨ āˆš āˆš āˆš āˆš
      11.6inch HDMI LCD (H) 1920Ɨ1080 HDMI IPS 178Ā° Capacitive USB āˆš āˆš Ɨ āˆš āˆš āˆš āˆš
      11.6inch HDMI LCD (H) (with case) 1920Ɨ1080 HDMI/VGA IPS 178Ā° Capacitive USB āˆš āˆš āˆš āˆš āˆš āˆš āˆš
      11.9inch HDMI LCD 320Ɨ1480 HDMI IPS 170Ā° Capacitive USB āˆš Ɨ Ɨ āˆš āˆš āˆš āˆš
      11.9inch Side Monitor 320Ɨ1480 HDMI IPS 170Ā° Ɨ Ɨ āˆš Ɨ āˆš Ɨ āˆš āˆš āˆš
      11.9inch Touch Monitor 320Ɨ1480 HDMI IPS 170Ā° Capacitive USB āˆš Ɨ āˆš Ɨ āˆš āˆš āˆš
      12.3inch 1920x720 LCD 1920Ɨ720 HDMI/Type-C IPS 178Ā° Capacitive Type-C In-Cell Ɨ Ɨ āˆš āˆš āˆš āˆš
      12.3inch HDMI LCD 1920Ɨ720 HDMI IPS 178Ā° Capacitive USB āˆš āˆš āˆš āˆš āˆš āˆš āˆš
      13.3inch HDMI LCD (H) 1920Ɨ1080 HDMI IPS 178Ā° Capacitive USB āˆš Ɨ Ɨ āˆš āˆš āˆš āˆš
      13.3inch HDMI LCD (H) (with case) 1920Ɨ1080 HDMI/VGA IPS 178Ā° Capacitive USB āˆš Ɨ āˆš āˆš āˆš āˆš āˆš
      13.3inch HDMI LCD (H) (with case) V2 1920Ɨ1080 HDMI/VGA IPS 178Ā° Capacitive USB āˆš Ɨ āˆš āˆš āˆš āˆš āˆš
      13.3inch QHD AMOLED 2560Ɨ1440 HDMI/Type-C AMOLED 178Ā° Capacitive Type-C āˆš āˆš āˆš āˆš āˆš āˆš āˆš
      13.3inch FHD AMOLED 1920Ɨ1080 HDMI/Type-C AMOLED 178Ā° Capacitive Type-C āˆš āˆš āˆš āˆš āˆš āˆš āˆš
      13.3inch FHD Monitor 1920Ɨ1080 HDMI/Type-C IPS 178Ā° Capacitive Type-C āˆš Ɨ Ɨ āˆš āˆš āˆš āˆš
      14inch Dual Monitor 1920Ɨ1080 HDMI/Type-C IPS 178Ā° Ɨ Ɨ Ɨ Ɨ āˆš āˆš āˆš āˆš āˆš
      15.6inch FHD Monitor (C) 1920Ɨ1080 mini HDMI/Type-C IPS 178Ā° Capacitive Type-C āˆš āˆš āˆš āˆš āˆš āˆš āˆš
      15.6inch Dual Monitor 1920Ɨ1080 HDMI/Type-C IPS 178Ā° Ɨ Ɨ Ɨ Ɨ āˆš āˆš āˆš āˆš āˆš
      15.6inch HDMI LCD 1920Ɨ1080 HDMI IPS 178Ā° Capacitive USB āˆš Ɨ Ɨ āˆš āˆš āˆš āˆš
      15.6inch HDMI LCD (H) (with case) 1920Ɨ1080 HDMI/VGA IPS 178Ā° Capacitive USB āˆš Ɨ āˆš āˆš āˆš āˆš āˆš
      15.6inch FHD Monitor 1920Ɨ1080 HDMI/Type-C IPS 178Ā° Capacitive Type-C / USB āˆš Ɨ āˆš āˆš āˆš āˆš āˆš
      15.6HP-CAPQLED 1920Ɨ1080 HDMI IPS(QLED) 178Ā° Capacitive USB āˆš āˆš Ɨ āˆš āˆš āˆš āˆš
      15.6inch QLED Monitor 1920Ɨ1080 HDMI IPS(QLED) 178Ā° Capacitive Type-C āˆš āˆš āˆš āˆš āˆš āˆš āˆš
      18.5inch Dual Monitor 1920Ɨ1080 HDMI/Type-C IPS 178Ā° Ɨ Ɨ Ɨ Ɨ āˆš āˆš āˆš āˆš āˆš
      18.5inch FHD LCD 1080Ɨ1920 HDMI/Type-C IPS 178Ā° Capacitive Type-C āˆš āˆš Ɨ āˆš āˆš āˆš āˆš
      21.5inch FHD LCD 1920Ɨ1080 HDMI IPS 170Ā° Capacitive Type-C āˆš āˆš Ɨ āˆš āˆš āˆš āˆš
      21.5inch FHD Monitor 1080Ɨ1920 HDMI IPS 170Ā° Capacitive Type-C āˆš āˆš āˆš Ɨ āˆš āˆš āˆš
      23.8inch FHD Monitor 1080Ɨ1920 HDMI IPS 178Ā° Capacitive Type-C āˆš āˆš āˆš āˆš āˆš āˆš āˆš
      27inch FHD Monitor 1080Ɨ1920 HDMI IPS 178Ā° Capacitive Type-C āˆš āˆš āˆš āˆš āˆš āˆš āˆš

      Have a look :
      RPi LCD Comparing

      Weight: 0.683 kg

      Quick Overview

      1. 11EP-CAPLCD host x1
      2. HDMI flat cable ~1m x1
      3. USB Type-A male port to Type-C male port cable ~1m x1
      4. Micro HDMI Adapter x1
      5. HDMI Adapter x1
      6. HDMI to Micro HDMI Adapter x1
      7. USB Type-A to MX1.25 4PIN cable 120mm x1
      8. Capacitive touch pen x1
      9. 3PIN cable 70mm x1
      10. HDMI-Cable-120mm x2
      11. Cleaning cloth x1
      12. OPTIONS 5V 3A power supply Ɨ1
      13. Screws pack x1
      11EP-CAPLCD
      FAQ
      What video and touch interfaces does this display use?
      Video is transmitted via HDMI and touch data is carried by a USB Type-C port.
      Can the monitor be used in both landscape and portrait orientations?
      Yes, it supports landscape and portrait rotation.
      How many touch points does the display support?
      It supports 10-point capacitive touch.
      What is the screen resolution and panel type?
      It features a 1920x1200 resolution on an IPS panel.
      What is the viewing angle of the display?
      The viewing angle is 170 degrees.
      Reviews
      Forum
      A
      Admin
      Welcome to the discussion thread for 11inch Capacitive Touch Display 1920x1200 HDMI IPS - 10-Point Touch
      Feel free to ask questions, share tips or report issues.
      Add Post

      For more discussion Click Here

      Similar Products

      Discover More In:

      Bulk Order Essentials ā†’ Semiconductors ā†’

      Category: View all Touch Display Monitor

      Bulk Order

      Fill out the form below and our team will get back to you with bulk pricing.

      Custom Requirements?

      Meet with our team

      Scheduling widget

      Related products

      Related products

      0106-14

      Waldom Electonics

      0106-14

      ā‚¹ 2,623.53
