15A 400W DC 5V-36V Dual Large Power Mosfet

SKU: ELC5061

₹ 99.99

In stock | Ready to ship

Chat with us on WhatsApp We reply quickly! Contact Us

15A 400W DC 5V-36V Dual Large Power Mosfet₹ 99.99

Ask AI about this product

Open in ChatGPT Open in Claude Open in Gemini

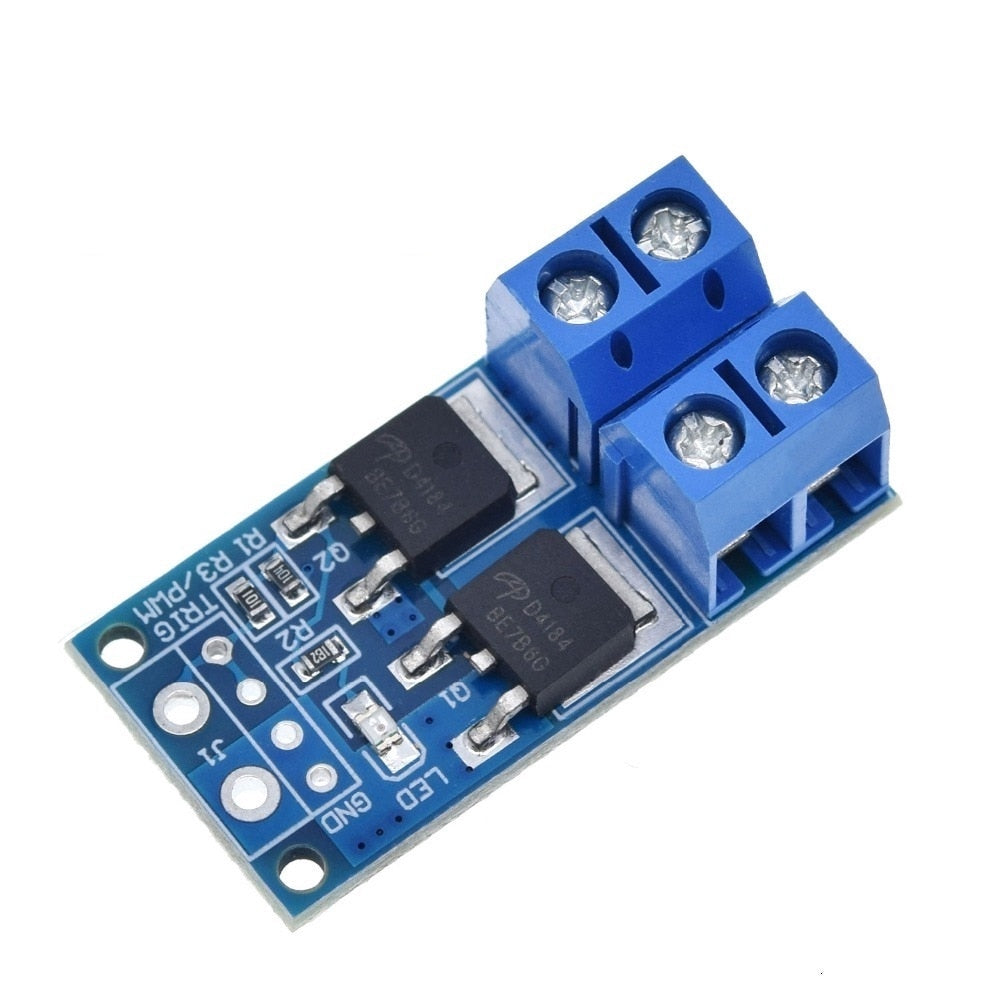

Dual MOSFET parallel active output can manage current of 15A, 400W power at room temperature
Wide voltage input, supports PWM
Working voltage: DC 5V - 36V
The trigger source: digital high-low (DC3.3V - 20V), can be connected microcontroller IO port, PLC interfaces, DC power, you can access the PWM signal
Output capacity: DC DC 5V - 36V, at room temperature, continuous current 15A, power up to 400W!
Applications include High Power equipment, motors, light bulbs, LED lights, DC motors, micro-pumps, solenoid valve; motor speed control, lamp brightness.
Working temperature: -40-85℃;

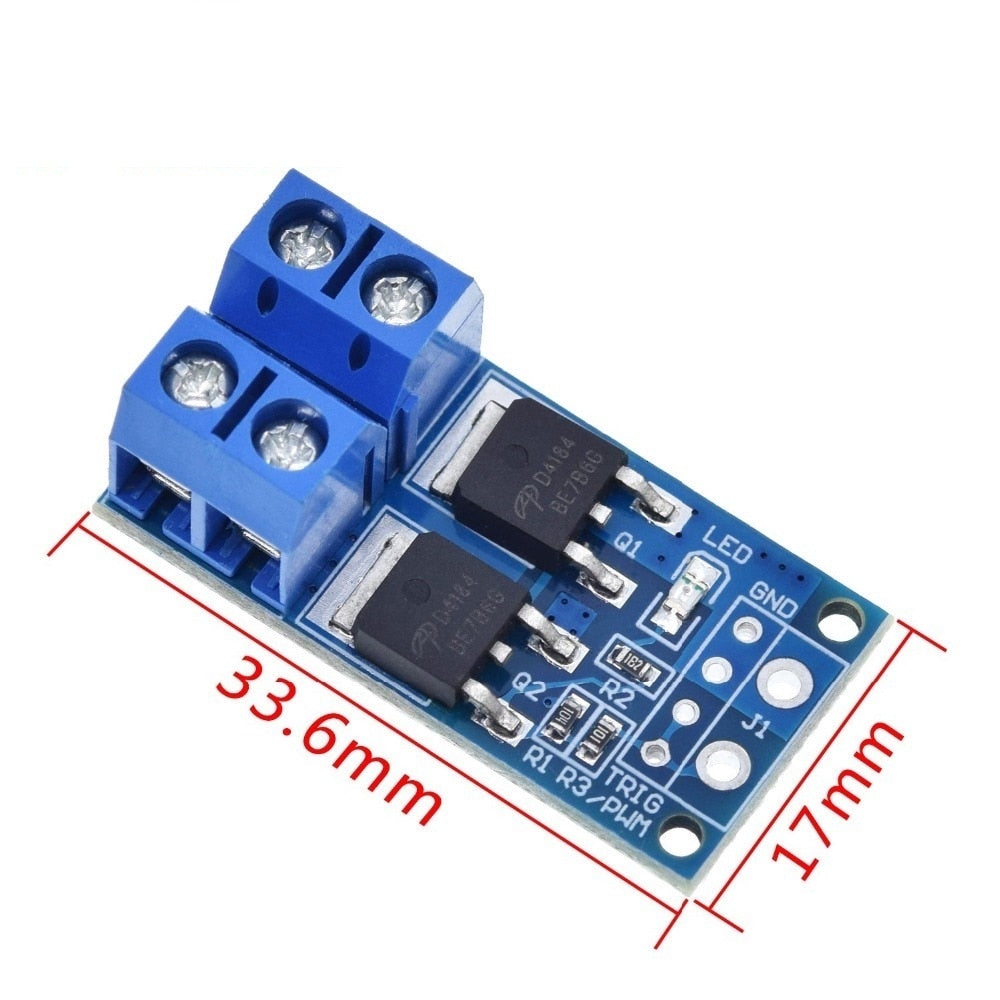

Size: 34mm X 17mm X 12mm
We highly recommend adding heat sinks for high current operations

What voltage and current can the module handle?

The device operates from a DC input of 5 to 36 V and provides an output in the same range, with continuous current up to 15 A and power up to 400 W at room temperature.

How do I drive the output using PWM or digital signals?

The trigger source is a digital high-low signal in the range DC 3.3 V to 20 V, and it can be connected to microcontroller IO ports or PLC interfaces. PWM control can be applied through the trigger input to modulate the output.

What are common applications and the temperature limits?

It is suitable for high power equipment, motors, LED lights, lamps, DC motors, micro-pumps and solenoid valves. The operating temperature is -40 to 85 C.

What is the size and is cooling required?

The module measures 34 mm by 17 mm by 12 mm. For high current operation a heat sink is recommended.

Are there any safety or handling notes I should follow?

Operate within the specified voltage and current ranges and provide adequate cooling to avoid overheating. Stay within the -40 to 85 C operating range for best performance.
