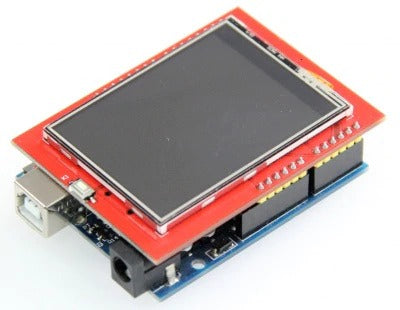

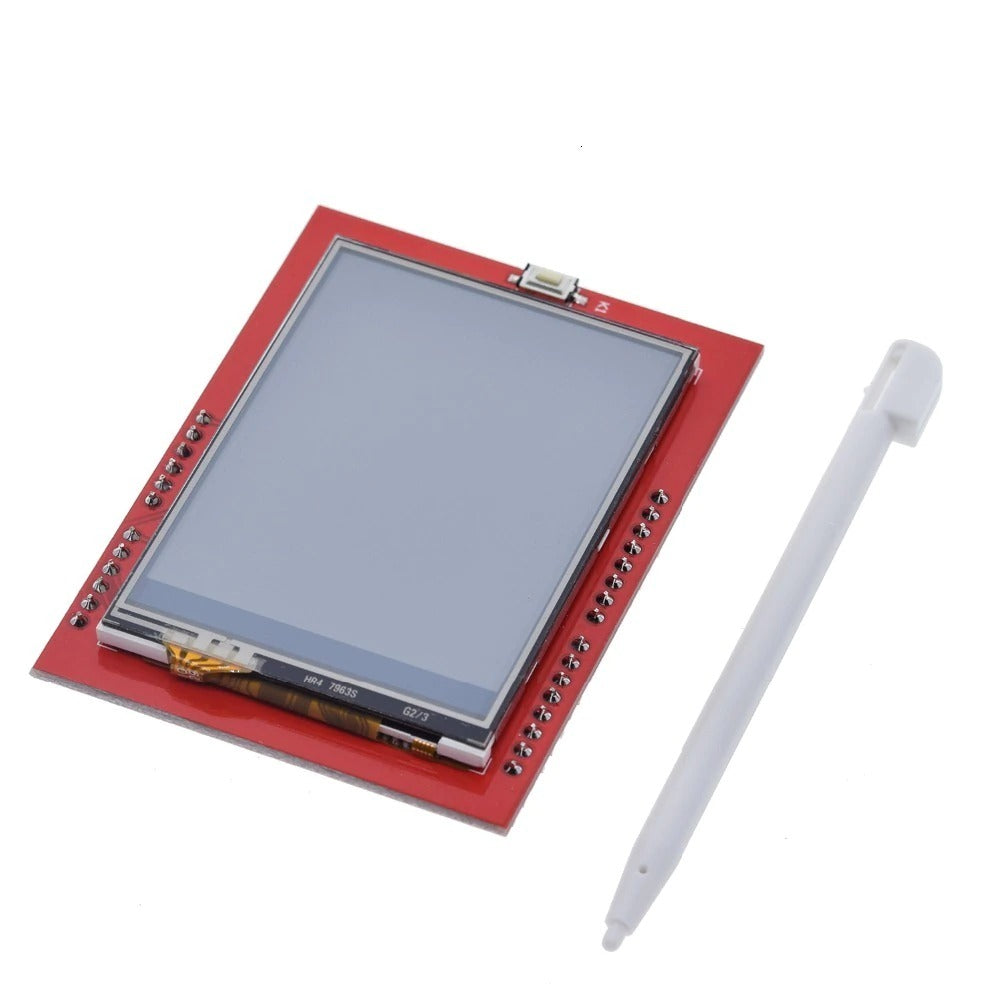

2.4" TFT Arduino Touch Display Shield for Arduino
This is the 2.4 inch touch screen for Arduino UNO and MEGA. It use 8-bit parallel bus, faster than serial SPI refresh , support 16-bit RGB 65K color display, display rich colors , easy to expand the experiment with SD card slot.
Details:

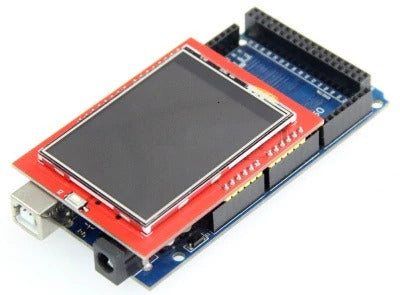

Supports development boards such as Arduino UNO and Mega2560 for plug-in use without wiring
320X240 resolution, clear display, support for touch function
Support 16-bit RGB 65K color display, display rich colors
8-bit parallel bus, faster than serial SPI refresh
On-board 5V/3.3V level shifting IC, compatible with 5V/3.3V operating voltage
Easy to expand the experiment with SD card slot
Provides an Arduino library with a rich sample program
Military-grade process standards, long-term stable work
Provide underlying driver technical support
You can find use case at here !
Specifications
Display Color
RGB 65K color
SKU
MAR2406
Screen Size
2.4(inch)
Type
TFT
Driver IC
SPFD5408
Resolution
320*240 (Pixel)
Module Interface
8-bit parallel interface
Active Area
48.96*36.72(mm)

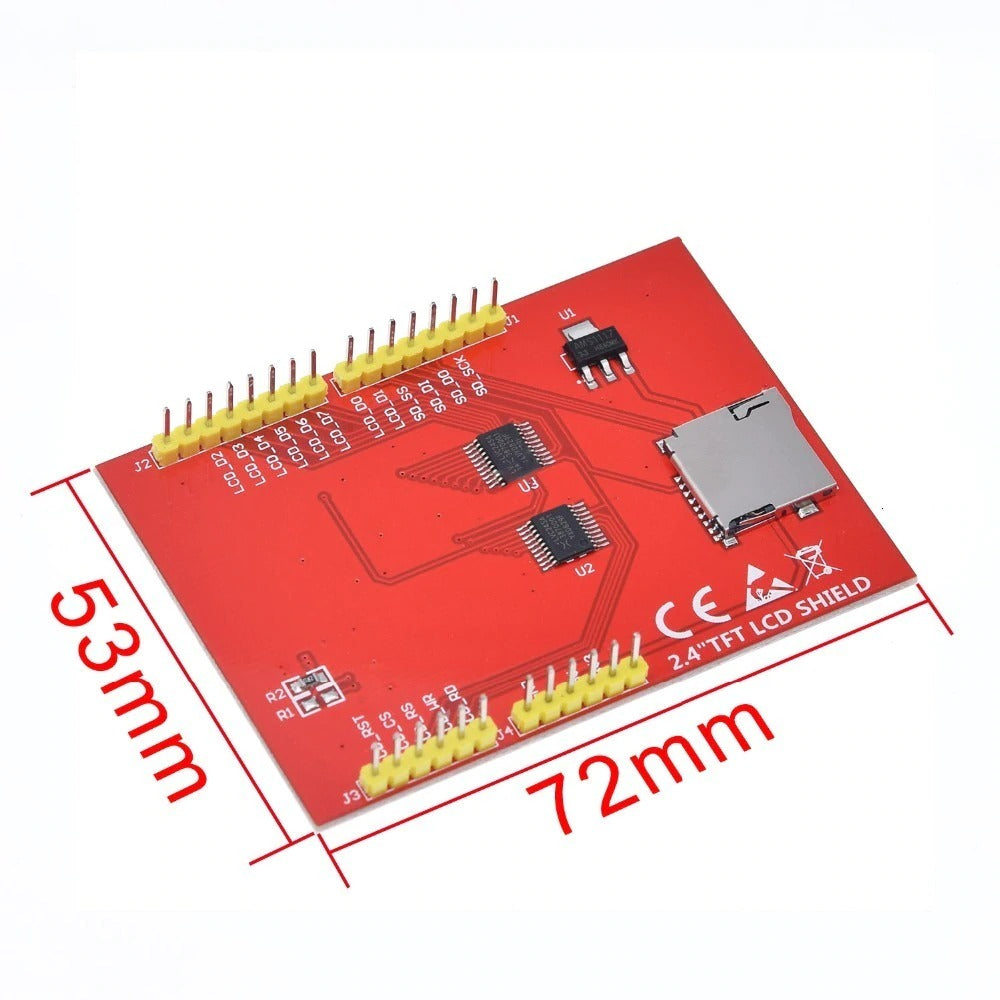

Module PCB Size
72.20*52.7(mm)
Operating Temperature
-20℃~60℃
Storage Temperature
-30℃~70℃
Operating Voltage
5V/3.3V
Power Consumption
TBD

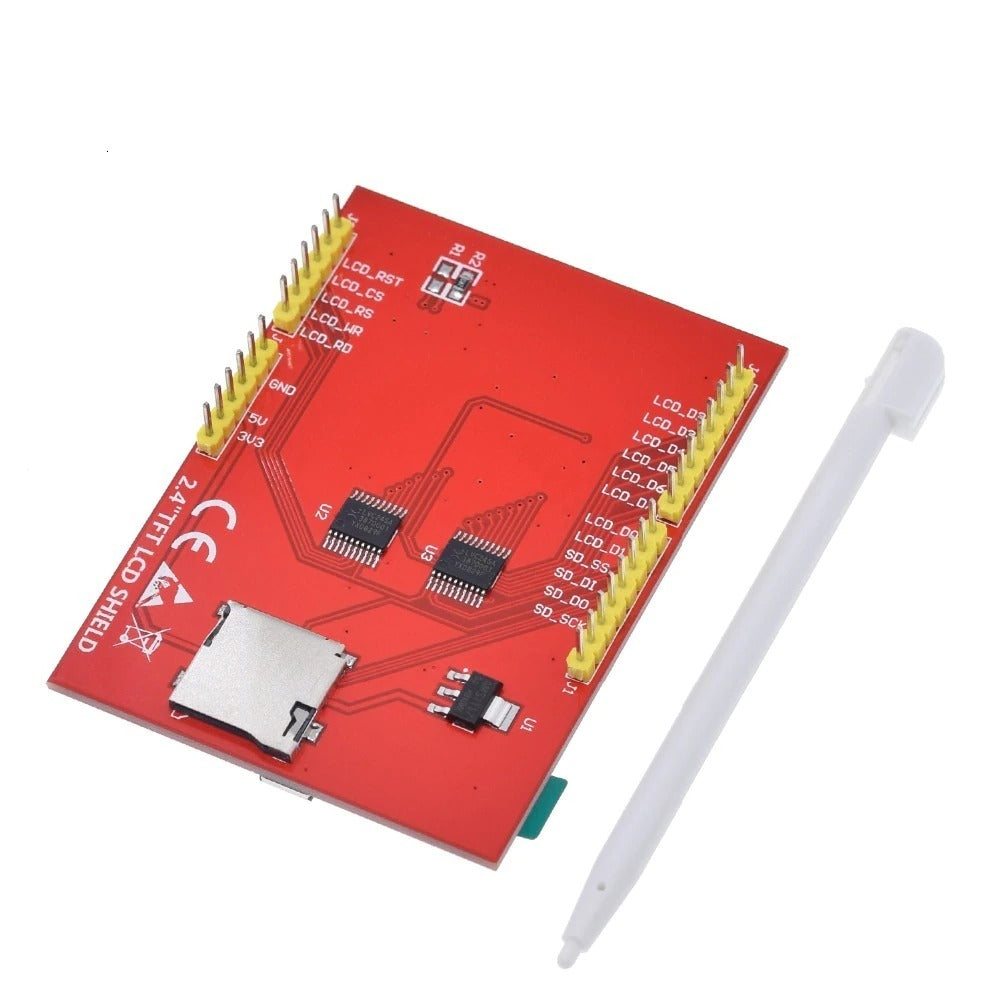

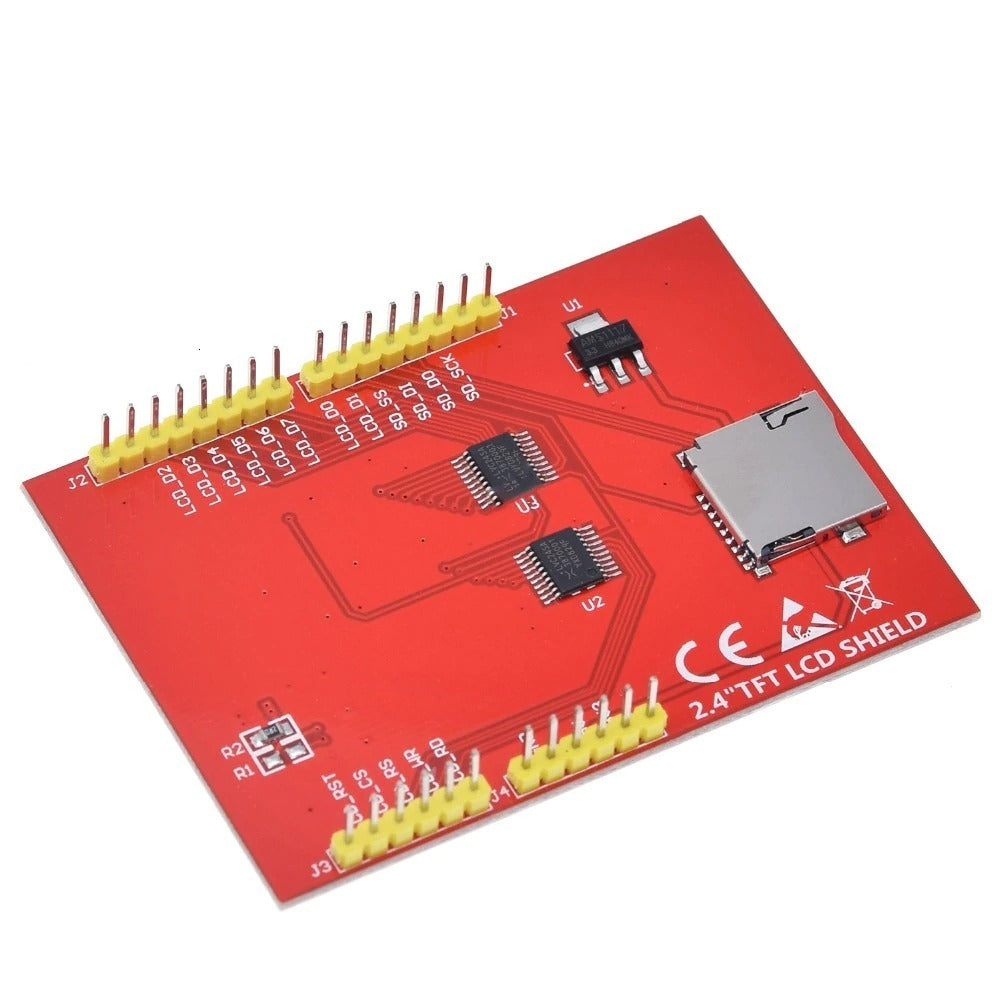

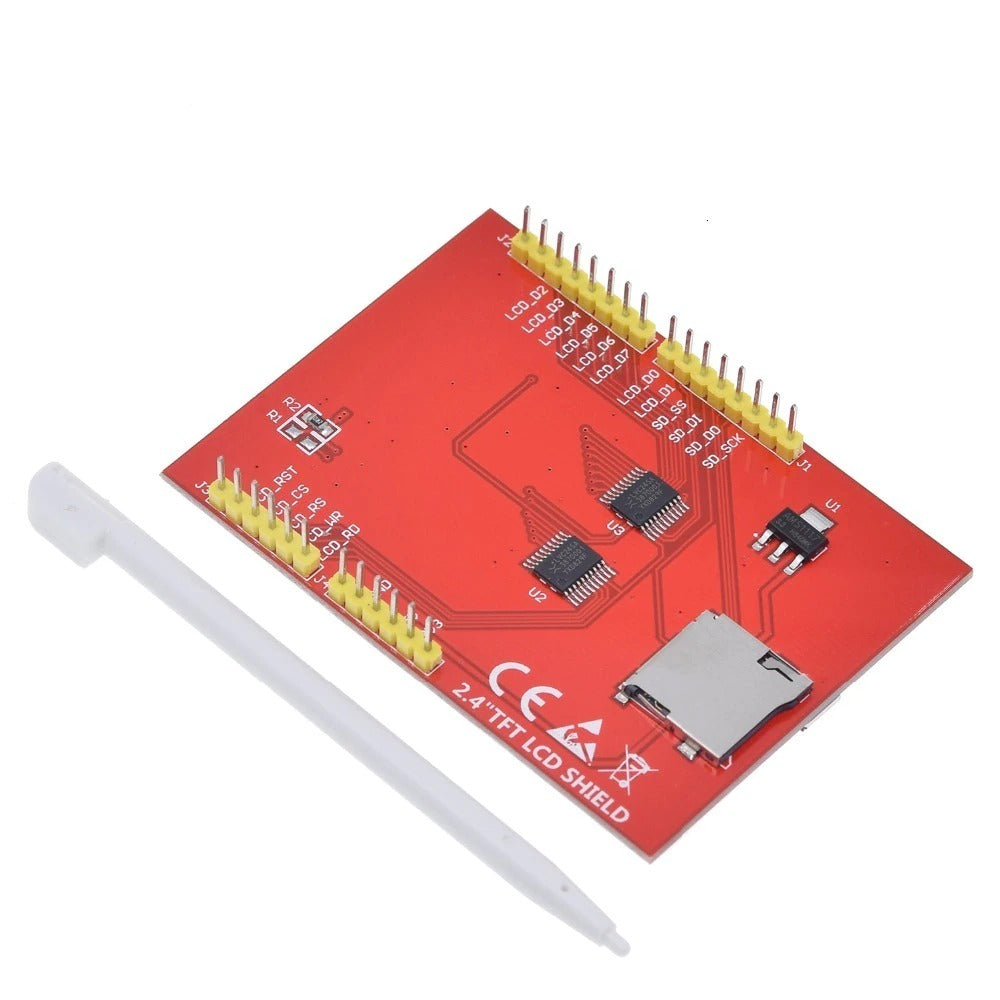

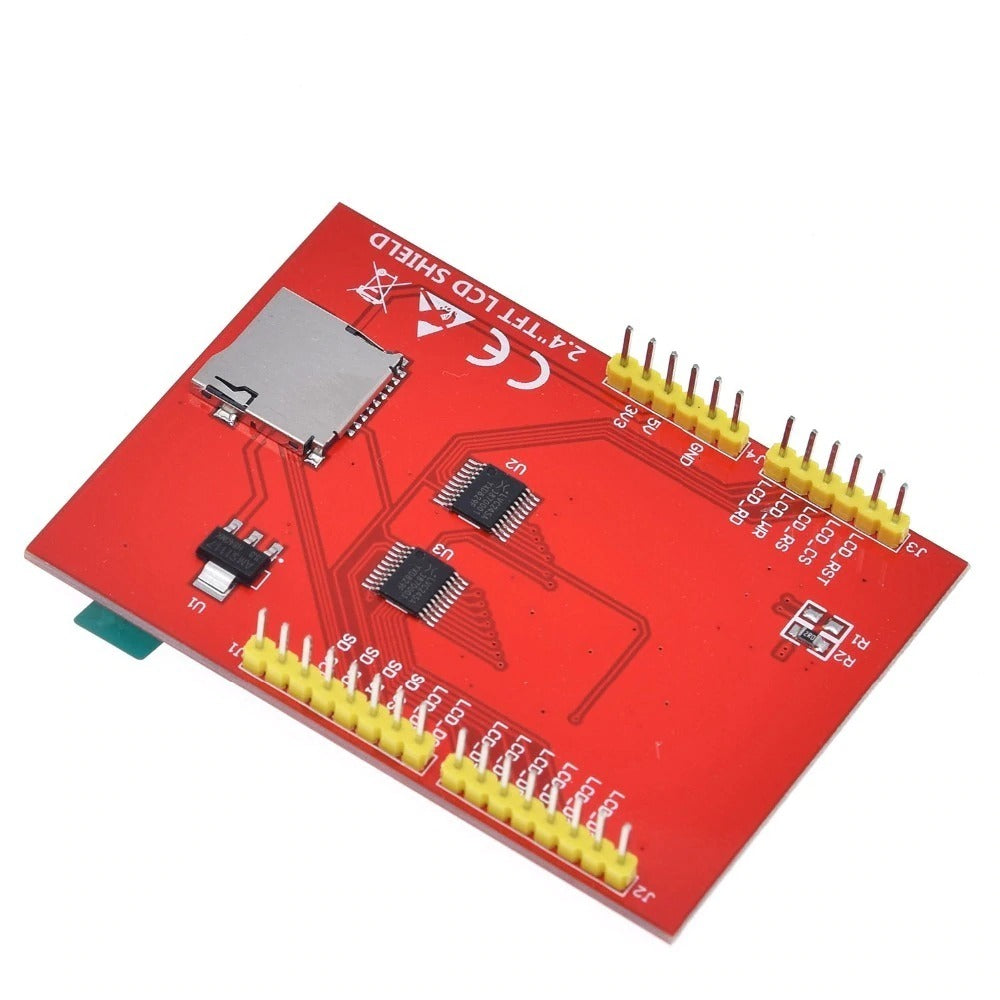

Pin Layout:
Number
Pin Label
Pin Description
1
LCD_RST
LCD bus reset signal, low level reset
2
LCD_CS
LCD bus chip select signal, low level enable
3
LCD_RS
LCD bus command / data selection signal,
low level: command, high level: data
4
LCD_WR
LCD bus write signal
5
LCD_RD
LCD bus read signal
6
GND
Power ground
7
5V
5V power input
8
3V3
3.3V power input, this pin can be disconnected
9
LCD_D0
LCD 8-bit data Bit0
10
LCD_D1
LCD 8-bit data Bit1
11
LCD_D2
LCD 8-bit data Bit2
12
LCD_D3
LCD 8-bit data Bit3
13
LCD_D4
LCD 8-bit data Bit4
14
LCD_D5
LCD 8-bit data Bit5
15
LCD_D6
LCD 8-bit data Bit6
16
LCD_D7
LCD 8-bit data Bit7
17
SD_SS
SD card SPI bus chip select signal, low level enable
18
SD_DI
SD card SPI bus MOSI signal
19
SD_DO
SD card SPI bus MISO signal
20
SD_SCK
SD card SPI bus clock signal
