2-Channel GMSL Camera HAT with MAX9296A Deserializer for Raspberry Pi 5

SKU: WVSH0622

₹ 8,399.99

In stock | Ready to ship

Chat with us on WhatsApp We reply quickly! Contact Us

2-Channel GMSL Camera HAT with MAX9296A Deserializer for Raspberry Pi 5₹ 8,399.99

Ask AI about this product

Open in ChatGPT Open in Claude Open in Gemini

Details

2-Ch GMSL camera HAT, Equipped With MAX9296A Deserializer, High-Speed And Low-Latency Serial Transmission, Compatible With Raspberry Pi 5 and Jetson Orin NX/Nano

2-ch GMSL Camera HAT

MAX9296A deserializer, Compatible With Raspberry Pi 5 and Jetson Orin NX/Nano

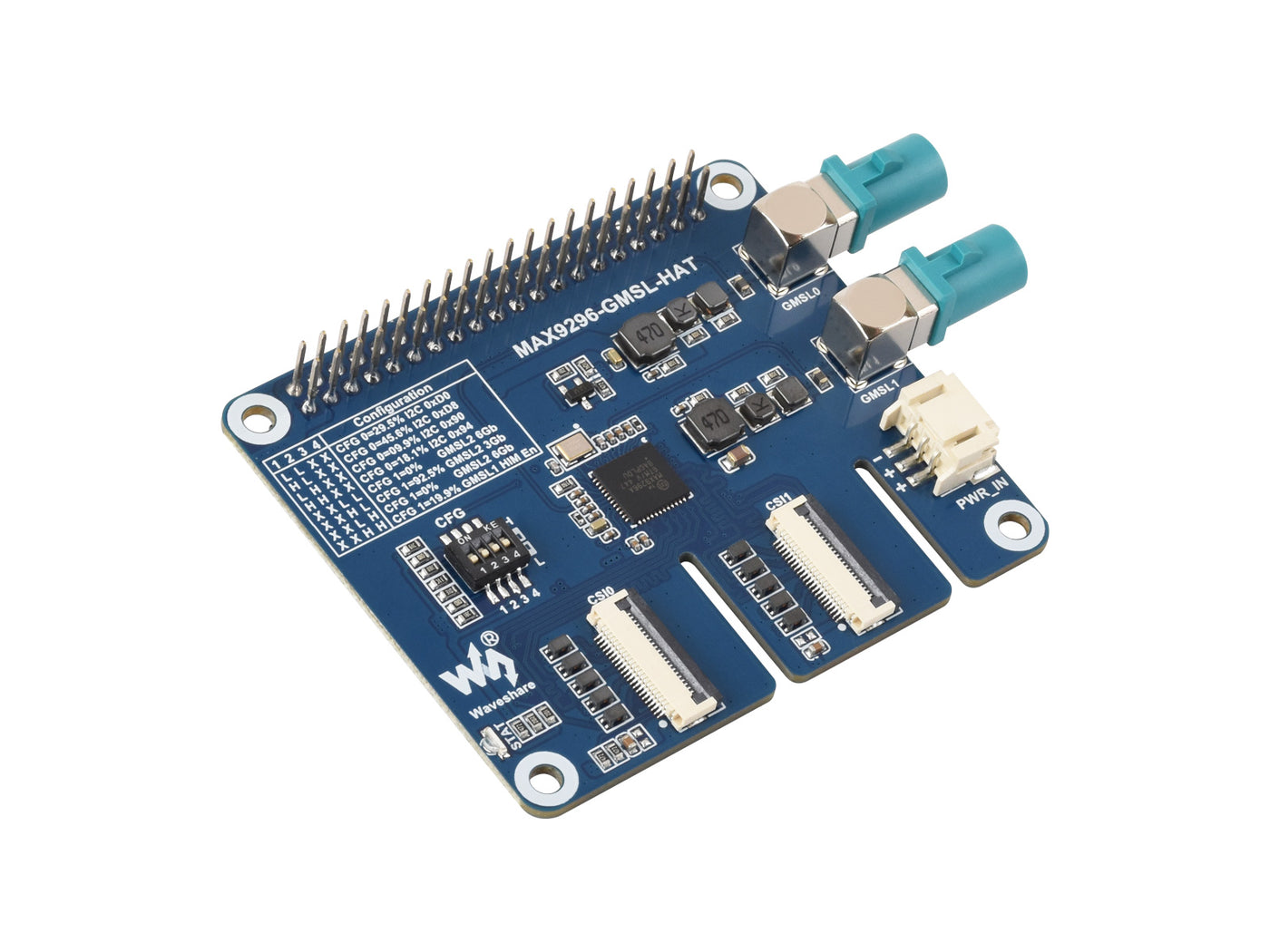

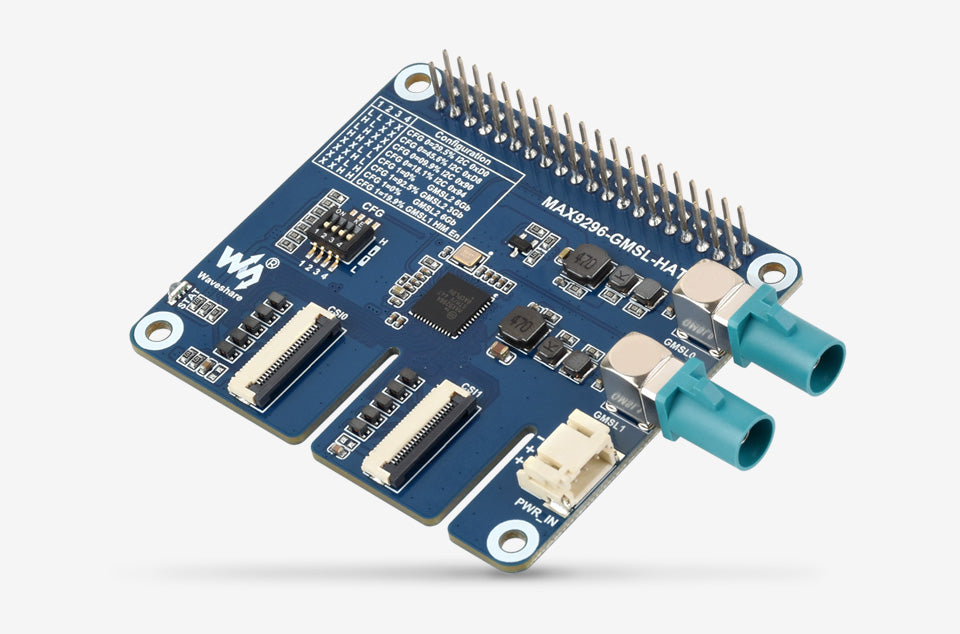

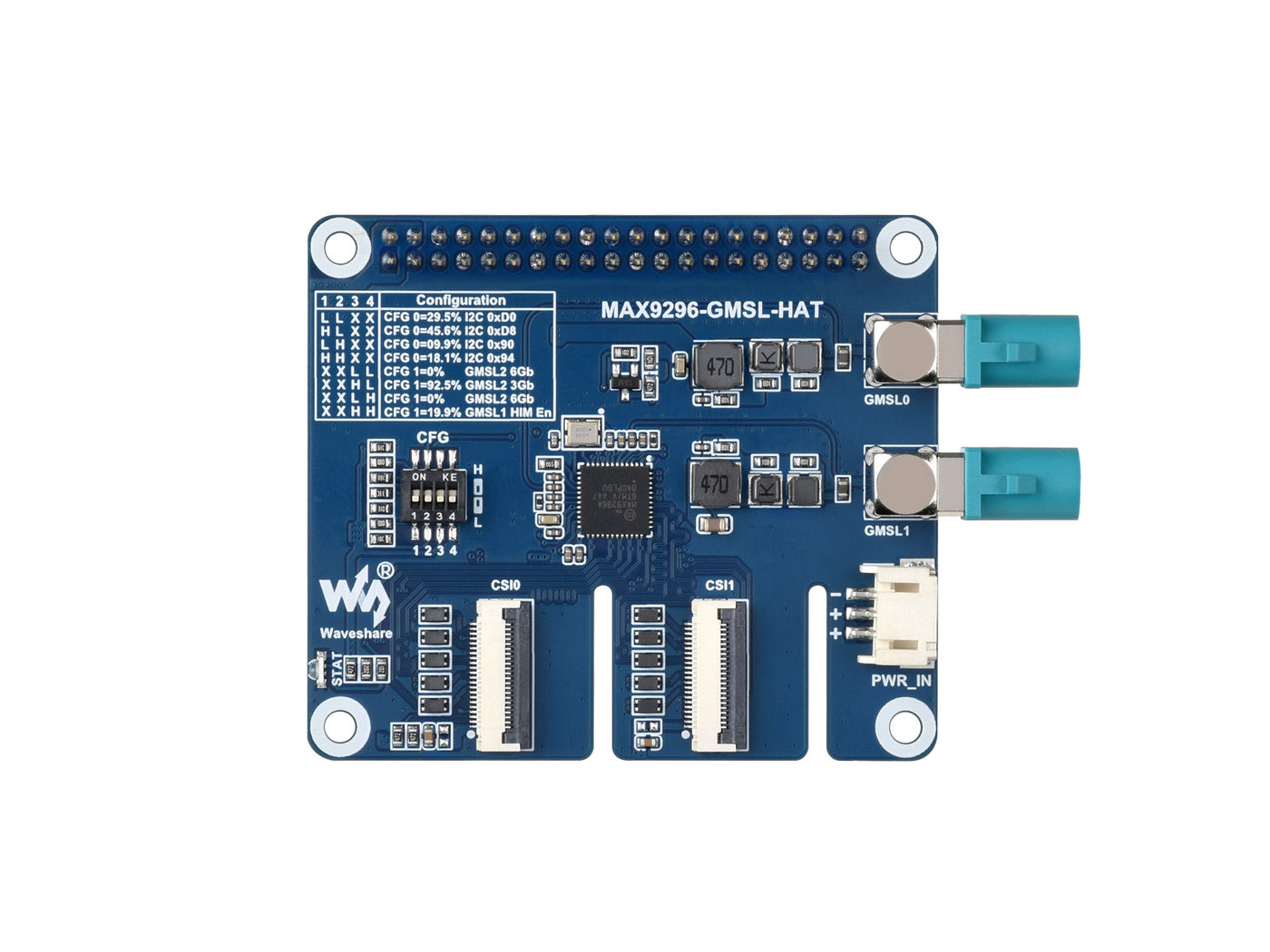

2-ch GMSL Camera adapter Board, front view

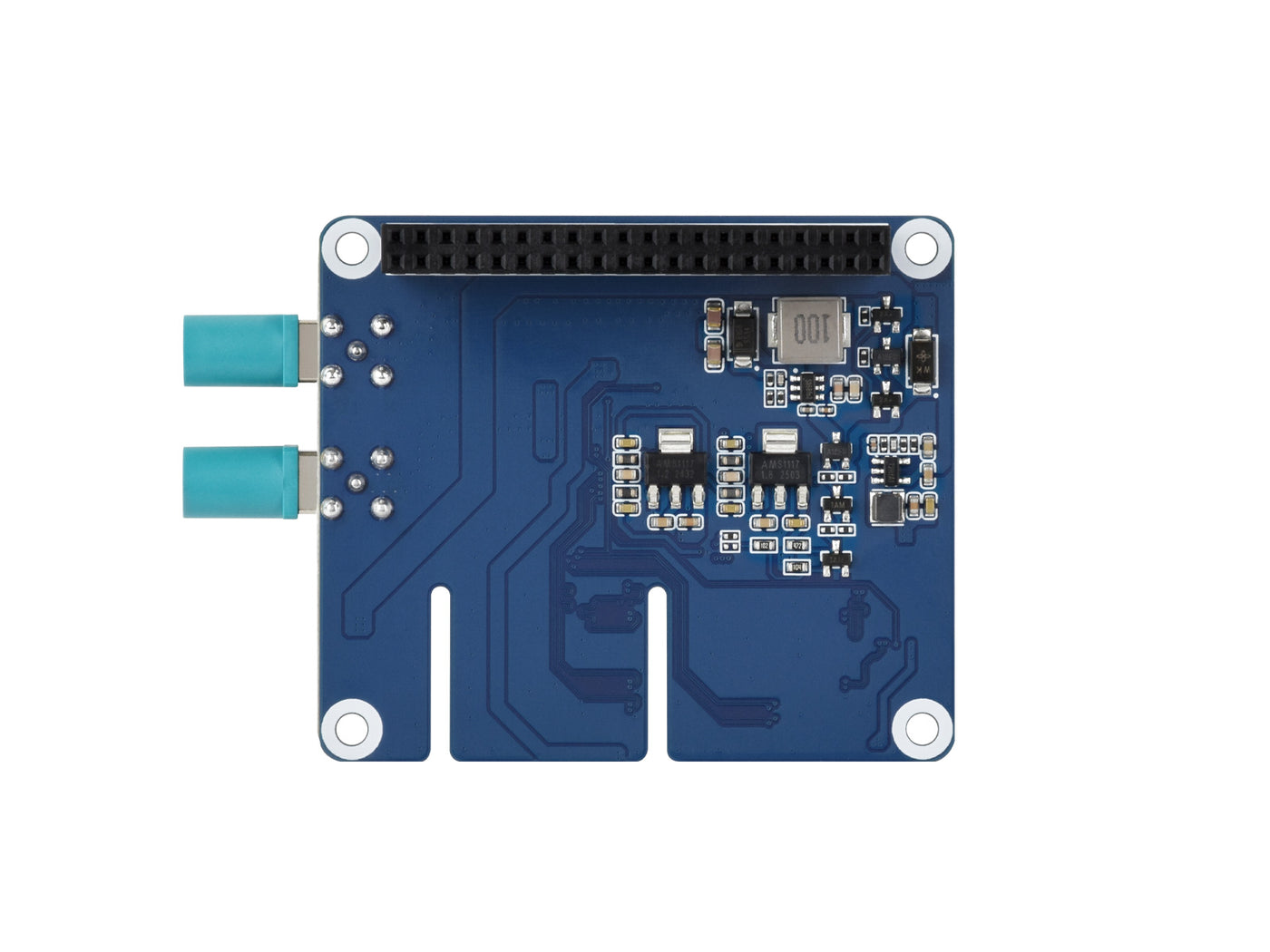

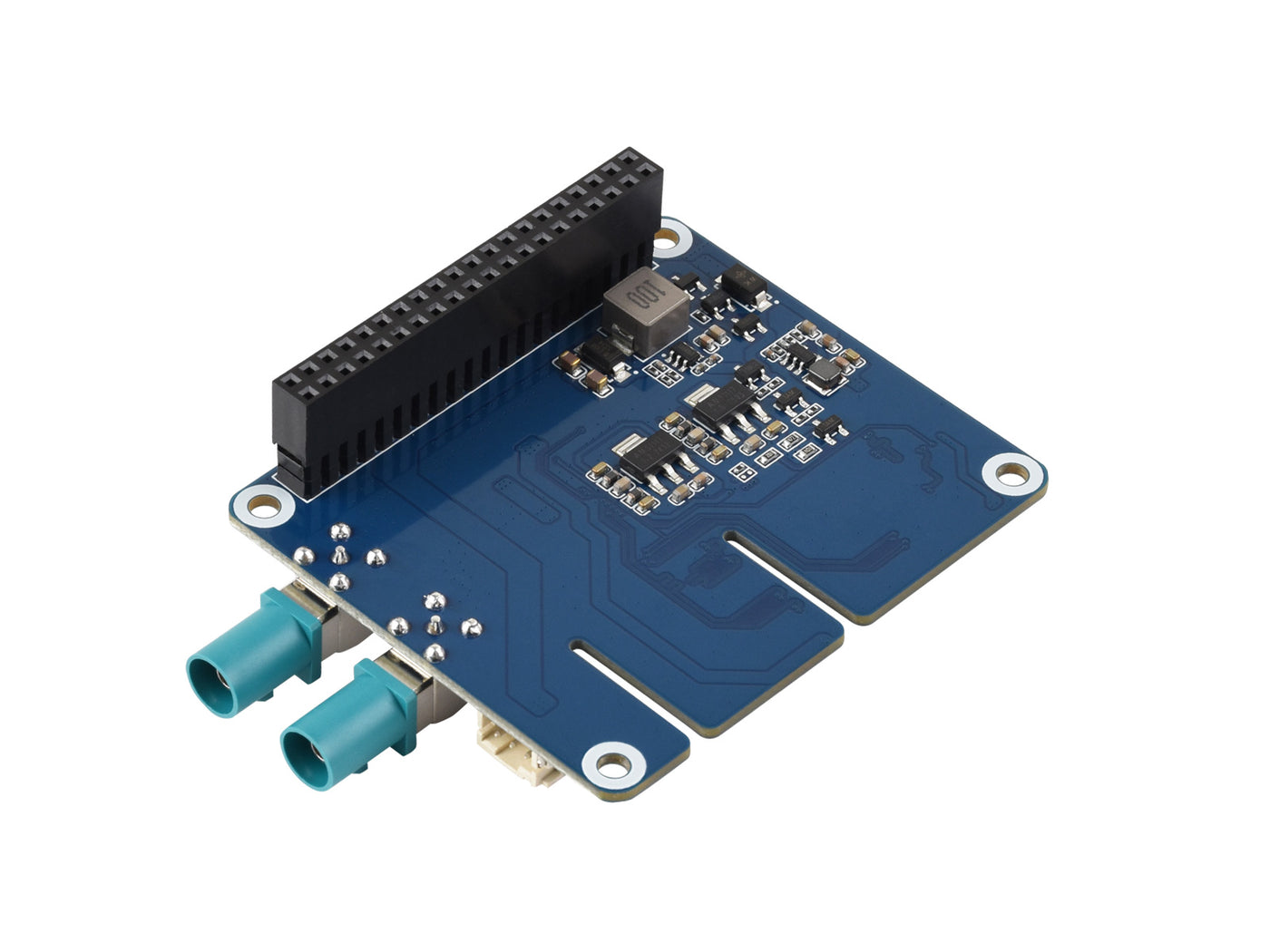

Features

The MAX9296-GMSL-HAT is a GMSL camera HAT that allows up to two GMSL cameras to be connected to the host board such as Raspberry Pi 5, Jetson Orin Nano and Jetson Orin NX. Compatible with both GMSL1 and GMSL2 protocol interfaces through software configuration. Adopts MAX9296A chip, specially designed for applications that require high-bandwidth and low-latency video transmission. Suitable for automatic driving, machine vision, intelligent security and other fields.

GMSL (Gigabit Multimedia Serial Link) is a high-speed serial transmission technology designed for high-bandwidth multimedia data transmission, with the advantages of long-distance, low-delay, high anti-interference and simple wiring. It is mainly used in automotive electronics and industrial applications, and is capable of transmitting high-definition video, audio, and data signals over one cable. By using coaxial or twisted-pair cables, GMSL can achieve long-distance signal transmission.

Key features include:

Supports simultaneous access to two GMSL cameras
Adopts MAX9296A deserializer solution
Supports Raspberry Pi 5, Jetson Orin Nano, and Jetson Orin NX

Specifications

Deserializer	MAXIM (ADI) MAX9296A
Host Support	Raspberry Pi 5, Jetson Orin NX/Nano development kit
Serializer Model Support	MAX9295, MAX96717, MAX96705, etc.
GMSL Input	2-ch GMSL2 (compatible with GMSL1) cameras
Input Interface	2 × MATE_AX FAKRA Z connector
Output Interface	22PIN CSI interfaces
GMSL Camera Support	ISX031, etc.
Power Supply	5V input

What’s On Board

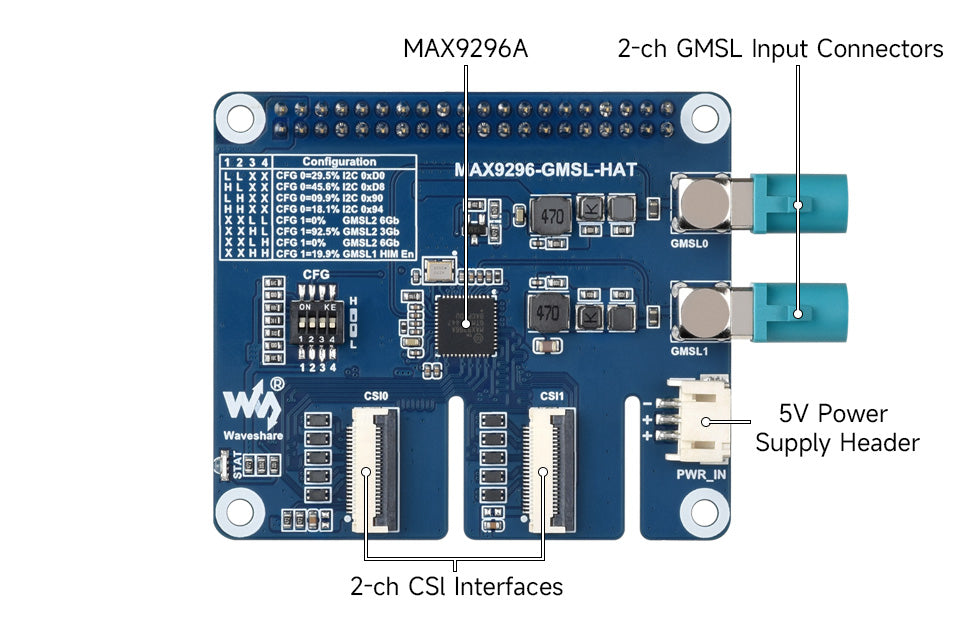

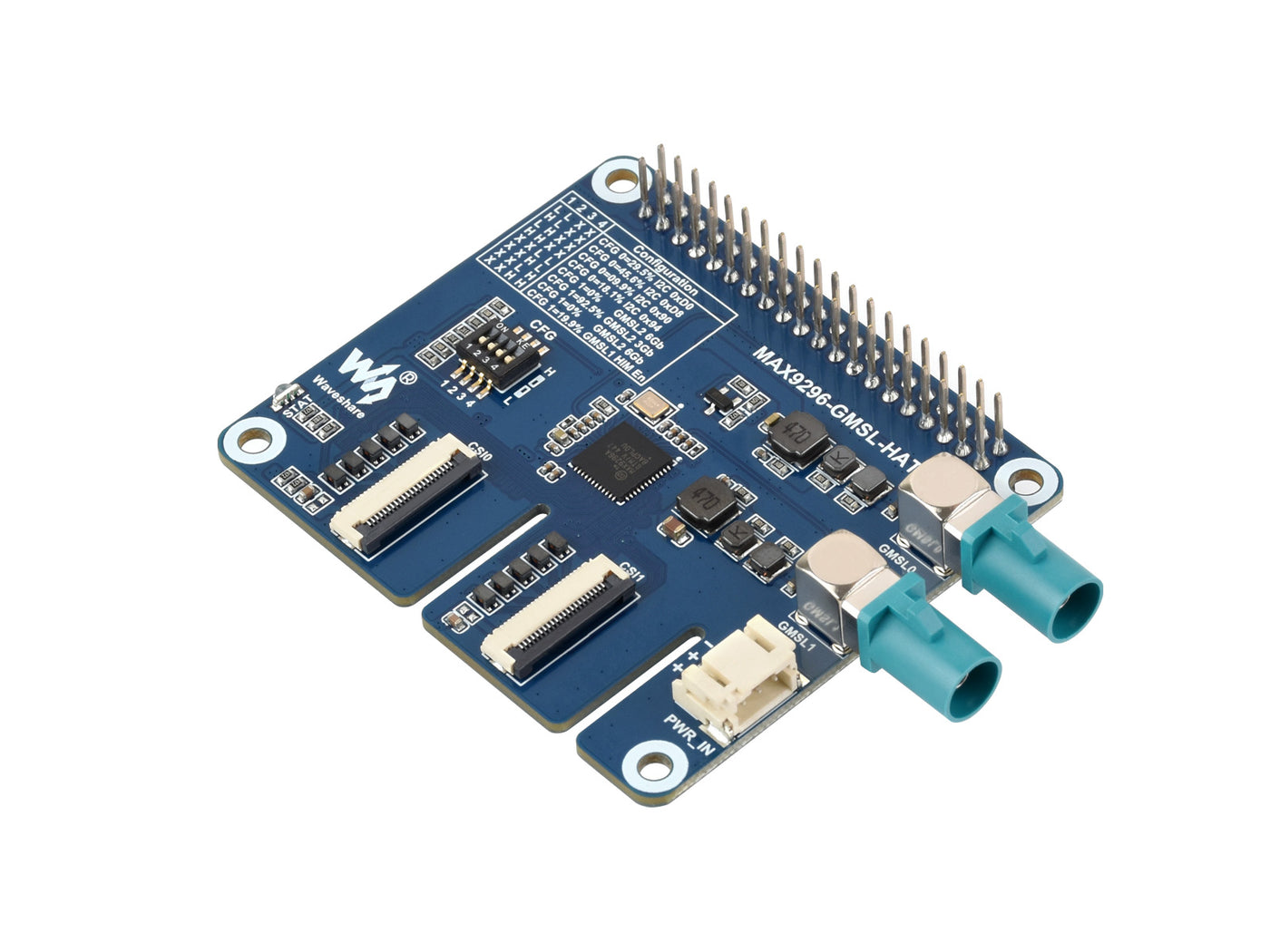

2-ch GMSL Camera adapter Board, onboard components

GMSL camera support

Model	sensor	pixel	Resolution	Frame rate (FPS)	FOV (H × V)	Serializer	ISP	Water-resistance
GMSL-1MP-Camera-A	-	1MP	1280×960	30	196°(H)×151°(V)	MAX96701	built-in	IP67
GMSL-2MP-Camera-A	-	2MP	1920×1080	30	195°(H)×152°(V)	MAX96717F	built-in	IP67
ISX031-GMSL-Camera-H60 *	ISX031	3MP	1920×1536	30	64.9°(H)×50.6°(V)	MAX96717	built-in	IP67
ISX031-GMSL-Camera-H100	ISX031	3MP	1920×1536	30	100°(H)×78.5°(V)	MAX96717	built-in	IP67
ISX031-GMSL-Camera-H120 *	ISX031	3MP	1920×1536	30	118.4°(H)×91.56°(V)	MAX96717	built-in	IP67
ISX031-GMSL-Camera-H190	ISX031	3MP	1920×1536	30	197°(H)×162.3°(V)	MAX96717	built-in	IP67

Application Scenarios

Robotic Autonomous Driving

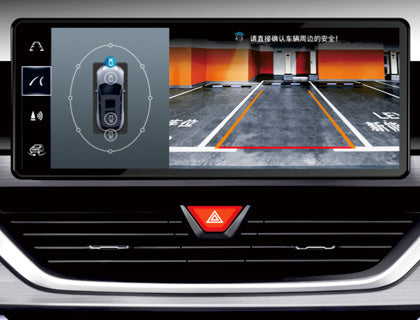

Car Surround View

Driver Assistance and Vision Fusion

Electronic Rear-View Mirror

Unmanned Smart Factory Production

Smart City

Application Example

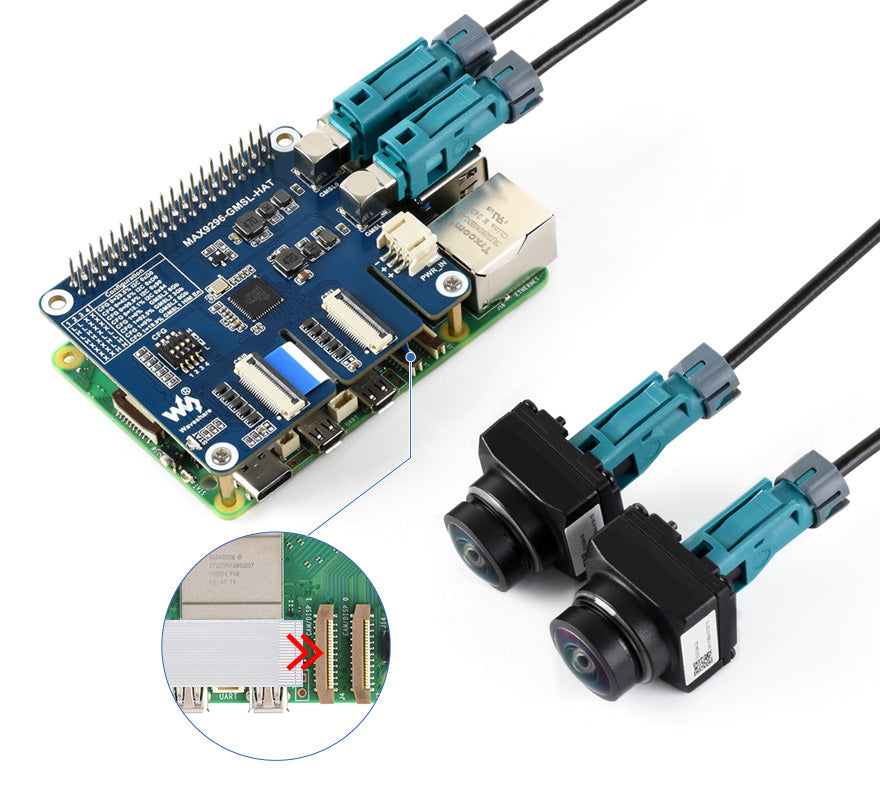

2-ch GMSL Camera adapter Board, connecting with Jetson Orin NX Kit

* for reference only, the Raspberry Pi 5 and GMSL cameras are NOT included,
please check the Package Content for the detailed part list.

Outline dimensions

Resources & Services

Wiki: docs.waveshare.com/MAX9296-GMSL-HAT

Weight: 0.041 kg

Quick Overview

MAX9296-GMSL-HAT x1
FFC 22PIN cable ~100mm x1
PH2.0 3PIN cable x1
Screws pack x1
