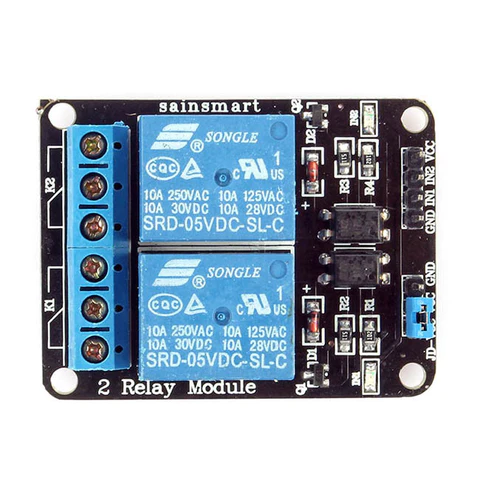

2 Channel Relay Module Breakout Board (5V)

SKU: ELC3002

₹ 105.99 ~~₹ 149.00~~

In stock | Ready to ship

Chat with us on WhatsApp We reply quickly! Contact Us

2 Channel Relay Module Breakout Board (5V)₹ 105.99

Ask AI about this product

Open in ChatGPT Open in Claude Open in Gemini

Details:

Equipped with two high-current relay 7250VAC@10A / 30VDC@10A
Active Low Trigger Operation
It can control both AC and DC appliances such as Solenoids, Motors, lights, fans, etc
Trigger current: 5mA
Working voltage: 5V
Module size: 50 x 26 x 18.5mm (L x W x H)
Four mounting bolts holes, diameter 3.1mm
Screw terminals (Terminal Block) provided (C, NC , NO) for quick and easy connection
Flyback diode to protect your microcontroller
Input Signal Pin connected to Burg stick for easy accessibility
LED Status indicators to indicate the relay ON/OFF status.

Module interface:

DC+: positive power supply (VCC)
DC-: negative power supply (GND)
IN: can be high or low level control relay
NO: normally open relay interface
COM: Common Interface Relays
NC: normally closed relay interface

This dual channel Relay Module operates at 5V TTL signal and is perfect for common Arduino/Raspberry Pi control applications.

This is a 5V 2-Channel Relay interface board which can switch up to 10Amps. Relays terminals (C, NC, NO) are accessible through screw terminals which makes wiring up the board very easy. The relay is safely driven by transistor BC547 hence your input device, such as Arduino, is protected from relay circuit. There is flyback diode which will further protect your microcontroller from relay kick back.

Specifications

Resources

Datasheet

Sample Code

Tutorial

What is the channel count and operating voltage of this module?

This is a 2 channel relay breakout board that operates from 5V TTL logic. It uses an active low trigger.

What can it switch and how much current can the relays handle?

The two relays are rated for 7250VAC@10A and 30VDC@10A, allowing control of AC and DC loads such as solenoids, motors, lights and fans.

How do I power and wire the control signal?

Power is supplied via the DC+ and DC- pins at 5V. The IN input can be driven high or low and the relays provide NO, NC and COM connections for wiring.

Is this compatible with Arduino and Raspberry Pi projects?

Yes, it is designed for common Arduino and Raspberry Pi control applications. The module is TTL 5V logic, protected by a BC547 transistor and includes flyback diode and status LEDs.

What are the physical features and where are the connections located?

The board measures 50 x 26 x 18.5 mm and has four mounting holes of 3.1 mm diameter. Screw terminals for C, NC and NO are provided, along with labeled DC+, DC- and IN for power and control.
