2MP GMSL Camera Module with Automotive-Grade Image Sensor
2MP GMSL Camera Module with Automotive-Grade Image Sensor
2MP GMSL Camera Module with Automotive-Grade Image Sensor
2MP GMSL Camera Module with Automotive-Grade Image Sensor
2MP GMSL Camera Module with Automotive-Grade Image Sensor
Need Support? Click Here
Free Delivery Above ₹999

Best seller

Waveshare

2MP GMSL Camera Module with Automotive-Grade Image Sensor

SKU: WVSH0659

₹ 14,149.99

Available in 2-4 weeks

Select variant

With 118.4° Wide FOV
📦 Min order 1

Enter your email or your WhatsApp number.
Chat with us on WhatsApp We reply quickly! Contact Us
2MP GMSL Camera Module with Automotive-Grade Image SensorWith 118.4° Wide FOV₹ 14,149.99
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

GMSL 2MP Camera

2MP | IP67 Water-resistant | GMSL2 communication protocol




Version Options

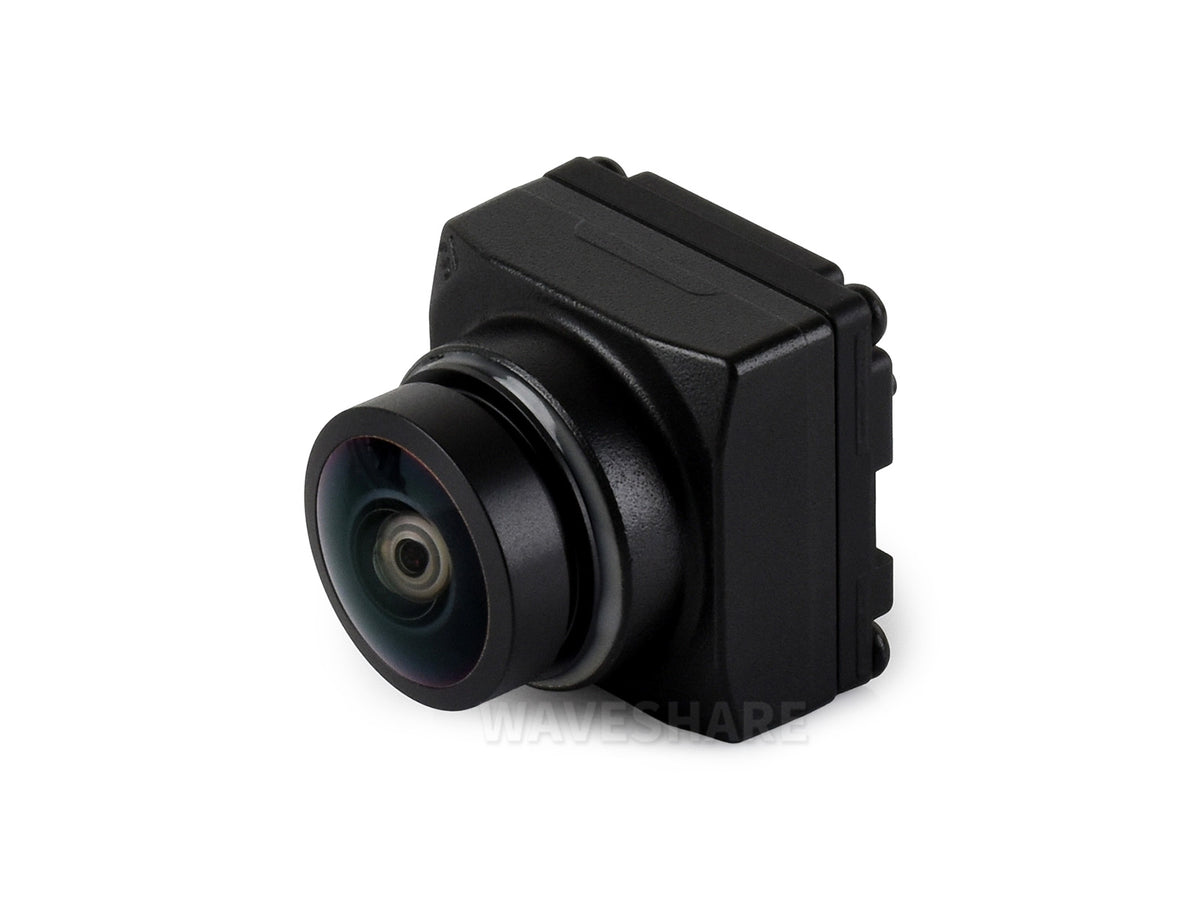

GMSL-2MP-Camera-A

With 195° Ultra-Wide FOV

GMSL-2MP-Camera-B

With 118.4° Wide FOV



Product Introduction

The GMSL-2MP-Camera camera module adopts a 2MP automotive-grade CMOS image sensor and integrates the MAXIM MAX96717F GMSL serializer. It includes a professionally calibrated image signal processor (ISP), delivering clear and stable image quality. The entire unit features an IP67-rated case and comes with an AA lens, and each unit is precisely focused and glue-secured before shipment, making it well-suited for automotive and other demanding applications.



Specifications

Category Item GMSL-2MP-Camera-A GMSL-2MP-Camera-B
Sensor Model 2.51MP RGGB
Resolution 1920 × 1080
CMOS Size 1/2.57inch
Pixel Size 3.0 × 3.0 (um)
Camera FOV 195°(H) × 152°(V) 118.4°(H) × 62.6°(V)
Aperture 2
Focal Length 1.51mm 3.04mm
Depth of Field 0.083 m ~ ∞ (fixed focus at 0.4m) 0.47 m ~ ∞ (fixed focus at 1.4m)
Distortion < -155% < -92.2%
ISP ISP Built-in
Frame Rate Frame Rate 1920 × 1080 at 30fps
High Dynamic Range High Dynamic Range Supported
LED Flicker Mitigation LED Flicker Mitigation Supported
Output Format Output Format YUV422 at 8bit
Serializer Model MAXIM MAX96717F
I2C Address 0x80 (8-bit address)

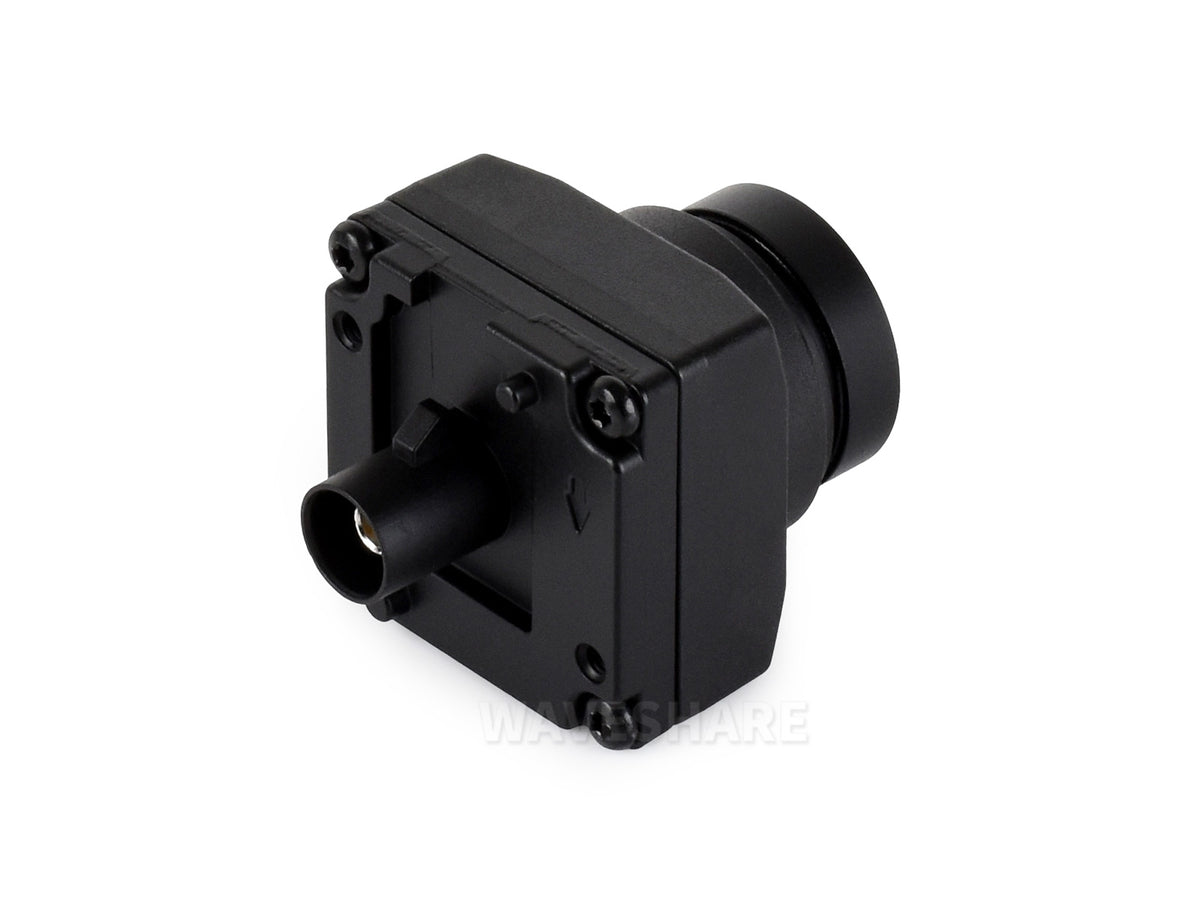

Camera Interface Camera Interface Fakra Z-Coded connector
Operating Voltage Operating Voltage 9 ~ 12V PoC
Operating current Operating current < 200mA at 12V
Operating Temperature Operating Temperature -40°C ~ 85°C
Protection Grade Protection Grade IP67



Application Example

* for reference only, the Raspberry Pi 5 and GMSL camera expansion board are NOT included, please check the Package Content for the detailed part list.



Outline Dimensions

GMSL-2MP-Camera-A



GMSL-2MP-Camera-B





Resources & Services

Wiki: http://docs.waveshare.com/GMSL-2MP-Camera-A



Package Content

Weight: 0.072 kg

GMSL-2MP-Camera-A

GMSL-2MP-Camera-A x1
GMSL camera cable ~2m (coaxial cable with dual female connectors) x1GMSL-2MP-Camera-B



GMSL-2MP-Camera-B

GMSL-2MP-Camera-B x1
GMSL camera cable ~2m (coaxial cable with dual female connectors) x1

What is the sensor and resolution of the GMSL 2MP Camera Module?
The module uses a 2.51MP RGGB automotive grade CMOS sensor with 1920 x 1080 resolution, 1/2.57 inch size and 3.0 x 3.0 um pixels.
What interface and protection does the module provide?
It uses the GMSL2 protocol with a MAX96717F serializer and is housed in an IP67 rated enclosure with a built in ISP.
How do the GMSL-2MP-Camera A and B differ?
Camera A offers 195 x 152 degree field of view with 1.51 mm focal length and fixed focus at 0.4 m, while camera B offers 118.4 x 62.6 degree field of view with 3.04 mm focal length and fixed focus at 1.4 m.
What optics are included and how is focus ensured during shipment?
The package includes an AA lens and each unit is precisely focused and glue secured before shipment.
Is the module suitable for automotive and harsh environments?
Yes, the IP67 rated enclosure and automotive grade sensor make it suitable for demanding automotive applications.
