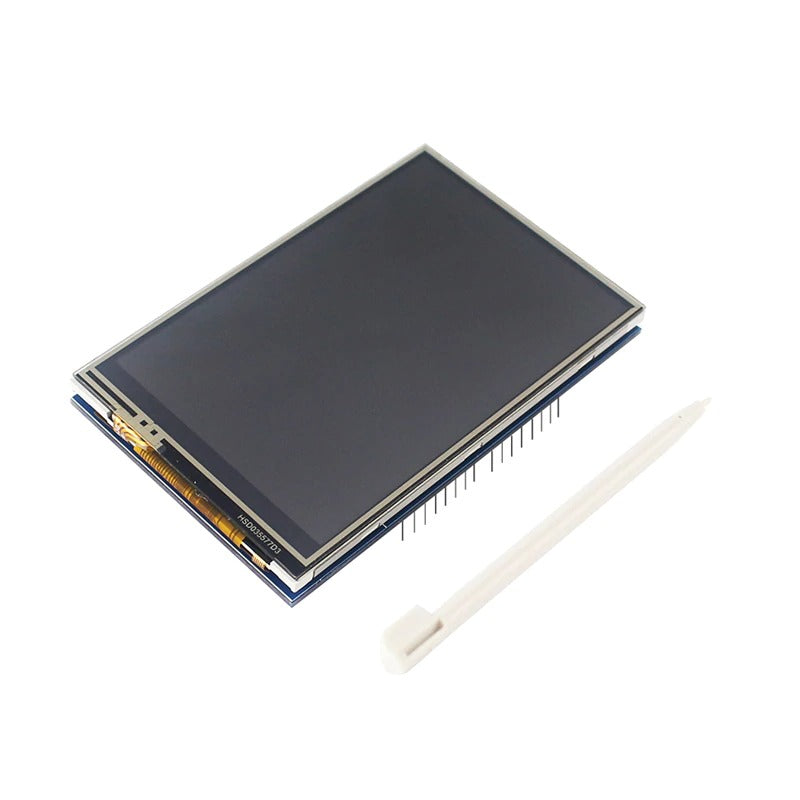

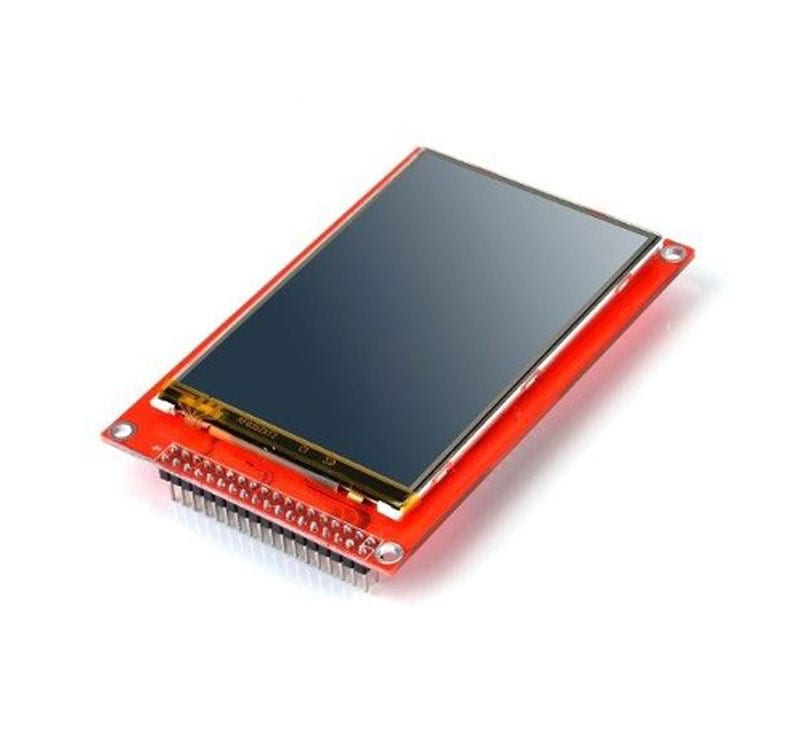

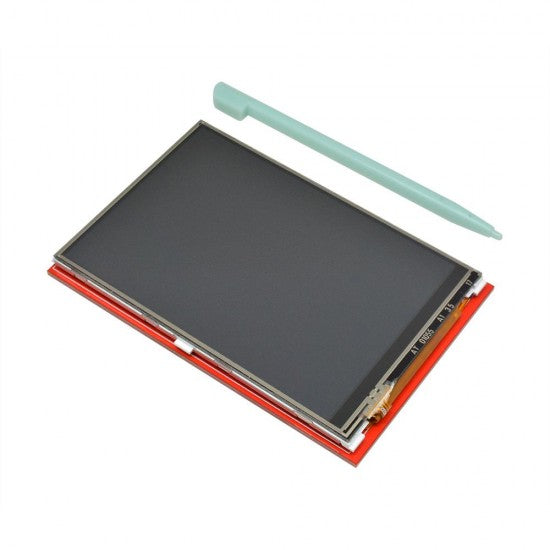

3.5" TFT Arduino Touch Display Shield
This is the 3.5 inch touch screen for Arduino UNO and MEGA. It use 8-bit parallel bus, faster than serial SPI refresh , support 16-bit RGB 65K color display, display rich colors , easy to expand the experiment with SD card slot.
Feature :

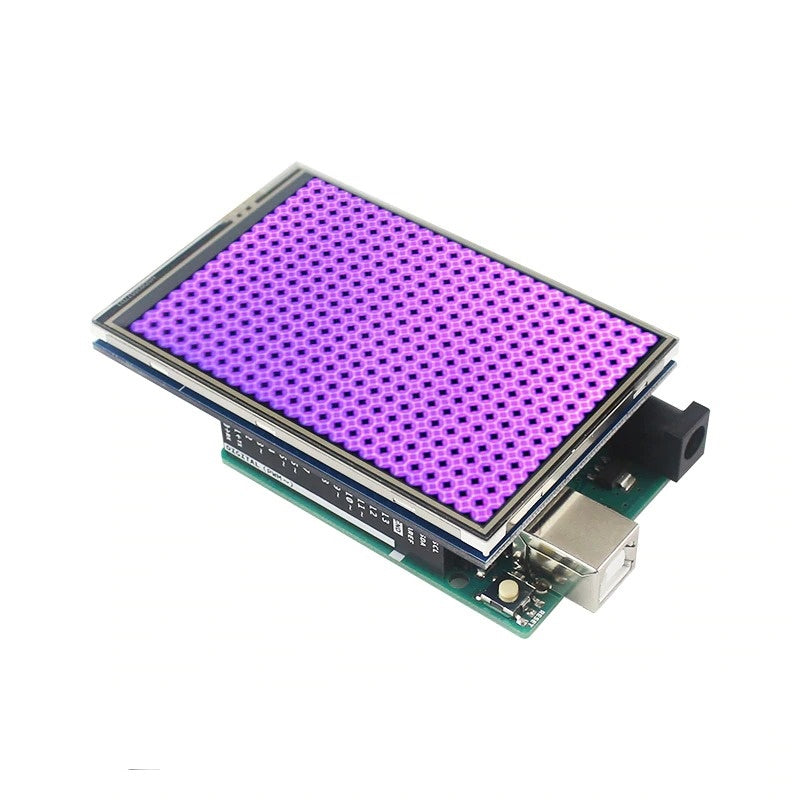

Supports development boards such as Arduino UNO and Mega2560 for plug-in use without wiring
480X320 resolution, clear display, support for touch function
Support 16-bit RGB 65K color display, display rich colors
8-bit parallel bus, faster than serial SPI refresh

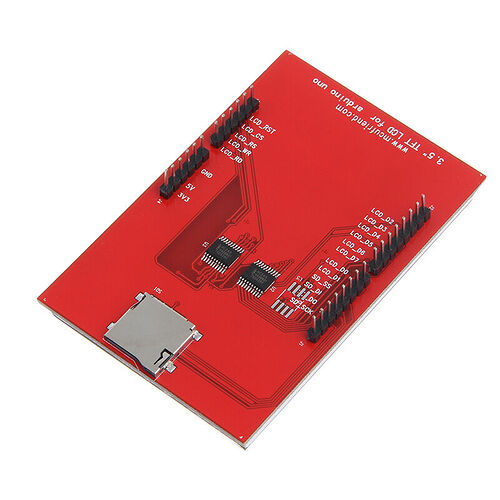

On-board 5V/3.3V level shifting IC, compatible with 5V/3.3V operating voltage
Easy to expand the experiment with SD card slot
Provides an Arduino library with a rich sample program
Provide underlying driver technical support
Specifications

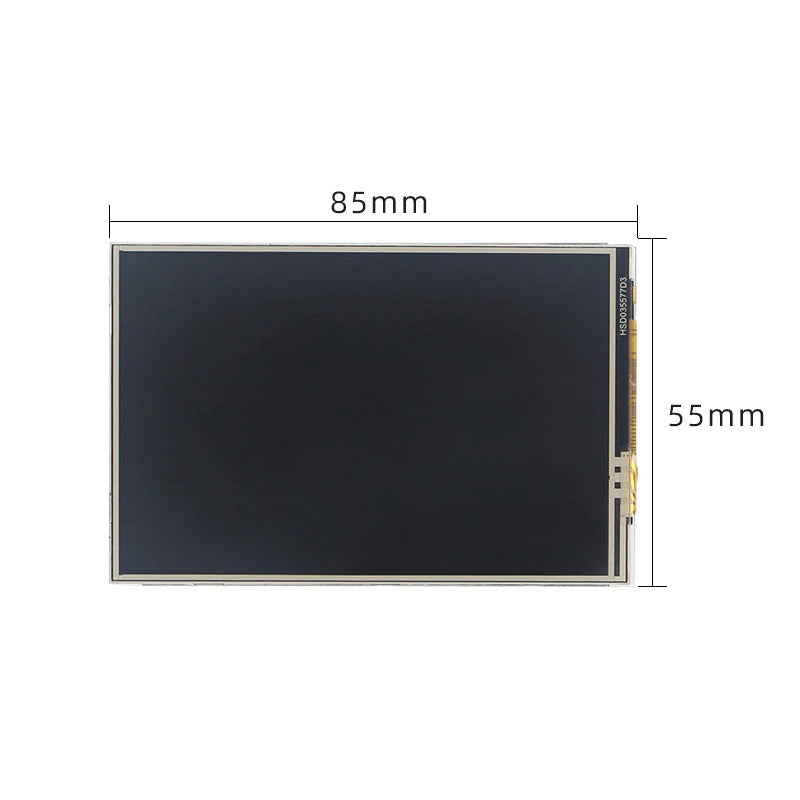

Display Color : RGB 65K color Screen Size : 3.5(inch) Type : TFT Driver : ICILI9486 Resolution : 480*320 (Pixel) Module Interface : 8-bit parallel interface Active Area : 73.44*48.96(mm) Module PCB Size : 85.49*55.63(mm) Operating Temperature : -20℃~70℃ Storage Temperature : -40℃~70℃ Operating Voltage : 5V/3.3V Power Consumption : TBD
Resources
Sample Code
Tutorials
