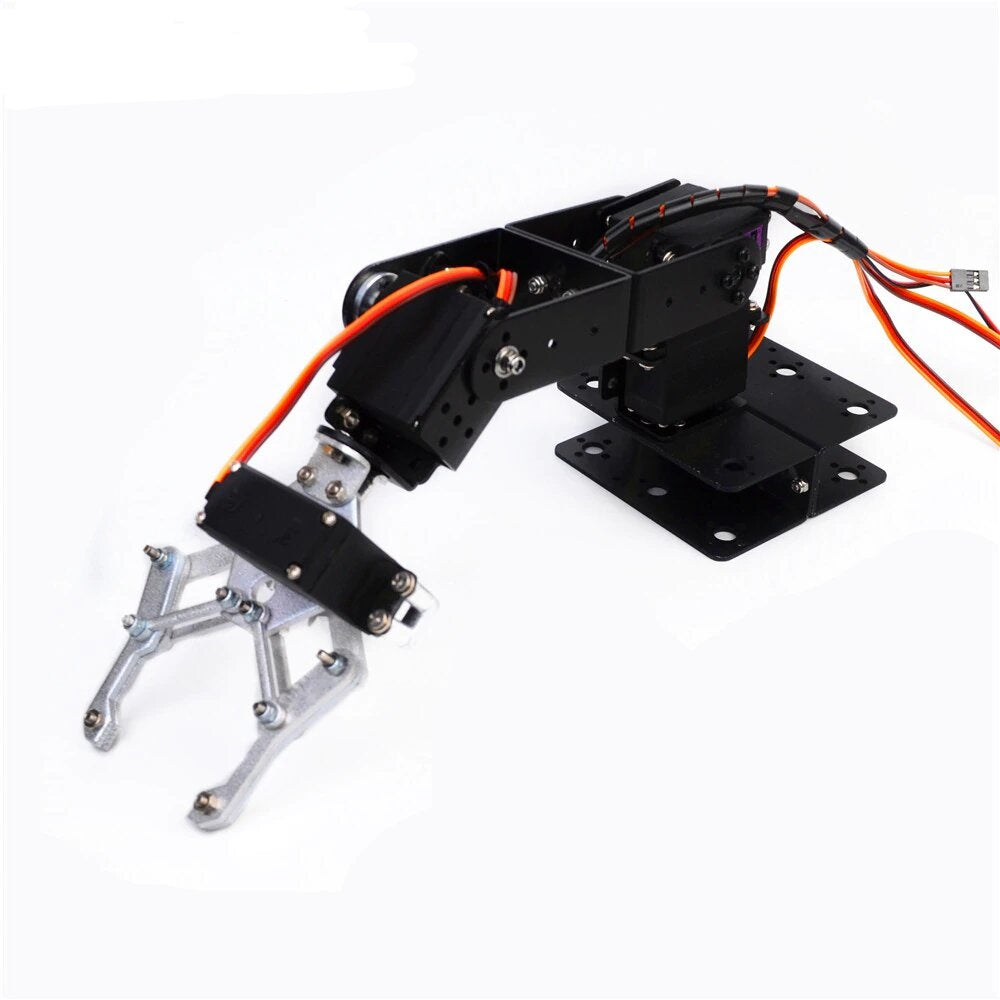

4 DOF Aluminum Robot Arm

SKU: RBA1008

₹ 6,659.99 ~~₹ 11,999.99~~

Out of stock

Chat with us on WhatsApp We reply quickly! Contact Us

4 DOF Aluminum Robot Arm₹ 6,659.99

Ask AI about this product

Open in ChatGPT Open in Claude Open in Gemini

This is a 4dof metal manipulator with a powerful MG996 metal gear servo motor. The robotic arm has claws. Each steering gear can move 180 degrees and the angle of motion is relatively large.

Single mechanical gripper parameters:

Working voltage: 4.8-6V
Paw material: all aluminum alloy
Paw weight: about 68g (without steering gear)

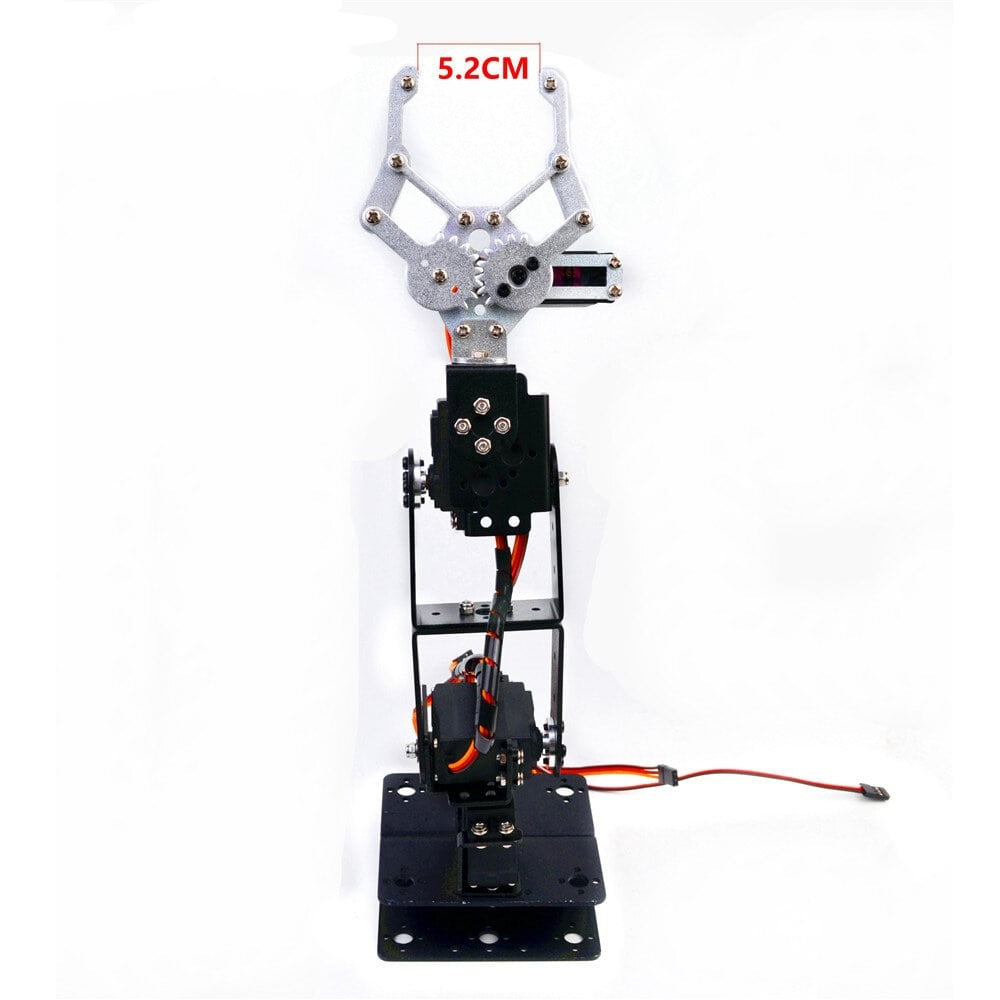

The maximum opening angle of the paw: 52mm

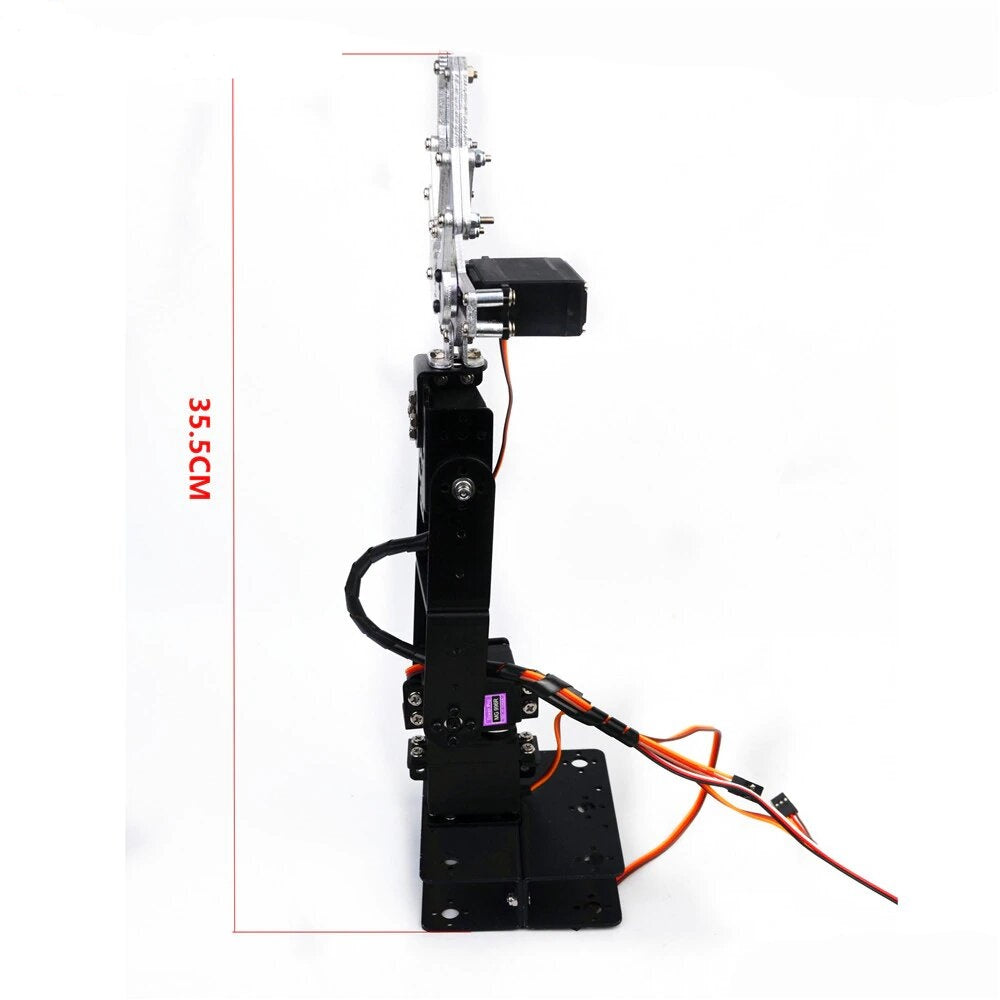

Arm height: 35.5cm
Overall length of the paw: 115mm (the overall longest length when the paw is closed)
Overall width of the paw: 100mm (maximum overall width when the paw is opened)

MG996 steering gear properties:

Product size: 40.7*19.9*42.9mm
Product pull: 15KG/17kg/20KG/25kgcm (6V)
Reaction speed: 0.17sec/60 degrees (4.8v no load) 0.14sec/60 degrees (6v no load)
Working voltage: 4.8-6V
Working temperature: 0°C-55°C
Gear form: metal gear
Working dead zone: 2us (microseconds)

What power supply is required to operate the arm?

The operating voltage range is 4.8 to 6 volts; performance may improve at 6V for faster motion.

What are the key dimensions and grip range of the paw?

The paw is made of aluminum alloy and weighs about 68 g without the steering gear. It can open to 52 mm, with an overall paw length of 115 mm when closed and a maximum width of 100 mm when opened. Arm height is 35.5 cm.

How many joints and what is the range of motion for each joint?

It is a 4 DOF metal manipulator. Each steering gear can move up to 180 degrees, allowing a wide angle range.

What torque and speed can the MG996 servos provide in this arm?

The steering gears offer up to 25 kg cm of torque at 6V. The speed is about 0.14 sec per 60 degrees at 6V no load and 0.17 sec per 60 degrees at 4.8V no load.

What are the operating temperature and environmental requirements?

The working temperature range is 0 to 55 degrees C. It operates with a working voltage of 4.8 to 6V and uses metal gear MG996 servos.
