Product Description

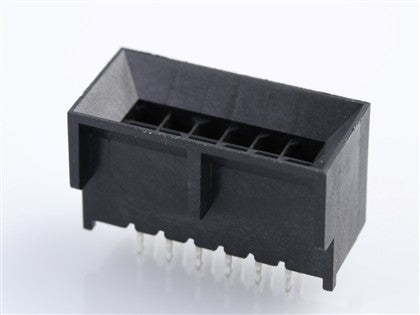

The MOLEX Micro-Fit Vert DR BMI Header (Part Number: 44432-1202) is a high-quality, dual-row PCB connector designed for reliable power and signal applications. Manufactured in the US, this connector features a vertical orientation with a PCB polarizing peg, ensuring correct mating alignment. It is compliant with RoHS standards and suitable for high-temperature environments.
Key Features
Part Number: 44432-1202
Manufacturer: MOLEX
Country of Origin: US
Unit of Measure: Each (EA)
ECCN: EAR99
Package Type: Tray
Product Category: Connectors | Headers & Wire Housings
RoHS Compliant: Yes
Application: Board-to-Board, Power, Wire-to-Board
Current per Contact: 8.5A
Maximum Voltage: 250V AC/DC
Number of Circuits: 12
Number of Rows: 2
Orientation: Vertical
Material - Metal: Brass
Plating - Mating: Gold (0.38µm)
Plating - Termination: Tin
Resin Material: Nylon
PCB Thickness - Recommended: 1.60mm
Pitch - Mating Interface: 3.00mm
Temperature Range - Operating: -40°C to +105°C
Termination Interface Style: Through Hole
Durability (mating cycles max): 30
Flammability Rating: 94V-0
PCB Locator & Retention: Yes
Net Weight: 2.284g
Color - Resin: Black
Package Type: Tray
Product Specifications
Circuits (Loaded)
12
Max-Duration
5
Lead-Free Process Capability
WAVE
Max-Temp
260°C
Compatibility & Mates
Mates with:
Part Number: 44133 (Micro-Fit BMI Dual Row Receptacle Housings)
Part Number: 44764 (Micro-Fit BMI Right-Angle Dual Row PCB Receptacles)
Part Number: 44769 (Micro-Fit BMI Vertical Dual Row PCB Receptacles)
Additional Resources
Datasheet: Download PDF
For more details, please search the internet for the part number 44432-1202.
