5G M.2 Module DONGLE with quad antennas & USB3.1 port

SKU: WVSH0199

ā‚¹ 2,749.99 ā‚¹ 3,499.99

In stock | Ready to ship

Select variant

Without 5G Module
āš  Only a few left in stock. Order soon.
ā± High demand right now.
šŸ“¦ Min order 1
Chat with us on WhatsApp We reply quickly! Contact Us
5G M.2 Module DONGLE with quad antennas & USB3.1 portWithout 5G Moduleā‚¹ 2,749.99
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

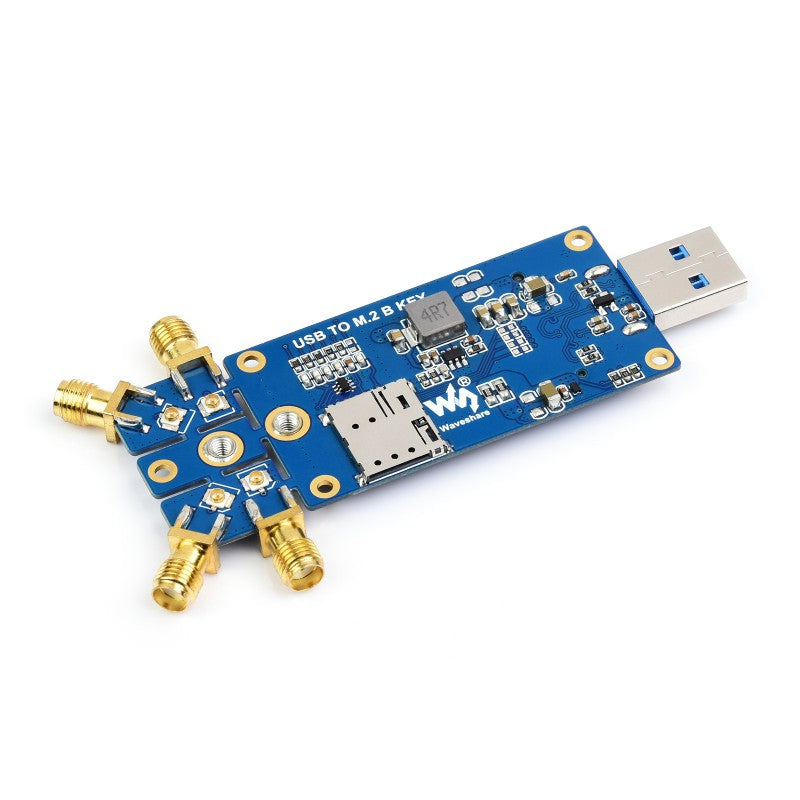

5G DONGLE MODULE

M.2 TO USB 3.1 port

Support SIMCom & Quectel 5G Module

Ā

Features:

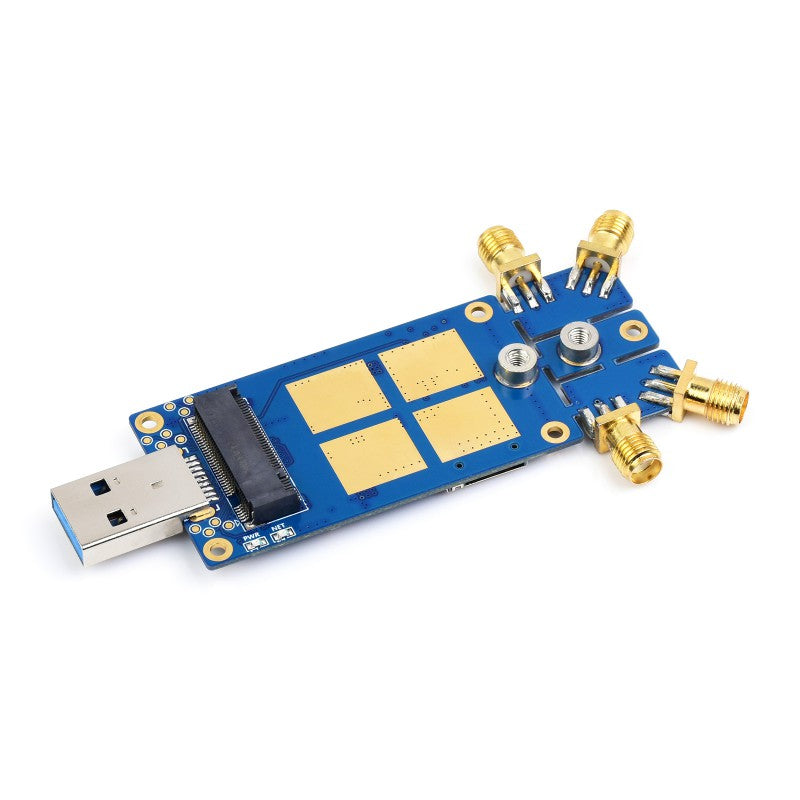

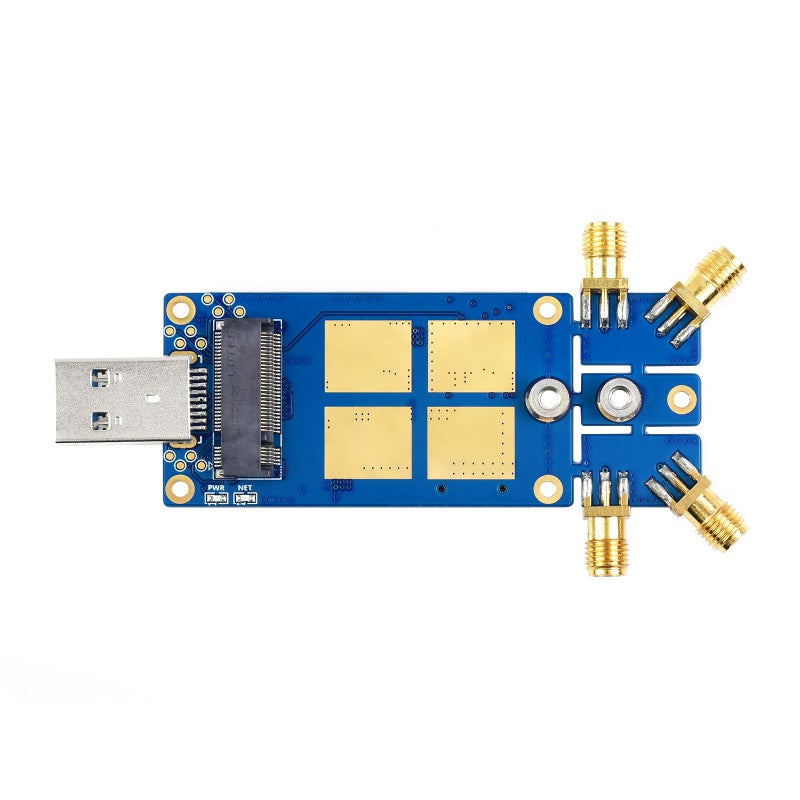

  • Support 5G modules with M.2 (NGFF) Key B interface, compatible with SIMCom and Quectel 5G modules
  • Support 5G modules with 3042/3052 form factor, such as SIM82XX, and RM50XQ series 5G modules
  • USB 3.1 Type A port for connecting to PC, Raspberry Pi, or Jetson Nano host board to enable high speed 5G network
  • 4x SMA antenna connectors, easy to install the antenna

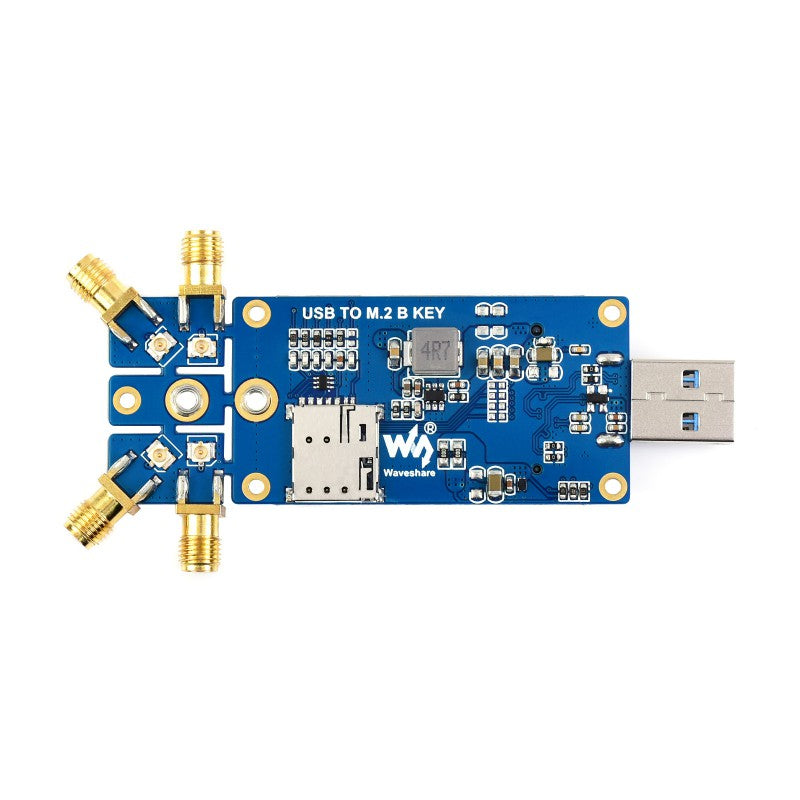

  • Onboard SIM card slot for NANO SIM card
  • Onboard power and network indicators, with multiple reserved pads, for checking module operating status and testing other functions
  • PCB ENIG process, reserved multi slots and positioning holes for integration
  • Comes with customized aluminum alloy heatsink, good heat dissipation, nice-looking, protective and durable

Wiki:Ā www.waveshare.com/wiki/USB_TO_M.2_B_KEY

Ā

NOTE: You need a 5G module to use this dongle. We carry two modules that are compatible:

Ā

Compatible With SIMCom / Quectel 5G Module

SIM8202G-M2 SIM8262E-M2 RM500Q-GL RM500Q-AE RM502Q-AE
Region / Provider China, US, Japan, South Korea, Europe, the Middle East, the Americas except Americas Global (except US) Global (except China)
CHIP Qualcomm Snapdragon X55 Qualcomm Snapdragon X62 Qualcomm Snapdragon X55
FREQUENCY BAND
Sub-6G n1, n2, n3, n5, n7, n8, n12, n20, n28, n38, n40, n41, n66, n71, n77, n78, n79 n1, n3, n5, n7, n8, n20, n28, n38, n40, n41, n77, n78,n79 5G NR NSA: n41, n77, n78, n79 5G NR NSA: n1, n2, n3, n5, n7, n8, n12, n20, n25, n28, n38, n40, n41, n48, n66, n71, n77, n78, n79
5G NR SA: n1, n2, n3, n5, n7, n8, n12, n20, n25, n28, n38, n40, n41, n48, n66, n71, n77, n78, n79
LTE-FDD B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B66, B71 B1, B3, B5, B7, B8, B18, B19, B20, B26, B28, B32 B1, B2, B3, B4, B5, B7, B8, B12(B17), B13, B14, B18, B19, B20, B25, B26, B28, B29, B30, B32, B66, B71
LTE-TDD B34, B38, B39, B40, B41, B42, B43, B48 B38, B39, B40, B41, B42, B43 B34, B38, B39, B40, B41, B42, B43, B48
LAA - B46
WCDMA B1, B2, B3, B4, B5, B8 B1, B5, B8 B1, B2, B3, B4, B5, B6, B8, B19
GNSS GPS / GLONASS / BeiDou(Compass) / Galileo
DATA RATE
Sub-6G 2.4 Gbps (DL) / 500 Mbps (UL) 5G NR NSA:
2.1 Gbps (DL) / 900 Mbps (UL)		 5G NR NSA:
2.1 Gbps (DL) / 450 Mbps (UL)		 5G NR NSA:
4.2 Gbps (DL) / 450 Mbps (UL)
5G NR SA:
2.5 Gbps (DL) / 600/650 Mbps (UL)		 5G NR SA:
2.5 Gbps (DL) / 650 Mbps (UL)		 5G NR SA:
5.0 Gbps (DL) / 650 Mbps (UL)
LTE 1 Gbps (DL) Ā /Ā  200 Mbps (UL) 2.0 Gbps (DL) / 200 Mbps (UL)
UMTS 42 Mbps (DL) / 5.76 Mbps (UL)
SOFTWARE FUNCTIONS
Operating systems Windows/Linux/Android
Communication protocols TCP / UDP / FTP / HTTP / HTTPS / PING / SMS
Dial Up RNDIS, NDIS, PPP, MBIM
Firmware upgrade Supports firmware upgrade via USB port
HARDWARE SPECIFICATIONS
SIM Card 1.8V/2.95V
Antenna For 3G/4G/5G/GNSS
4 Ɨ IPEX-4 connectors
Power Supply 3.135~4.4V 3.135 to 4.4 V, 3.7 V typical
Form Factor M.2
Dimensions 42.0 Ɨ 30.0 Ɨ 2.3mm 52.0 Ɨ 30.0 Ɨ 2.3mm
Note: For reference only, 5G module is not included. If used with other modules, actual testing is required to confirm pin compatibility


Ā

Multiple Size Compatibility

Compatible With 3042 / 3052 Form Factor

Ā

Connection Examples

Supports Directly Connect Or Access Via The USB Cable To Windows PC, Raspberry Pi 4B/3B+,Ā CM4-IO-BASE-A/B And Jetson Nano Series

connecting with Raspberry Pi 4B

Connect to PC with USB cable

Connect to Jetson Nano

**for reference only, the modules in the pictures are not included.


Ā

Multi System Support, Easy To Use

Supports Windows/Linux

Just plug it into USB port, go through some simple configuration, the high speed 5G network connection will be ready to use

Ā

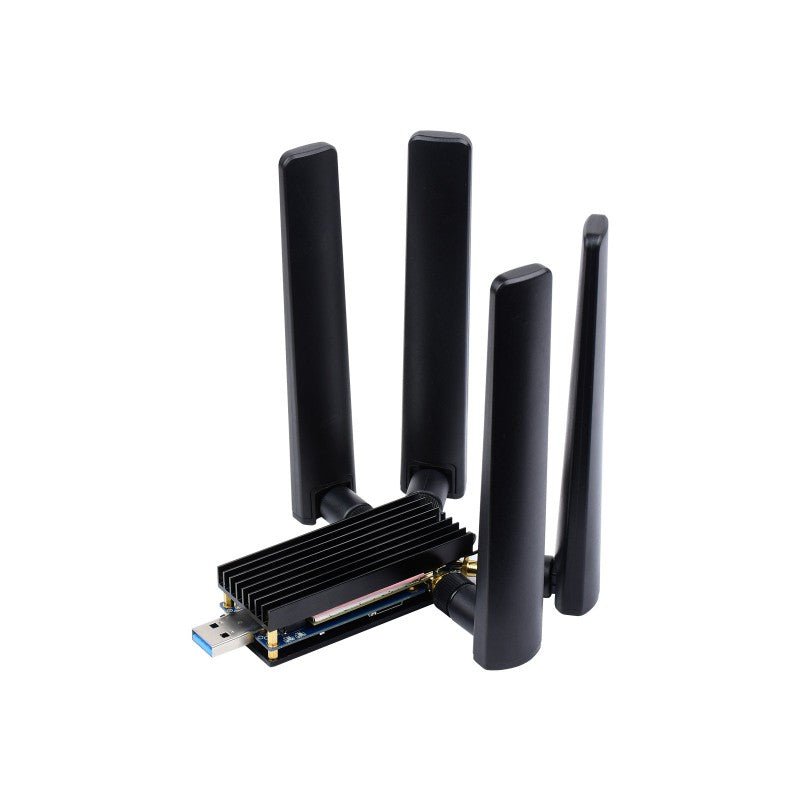

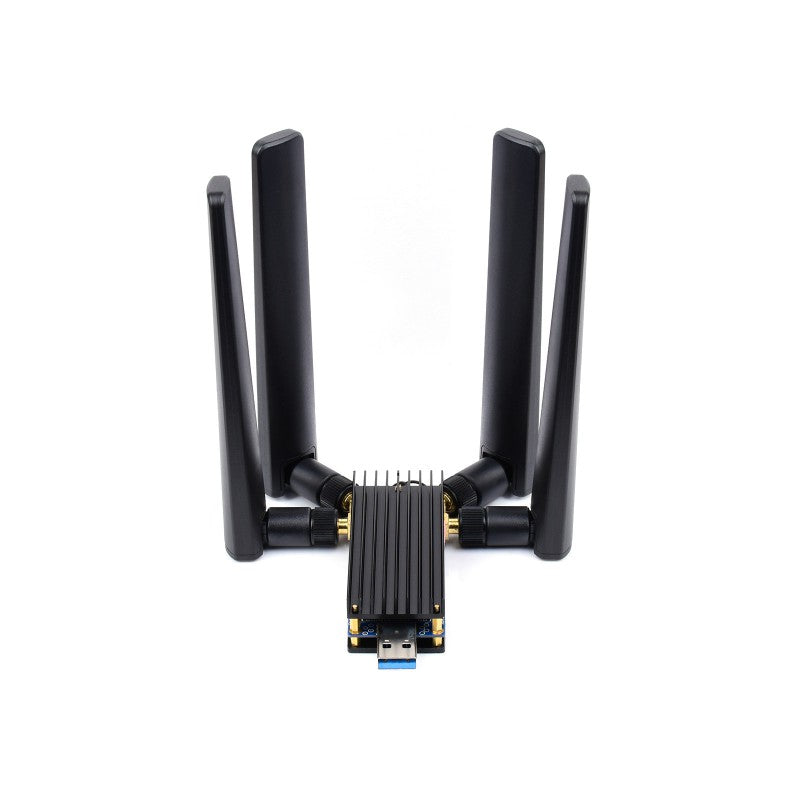

Aluminum Alloy Heatsink

Effective Heat Dissipation For 5G Module, Protect Your HAT At The Same Time


Ā

Dimensions

Ā

Package Contains:

  1. USB TO M.2 B KEY x 1
  2. Aluminum Alloy case (top and bottom) x 1
  3. Antenna x 4
  4. IPEX adapter cable x 4
  5. USB Type-A extension cable x 1
  6. SMA Protective Cap x 4
  7. Thermal tape x 1
  8. Screws pack x 1
  9. Weight: 0.157 kg
  10. NOTE: M.2 5G Module is not included, needs to be bought separately



What is included in the package?
The package contains USB TO M.2 B KEY adapter, aluminum alloy case, four antennas with IPEX adapters, four USB Type A extension cables, four SMA protective caps, thermal tape, screws pack, and the aluminum heatsink. The 5G module is not included.
Do I need to buy a separate 5G module?
Yes. A 5G module is required to use the dongle and is not included. It supports M.2 3042/3052 form factors with Key B interface and is compatible with SIMCom and Quectel modules such as SIM8200 M2, SIM8262E M2, SIM8202G M2, RM500Q GL, RM500Q AE, and RM502Q AE.
What devices can I connect to using this dongle?
The dongle connects via USB 3.1 Type A and can connect to Windows or Linux systems. It supports connecting to Windows PC, Raspberry Pi 4B/3B+, CM4-IO-BASE-A/B, and Jetson Nano series when a compatible 5G module is installed.
How can I monitor status and update firmware?
The board includes onboard power and network indicators to monitor status and supports firmware upgrades via the USB port.
Is there a heatsink and how does it help?
Yes, it includes a customized aluminum alloy heatsink for effective heat dissipation and protection of the installed 5G module.
