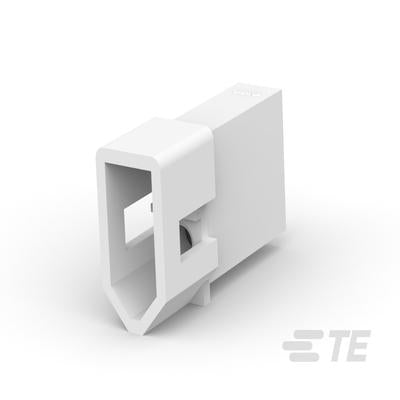

TE CONNECTIVITY/AMP BRAND PRC: AMP Part Number: 770069-1 - Pin & Socket Connectors PLUG W/O EAR 2P in-line
Enhance your electronic assembly with the TE CONNECTIVITY/AMP BRAND Pin & Socket Connectors, designed for reliable power and signal connections in various applications. This in-line plug connector offers a compact and robust solution for wire-to-board connections, particularly suited for home appliances and gas appliances.
Product Features
Compact design with a 19.4 mm mated height
Power circuit connector with a 5.0 mm contact centerline
Wire-to-board configuration with plug housings for wires and PCB header assemblies
Clear clicking sound to facilitate easier contact insertions
Locking levers surrounded by walls to prevent tangling and protect levers
Designed to release bubbles created during potting (PC board coating)
Housing lances help prevent tangled wired contacts
Technical Specifications
Voltage Rating: 300 VAC
Current Rating: Max. 10A (dependent on contact and wire used)
Operating Temperature: -30°C to +105°C
Applicable Wire: 24-16 AWG
Applicable PC Board Thickness: 1.6 mm
Certifications & Compliance
Recognized under the Component Program of Underwriters Laboratories Inc., File No. E28476
Certified by Canadian Standards Association, File No. LR7189
RoHS Compliant
ECCN: EAR99
Product Details
Part Number: 770069-1
Manufacturer: TE CONNECTIVITY/AMP BRAND
Country of Origin: US
Unit of Measure: EA
Package Type: BLK
Product Type: Connector
Category: Pin & Socket Connectors
Additional Information
For detailed specifications and application guidelines, please refer to the datasheet.
