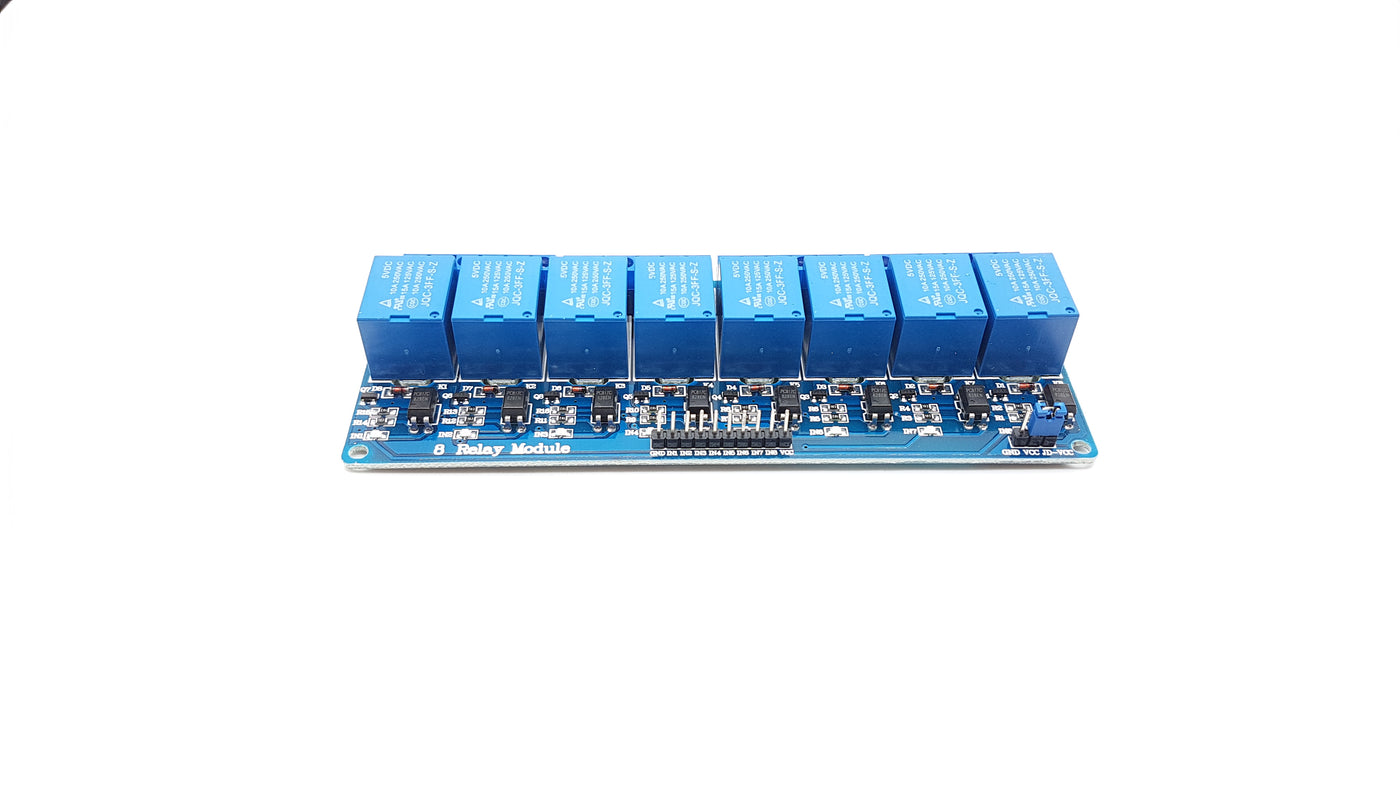

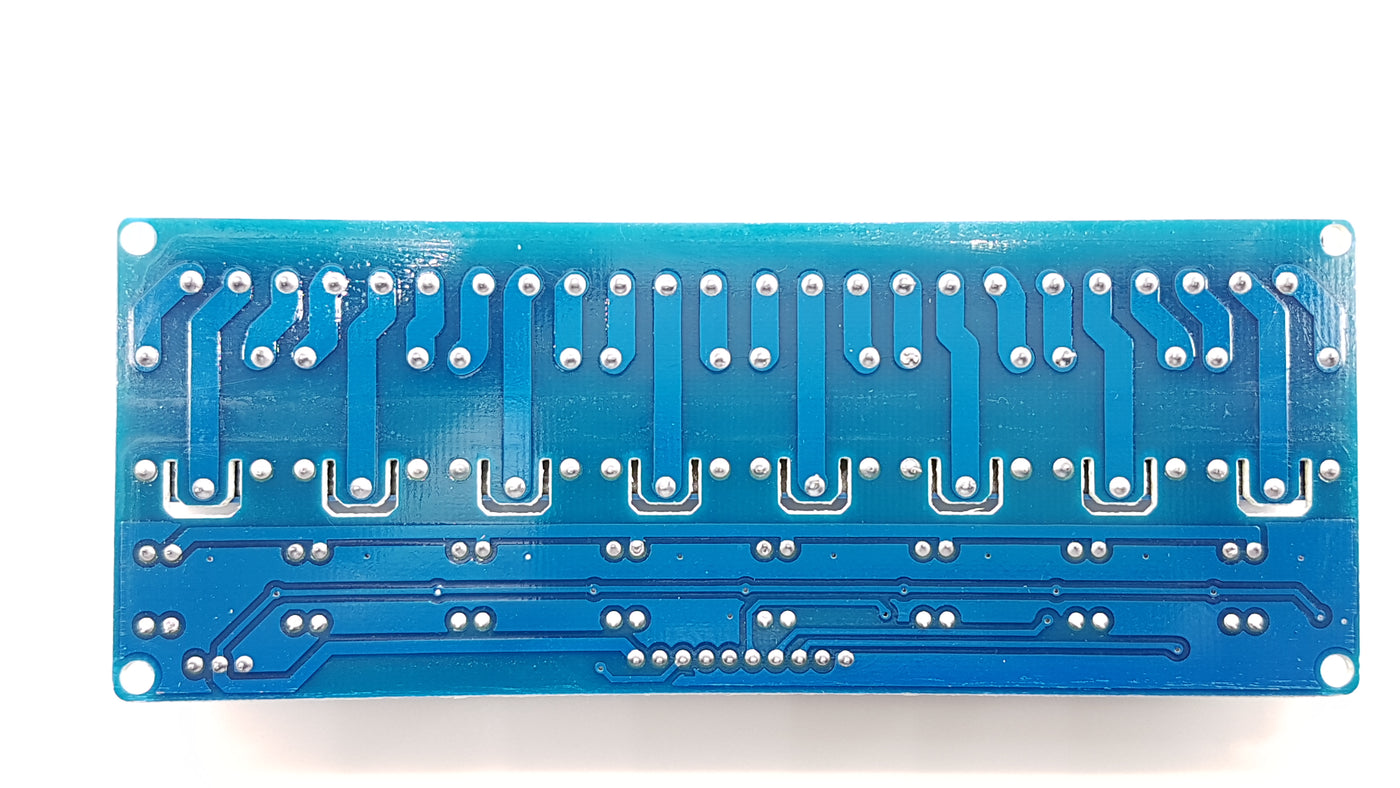

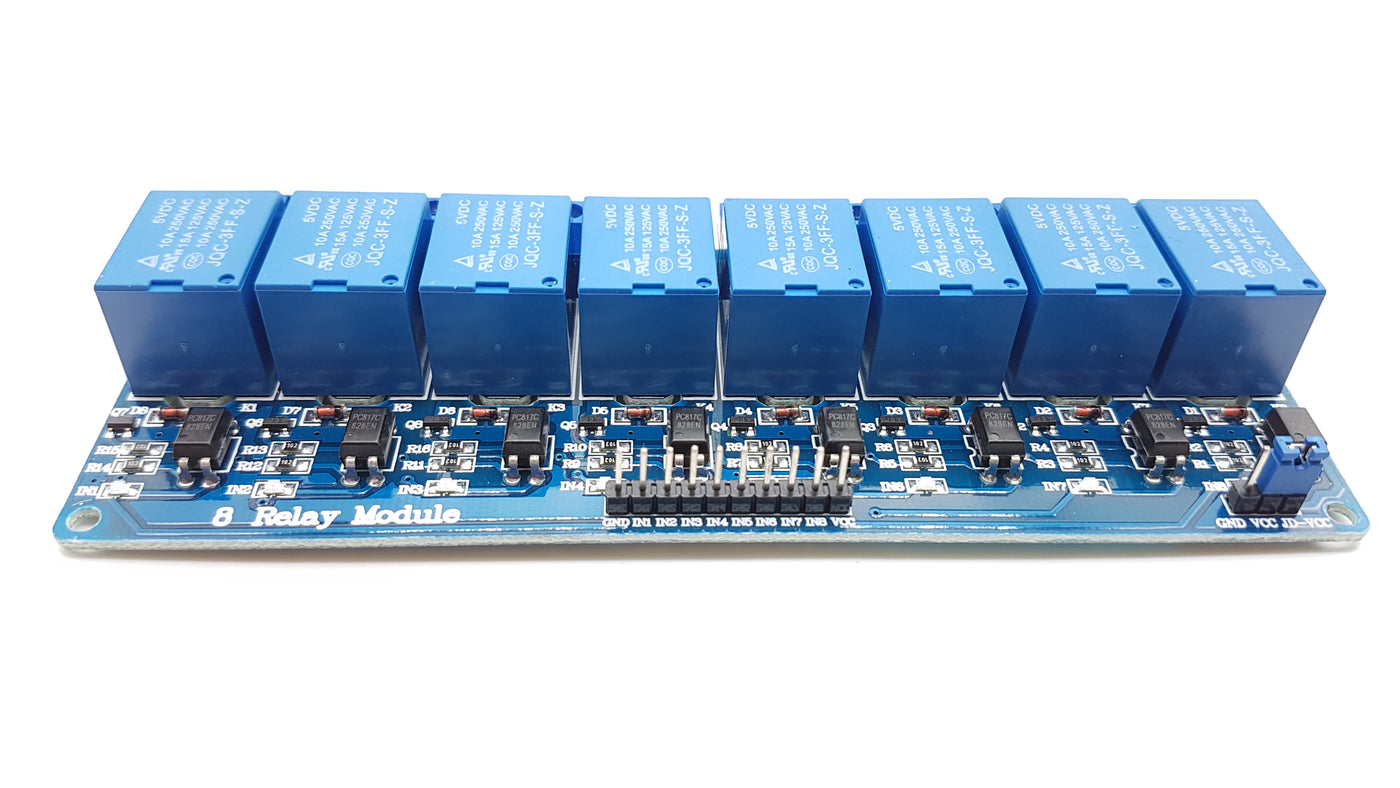

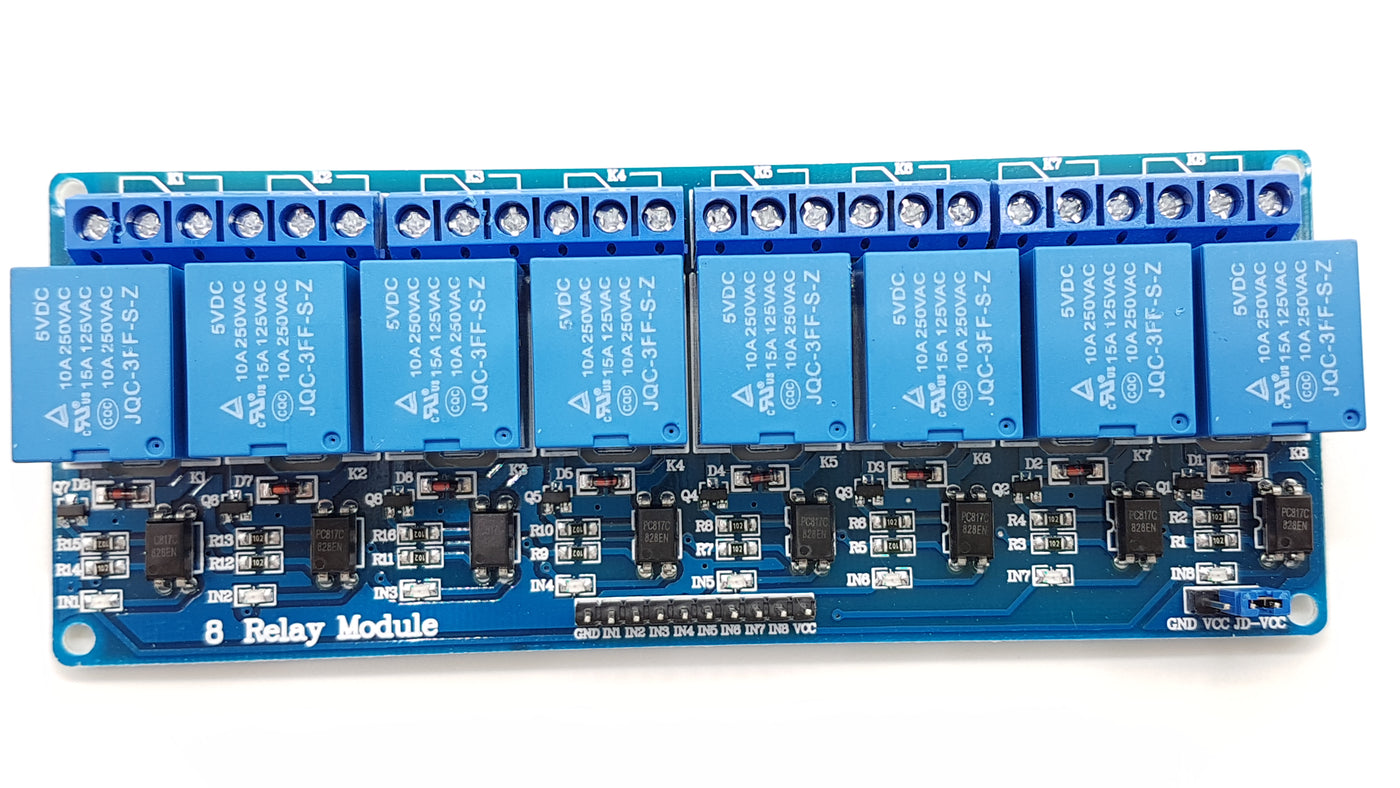

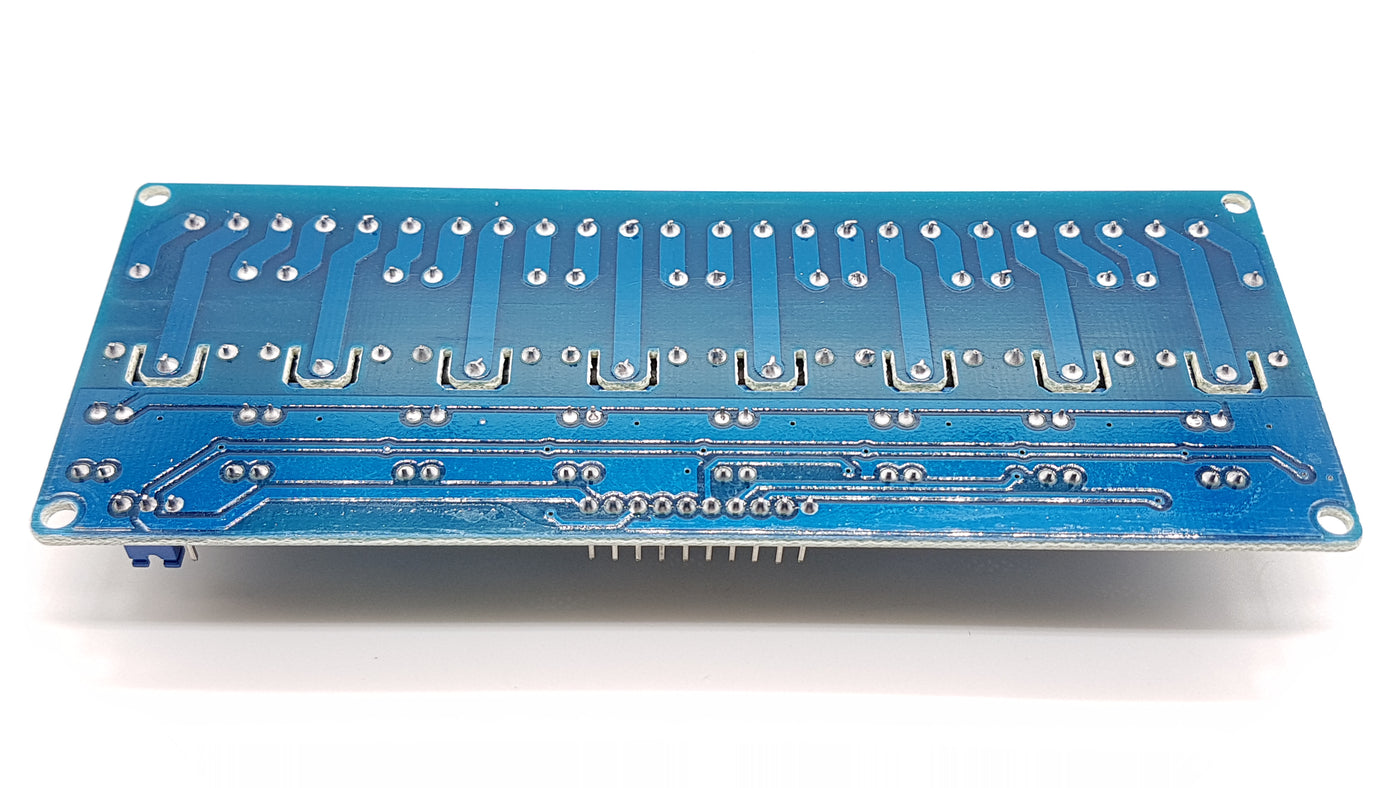

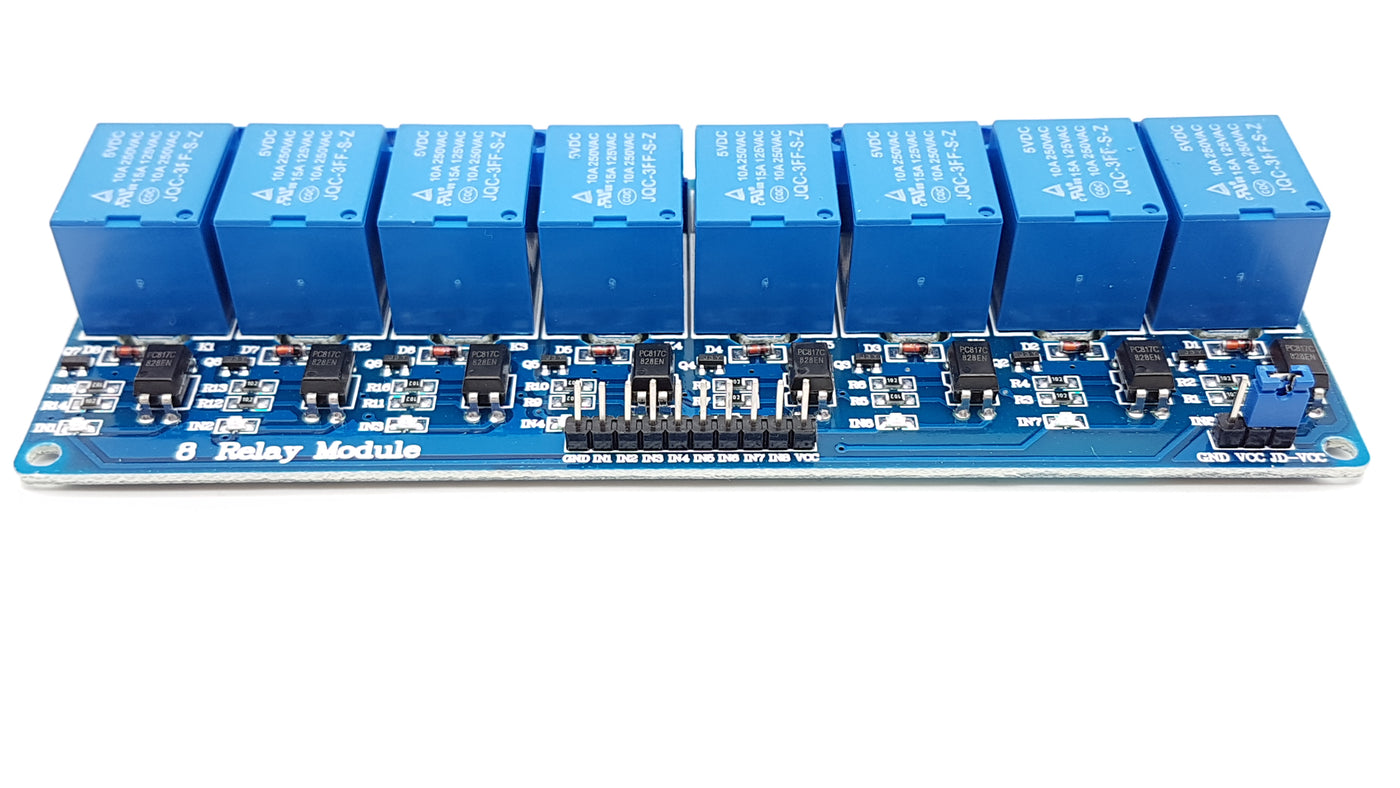

8-Channel Relay Module Board with optocoupler

SKU: ELC3015

ā‚¹ 399.99 ā‚¹ 561.00

Out of stock

šŸ“¦ Min order 1
Chat with us on WhatsApp We reply quickly! Contact Us
8-Channel Relay Module Board with optocouplerā‚¹ 399.99
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini
Details:Ā
  • Size: 13.5 x 5.3 x 1.7cm (LxWxH)
  • Working voltage: 5V
  • Channel: 8 channel
  • This relay module is 5V active low.
  • AC250V 10A and DC30V 10A.
It is an 8-channel relay interface board, which can be controlled directly by a wide range of microcontrollers such as AVR, PIC, ARM, PLC, etc.Ā It is also able to control various appliances and other equipments with large current.Ā Standard interface can be directly connected with microcontrollers. Red working status indicator lights are conducive to the safe use. Widely used for all MCU control, industrial sector, PLC control, smart home control.
Specifications

Resources
Tutorial
What is the voltage and current rating of the loads this module can switch?
The module operates at 5V and the relays are rated for AC 250V 10A and DC 30V 10A.
Is the module activated by a low level input and how do I trigger a relay?
Yes, it is a 5V active low device. Driving the input low will energize the corresponding relay.
What controllers can directly drive this module?
The standard interface allows direct connection to microcontrollers such as AVR, PIC, ARM and PLC.
Are there indicators and where can I find documentation?
There are red status indicator lights for safe use, and you can access a datasheet, sample code and a tutorial for guidance.
Can this module handle both AC and DC loads and be used for smart home control?
Yes, it supports AC loads up to 250V and DC loads up to 30V at 10A. It is suitable for MCU control, industrial PLC and smart home applications.
