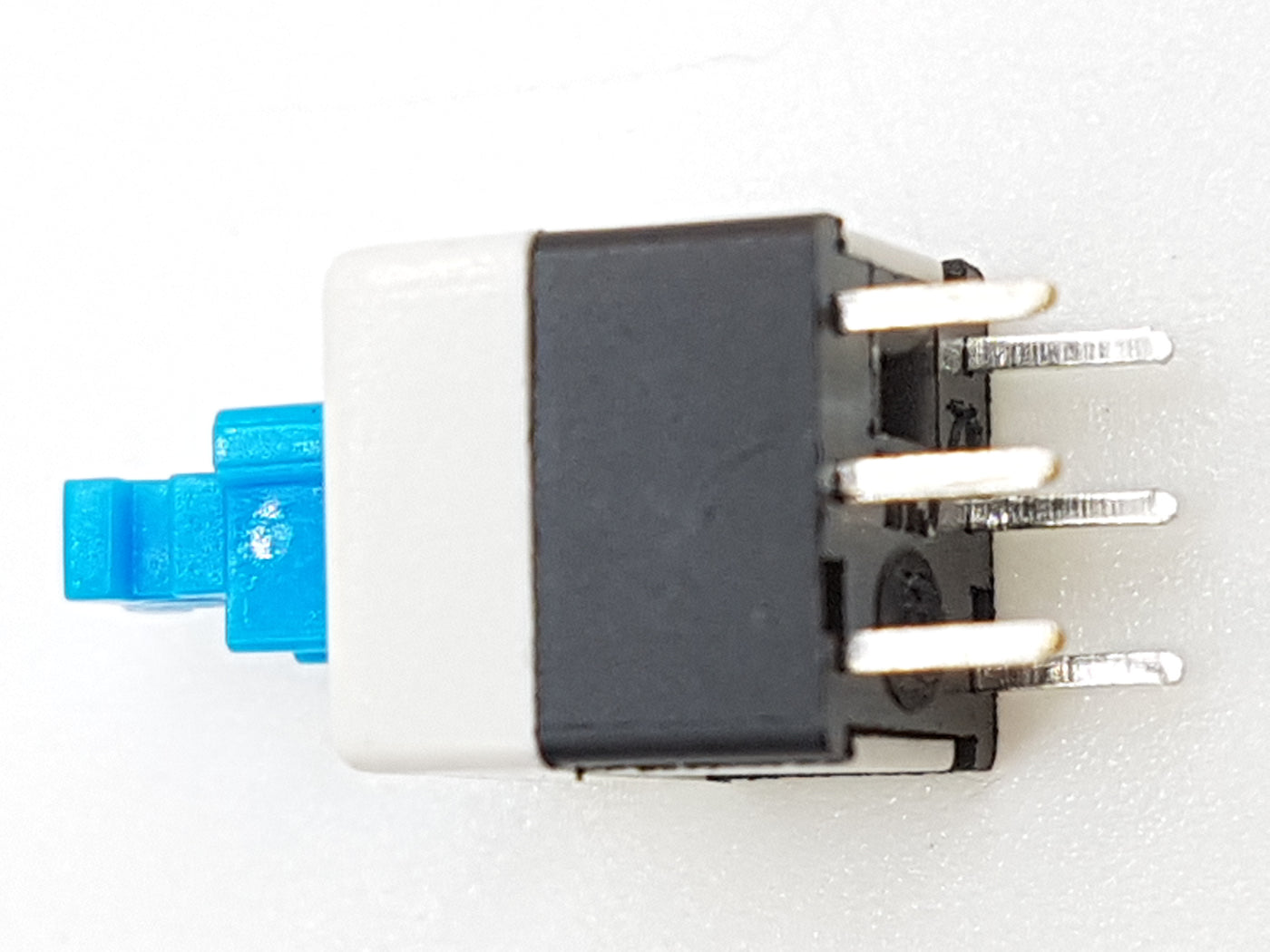

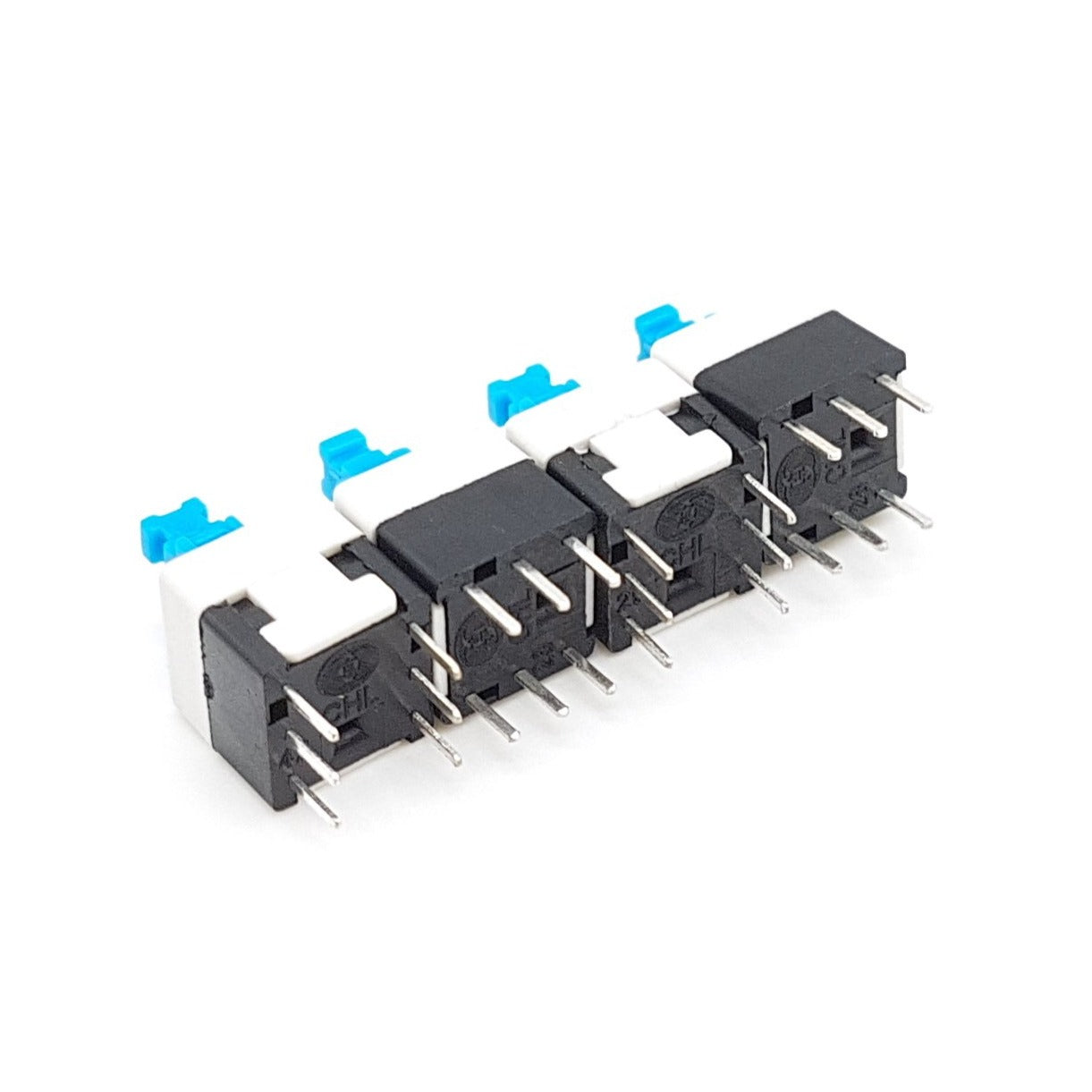

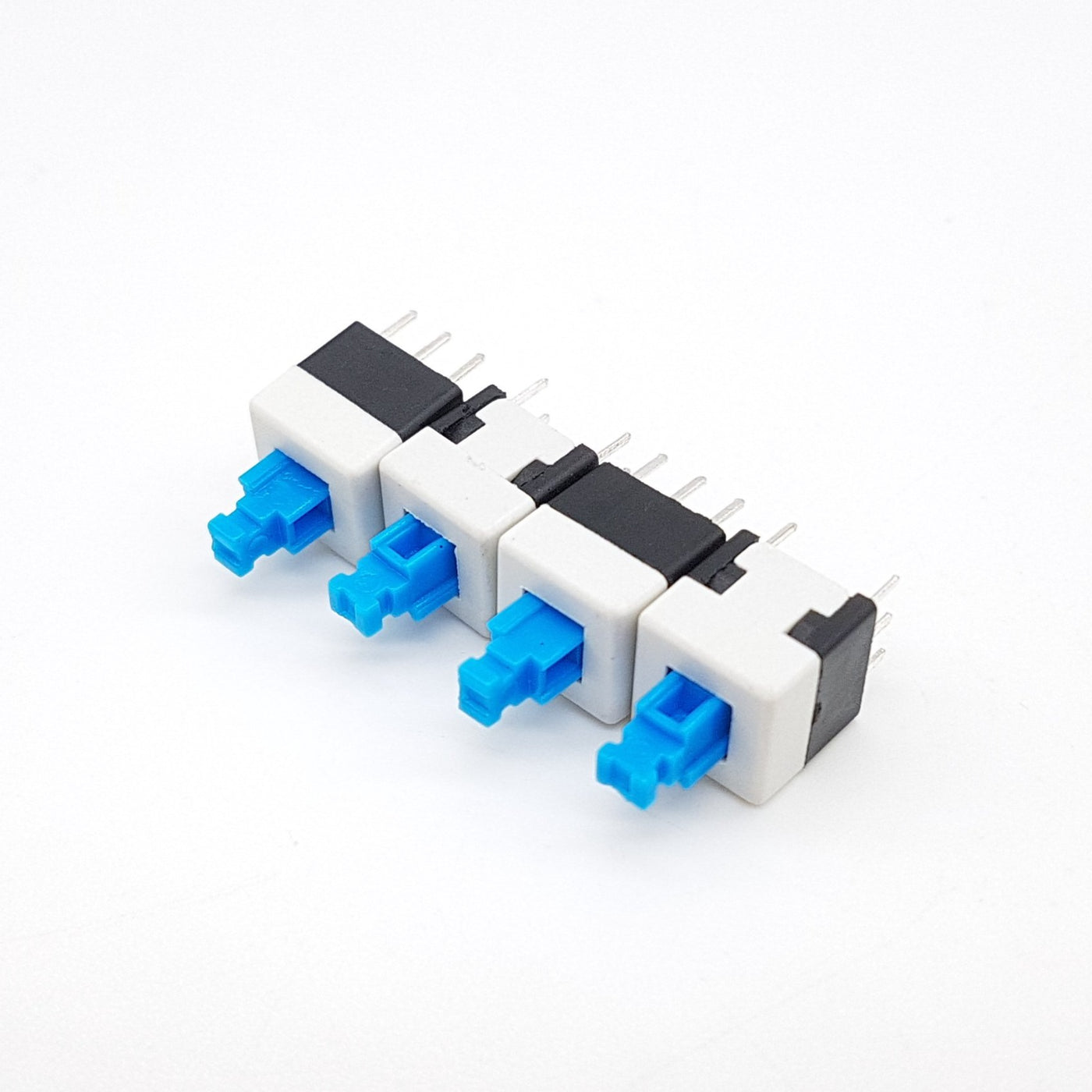

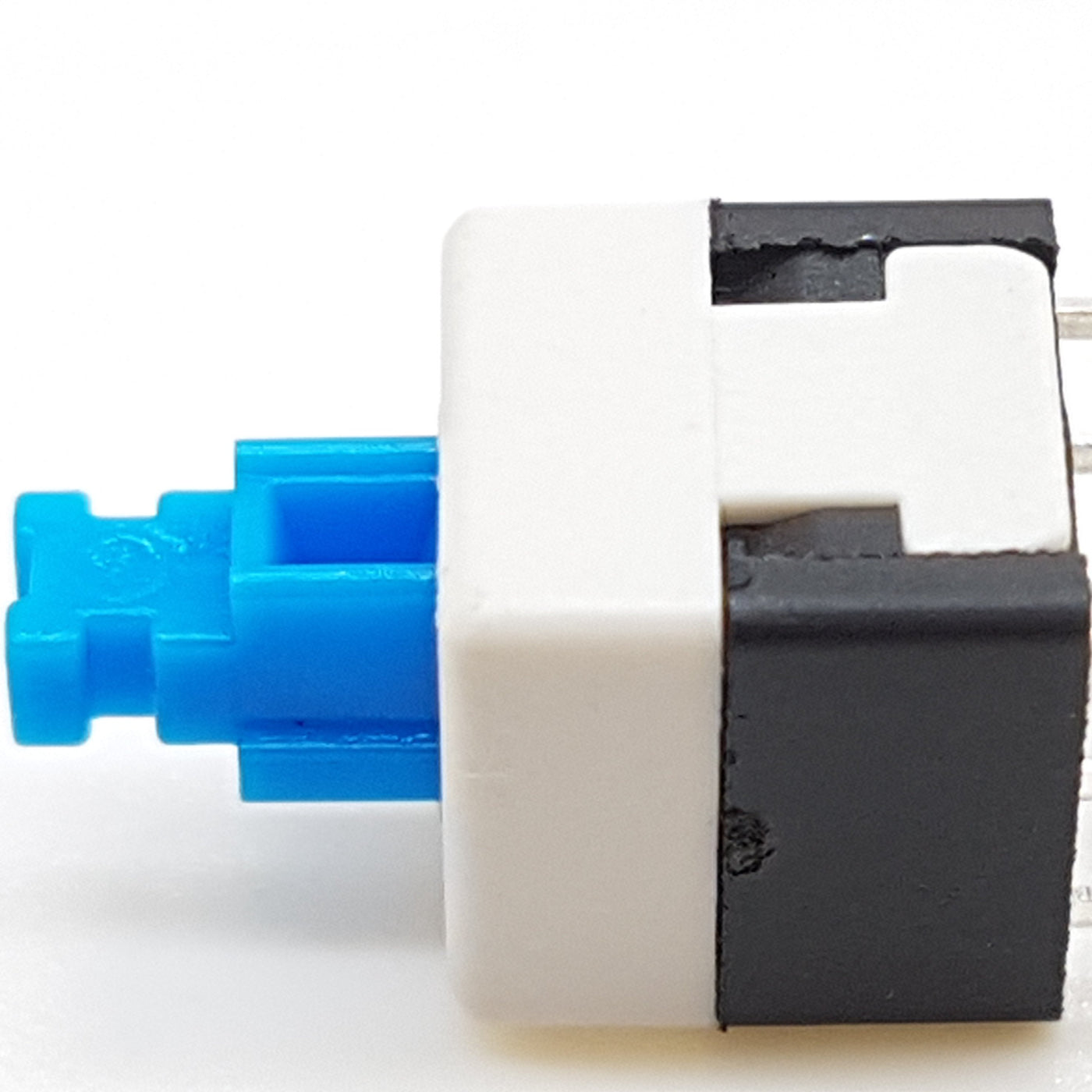

8X8 mm Cap Self Lock Button Switch Pack of 5
Details:
Temperature range: -40 ~ 70 ° C Rated load: 0.3A 60 V AC / 1.5A 25 V AC Contact resistance: <= 0.02 Ω Holding voltage: AC250V (50Hz) / min Operating force: 100-350g Insulation resistance:> = 100 M Ω Life: 100000 times
Specifications
Resources Sample Code
Tutorial VIDEO
VIDEO
