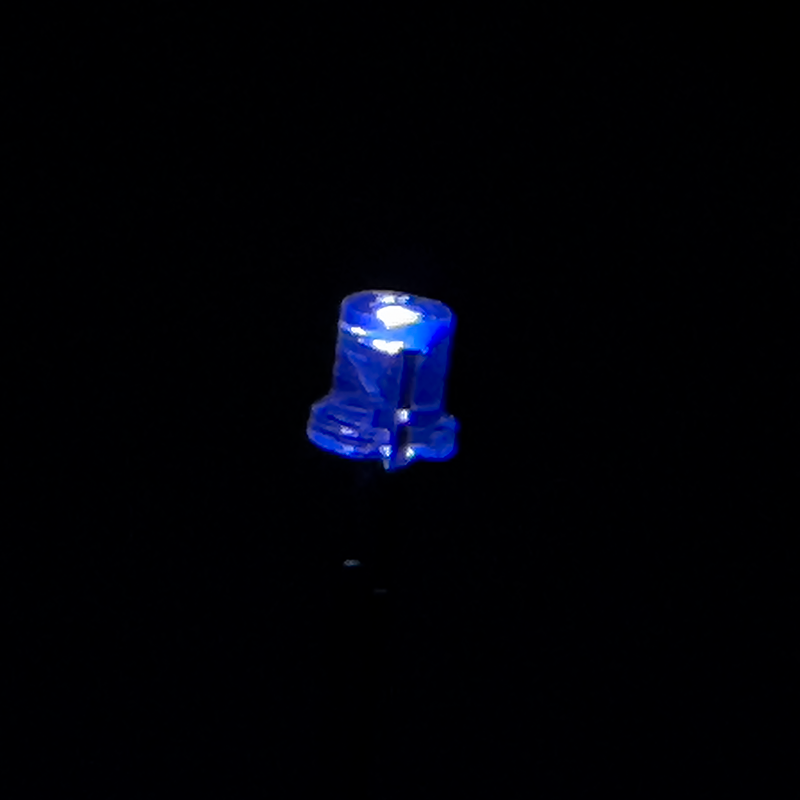

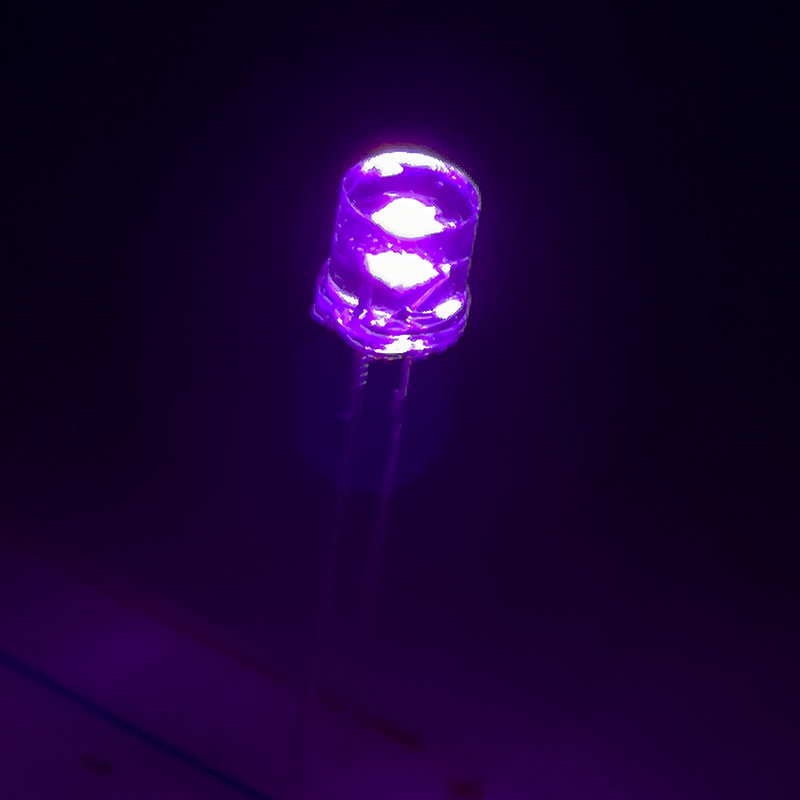

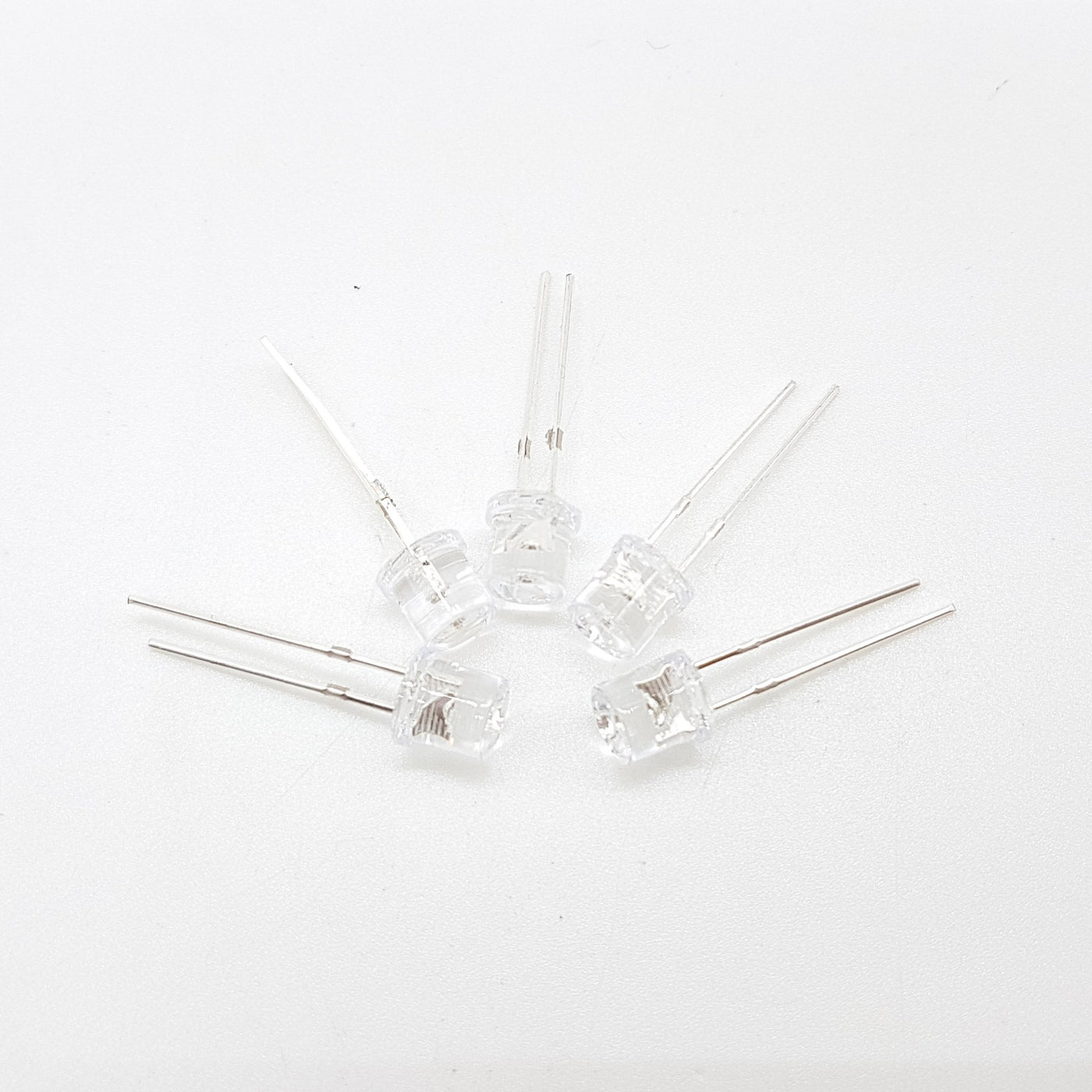

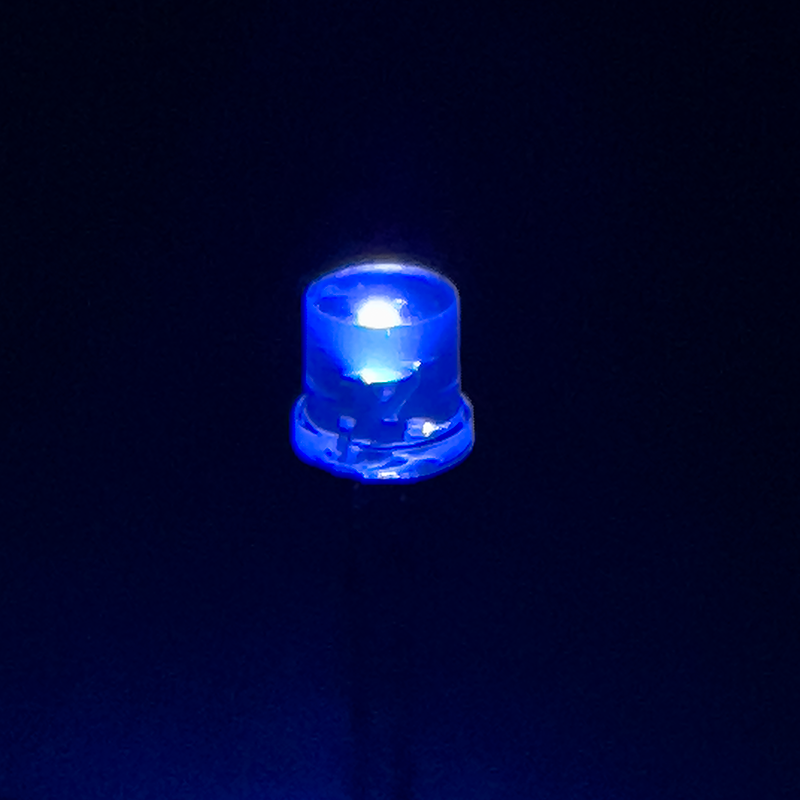

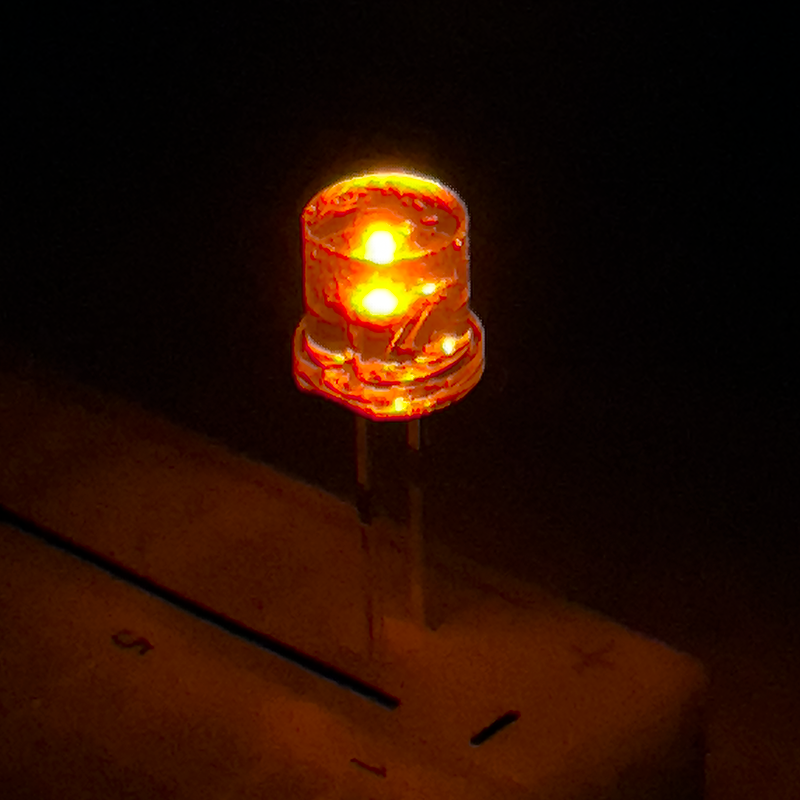

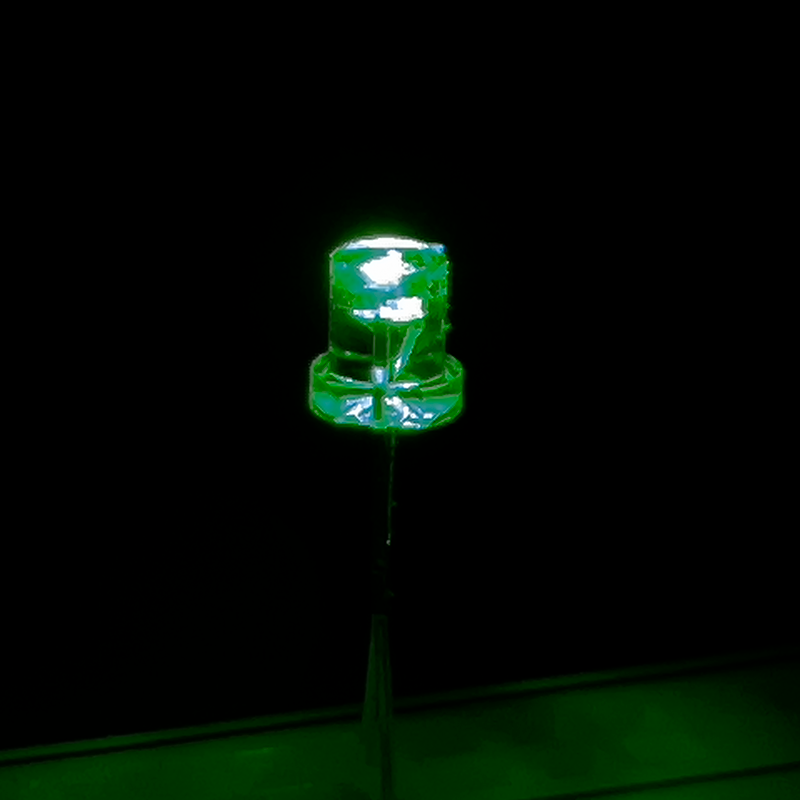

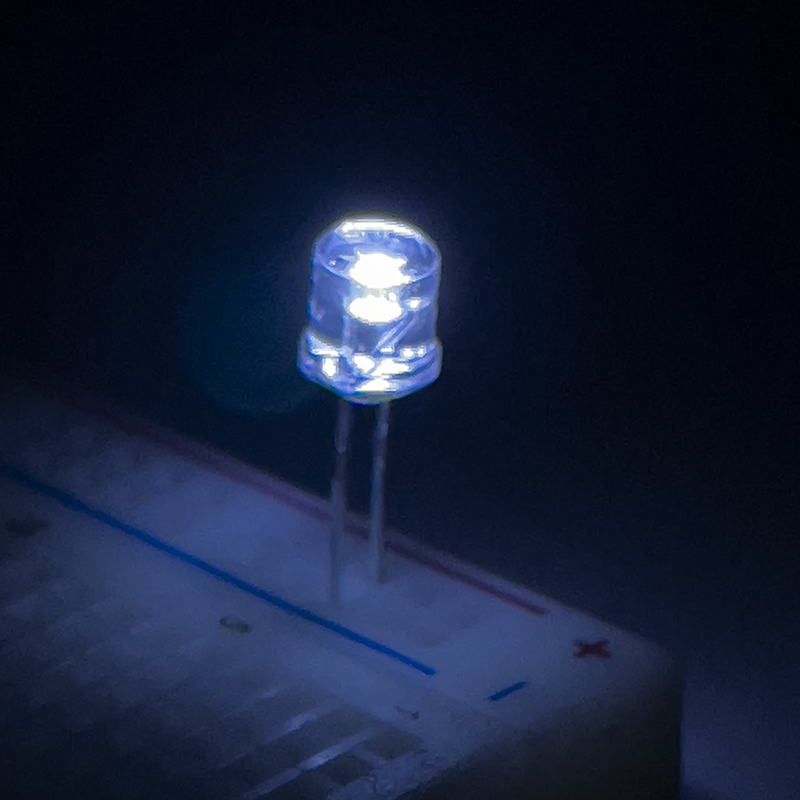

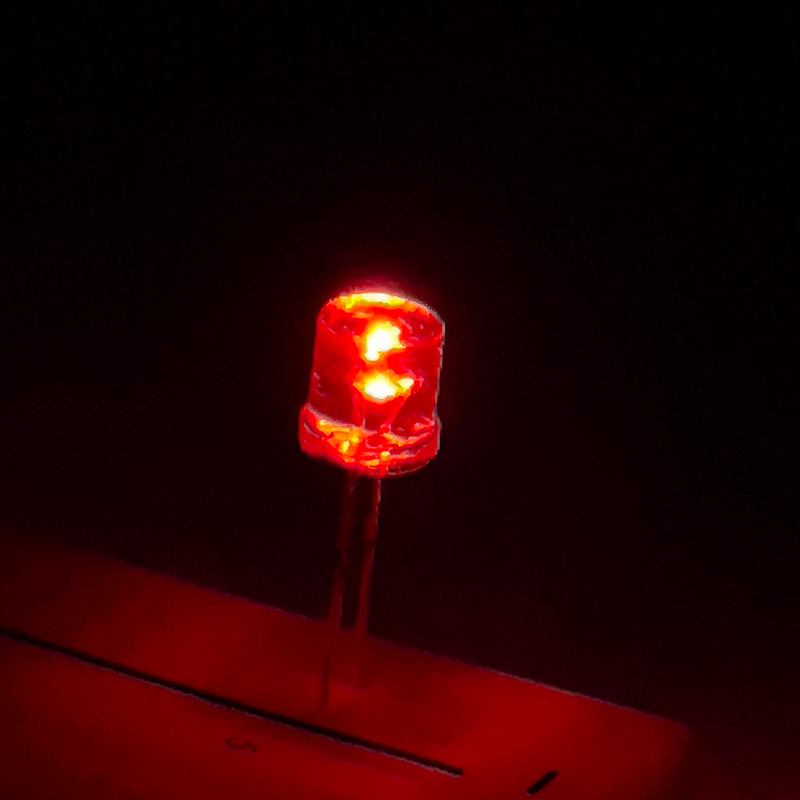

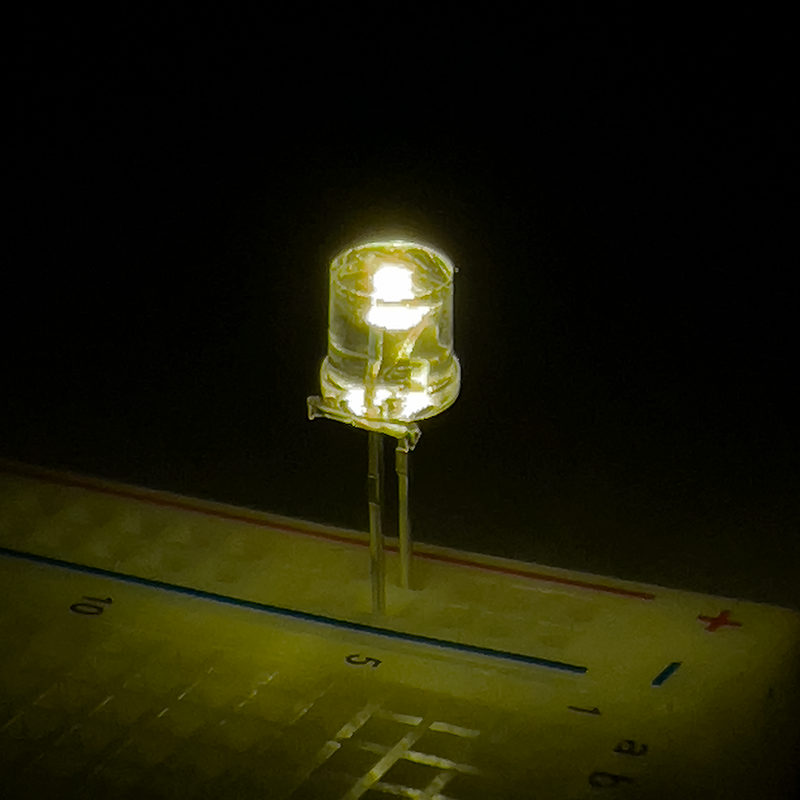

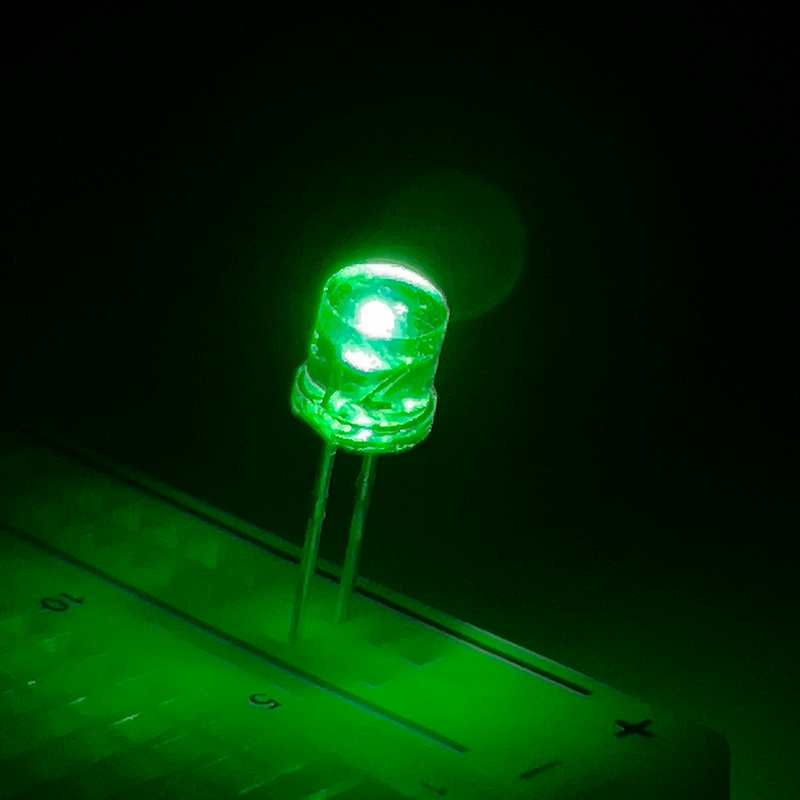

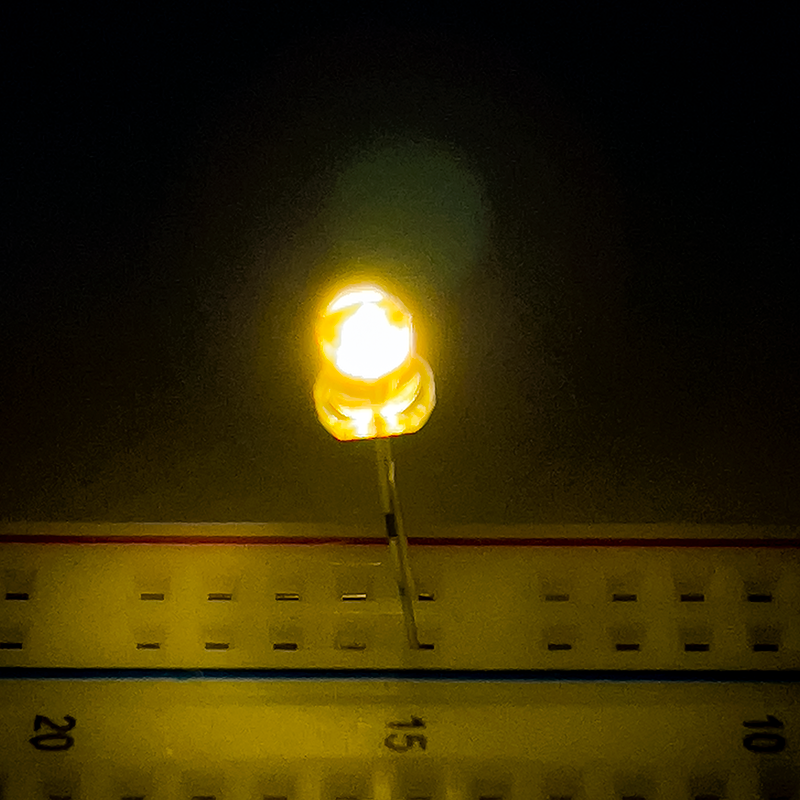

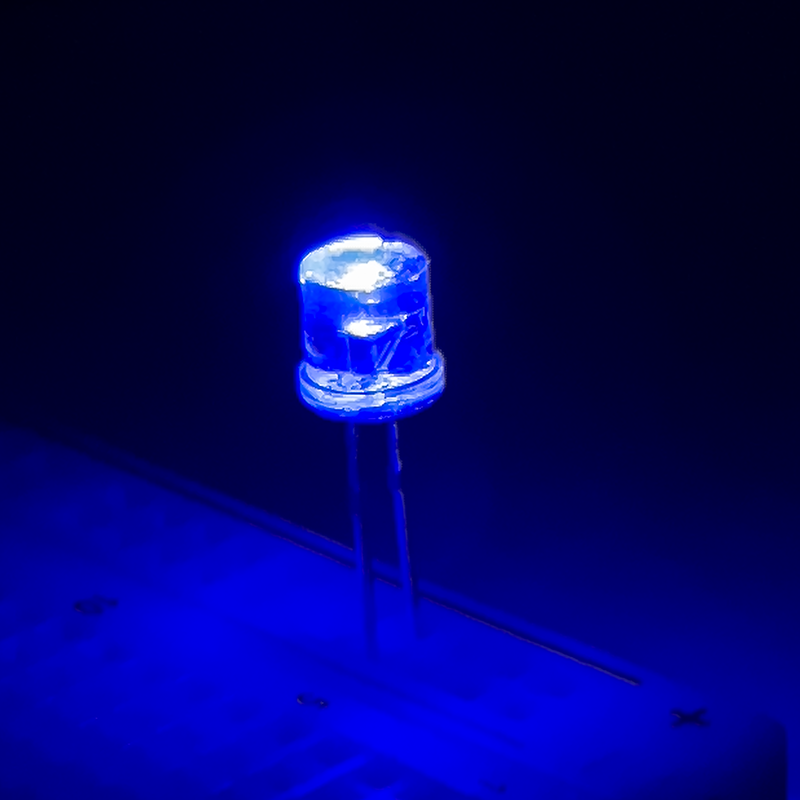

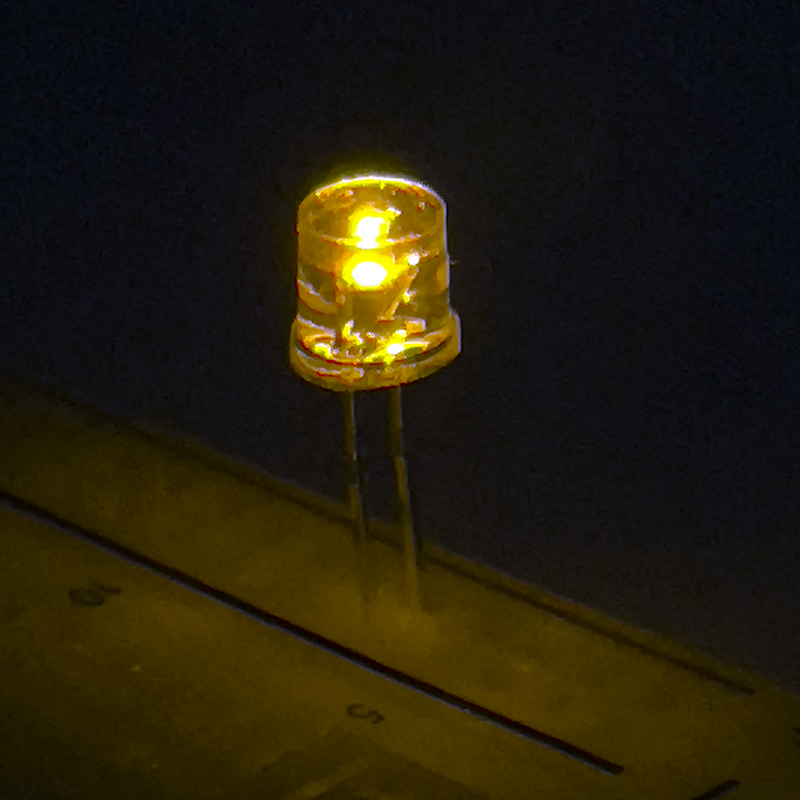

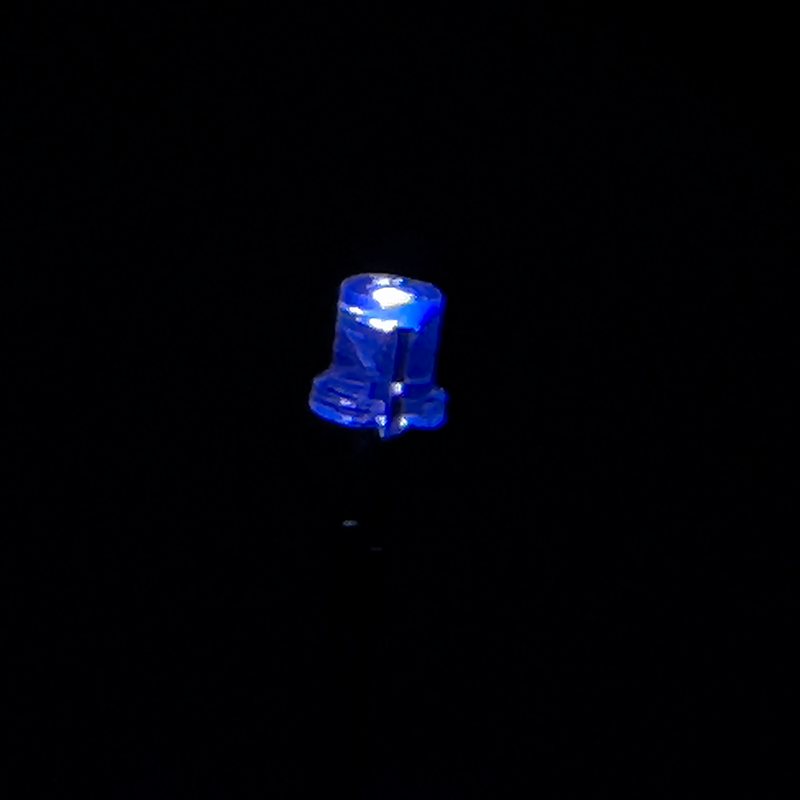

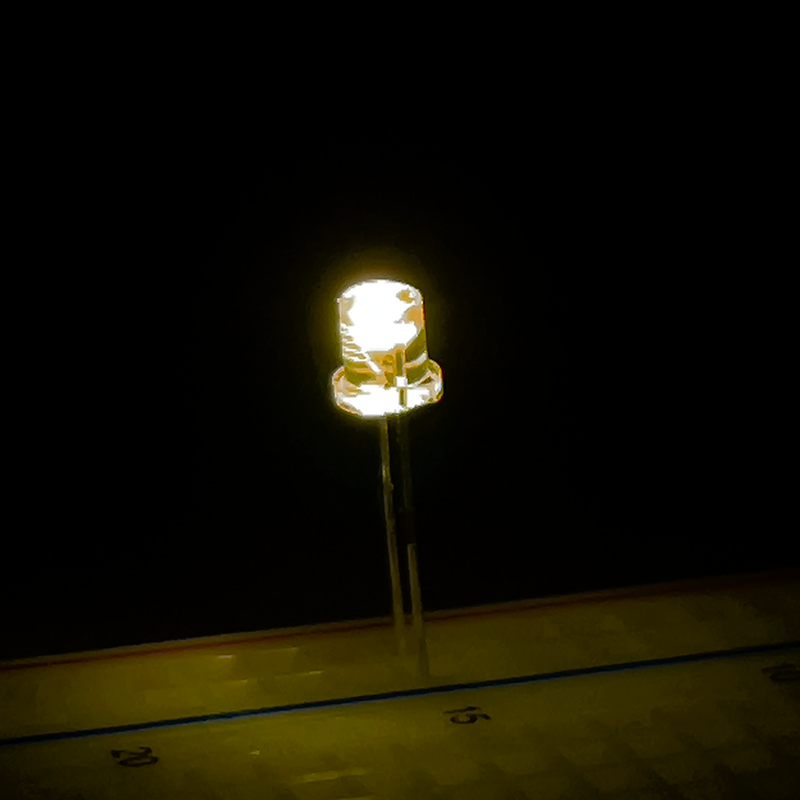

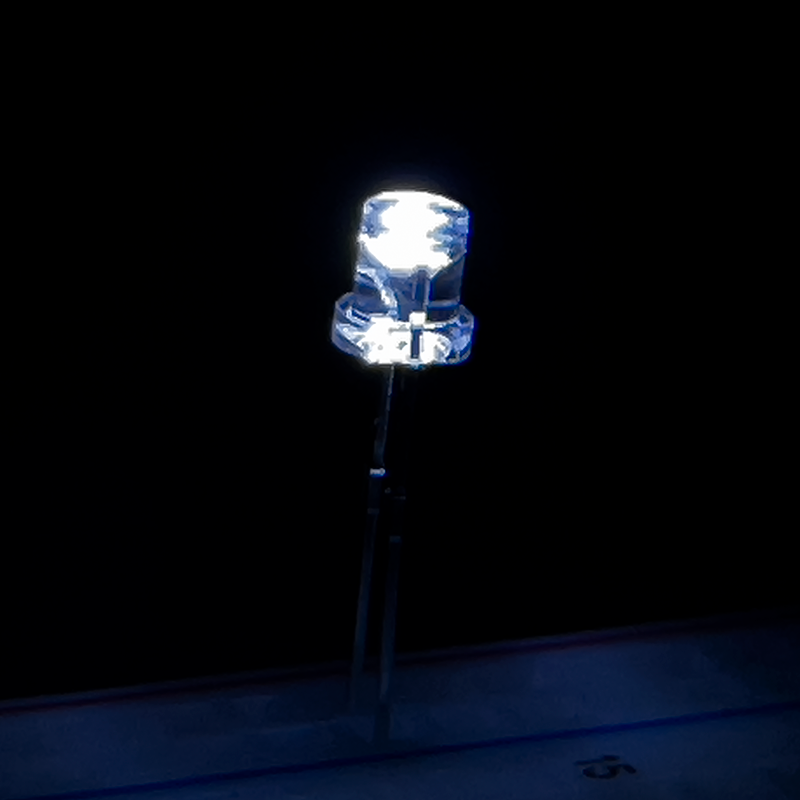

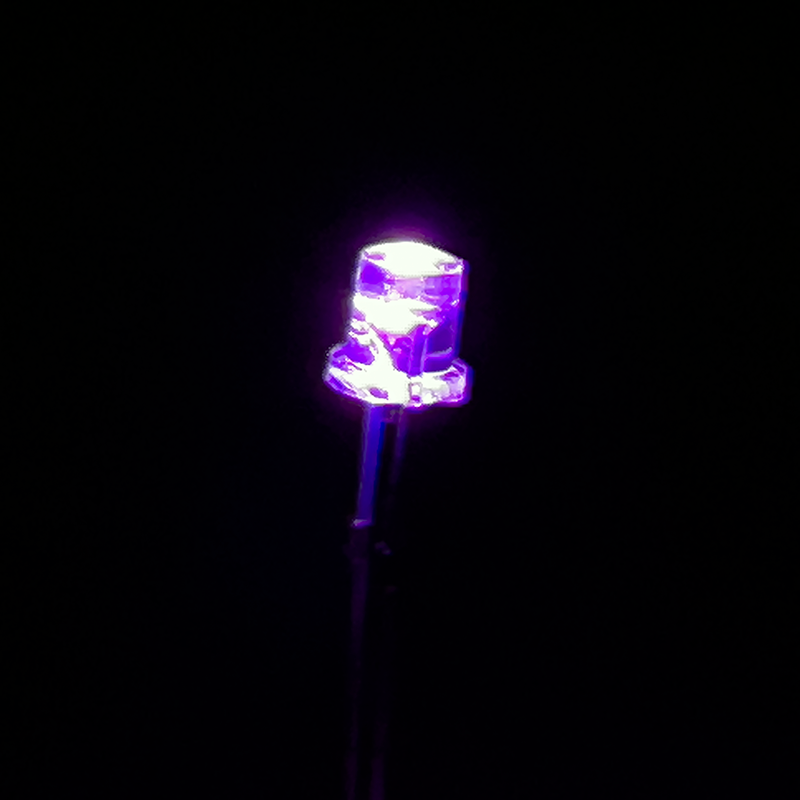

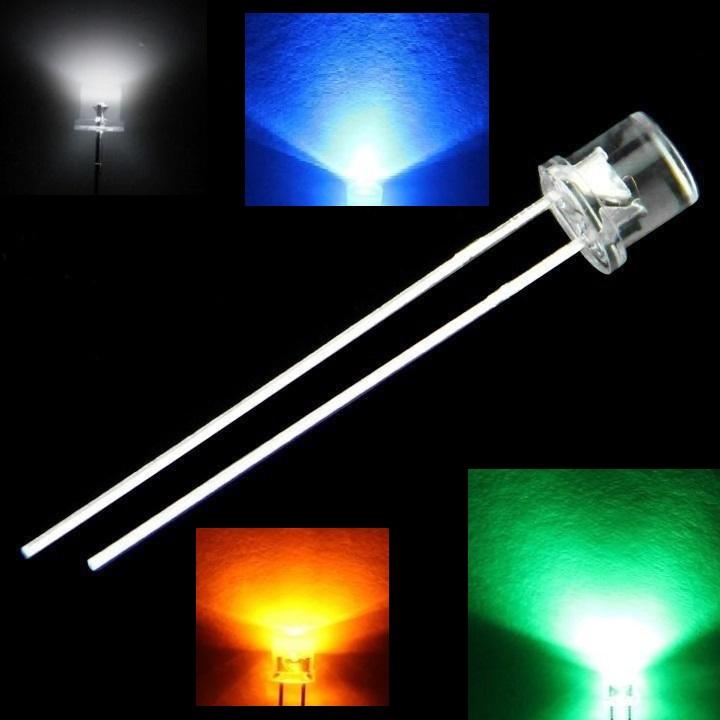

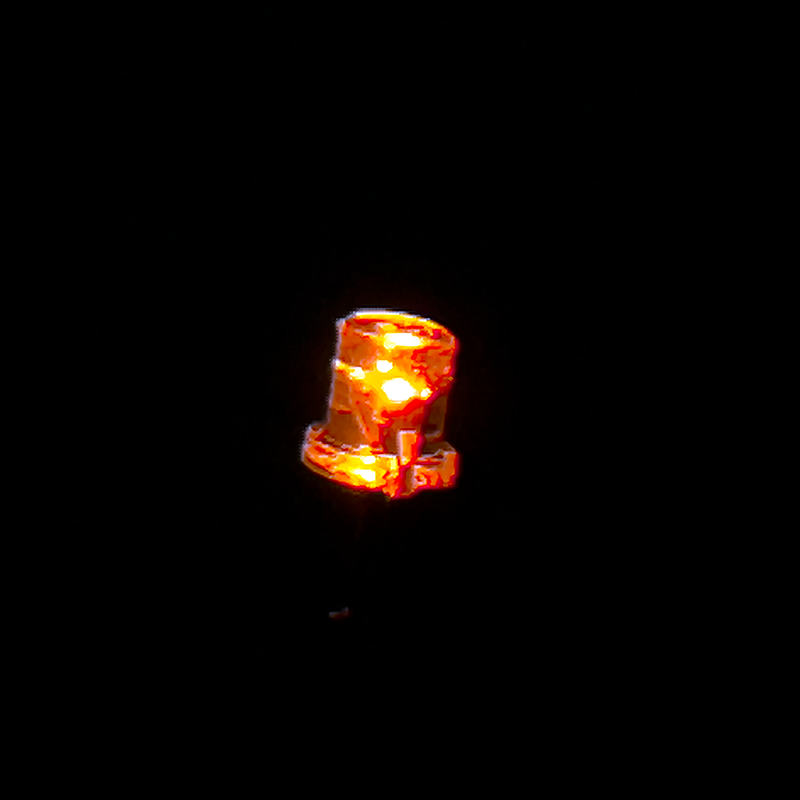

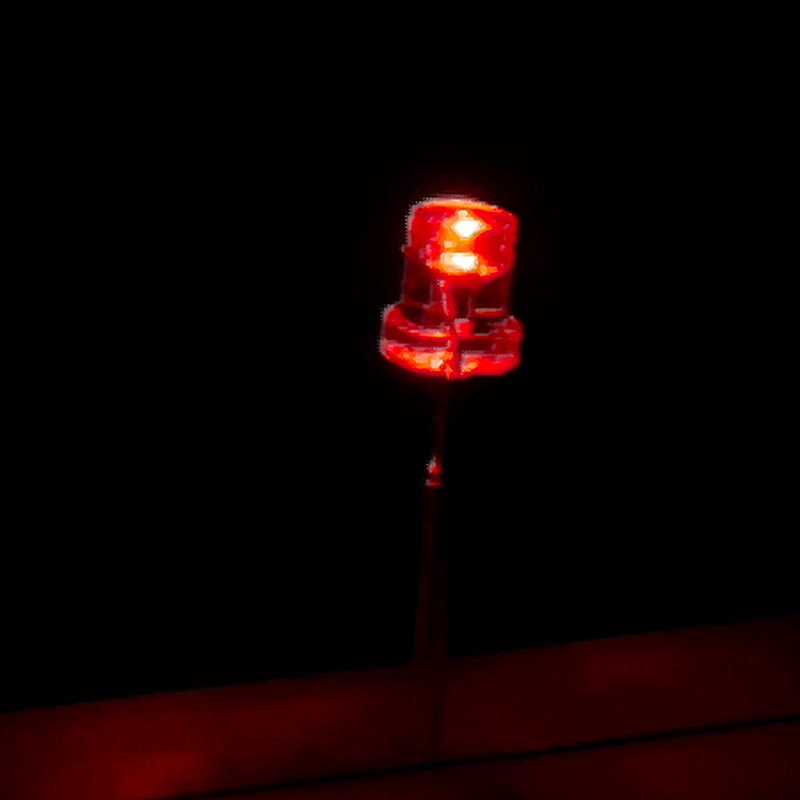

Flat Top LED Wide Angle (Pack of 10)

SKU: ELC2064W

₹ 19.99 ~~₹ 50.00~~

Out of stock

Select variant

Size 3mm

3mm 3mm / Purple UV 5mm 5mm / Purple UV

Colors White

Chat with us on WhatsApp We reply quickly! Contact Us

Flat Top LED Wide Angle (Pack of 10)3mm / White₹ 19.99

Ask AI about this product

Open in ChatGPT Open in Claude Open in Gemini

Features:

Size (mm) : 5mm / 3mm
Lens Colour : Water Clear
Forward Voltage (V) : 1.8~2.2
Reverse Current (uA) : <=30
Luminous Intensity Typ Iv (mcd) : Average in 5000
Life Rating : 100,000 Hours
Absolute Maximum Ratings (Ta=25°C)
Max Power Dissipation : 80mw
Max Continuous Forward Current : 30mA
Max Peak Forward Current : 75mA
Reverse Voltage : 5~6V
Lead Soldering Temperature : 240°C (<5Sec)
Operating Temperature Range : -25°C ~ +85°C
Preservative Temperature Range : -30°C ~ +100°C

NOTE: Multipack includes 10 LEDs of each color, totaling to 90 LEDs

Resources

Sample Code

What is the forward voltage and current rating for these LEDs?

Forward voltage is 1.8 to 2.2 volts. Maximum continuous forward current is 30 mA and maximum peak forward current is 75 mA. Maximum power dissipation is 80 mW.

What can you tell me about brightness and lens type?

Luminous intensity is typically about 5000 mcd and the lens is water clear.

How many LEDs are included in the multipack and what does 10 LEDs per color mean?

The multipack includes 90 LEDs in total, with 10 LEDs per color.

What are the operating and soldering guidelines?

Operating temperature range is -25 to +85 degrees Celsius and the preservative range is -30 to +100 Celsius. Lead soldering temperature is 240 degrees Celsius for less than 5 seconds.

What is the reverse voltage rating and other key electrical limits?

Reverse voltage is 5 to 6 V. The listing also specifies absolute maximum ratings such as max current and power dissipation to guide safe usage.
