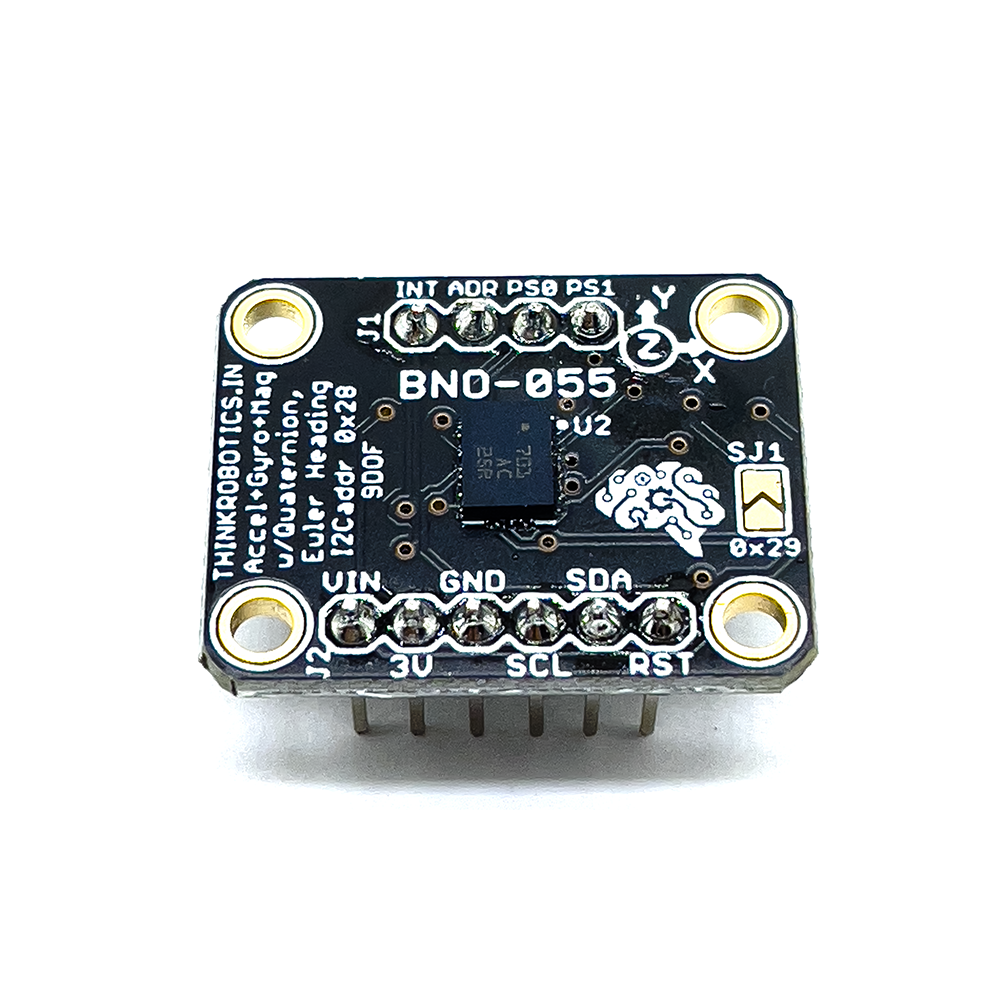

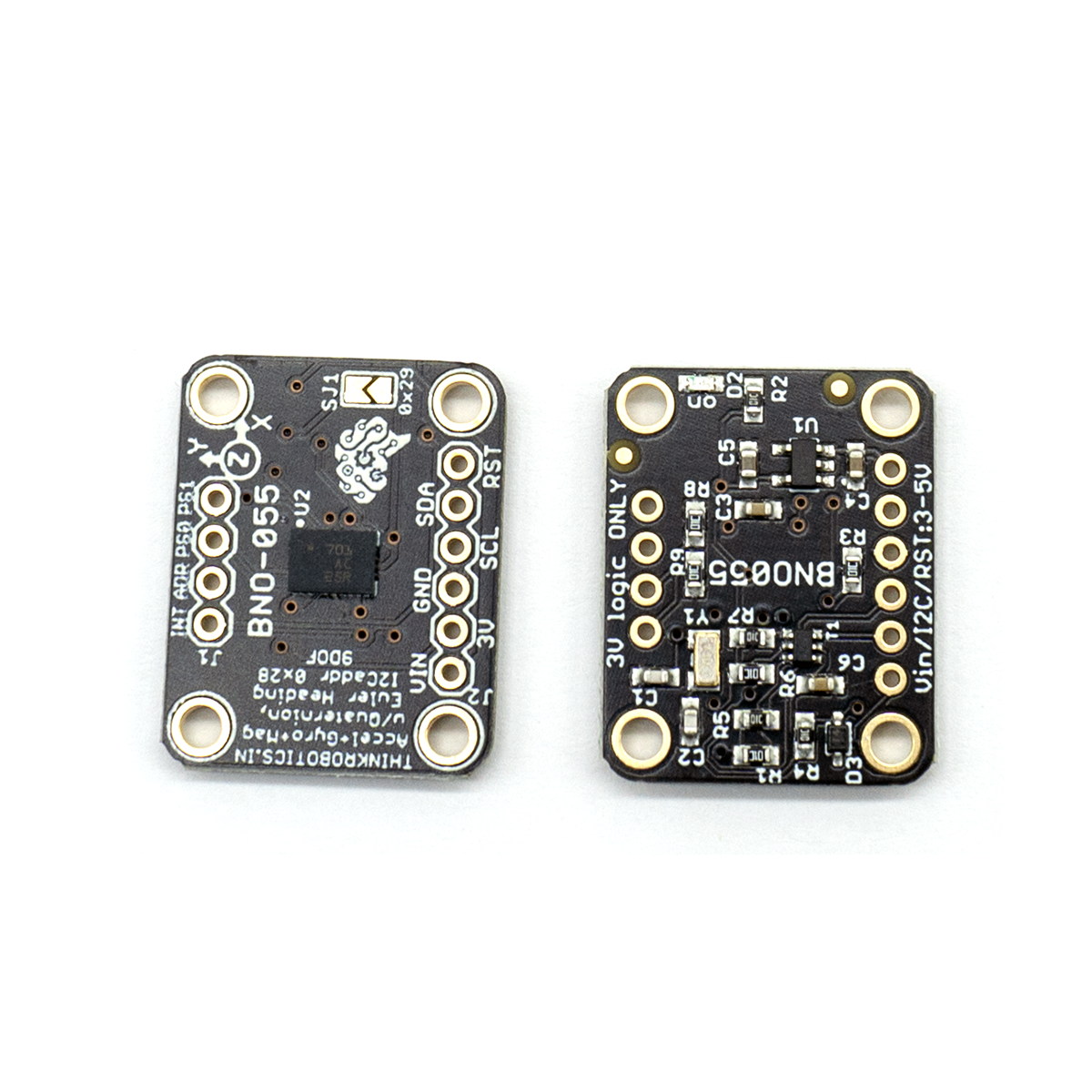

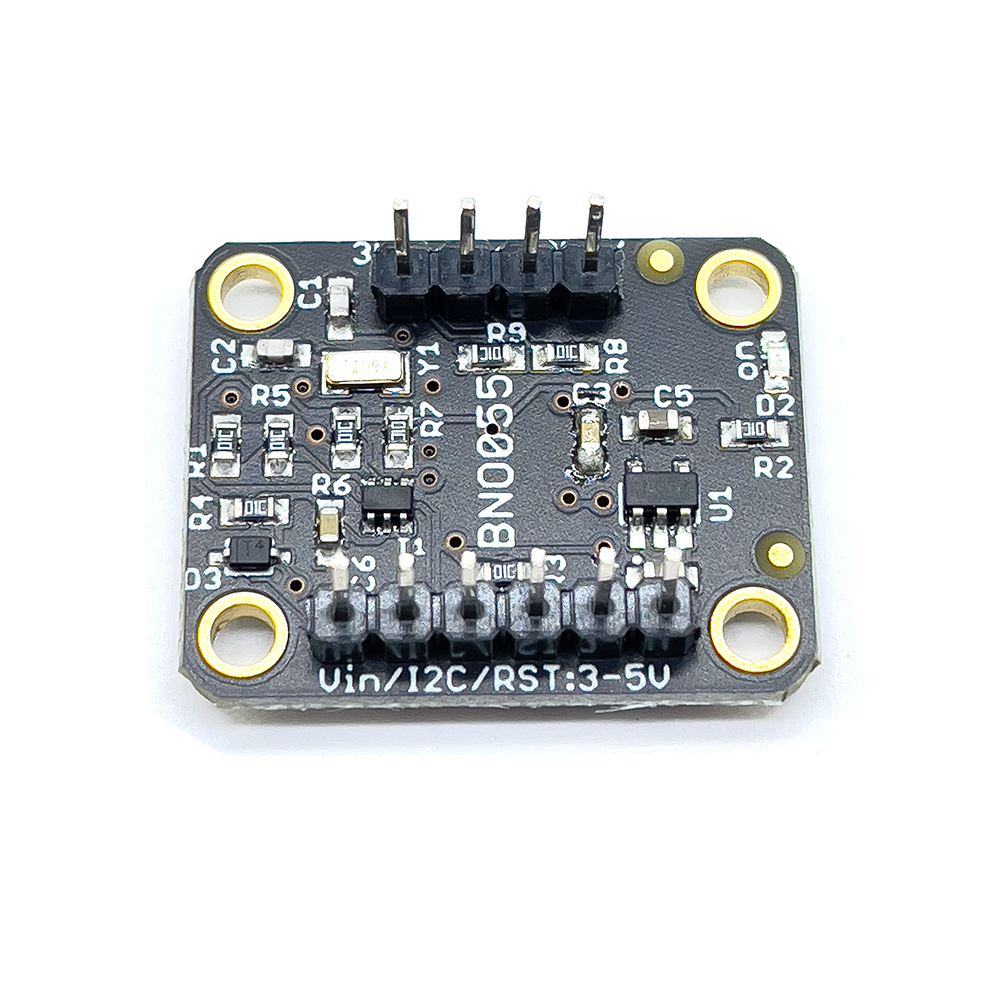

BNO055 9-DOF Absolute Orientation Sensor

The BNO055 is the first in a new family of Application Specific Sensor Nodes (ASSN) implementing an intelligent 9-axis Absolute Orientation Sensor, which includes sensors and sensor fusion in a single package.

The task of turning the sensor data from an accelerometer, gyroscope and magnetometer into actual "3D space orientation" can be daunting! Orientation is a hard problem to solve. The sensor fusion algorithms (the secret sauce that blends accelerometer, magnetometer and gyroscope data into stable three-axis orientation output) can be mind-numbingly difficult to get right and implement on low cost real time systems.

Bosch is the first company to get this right by taking a MEMS accelerometer, magnetometer and gyroscope and putting them on a single die with a high speed ARM Cortex-M0 based processor to digest all the sensor data, abstract the sensor fusion and real time requirements away, and spit out data you can use in quaternions, Euler angles or vectors.

NOTE: Don't forget to solder the jumpers S0 and S1 to turn on I2C or UART modes of communication. Connecting S0 and S1 to ground will turn on I2C.

Package Contains: 1x BNO055 (soldered or unsoldered)

 Module Dimensions

The BNO055 can output the following sensor data:

• Absolute Orientation (Euler Vector, 100Hz) Three axis orientation data based on a 360° sphere
• Absolute Orientation (Quaterion, 100Hz) Four point quaternion output for more accurate data manipulation
• Angular Velocity Vector (100Hz) Three axis of 'rotation speed' in rad/s
• Acceleration Vector (100Hz) Three axis of acceleration (gravity + linear motion) in m/s^2
• Magnetic Field Strength Vector (20Hz) Three axis of magnetic field sensing in micro Tesla (uT)
• Linear Acceleration Vector (100Hz) Three axis of linear acceleration data (acceleration minus gravity) in m/s^2
• Gravity Vector (100Hz) Three axis of gravitational acceleration (minus any movement) in m/s^2
• Temperature (1Hz) Ambient temperature in degrees Celsius
