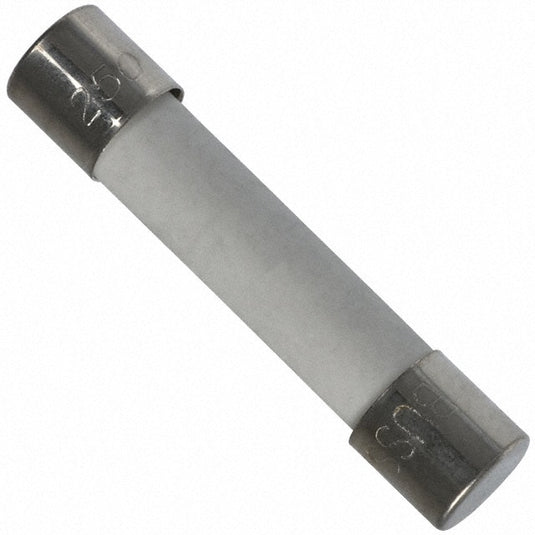

Product Description: Cartridge Fuses SMALL DIMENSION FUSE (Part Number: ABC-20-R)
Manufactured by EATON ELECTRONICS and based in China (COO: CN), the ABC-20-R is a high-quality, small-dimension cartridge fuse designed for reliable circuit protection. This UL-listed, fast-acting ceramic tube fuse is suitable for various electronic applications requiring precise overcurrent protection.
Product Features
Fast-acting ceramic tube construction for quick response to overcurrent conditions
Physical size: 1/4” x 1 1/4” (6.4 x 31.7mm)
Ceramic tube with nickel-plated brass endcaps for durability and corrosion resistance
Optional axial leads available for versatile installation
UL Listed (Guide JDYX & File E19180) and CSA Certified (Class No: 1422-01 & 1422-30, File 53787)
Electrical Specifications
Part Number
Voltage Ratings
Interrupting Ratings (amps)
Typical DC Cold Resistance (Ω)
Typical Pre-Arc I²t AC
Typical Voltage Drop (V)
Agency Approvals
ABC-20-R
250V AC, 125V DC
400A (at 250V AC), 1000A (at 125V DC)
0.00366 Ω
550.8
0.1
UL, UR, CSA
Dimensions
Refer to the datasheet for detailed dimensions (not to scale).
Ordering & Packaging
Packaging Code
Description
BK
100 pieces of fuses packed into a cardboard carton
BK1
1000 pieces of fuses packed into a cardboard carton
BK8
8000 pieces of fuses packed into a cardboard carton
Note: The datasheet was not processed; please search the internet for the part number ABC-20-R for more details.
All specifications are measured at 25°C±3°C ambient temperature unless otherwise specified. Eaton reserves the right to modify product designs without notice. For detailed technical information, refer to the provided datasheet link.
