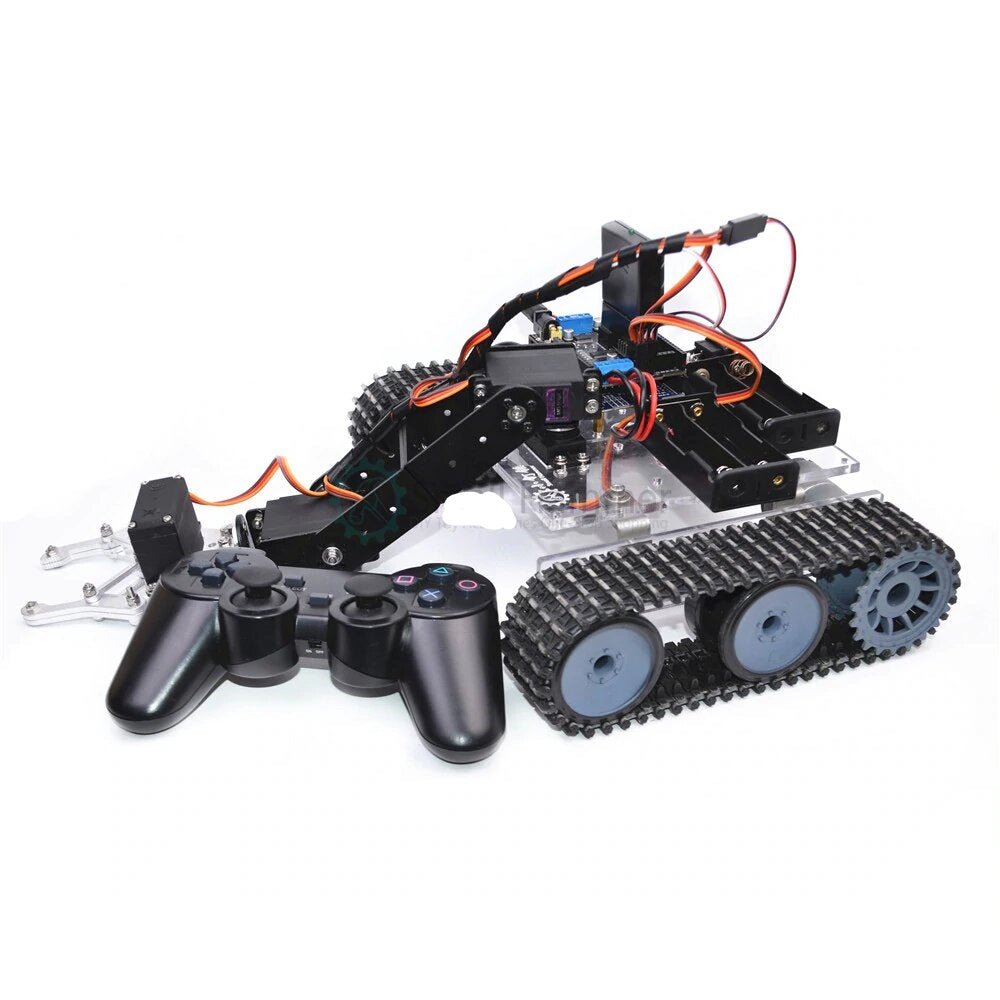

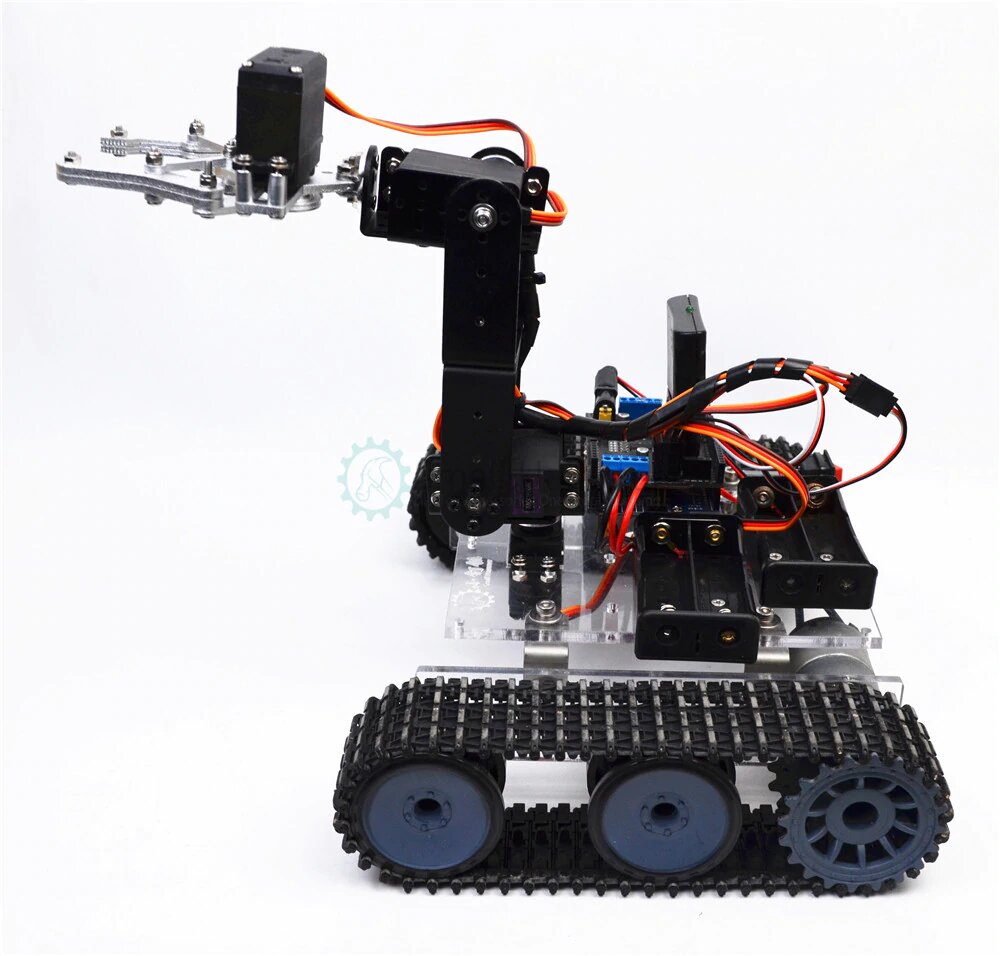

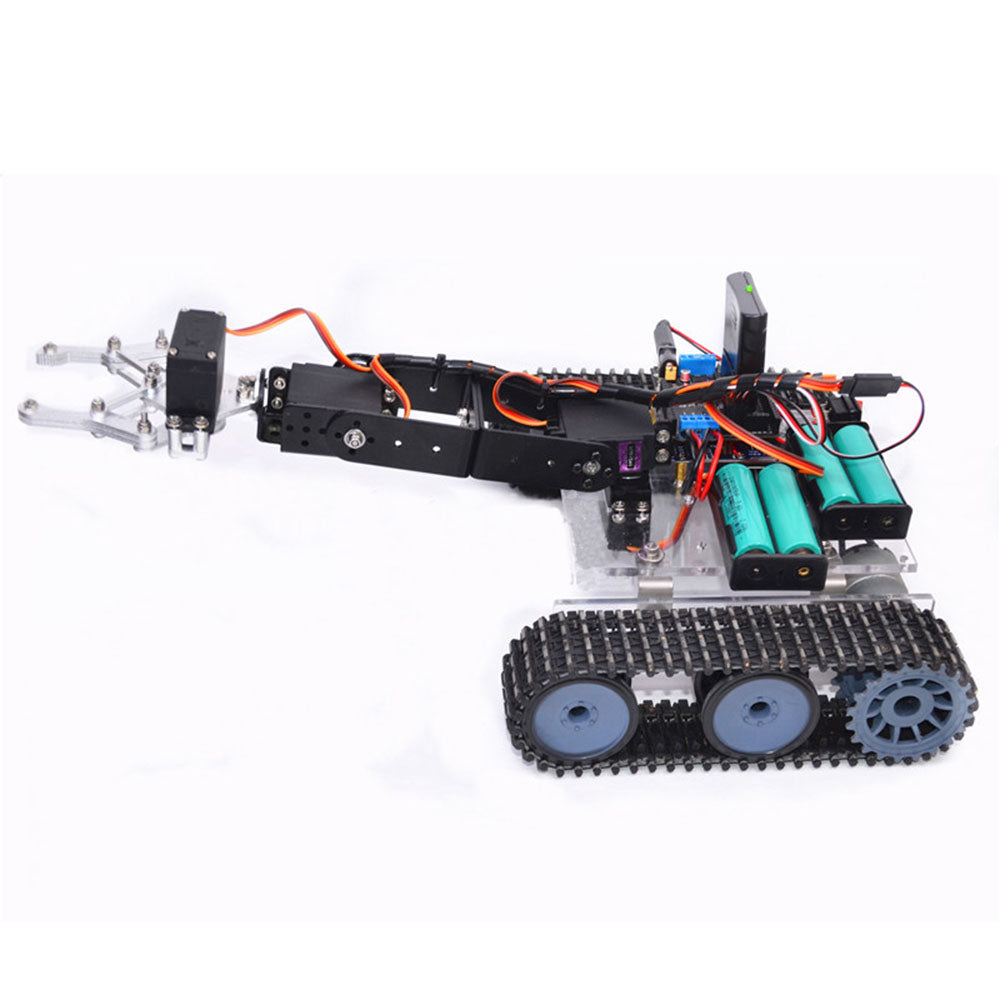

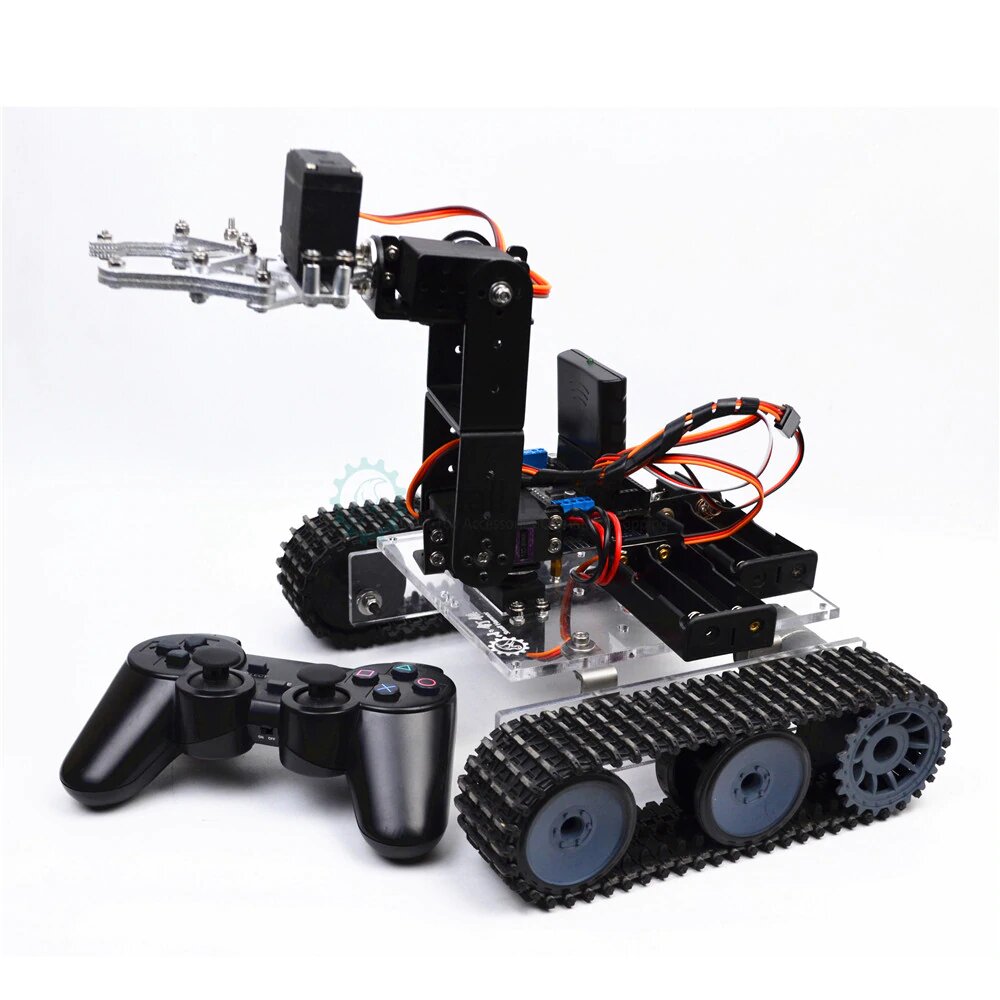

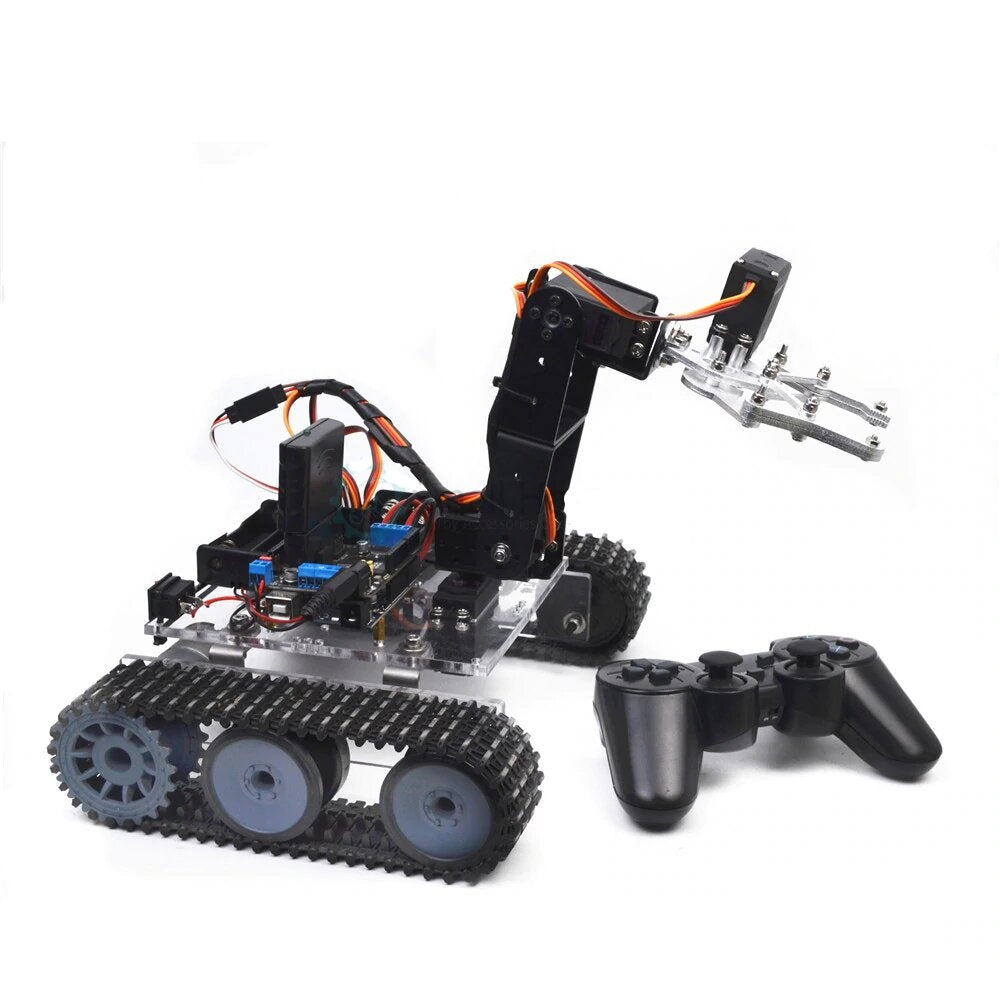

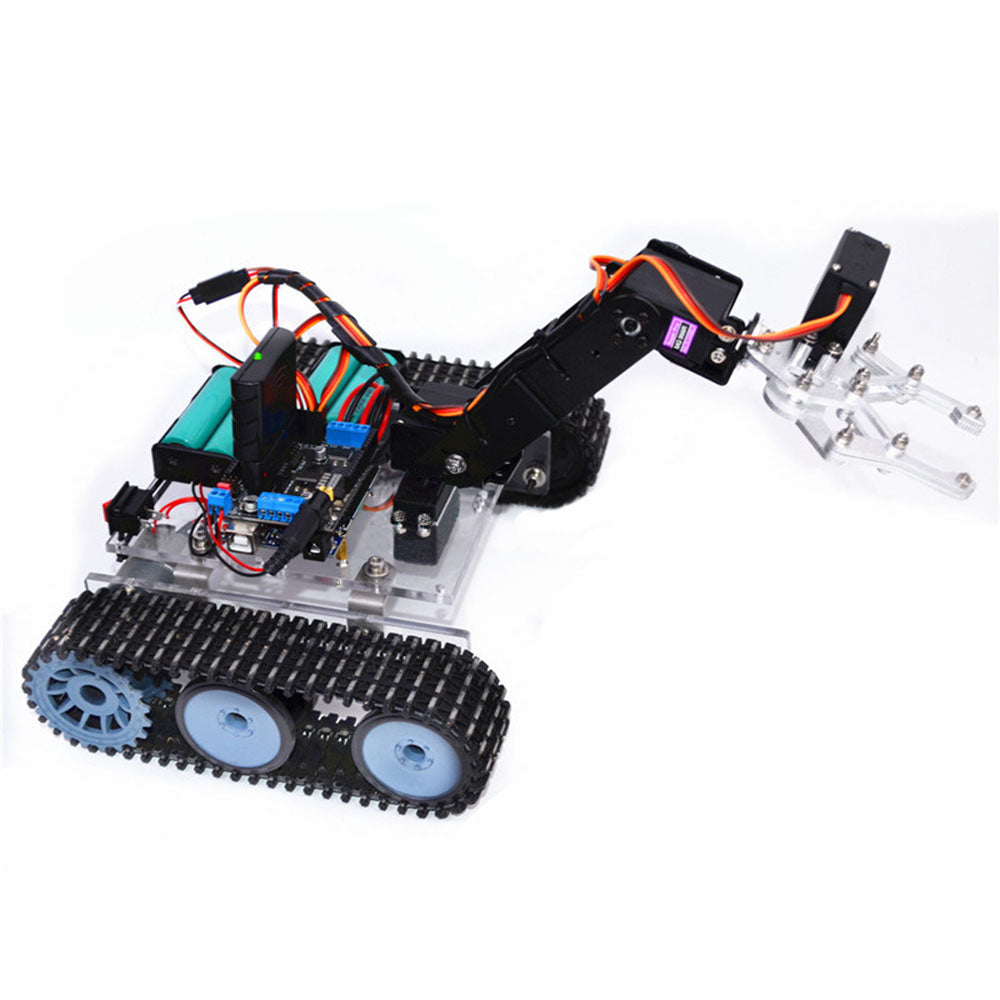

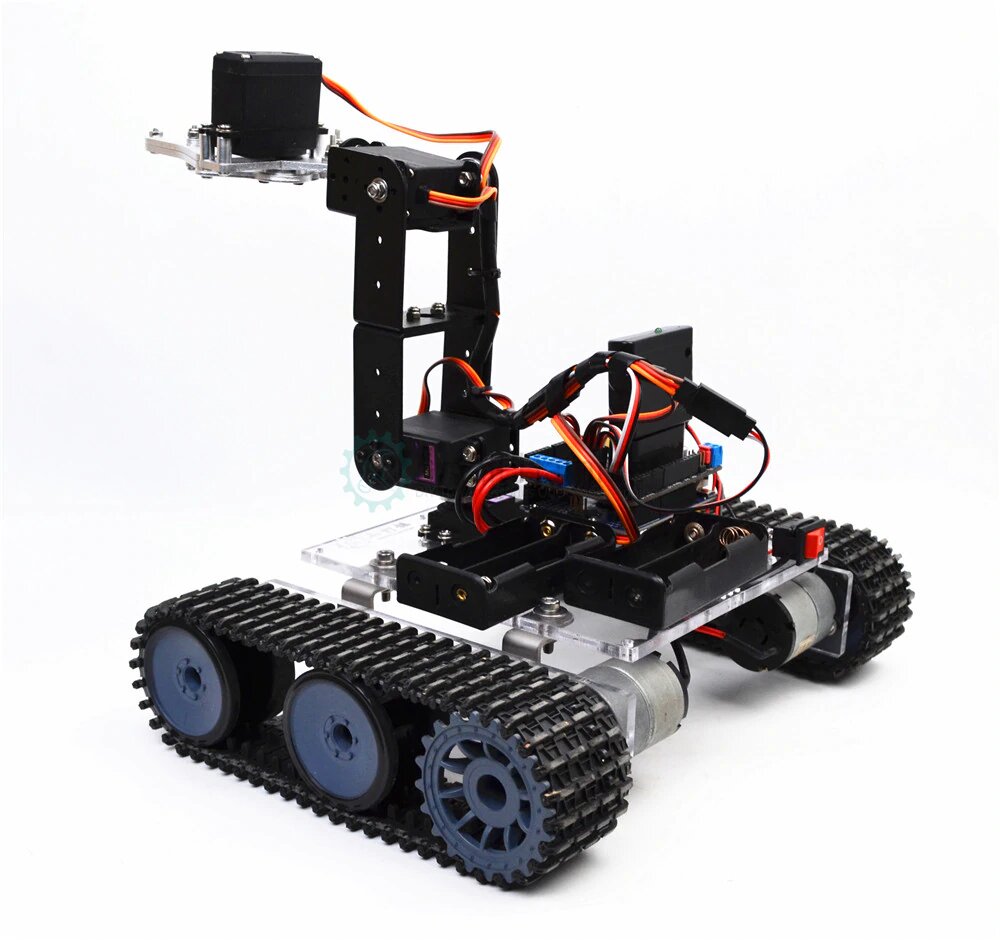

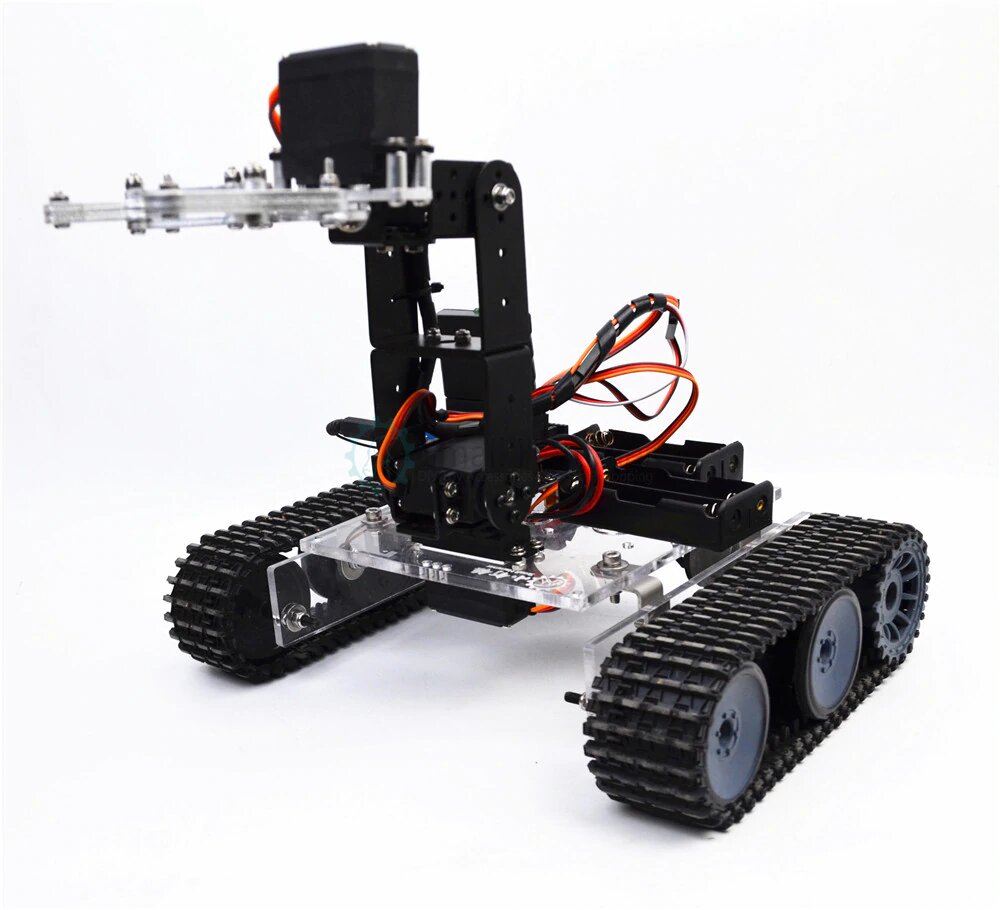

Acrylic Tank Robot with 4 DOF Robot Arm

SKU: RBC1015

₹ 11,995.99 ~~₹ 15,999.99~~

Out of stock

Chat with us on WhatsApp We reply quickly! Contact Us

Acrylic Tank Robot with 4 DOF Robot Arm₹ 11,995.99

Ask AI about this product

Open in ChatGPT Open in Claude Open in Gemini

This robot tank is made up of Acrylic and has a 4 Direction of Freedom Robotic Arm. It uses Arduino as the controller and can be controlled using PS2 remote control. The arm can be used with Raspberry pi and other SBCs with camera for search and retrieve operations.

Features:

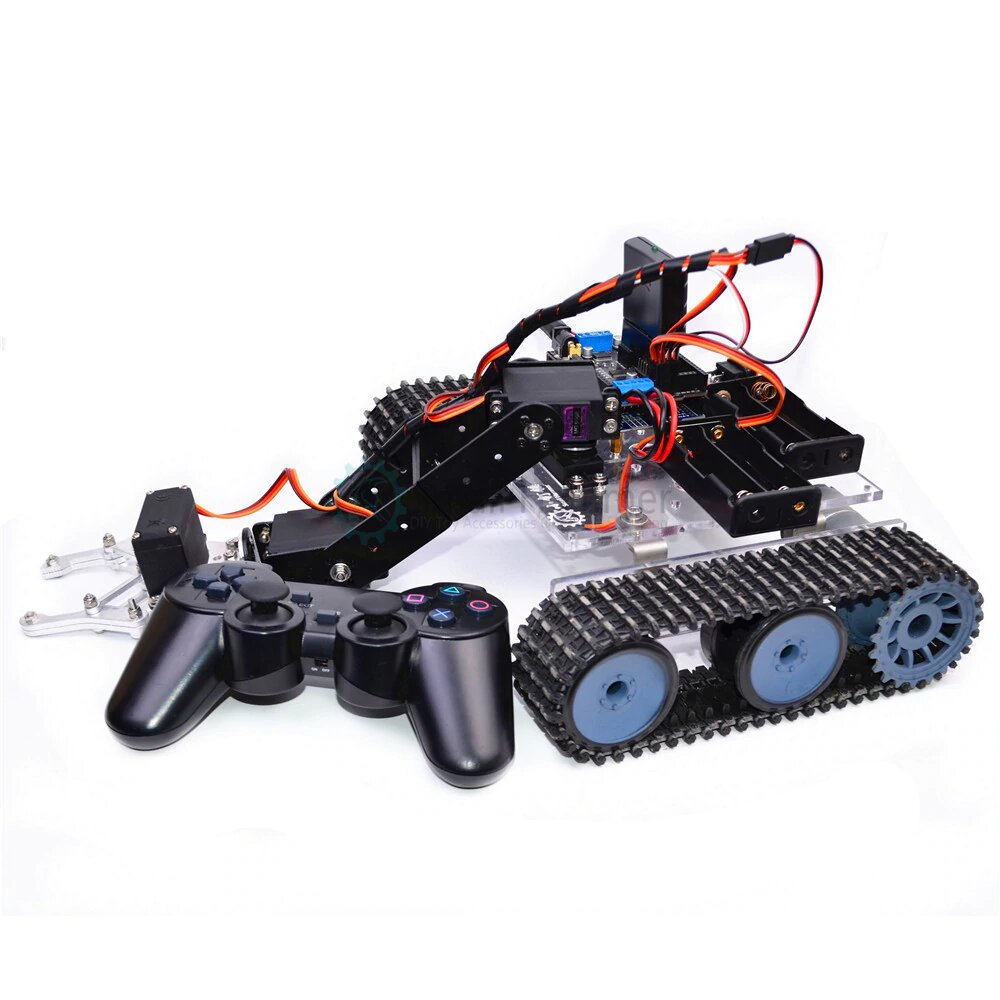

PS2 Remote controls the chassis of the tank chassis to control the movement of the four-degree-of-freedom manipulator.
Two-way power supply makes the system more stable.
The four-free metal robot arm uses the mg996 large steering gear and has strong power.

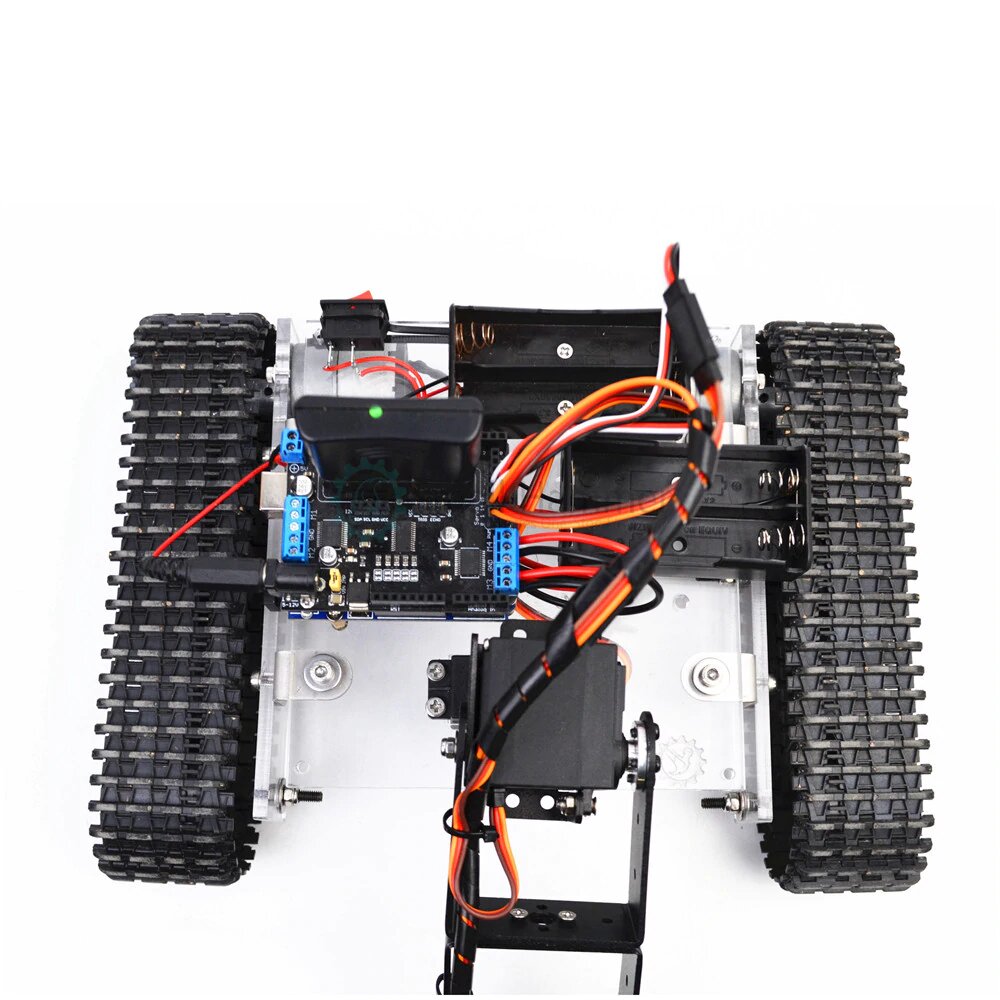

The internationally-used arduino is used as a control board to match the PS2 expansion board for remote control.

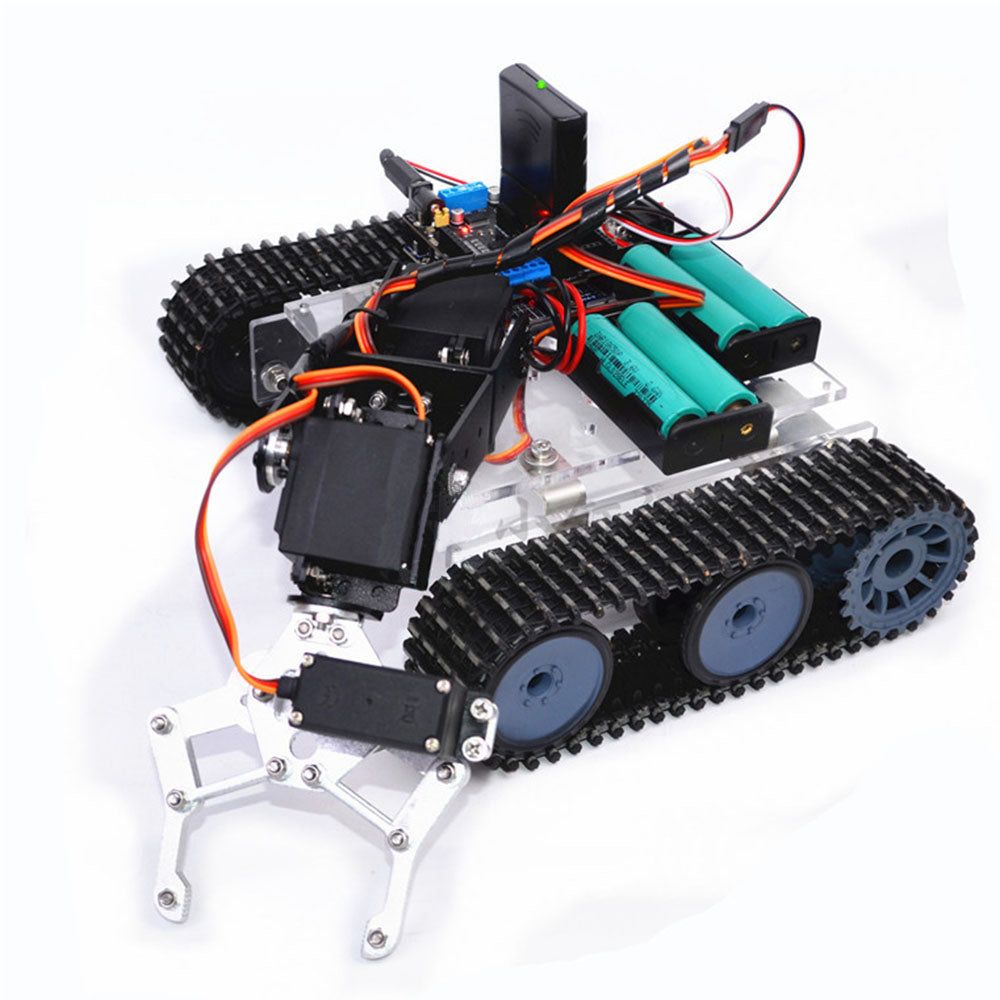

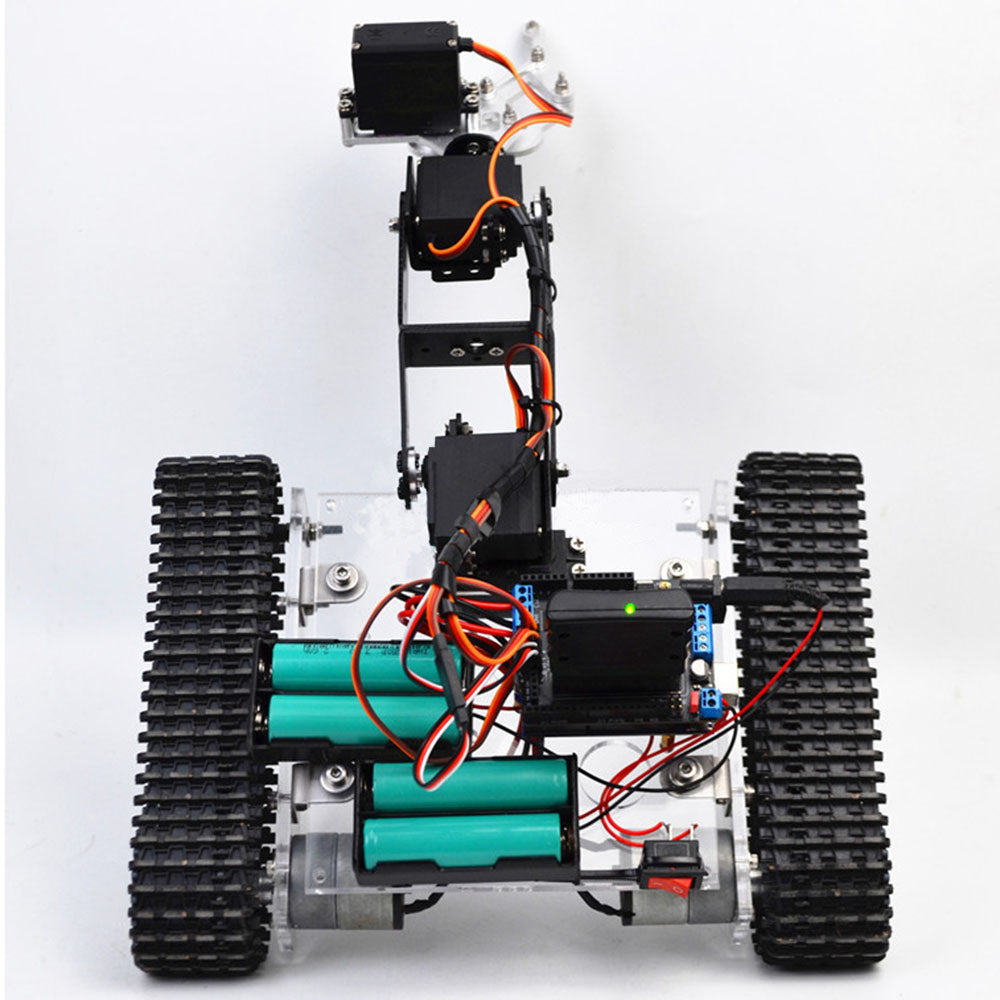

The chassis uses 4 18650 battery to make the whole system stable. Two are used for the robotic arm and other two are used for the tracks.
DIY design, free to assemble.
STEAM educational kit, Helps to develop logic thinking and operating abilities.
With arduino main board and PS2 stick, easy to control the model.

Specifications

Packing size: 24*16*13cm
Chassis color: transparent
Robot arm color: black
Chassis material: transparent acrylic (thickness 5mm)
Robot arm material: aluminum alloy
Track: engineering plastics
Wheel: plastic
Tank size: about 260*200*65mm (length * width * height)
Maximum extension length of the arm: 23cm
Maximum opening size of the clip: 7.5cm
Chassis design load: 2KG
Motor model: 33GB520
Motor voltage: 9 to 12V (more than 300 rpm at 12V)

How is this robot controlled and what devices can it work with?

The chassis is controlled by a PS2 remote. The four DOF arm is driven by an Arduino with a PS2 expansion board and can be used with Raspberry Pi and other SBCs with a camera for search and retrieve projects.

What are the power and battery arrangements for the chassis and arm?

The chassis uses four 18650 batteries. Two batteries power the tracks and two power the arm. The motor voltage is 9 to 12 V for stable operation.

What is the arm reach and the gripping capacity?

The maximum extension of the arm is 23 cm and the maximum opening size of the clip is 7.5 cm. The chassis design is rated to carry up to 2 kg.

Is this kit suitable for beginners and what educational benefits does it offer?

Yes, it is a DIY design and a STEAM educational kit. It helps develop logic thinking and operating abilities and is easy to control with the Arduino main board and PS2 stick.

What are the physical dimensions and key materials of the product?

Packing size is 24 by 16 by 13 cm. The chassis is made from transparent acrylic 5 mm thick and the arm is aluminum alloy. The tracks are engineering plastics and the wheels are plastic.
