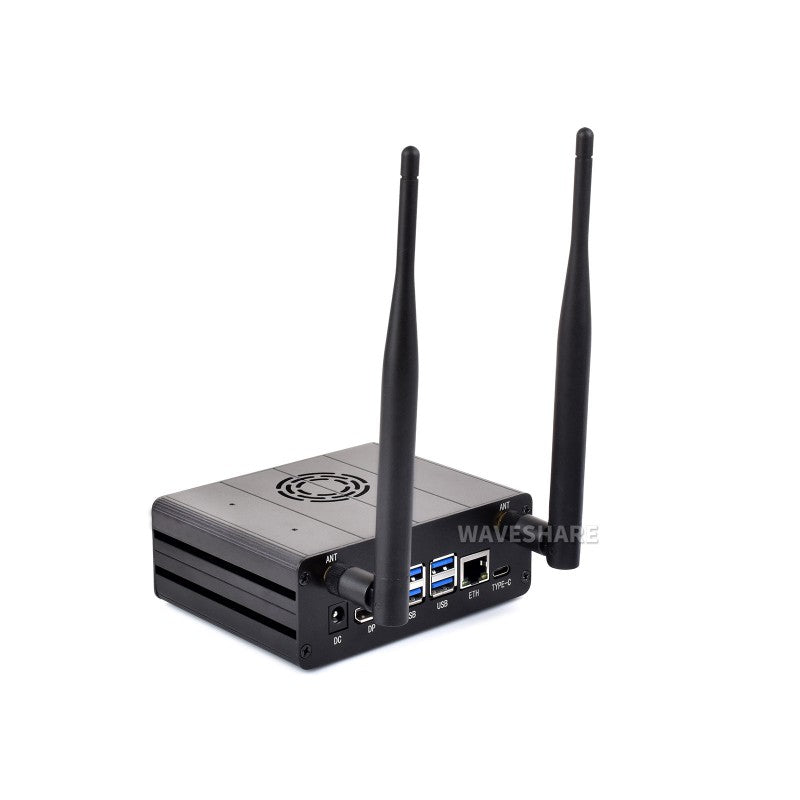

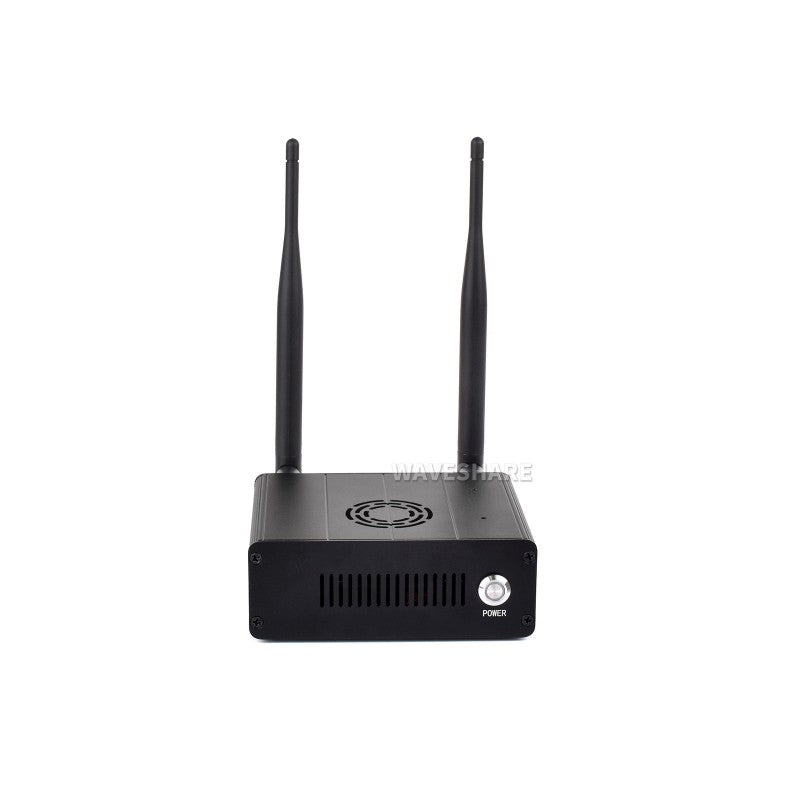

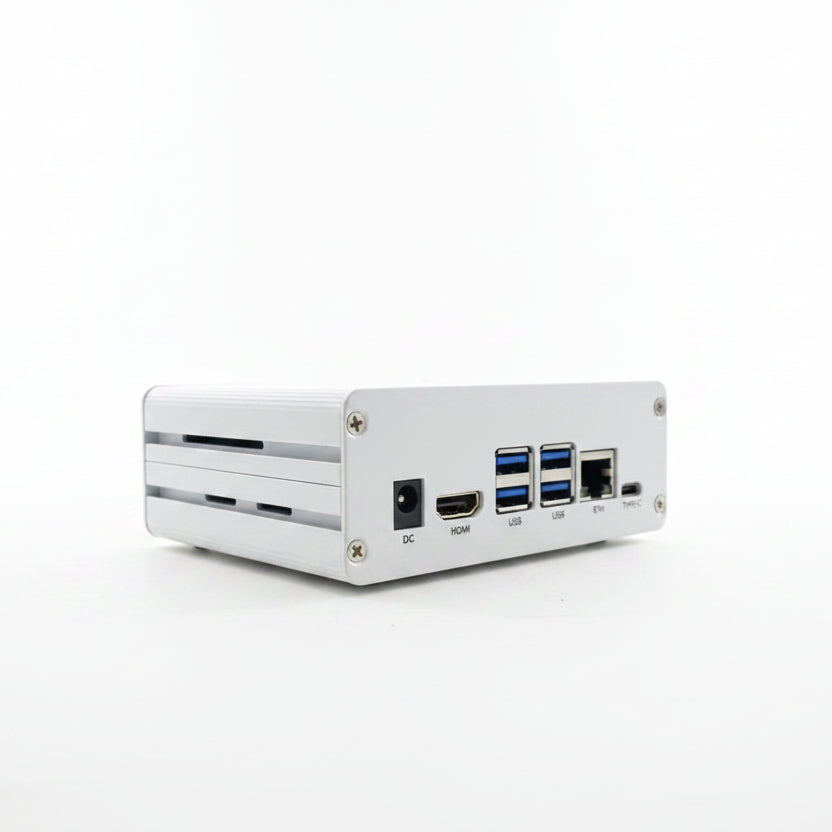

Aluminum Alloy Case For Jetson Orin, With Camera Holder
For Jetson Orin Nano And Jetson Orin NX Kits
**Jetson Orin Nano kit and camera are NOT included, please check the Package Content for the detailed part list
Variant Options
| Feature | JETSON-ORIN-CASE-A | JETSON-ORIN-CASE-B |
|---|---|---|
| Image |  |
 |
| Case Color | Black | White |

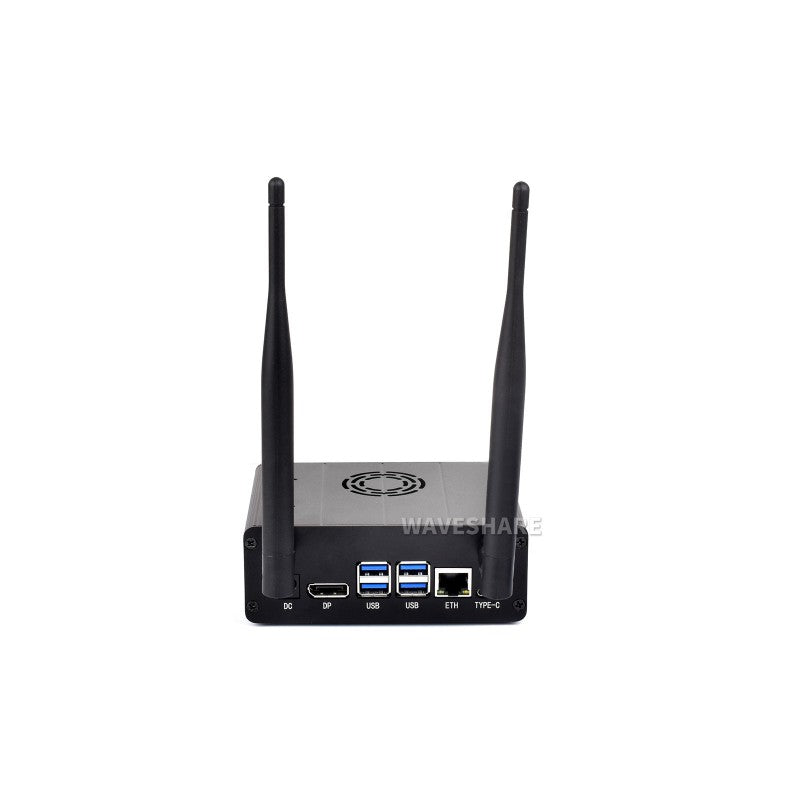

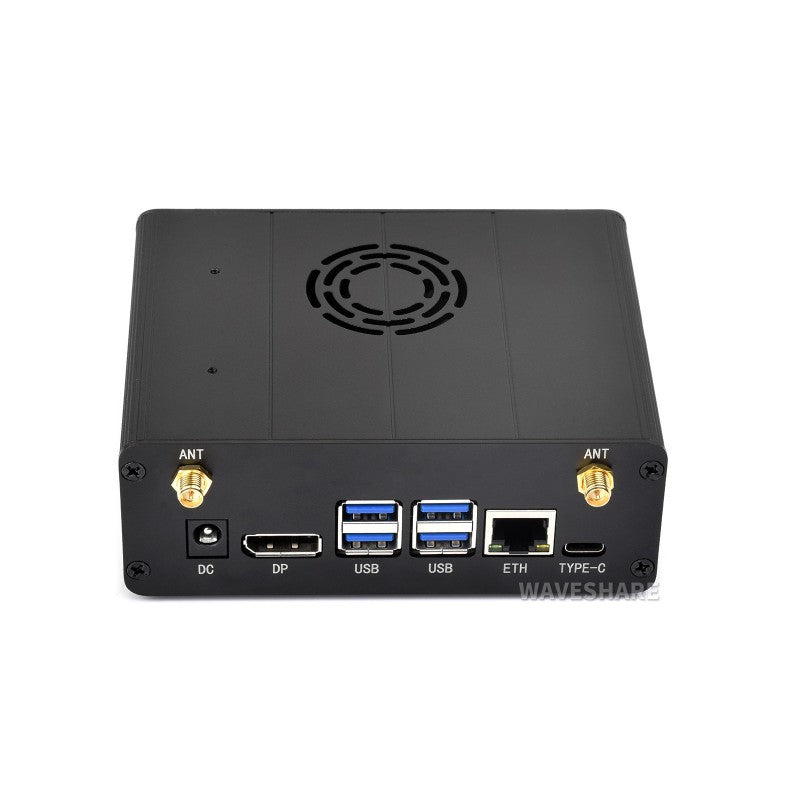

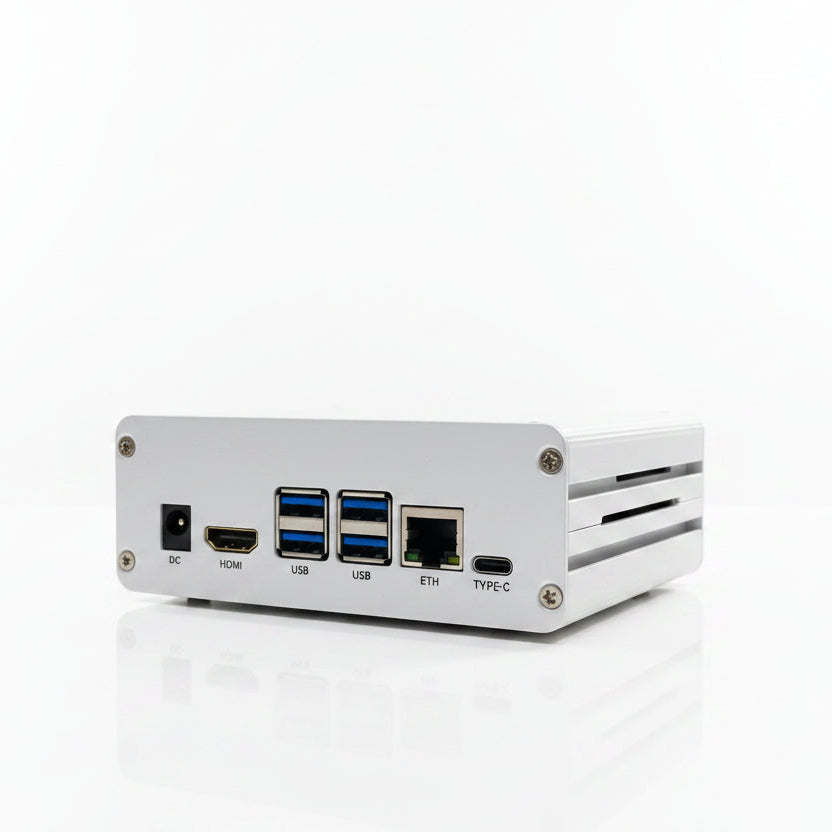

| Display Output | DisplayPort (DP) | HDMI |
| WiFi Antennas Included | Yes (2x Antennas) | No |
| IPEX to SMA Cables Included | Yes (2x Cables) | No |
Active + Passive Cooling

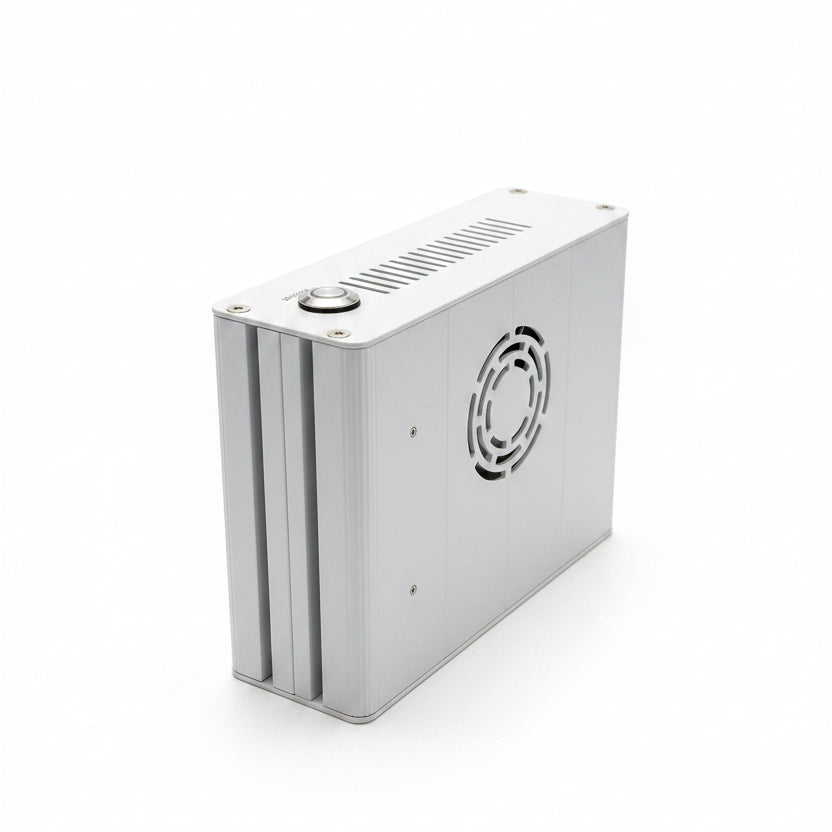

Reserved Three Sides Airflow Vents, Dedicated Holes At The Top For The Built-In Fan, Brings Excellent Cooling Effect
Precise Opening Design
Exquisite Manufacturing Process, Fitting & Nice Looking

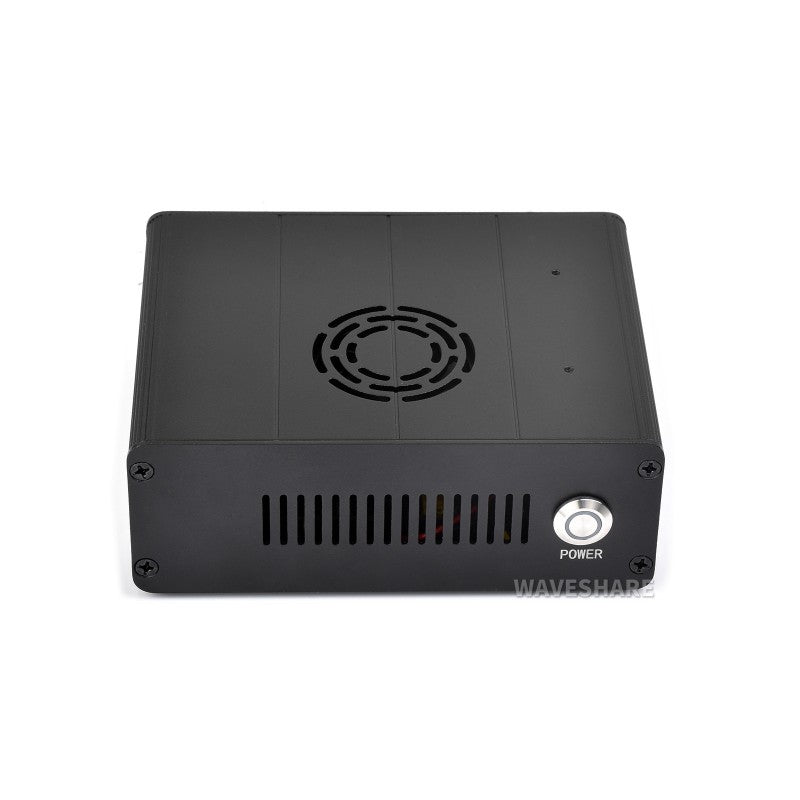

Onboard Power Indicator

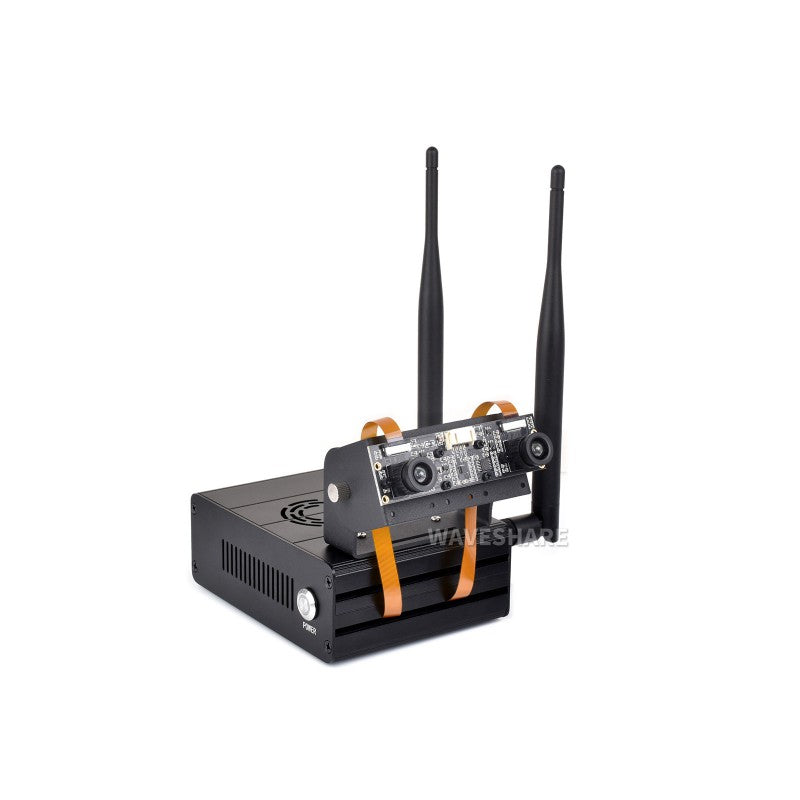

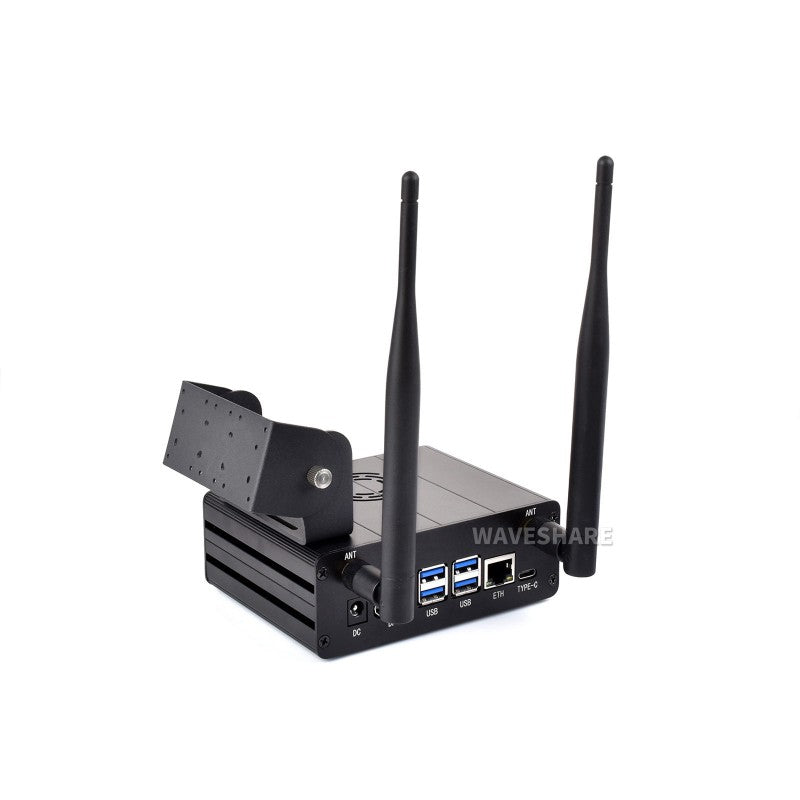

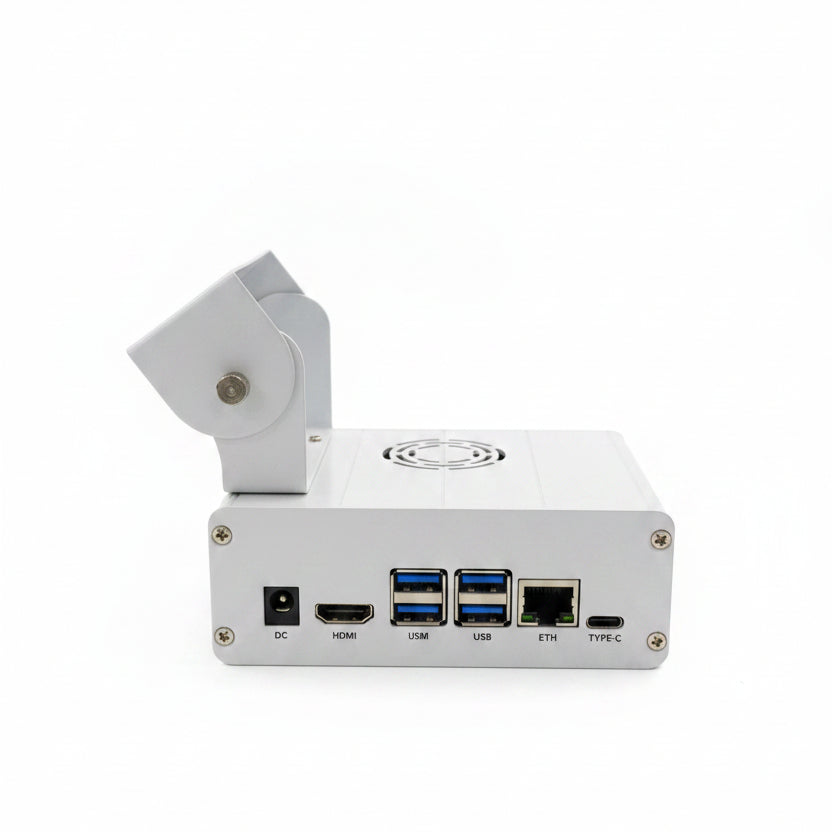

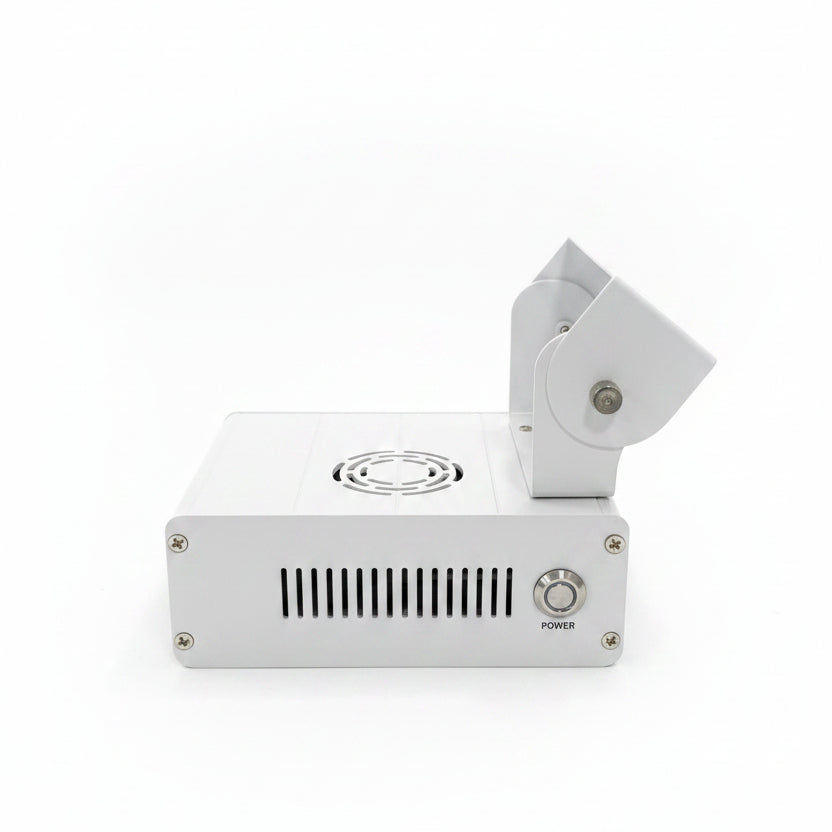

Special Camera Holder
Mounting Holes For Single Or Binocular Camera, Up To 180° Roll Angle
Comes With A Flat Ribbon Cable
For Using 40PIN Header
* for reference only, please check the Package Content for the detailed part list

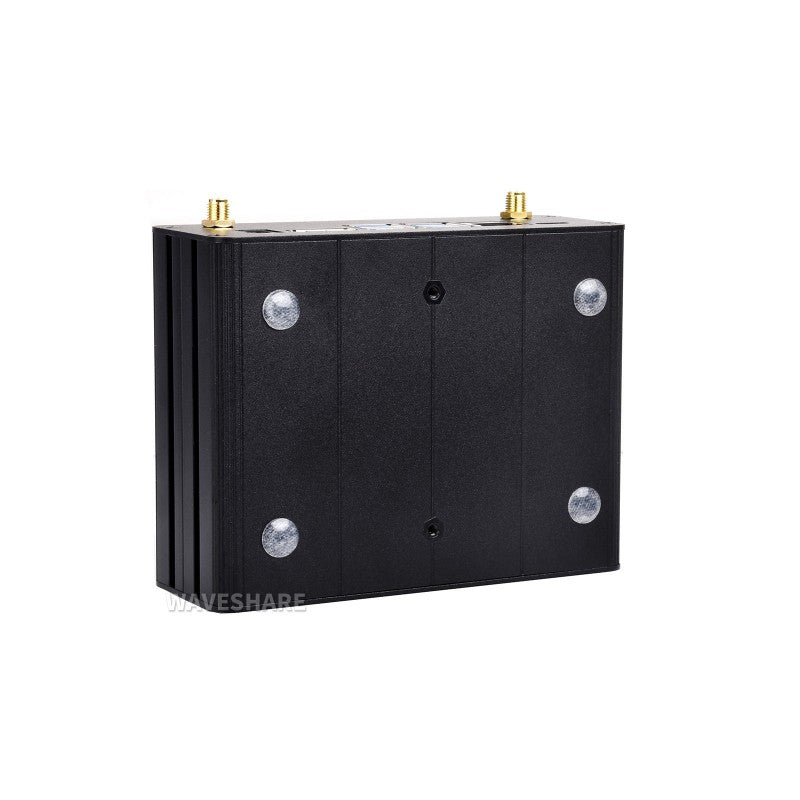

Silicone Nonskid Feet
With Silicone Nonskid Feet, More Stable Placement
Reduced Bottom Contact Area To Maximize Heat Dissipation
Reserved DIN Rail Mounting Holes
Easy To Install To Specific Scenes
(DIN rail accessories are NOT included)
Outline Dimensions
* for reference only, the Jetson Orin kit and camera are NOT included
Resources
Wiki: www.waveshare.com/wiki/JETSON-ORIN-CASE-A
Package Contains:
Weight: 0.378 kg
JETSON-ORIN-CASE-A
| Item | Quantity |
|---|---|
| Aluminum body case (top, bottom and side plates) | 1 |
| Camera holder bottom mount | 1 |
| Camera holder top mount | 1 |
| Antenna | 2 |
| IPEX4 to SMA cable | 2 |
| Button with 4PIN wires | 1 |
| Flat ribbon cable 2*20PIN ~55mm | 1 |
| Screwdriver | 1 |
| Screws pack and accessories | 1 |
JETSON-ORIN-CASE-B
| Item | Quantity |
|---|---|
| Aluminum body case (top, bottom and side plates) | 1 |
| Camera holder bottom mount | 1 |
| Camera holder top mount | 1 |
| Button with 4PIN wires | 1 |
| Flat ribbon cable 2*20PIN ~55mm | 1 |
| Screwdriver | 1 |
| Screws pack and accessories | 1 |
