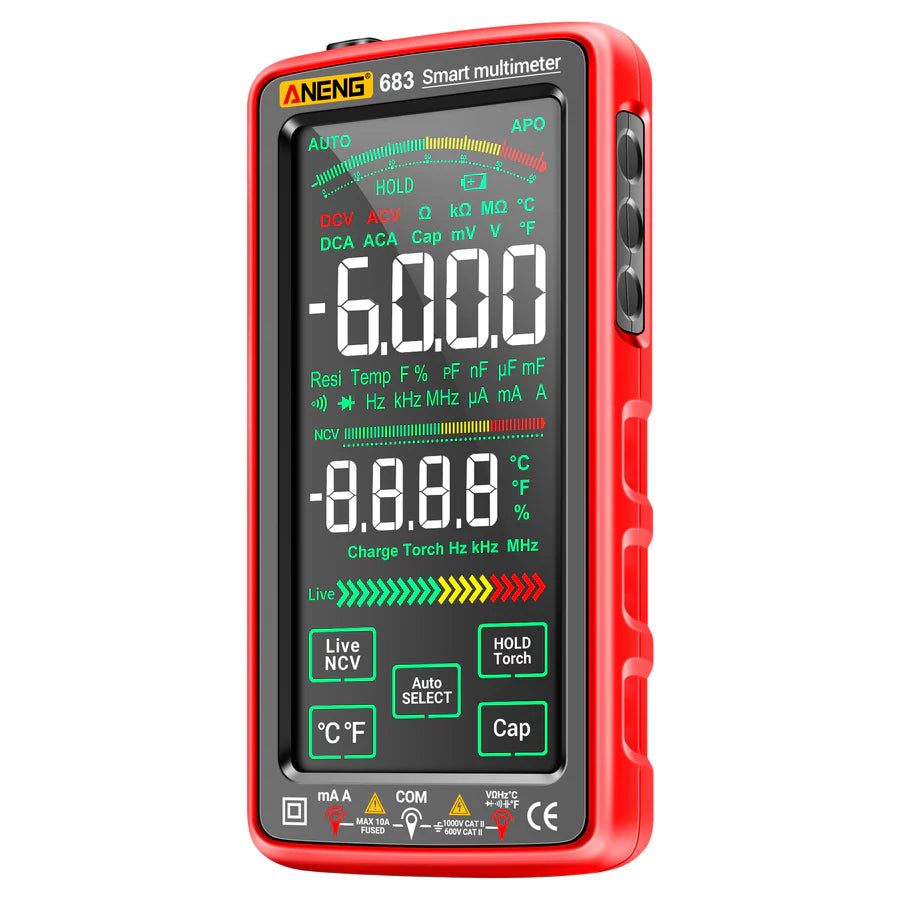

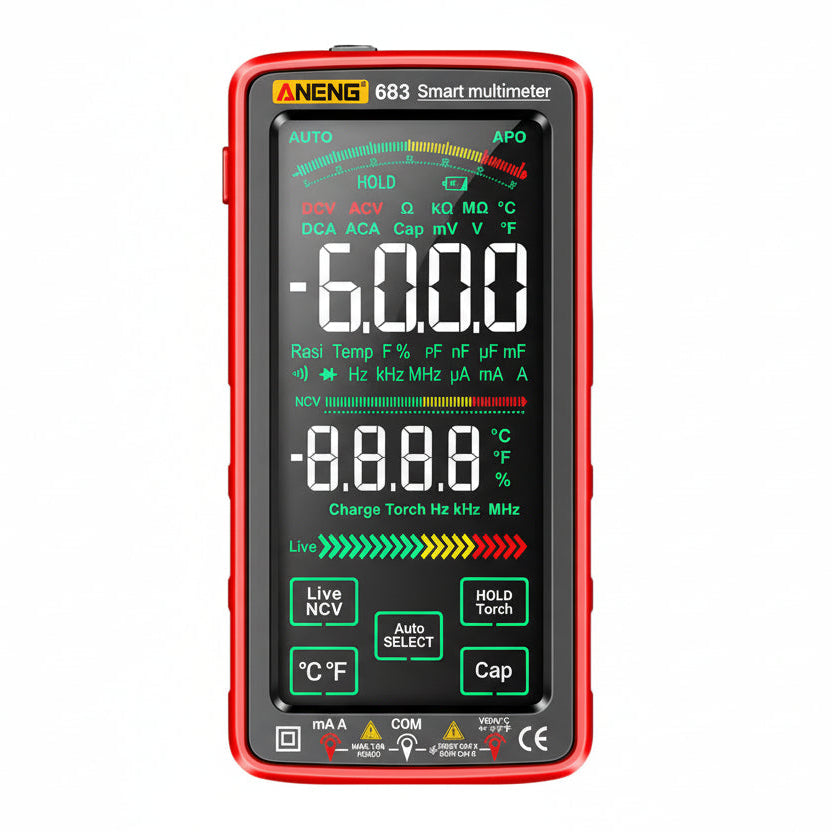

ANENG 683 High-end Touch Smart Multimeter
This product is a versatile Multifunctional Tester, with a broad range of useful features. Itās able to measure AC/DC voltage, AC/DC current, resistance, capacitance, temperature, frequency, diode, buzzer, zero fire line, duty cycle, and more.
Ā
Features
| Feature | Description |
|---|---|
| Smart Auto-Ranging Technology | 3 5/6 digit multimeter with intelligent auto-ranging capability that automatically detects and measures AC/DC voltage and resistance. No manual dial switching is required, enabling seamless continuous operation for improved workflow efficiency and user convenience. |

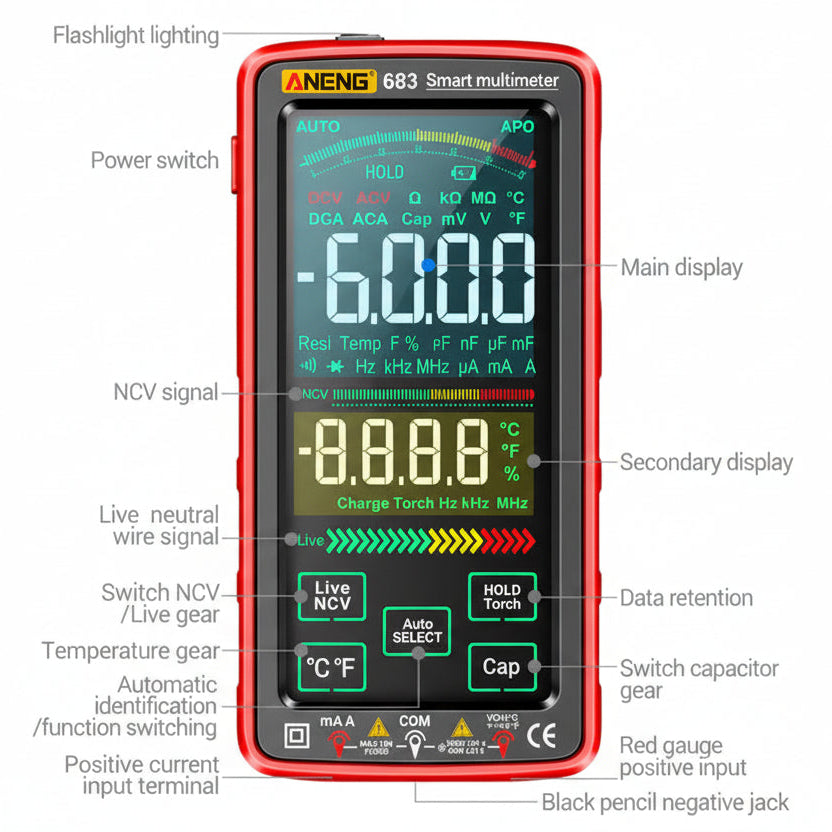

| Advanced LCD Display with Analog Bar | High-clarity LCD screen combined with an intuitive analog bar display provides real-time visual feedback. The dual-display system ensures precise readings while allowing easy monitoring of analog trends during dynamic measurements. |
| Comprehensive Measurement Functions | Supports DC/AC voltage, DC/AC current (sine RMS), resistance, capacitance, diode and continuity testing, duty cycle measurement, and live-line detection. Includes data hold, automatic power-off, and symbol unit display for versatile electrical testing and troubleshooting. |
| Rechargeable Battery & Portable Design | Built-in high-capacity rechargeable battery enables long-duration cordless operation without frequent charging. Stable performance and reliable build quality make it suitable for laboratories, factories, electronics workshops, DIY applications, and household electrical maintenance. |
Ā
Specifications
| DC Voltage | |||
|---|---|---|---|
| Measuring Range | Resolution | Accuracy | |
| 6V / 60V | 0.001V / 0.01V | Ā±(0.5% readings + 3 digits) | |
| 600V / 1000V | 0.1V / 1.0V | Ā±(0.8% readings + 10 digits) | |
| AC Voltage | |||
| Measuring Range | Resolution | Accuracy | |
| 6V / 60V | 0.001V / 0.01V | Ā±(0.8% readings + 3 digits) | |
| 600V / 750V | 0.1V / 1.0V | Ā±(1.0% readings + 10 digits) | |
| DC & AC Current | |||
| Measuring Range | Resolution | Accuracy | |
| 6000mA | 1mA | Ā±(1.0% readings + 5 digits) | |
| 10A | 0.01A | Ā±(2.5% readings + 10 digits) | |
| Resistance | |||
| Measuring Range | Resolution | Accuracy | |
| 600Ī© / 6kĪ© / 60kĪ© / 600kĪ© | 0.1Ī© / 0.001kĪ© / 0.01kĪ© / 0.1kĪ© | Ā±(0.8% readings + 3 digits) | |
| 6MĪ© | 0.001MĪ© | Ā±(1.2% readings + 3 digits) | |
| 60MĪ© | 0.01MĪ© | Ā±(2.5% readings + 5 digits) | |
| Capacitance | |||
| Measuring Range | Resolution | Accuracy | |
| 60nF / 600nF / 6uF / 60uF / 600uF / 6mF | 0.01nF / 0.1nF / 0.001uF / 0.01uF / 0.1uF | Ā±(4.0% readings + 20 digits) | |
| 60mF | 0.01mF | Ā±(5.0% readings + 5 digits) | |
| 100mF | 0.1mF | For reference | |
| Frequency | |||
| Measuring Range | Resolution | Accuracy | |
| 9.999Hz / 99.99Hz / 999.9Hz | 0.001Hz / 0.01Hz / 0.1Hz | Ā±(0.8% readings + 3 digits) | |
| 9.999kHz / 99.99kHz / 999.9kHz | 0.001kHz / 0.01kHz / 0.1kHz | Ā±(0.8% readings + 3 digits) | |
| Temperature | |||
| Measuring Range | Accuracy | Resolution | |
| -40ā to 300ā | Ā±(1.0% + 4d) | 1ā | |
| 301ā to 1000ā | Ā±(1.9% + 5d) | 1ā | |
| -40Ā°F to 600Ā°F | Ā±(1.2% + 6d) | 1Ā°F | |
| 601Ā°F to 1832Ā°F | Ā±(1.9% + 6d) | 1Ā°F | |
| Additional Functions | |||
| Diode Test | Yes | Circuit On/Off Test | Yes |
| Data Hold | Yes | Automatic Power Off | Yes |
| Torch | Yes | NCV Test | Yes |
| Buzzer | Yes | Firing Line Test | Yes |
Ā

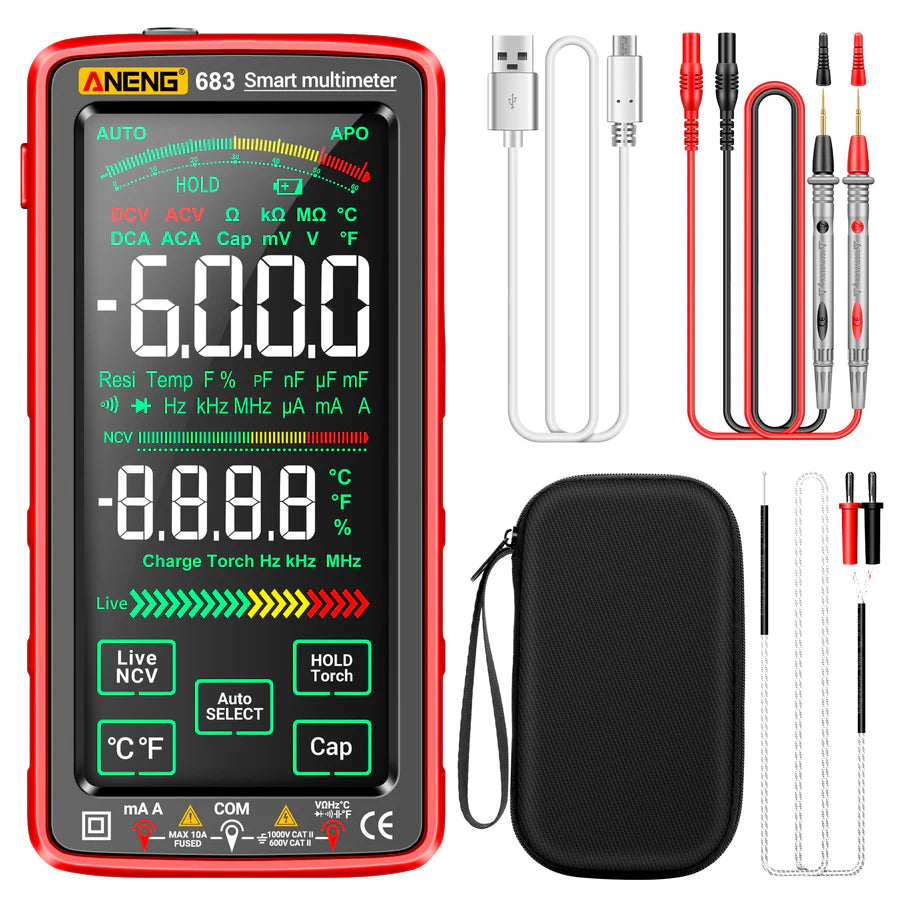

Packing includes
| Item No. | Description | Quantity |
|---|---|---|
| 1 | 683 Multimeter (Built-in Lithium Battery) | 1 |
| 2 | Test Lead | 2 |
| 3 | Temperature Lead | 1 |
| 4 | USB Charging Cable | 1 |
| 5 | User Manual | 1 |
| 6 | Packing Box | 1 |
Ā
Does this meter auto range or require manual range adjustments?
It uses Smart Auto Ranging Technology to automatically detect and measure values, eliminating the need to switch ranges manually.
What measurements can I perform with this multimeter?
It can measure DC and AC voltage, DC and AC current, resistance, capacitance, temperature, frequency, diode, buzzer, duty cycle, and live line detection.
How is the display and readout presented during measurements?
It features a high clarity LCD with an analog bar and a dual display system for real time readings and trend monitoring.
What is the power source and how do I charge it?
The meter runs on a built in rechargeable battery for cordless operation, and a USB charging cable is included for charging.
What comes in the packaging?
The package includes the 683 multimeter with built in battery, two test leads, one temperature lead, a USB charging cable, a user manual, and the packing box.
