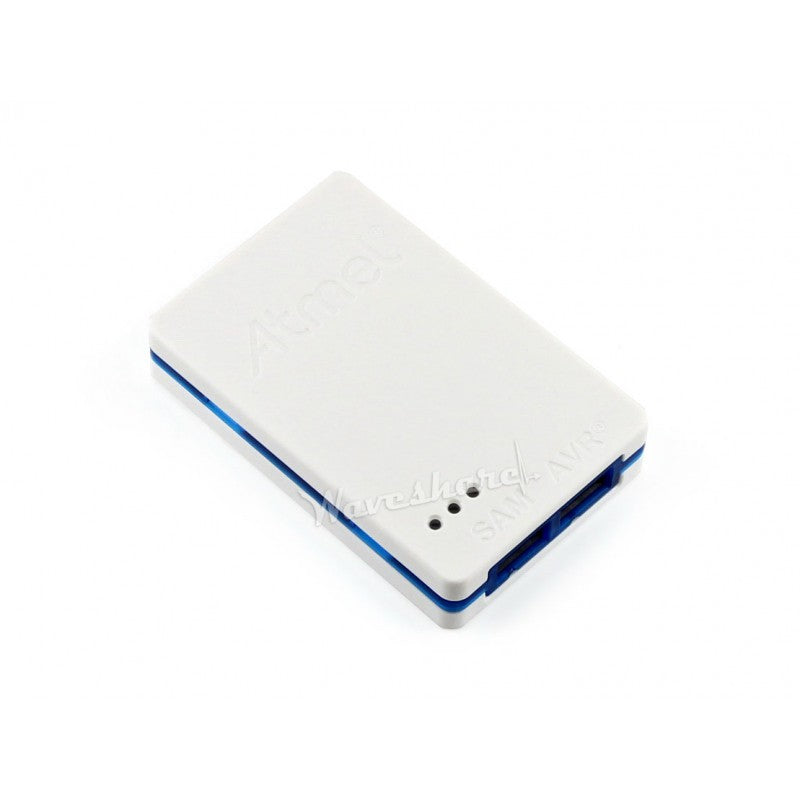

Atmel-ICE Basic Kit
Powerful Development Tool For Debugging And Programming Atmel SAM And AVR Microcontrollers, Comes With Additional Adapter And Cables
Atmel-ICE is a powerful development tool for debugging and programming Atmel ARMĀ® CortexĀ®-M based Atmel SAM and AVRĀ® microcontrollers with on-chip debug capability.
Key Features
- Supports JTAG, SWD, PDI, TPI, aWire, SPI and debugWIRE interfaces
- Full source-level debugging in Atmel Studio
- Supports all built-in hardware breakpoints in the target microcontroller (number depends on the OCD module in the target)
- Up to 128 software breakpoints
- 1.62 to 5.5V target operation
- USB powered
- Provides both ARM Cortex Debug Connector (10-pin) pin-out and AVR JTAG connector pin-out
Supported Software
- Perfectly supports Atmel Studio 6.2 or higher version
- Directly supports ICC8AVR or higher version
- Supports programming HEX files generated by ICCAVR, CVAVR, IAR, etc.
Supported Devices
- Programming and on-chip debugging of all Atmel AVR 32-bit MCUs on both JTAG and aWire interfaces
- Programming and on-chip debugging of all Atmel AVR XMEGAĀ® family devices on both JTAG and PDI 2-wire interfaces
- JTAG and SPI programming and debugging of all Atmel AVR 8-bit MCUs with OCD support on either JTAG or debugWIRE interfaces
- Programming and debugging of all Atmel SAM ARM Cortex-M based MCUs on both SWD and JTAG interfaces
- Programming of all Atmel tinyAVRĀ® 8-bit MCUs with support for the TPI interface
For more details, please visitĀ UC3,Ā Mega,Ā SAMĀ ,Ā Tiny,Ā Xmega
Specifications
| INTERFACE VOLTAGE | 1.62V ~ 5.5V |
|---|---|
| JTAG CLOCK | 32kHz ~ 7.5MHz |
| PDI CLOCK | 32kHz ~ 7.5MHz |
| DEBUGWIRE BAUDRATE | 4kbit/s ~ 0.5Mbit/s |
| AWIRE BAUDRATE | 7.5kbit/s ~ 7Mbit/s |
| SPI CLOCK | 8kHz ~ 5MHz |
| SWD CLOCK | 32kHz ~ 2MHz |
| PC INTERFACE | USB 2.0 high speed |
Ā
Physical Interfaces
Atmel-ICE Connection Options
Note: While connecting the adapter board to a target, please pay attention to the Pin 1 (indicated by white spot or square solder pad).
The adapter board included in Atmel-ICE-B2 is compatible with the official one in the Atmel-ICE Full Kit.
Ā
|
ā 10-pin AVR JTAG headerĀ
|
||||
|
Ā ā” 6-pin AVR ISP/debugWIRE/PDI/aWire/TPI header |
||||
|
Ā SPI/debugWIRE |
PDI
|
aWire
|
TPI
|
10-pin AVR ISP header is also available through our extra free 6-pin to 10-pin ISP cable
|
|
Ā ā¢ 10-pin SAM JTAG/SWD header
|
||||
Ā
Development Resources
Wiki :Ā www.waveshare.com/wiki/Atmel-ICE
Ā

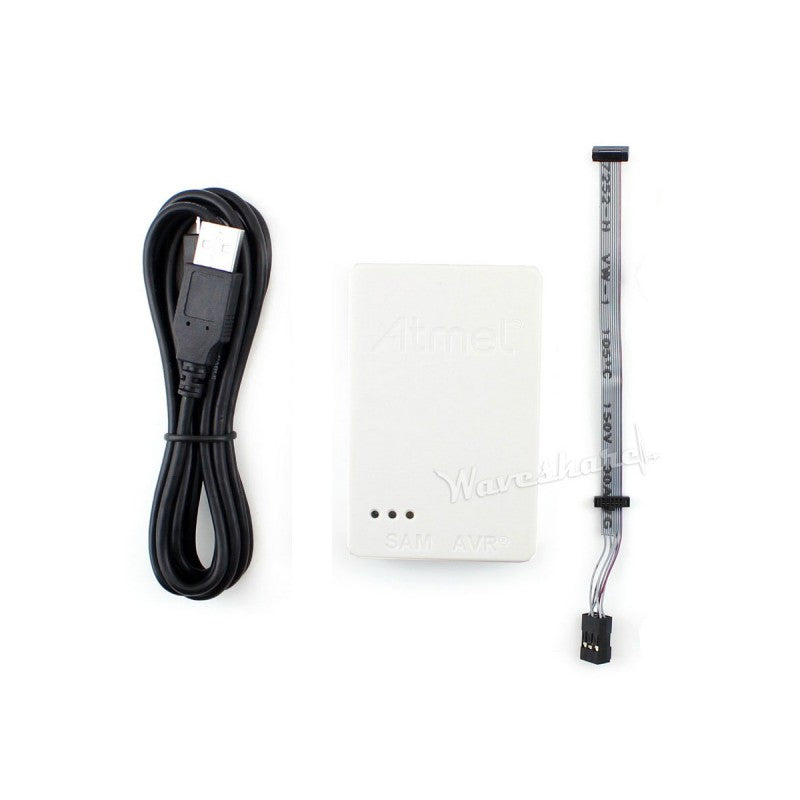

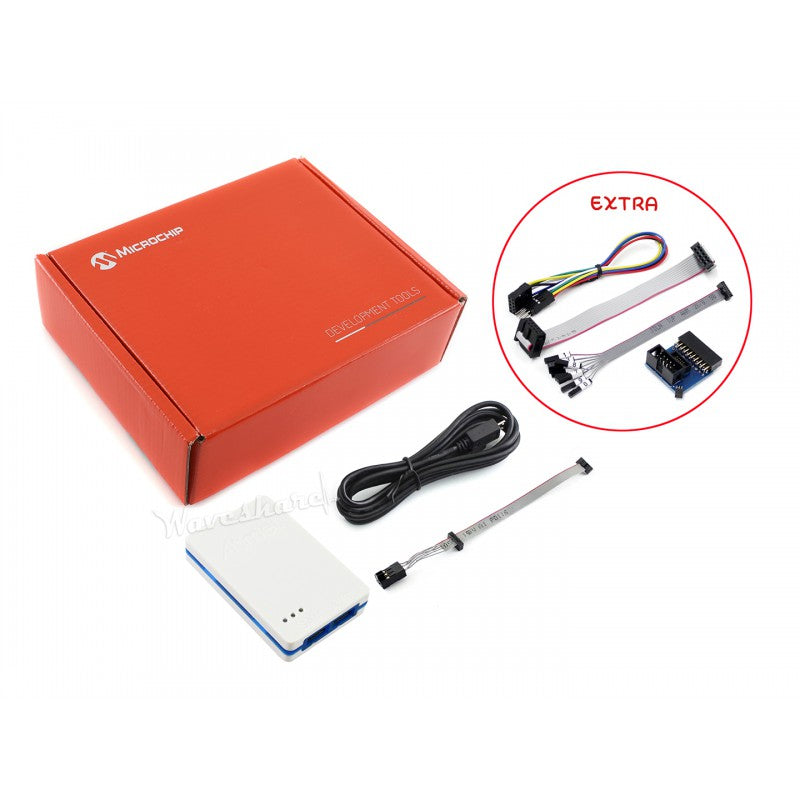

Package Contains:
- Atmel-ICE unit x1
- USB cable (1.8m, high-speed, micro-B) x1
- IDC flat cable with 10-pin 50-mil connector and 6-pin 100-mil connector x1

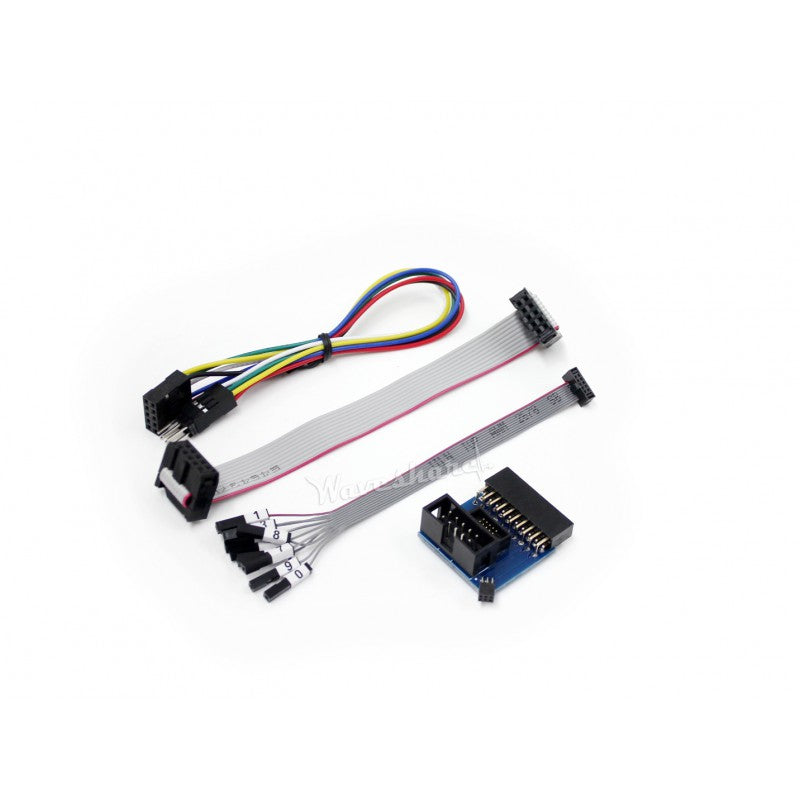

- Multi-functional adapter board x1
- 10pin flat cable x1
- 10pin 100mil squid cable x1
- 6-pin to 10-pin ISP cable x1
What interfaces does the Atmel ICE Basic Kit support for debugging and programming?
It supports JTAG, SWD, PDI, TPI, aWire, SPI and debugWIRE interfaces for on chip debugging and programming. It provides full source level debugging in Atmel Studio and supports up to 128 software breakpoints depending on the target OCD module.
Which software and file types are compatible with the kit?
It perfectly supports Atmel Studio 6.2 or higher and can program HEX files generated by ICCAVR CVAVR IAR and other compatible tools.
What devices can be programmed and debugged with this kit?
It supports programming and on chip debugging of all Atmel SAM ARM Cortex M based MCUs on SWD and JTAG, all Atmel AVR 32 bit MCUs on JTAG and aWire, all Atmel AVR XMEGA devices on JTAG and PDI, all Atmel AVR 8 bit MCUs with OCD on JTAG or debugWIRE, and all Atmel tinyAVR MCUs with TPI.
What is included in the package and how do you connect it to a target?
The package includes the Atmel ICE unit, USB cable, an IDC flat cable with 10 pin 50 mil and 6 pin 100 mil connectors, a multi functional adapter board, 10 pin flat cable, 10 pin 100 mil squid cable, and 6 pin to 10 pin ISP cable. The adapter board notes pin 1 orientation to ensure correct connection.
Is the kit USB powered and what voltage range does it support for targets?
Yes the device is USB powered. It supports target operation from 1.62 V to 5.5 V.
