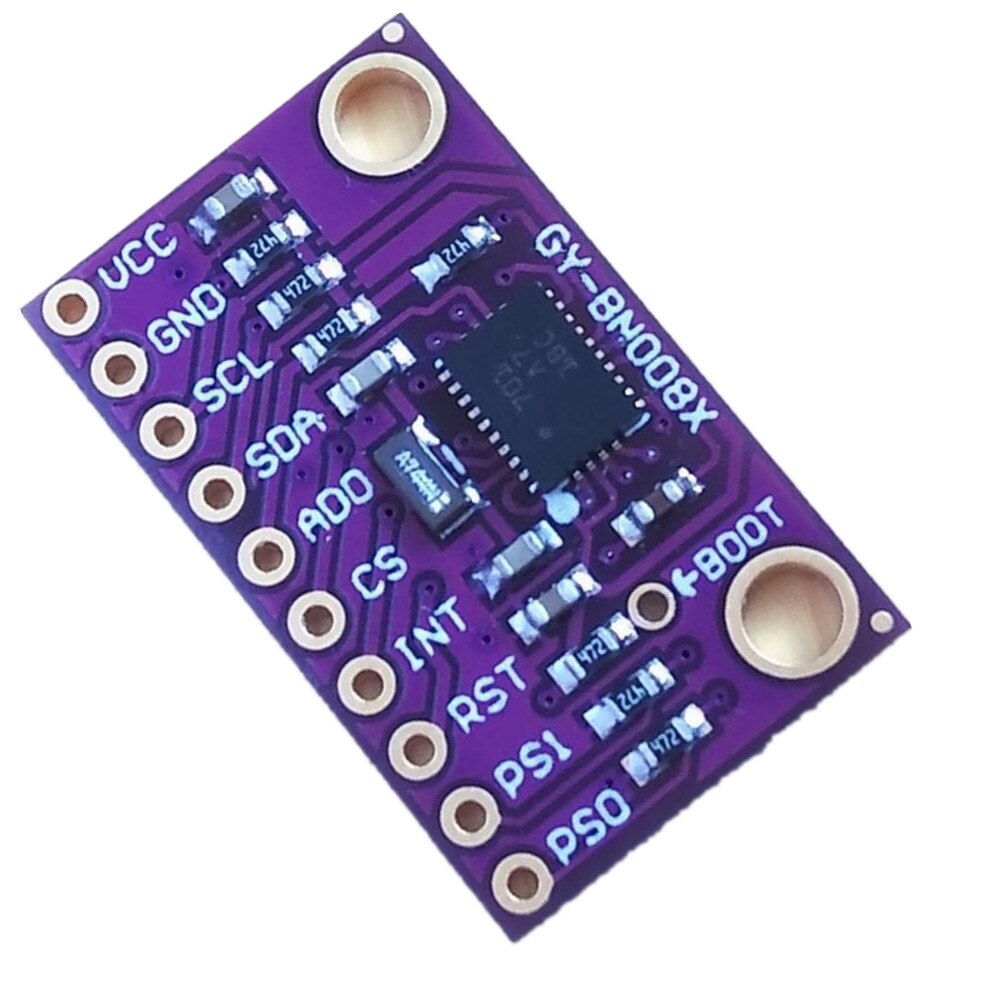

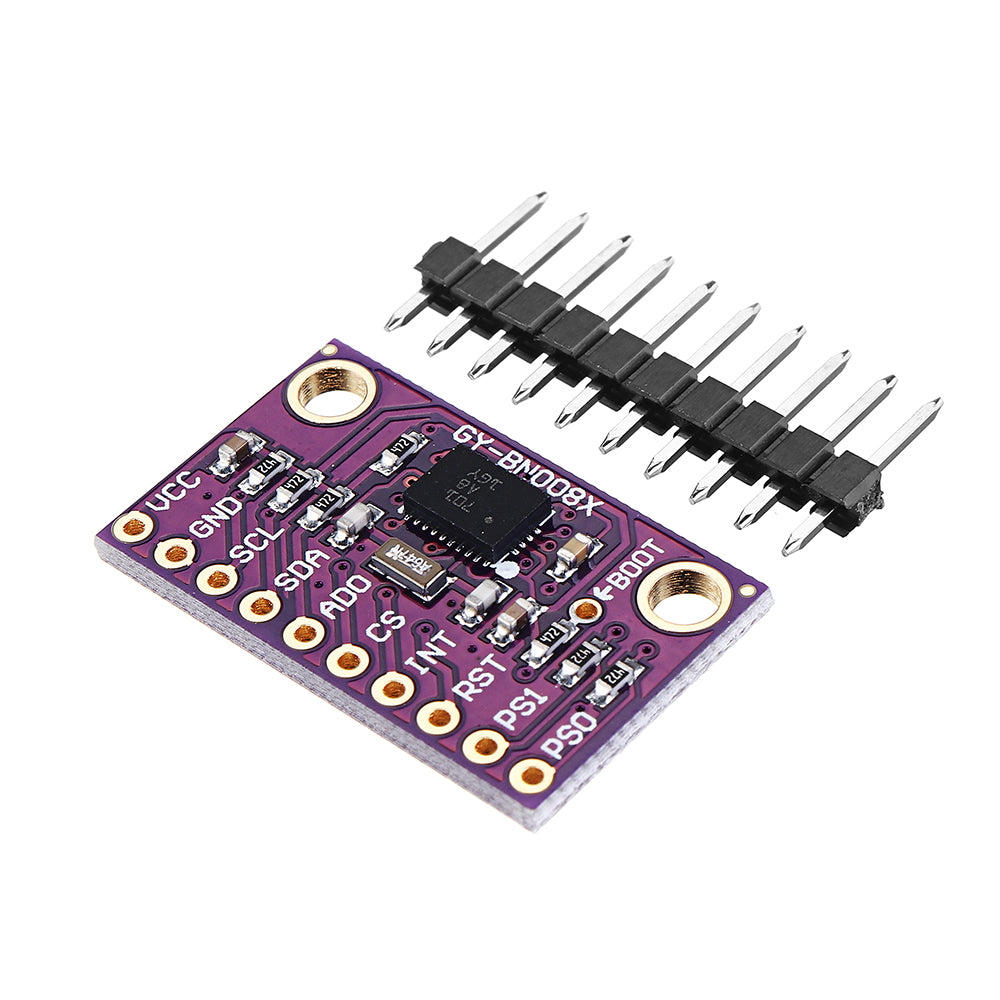

BNO080 High-Precision 9 axis AHRS Sensor Module

SKU: ELC1107

₹ 2,999.99 ~~₹ 4,299.99~~

Out of stock

Chat with us on WhatsApp We reply quickly! Contact Us

BNO080 High-Precision 9 axis AHRS Sensor Module₹ 2,999.99

Ask AI about this product

Open in ChatGPT Open in Claude Open in Gemini

Jointly Developed by Bosch and Hillcrest Labs, with High-Performance Accelerometer, Magnetometer and Gyroscope, BNO080/085 Is a 9 Axes System-Level Package (SiP) that adopts 32-Bit ARM Cortex M0 + MCU with Low Power Consumption in Small Package. Freespace®Sensor Hub Software Is Pre-Integrated on BNO080/085, Providing Excellent 9 Axes and 6-Axis Motion Tracking.

BNO080/085 provides application-specific configuration, functions and performance in a small turnkey assembly. by shortening product rollout time, shortening development time and BOM cost, as well as providing the highest precision and quality, OEM benefits.

If I2C Is not your first communication choice, the sensor can also communicate with UART or SPI. This version uses 32 KHz crystal onboard.

Interfaces:

The BNO080 can communicate through a variety of interfaces. The Qwiic VR IMU has two jumpers that allows the user to select their interface of choice.

I2C (Default): Up to 400kHz
SPI: Up to 3MHz
UART: 3Mbps
UART-RVC (Robot Vacuum Cleaners): 115200kbps

Performance Characteristics:

Rotation Vector
- Dynamic Error: 3.5°
- Static Error: 2.0°
Gaming Rotation Vector
- Dynamic Error: 2.5°
- Static Error: 1.5°
- Heading Drift: 0.5° / min
Geomagnetic Rotation Vector
- Dynamic Rotation Error: 4.5°
- Static Rotation Error: 3.0°
Gravity Angle Error: 1.5°
Linear Acceleration Accuracy: 0.35m/s2
Accelerometer Accuracy: 0.3m/s2
Gyroscope Accuracy: 3.1° / sec
Magnetometer Accuracy: 1.4μT

What interfaces does the module support and how do I select them?

The module supports I2C (default up to 400 kHz), SPI (up to 3 MHz), and UART (up to 3 Mbps). The Qwiic VR IMU jumper setup lets you select the interface with two jumpers.

What software capabilities are pre integrated?

Freespace Sensor Hub software is pre integrated on the BNO080, enabling 9 axis and 6 axis motion tracking with application specific configuration.

What performance and accuracy can I expect?

Key specs include Rotation Vector Dynamic Error 3.5 deg and Static Error 2.0 deg, Gravity Angle Error 1.5 deg, Linear Acceleration 0.35 m/s2, Accelerometer 0.3 m/s2, Gyroscope 3.1 deg per sec, and Magnetometer 1.4 uT.

What are the hardware features and packaging?

It is a 9 axis system level package SiP that includes an onboard 32 KHz crystal and a 32 bit ARM Cortex M0+ MCU in a small turnkey assembly with low power consumption.

Is this module suitable for projects in embedded electronics and robotics?

Yes, it is designed for modern electronics, robotics, and embedded applications and provides a turnkey solution with pre integrated software to speed development.
