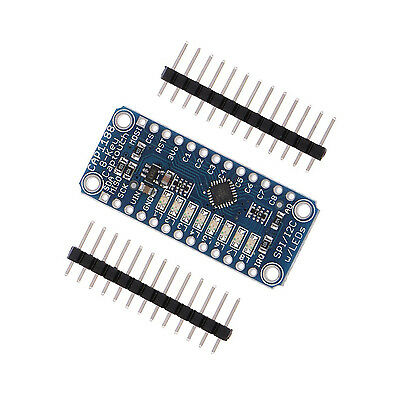

CAP1188 - 8-Key Capacitive Touch Sensor Breakout - I2C or SPI

SKU: ELC1046S

ā‚¹ 1,059.99 ā‚¹ 1,199.00

In stock | Ready to ship

Select variant

With Soldered Pin
āš  Only a few left in stock. Order soon.
ā± High demand right now.
šŸ“¦ Min order 1
Chat with us on WhatsApp We reply quickly! Contact Us
CAP1188 - 8-Key Capacitive Touch Sensor Breakout - I2C or SPIWith Soldered Pinā‚¹ 1,059.99
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini
The CAP1188 is a turnkey capacitive touch controllerĀ providing a wide variety of button andĀ proximity functionality, and making it easy for designers to addĀ

aestheticallyĀ pleasing, low-cost and robust touch interfaces.Ā
The CAP1188 also contains 8 LED drivers that offer full-on / off, variable rate blinking, dimness controls, and breathing. Each of the LED drivers may be linked to one of the sensor inputs to be actuated when a touch is detected. As well, each LED driver may be individually controlled via a host controller.

  • 8 Capacitive Touch Sensor Inputs
  • 8 LED Driver Outputs
  • Programmable sensitivity
  • Automatic recalibration
  • Individual thresholds for each button
  • Proximity Detection
  • Multiple Button Pattern Detection
  • Analog Filtering for System Noise Sources
  • Press and Hold feature for Volume-like Applications
  • Low Power Operation
    Specifications

    Resources

    Datasheet

    Library

    Sample code

    Tutorial

    Ā

    How many touch inputs and LED outputs are available on the breakout?
    It provides 8 capacitive touch sensor inputs and 8 LED driver outputs. Each LED driver can be linked to one sensor input to be actuated when touch is detected, and it can be controlled independently by the host controller.
    What interfaces does the CAP1188 breakout support?
    The device supports I2C and SPI interfaces for communication with the host controller.
    What features help with sensing reliability and customization?
    Features include programmable sensitivity, automatic recalibration, and individual thresholds for each button. Proximity detection, multiple button pattern detection, analog filtering for system noise, and a press and hold feature for volume like applications are also supported.
    Is this breakout suitable for low power applications?
    Yes, it supports low power operation.
    Are there resources available to help with integration and use?
    Yes, you can access the datasheet, library, sample code, and tutorials to aid integration and development.
