Duet 2 Wifi V1.04 Clone

SKU: 3D8007

₹ 12,799.99 ₹ 21,999.99

In stock | Ready to ship

Select variant

Only MainBoard
⚠ Only a few left in stock. Order soon.
⏱ High demand right now.
📦 Min order 1
Chat with us on WhatsApp We reply quickly! Contact Us
Duet 2 Wifi V1.04 CloneOnly MainBoard₹ 12,799.99
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

Duet 2 Wifi

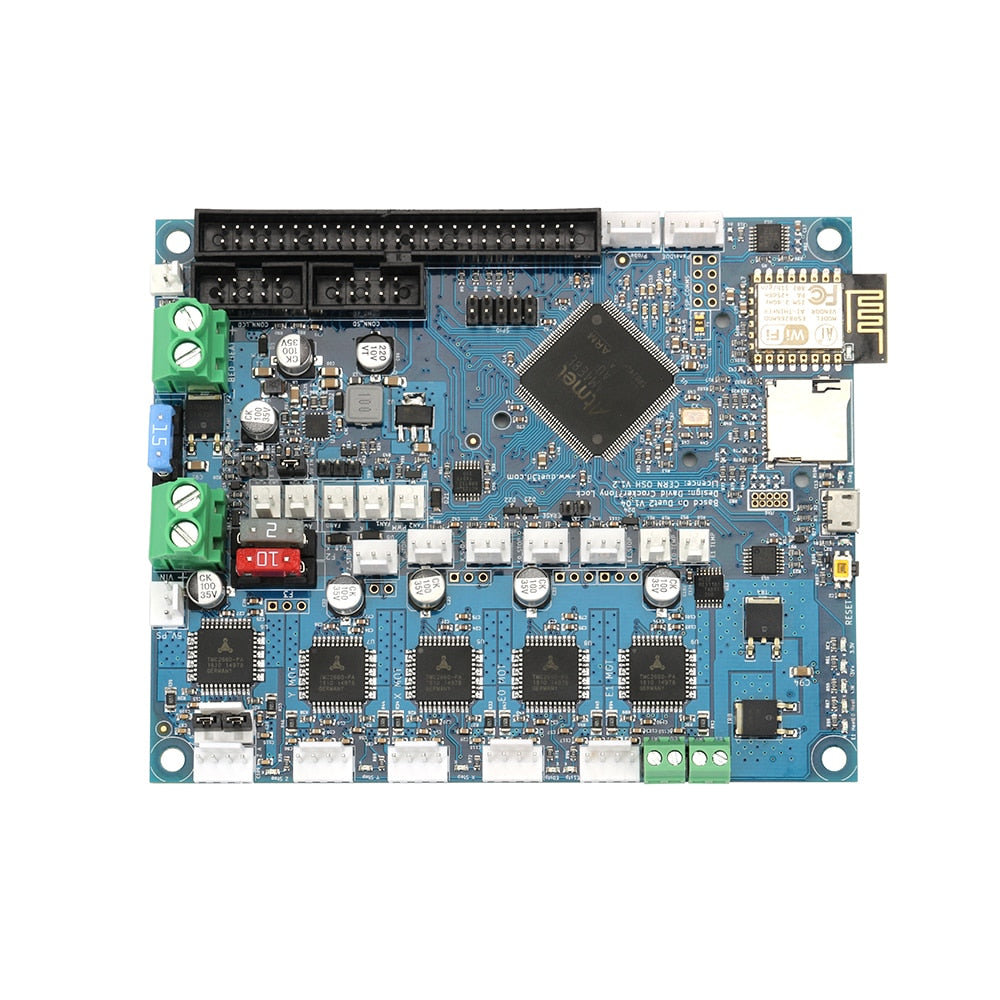

This is the latest PCB revision of the Duet 2 Wifi, v1.04.

Duet 2 Wifi is an advanced 32 bit electronic controller for 3D printers and other CNC machines. It has the same features as the Duet 2 Ethernet other than providing WiFi connectivity rather than ethernet.

Salient Features:

  • Powerful 32 Bit Processor
  • Dedicated Wifi module with either :
    • a compact built-in antenna
    • a external antenna for extending Wifi range or allowing the Duet 2 Wifi to be mounted in a shielding enclosure with the antenna outside.
  • Super quiet TMC2660 stepper drivers, up to 256 micro-stepping.
  • High-speed uSD card and support for a second external SD card if required.
  • Dual extruders on the main board, up to 5 more extruders on the expansion board.
  • High Power rating: Each stepper driver is capable of 2.8A motor current, currently limited in software to 2.4A. The bed heater channel is specifically designed for high currents (18A).
  • Connect via PC, tablet or smartphone on the same network to the onboard web interface.
  • Set up your printer and update the firmware through the web interface.
  • All common 3D printer geometries are supported.
  • Expandable up to 7 extruders with Firmware support for mixing nozzles and remapping axes to use high-power external drivers.

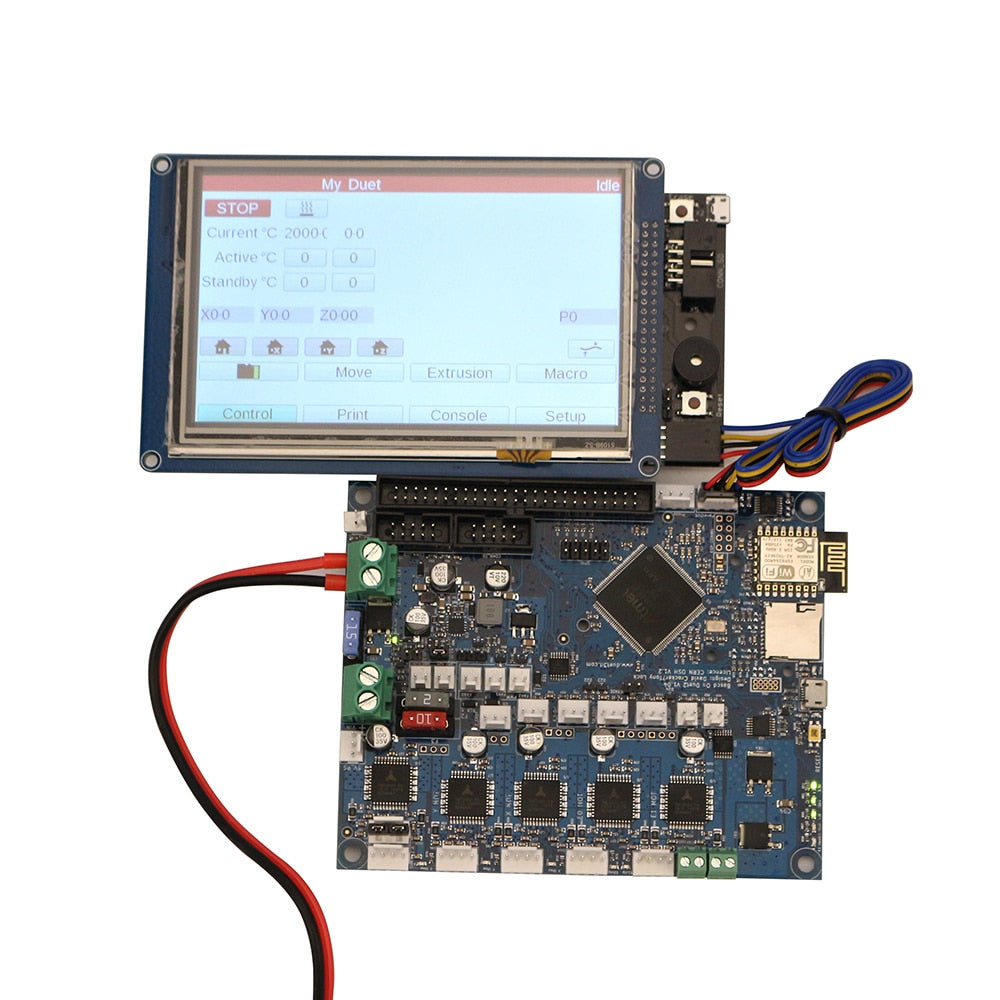

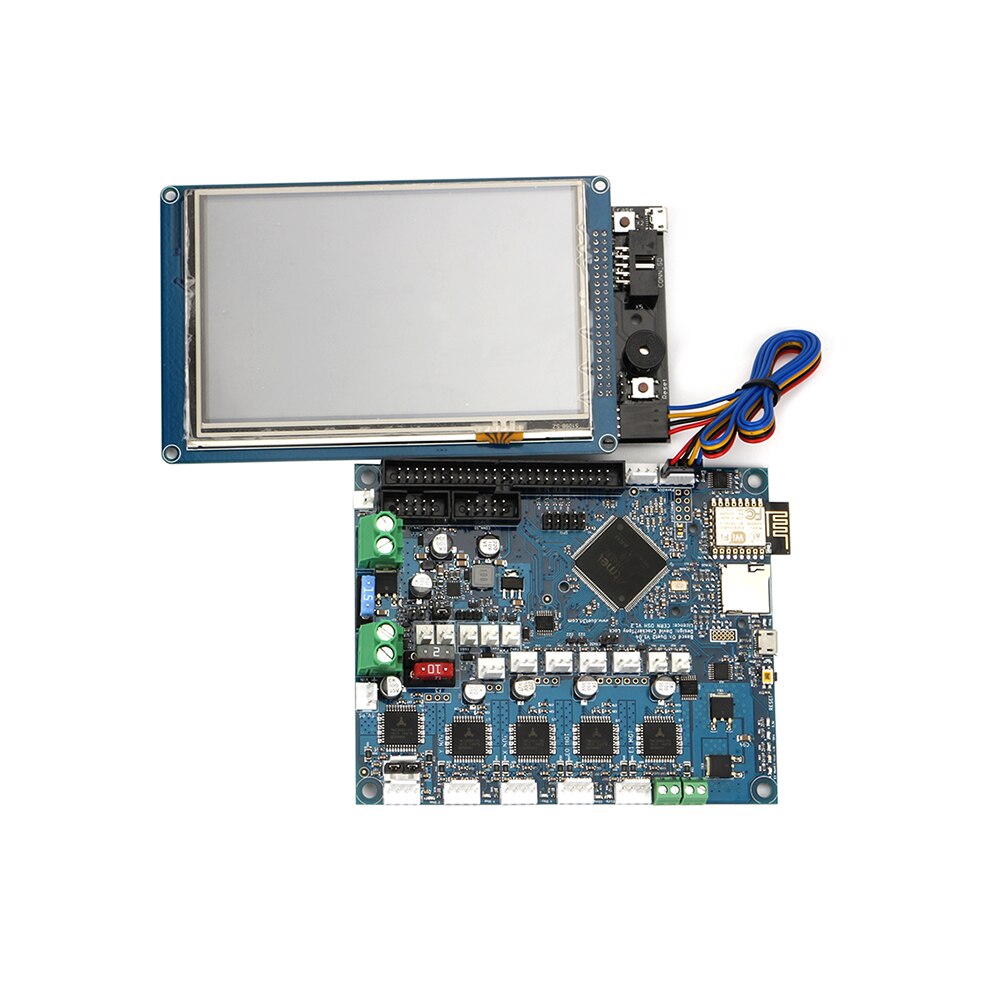

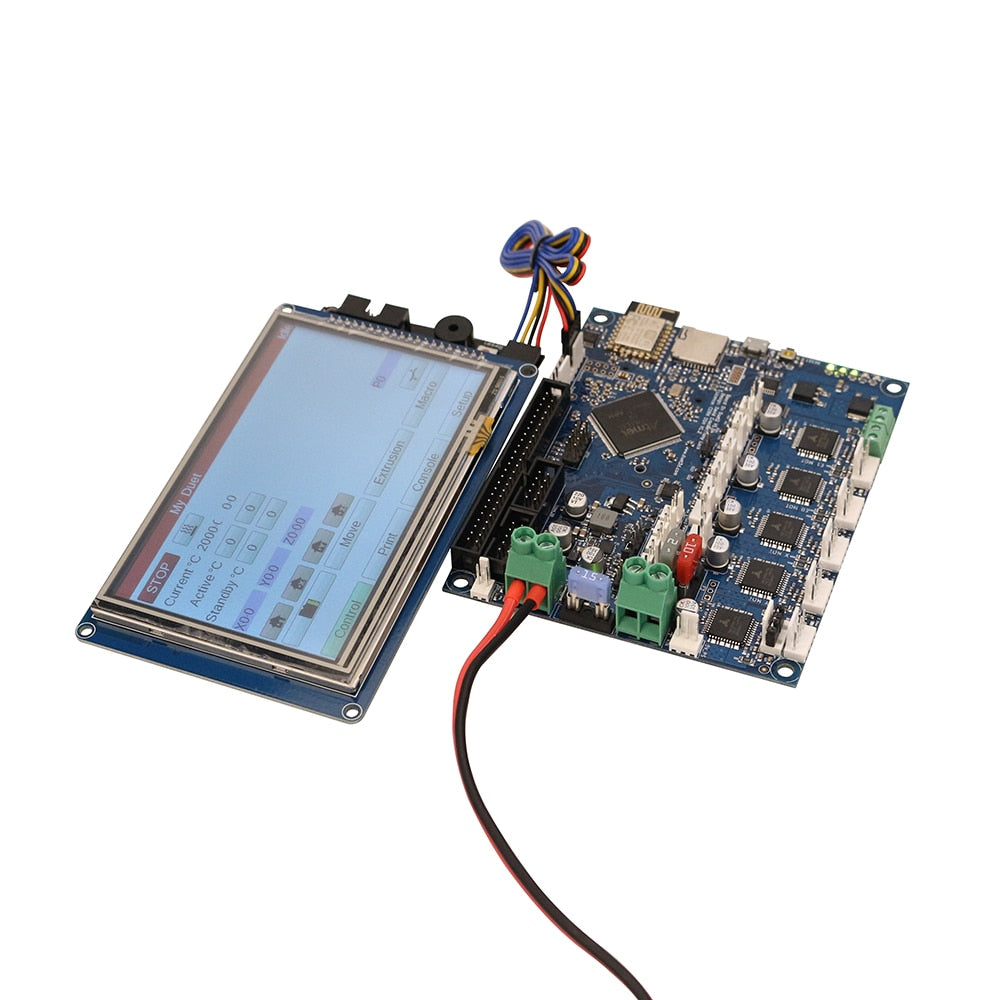

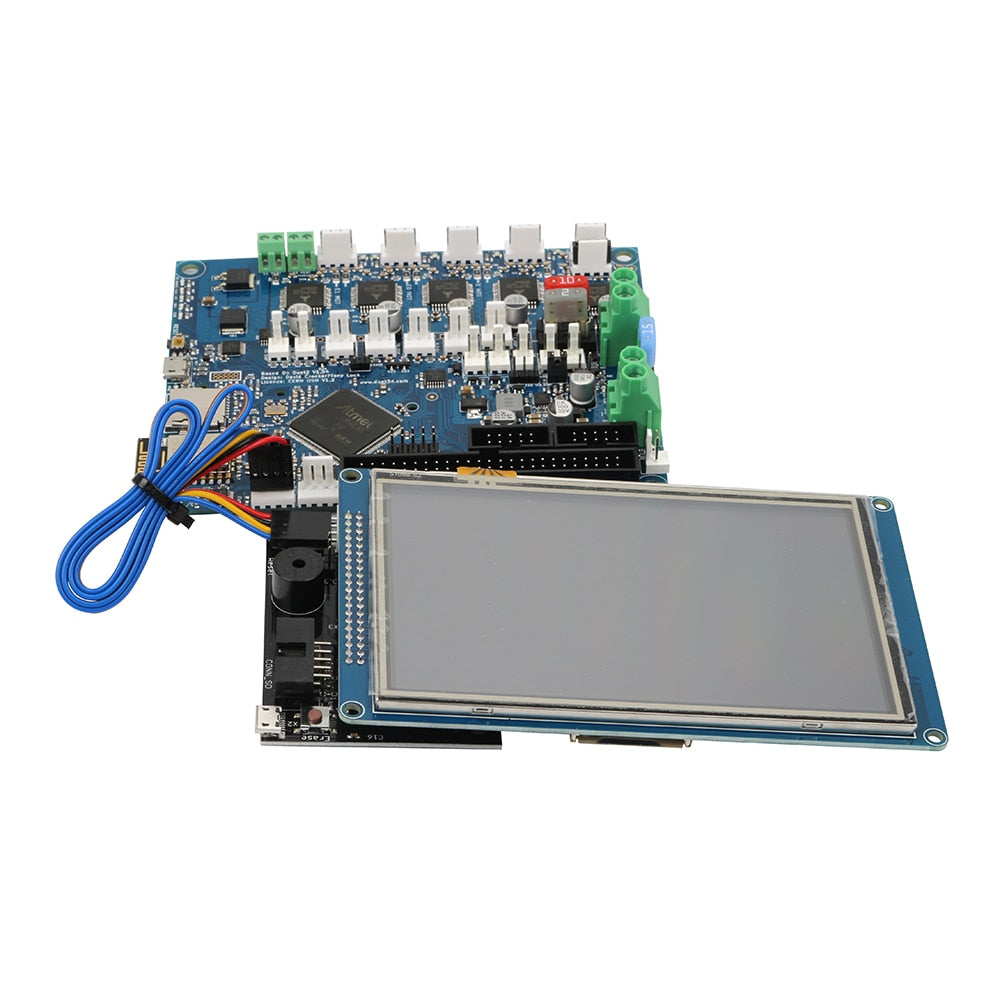

  • Support for the PanelDue: a full-colour graphic touchscreen
  • Support for DC42’s IR Z probe and the Duet3D Smart Effector for delta printers.

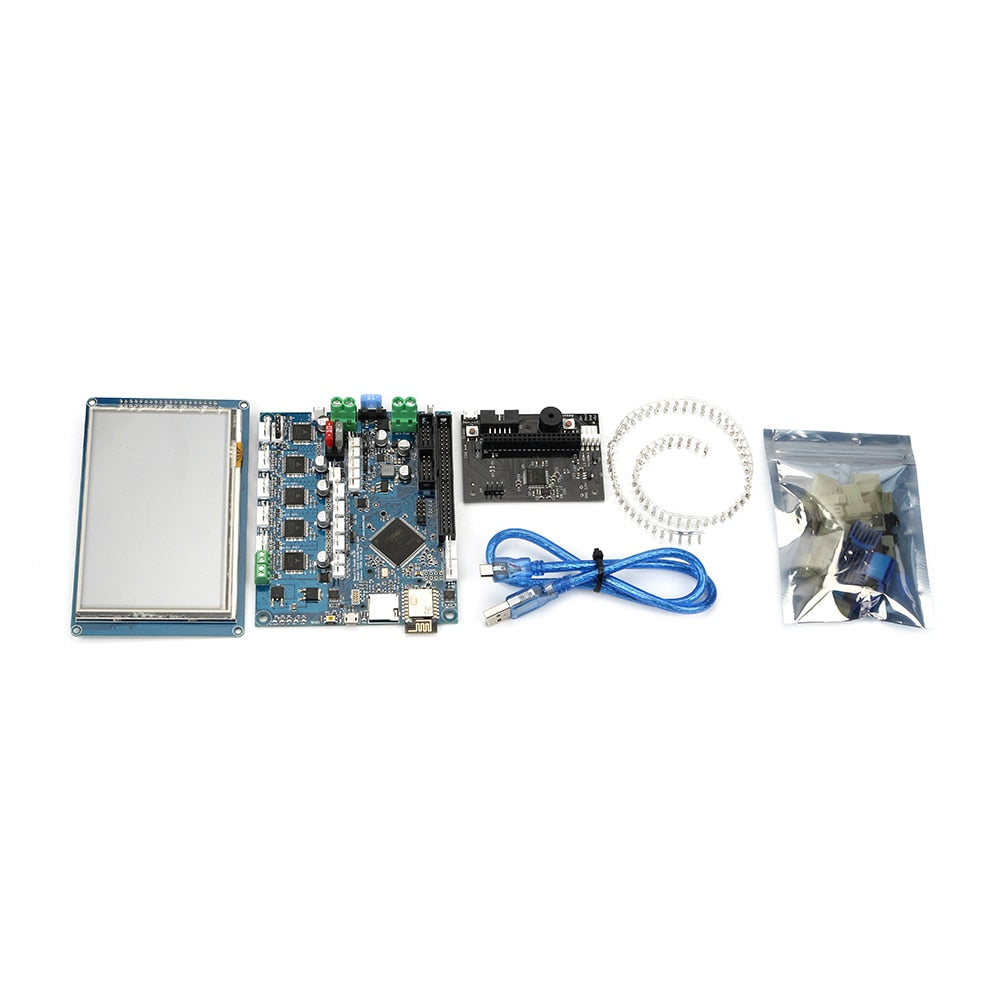

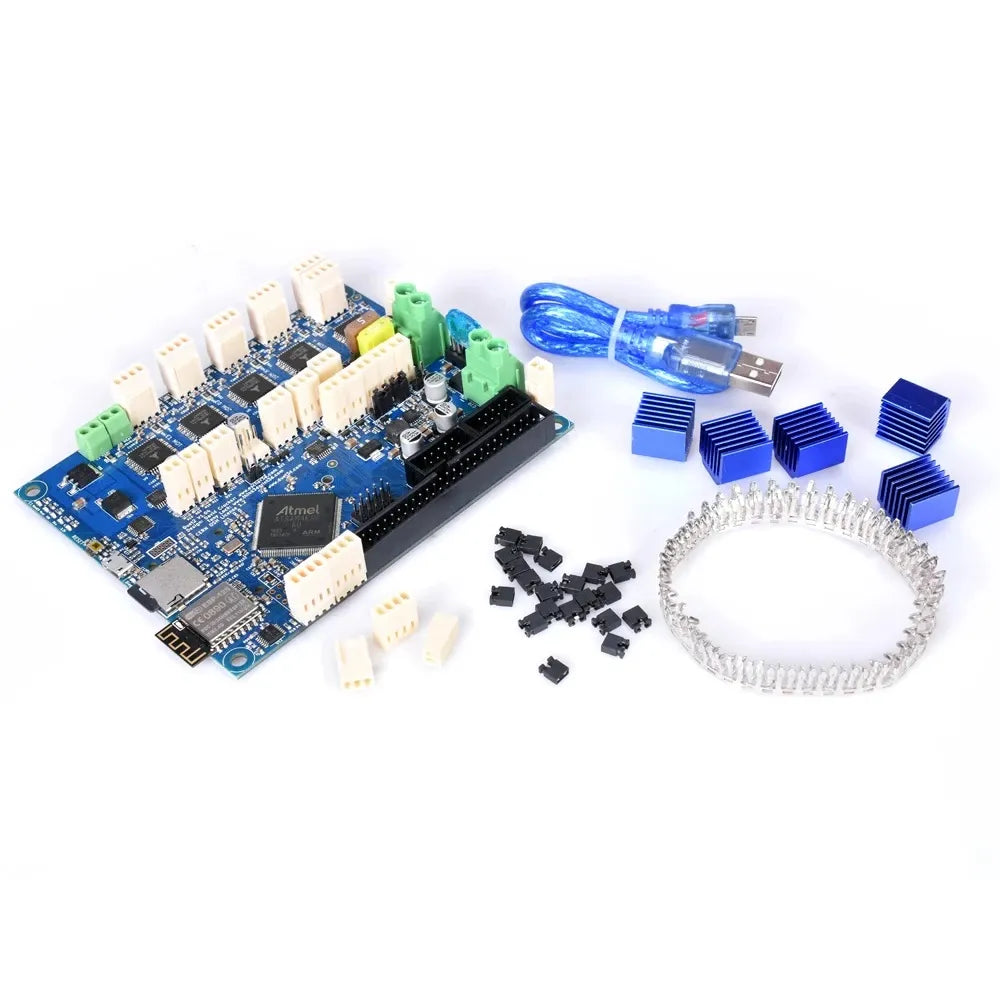

  • Provided with Molex compatible plugs and crimps as well as ferrules for power and heater terminals.

Duet 2 Wifi Documentation can be found here.
What is this board and what does it do for a 3D printer?
It is a 32 bit controller with dedicated wifi for 3D printers and other CNC machines. It offers web based configuration and firmware updates, high performance drivers, and support for multiple extruders.
Is the device compatible with different printer geometries and can it be expanded?
Yes, all common 3D printer geometries are supported and it can be expanded up to 7 extruders with firmware support for mixing nozzles and remapping axes.
How can I connect and operate the unit using wifi?
Connect via PC, tablet or smartphone on the same network to the onboard web interface; you can set up your printer and update firmware through the web interface.
What are the power limits for the stepper drivers and the bed heater on this board?
Each stepper driver is capable of 2.8A motor current but is software limited to 2.4A. The bed heater channel is designed for high currents up to 18A.
What is included with the package and are there any accessory options?
Provided with Molex compatible plugs and crimps as well as ferrules for power and heater terminals.
A
Admin
Welcome to the discussion thread for Duet 2 Wifi V1.04 Clone
Feel free to ask questions, share tips or report issues.
Add Post

For more discussion Click Here

Discover More In:

3D Controllers & Displays → Browse All Products → FYSETC | Official Page →

Category: View similar items (Duet)

Fill out the form below and our team will get back to you with bulk pricing.

Description
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

Duet 2 Wifi

This is the latest PCB revision of the Duet 2 Wifi, v1.04.

Duet 2 Wifi is an advanced 32 bit electronic controller for 3D printers and other CNC machines. It has the same features as the Duet 2 Ethernet other than providing WiFi connectivity rather than ethernet.

Salient Features:

  • Powerful 32 Bit Processor
  • Dedicated Wifi module with either :
    • a compact built-in antenna
    • a external antenna for extending Wifi range or allowing the Duet 2 Wifi to be mounted in a shielding enclosure with the antenna outside.
  • Super quiet TMC2660 stepper drivers, up to 256 micro-stepping.
  • High-speed uSD card and support for a second external SD card if required.
  • Dual extruders on the main board, up to 5 more extruders on the expansion board.
  • High Power rating: Each stepper driver is capable of 2.8A motor current, currently limited in software to 2.4A. The bed heater channel is specifically designed for high currents (18A).
  • Connect via PC, tablet or smartphone on the same network to the onboard web interface.
  • Set up your printer and update the firmware through the web interface.
  • All common 3D printer geometries are supported.
  • Expandable up to 7 extruders with Firmware support for mixing nozzles and remapping axes to use high-power external drivers.
  • Support for the PanelDue: a full-colour graphic touchscreen
  • Support for DC42’s IR Z probe and the Duet3D Smart Effector for delta printers.
  • Provided with Molex compatible plugs and crimps as well as ferrules for power and heater terminals.

Duet 2 Wifi Documentation can be found here.
FAQ
What is this board and what does it do for a 3D printer?
It is a 32 bit controller with dedicated wifi for 3D printers and other CNC machines. It offers web based configuration and firmware updates, high performance drivers, and support for multiple extruders.
Is the device compatible with different printer geometries and can it be expanded?
Yes, all common 3D printer geometries are supported and it can be expanded up to 7 extruders with firmware support for mixing nozzles and remapping axes.
How can I connect and operate the unit using wifi?
Connect via PC, tablet or smartphone on the same network to the onboard web interface; you can set up your printer and update firmware through the web interface.
What are the power limits for the stepper drivers and the bed heater on this board?
Each stepper driver is capable of 2.8A motor current but is software limited to 2.4A. The bed heater channel is designed for high currents up to 18A.
What is included with the package and are there any accessory options?
Provided with Molex compatible plugs and crimps as well as ferrules for power and heater terminals.
