The Conveyor Belt Kit for DOBOT is designed for educational purposes, allowing users to create a mini production line. This kit is perfect for teaching robotics and automation concepts in a hands-on manner.
Ā

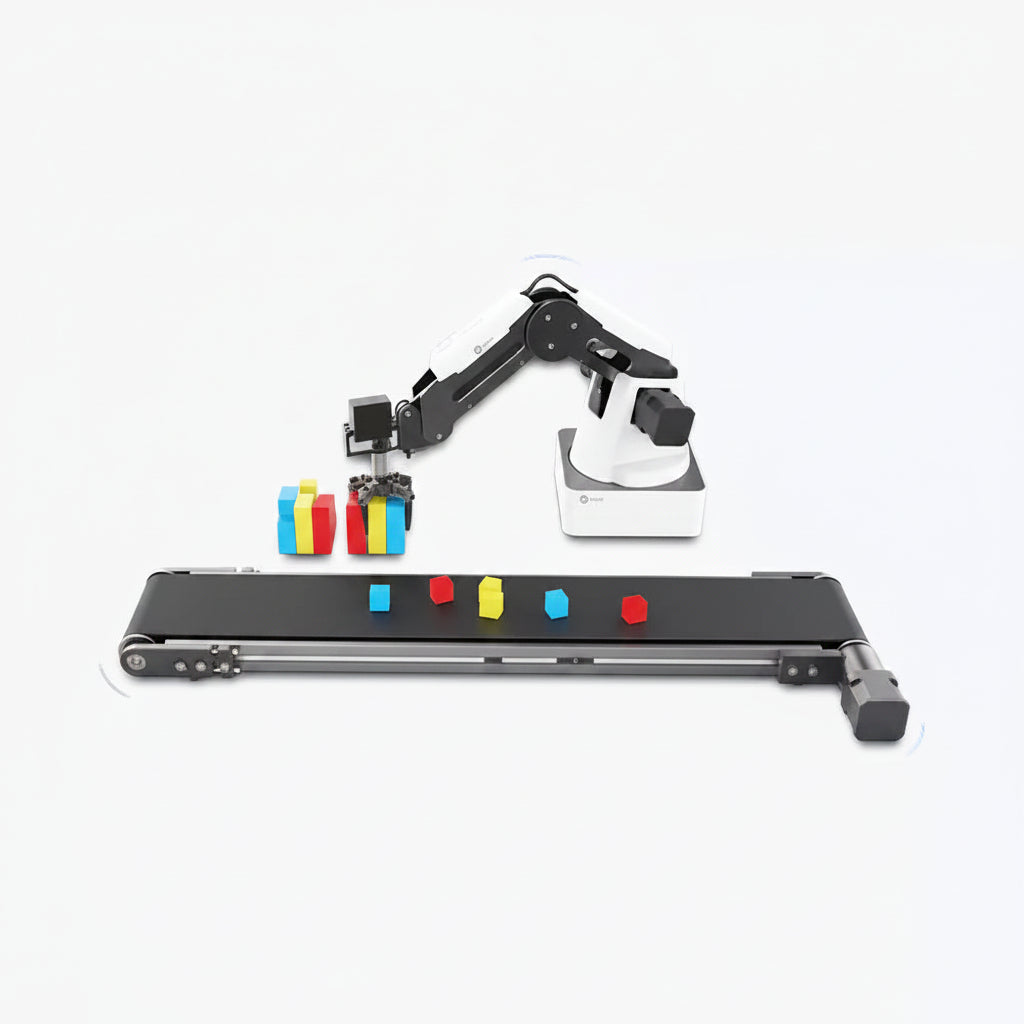

The Conveyor Kit for DOBOT Magician makes it possible to obtain a complete simulated production line. The powerful and programmable DOBOT Magician, combined with the adjustable speed, distance, and color sensor conveyor belt, is a perfect tool for creating a highly effective simulated production line or even applying it to existing factory application scenarios.
Ā
Ā

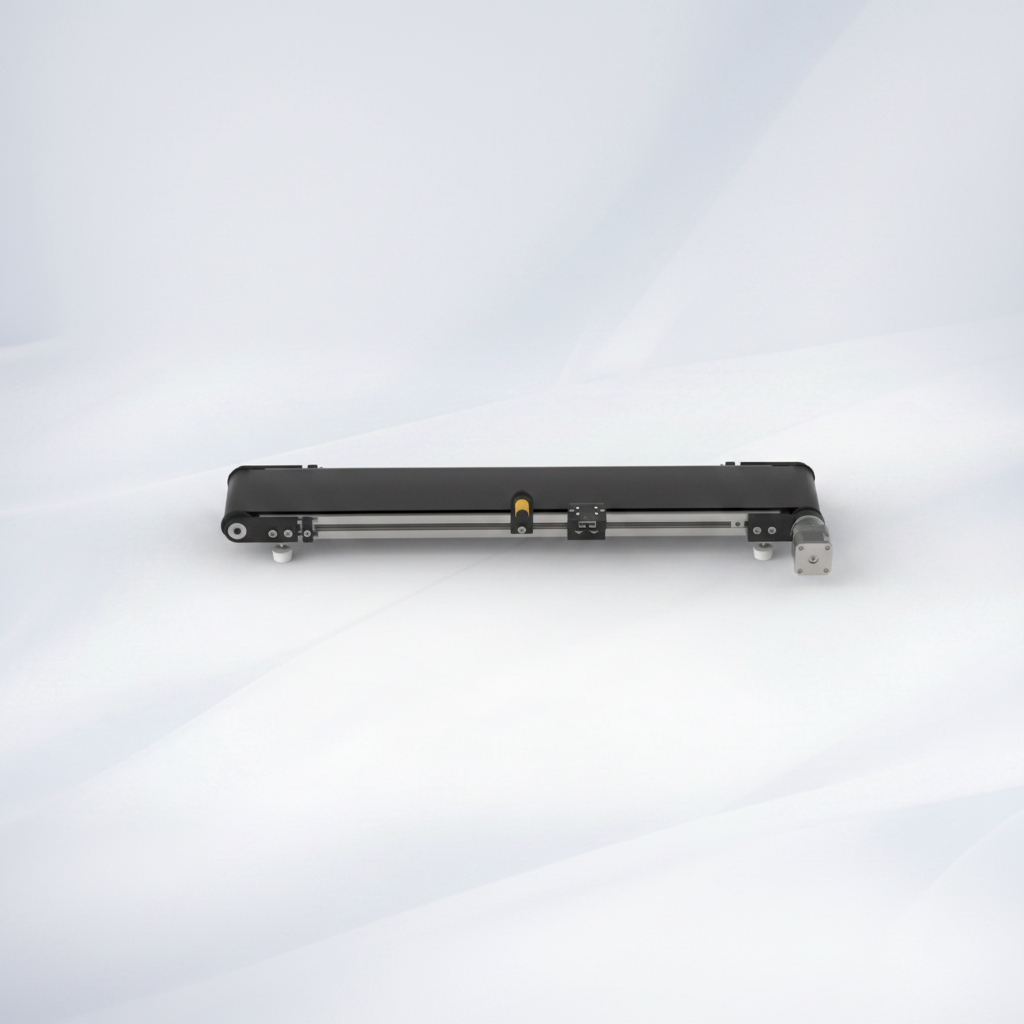

A mini conveyor belt is a core component for building an automation process with your robotic arm. It is adaptable to multiple educational needs, enabling you to train your skills in a production assembly line.
Ā
Detect whether there are objects in front of the photoelectric switch as it helps improve the quality and the speed of the object detection.Ā
Ā
An easy-to-use color sensor for you to categorize red, blue, and green objects. Do not need to give the robotic arm a hint of the color. With the help of color sensor technology, DOBOT Conveyor Belt Kit will scan and identify them fast. Ā
Ā
These colorful foam blocks are easy to grab, move, and pile. It is the most suitable material for getting a grip on the automation process.
Ā
| Conveyor Belt | |
|---|---|
| Payload | 500 g |
| Effective Delivering Distance | 600 mm |
| Maximum Speed | 120 mm/s |
| Maximum Acceleration | 1100 mm/sĀ² |
| Net Weight | 4.2 kg |
| Weight (Including Packing) | 5.34 kg |
| Dimensions | 700 mm Ć 215 mm Ć 60 mm |
| Distance Measuring Sensor Unit | |
| Measurable Range | 20 ~ 150 mm |
| Signal | Analog Output |
| Input | 4.5 ~ 5.5 V |
| Color Recognizing Sensor Unit | |
| Input | 3 ~ 5 V |
Ā
