HDMI Adapter
For DIY HDMI Cable
Multi-Type Adapters Are Available For Different Applications
NOTE: If you are looking for different HDMI ports at each end, please send us an email at support@thinkrobotics.com after placing your order.
Parameters Comparison
| MODEL | VERSION | INTERFACE | DIMENSIONS(MM) |
|---|---|---|---|
|
|
HDMI Vertical | HDMI Male Plug To Female Connector | 18.0 × 16.5 × 16.5 |
 HDMI Adapter Horizontal ELC7069 |

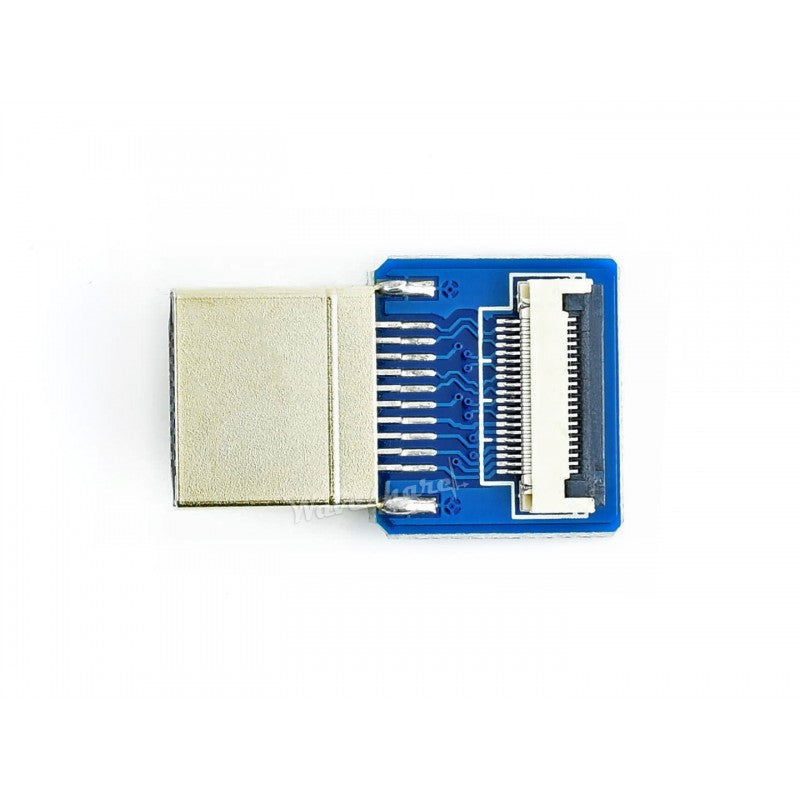

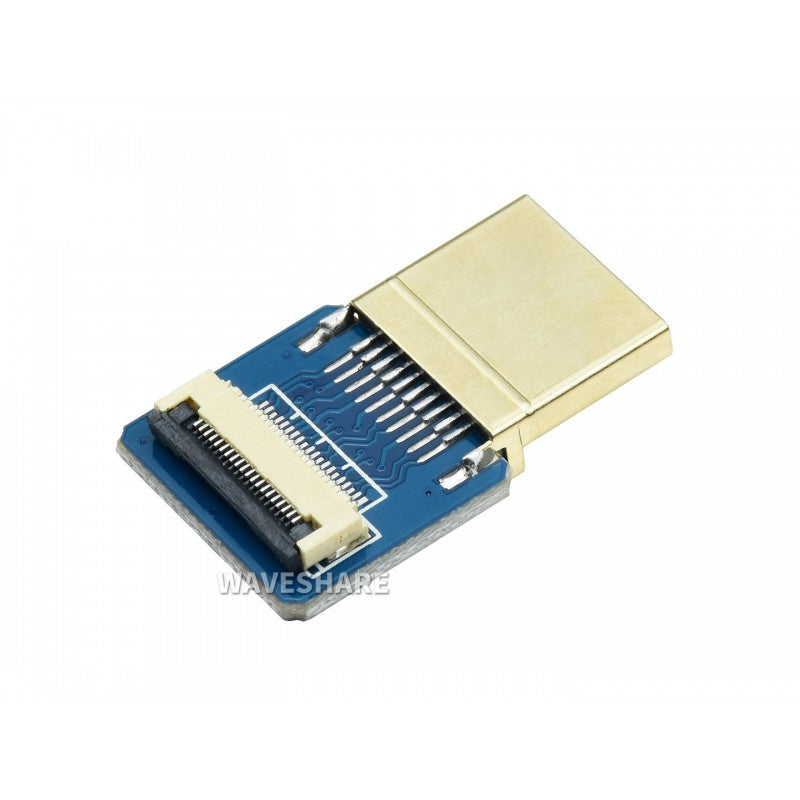

HDMI Horizontal | HDMI Male Plug To Female Connector | 29.5 × 18.0 × 4.5 |
 HDMI Adapter Horizontal (B) ELC7083 |

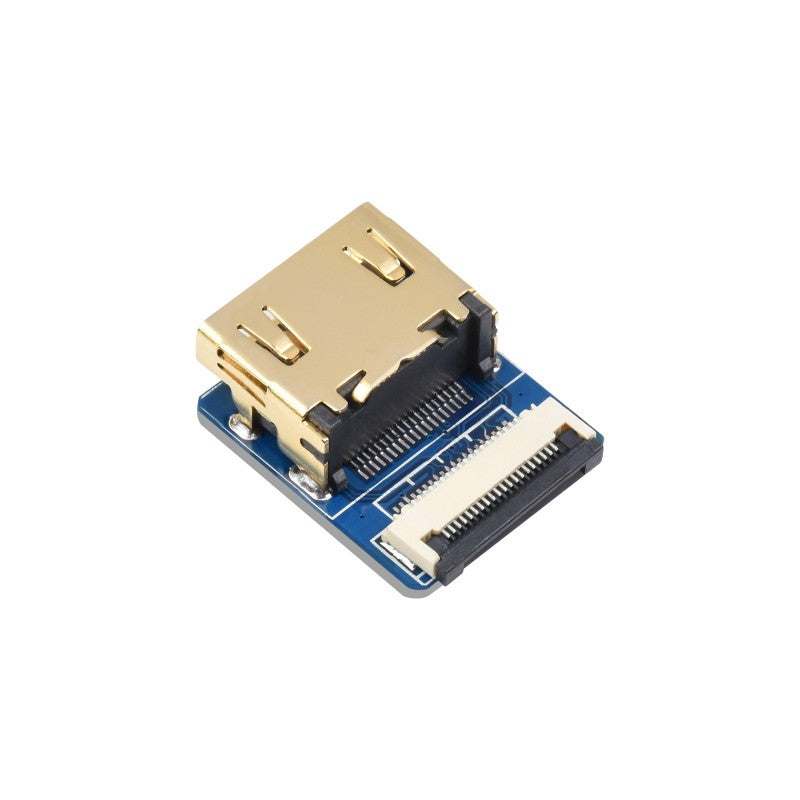

HDMI Horizontal B | HDMI Female To Female Connector | 20.5 × 17.0 |
 MINI HDMI Adapter Vertical ELC7079 |

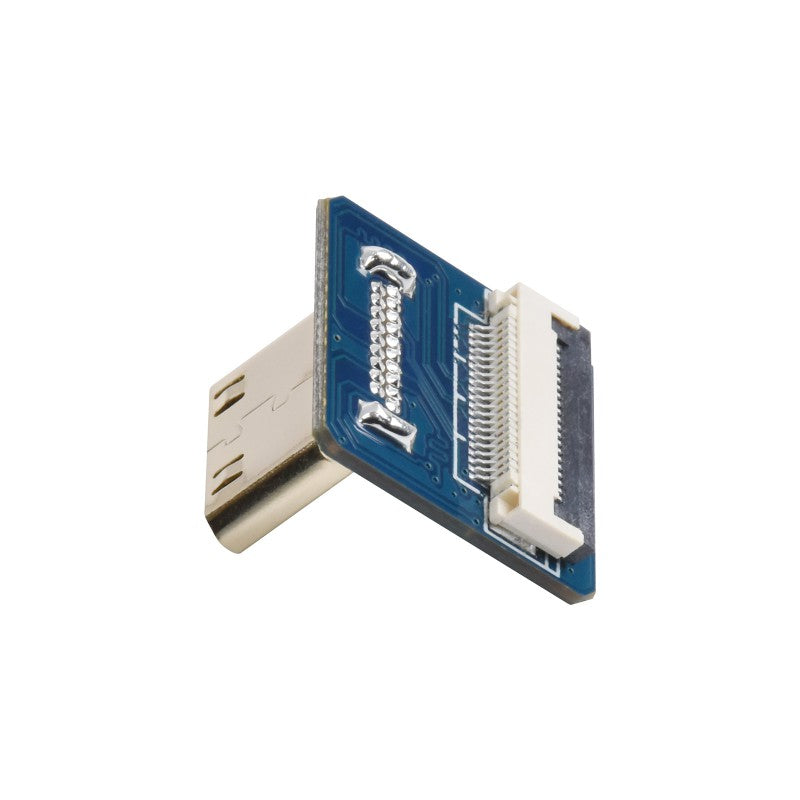

Mini HDMI Vertical | Mini HDMI Male Plug To Female Connector | 17.5 × 16.0 × 12.0 |
 Mini HDMI Adapter Horizontal ELC7075 |
Mini HDMI Horizontal | Mini HDMI Male Plug To Female Connector | 26.4 × 18.0 × 4.5 |
 Mini HDMI Adapter Horizontal (B) ELC7082 |

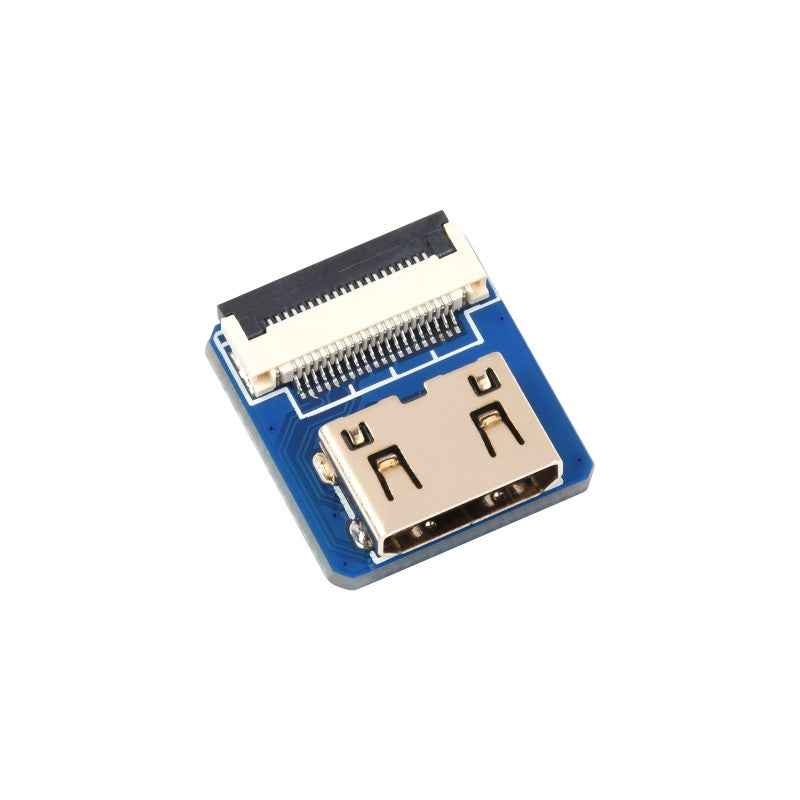

Mini HDMI Horizontal B | Mini HDMI Female To Female Connector | 17.5 × 16.0 |
 Micro HDMI Adapter Vertical ELC7080 |
Micro HDMI Vertical | Micro HDMI Male Plug To Female Connector | 17.5 × 16.0 |
 Micro HDMI Adapter Horizontal ELC7071 |

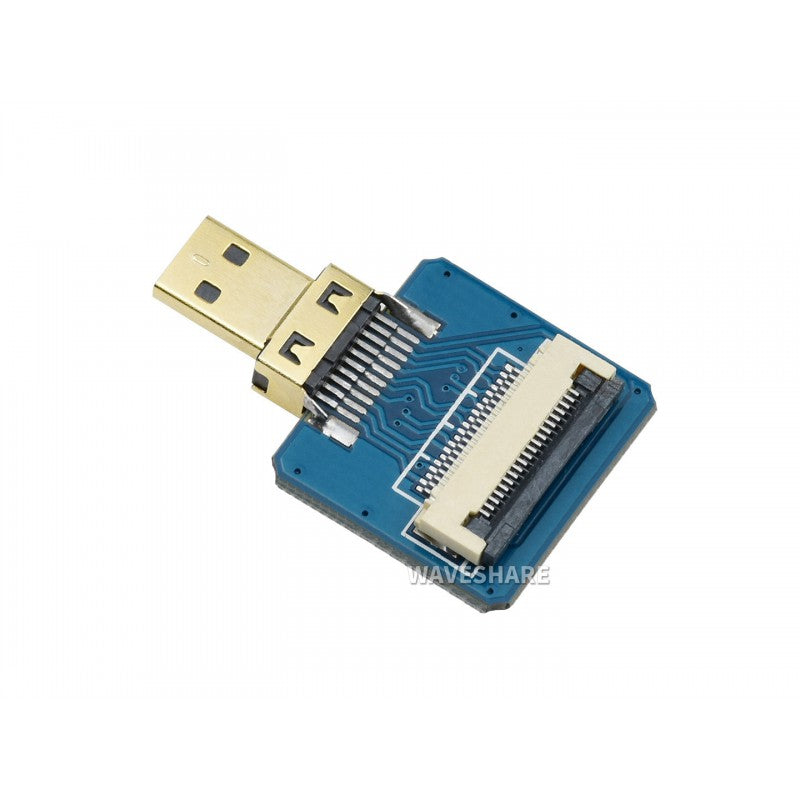

Micro HDMI Horizontal | Micro HDMI Male Plug To Female Connector | 27.6 × 18.0 × 4.5 |
 Micro HDMI Adapter Horizontal (B) ELC7081 |

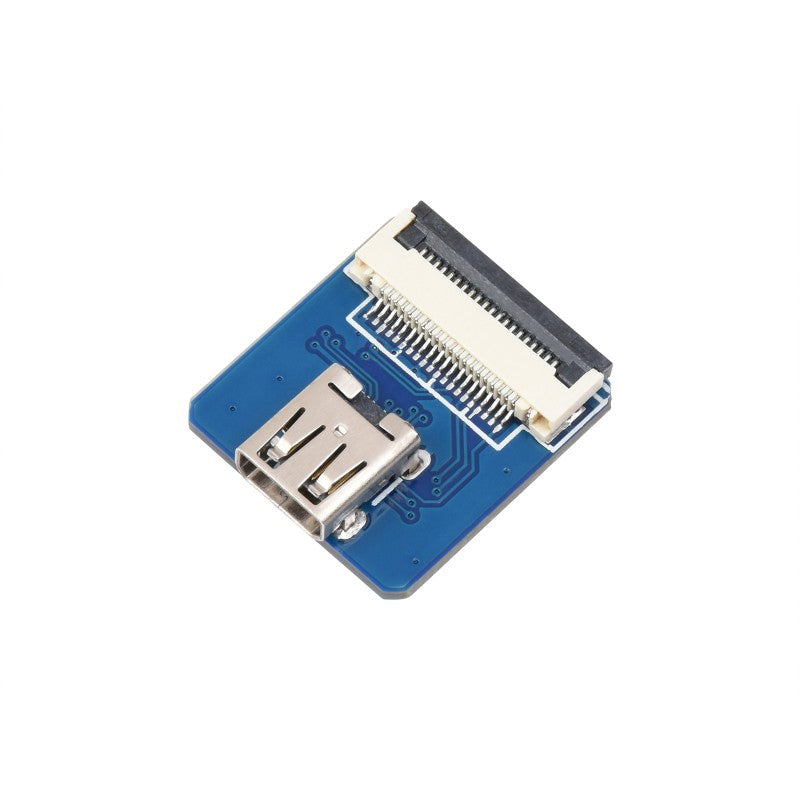

Micro HDMI Horizontal B | Micro HDMI Female To Female Connector | 17.5 × 16.0 |
Usage Example
- To DIY an HDMI cable, 2 adapters and 1 FFC are required, there are different options for each part
- Adapter: HDMI Vertical /HDMI Horizontal / HDMI Horizontal (B) / Mini HDMI Vertical / Mini HDMI Horizontal / Mini HDMI Horizontal (B) / Micro HDMI Vertical / Micro HDMI Horizontal / Micro HDMI Horizontal (B)
- FFC: 0.2m / 0.5m / 1m
Outline Dimensions
What is required to DIY an HDMI cable with this kit?
You need two adapters and one FFC. Choose two adapters from the available interface options such as HDMI, Mini HDMI, or Micro HDMI variants and a FFC length of 0.2m, 0.5m, or 1m.
What adapter interface types are offered?
The kit includes HDMI Vertical, HDMI Horizontal, HDMI Horizontal B, Mini HDMI Vertical, Mini HDMI Horizontal, Mini HDMI Horizontal B, Micro HDMI Vertical, Micro HDMI Horizontal, and Micro HDMI Horizontal B variants.
How do I handle different port types at each end?
If you need different HDMI port types at the two ends, please email support after placing your order at support@thinkrobotics.com.
What are the FFC length options?
The compatible FFC lengths are 0.2 meters, 0.5 meters, and 1 meter.
Where can I find the dimensions for each adapter?
Dimensions for each adapter variant are listed in the product information, with examples such as 18.0 x 16.5 x 16.5 mm for the vertical HDMI adapter and 29.5 x 18.0 x 4.5 mm for the horizontal HDMI adapter.
No reviews yet. Be the first to share your experience!
Discover More In:
Category: View similar items (DIY)
Fill out the form below and our team will get back to you with bulk pricing.
Description
Ask AI about this product
HDMI Adapter
For DIY HDMI Cable
Multi-Type Adapters Are Available For Different Applications
NOTE: If you are looking for different HDMI ports at each end, please send us an email at support@thinkrobotics.com after placing your order.
Parameters Comparison
| MODEL | VERSION | INTERFACE | DIMENSIONS(MM) |
|---|---|---|---|
|
|

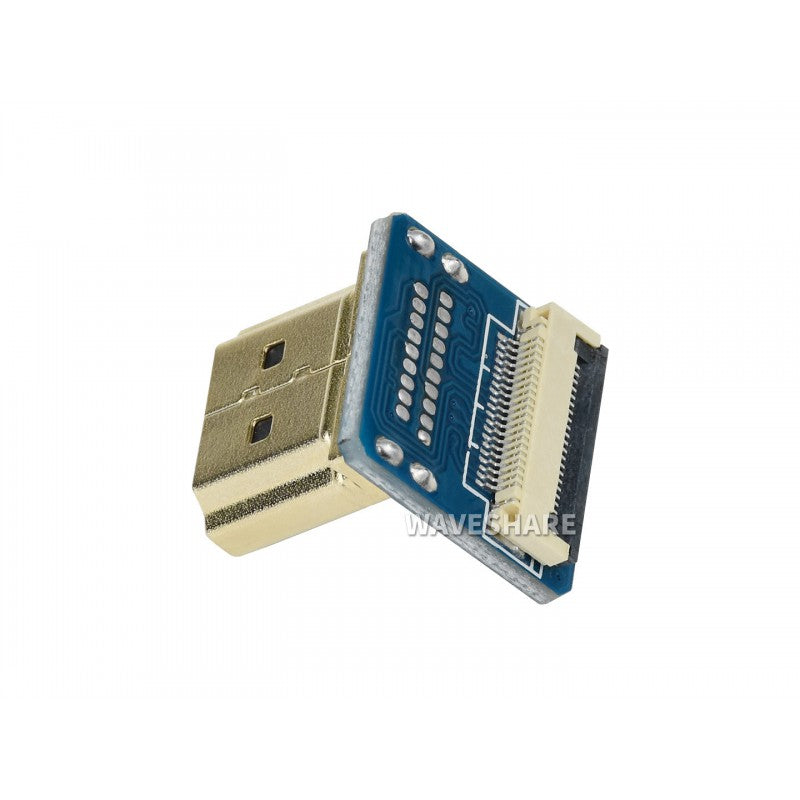

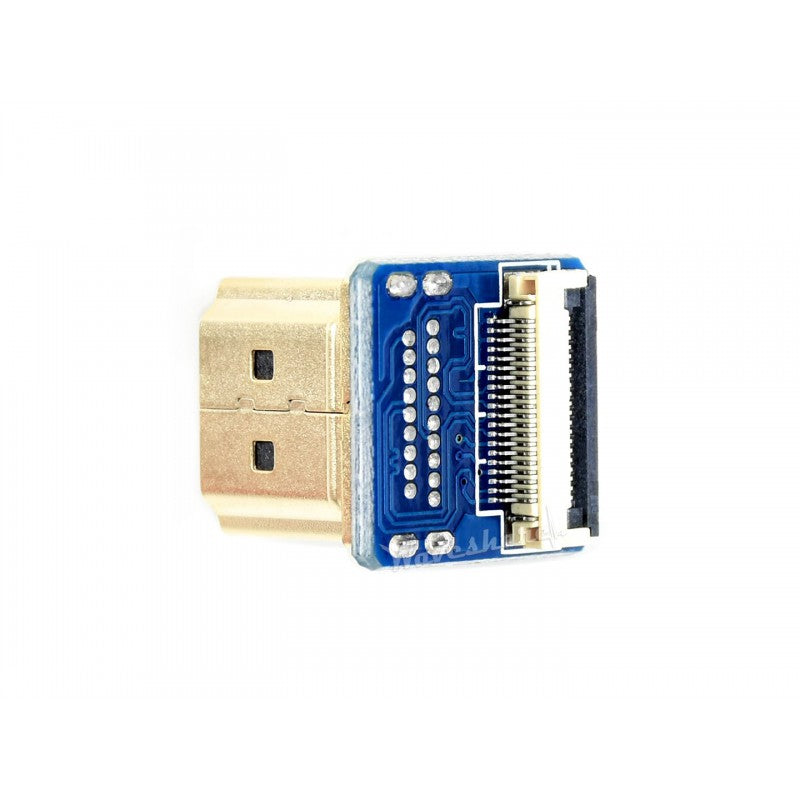

HDMI Vertical | HDMI Male Plug To Female Connector | 18.0 × 16.5 × 16.5 |
|
HDMI Adapter Horizontal ELC7069 |

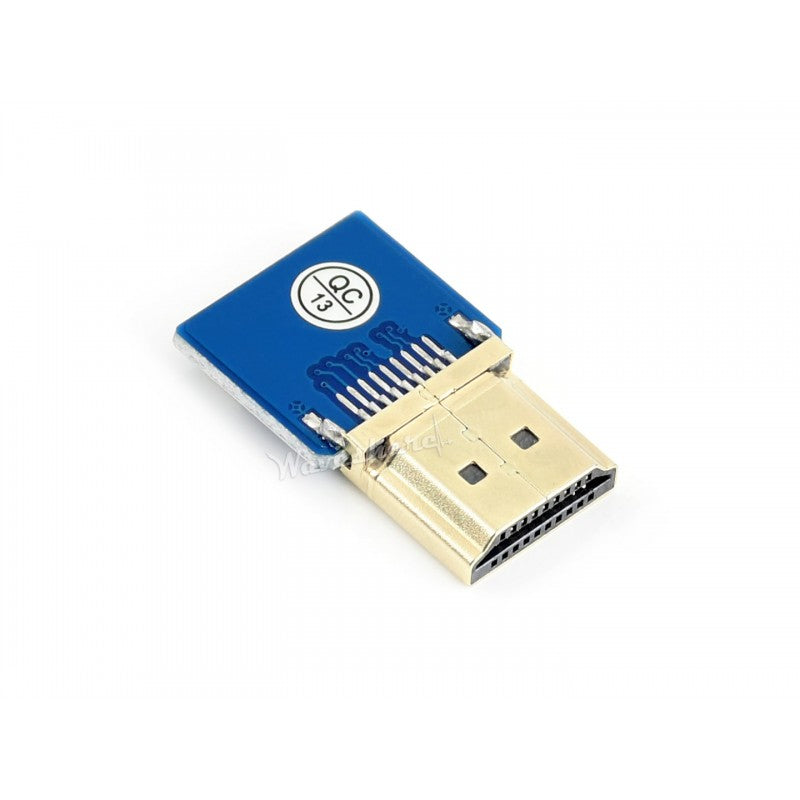

HDMI Horizontal | HDMI Male Plug To Female Connector | 29.5 × 18.0 × 4.5 |
|
HDMI Adapter Horizontal (B) ELC7083 |

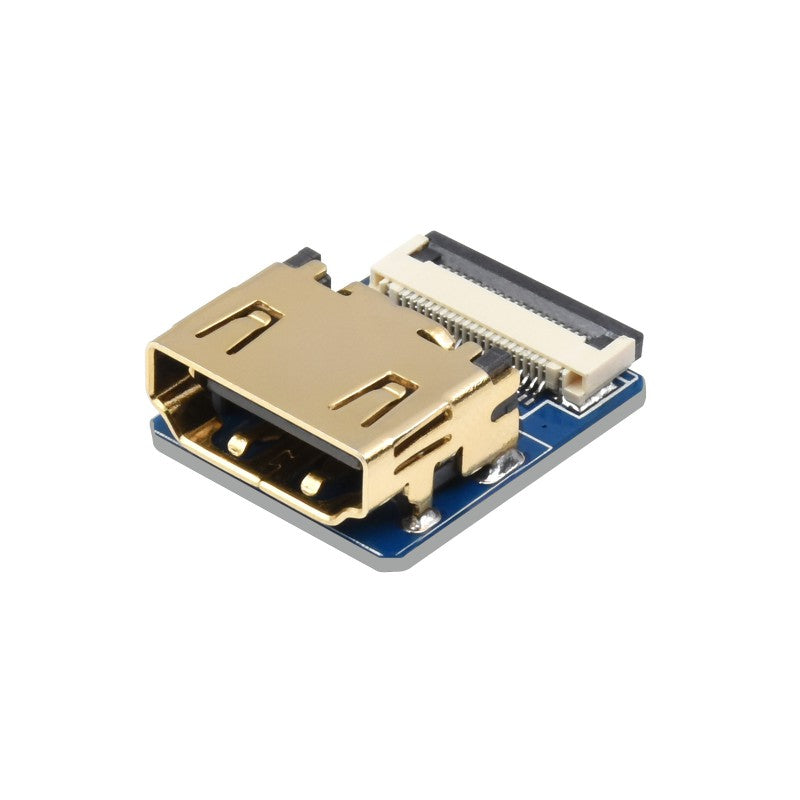

HDMI Horizontal B | HDMI Female To Female Connector | 20.5 × 17.0 |
|
MINI HDMI Adapter Vertical ELC7079 |

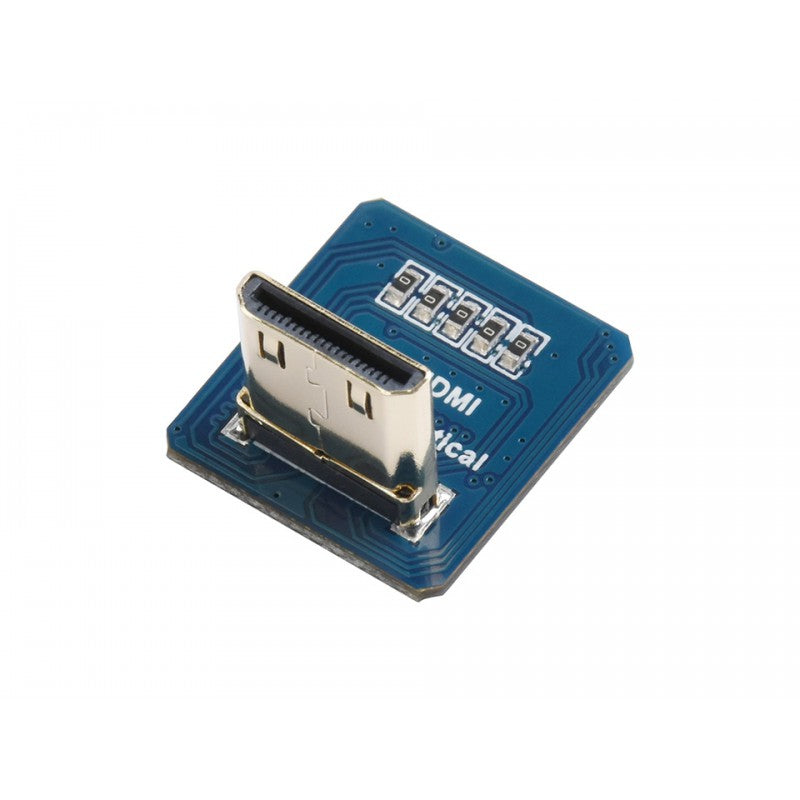

Mini HDMI Vertical | Mini HDMI Male Plug To Female Connector | 17.5 × 16.0 × 12.0 |
|
Mini HDMI Adapter Horizontal ELC7075 |
Mini HDMI Horizontal | Mini HDMI Male Plug To Female Connector | 26.4 × 18.0 × 4.5 |
|
Mini HDMI Adapter Horizontal (B) ELC7082 |

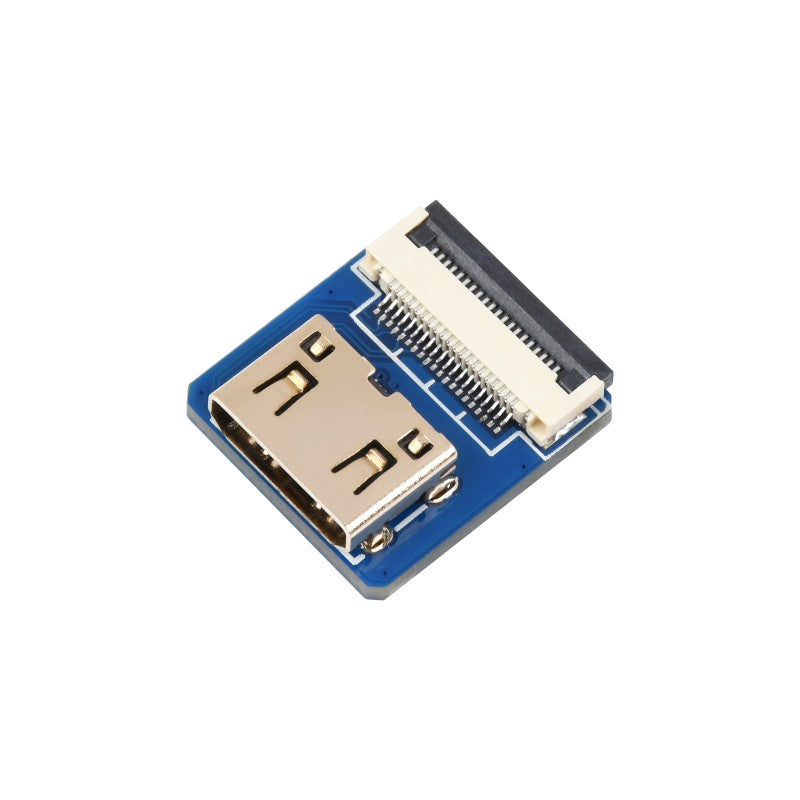

Mini HDMI Horizontal B | Mini HDMI Female To Female Connector | 17.5 × 16.0 |
|
Micro HDMI Adapter Vertical ELC7080 |

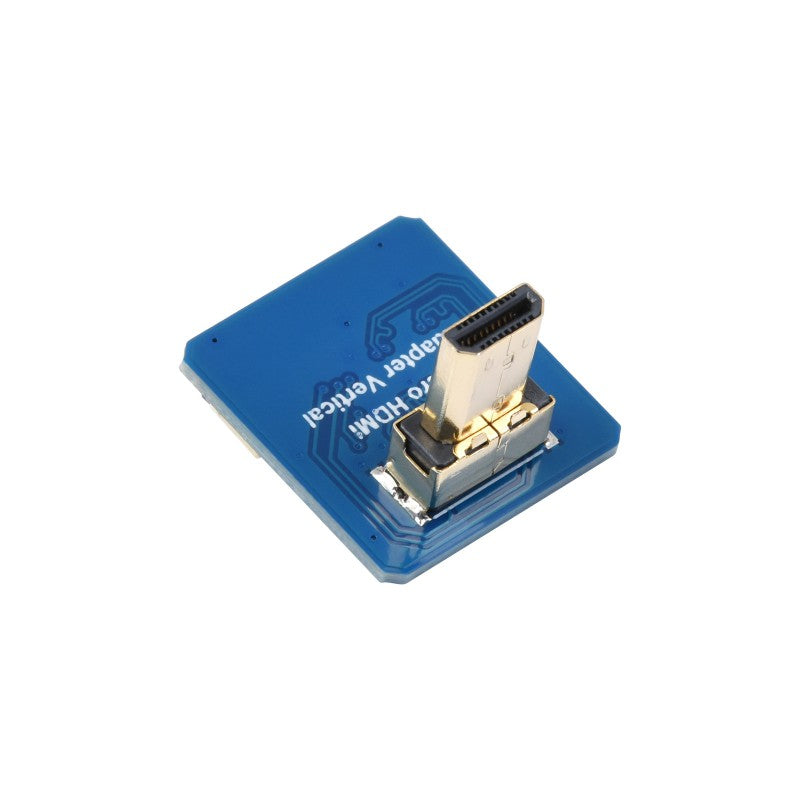

Micro HDMI Vertical | Micro HDMI Male Plug To Female Connector | 17.5 × 16.0 |
|
Micro HDMI Adapter Horizontal ELC7071 |
Micro HDMI Horizontal | Micro HDMI Male Plug To Female Connector | 27.6 × 18.0 × 4.5 |
|
Micro HDMI Adapter Horizontal (B) ELC7081 |

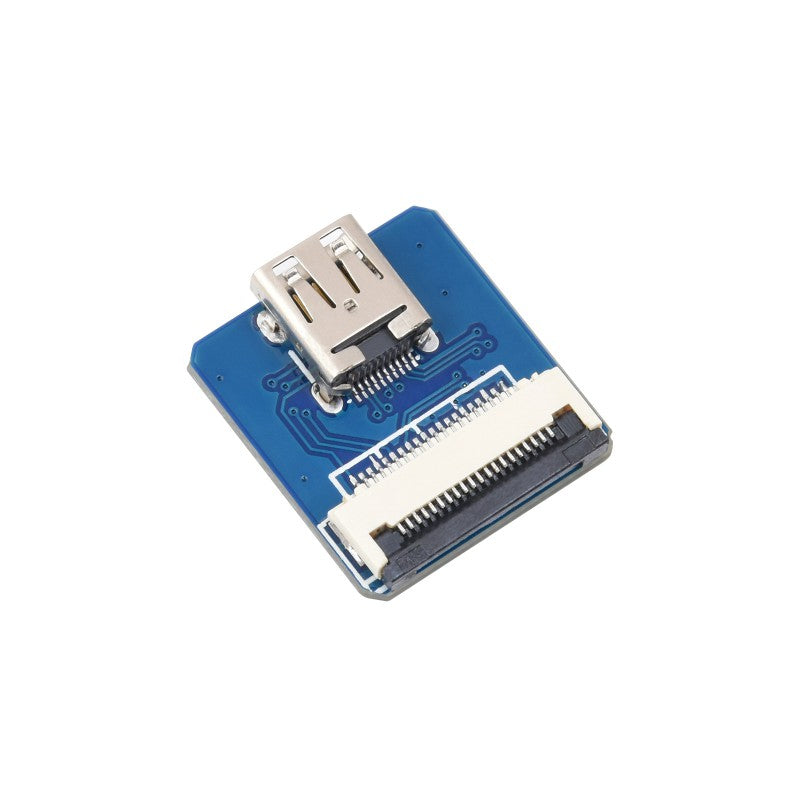

Micro HDMI Horizontal B | Micro HDMI Female To Female Connector | 17.5 × 16.0 |
