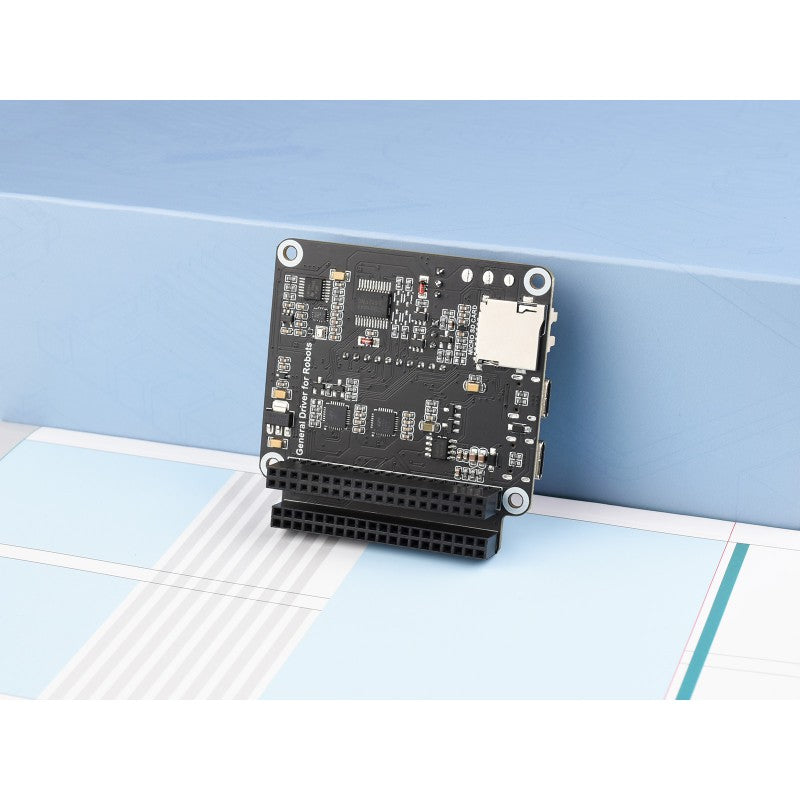

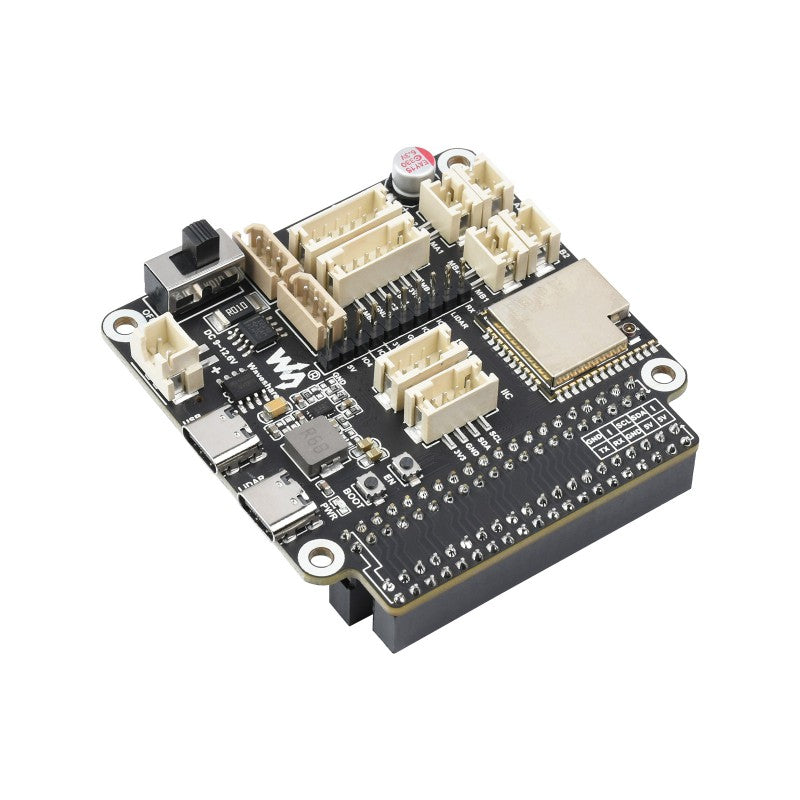

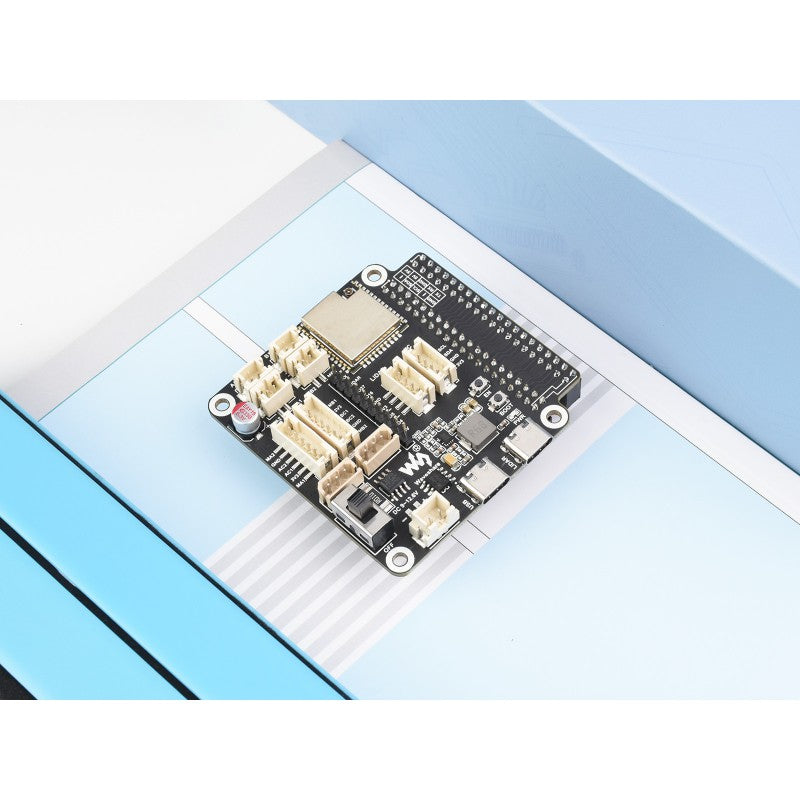

Multi-Functional Driver Board Designed For Robots, Offering More Possibilities
Features At A Glance
Based on the ESP32-WROOM-32 module, supports wireless communication such as WIFI, Bluetooth and ESP-NOW
Onboard motor control interfaces for 2x DC motor with encoder or 4x DC motor (2 groups) without encoder
Onboard serial bus servos control interfaces for controlling up to 253 ST3215 serial bus servos and obtaining servos feedback
Onboard 9-axis IMU to obtain attitude and heading information at any time
Supports 7~13V power input, and can be powered directly by 2S or 3S lithium battery module
Automatic download circuit for easy uploading programs
Support input voltage/current monitoring
Onboard TF card slot
Onboard Laser Lidar interface and integrated UART to USB function
I2C interface for connecting peripherals such as OLED, IMU, and other I2C devices
Adapting Multi-functional extended header for additional functions, such as controlling servos or relays
Onboard 40PIN GPIO header for connecting and powering the host computer (Raspberry Pi/Jetson Nano, etc), communicating via serial port or I2C
Provides open-source demos and detailed tutorials for beginners, easy to get started
Specifications
CONTROL MODULE
ESP32-WROOM-32
CONTROL CHIP
ESP32
POWER SUPPLY
DC 7~13V
POWER INTERFACE
XH2.54
ANTENNA CONNECTOR
IPEX1
DOWNLOAD INTERFACE
Type-C
WIRELESS COMMUNICATION
WIFI, Bluetooth, ESP-NOW
DIMENSIONS
65 × 65mm
MOUNTING HOLE SPACING
49 × 58mm
MOUNTING HOLE DIAMETER
3mm
Rich Peripheral Interfaces
Suitable For Different Types Of Robots
ESP32 Main Controller Rich Resources For Secondary Development
Built-In WiFi And Bluetooth, As Well As ESP-NOW Support, For Wireless Communication
Support Multiple Peripheral Connections
40PIN GPIO Extended Header
The inner side 40PIN header is for directly connecting to the Raspberry Pi or other host boards. And extend the outer side 40PIN header for connecting with other HATs via cables
Serial Bus Servo Control
Allows Controlling Up To 253 ST3215 Serial Bus Servos At The Same Time
Note: One channel UART can control up to 253 bus servos, but due to the high power of the servos, it is necessary to consider whether the power supply solution is enough when using too many servos.
Voltage And Current Monitoring
Onboard Voltage/Current Monitoring Chip To Obtain The Power Supply Status Of The Robot At Any Time
Onboard 9-Axis IMU
Onboard QMI8658C + AK09918, For Detecting Movement, Orientation, And Magnetic Support Obtaining The Heading Angle Of The Robot Anytime And Anywhere

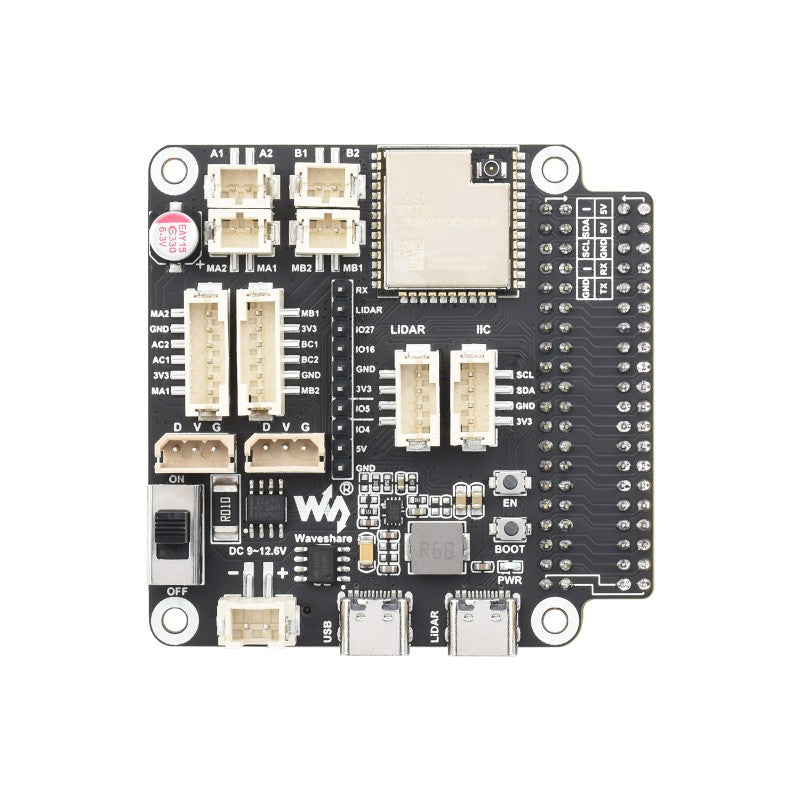

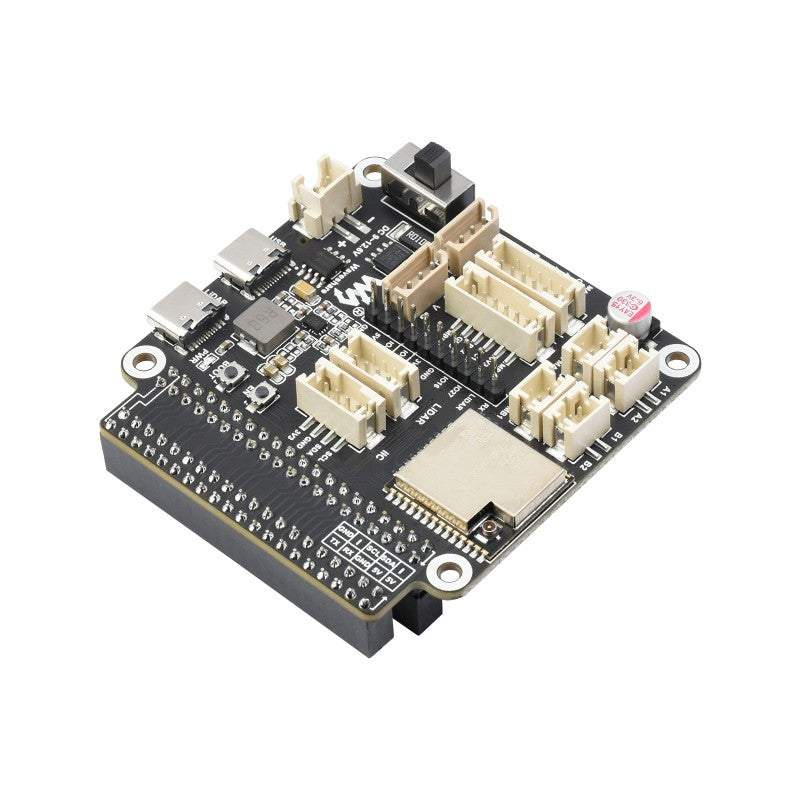

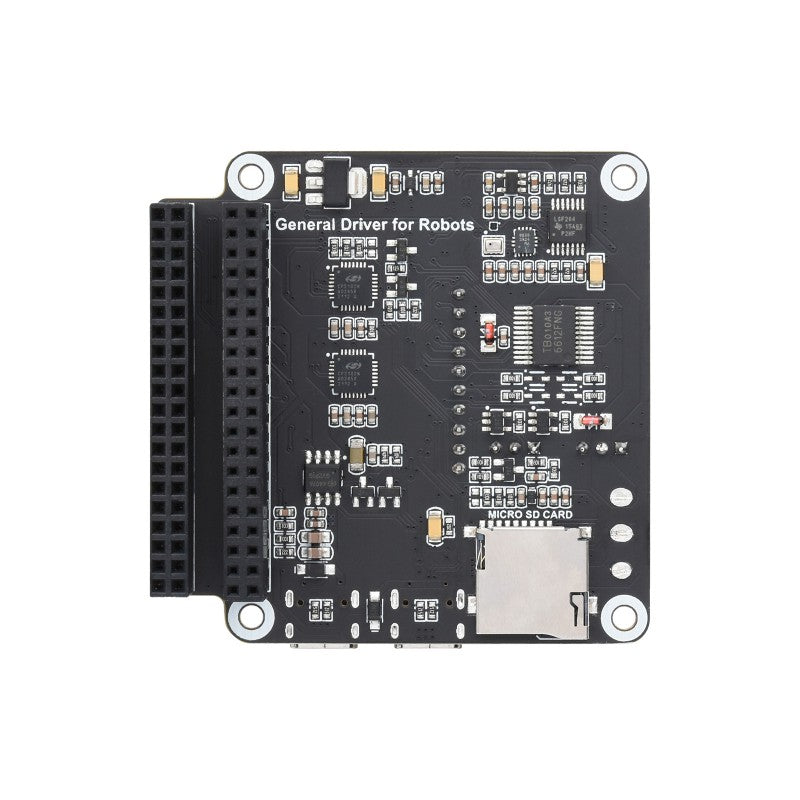

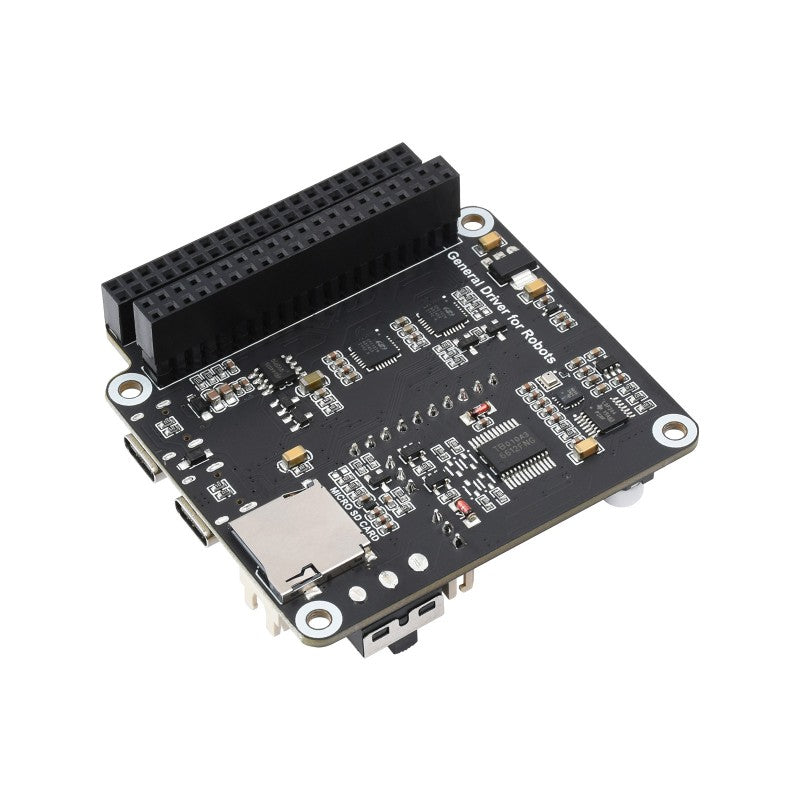

What's On Board
ESP32-WROOM-32 controller module Can be developed using Arduino IDE
IPEX1 WIFI connector For connecting WIFI antenna to increase the wireless communication distance
LIDAR interface Integrated radar adapter function
I2C peripheral expansion interface For connecting with OLED screen or other I2C sensors
Reset Button Press and release to reboot the ESP32
Download button The ESP32 will enter the download mode after powering on
DC-DC 5V voltage regulator circuit Power supply for host computers such as Raspberry Pi or Jetson nano
Type-C port (LADAR) LIDAR data transmission
Type-C port (USB) ESP32 communication interface, for uploading programs to ESP32
XH2.54 power port Support DC 7~13V input, can directly power the serial bus servos and motors
INA219 voltage/current monitoring chip
Power ON/OFF External power supply ON/OFF
ST3215 serial bus servo interface For connecting with ST3215 serial bus servo
Motor interface PH2.0 6P Group B interface for motor with encoder
Motor interface PH2.0 6P Group A interface for motor with encoder
Motor interface PH2.0 2P Group A interface for motor without encoder
Motor interface PH2.0 2P Group B interface for motor without encoder
AK09918C 3-axis electronic compass
QMI8658C 6-axis motion sensor
TB6612FNG Motor Control Chip
Serial bus servo control circuit for controlling multiple ST3215 serial bus servos and obtaining servos feedback
TF card slot Can be used to store logs or WIFI configurations
40PIN GPIO header For connecting with Raspberry Pi or other host boards
40PIN extended header Easy to use the GPIO pins of Raspberry Pi or other host boards
CP-2102 UART to USB, for radar data transmission
CP-2102 UART to USB, for ESP32 communication
Automatic download circuit For Uploading programs to the ESP32 without pressing the EN and BOOT buttons
