DS18B20 Digital Temperature Sensor

SKU: ELC1004W

ā‚¹ 99.99 ā‚¹ 250.00

In stock | Ready to ship

Select variant

Waterproof (1m cable)
āš  Only a few left in stock. Order soon.
ā± High demand right now.
šŸ“¦ Min order 1
Chat with us on WhatsApp We reply quickly! Contact Us
DS18B20 Digital Temperature SensorWaterproof (1m cable)ā‚¹ 99.99
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

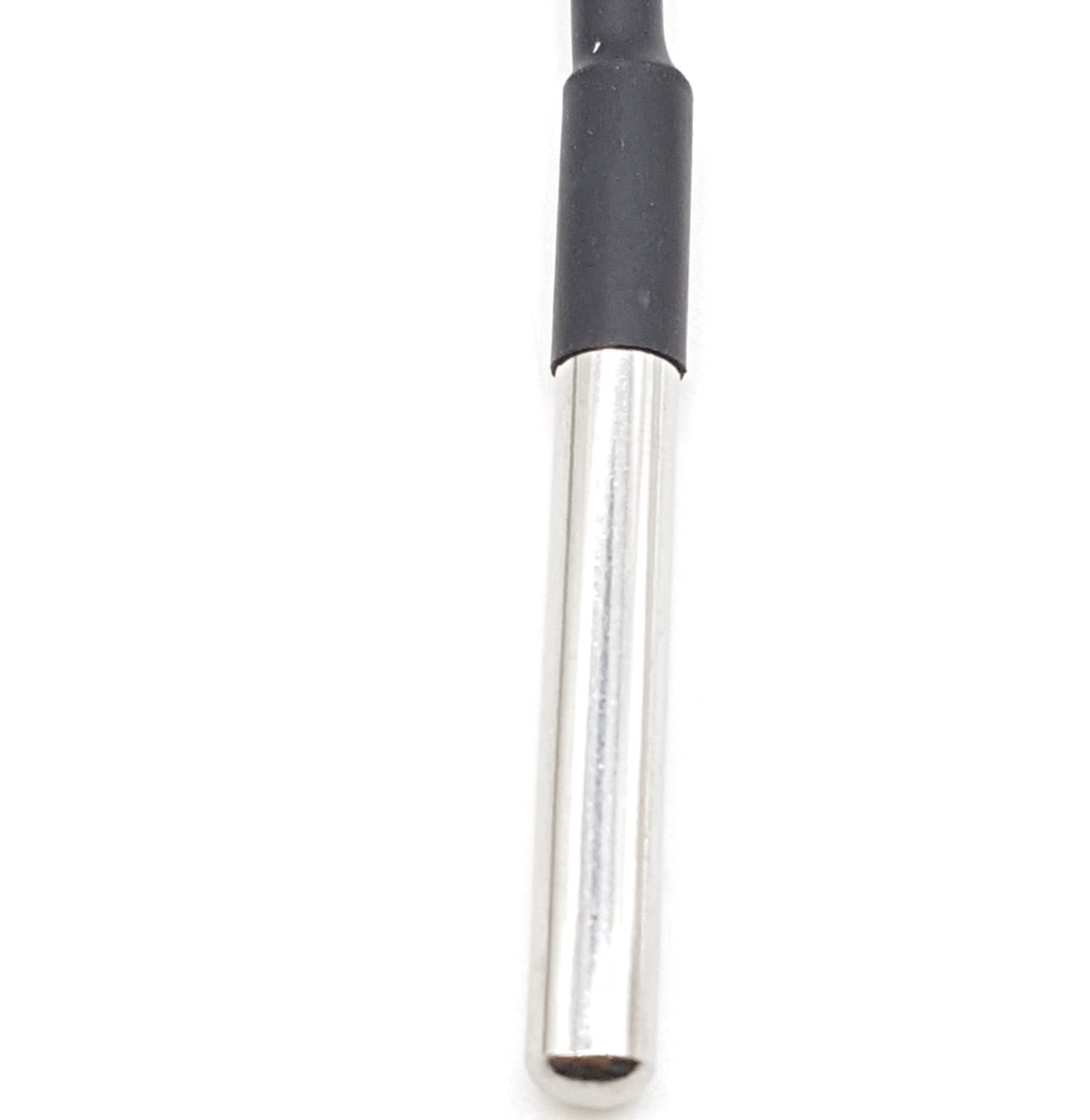

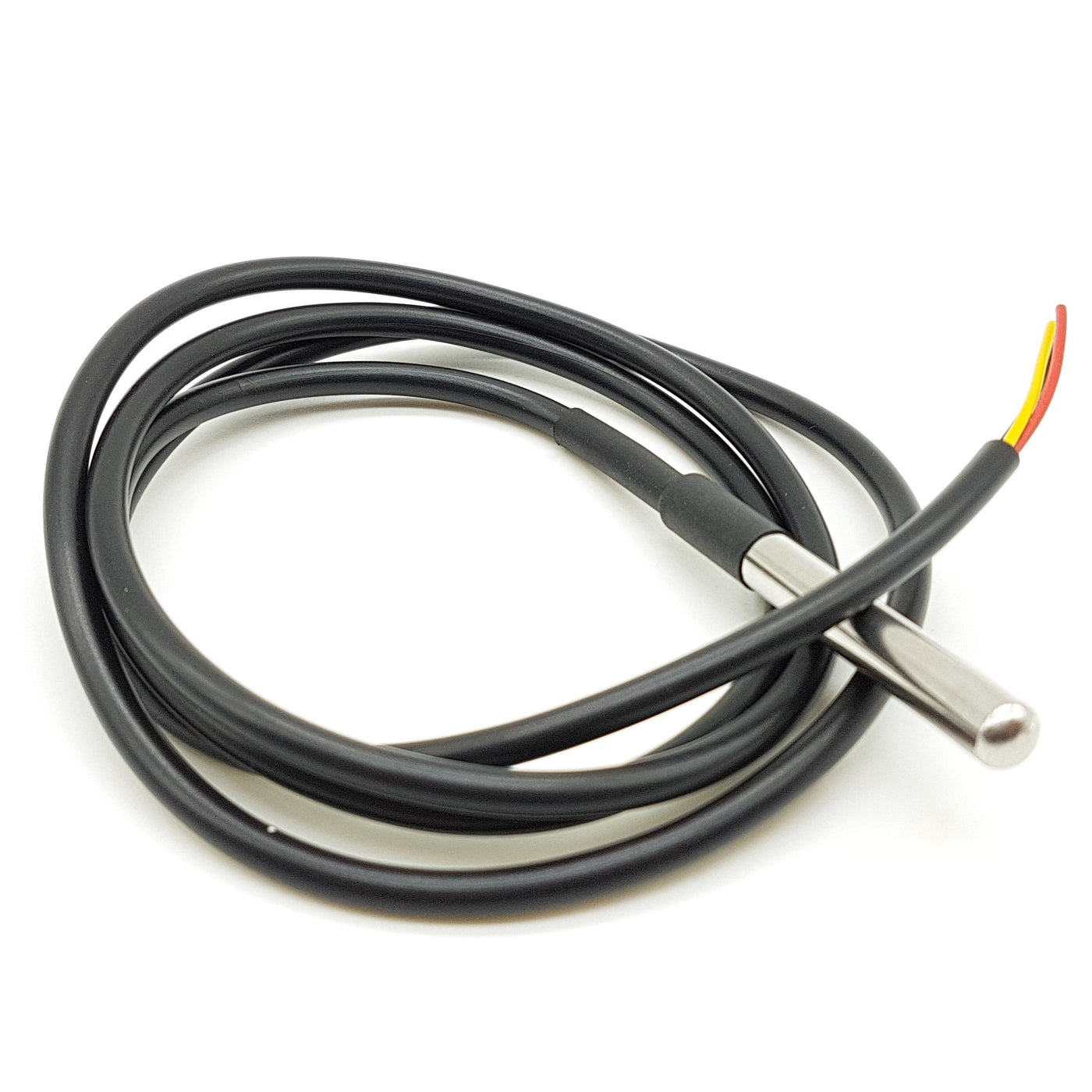

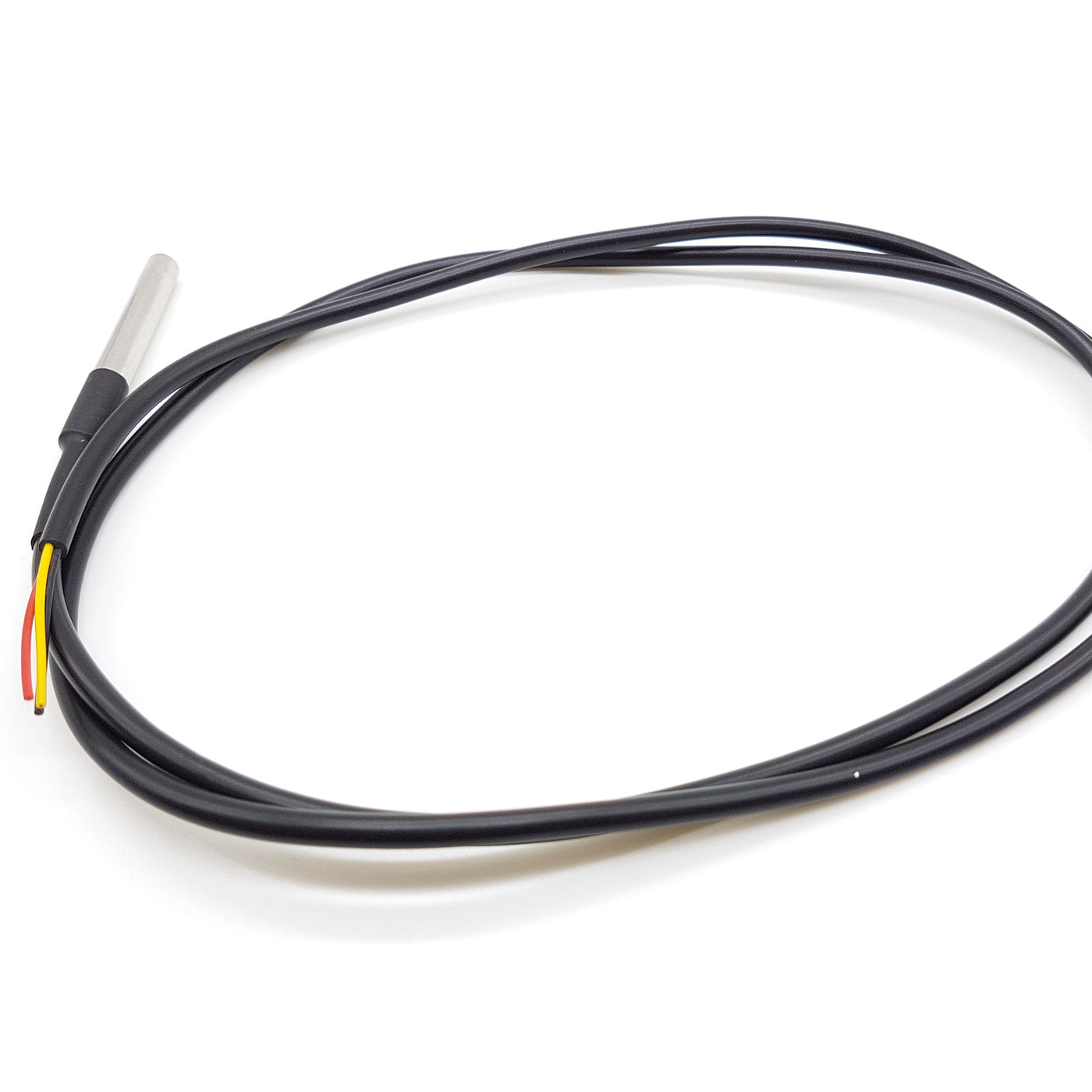

This is a pre-wired and waterproofed version of the DS18B20 sensor.

Handy for when you need to measure something far away, or in wet conditions. While the sensor is good up to 125Ā°C the cable is jacketed in PVC so we suggest keeping it under 100Ā°C. Because they are digital, you don't get any signal degradation even over long distances!

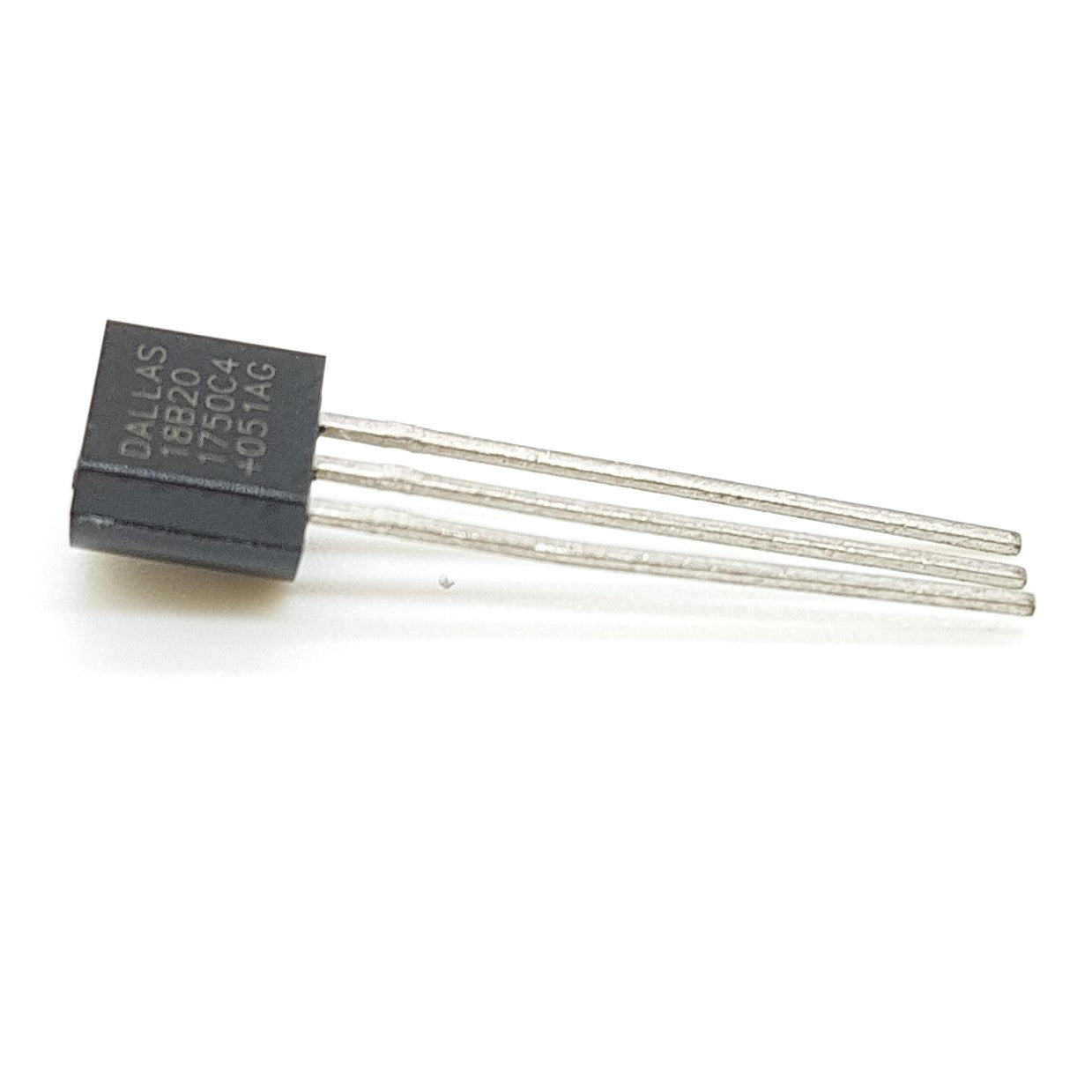

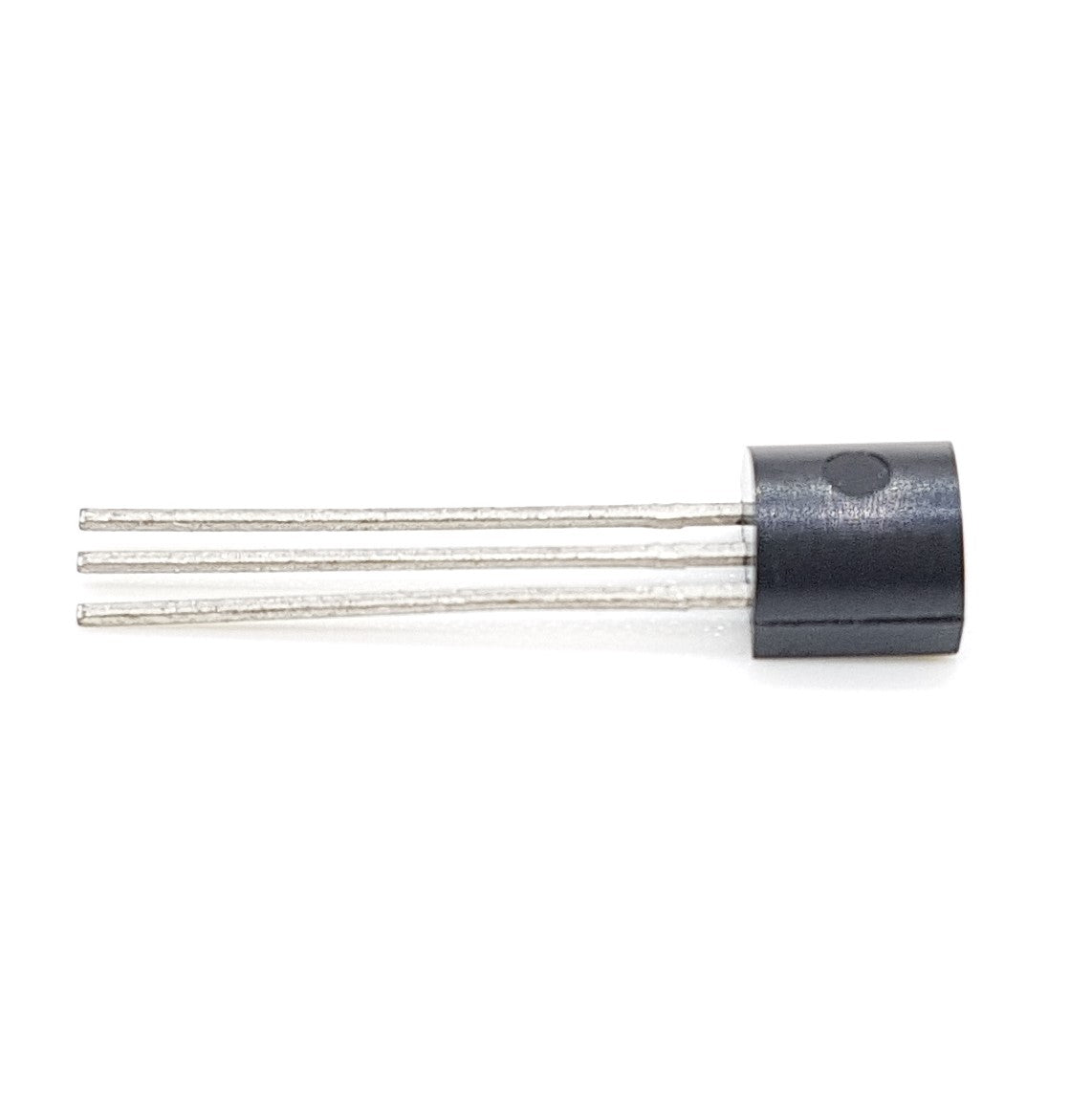

These 1-wire digital temperature sensors are fairly precise (Ā±0.5Ā°C over much of the range) and can give up to 12 bits of precision from the onboard digital-to-analog converter. They work great with any microcontroller using a single digital pin, and you can even connect multiple ones to the same pin, each one has a unique 64-bit ID burned in at the factory to differentiate them. Usable with 3.0-5.0V systems.

We toss in a 4.7k (for long cable) & 2.2k (for short cable) resistor, which is required as a pullup from the DATA to VCC line when using the sensor.Ā

Ā

  • Unique 1-WireĀ® Interface Requires Only One Port Pin for Communication
  • Each Device has a Unique 64-Bit Serial Code Stored in an On-Board ROM
  • Multidrop Capability Simplifies Distributed Temperature-Sensing Applications
  • Requires No External Components
  • Can Be Powered from Data Line; Power Supply Range is 3.0V to 5.5V
  • Measures Temperatures from -55Ā°C to +125Ā°C (-67Ā°F to +257Ā°F)
  • Ā±0.5Ā°C Accuracy from -10Ā°C to +85Ā°C
  • Thermometer Resolution is User Selectable from 9 to 12 Bits
  • Converts Temperature to 12-Bit Digital Word in 750ms (Max)
Specifications
Resources
Datasheets
LibrariesĀ
Sample Code
Tutorials

Ā

What is included with the waterproof DS18B20 sensor and how does it help in wet or long distance installations?
It is a pre wired waterproof version and includes pullup resistors for the data line, 4.7k for long cables and 2.2k for short cables.
How many sensors can be connected on a single data line?
The device supports a multidrop configuration with multiple sensors on the same 1 Wire data line; each unit has a unique 64 bit serial code to identify it.
What voltage does it operate at and can it be powered from the data line?
It is usable with 3.0 to 5.0 volt systems and the power supply range is 3.0 to 5.5 volts.
What temperature range and accuracy does the sensor provide?
It measures -55 C to +125 C and offers about plus minus 0.5 C accuracy over much of the range; resolution is selectable from 9 to 12 bits.
Why would I choose this sensor for wet or long distance sensing?
Digital 1 Wire communication provides no signal degradation over long distances and the waterproof pre wired assembly is designed for wet environments.
A
Admin
Welcome to the discussion thread for DS18B20 Digital Temperature Sensor
Feel free to ask questions, share tips or report issues.
Add Post

For more discussion Click Here

Discover More In:

Browse All Products ā†’ Sensors ā†’ Temperature, Humidity, Pressure, Gas, Environment, Temperature Controllers ā†’

Category: View all Sensor

Fill out the form below and our team will get back to you with bulk pricing.

Description
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

This is a pre-wired and waterproofed version of the DS18B20 sensor.

Handy for when you need to measure something far away, or in wet conditions. While the sensor is good up to 125Ā°C the cable is jacketed in PVC so we suggest keeping it under 100Ā°C. Because they are digital, you don't get any signal degradation even over long distances!

These 1-wire digital temperature sensors are fairly precise (Ā±0.5Ā°C over much of the range) and can give up to 12 bits of precision from the onboard digital-to-analog converter. They work great with any microcontroller using a single digital pin, and you can even connect multiple ones to the same pin, each one has a unique 64-bit ID burned in at the factory to differentiate them. Usable with 3.0-5.0V systems.

We toss in a 4.7k (for long cable) & 2.2k (for short cable) resistor, which is required as a pullup from the DATA to VCC line when using the sensor.Ā

Ā

  • Unique 1-WireĀ® Interface Requires Only One Port Pin for Communication
  • Each Device has a Unique 64-Bit Serial Code Stored in an On-Board ROM
  • Multidrop Capability Simplifies Distributed Temperature-Sensing Applications
  • Requires No External Components
  • Can Be Powered from Data Line; Power Supply Range is 3.0V to 5.5V
  • Measures Temperatures from -55Ā°C to +125Ā°C (-67Ā°F to +257Ā°F)
  • Ā±0.5Ā°C Accuracy from -10Ā°C to +85Ā°C
  • Thermometer Resolution is User Selectable from 9 to 12 Bits
  • Converts Temperature to 12-Bit Digital Word in 750ms (Max)
Specifications
Resources
Datasheets
LibrariesĀ
Sample Code
Tutorials

Ā

FAQ
What is included with the waterproof DS18B20 sensor and how does it help in wet or long distance installations?
It is a pre wired waterproof version and includes pullup resistors for the data line, 4.7k for long cables and 2.2k for short cables.
How many sensors can be connected on a single data line?
The device supports a multidrop configuration with multiple sensors on the same 1 Wire data line; each unit has a unique 64 bit serial code to identify it.
What voltage does it operate at and can it be powered from the data line?
It is usable with 3.0 to 5.0 volt systems and the power supply range is 3.0 to 5.5 volts.
What temperature range and accuracy does the sensor provide?
It measures -55 C to +125 C and offers about plus minus 0.5 C accuracy over much of the range; resolution is selectable from 9 to 12 bits.
Why would I choose this sensor for wet or long distance sensing?
Digital 1 Wire communication provides no signal degradation over long distances and the waterproof pre wired assembly is designed for wet environments.
