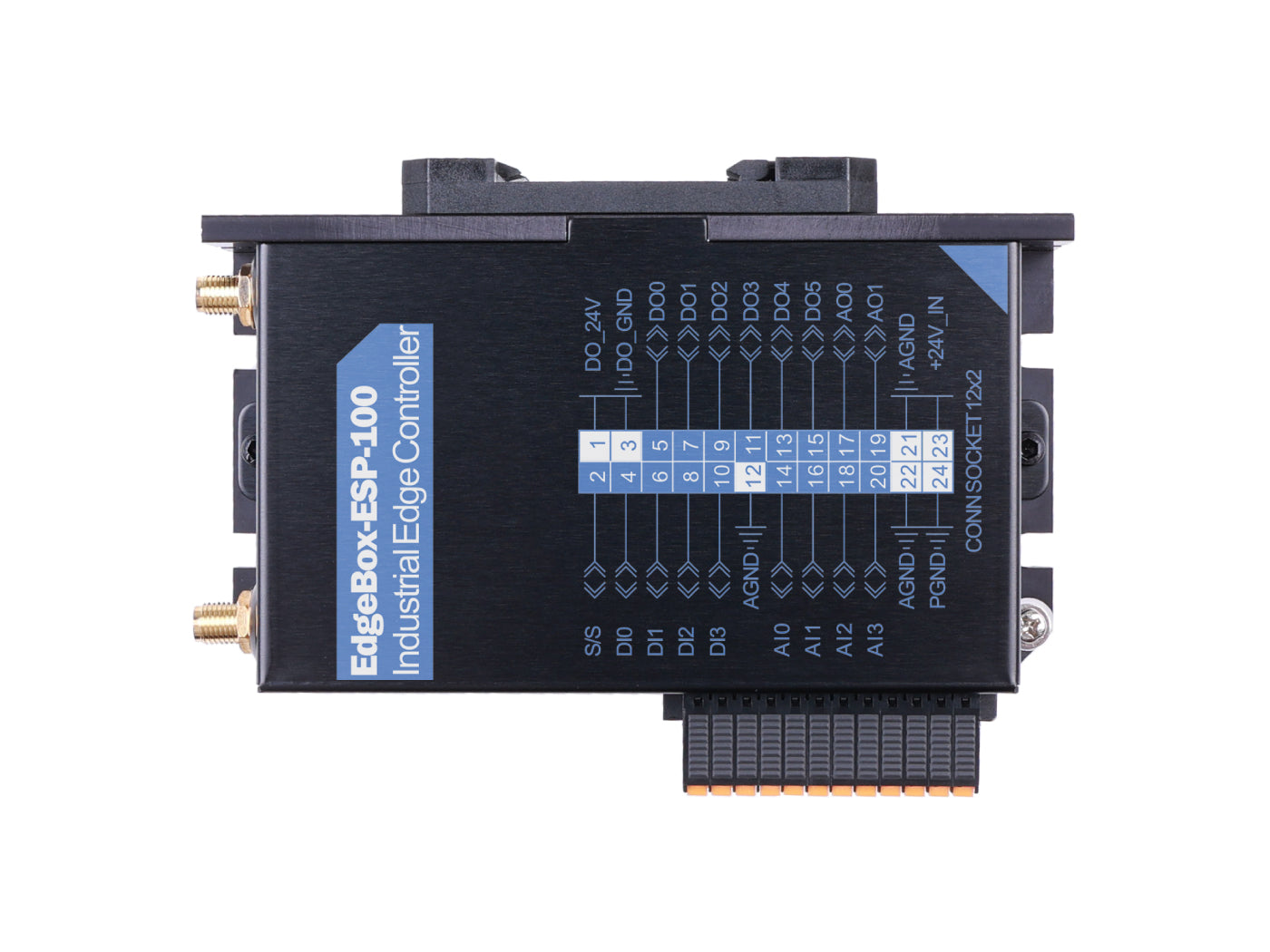

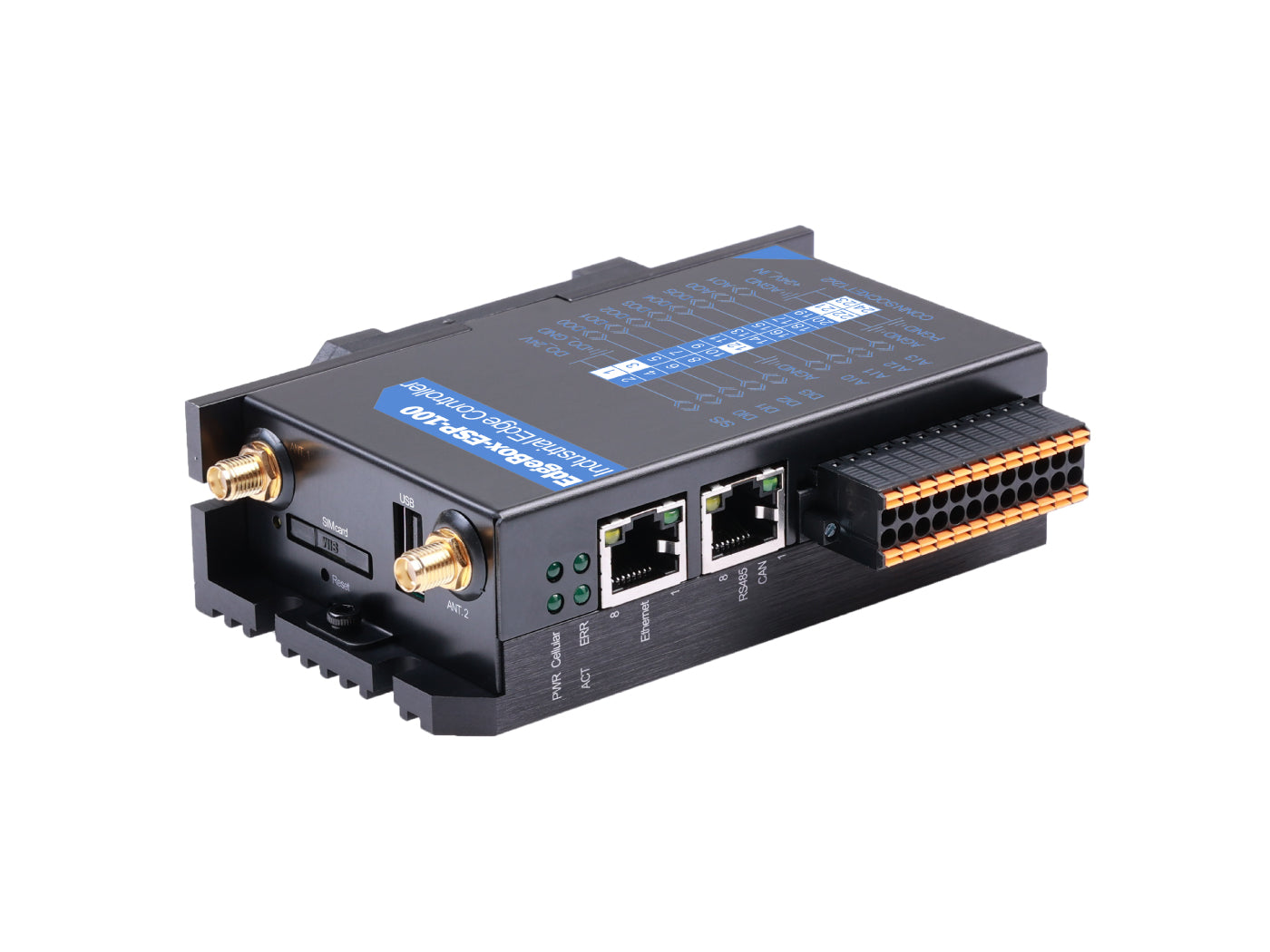

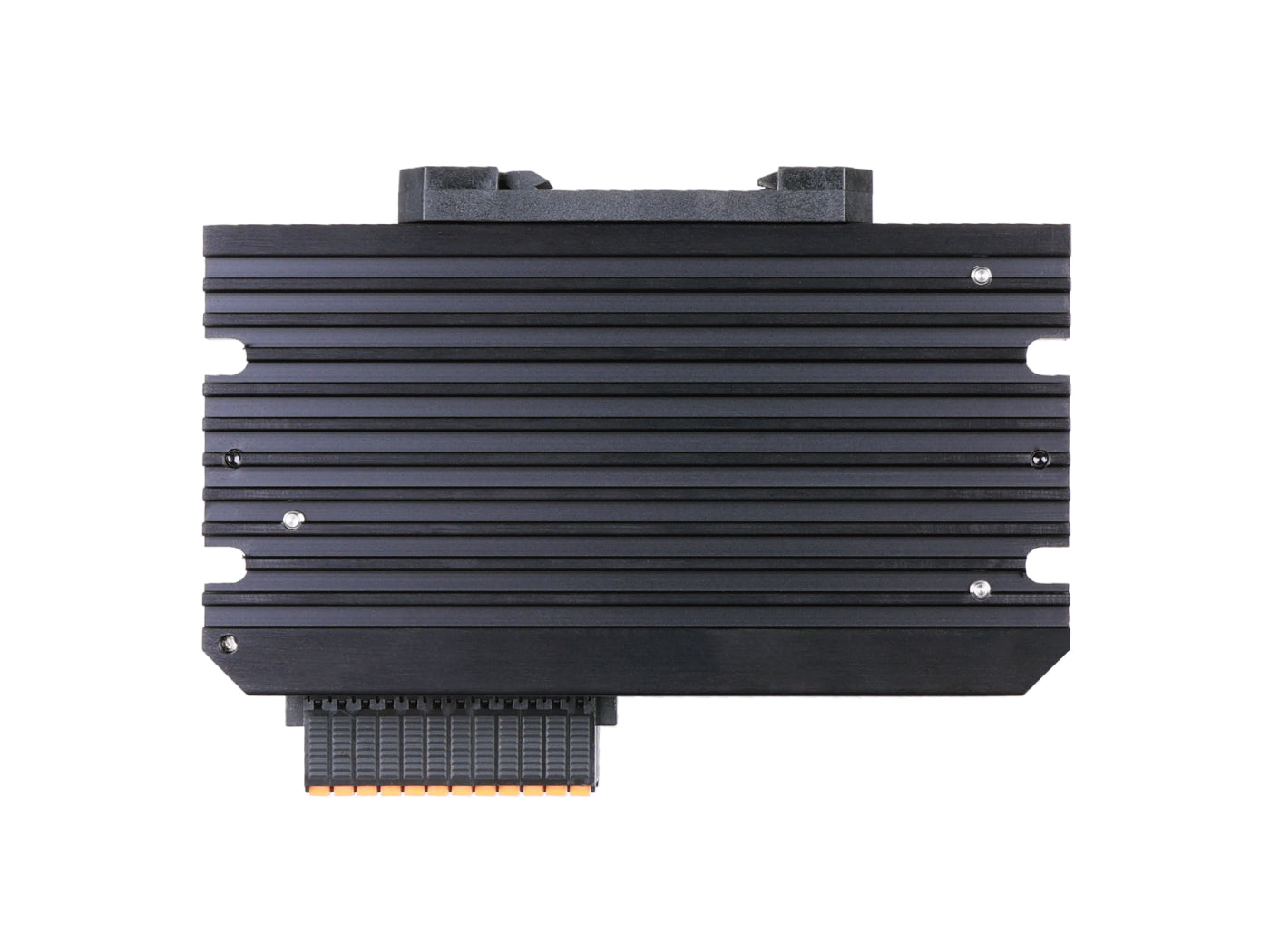

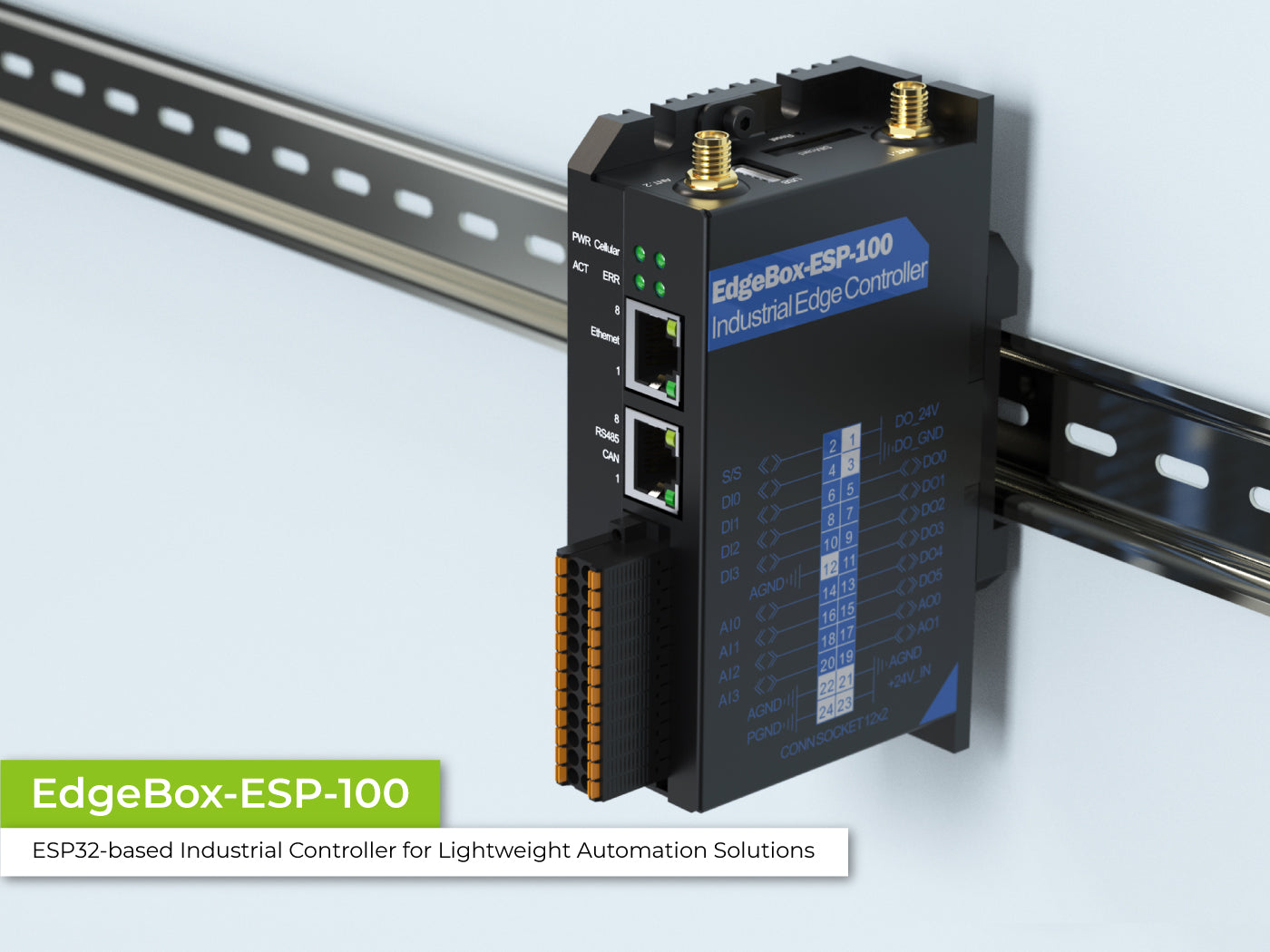

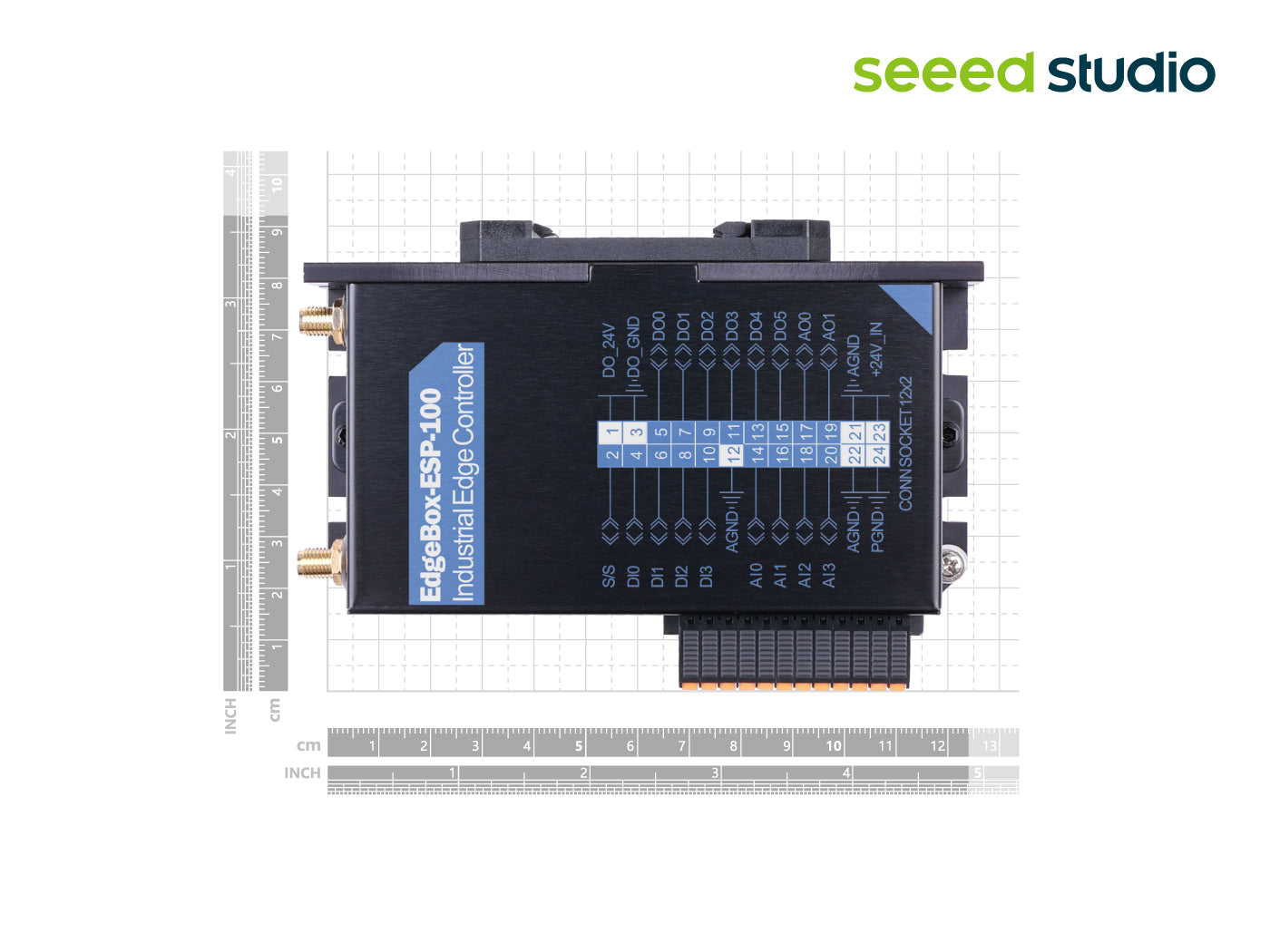

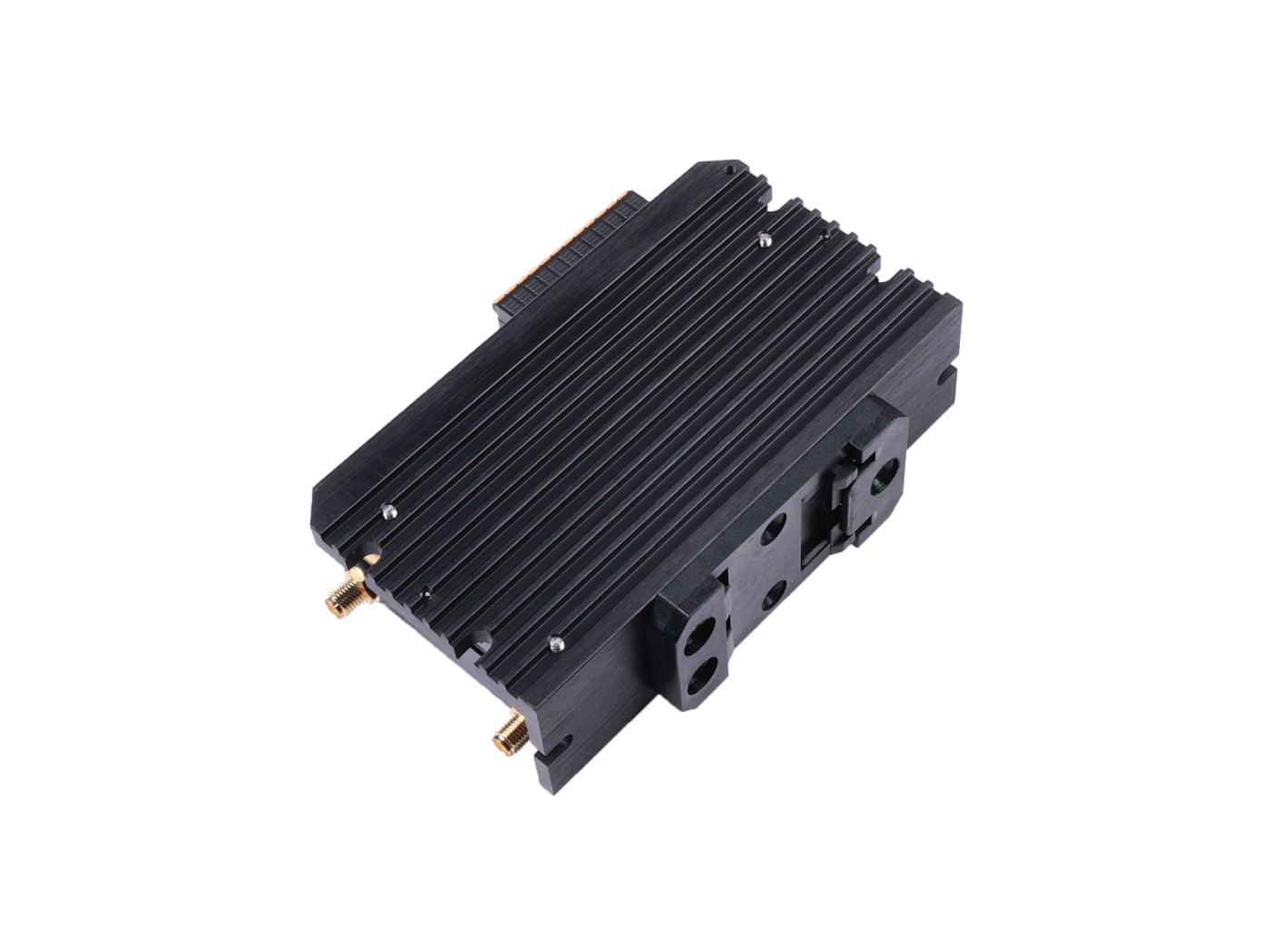

EdgeBox-ESP-100-Industrial Edge Controller
EdgeBox-ESP-100-Industrial Edge Controller, WiFi, BLE, 4G LTE, DIO, AIO, Ethernet, CAN, RS485 EdgeBox-ESP-100 represents the lightweight, multi-functional controller. It carries various wireless capabilities and multiple Fieldbus, which makes it an independent PLC for field automation applications, or enables it as an industrial gateway for offering the original PLC the communicated ability to network and cloud.
Feature
Multi-Fieldbus Support: CAN, RS485, Ethernet
Multi-wireless Capability: On-chip Wifi, BLE connectivity; built-in Cellular 4G LTE module
Reliable Hardware Design: Rugged, maintenance-reduced structure
Reliable Electrical Design: High isolation, High surge, and short circuit protection
IEC 61131-3 compliant programs support (under development) Programmable with ESP-IDF
Description
EdgeBox-ESP-100 is an ESP32-based controller designed for lightweight automation solutions. It supports analog input, effectively monitoring and controlling in a remote environment, ideal for PID control loops, logic sequencing control, or a gateway with flexible wireless and field sensors expansion.
Besides EdgeBox-ESP-100, We also have the other 2 Edge products for different solutions in the Edge family, powered by Raspberry Pi. To help you understand the differences deeply and choose the most suitable part for your projects, please refer to the Seeed Studio Edge Series Page
It offers isolated CAN, RS485 Fieldbus connections, and rich IO resources for extensive facilities and sensors input, for both digital and analog signals. It is perfectly satisfactory to the PLC and field automation applications.
Since it contains on-chip Wi-Fi and BLE functions, and also includes a 4G LTE module Cellular, EdgeBox-ESP-100 can be utilized to establish an industrial gateway, enabling the original PLC to connect the network or cloud.
This portable box comes with rugged hardware, an electrical design, and an aluminum alloy enclosure, by which it maintains its function in a wide temperature range and provides high surge and short circuit protection, for diverse deployment methods based on your business.
Specification
Parameters
Detail
Basic
CPU
ESP32S3
Memory
512KB + 8MB RAM
Storage
16MB Flash
Wireless
WiFi
on-chip 2.4 GHz
Bluetooth
on-chip Bluetooth 5.0, BLE
Cellular
4G - A7670G SIMCom LTE Cat 1 module
LoRa
Supported*
Interface
Ethernet
100M RJ45 *1
USB
USB2.0 A*1
CAN BUS
CAN BUS *1 (Isolated)
RS Serial
RS485 *1 (Isolated)
Digital Input
4 (Isolated) onboard
Digital Output
6 (isolated)
Recommended Voltage - 24V
Analog Input
4 (Isolated)
Input: 0 ~ 20 mA default, 0-10V optional
Analog Output
2 (Isolated)
Output: 0 ~ 5 V
Power Supply
10.8 ~ 36 V
Extra features
RTC
RTC
Encryption Chip
Atecc608a(optional)
Operation temperature
-20 to +60 °C
Certification
RoHS, CE, FCC, UKCA
Warranty
2 Years
The box supports LoRaWAN® communication but requires soldering to replace the 4G module. If you want to customize it in LoRaWAN® communicating or customize features marked as 'Optional' , feel free to email us at produce@seeed.cc.
Application
SCADA
Industrial Controller
Proportional, Integral, and Derivative (PID) control loops;
Logic Sequencing Control
Industrial Gateway
Part List
FAQ
What is the maximum operating voltage?
The maximum operating voltage is 60V.
Documentations
