EMB1061 BLE Module

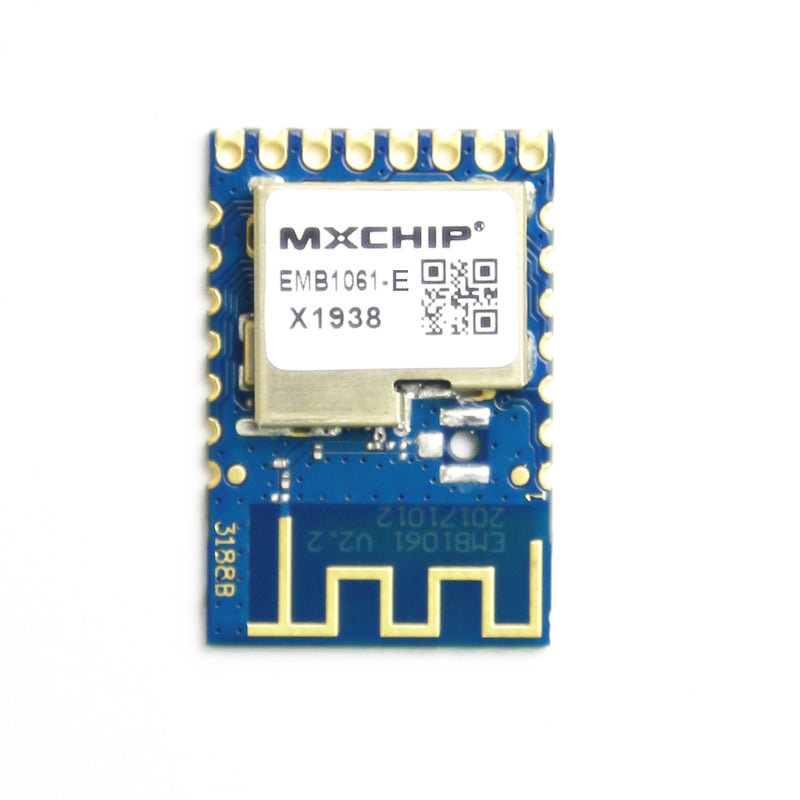

EMB1061 is an embedded BLE module by MXCHIP. It integrates a BLE4.2 single mode SOC, including ARM Cortex-M0 Core, BLE/2.4G Radio, 24KB RAM, 160KB Flash and rich peripherals. EMB1061 uses half-hole package which is easy for soldering.
Hardware diagram is shown below with three main parts:
32-bit Cortex-M0 Core
BLE 2.4GHz RF
Power management
With:
Up to 16MHz ARM Cortex-M0 MCU with 24KB RAM , 160KB FLASH, UART，I2C，SPI，ADC，Timer/PWM
RF part: support PCB antenna or IPEX connector
Power management: DC3.3V power supply, operating voltage range: 1.7V~3.6V
Features
Based on an ultra-low power BLE SOC
- ARM Cortex-M0 Core 32MHz
Operating Voltage: 1.7V～3.6V
Bluetooth Features
- Support Bluetooth 4.2 (BLE single mode)
Operating Temperature：-40℃ to +105℃
Antenna: PCB antenna or IPEX connector (Optional)
Application
Intelligent lighting
Smart Home Application
Wearables
Smart healthcare
Portable devices
Operating Conditions EMB1061 would be unstable when input voltage is less than the lowest rated voltage. Range of input voltage:
Symbol
Illustration
Condition
Details
Minimum
Typ
Maximum
Unit
VDD
Power Supply
1.7
3.3
3.6
V
There would be permanent damage in hardware if the device operates at the voltage over rated value.
Meanwhile, reliability could be influenced when the device has a long-term operating at maximum voltage.
Absolute maximum voltage rating:
Symbol
Description
Minimum
Typ
Unit
VDD
Module input voltage
–
3.8
V
VIN
GPIO input voltage
−
3.8
V
Power Consumption:
Mode
Description
Average
Max
TA=25°C
TA=25°C
EMB1061
CPU_HALT
CPU running halted, all peripherals keep running and can wake up CPU by interrupt/event.
2.49mA
2.63mA
Advertisement
Advertise every 1.28s, keep in TIMER_SLEEP mode between the advertisement intervals.
19.53uA
8.43mA
Connected
Keep connected with other BLE device, communicate every 50ms, and keep in TIMER_SLEEP mode between the communication intervals.
138.96uA
8.39mA
Scanning
Scan every 1.28s, and kee in TIMER_SLEEP mode between the scan intervals.
568.75uA
8.26mA
Sleep
TIMER_SLEEP ON
3.54uA
2.76mA
Standby
CPU and all peripherals OFF Wakeup pins ON
375.98nA
2.68uA
Working Environment:
Symbol
Name
Maximum
Unit
TSTG
Storage Temperature
-40 to +110
℃
TA
Operation Temperature
-40 to +105
℃
Humidity
Non-condensing, Relative humidity
95
%
Electrostatic Discharge:
Symbol
Name
Details
Level
Maximum
Unit
VESD(HBM)
Electrostatic discharge voltage
TA= +25 °C , JESD22-A114
2
2000
V
VESD(CDM)
Electrostatic discharge voltage
TA = +25 °C , JESD22-C101
II
500
Part List EMB1061 BLE Module x 1
