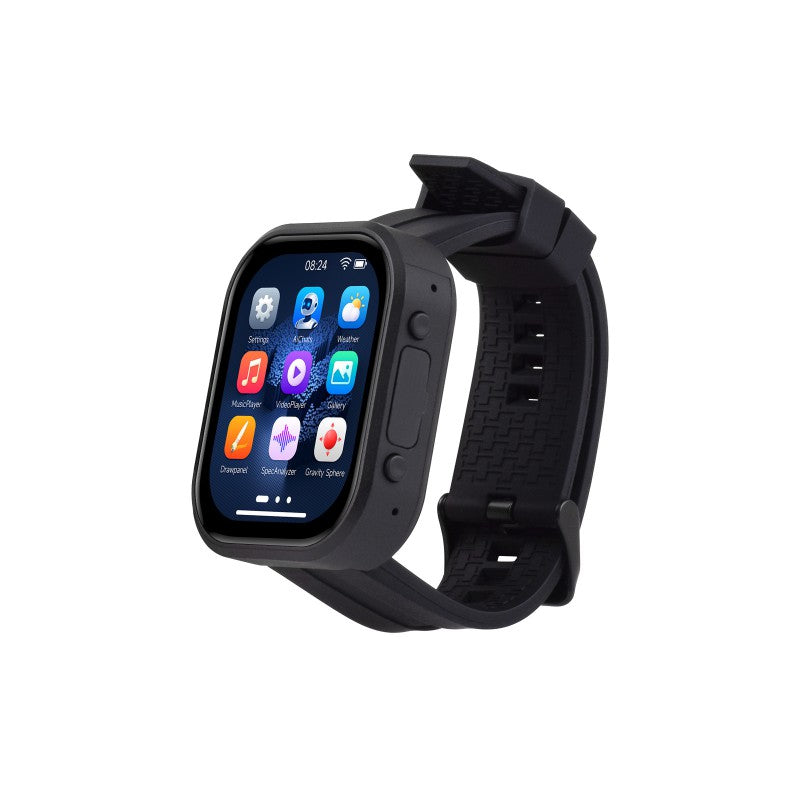

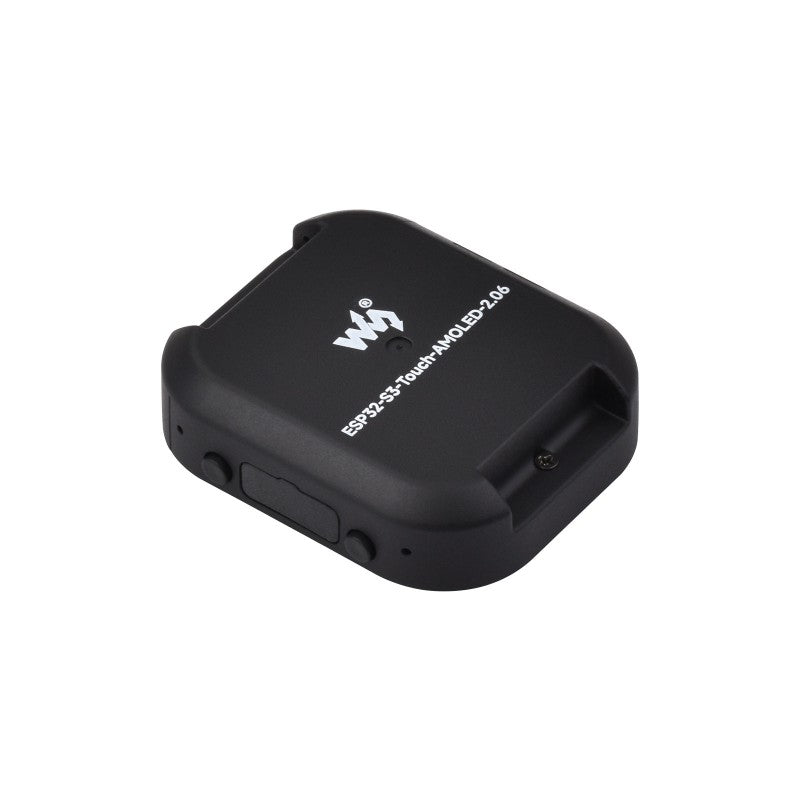

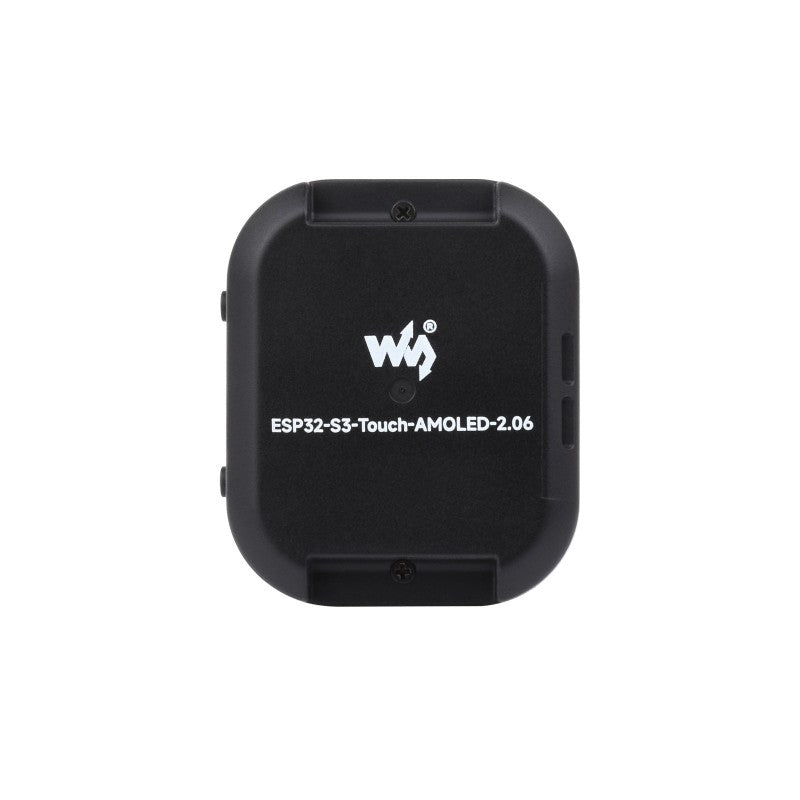

ESP32-S3 2.06inch AMOLED Watch Development Board
Embedded with CO5300 Display Driver and FT3168 Capacitive Touch Chip
Features
The ESP32-S3-Touch-AMOLED-2.06 is a high-performance, wearable watch-style development board designed by Waveshare. Based on the ESP32-S3R8 microcontroller, it integrates a 2.06inch AMOLED capacitive touch display, 6-axis IMU, RTC chip, audio codec chip, power management IC, and so on. Comes with a custom-designed case with a smartwatch-like appearance, making it ideal for prototyping and functional verification of wearable applications.
| Equipped with ESP32-S3R8 Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency |
| Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna |
| Built-in 512KB SRAM and 384KB ROM, with onboard 8MB PSRAM and external 32MB Flash memory |
| Type-C connector for improved device compatibility and ease of use |
| Onboard 2.06-inch AMOLED capacitive touch display, 410 × 502 resolution, 16.7M colors |
| Built-in CO5300 display driver and FT3168 capacitive touch chip using QSPI and I2C communication |
| Onboard QMI8658 6-axis IMU (3-axis accelerometer + 3-axis gyroscope) for motion detection and step counting |
| Onboard PCF85063 RTC chip, powered via AXP2101 with lithium battery backup |
| Onboard programmable PWR and BOOT buttons for custom function development |
| Onboard 3.7V MX1.25 lithium battery recharge/discharge header |
| Reserved pads for 1× I2C, 1× UART, and 1× USB interface for peripherals and debugging |
| Onboard TF card slot for extended storage and high-speed data transfer |
| Uses AXP2101 power management IC supporting multi-voltage outputs, battery charging, and power optimization |
| AMOLED display offers high contrast, wide viewing angle, rich colors, fast response, and low power consumption |
AMOLED Parameters
| Display Panel | AMOLED | Display Size | 2.06 inch |
| Resolution | 410 × 502 pixels | Display Colors | 16.7M |
| Brightness | 600 cd/㎡ | Contrast Ratio | 100000:1 |
| Communication Interface | QSPI | Driver IC | CO5300 |
| Touch | Supported | Touch IC | FT3168 |
Small Size, Touch More Possibilities
Suitable For Various Smart Device Development, and Can Realize Human-Computer Interaction Function. Supports connecting to a battery for independent operation
Adopts AMOLED Screen
The next-generation display technology, compared to traditional LCD displays, the AMOLED screen features precise light-control capability, representing more delicate colors, more picture details, and more vivid videos and images
178° Wide Viewing Angle
Excellent Display Performance, 16.7M color, wide viewing angle
Onboard Audio Codec
Onboard ES8311 audio codec chip and ES7210 echo cancellation circuit. Meet daily audio application scenarios
Supports Offline Voice Recognition and AI Speech Interaction
Allows access to online large model platforms such as DeepSeek, Doubao, etc.
Supports ESP-IDF, Arduino
Comprehensive SDK, dev resources, tutorials to help you easily get started
Wi-Fi and BLE 5 Support
ESP32-S3 integrates 2.4 GHz Wi-Fi (802.11 ax/b/g/n) with 40 MHz of bandwidth support, Its Bluetooth Low Energy subsystem supports Bluetooth 5 (LE) and Bluetooth Mesh

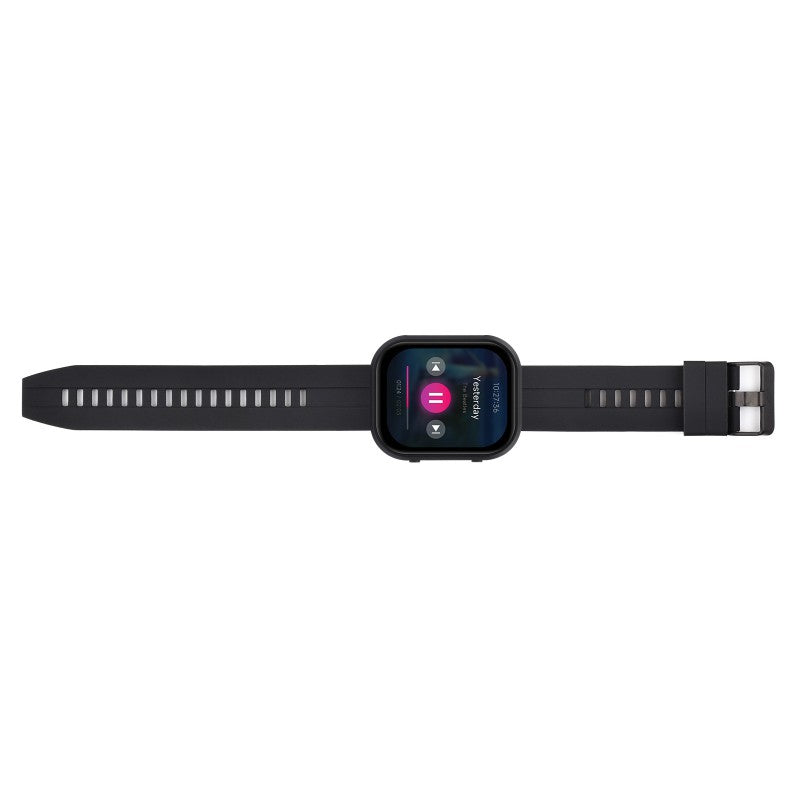

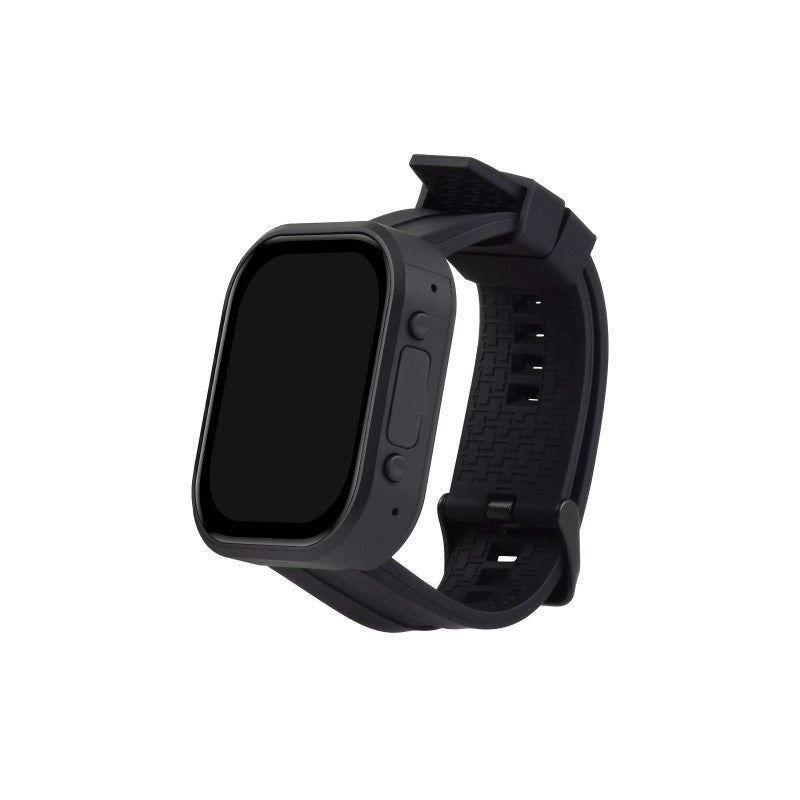

Wearable Design
Detachable watch straps for easy replacement and convenient matching with different styles
What's On Board
Pin Definition
Outline Dimensions
Resources & Services
Wiki: www.waveshare.com/wiki/ESP32-S3-Touch-AMOLED-2.06
Package Content
Weight: 0.119 kg
ESP32-S3-Touch-AMOLED-2.06 x1
Watch straps ×1
MX1.25 Lithium battery ×1
What can I build with this wearable development board?
It is designed for prototyping wearable applications with a 2.06 inch AMOLED touch display, WiFi and Bluetooth, 6 axis IMU, RTC, and audio support for rapid testing.
Is the board compatible with ESP IDF and Arduino?
Yes, it supports ESP IDF and Arduino, with comprehensive SDKs and resources to help you get started.
What connectivity does it offer?
The board provides 2.4 GHz WiFi and Bluetooth 5 LE with onboard antenna for wireless communication.
What is included in the package?
Includes ESP32 S3 Touch AMOLED 2.06 inch display module, one set of watch straps, and one MX1.25 lithium battery.
What about warranty and support?
Warranty details are not specified here. Please contact the seller for terms and support options.
