ESP32-S3 ETH Development Board
Supports Wi-Fi, Bluetooth, and Ethernet communication, Optional For PoE Function
Onboard TF card slot, camera interface and Pico-compatible header


This is an ETH development board based on ESP32-S3R8, supports Wi-Fi and Bluetooth wireless communication, with reliable and efficient wired Ethernet connectivity, optional for PoE function. Onboard camera interface, compatible with OV2640, OV5640 and other mainstream cameras for image and video capture. Compatible with Pico header, it can be used with some Raspberry Pi Pico HATs. Relying on the rich ecology and open source resources of ESP32, users can get started quickly for secondary development. It is suitable for Internet of Things, image acquisition, smart home and other AI projects.
Key features:
- Adopts ESP32-S3R8 high-performance chip with Xtensa 32-bit LX7 dual-core processor, capable of running at 240 MHz
- Integrated 512KB SRAM, 384KB ROM, 8MB PSRAM and 16MB Flash memory
- Integrated 2.4GHz Wi-Fi and Bluetooth 5 (LE) wireless communication, with an onboard antenna. Supports switching to use external antenna
- Onboard W5500 Ethernet chip for extending 10/100Mbps network port through SPI interface
- Optional for PoE module to realize Power over Ethernet function (IEEE 802.3af-compliant)
- Onboard camera interface, compatible with OV2640, OV5640 and other mainstream cameras for image and video capture
- Onboard USB Type-C port for power supply, program downloading, and debugging, more convenient for development use
- Onboard TF card slot for external TF card storage of pictures or files
- Compatible with Pico header, onboard multiple peripheral interfaces, offering strong compatibility and expandability
Version options

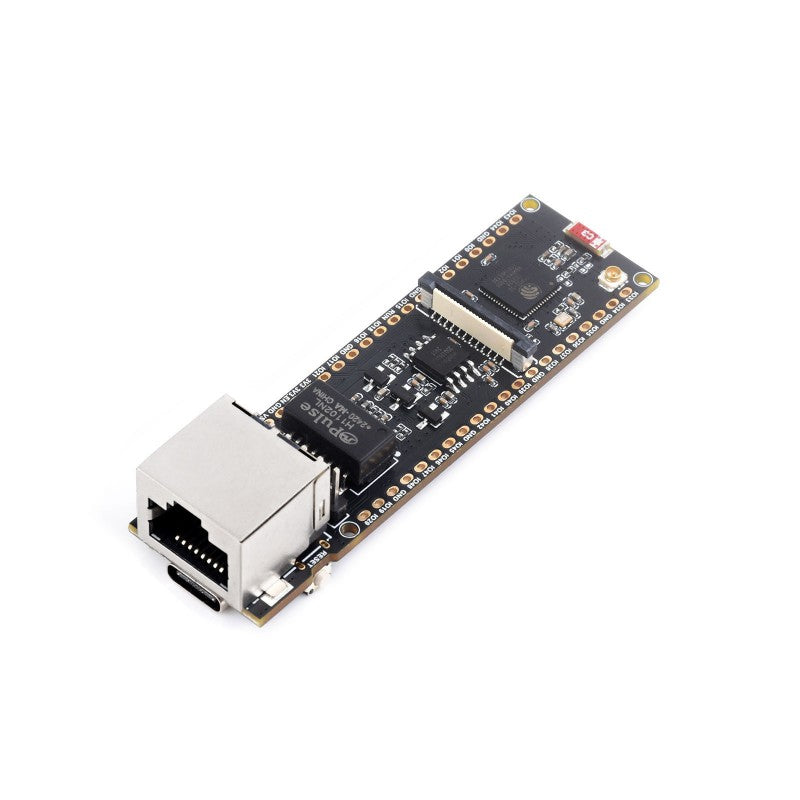

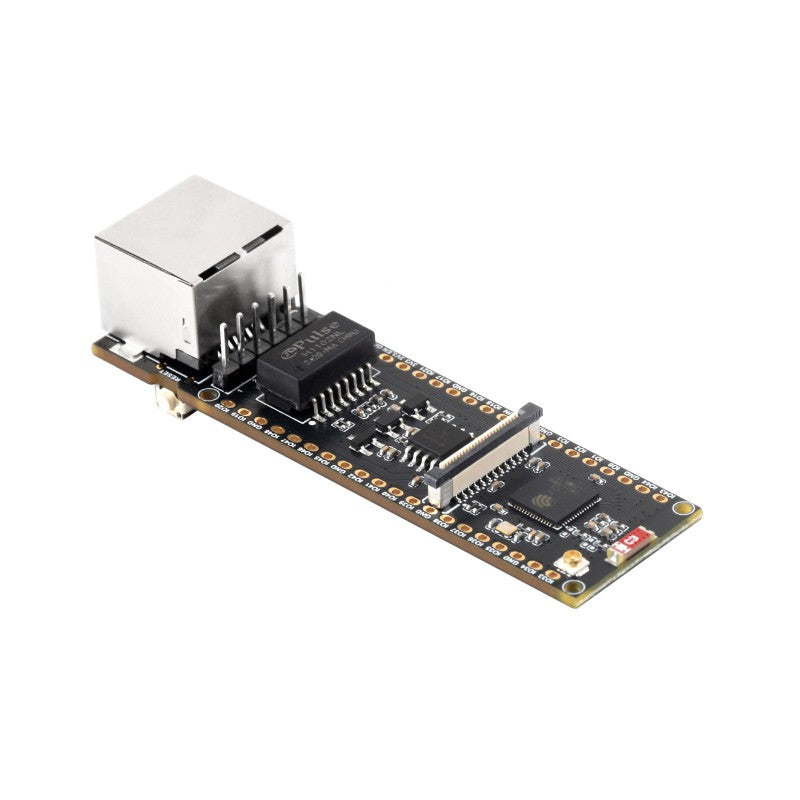

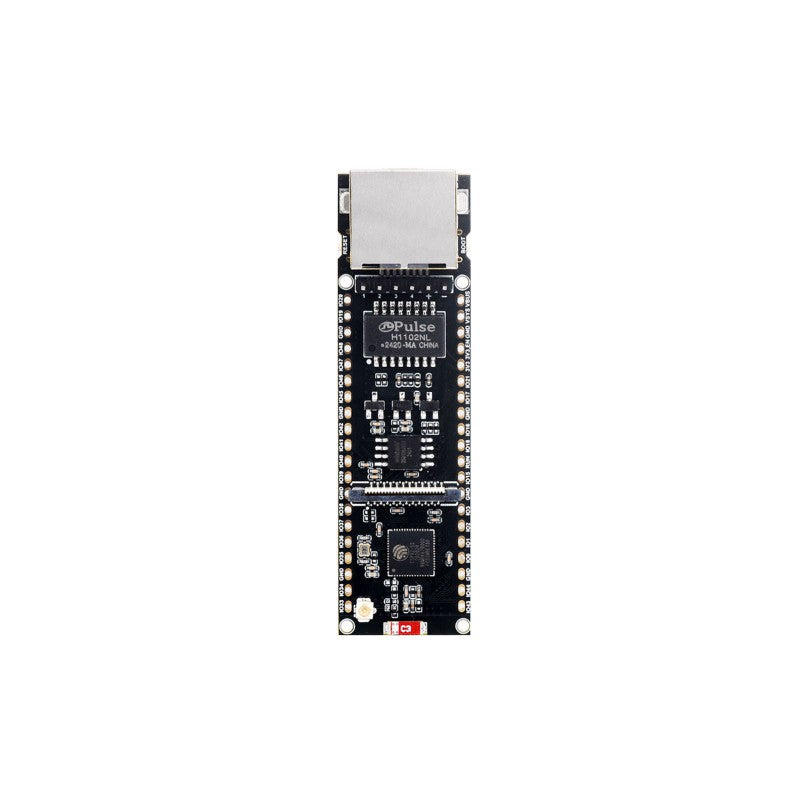

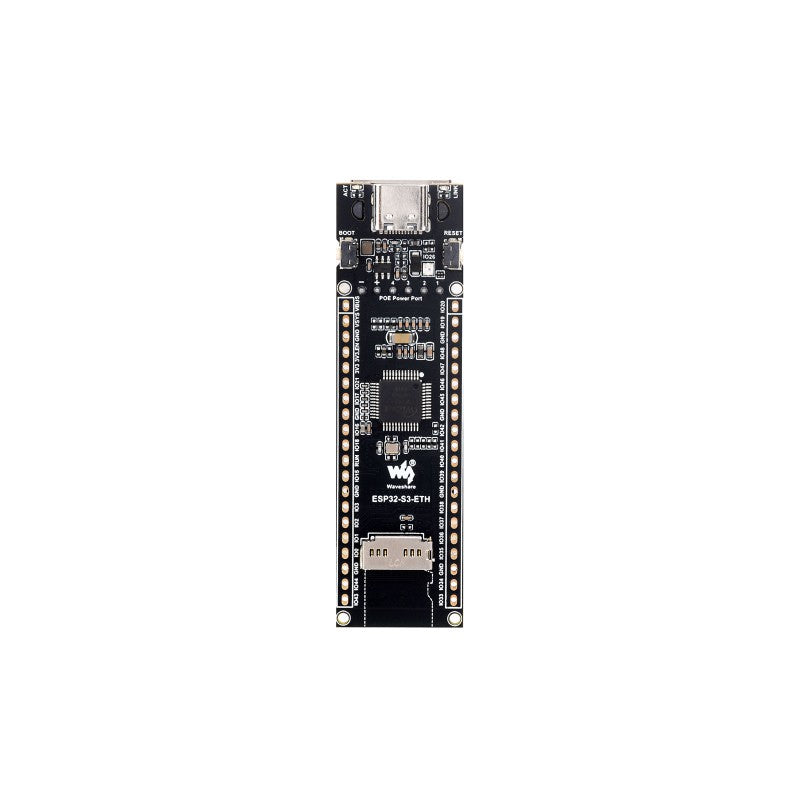

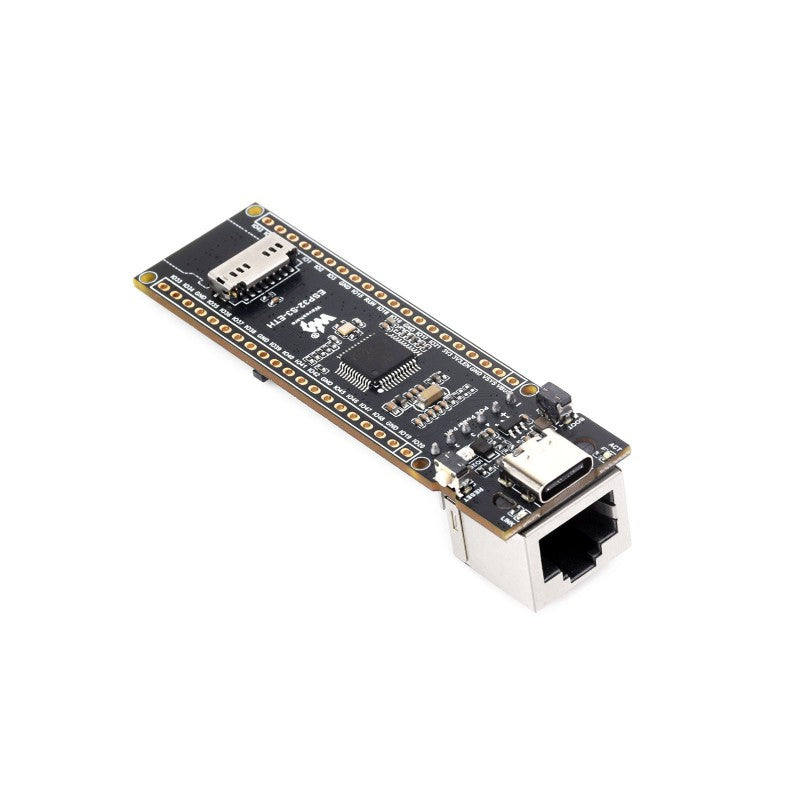

![]() ESP32-S3-ETH |

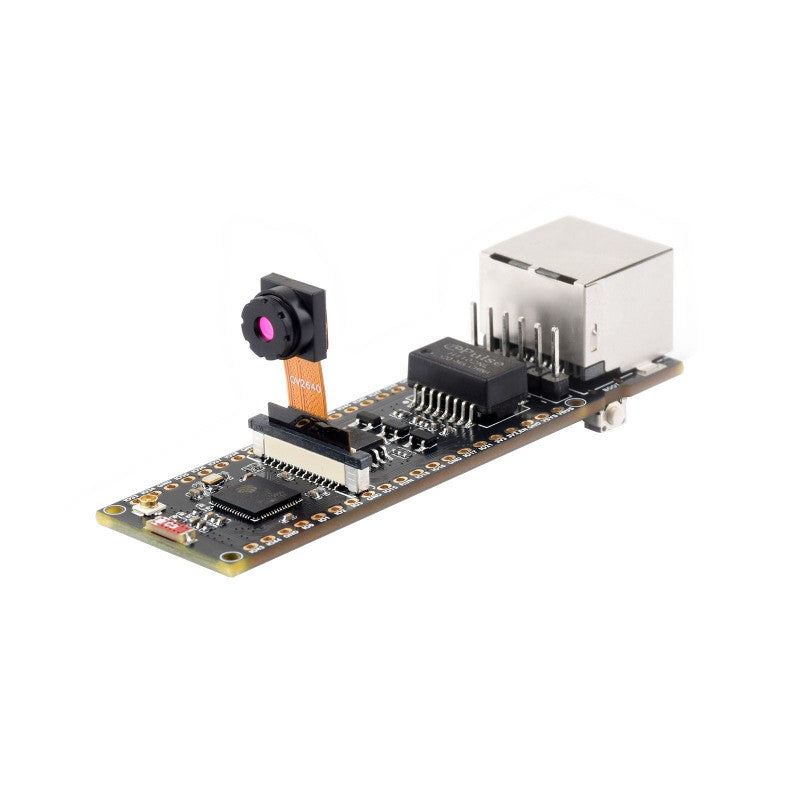

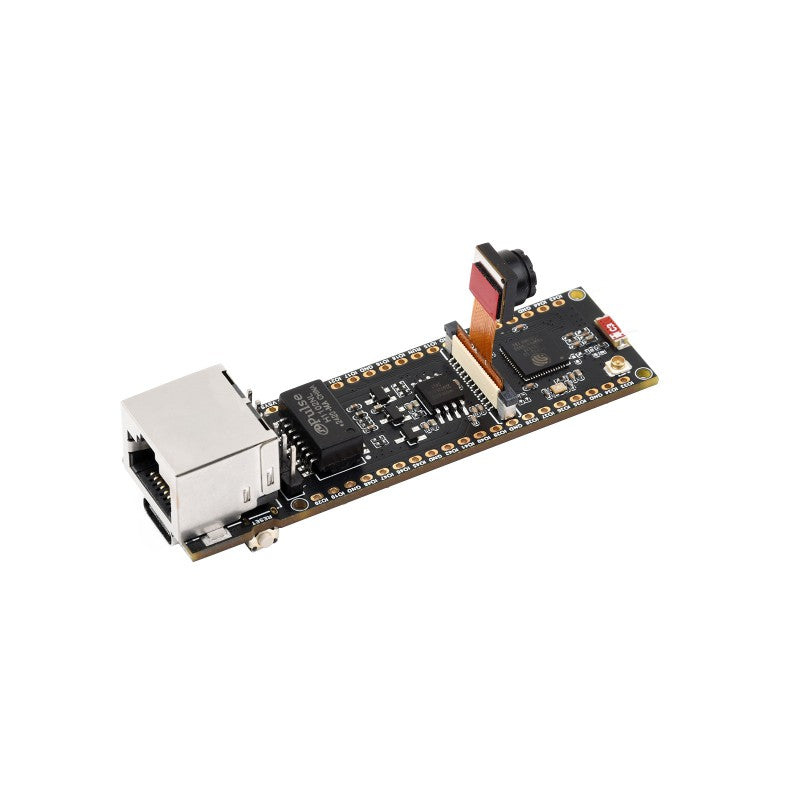

![]() ESP32-S3-ETH-CAM-KIT |

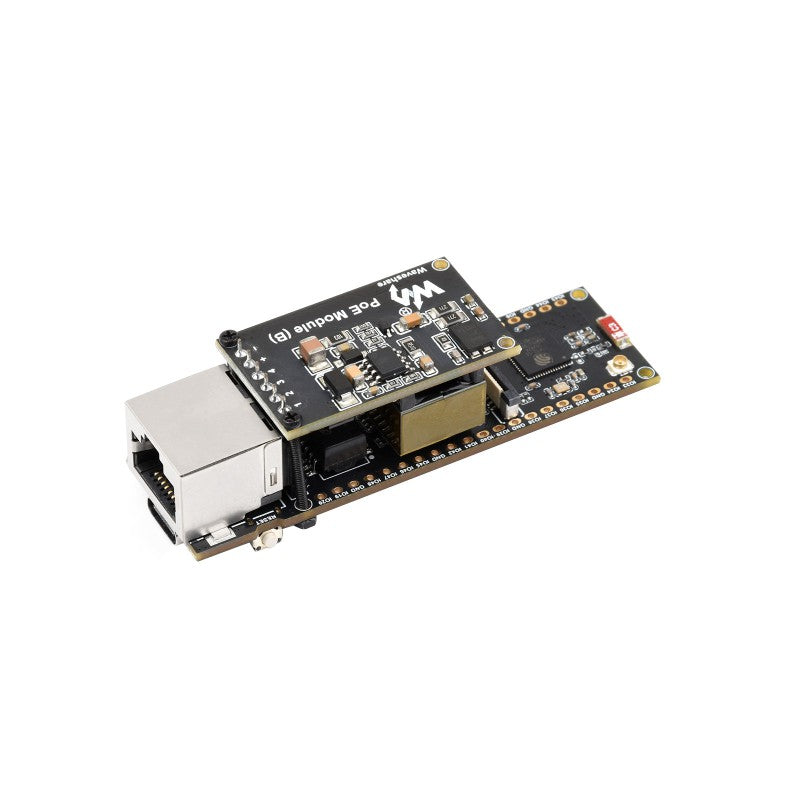

![]() ESP32-S3-POE-ETH |

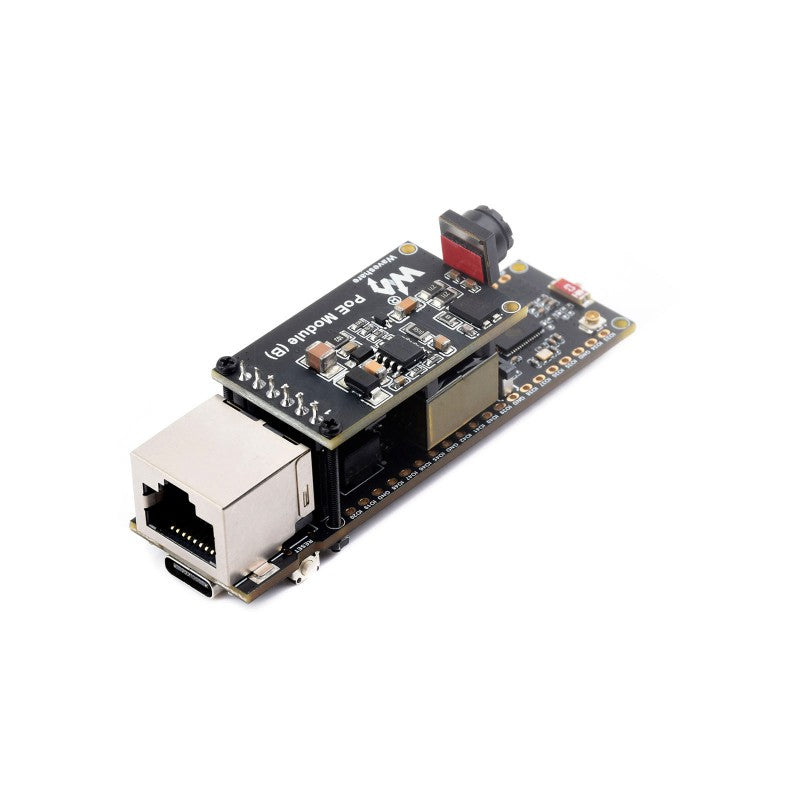

![]() ESP32-S3-POE-ETH-CAM-KIT |
ESP32-S3 Designed for AIoT applications
Powered by Xtensa 32-bit LX7 dual-core processor with frequency up to 240 MHz
Powerful AI Computing Capability & Reliable security features

WIFI and BLE 5 support
ESP32-S3 integrates 2.4 GHz Wi-Fi (802.11 b/g/n) with 40 MHz of bandwidth support
Its Bluetooth Low Energy subsystem supports Bluetooth 5 (LE) and Bluetooth Mesh

Easier to develop
Integrates TF card slot, camera interface and Ethernet port
![]() TF card slot |
![]() Camera interface |
![]() Ethernet port |
Two power supply methods
Supports both PoE* and USB Type-C power supply

* the PoE module is required

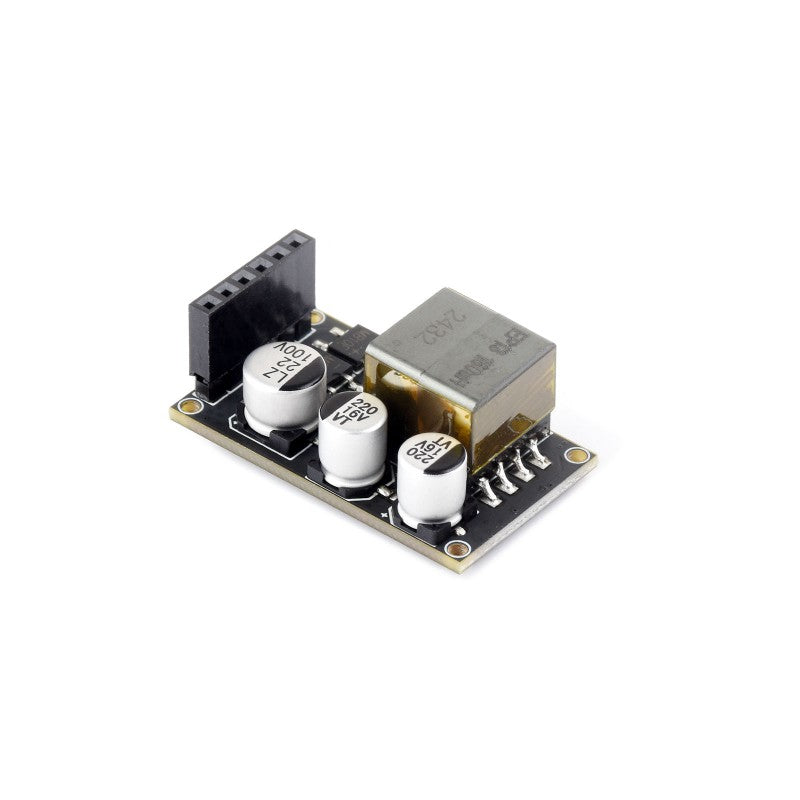

Optional for PoE Module, Supports PoE Power Supply
Provides Both Network Connection And Power Supply In Only One Ethernet Cable

* the PoE module is optional, and the switch in the picture above is NOT included.
Supports OV2640 / 0V5640 and other mainstream cameras
Optional for OV2640 2MP camera module, suitable for image capture, video monitoring and other applications to meet different needs

What's On Board

|
|
Interface Definition
Compatible with Pico header, can be used with some Raspberry Pi Pico HATs, offering strong compatibility and expandability

Outline Dimensions

Resources
Wiki: www.waveshare.com/wiki/ESP32-S3-ETHPackage Contains:
Weight: 0.017 kg
