Best seller

Waveshare

ESP32-S3 3.5inch Capacitive Touch Display Development Board, 320×480 Pixels, IPS

SKU: WVSH0596

₹ 3,449.99

Out of stock

📦 Min order 1
Chat with us on WhatsApp We reply quickly! Contact Us
⏱ This is a pre-order item. We'll ship it as soon as it's back in stock.
ESP32-S3 3.5inch Capacitive Touch Display Development Board, 320×480 Pixels, IPS₹ 3,449.99
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

ESP32-S3-Touch-LCD-3.5


Integrated audio input and output, enabling AI interaction and offline voice control

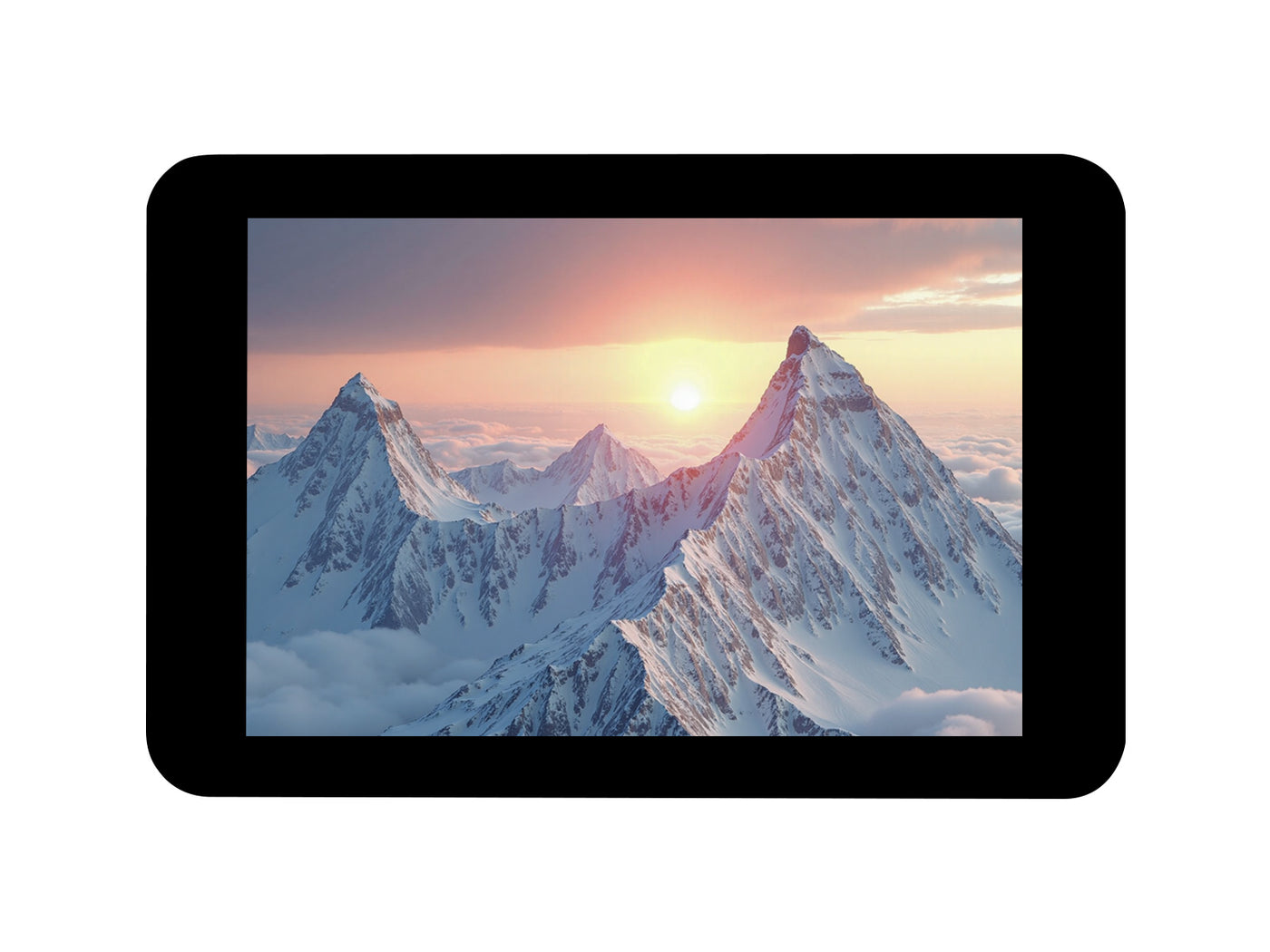

ESP32-S3 3.5inch touch display development board, front view ESP32-S3 3.5inch touch display development board, features


Version Options

ESP32-S3-Touch-LCD-3.5

ESP32-S3-Touch-LCD-3.5
Standard version, without case

ESP32-S3-Touch-LCD-3.5-C

ESP32-S3-Touch-LCD-3.5-C
with case and OV5640 camera




LCD Parameters

Display Panel IPS Display Size 3.5 inch
Resolution 320 × 480 pixels Display Colors 262K
Brightness 220cd/㎡ Contrast Ratio 1100:1
Communication Interface SPI Driver IC ST7796
Touch Type Capacitive Touch IC FT6336


Features

ESP32-S3-Touch-LCD-3.5 is a high-performance, highly integrated MCU board designed by Waveshare. Onboard 3.5inch capacitive touch IPS display, power management IC, 6-axis sensor (3-axis accelerometer and 3-axis gyroscope), RTC, low power audio codec, and so on, which makes it easy for you to develop and integrate into the products quickly.

Key features include:

  • Equipped with ESP32-S3R8 Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
  • Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna
  • Built in 512KB of SRAM and 384KB ROM, with onboard 8MB PSRAM and an external 16MB Flash memory
  • Type-C connector, improving device compatibility, easier to use
  • Onboard 3.5inch capacitive touch display for clear color picture display, 320 × 480 resolution, 262K color
  • Built-in ST7796 display driver and FT6336 capacitive touch chip, using SPI and I2C communication respectively, effectively saving the IO resources
  • Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gestures
  • Onboard PCF85063 RTC chip, powered by main Lithium battery through AXP2101 chip, with reserved RTC battery header for connecting a backup battery, ensuring RTC function during the replacement of the main battery
  • Onboard PWR and BOOT programmable buttons for easy custom function development
  • Onboard 3.7V MX1.25 Lithium battery recharge/discharge header
  • Adapting I2C, UART, USB, and multiple GPIO pins, for connecting peripherals and debugging
  • Onboard TF card slot for extended storage and fast data transfer, suitable for applications such as data recording and media playback, simplifying circuit design
  • Onboard camera interface, compatible with mainstream cameras such as OV5640
  • Adopts AXP2101 IC for efficient power management, supports multiple voltage outputs, battery charging, battery management, and battery life optimization, etc.

Supports AI Speech Interaction

Allows access to online large model platforms such as DeepSeek, Doubao, etc.

ESP32-S3 Touch LCD 1.85, allows accessing to online large model platforms ESP32-S3 Touch LCD 1.85, easy to access AI platforms


Capacitive touch

Suitable for various smart device development, enabling human-machine interaction

ESP32-S3 3.5inch touch display development board, touch demo

IPS Display Panel

Excellent display performance, 262K color, wide viewing angle

ESP32-S3 3.5inch touch display development board, adopts IPS display panel



Onboard audio codec

Supports high-quality audio processing, providing clear and high-quality audio input and output

ESP32-S3 3.5inch touch display development board onboard audio codec





Supports OV5640 and other mainstream cameras

Optional for OV5640 5MP camera module, suitable for image capture, video monitoring and other applications to meet different needs

ESP32-S3 3.5inch touch display development board, supports 0V5640 and other mainstream cameras

* The OV5640 5MP camera module is only included in the ESP32-S3-Touch-LCD-3.5-C version.




Supports ESP-IDF, Arduino IDE

Comprehensive SDK, Dev Resources, Tutorials To Help You Easily Get Started



Wi-Fi and BLE 5 support

ESP32-S3 integrates 2.4 GHz Wi-Fi (802.11 ax/b/g/n) with 40 MHz of bandwidth support, Its Bluetooth Low Energy subsystem supports Bluetooth 5 (LE) and Bluetooth Mesh

ESP32-S3 3.5inch touch display development board, with Wi-Fi and BLE 5 support

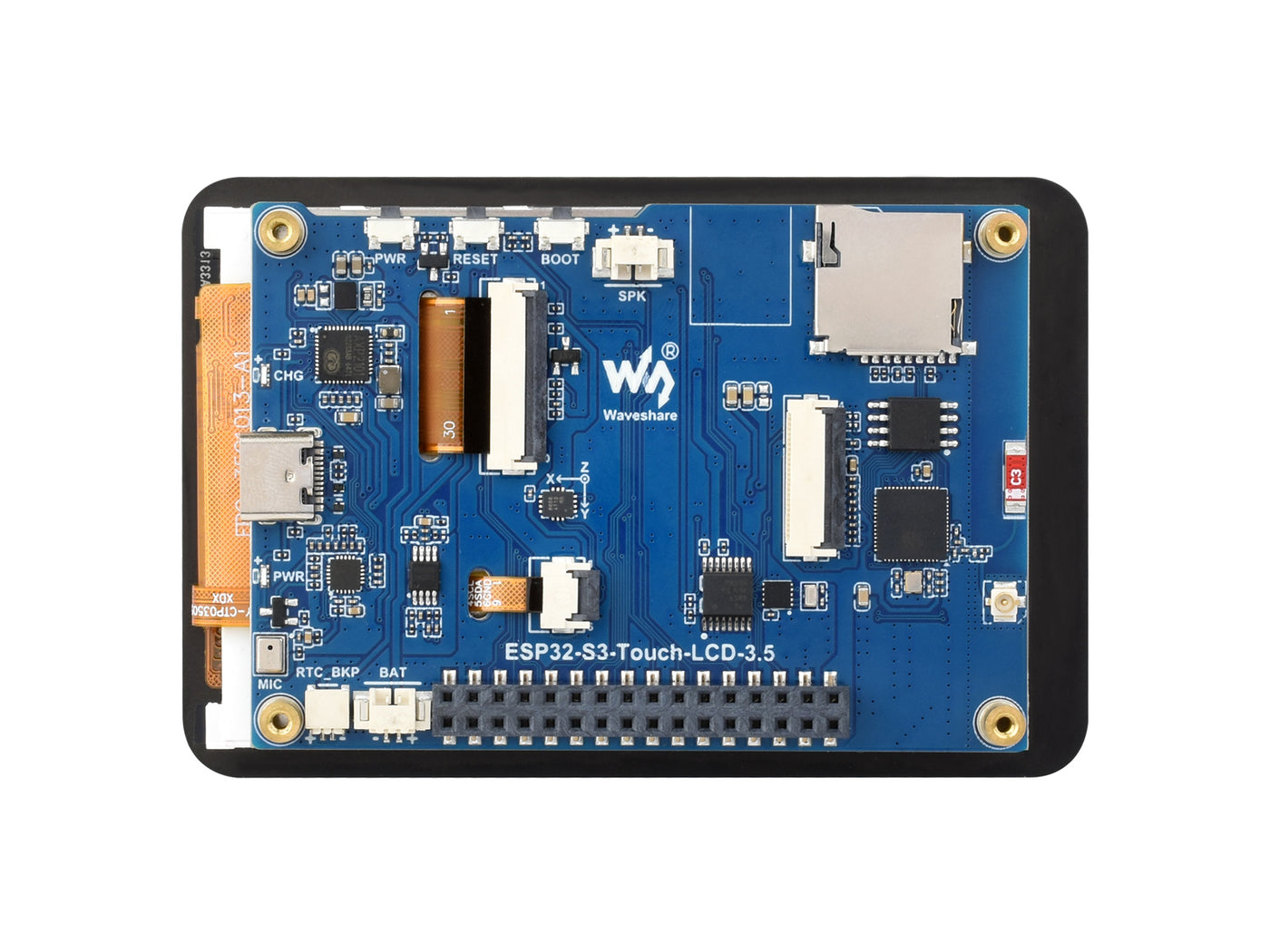

What's On Board

ESP32-S3 3.5inch touch display development board, onboard components
  1. ESP32-S3R8
    The SoC with WiFi and Bluetooth, up to 240MHz operating frequency, with onboard 8MB PSRAM
  2. Onboard antenna
  3. W25Q128JVSIQ
    16MB NOR-Flash
  4. Camera interface
    Supports mainstream cameras such as OV5640
  5. TF card slot
  6. IPEX 1 antenna connector
    Reserved connector, enabled via resoldering an onboard resistor
  7. MX1.25 speaker header
  8. BOOT button
  9. RESET button
  10. PWR button
  11. AXP2101
    Highly integrated power management IC
  1. Charge indicator
  2. USB Type-C port
  3. ES8311
    Low power audio codec chip
  4. Power supply indicator
  5. Microphone
  6. SH1.0 RTC battery header
    for connecting rechargeable RTC battery
  7. MX1.25 Lithium battery header
    MX1.25 2P connector, for 3.7V Lithium battery, supports charging and discharging
  8. 2.54mm pitch GPIO header
    Adapting available IO function pins for easy expansion
  9. PCF85063
    RTC chip
  10. QMI8658
    6-axis IMU includes a 3-axis gyroscope and a 3-axis accelerometer



Pin Definition

ESP32-S3 3.5inch touch display development board, pin definition



Outline Dimensions

ESP32-S3-Touch-LCD-3.5

ESP32-S3-Touch-LCD-3.5, outline dimensions

ESP32-S3-Touch-LCD-3.5-C

ESP32-S3-Touch-LCD-3.5-C, outline dimensions





Package Content

ESP32-S3-Touch-LCD-3.5 x1 (without case)

6Ω 1W speaker x1

1ESP32-S3-Touch-LCD-3.5
2

What is the display size and resolution of the board?
It uses a 3.5 inch IPS display with 320x480 pixels and 262K color.
What wireless connectivity does the board support?
It supports Wi-Fi and Bluetooth 5 connectivity.
Does the board include an onboard camera interface?
Yes, it includes an onboard camera interface for imaging projects.
What are the available version options for this product?
There are two variants: ESP32-S3-Touch-LCD-3.5 standard version without case, and ESP32-S3-Touch-LCD-3.5-C with case and OV5640 camera.
Can the display support audio input and output?
Yes, integrated audio input and output are provided for AI interaction and offline voice control.
A
Admin
Welcome to the discussion thread for ESP32-S3 3.5inch Capacitive Touch Display Development Board, 320×480 Pixels, IPS
Feel free to ask questions, share tips or report issues.
