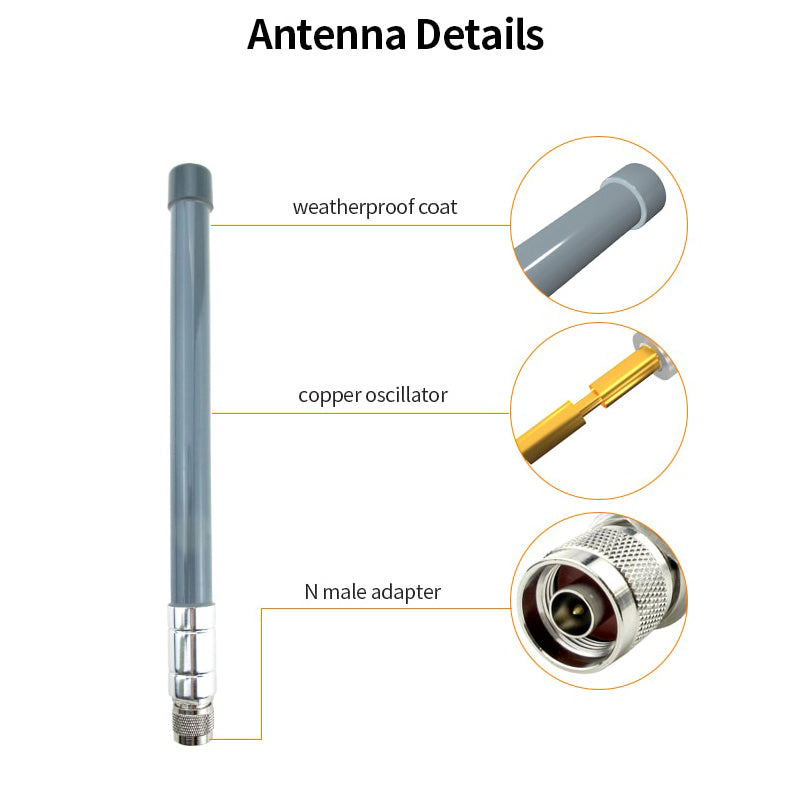

The antenna has aN-Type connector, so it can be easily connected to the gateway and all other helium miners.
The antenna can be used in any environment that requires a long-distance LoRa connection, for agriculture, environmental monitoring, and urban monitoring.
Specification:
Model: 5dBi Gain Antenna
Frequency: 868MHz
Antenna gain: 5dBi

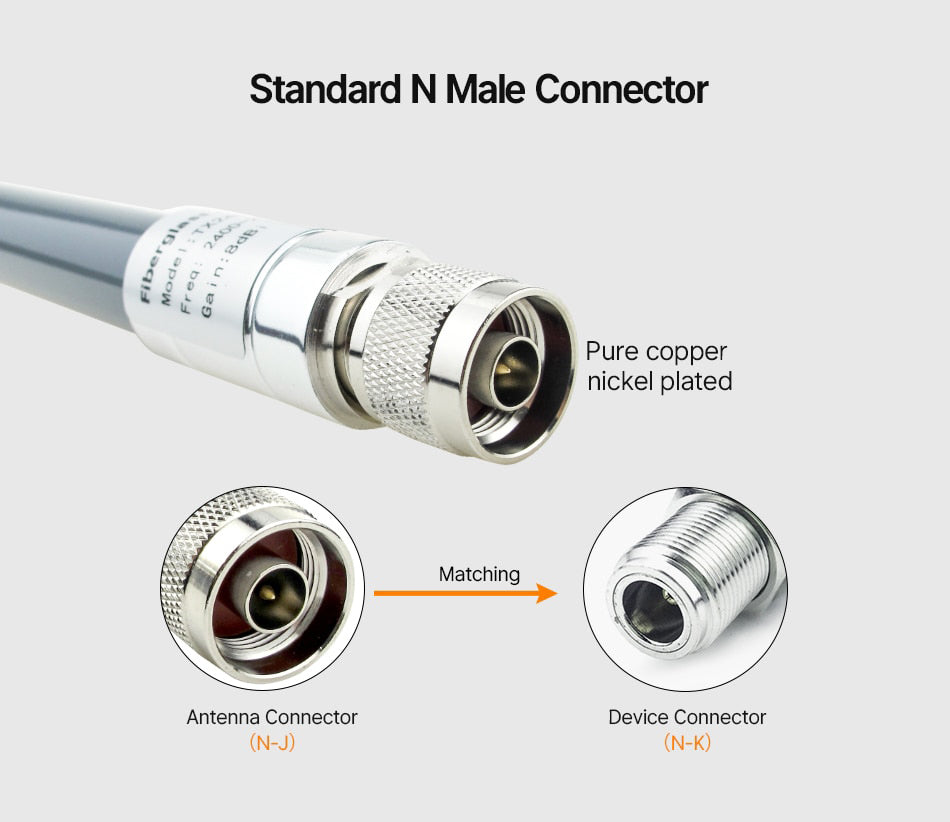

Antenna Connector：N-J
Efficiency: ≥60%

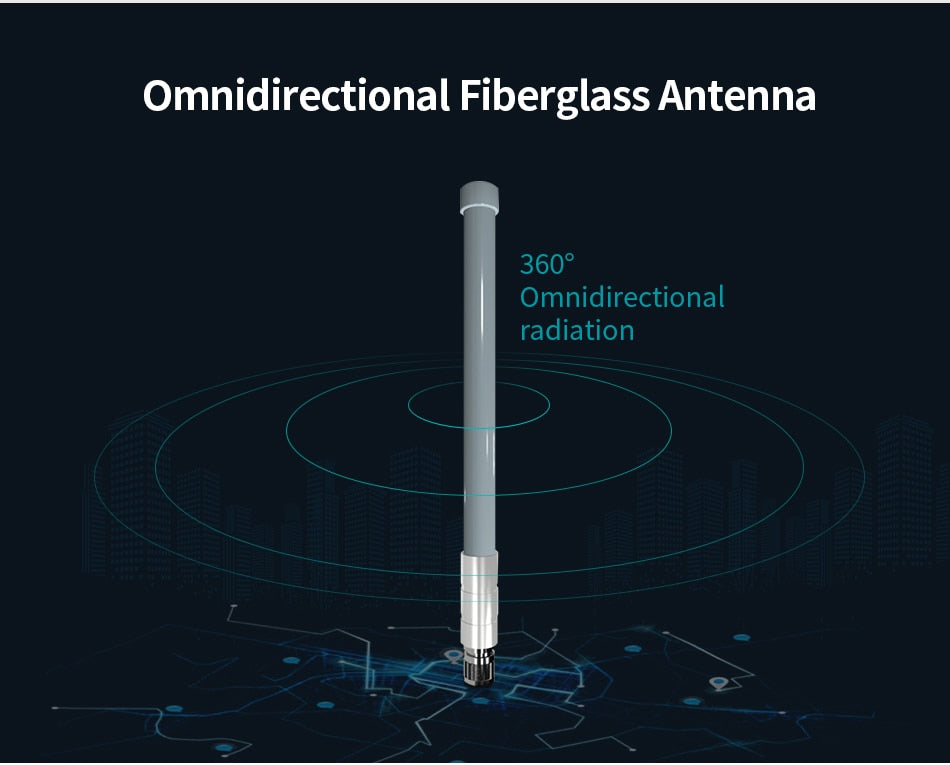

Radiation mode: omnidirectional
Maximum Power: 50W
Polarization: linear polarization/vertical
Impedance: 50 ohm
Antenna Length: 59cm
Antenna Diameter: 19.5mm
Cooler material: CU
Material plastic: FRP (white light)
Model: 10dBi Gain Antenna
V.S.W.R(Less than or equal to): 1.5(dBi)
Input Impedance:50Ω
Max Power:100W
Polarization:Vertical
Radiation pattern:omni-directional
Antenna Length:108.5cm
Antenna diameter: 19.5mm
Weight:0.35kg
Interface: N-J Male
Protection:DC ground
Radome material:fiberglass
Material:pure copper
Operational Humidity:Less than 65%
Rated Wind Velocity:100Km/h
Working Temp:-45℃ +65℃
Widely application:outdoor, base station,repeater,home
