Supports Raspberry Pi / Raspberry Pi Pico / ESP32 / Arduino...
* The flexible PCB can be gently bent but do not bend it excessively or repeatedly, otherwise, it is easy to be damaged
Features
By nightfall, the dazzling neon lights of the streets and alleys illuminate the whole city making it more dynamic. Obviously, the Full-Color LED Matrix Panel is playing an important role. Maybe be on the doors of shops, maybe be on the bus or the taxi, you can always see animations or advertisement videos. Does it look cool? Why not have a try?

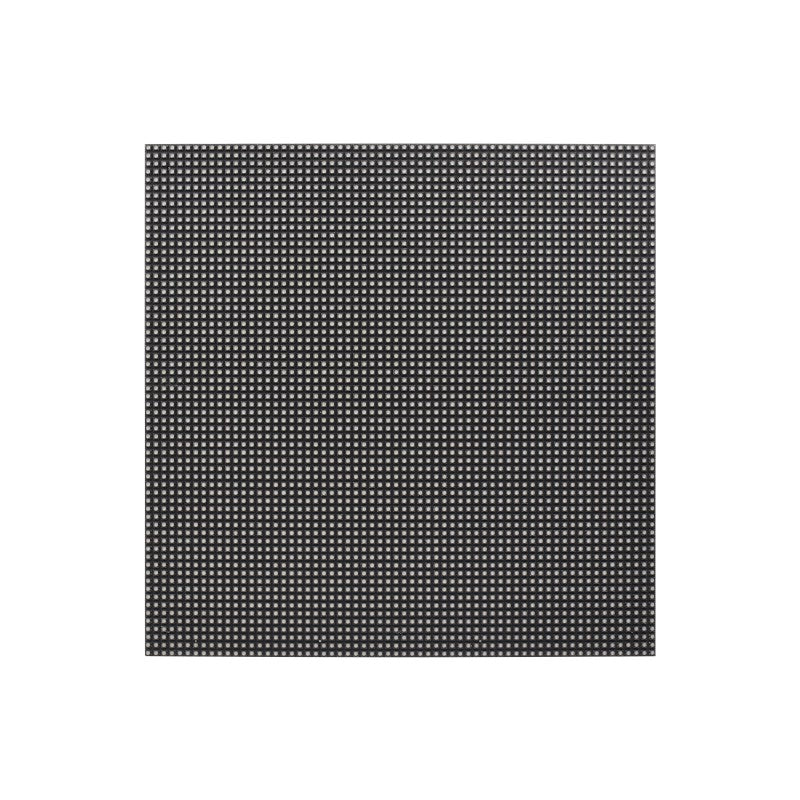

192×192mm dimensions, moderate size, suitable for DIY desktop display or wall mount display
Onboard two HUB75 header, one for controller data input, one for output, chain support
Provides open source development resources (examples for Raspberry Pi / Raspberry Pi Pico / ESP32 / Arduino)
Specifications
DIMENSIONS
192mm × 192mm
PIXELS
64×64=4096 DOTS
PITCH
3.0mm
PIXEL FORM
1R1G1B
VIEWING ANGLE
≥140°
CONTROL TYPE
synchronization
DRIVING
1/32 scan
HEADER
HUB75
POWER SUPPLY
5V / 4A (VH4 header input)
POWER
≤20W
Header Definition
PIN
DESCRIPTION
PIN
DESCRIPTION
VCC
5V power input
GND
Ground
R1
R higher bit data
R2
R lower bit data
G1
G higher bit data
G2
G lower bit data
B1
B higher bit data
B2
B lower bit data
A
A line selection
B
B line selection
C
C line selection
D
D line selection
E
E line selection
CLK
clock input
LAT/STB
latch pin
OE
output enable

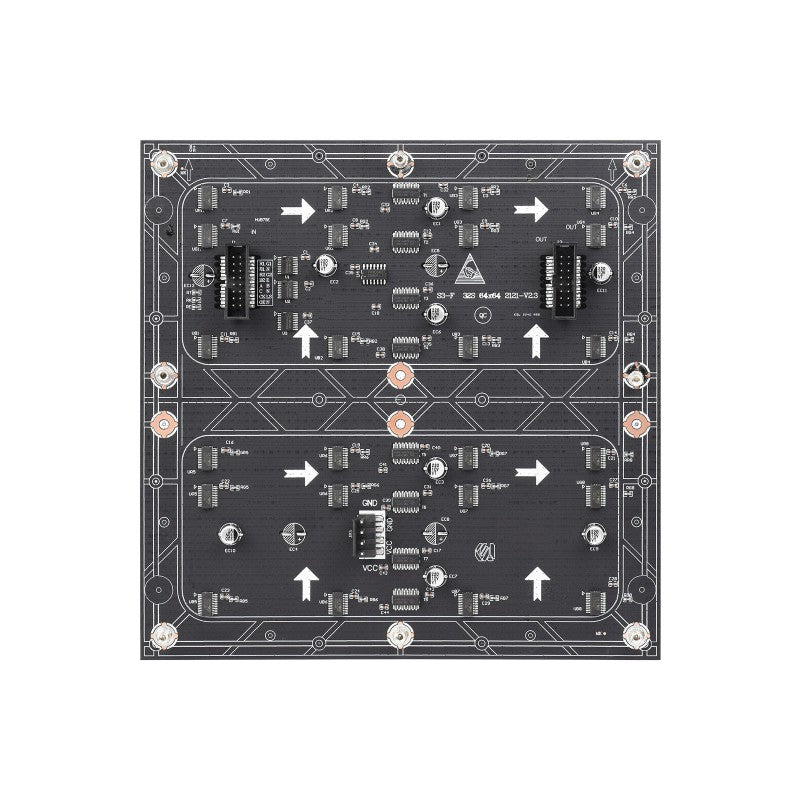

* this back view is for reference only PCB silkscreen and layout may have small differences from batch to batch, but software is compatible.
Chainable Design
Multi LED Matrix Panel Can Be Chained Together To Build A Larger Panel Via HUB75 Input/Output Header
Each RGB LED matrix panel requires a standalone 5V/4A or above power supply, when they're chained to display.
Applications

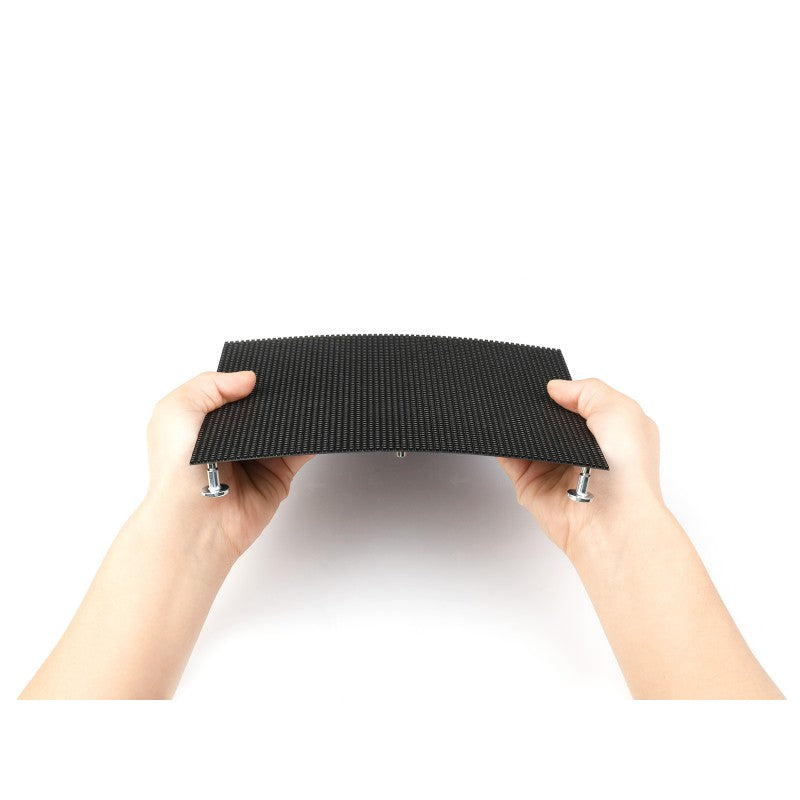

Flexible PCB Material, Lighter And Thinner, Can Be Gently Bent And Suitable For Some Cylindrical, Circular And Curved Surfaces, Or Other Creative LED Display Shapes
