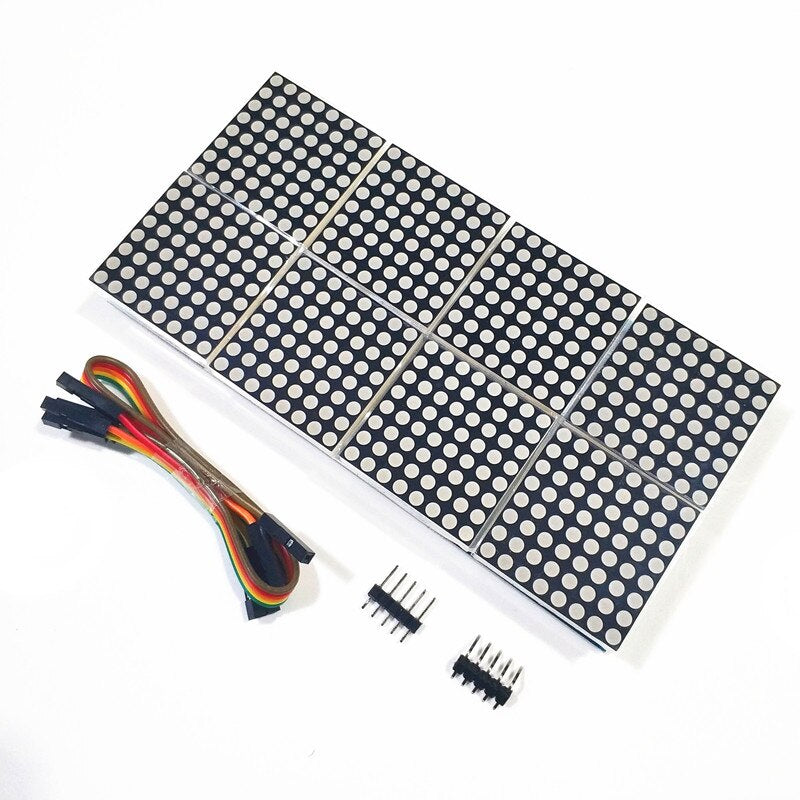

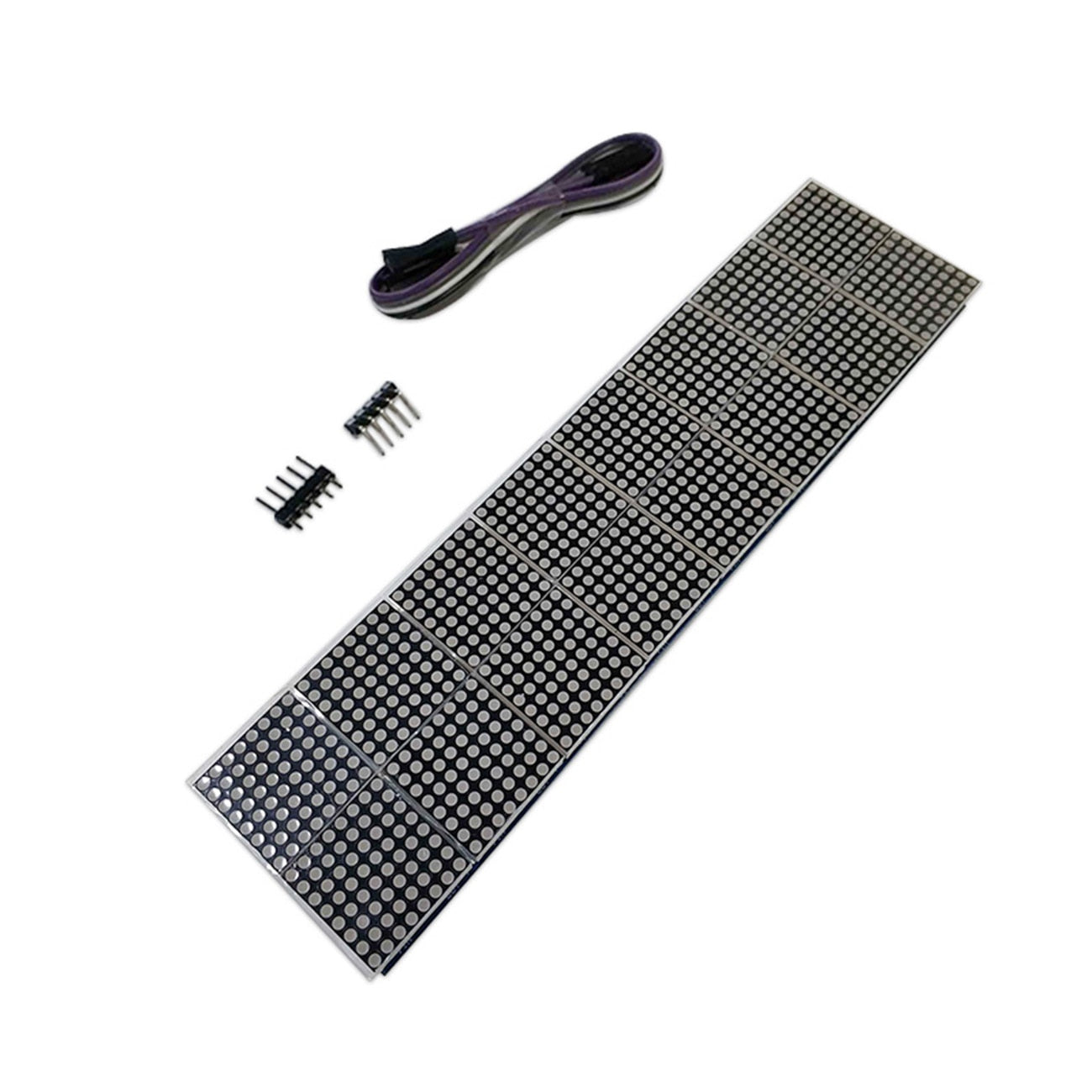

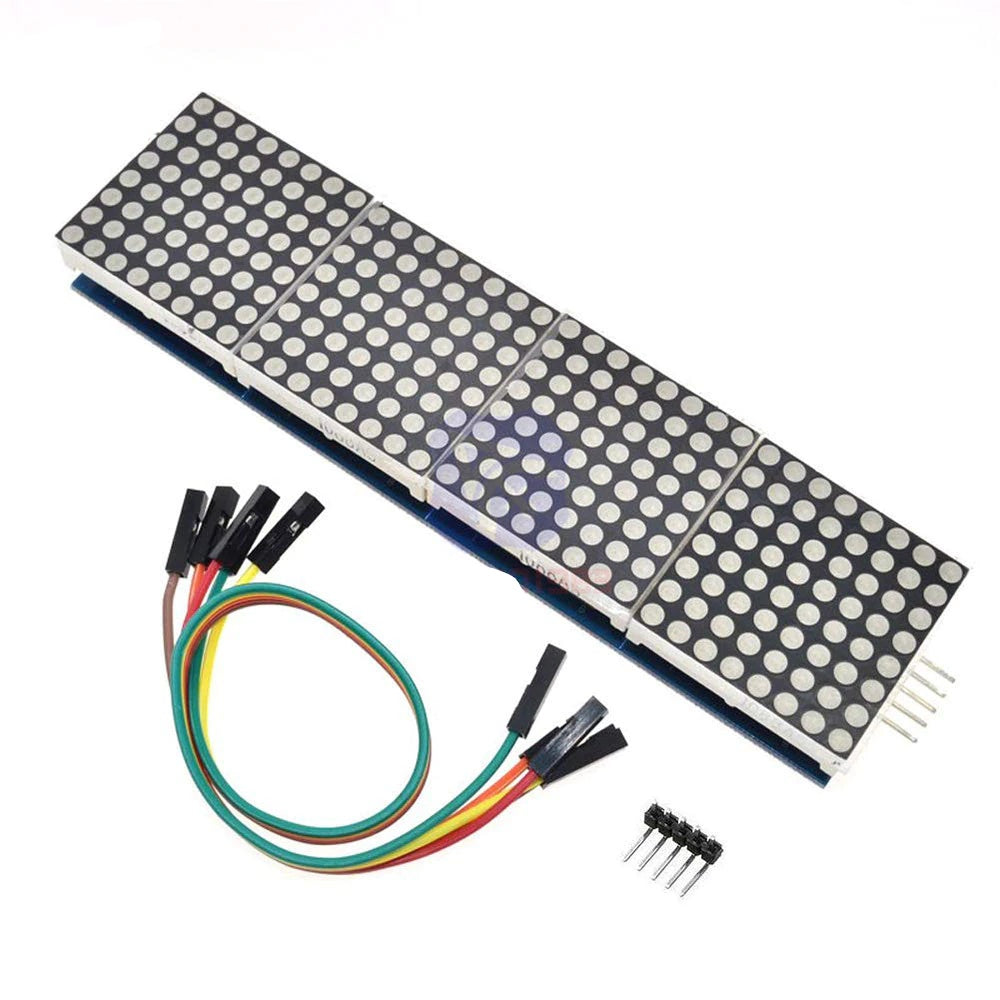

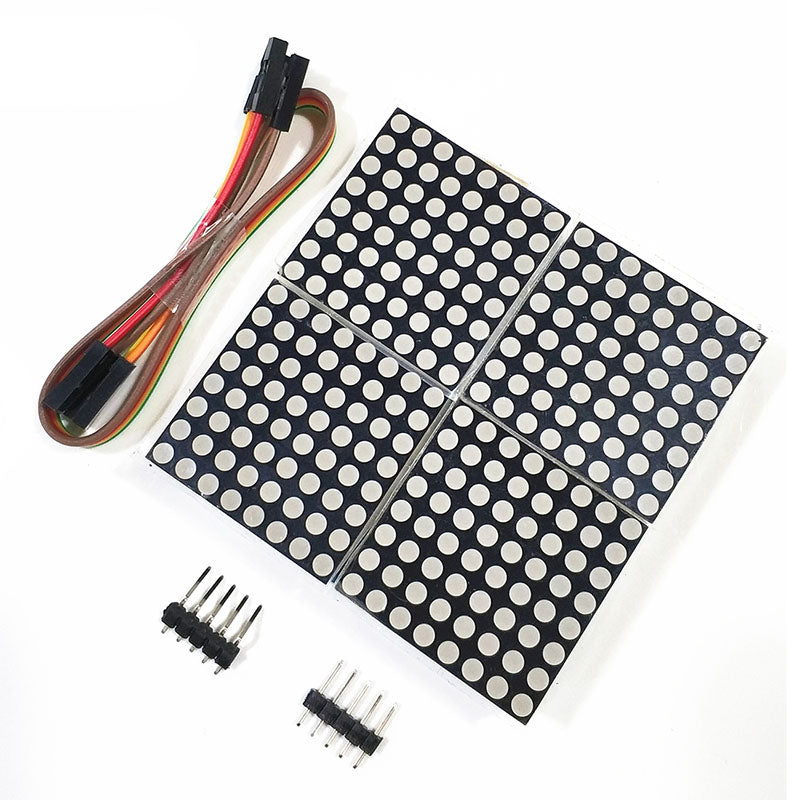

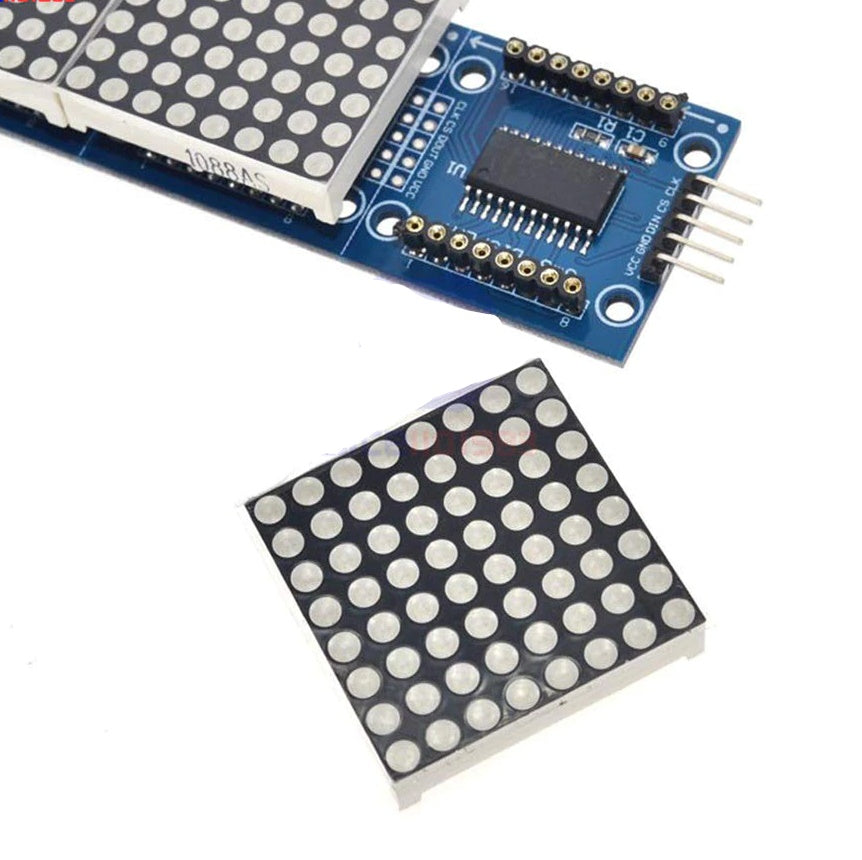

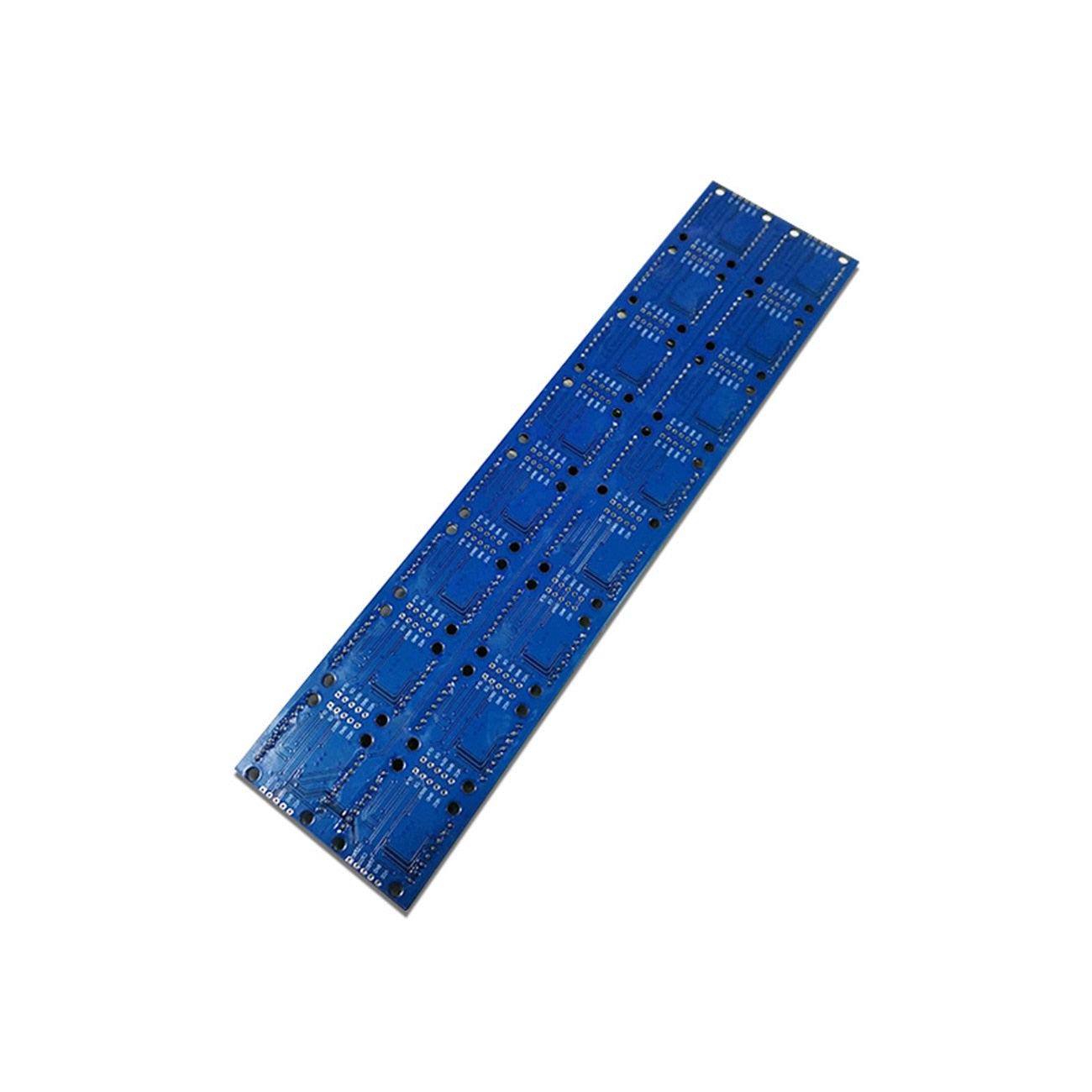

MAX7219 LED Dot Matrix

This is Dot Led Matrix Module incorporating MAX7219 Driver chip. By using this dot LED module in your upcoming project, you will be able to add some great cool animation.

The individual module features 32×8 LED’s, each controlled very precisely by the MAX7219 driver to generate the color pattern you wish. The great advantage of using this is users will have control over all of the 256 LED by just connecting 3 output communication wires to microcontrollers like Arduino etc.

Specifications

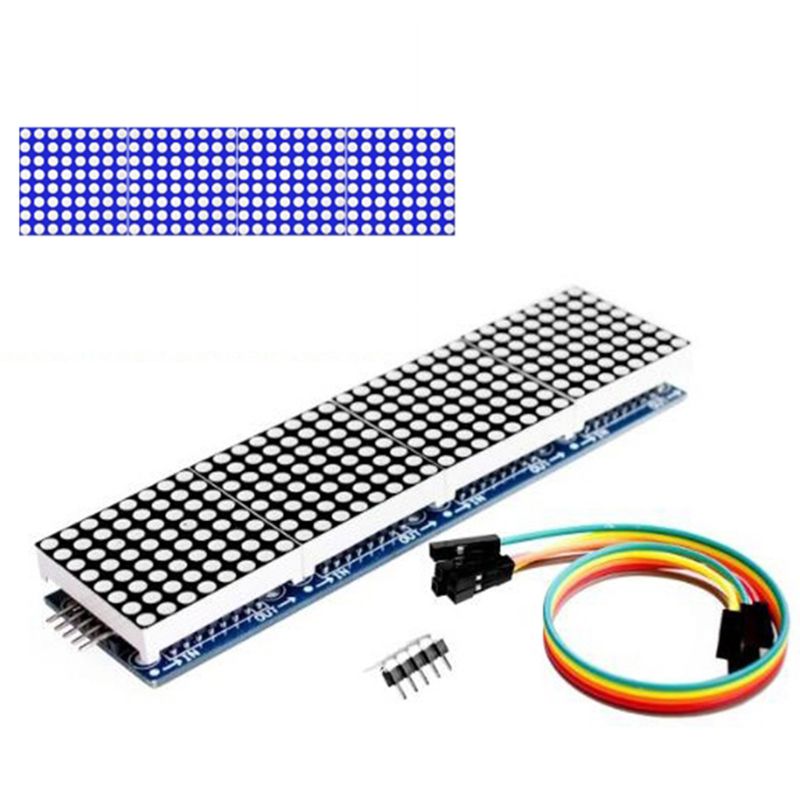

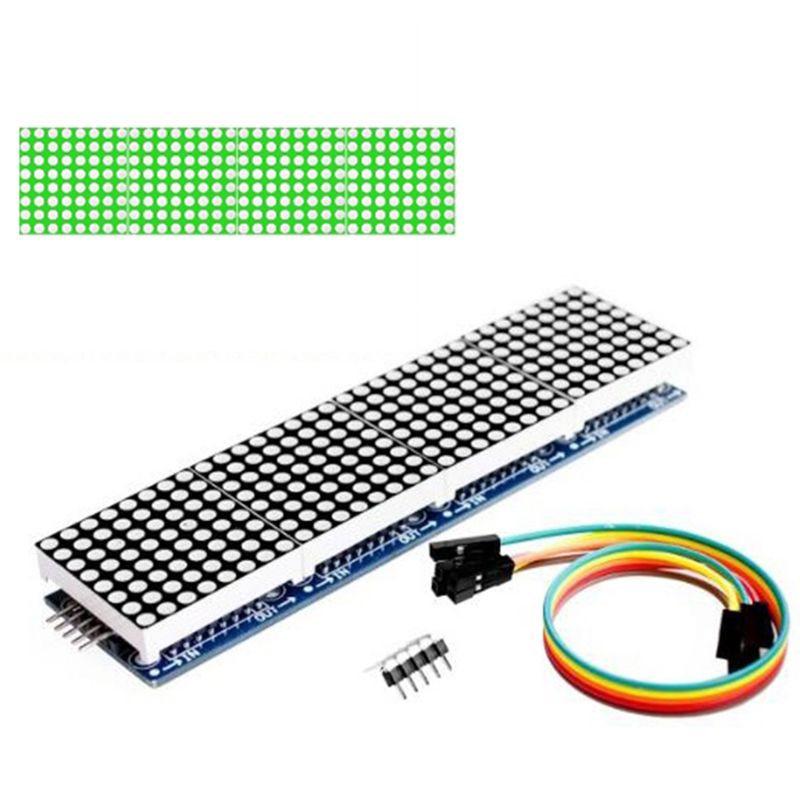

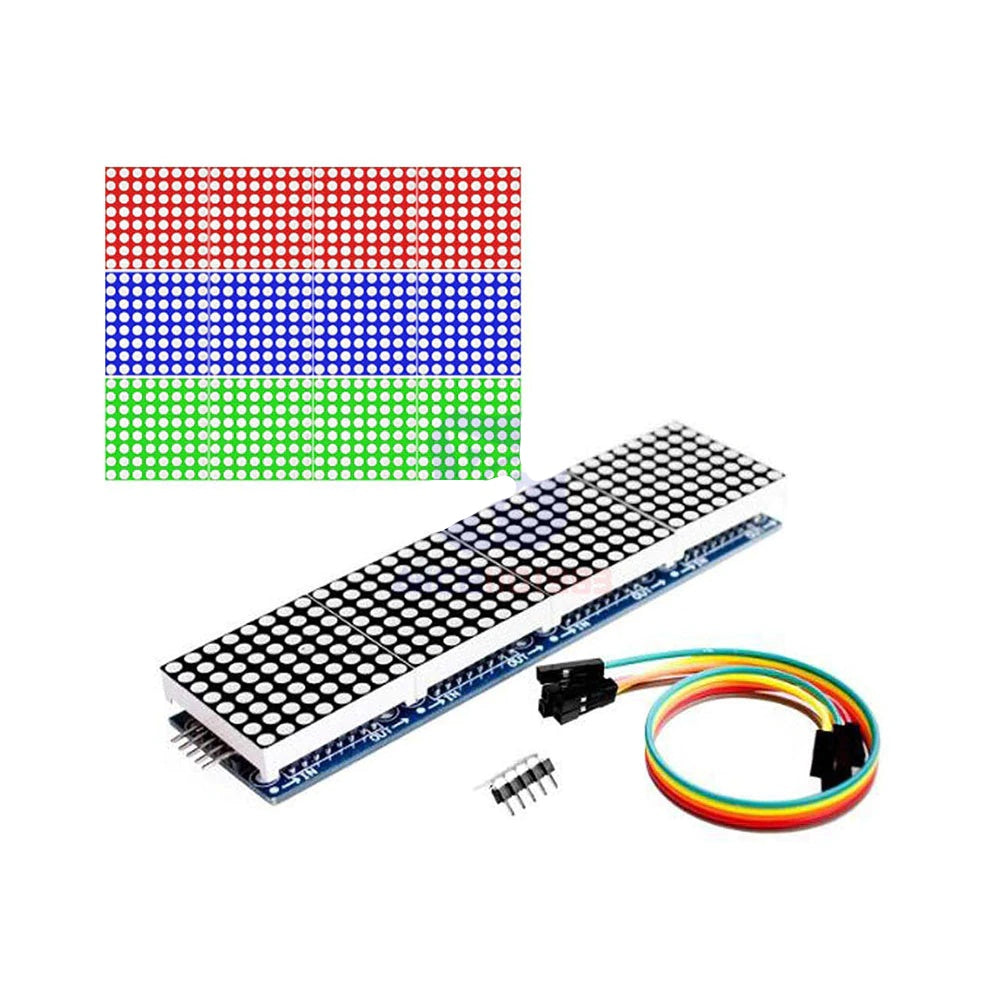

• LED Color Options: Red, Green, Blue
• Operating Voltage: 5V
• Fixing screws with 64 holes with a diameter 3mm

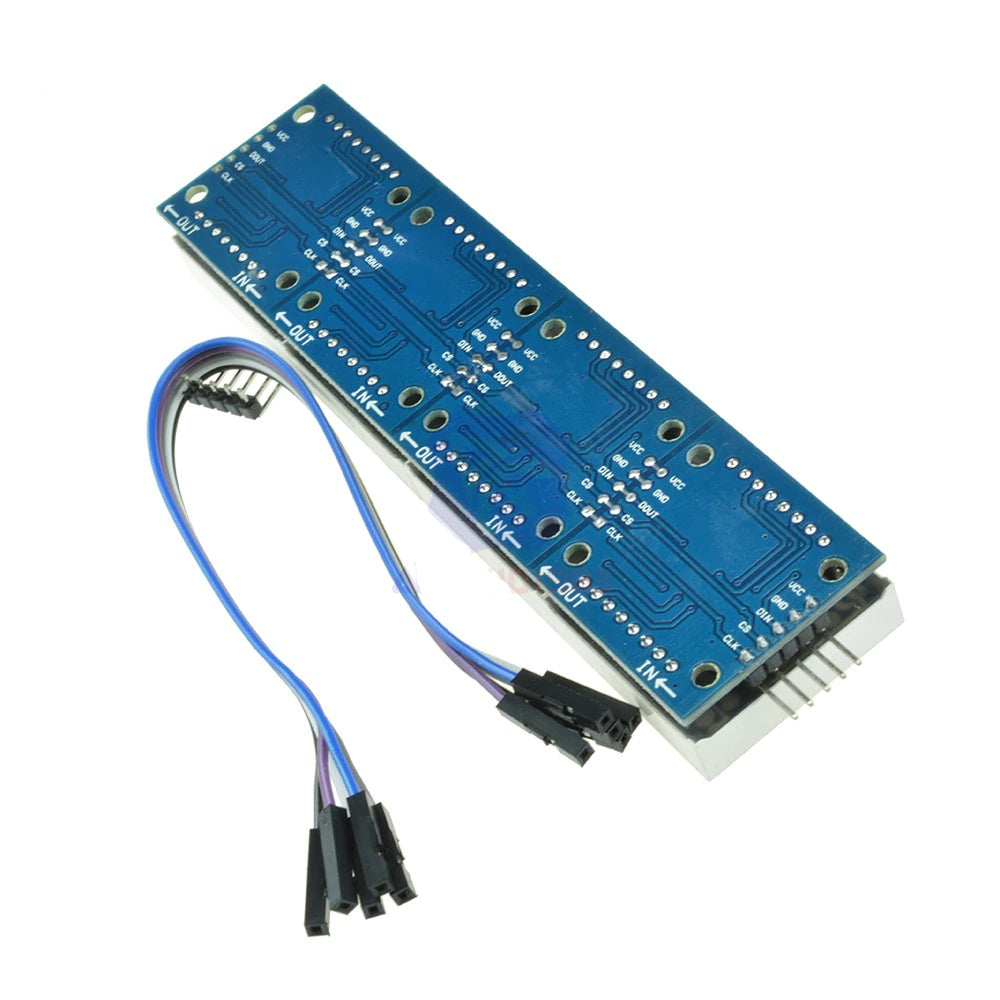

• Module with input and output interfaces, support for cascading multiple modules

Wiring Instruction:
The left side of the module to the input port, the right to an output port when the control of a single module, simply input port connected to CPU
When a plurality of cascaded modules, input and output termination CPU, an input terminal of the second output end of the first module a module, t
he first two modules of the input terminal of the three termination modules, and so on...

51 microcontrollers
For example:
VCC -- 5V
GND -- GND
DIN -- P2.2
CS -- P2.1
CLK -- P2.0
