Super Bright White Piranha LED Panel

SKU: ELC2028-5.12

₹ 279.99 ₹ 399.99

In stock | Ready to ship

Select variant

5V
12
⚠ Only a few left in stock. Order soon.
⏱ High demand right now.
📦 Min order 1
Chat with us on WhatsApp We reply quickly! Contact Us
Super Bright White Piranha LED Panel5V / 12₹ 279.99
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

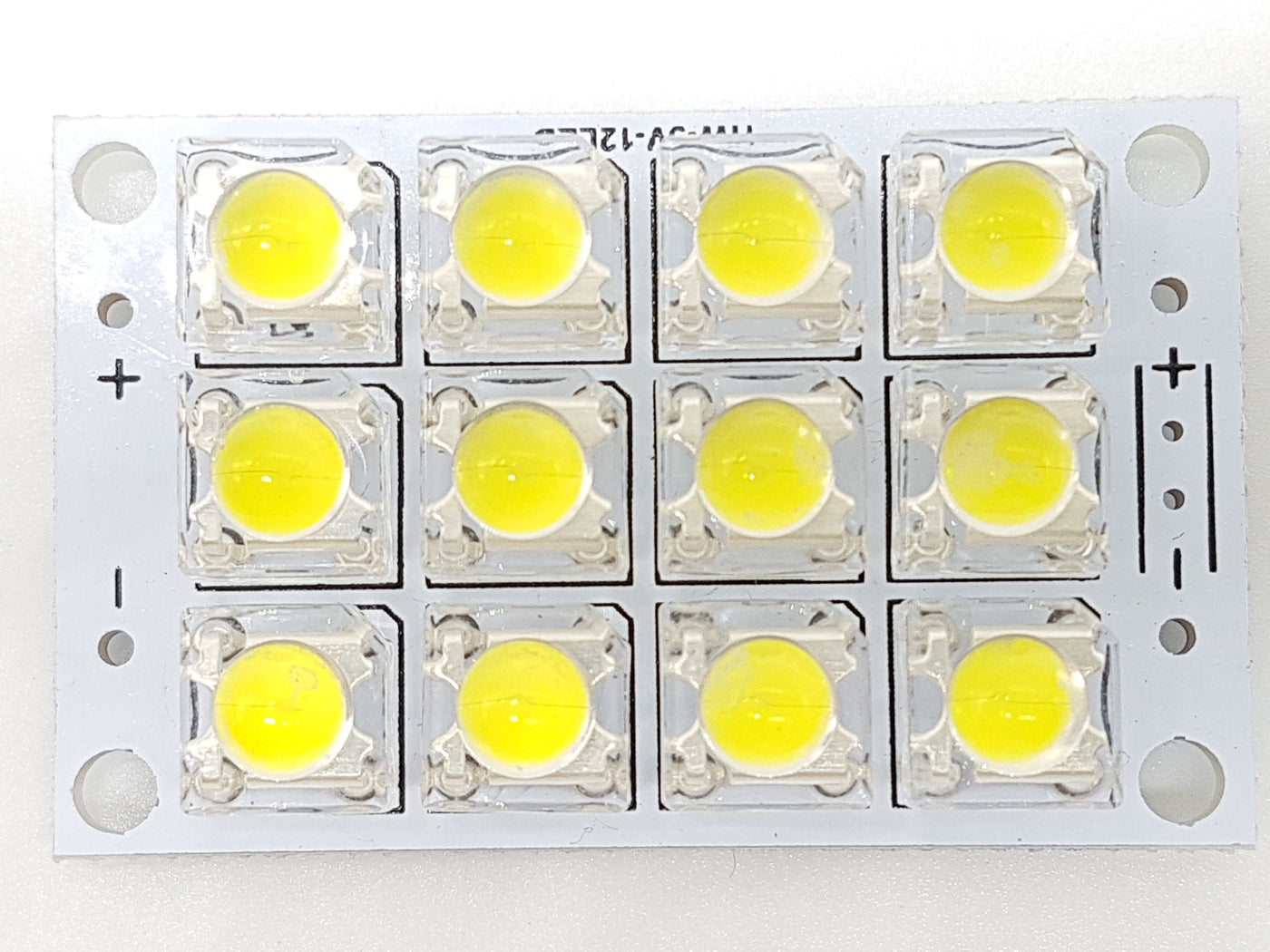

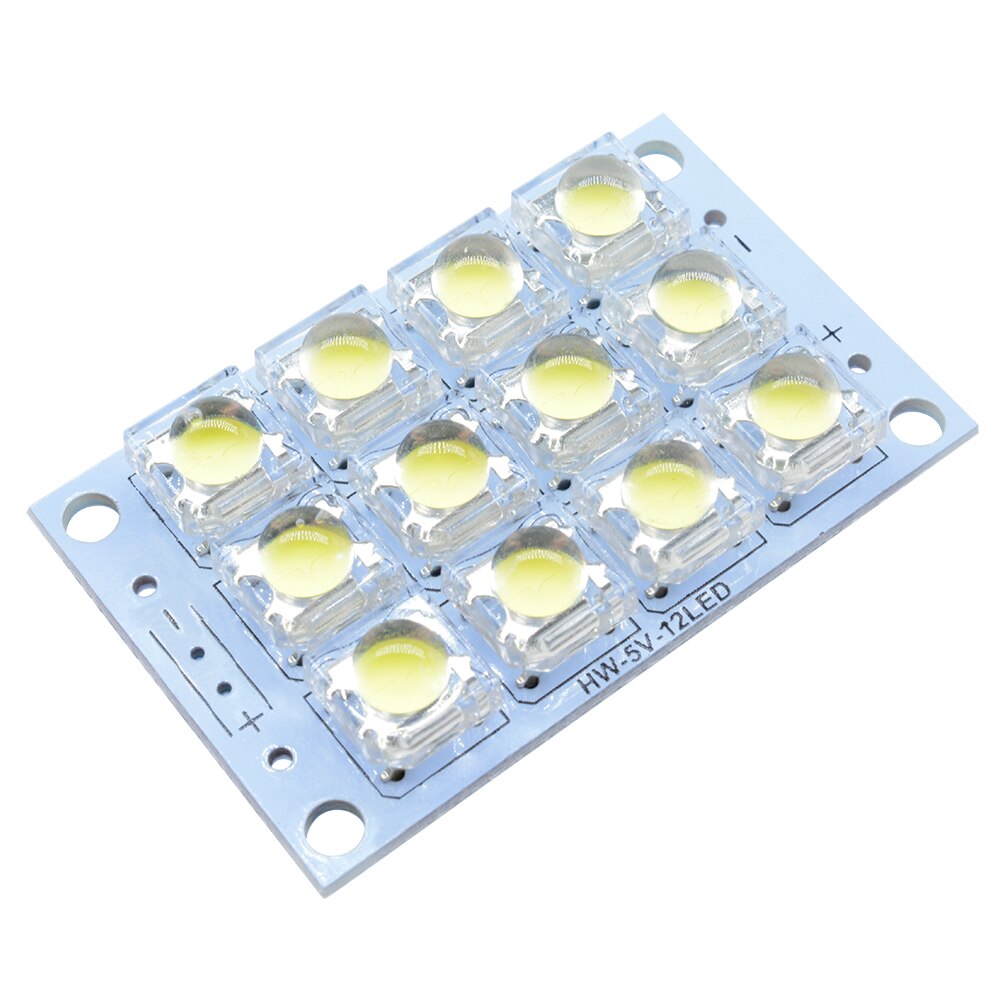

3x4 5V 12LED

  • 5mm high brightness piranha 12 LEDs
  • Long lifetime, low consumption, very convenient to use
  • Light board four corners with a fixed screw hole, easy fixed
  • Input voltage: DC 3.5-5.5V (Recommended 5V DC)
  • Operating current: about 200MA
  • Power: about 1W
  • Light Color: White
  • Dimension: Approx. 45 x 28 x 10mm (LxWxH)

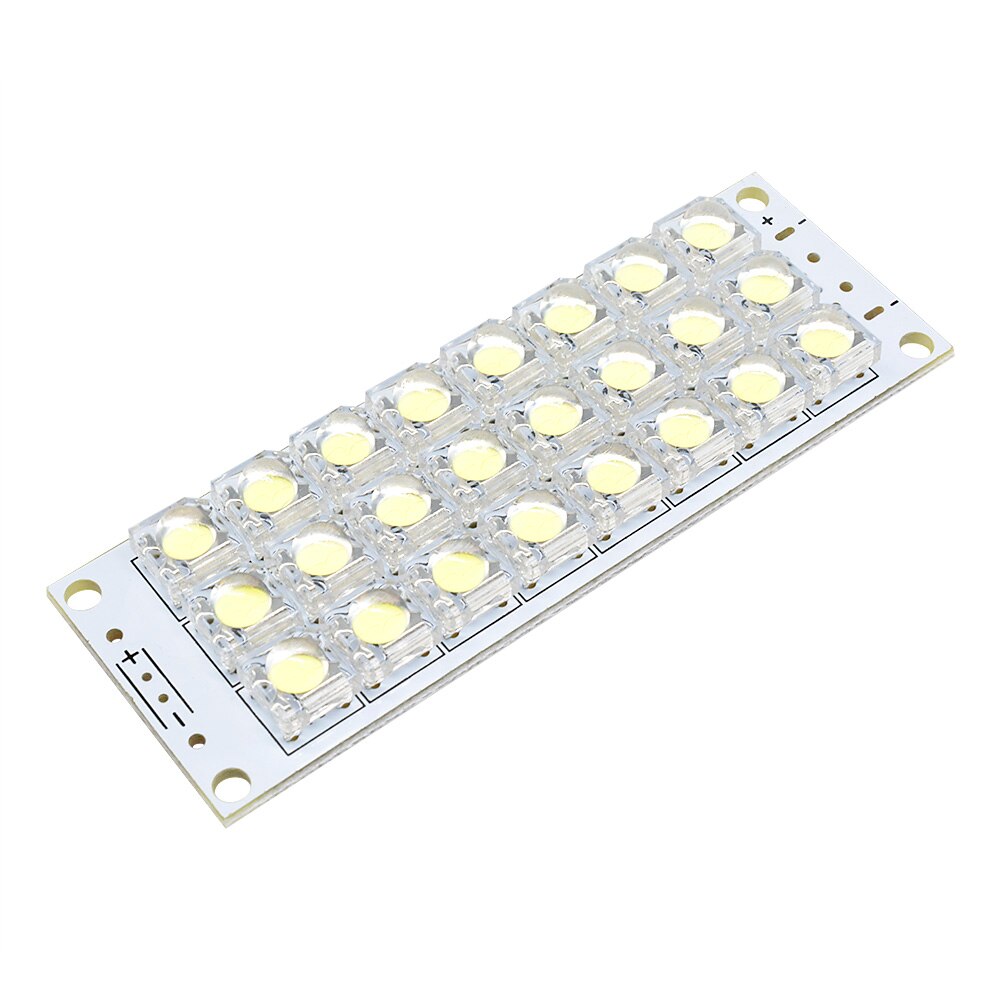

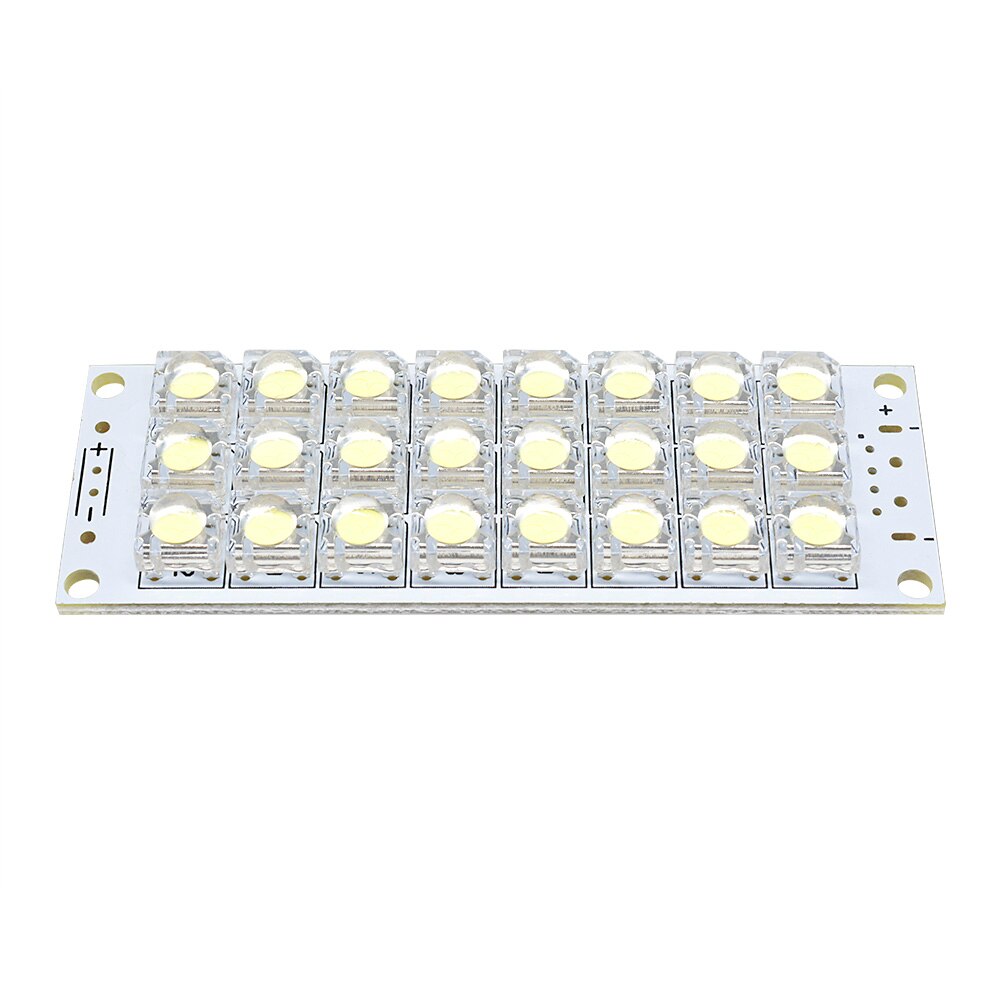

3x8 5V 24 LEDs

  • Brightness: 100 lumens (equivalent to 15W desk lamp)
  • Lamp beads: 24
  • Color Temperature: 5500K-6500K (white)
  • Operating voltage: 4.5V-5.5V
  • Operating Current: 360mA
  • Rated Power: about 1.6W
  • Life :50000-80000 hours
  • Beam Angle: astigmatism (about 150 °)
  • Dimensions: 80 x 28mm
  • Weight: 20g



3x8 12V 24 LEDs

  • Brightness: 100 lumens (equivalent to 15W desk lamp)
  • Lamp beads: 24
  • Color Temperature: 5500K-6500K (white)
  • Operating voltage: 10V-14V
  • Operating Current: 160mA
  • Rated Power: about 1.6W
  • Life :50000-80000 hours
  • Beam Angle: astigmatism (about 150 °)
  • Dimensions: 80 x 28mm
  • Weight: 20g

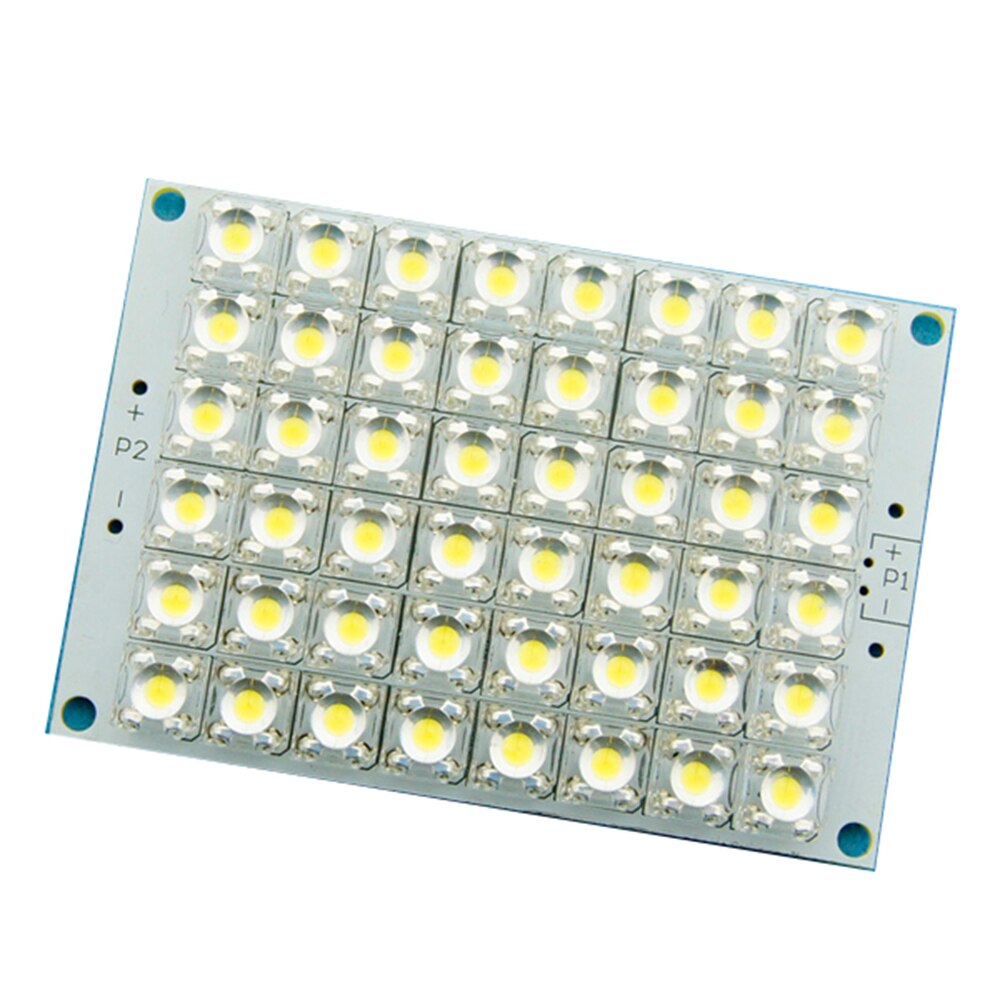

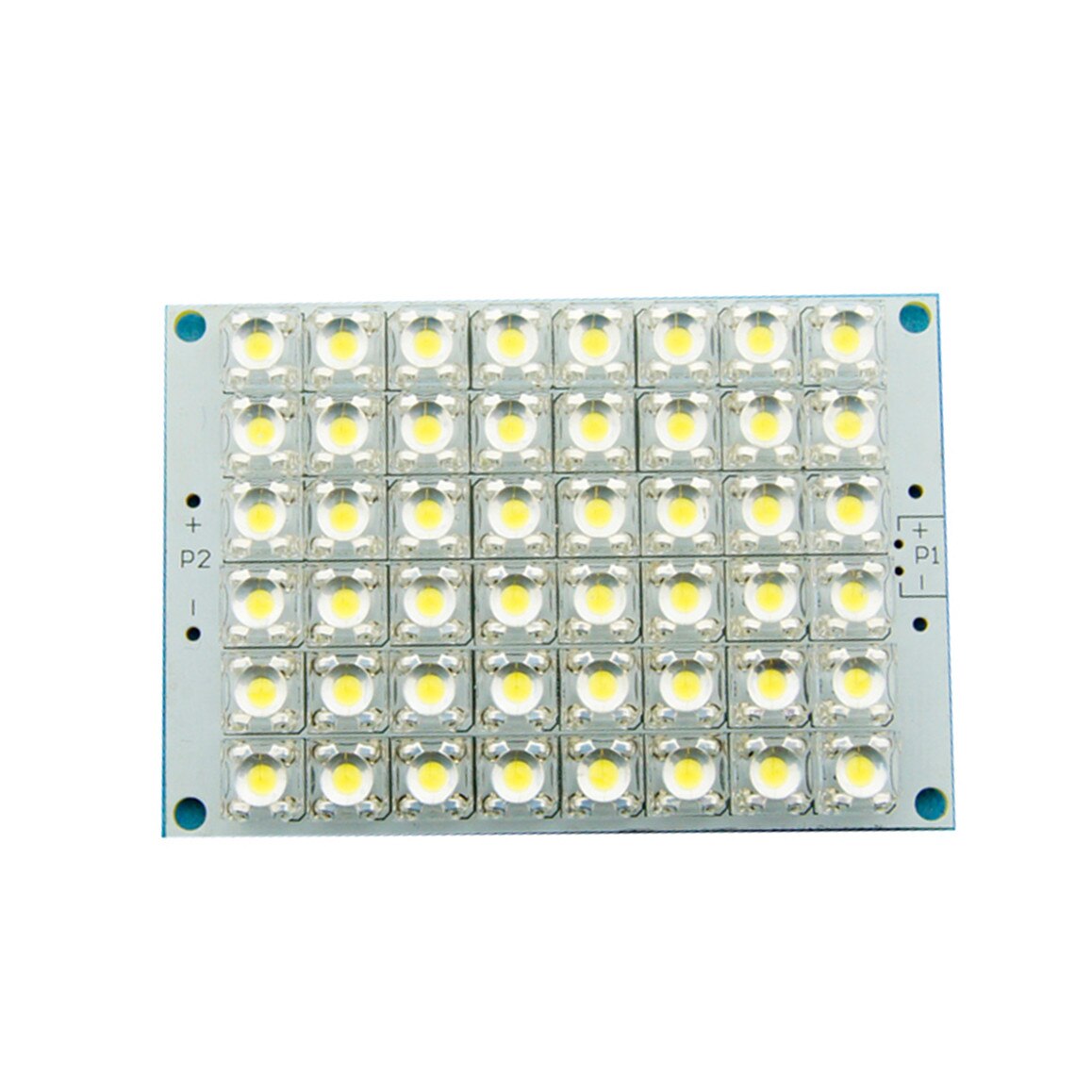

6x8 12V 48 LEDs

  • 48x 5mm high brightness piranha LED
  • Color: White
  • Brightness of 200 lumens
  • Color temperature 5500-6500K
  • Life 50000-80000H
  • Input voltage: DC 10-14V (Recommended 12V DC)
  • Operating current: about 300mA
  • Power: about 3.2W
  • Size : 74mm x 51mm

Resources

Datasheet

Sample Code

What power supply do I need for this LED panel?
The product comes in several configurations. The 3x4 5V variant uses DC 3.5-5.5V (recommended 5V). The 3x8 5V variant uses 4.5-5.5V. The 12V variants operate on 10-14V.
How bright is the panel and what is the color temperature?
The panel emits white light with a color temperature of 5500K to 6500K. Brightness is about 100 lumens for the 3x8 24 LED variants and about 200 lumens for the 6x8 48 LED variant.
What are the dimensions and approximate weight?
Dimensions vary by variant. The 3x4 5V 12LED version is about 45 x 28 x 10 mm and weighs about 20 g. The 3x8 variants are about 80 x 28 mm, and the 6x8 48 LED version is about 74 x 51 mm and also around 20 g.
How do I mount the LED panel?
The light board has four corners with a fixed screw hole for easy mounting.
What is the expected life span of the LEDs?
The LED panel is rated for a life of 50000 to 80000 hours.
