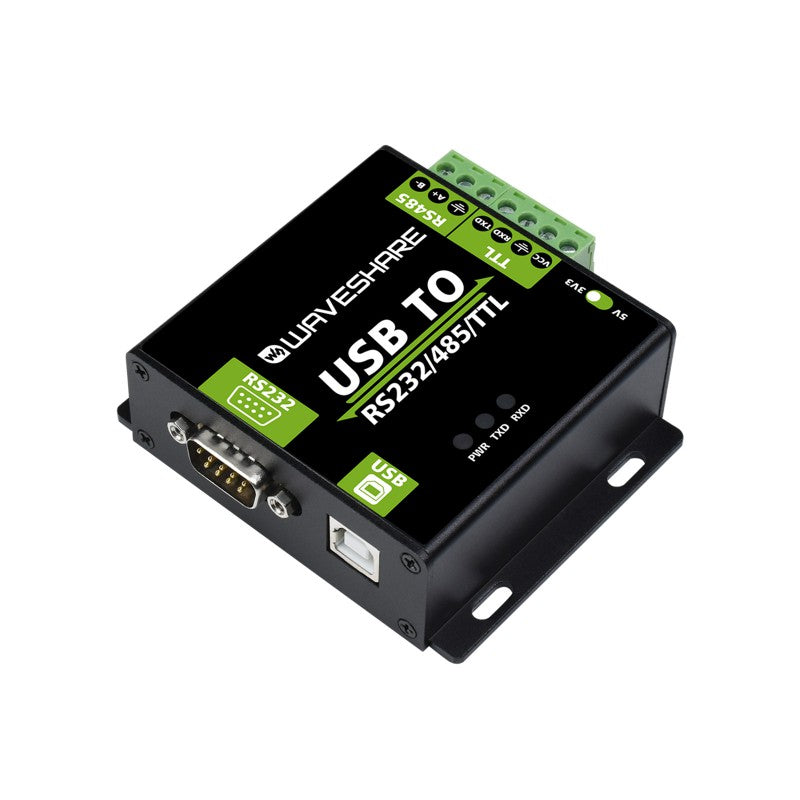

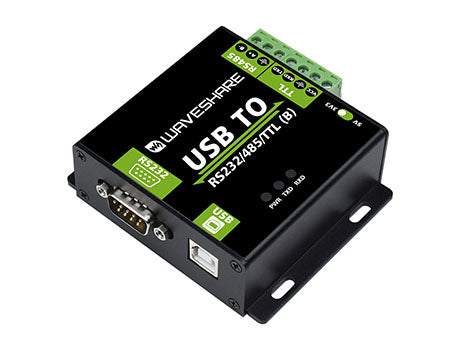

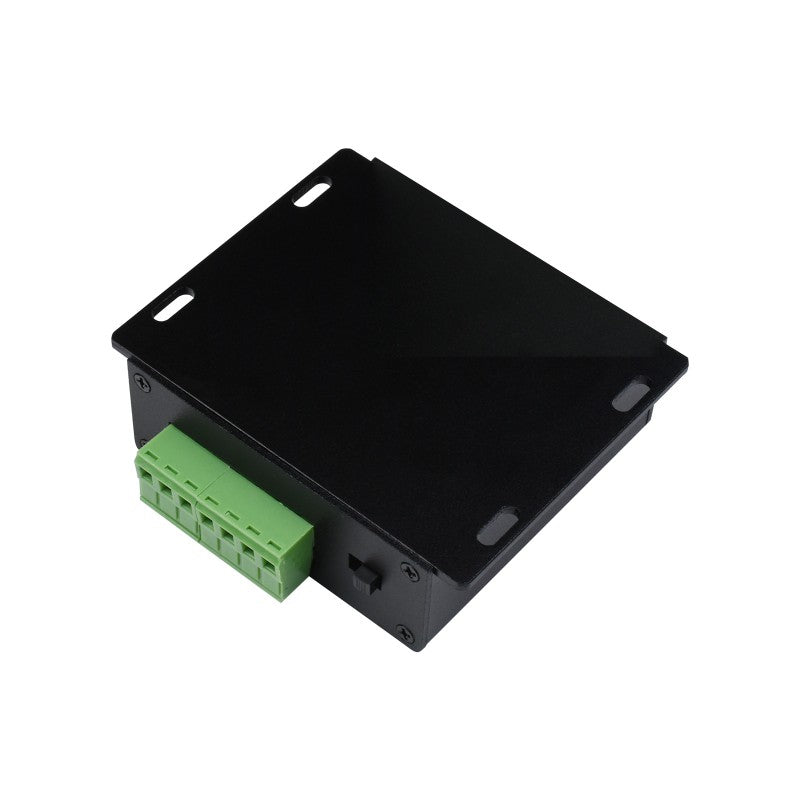

Name: FT232RL/CH343G USB TO RS232/485/TTL Interface Converter
Brand: Waveshare
SKU: ELC3048
Price: 1939.99 INR
Availability: InStock

{"id":8776113488189,"title":"FT232RL\/CH343G USB TO RS232\/485\/TTL Interface Converter","handle":"ft232rl-usb-to-rs232-485-ttl-interface-converter","description":"\u003cp\u003e \u003c\/p\u003e\n\u003cdiv class=\"pdT\" style=\"text-align: center;\"\u003e\n\u003ch1 class=\"richTitle\" style=\"text-align: center;\"\u003eIndustrial Grade Isolated USB Converter\u003c\/h1\u003e\n\u003ch2 class=\"richDesc hilitBlock2 round1234\" style=\"text-align: center;\"\u003eUSB TO RS232\/485\/TTL\u003c\/h2\u003e\n\u003ch4 class=\"richDesc\" style=\"text-align: center;\"\u003e\u003cspan style=\"color: #c20000;\"\u003eStable Transmission | Multiple Devices Applicable | Multi-OS Compatible\u003c\/span\u003e\u003c\/h4\u003e\n\u003cimg src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/USB-TO-RS232-485-TTL\/USB-TO-RS232-485-TTL-details-1.jpg\" style=\"margin-bottom: 16px; float: none;\"\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"pdT\" style=\"text-align: center;\"\u003e\n\u003ch2 class=\"richTitle\"\u003e \u003c\/h2\u003e\n\u003ch2 style=\"text-align: left;\" class=\"richTitle\"\u003eFeatures At A Glance\u003c\/h2\u003e\n\u003cul class=\"alignl pdTRBL2\"\u003e\n\u003cli style=\"text-align: left;\"\u003eAdopt original FT232RL or CH343G inside, fast communicating, stable and reliable, better compatibility\u003c\/li\u003e\n\u003cli style=\"text-align: left;\"\u003eOnboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal\u003c\/li\u003e\n\u003cli style=\"text-align: left;\"\u003eOnboard unibody digital isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption\u003c\/li\u003e\n\u003cli style=\"text-align: left;\"\u003eOnboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof \u0026amp; ESD protection\u003c\/li\u003e\n\u003cli style=\"text-align: left;\"\u003eOnboard self-recovery fuse and protection diodes, ensures the current\/voltage stable outputs, provides over-current\/over-voltage proof, improves shock proof performance\u003c\/li\u003e\n\u003cli style=\"text-align: left;\"\u003eFully automatic transceiver circuit with no delay, ensures the USB port communicates with different interfaces fastly and stably, without interfering each other\u003c\/li\u003e\n\u003cli style=\"text-align: left;\"\u003eOnboard TTL serial 3.3V\/5V voltage translator, config the TTL level via switch\u003c\/li\u003e\n\u003cli style=\"text-align: left;\"\u003eAluminium alloy enclosure with sand blasting and anodic oxidation, CNC process opening, solid and durable\u003c\/li\u003e\n\u003cli style=\"text-align: left;\"\u003e3 LEDs for indicating the power and transceiver status\u003c\/li\u003e\n\u003cli style=\"text-align: left;\"\u003eHigh quality USB-B and RS232 connectors, smoothly plug\/pull\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"pdT\"\u003e\n\u003cdiv class=\"richTitle\"\u003e\u003cbr\u003e\u003c\/div\u003e\n\u003cdiv\u003e\u003cbr\u003e\u003c\/div\u003e\n\u003c\/div\u003e\n\u003cdiv\u003e\n\u003ch2 class=\"richTitle\"\u003e \u003c\/h2\u003e\n\u003ch2 class=\"richTitle\"\u003eSpecifications\u003cbr\u003e\n\u003c\/h2\u003e\n\u003ctable class=\"tabSty-2 mgnTB alignl\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003cth style=\"width: 20%;\"\u003ePRODUCT TYPE\u003c\/th\u003e\n\u003ctd colspan=\"2\"\u003eIndustrial grade digital isolated converter\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth rowspan=\"3\"\u003eUSB\u003c\/th\u003e\n\u003ctd style=\"width: 30%;\"\u003eOperating voltage\u003c\/td\u003e\n\u003ctd\u003e5V\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eConnector\u003c\/td\u003e\n\u003ctd\u003eUSB-B\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eProtection\u003c\/td\u003e\n\u003ctd\u003e200mA self-recovery fuse, isolated output\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth rowspan=\"4\"\u003eRS232\u003c\/th\u003e\n\u003ctd\u003eConnector\u003c\/td\u003e\n\u003ctd\u003eDB9 male\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eProtection\u003c\/td\u003e\n\u003ctd\u003eTVS diode, surge protection \u0026amp; ESD protection\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eTransmission mode\u003c\/td\u003e\n\u003ctd\u003ePoint-to-point\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eBaud rate\u003c\/td\u003e\n\u003ctd\u003eFT232RL: 300bps ~ 921600 bps\u003cbr\u003eCH343G: up to 600000 bps (not full band)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth rowspan=\"6\"\u003eRS485\u003c\/th\u003e\n\u003ctd\u003eConnector\u003c\/td\u003e\n\u003ctd\u003eScrew terminal\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003ePins\u003c\/td\u003e\n\u003ctd\u003eA+\/B-\/GND\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eDirection control\u003c\/td\u003e\n\u003ctd\u003eHardware automatically discriminates and controls the direction of data transmission\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eProtection\u003c\/td\u003e\n\u003ctd\u003e600W lightningproof and surge-suppress, 15KV ESD protection (reserved 120R balancing resistor solder pads\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eTransmission mode\u003c\/td\u003e\n\u003ctd\u003ePoint-to-multipoints (up to 32 nodes, it is recommended to use repeaters for 16 nodes or more)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eBaud rate\u003c\/td\u003e\n\u003ctd\u003eFT232RL: 300bps ~ 2 Mbps\u003cbr\u003eCH343G: up to 2 Mbps (not full band)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth rowspan=\"6\"\u003eTTL (UART)\u003c\/th\u003e\n\u003ctd\u003eOperating voltage\u003c\/td\u003e\n\u003ctd\u003e3.3V \/ 5V\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eConnector\u003c\/td\u003e\n\u003ctd\u003eScrew terminal\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003ePins\u003c\/td\u003e\n\u003ctd\u003eTXD, RXD, GND, 5V\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eProtection\u003c\/td\u003e\n\u003ctd\u003eclamp protection diode, over-voltage\/negative-voltage proof, shock proof\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eTransmission mode\u003c\/td\u003e\n\u003ctd\u003ePoint-to-point\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eBaud rate\u003c\/td\u003e\n\u003ctd\u003eFT232RL: 300 bps ~ 2 Mbps\u003cbr\u003eCH343G: up to 2 Mbps (not full band)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth rowspan=\"3\"\u003eINDICATORS\u003c\/th\u003e\n\u003ctd\u003ePWR\u003c\/td\u003e\n\u003ctd\u003eRed power indicator, light up when there is USB connection and voltage is detected\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eTXD\u003c\/td\u003e\n\u003ctd\u003eGreen TX indicator, light up when the USB port sends data\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eRXD\u003c\/td\u003e\n\u003ctd\u003eBlue RX indicator, light up when the device ports send data back\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth rowspan=\"2\"\u003eOPERATING ENVIRONMENT\u003c\/th\u003e\n\u003ctd\u003eTemperature\u003c\/td\u003e\n\u003ctd\u003e-15℃ ~ 70℃\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eHumidity\u003c\/td\u003e\n\u003ctd\u003e5%RH ~ 95%RH\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth\u003eOPERATING SYSTEM\u003c\/th\u003e\n\u003ctd colspan=\"2\"\u003eMac, Linux, Android, Windows 11 \/ 10 \/ 8.1 \/ 8 \/ 7\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003c\/div\u003e\n\u003cp\u003e\u003cbr\u003e\u003c\/p\u003e\n\u003cdiv style=\"text-align: center;\"\u003e\n\u003ch2 class=\"richTitle\"\u003e \u003c\/h2\u003e\n\u003ch2 style=\"text-align: center;\" class=\"richTitle\"\u003eOriginal Industrial Grade Chip\u003c\/h2\u003e\n\u003ch4 style=\"text-align: center;\" class=\"richDesc\"\u003eOnboard Original FT232 Or CH343 Chip\u003cbr\u003eFast Communication, Stable \u0026amp; Reliable, Better Compatibility\u003c\/h4\u003e\n\u003cimg style=\"margin-bottom: 16px; float: none;\" src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/USB-TO-RS232-485-TTL\/USB-TO-RS232-485-TTL-details-3.jpg\"\u003e\n\u003c\/div\u003e\n\u003cp\u003e\u003cbr\u003e\u003cbr\u003e\u003c\/p\u003e\n\u003cdiv style=\"text-align: center;\"\u003e\n\u003ch2 style=\"text-align: left;\" class=\"richTitle\"\u003eSafer Isolated Design\u003c\/h2\u003e\n\u003cul class=\"alignl pdTRBL2\"\u003e\n\u003cli style=\"text-align: left;\"\u003eOnboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal\u003c\/li\u003e\n\u003cli style=\"text-align: left;\"\u003eOnboard unibody digital isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cimg style=\"margin-bottom: 16px; float: none;\" src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/USB-TO-RS232-485-TTL\/USB-TO-RS232-485-TTL-details-4.jpg\"\u003e\n\u003c\/div\u003e\n\u003cdiv style=\"text-align: center;\"\u003e\n\u003ch2 class=\"richTitle\" style=\"text-align: center;\"\u003e \u003c\/h2\u003e\n\u003ch2 class=\"richTitle\" style=\"text-align: center;\"\u003eMulti-Protocol \u0026amp; Multi-Type Conversion\u003c\/h2\u003e\n\u003ch4 style=\"text-align: center;\"\u003e\u003cspan style=\"color: #c20000;\"\u003e\u003cspan class=\"richDesc hilitBlock2 round1234\"\u003eUSB\u003c\/span\u003e TO \u003cspan class=\"richDesc hilitBlock2 round1234\"\u003eRS232, RS485 Or TTL(UART)\u003c\/span\u003e\u003c\/span\u003e\u003c\/h4\u003e\n\u003cimg src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/USB-TO-RS232-485-TTL\/USB-TO-RS232-485-TTL-details-5.gif\" style=\"margin-bottom: 16px; float: none;\"\u003e\n\u003cp\u003e\u003cspan class=\"richDesc hilitBlock2 round1234\"\u003e \u003c\/span\u003e\u003c\/p\u003e\n\u003ch4 style=\"text-align: center;\"\u003e\u003cspan style=\"color: #c20000;\"\u003e\u003cspan class=\"richDesc hilitBlock2 round1234\"\u003eRS232, RS485 Or TTL(UART)\u003c\/span\u003e TO \u003cspan class=\"richDesc hilitBlock2 round1234\"\u003eUSB\u003c\/span\u003e\u003c\/span\u003e\u003c\/h4\u003e\n\u003cimg src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/USB-TO-RS232-485-TTL\/USB-TO-RS232-485-TTL-details-6.gif\" style=\"margin-bottom: 16px; float: none;\"\u003e\n\u003cp class=\"msg msg_warning\"\u003e\u003cspan style=\"color: #c20001;\"\u003e\u003cem\u003e* only one of the RS232, RS485, and TTL can be converted to USB at the same time; And RS232, RS485, and TTL cannot be converted between each other\u003c\/em\u003e\u003c\/span\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"pdT\" style=\"text-align: center;\"\u003e\n\u003ch2 class=\"richTitle\" style=\"text-align: center;\"\u003e \u003c\/h2\u003e\n\u003ch2 class=\"richTitle\" style=\"text-align: center;\"\u003eMultiple Protection, Safe And Stable\u003c\/h2\u003e\n\u003cp class=\"alignl pdTRBL\" style=\"text-align: center;\"\u003eOnboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof \u0026amp; ESD protection. Onboard self-recovery fuse and protection diodes, ensures the current\/voltage stable outputs, provides over-current\/over-voltage proof, improves shock proof performance.\u003c\/p\u003e\n\u003cimg src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/USB-TO-RS232-485-TTL\/USB-TO-RS232-485-TTL-details-8.jpg\" style=\"margin-bottom: 16px; float: none;\"\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"pdT\" style=\"text-align: center;\"\u003e\n\u003ch2 class=\"richTitle\"\u003e \u003c\/h2\u003e\n\u003ch2 class=\"richTitle\" style=\"text-align: center;\"\u003eMulti System Support\u003c\/h2\u003e\n\u003cp class=\"richDesc\" style=\"text-align: center;\"\u003eSupports Mac, Linux, Android, Windows 11 \/ 10 \/ 8.1 \/ 8 \/ 7, Etc.\u003c\/p\u003e\n\u003cimg src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/USB-TO-RS485-B\/USB-TO-RS485-B-details-9.jpg\" style=\"margin-bottom: 16px; float: none;\"\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"pdT\" style=\"text-align: center;\"\u003e\n\u003ch2 class=\"richTitle\" style=\"text-align: center;\"\u003e \u003c\/h2\u003e\n\u003ch2 class=\"richTitle\" style=\"text-align: center;\"\u003ePinout Definition\u003c\/h2\u003e\n\u003cimg src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/USB-TO-RS232-485-TTL\/USB-TO-RS232-485-TTL-details-7.jpg\" style=\"margin-bottom: 16px; float: none;\"\u003e\n\u003c\/div\u003e\n\u003cp\u003e\u003cbr\u003e\u003c\/p\u003e\n\u003cdiv style=\"text-align: center;\"\u003e\n\u003ch2 class=\"richTitle\" style=\"text-align: center;\"\u003e \u003c\/h2\u003e\n\u003ch2 class=\"richTitle\" style=\"text-align: center;\"\u003eWorking Status Indicators\u003c\/h2\u003e\n\u003ch4 class=\"richDesc\" style=\"text-align: center;\"\u003eOnboard 3 LEDs For Indicating The Power And Transceiver Status\u003c\/h4\u003e\n\u003cimg src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/USB-TO-RS232-485-TTL\/USB-TO-RS232-485-TTL-details-10.gif\" style=\"margin-bottom: 16px; float: none;\"\u003e\n\u003c\/div\u003e\n\u003cdiv style=\"text-align: center;\"\u003e\n\u003cdiv class=\"richTitle\"\u003e \u003c\/div\u003e\n\u003ch2 class=\"richDesc\" style=\"text-align: center;\"\u003eAluminium Alloy Enclosure With Sand Blasting And Anodic Oxidation\u003c\/h2\u003e\n\u003ch4 class=\"richDesc\" style=\"text-align: center;\"\u003eSolid And Durable, Fashion And Good Hand Feeling\u003c\/h4\u003e\n\u003cimg src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/USB-TO-RS232-485-TTL\/USB-TO-RS232-485-TTL-details-11.jpg\" style=\"margin-bottom: 16px; float: none;\"\u003e\n\u003c\/div\u003e\n\u003cdiv style=\"text-align: center;\"\u003e\n\u003ch2 class=\"richTitle\" style=\"text-align: center;\"\u003e \u003c\/h2\u003e\n\u003ch2 class=\"richTitle\" style=\"text-align: center;\"\u003eInterface Introduction\u003c\/h2\u003e\n\u003cimg src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/USB-TO-RS232-485-TTL\/USB-TO-RS232-485-TTL-details-13.jpg\" style=\"margin-bottom: 16px; float: none;\"\u003e\u003cspan\u003e \u003c\/span\u003e\u003cimg src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/USB-TO-RS232-485-TTL\/USB-TO-RS232-485-TTL-details-14.jpg\" style=\"margin-bottom: 16px; float: none;\"\u003e\n\u003c\/div\u003e\n\u003cdiv style=\"text-align: center;\"\u003e\n\u003ch2 class=\"richTitle\" style=\"text-align: center;\"\u003e \u003c\/h2\u003e\n\u003ch2 class=\"richTitle\" style=\"text-align: center;\"\u003eOutline Dimensions\u003c\/h2\u003e\n\u003cimg src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/USB-TO-RS232-485-TTL\/USB-TO-RS232-485-TTL-details-size.jpg\" style=\"margin-bottom: 16px; float: none;\"\u003e\n\u003c\/div\u003e\n\u003cdiv\u003e\n\u003ch2 class=\"richTitle\"\u003e \u003c\/h2\u003e\n\u003ch2 class=\"richTitle\"\u003eResources\u003c\/h2\u003e\n\u003cdiv class=\"bgGrey\"\u003e\n\u003chr\u003e\n\u003cdiv\u003e\n\u003cstrong\u003eWIKI:\u003cspan\u003e \u003c\/span\u003e\u003c\/strong\u003e\u003ca href=\"http:\/\/www.waveshare.com\/wiki\/USB_TO_RS232\/485\/TTL\" target=\"_blank\"\u003ewww.waveshare.com\/wiki\/USB_TO_RS232\/485\/TTL\u003c\/a\u003e\u003cbr\u003e\u003cstrong\u003eWIKI:\u003cspan\u003e \u003c\/span\u003e\u003c\/strong\u003e\u003ca href=\"http:\/\/www.waveshare.com\/wiki\/USB_TO_RS232\/485\/TTL_(B)_\" target=\"_blank\"\u003ewww.waveshare.com\/wiki\/USB_TO_RS232\/485\/TTL_(B)_\u003c\/a\u003e\n\u003c\/div\u003e\n\u003cdiv\u003e\u003cbr\u003e\u003c\/div\u003e\n\u003ch2\u003e \u003c\/h2\u003e\n\u003ch2\u003ePackage Contents:\u003c\/h2\u003e\n\u003cdiv\u003e\n\u003cmeta charset=\"utf-8\"\u003e\n\u003cp\u003e\u003cstrong\u003eWeight:\u003cspan\u003e \u003c\/span\u003e\u003c\/strong\u003e\u003cspan\u003e0.196 kg\u003c\/span\u003e\u003c\/p\u003e\n\u003cdiv class=\"std\"\u003e\n\u003col\u003e\n\u003cli\u003eUSB Converter x1\u003c\/li\u003e\n\u003cli\u003eUSB Cable ~1.2m x1\u003c\/li\u003e\n\u003c\/ol\u003e\n\u003cdiv class=\"imgTextWrap\"\u003e\n\u003cdiv\u003e1\u003cimg src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/USB-TO-RS232-485-TTL\/USB-TO-RS232-485-TTL-1_220.jpg\"\u003e2\u003ca href=\"https:\/\/www.waveshare.com\/img\/devkit\/general\/USB-Type-B-Cable.jpg\"\u003e\u003cimg src=\"https:\/\/www.waveshare.com\/img\/devkit\/general\/USB-Type-B-Cable_93.jpg\"\u003e\u003c\/a\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e","published_at":"2023-09-25T23:48:31+05:30","created_at":"2023-09-25T23:44:35+05:30","vendor":"Waveshare","type":"Breakout Boards","tags":["15817","22547","485","CH343G","CJMCU","Converter","ELC3","FT232H","FT232RL","FTDI","High Speed USB","industrial","Interface","isolation","JTAG","module","RS232","TTL","TTL Cable","TTL Module","UART-MOD","UARTS","USB","USB Controller","USB Interface","USB Module","Waveshare","WVSH"],"price":189999,"price_min":189999,"price_max":193999,"available":true,"price_varies":true,"compare_at_price":142500,"compare_at_price_min":142500,"compare_at_price_max":142500,"compare_at_price_varies":false,"variants":[{"id":46973557670205,"title":"FT232RL","option1":"FT232RL","option2":null,"option3":null,"sku":"ELC3048","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"FT232RL\/CH343G USB TO RS232\/485\/TTL Interface Converter - FT232RL","public_title":"FT232RL","options":["FT232RL"],"price":193999,"weight":50,"compare_at_price":142500,"inventory_management":"shopify","barcode":"46973557670205","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":46973557702973,"title":"CH343G","option1":"CH343G","option2":null,"option3":null,"sku":"ELC3049","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"FT232RL\/CH343G USB TO RS232\/485\/TTL Interface Converter - CH343G","public_title":"CH343G","options":["CH343G"],"price":189999,"weight":50,"compare_at_price":142500,"inventory_management":"shopify","barcode":"46973557702973","requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/thinkrobotics.com\/cdn\/shop\/files\/usb-to-rs232-485-ttl-1_2_1.jpg?v=1695665961","\/\/thinkrobotics.com\/cdn\/shop\/files\/usb-to-rs232-485-ttl-b-1_1.jpg?v=1695665961","\/\/thinkrobotics.com\/cdn\/shop\/files\/usb-to-rs232-485-ttl-4_2_1.jpg?v=1695665961","\/\/thinkrobotics.com\/cdn\/shop\/files\/usb-to-rs232-485-ttl-3_2_1.jpg?v=1695665961","\/\/thinkrobotics.com\/cdn\/shop\/files\/usb-to-rs232-485-ttl-2_2_1.jpg?v=1695665961"],"featured_image":"\/\/thinkrobotics.com\/cdn\/shop\/files\/usb-to-rs232-485-ttl-1_2_1.jpg?v=1695665961","options":["Finish"],"media":[{"alt":"FT232RL\/CH343G USB TO RS232\/485\/TTL Interface Converter","id":35113163358525,"position":1,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/usb-to-rs232-485-ttl-1_2_1.jpg?v=1695665961"},"aspect_ratio":1.0,"height":800,"media_type":"image","src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/usb-to-rs232-485-ttl-1_2_1.jpg?v=1695665961","width":800},{"alt":"FT232RL\/CH343G USB TO RS232\/485\/TTL Interface Converter","id":35113163227453,"position":2,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/usb-to-rs232-485-ttl-b-1_1.jpg?v=1695665961"},"aspect_ratio":1.0,"height":800,"media_type":"image","src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/usb-to-rs232-485-ttl-b-1_1.jpg?v=1695665961","width":800},{"alt":"FT232RL\/CH343G USB TO RS232\/485\/TTL Interface Converter","id":35113163260221,"position":3,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/usb-to-rs232-485-ttl-4_2_1.jpg?v=1695665961"},"aspect_ratio":1.0,"height":800,"media_type":"image","src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/usb-to-rs232-485-ttl-4_2_1.jpg?v=1695665961","width":800},{"alt":"FT232RL\/CH343G USB TO RS232\/485\/TTL Interface Converter","id":35113163292989,"position":4,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/usb-to-rs232-485-ttl-3_2_1.jpg?v=1695665961"},"aspect_ratio":1.0,"height":800,"media_type":"image","src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/usb-to-rs232-485-ttl-3_2_1.jpg?v=1695665961","width":800},{"alt":"FT232RL\/CH343G USB TO RS232\/485\/TTL Interface Converter","id":35113163325757,"position":5,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/usb-to-rs232-485-ttl-2_2_1.jpg?v=1695665961"},"aspect_ratio":1.0,"height":800,"media_type":"image","src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/usb-to-rs232-485-ttl-2_2_1.jpg?v=1695665961","width":800}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003cp\u003e \u003c\/p\u003e\n\u003cdiv class=\"pdT\" style=\"text-align: center;\"\u003e\n\u003ch1 class=\"richTitle\" style=\"text-align: center;\"\u003eIndustrial Grade Isolated USB Converter\u003c\/h1\u003e\n\u003ch2 class=\"richDesc hilitBlock2 round1234\" style=\"text-align: center;\"\u003eUSB TO RS232\/485\/TTL\u003c\/h2\u003e\n\u003ch4 class=\"richDesc\" style=\"text-align: center;\"\u003e\u003cspan style=\"color: #c20000;\"\u003eStable Transmission | Multiple Devices Applicable | Multi-OS Compatible\u003c\/span\u003e\u003c\/h4\u003e\n\u003cimg src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/USB-TO-RS232-485-TTL\/USB-TO-RS232-485-TTL-details-1.jpg\" style=\"margin-bottom: 16px; float: none;\"\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"pdT\" style=\"text-align: center;\"\u003e\n\u003ch2 class=\"richTitle\"\u003e \u003c\/h2\u003e\n\u003ch2 style=\"text-align: left;\" class=\"richTitle\"\u003eFeatures At A Glance\u003c\/h2\u003e\n\u003cul class=\"alignl pdTRBL2\"\u003e\n\u003cli style=\"text-align: left;\"\u003eAdopt original FT232RL or CH343G inside, fast communicating, stable and reliable, better compatibility\u003c\/li\u003e\n\u003cli style=\"text-align: left;\"\u003eOnboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal\u003c\/li\u003e\n\u003cli style=\"text-align: left;\"\u003eOnboard unibody digital isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption\u003c\/li\u003e\n\u003cli style=\"text-align: left;\"\u003eOnboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof \u0026amp; ESD protection\u003c\/li\u003e\n\u003cli style=\"text-align: left;\"\u003eOnboard self-recovery fuse and protection diodes, ensures the current\/voltage stable outputs, provides over-current\/over-voltage proof, improves shock proof performance\u003c\/li\u003e\n\u003cli style=\"text-align: left;\"\u003eFully automatic transceiver circuit with no delay, ensures the USB port communicates with different interfaces fastly and stably, without interfering each other\u003c\/li\u003e\n\u003cli style=\"text-align: left;\"\u003eOnboard TTL serial 3.3V\/5V voltage translator, config the TTL level via switch\u003c\/li\u003e\n\u003cli style=\"text-align: left;\"\u003eAluminium alloy enclosure with sand blasting and anodic oxidation, CNC process opening, solid and durable\u003c\/li\u003e\n\u003cli style=\"text-align: left;\"\u003e3 LEDs for indicating the power and transceiver status\u003c\/li\u003e\n\u003cli style=\"text-align: left;\"\u003eHigh quality USB-B and RS232 connectors, smoothly plug\/pull\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"pdT\"\u003e\n\u003cdiv class=\"richTitle\"\u003e\u003cbr\u003e\u003c\/div\u003e\n\u003cdiv\u003e\u003cbr\u003e\u003c\/div\u003e\n\u003c\/div\u003e\n\u003cdiv\u003e\n\u003ch2 class=\"richTitle\"\u003e \u003c\/h2\u003e\n\u003ch2 class=\"richTitle\"\u003eSpecifications\u003cbr\u003e\n\u003c\/h2\u003e\n\u003ctable class=\"tabSty-2 mgnTB alignl\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003cth style=\"width: 20%;\"\u003ePRODUCT TYPE\u003c\/th\u003e\n\u003ctd colspan=\"2\"\u003eIndustrial grade digital isolated converter\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth rowspan=\"3\"\u003eUSB\u003c\/th\u003e\n\u003ctd style=\"width: 30%;\"\u003eOperating voltage\u003c\/td\u003e\n\u003ctd\u003e5V\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eConnector\u003c\/td\u003e\n\u003ctd\u003eUSB-B\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eProtection\u003c\/td\u003e\n\u003ctd\u003e200mA self-recovery fuse, isolated output\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth rowspan=\"4\"\u003eRS232\u003c\/th\u003e\n\u003ctd\u003eConnector\u003c\/td\u003e\n\u003ctd\u003eDB9 male\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eProtection\u003c\/td\u003e\n\u003ctd\u003eTVS diode, surge protection \u0026amp; ESD protection\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eTransmission mode\u003c\/td\u003e\n\u003ctd\u003ePoint-to-point\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eBaud rate\u003c\/td\u003e\n\u003ctd\u003eFT232RL: 300bps ~ 921600 bps\u003cbr\u003eCH343G: up to 600000 bps (not full band)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth rowspan=\"6\"\u003eRS485\u003c\/th\u003e\n\u003ctd\u003eConnector\u003c\/td\u003e\n\u003ctd\u003eScrew terminal\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003ePins\u003c\/td\u003e\n\u003ctd\u003eA+\/B-\/GND\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eDirection control\u003c\/td\u003e\n\u003ctd\u003eHardware automatically discriminates and controls the direction of data transmission\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eProtection\u003c\/td\u003e\n\u003ctd\u003e600W lightningproof and surge-suppress, 15KV ESD protection (reserved 120R balancing resistor solder pads\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eTransmission mode\u003c\/td\u003e\n\u003ctd\u003ePoint-to-multipoints (up to 32 nodes, it is recommended to use repeaters for 16 nodes or more)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eBaud rate\u003c\/td\u003e\n\u003ctd\u003eFT232RL: 300bps ~ 2 Mbps\u003cbr\u003eCH343G: up to 2 Mbps (not full band)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth rowspan=\"6\"\u003eTTL (UART)\u003c\/th\u003e\n\u003ctd\u003eOperating voltage\u003c\/td\u003e\n\u003ctd\u003e3.3V \/ 5V\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eConnector\u003c\/td\u003e\n\u003ctd\u003eScrew terminal\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003ePins\u003c\/td\u003e\n\u003ctd\u003eTXD, RXD, GND, 5V\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eProtection\u003c\/td\u003e\n\u003ctd\u003eclamp protection diode, over-voltage\/negative-voltage proof, shock proof\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eTransmission mode\u003c\/td\u003e\n\u003ctd\u003ePoint-to-point\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eBaud rate\u003c\/td\u003e\n\u003ctd\u003eFT232RL: 300 bps ~ 2 Mbps\u003cbr\u003eCH343G: up to 2 Mbps (not full band)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth rowspan=\"3\"\u003eINDICATORS\u003c\/th\u003e\n\u003ctd\u003ePWR\u003c\/td\u003e\n\u003ctd\u003eRed power indicator, light up when there is USB connection and voltage is detected\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eTXD\u003c\/td\u003e\n\u003ctd\u003eGreen TX indicator, light up when the USB port sends data\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eRXD\u003c\/td\u003e\n\u003ctd\u003eBlue RX indicator, light up when the device ports send data back\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth rowspan=\"2\"\u003eOPERATING ENVIRONMENT\u003c\/th\u003e\n\u003ctd\u003eTemperature\u003c\/td\u003e\n\u003ctd\u003e-15℃ ~ 70℃\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eHumidity\u003c\/td\u003e\n\u003ctd\u003e5%RH ~ 95%RH\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth\u003eOPERATING SYSTEM\u003c\/th\u003e\n\u003ctd colspan=\"2\"\u003eMac, Linux, Android, Windows 11 \/ 10 \/ 8.1 \/ 8 \/ 7\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003c\/div\u003e\n\u003cp\u003e\u003cbr\u003e\u003c\/p\u003e\n\u003cdiv style=\"text-align: center;\"\u003e\n\u003ch2 class=\"richTitle\"\u003e \u003c\/h2\u003e\n\u003ch2 style=\"text-align: center;\" class=\"richTitle\"\u003eOriginal Industrial Grade Chip\u003c\/h2\u003e\n\u003ch4 style=\"text-align: center;\" class=\"richDesc\"\u003eOnboard Original FT232 Or CH343 Chip\u003cbr\u003eFast Communication, Stable \u0026amp; Reliable, Better Compatibility\u003c\/h4\u003e\n\u003cimg style=\"margin-bottom: 16px; float: none;\" src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/USB-TO-RS232-485-TTL\/USB-TO-RS232-485-TTL-details-3.jpg\"\u003e\n\u003c\/div\u003e\n\u003cp\u003e\u003cbr\u003e\u003cbr\u003e\u003c\/p\u003e\n\u003cdiv style=\"text-align: center;\"\u003e\n\u003ch2 style=\"text-align: left;\" class=\"richTitle\"\u003eSafer Isolated Design\u003c\/h2\u003e\n\u003cul class=\"alignl pdTRBL2\"\u003e\n\u003cli style=\"text-align: left;\"\u003eOnboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal\u003c\/li\u003e\n\u003cli style=\"text-align: left;\"\u003eOnboard unibody digital isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cimg style=\"margin-bottom: 16px; float: none;\" src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/USB-TO-RS232-485-TTL\/USB-TO-RS232-485-TTL-details-4.jpg\"\u003e\n\u003c\/div\u003e\n\u003cdiv style=\"text-align: center;\"\u003e\n\u003ch2 class=\"richTitle\" style=\"text-align: center;\"\u003e \u003c\/h2\u003e\n\u003ch2 class=\"richTitle\" style=\"text-align: center;\"\u003eMulti-Protocol \u0026amp; Multi-Type Conversion\u003c\/h2\u003e\n\u003ch4 style=\"text-align: center;\"\u003e\u003cspan style=\"color: #c20000;\"\u003e\u003cspan class=\"richDesc hilitBlock2 round1234\"\u003eUSB\u003c\/span\u003e TO \u003cspan class=\"richDesc hilitBlock2 round1234\"\u003eRS232, RS485 Or TTL(UART)\u003c\/span\u003e\u003c\/span\u003e\u003c\/h4\u003e\n\u003cimg src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/USB-TO-RS232-485-TTL\/USB-TO-RS232-485-TTL-details-5.gif\" style=\"margin-bottom: 16px; float: none;\"\u003e\n\u003cp\u003e\u003cspan class=\"richDesc hilitBlock2 round1234\"\u003e \u003c\/span\u003e\u003c\/p\u003e\n\u003ch4 style=\"text-align: center;\"\u003e\u003cspan style=\"color: #c20000;\"\u003e\u003cspan class=\"richDesc hilitBlock2 round1234\"\u003eRS232, RS485 Or TTL(UART)\u003c\/span\u003e TO \u003cspan class=\"richDesc hilitBlock2 round1234\"\u003eUSB\u003c\/span\u003e\u003c\/span\u003e\u003c\/h4\u003e\n\u003cimg src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/USB-TO-RS232-485-TTL\/USB-TO-RS232-485-TTL-details-6.gif\" style=\"margin-bottom: 16px; float: none;\"\u003e\n\u003cp class=\"msg msg_warning\"\u003e\u003cspan style=\"color: #c20001;\"\u003e\u003cem\u003e* only one of the RS232, RS485, and TTL can be converted to USB at the same time; And RS232, RS485, and TTL cannot be converted between each other\u003c\/em\u003e\u003c\/span\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"pdT\" style=\"text-align: center;\"\u003e\n\u003ch2 class=\"richTitle\" style=\"text-align: center;\"\u003e \u003c\/h2\u003e\n\u003ch2 class=\"richTitle\" style=\"text-align: center;\"\u003eMultiple Protection, Safe And Stable\u003c\/h2\u003e\n\u003cp class=\"alignl pdTRBL\" style=\"text-align: center;\"\u003eOnboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof \u0026amp; ESD protection. Onboard self-recovery fuse and protection diodes, ensures the current\/voltage stable outputs, provides over-current\/over-voltage proof, improves shock proof performance.\u003c\/p\u003e\n\u003cimg src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/USB-TO-RS232-485-TTL\/USB-TO-RS232-485-TTL-details-8.jpg\" style=\"margin-bottom: 16px; float: none;\"\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"pdT\" style=\"text-align: center;\"\u003e\n\u003ch2 class=\"richTitle\"\u003e \u003c\/h2\u003e\n\u003ch2 class=\"richTitle\" style=\"text-align: center;\"\u003eMulti System Support\u003c\/h2\u003e\n\u003cp class=\"richDesc\" style=\"text-align: center;\"\u003eSupports Mac, Linux, Android, Windows 11 \/ 10 \/ 8.1 \/ 8 \/ 7, Etc.\u003c\/p\u003e\n\u003cimg src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/USB-TO-RS485-B\/USB-TO-RS485-B-details-9.jpg\" style=\"margin-bottom: 16px; float: none;\"\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"pdT\" style=\"text-align: center;\"\u003e\n\u003ch2 class=\"richTitle\" style=\"text-align: center;\"\u003e \u003c\/h2\u003e\n\u003ch2 class=\"richTitle\" style=\"text-align: center;\"\u003ePinout Definition\u003c\/h2\u003e\n\u003cimg src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/USB-TO-RS232-485-TTL\/USB-TO-RS232-485-TTL-details-7.jpg\" style=\"margin-bottom: 16px; float: none;\"\u003e\n\u003c\/div\u003e\n\u003cp\u003e\u003cbr\u003e\u003c\/p\u003e\n\u003cdiv style=\"text-align: center;\"\u003e\n\u003ch2 class=\"richTitle\" style=\"text-align: center;\"\u003e \u003c\/h2\u003e\n\u003ch2 class=\"richTitle\" style=\"text-align: center;\"\u003eWorking Status Indicators\u003c\/h2\u003e\n\u003ch4 class=\"richDesc\" style=\"text-align: center;\"\u003eOnboard 3 LEDs For Indicating The Power And Transceiver Status\u003c\/h4\u003e\n\u003cimg src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/USB-TO-RS232-485-TTL\/USB-TO-RS232-485-TTL-details-10.gif\" style=\"margin-bottom: 16px; float: none;\"\u003e\n\u003c\/div\u003e\n\u003cdiv style=\"text-align: center;\"\u003e\n\u003cdiv class=\"richTitle\"\u003e \u003c\/div\u003e\n\u003ch2 class=\"richDesc\" style=\"text-align: center;\"\u003eAluminium Alloy Enclosure With Sand Blasting And Anodic Oxidation\u003c\/h2\u003e\n\u003ch4 class=\"richDesc\" style=\"text-align: center;\"\u003eSolid And Durable, Fashion And Good Hand Feeling\u003c\/h4\u003e\n\u003cimg src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/USB-TO-RS232-485-TTL\/USB-TO-RS232-485-TTL-details-11.jpg\" style=\"margin-bottom: 16px; float: none;\"\u003e\n\u003c\/div\u003e\n\u003cdiv style=\"text-align: center;\"\u003e\n\u003ch2 class=\"richTitle\" style=\"text-align: center;\"\u003e \u003c\/h2\u003e\n\u003ch2 class=\"richTitle\" style=\"text-align: center;\"\u003eInterface Introduction\u003c\/h2\u003e\n\u003cimg src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/USB-TO-RS232-485-TTL\/USB-TO-RS232-485-TTL-details-13.jpg\" style=\"margin-bottom: 16px; float: none;\"\u003e\u003cspan\u003e \u003c\/span\u003e\u003cimg src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/USB-TO-RS232-485-TTL\/USB-TO-RS232-485-TTL-details-14.jpg\" style=\"margin-bottom: 16px; float: none;\"\u003e\n\u003c\/div\u003e\n\u003cdiv style=\"text-align: center;\"\u003e\n\u003ch2 class=\"richTitle\" style=\"text-align: center;\"\u003e \u003c\/h2\u003e\n\u003ch2 class=\"richTitle\" style=\"text-align: center;\"\u003eOutline Dimensions\u003c\/h2\u003e\n\u003cimg src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/USB-TO-RS232-485-TTL\/USB-TO-RS232-485-TTL-details-size.jpg\" style=\"margin-bottom: 16px; float: none;\"\u003e\n\u003c\/div\u003e\n\u003cdiv\u003e\n\u003ch2 class=\"richTitle\"\u003e \u003c\/h2\u003e\n\u003ch2 class=\"richTitle\"\u003eResources\u003c\/h2\u003e\n\u003cdiv class=\"bgGrey\"\u003e\n\u003chr\u003e\n\u003cdiv\u003e\n\u003cstrong\u003eWIKI:\u003cspan\u003e \u003c\/span\u003e\u003c\/strong\u003e\u003ca href=\"http:\/\/www.waveshare.com\/wiki\/USB_TO_RS232\/485\/TTL\" target=\"_blank\"\u003ewww.waveshare.com\/wiki\/USB_TO_RS232\/485\/TTL\u003c\/a\u003e\u003cbr\u003e\u003cstrong\u003eWIKI:\u003cspan\u003e \u003c\/span\u003e\u003c\/strong\u003e\u003ca href=\"http:\/\/www.waveshare.com\/wiki\/USB_TO_RS232\/485\/TTL_(B)_\" target=\"_blank\"\u003ewww.waveshare.com\/wiki\/USB_TO_RS232\/485\/TTL_(B)_\u003c\/a\u003e\n\u003c\/div\u003e\n\u003cdiv\u003e\u003cbr\u003e\u003c\/div\u003e\n\u003ch2\u003e \u003c\/h2\u003e\n\u003ch2\u003ePackage Contents:\u003c\/h2\u003e\n\u003cdiv\u003e\n\u003cmeta charset=\"utf-8\"\u003e\n\u003cp\u003e\u003cstrong\u003eWeight:\u003cspan\u003e \u003c\/span\u003e\u003c\/strong\u003e\u003cspan\u003e0.196 kg\u003c\/span\u003e\u003c\/p\u003e\n\u003cdiv class=\"std\"\u003e\n\u003col\u003e\n\u003cli\u003eUSB Converter x1\u003c\/li\u003e\n\u003cli\u003eUSB Cable ~1.2m x1\u003c\/li\u003e\n\u003c\/ol\u003e\n\u003cdiv class=\"imgTextWrap\"\u003e\n\u003cdiv\u003e1\u003cimg src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/USB-TO-RS232-485-TTL\/USB-TO-RS232-485-TTL-1_220.jpg\"\u003e2\u003ca href=\"https:\/\/www.waveshare.com\/img\/devkit\/general\/USB-Type-B-Cable.jpg\"\u003e\u003cimg src=\"https:\/\/www.waveshare.com\/img\/devkit\/general\/USB-Type-B-Cable_93.jpg\"\u003e\u003c\/a\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e"}

FT232RL/CH343G USB TO RS232/485/TTL Interface Converter

Industrial Grade Isolated USB Converter

USB TO RS232/485/TTL

Stable Transmission | Multiple Devices Applicable | Multi-OS Compatible

Features At A Glance

Specifications

Original Industrial Grade Chip

Onboard Original FT232 Or CH343 Chip
Fast Communication, Stable & Reliable, Better Compatibility

Safer Isolated Design

Multi-Protocol & Multi-Type Conversion

USB TO RS232, RS485 Or TTL(UART)

RS232, RS485 Or TTL(UART) TO USB

Multiple Protection, Safe And Stable

Multi System Support

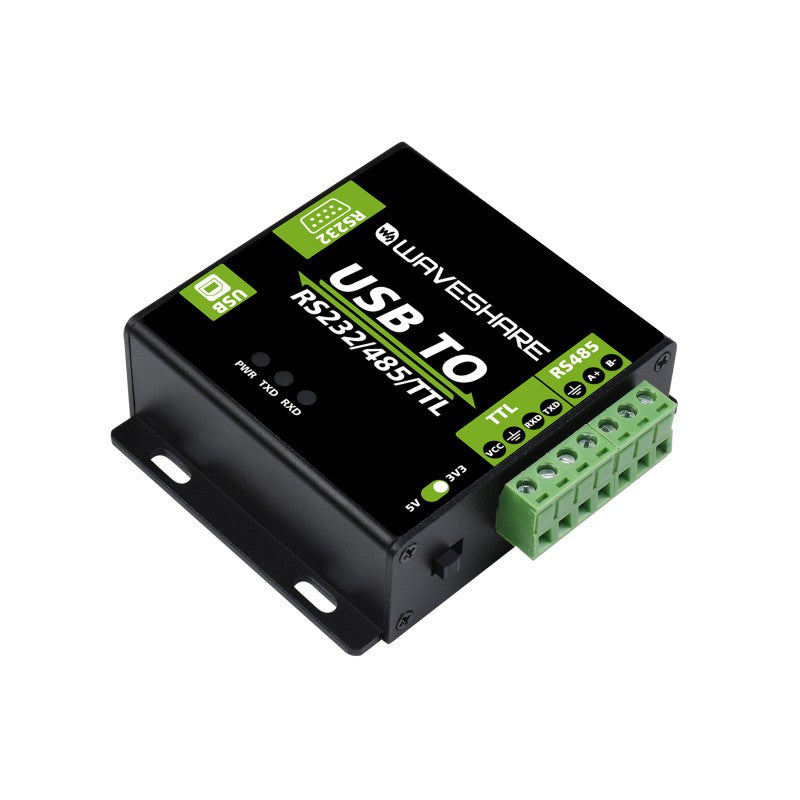

Pinout Definition

Working Status Indicators

Onboard 3 LEDs For Indicating The Power And Transceiver Status

Aluminium Alloy Enclosure With Sand Blasting And Anodic Oxidation

Solid And Durable, Fashion And Good Hand Feeling

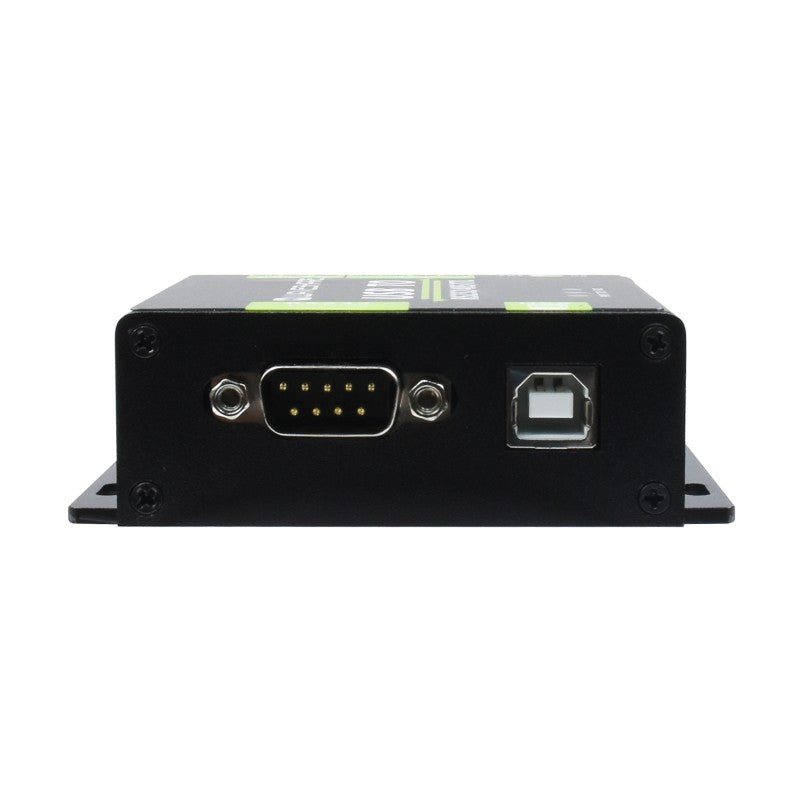

Interface Introduction

Outline Dimensions

Resources

Package Contents:

Want to buy in bulk?

Customer Reviews

Custom Requirements?

Download the ThinkRobotics Mobile App

We are here to serve you! Reach us at:

Popular Links

Shopping Cart

Let customers speak for us

PRODUCT TYPE	Industrial grade digital isolated converter
USB	Operating voltage	5V
	Connector	USB-B
	Protection	200mA self-recovery fuse, isolated output
RS232	Connector	DB9 male
	Protection	TVS diode, surge protection & ESD protection
	Transmission mode	Point-to-point
	Baud rate	FT232RL: 300bps ~ 921600 bps CH343G: up to 600000 bps (not full band)
RS485	Connector	Screw terminal
	Pins	A+/B-/GND
	Direction control	Hardware automatically discriminates and controls the direction of data transmission
	Protection	600W lightningproof and surge-suppress, 15KV ESD protection (reserved 120R balancing resistor solder pads
	Transmission mode	Point-to-multipoints (up to 32 nodes, it is recommended to use repeaters for 16 nodes or more)
	Baud rate	FT232RL: 300bps ~ 2 Mbps CH343G: up to 2 Mbps (not full band)
TTL (UART)	Operating voltage	3.3V / 5V
	Connector	Screw terminal
	Pins	TXD, RXD, GND, 5V
	Protection	clamp protection diode, over-voltage/negative-voltage proof, shock proof
	Transmission mode	Point-to-point
	Baud rate	FT232RL: 300 bps ~ 2 Mbps CH343G: up to 2 Mbps (not full band)
INDICATORS	PWR	Red power indicator, light up when there is USB connection and voltage is detected
	TXD	Green TX indicator, light up when the USB port sends data
	RXD	Blue RX indicator, light up when the device ports send data back
OPERATING ENVIRONMENT	Temperature	-15℃ ~ 70℃
OPERATING ENVIRONMENT	Humidity	5%RH ~ 95%RH
OPERATING SYSTEM	Mac, Linux, Android, Windows 11 / 10 / 8.1 / 8 / 7
