Best seller

Waveshare

IMX219-160 Camera, 160° FOV

SKU: WVSH0367

₹ 2,349.99

In stock | Ready to ship

⚠ Only a few left in stock. Order soon.
⏱ High demand right now.
📦 Min order 1
Chat with us on WhatsApp We reply quickly! Contact Us
IMX219-160 Camera, 160° FOV₹ 2,349.99
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

IMX219-160 Camera, Applicable For Jetson Nano, 8 Megapixels, 160° FOV

Features

  • Supports CM3/3+/4, Jetson Nano, Jetson Xavier NX
  • 8 Megapixels
  • Sensor: IMX219
  • Resolution: 3280 × 2464
  • Lens specifications:
    • CMOS size: 1/4inch
    • Aperture (F): 2.35
    • Focal Length: 3.15mm
    • Angle of View (diagonal): 160 degree
    • Distortion: <14.3%
  • 4 screw holes
    • Used for attachment
    • Provides 3.3V power output
  • Dimension: 25mm × 24mm

Package Contains:

  1. 1x IMX219-160 Camera
  2. 1x 15-pin FFC (opposite sides contact)

Applications

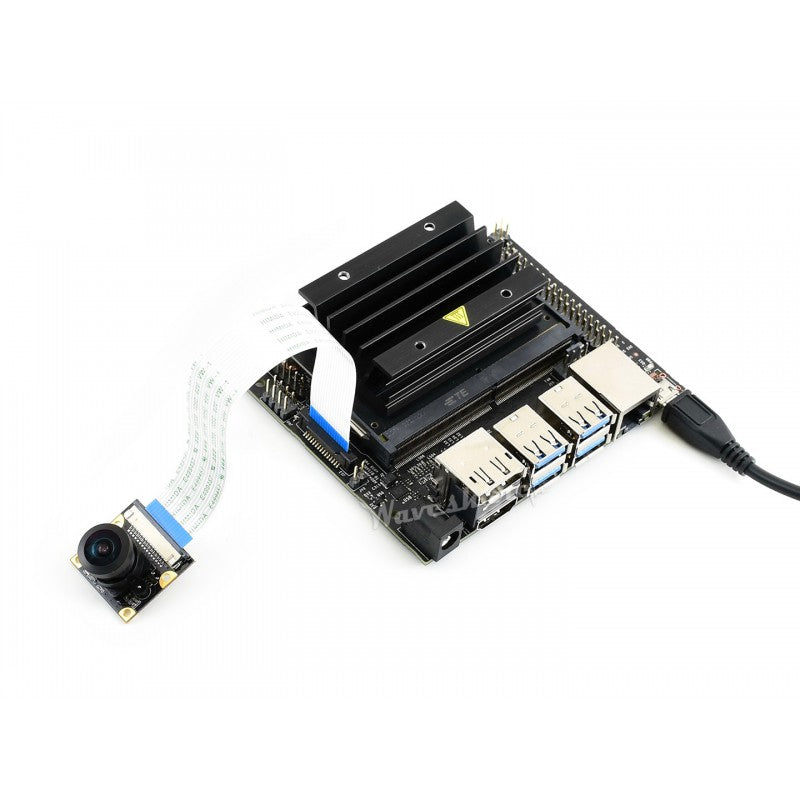

Combined with the Jetson Nano AI computer, this camera suits for AI projects such as:

  • Face recognition
  • Road mark detection
  • License plate recognition

Development Resources

Wiki: www.waveshare.com/wiki/IMX219-160_Camera

Is this camera compatible with Jetson Nano and other Nvidia modules?
Yes. It supports CM3/3+ and Jetson Xavier NX as well as Jetson Nano, making it suitable for AI projects.
What is the resolution and the field of view of this camera?
The camera has 8 megapixels with a resolution of 3280 x 2464 and a diagonal field of view of 160 degrees. Distortion is listed as less than 14.3 percent.
How do I mount the camera in a project?
The module has four screw holes for attachment and its dimensions are 25 mm by 24 mm.
Does the camera provide any power out to the host?
Yes, it provides a 3.3V power output to the host board.
Where can I find setup and development information?
Development resources are available at the Waveshare wiki site www.waveshare.com/wiki/IMX219-160_Camera.
A
Admin
Welcome to the discussion thread for IMX219-160 Camera, 160° FOV
Feel free to ask questions, share tips or report issues.
Add Post

For more discussion Click Here

Discover More In:

Camera Modules → Cameras & LIDARs → NVIDIA Jetson →

Category: View similar items (IMX219-160)

Fill out the form below and our team will get back to you with bulk pricing.

Description
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

IMX219-160 Camera, Applicable For Jetson Nano, 8 Megapixels, 160° FOV

Features

  • Supports CM3/3+/4, Jetson Nano, Jetson Xavier NX
  • 8 Megapixels
  • Sensor: IMX219
  • Resolution: 3280 × 2464
  • Lens specifications:
    • CMOS size: 1/4inch
    • Aperture (F): 2.35
    • Focal Length: 3.15mm
    • Angle of View (diagonal): 160 degree
    • Distortion: <14.3%
  • 4 screw holes
    • Used for attachment
    • Provides 3.3V power output
  • Dimension: 25mm × 24mm

Package Contains:

  1. 1x IMX219-160 Camera
  2. 1x 15-pin FFC (opposite sides contact)

Applications

Combined with the Jetson Nano AI computer, this camera suits for AI projects such as:

  • Face recognition
  • Road mark detection
  • License plate recognition

Development Resources

Wiki: www.waveshare.com/wiki/IMX219-160_Camera

FAQ
Is this camera compatible with Jetson Nano and other Nvidia modules?
Yes. It supports CM3/3+ and Jetson Xavier NX as well as Jetson Nano, making it suitable for AI projects.
What is the resolution and the field of view of this camera?
The camera has 8 megapixels with a resolution of 3280 x 2464 and a diagonal field of view of 160 degrees. Distortion is listed as less than 14.3 percent.
How do I mount the camera in a project?
The module has four screw holes for attachment and its dimensions are 25 mm by 24 mm.
Does the camera provide any power out to the host?
Yes, it provides a 3.3V power output to the host board.
Where can I find setup and development information?
Development resources are available at the Waveshare wiki site www.waveshare.com/wiki/IMX219-160_Camera.
