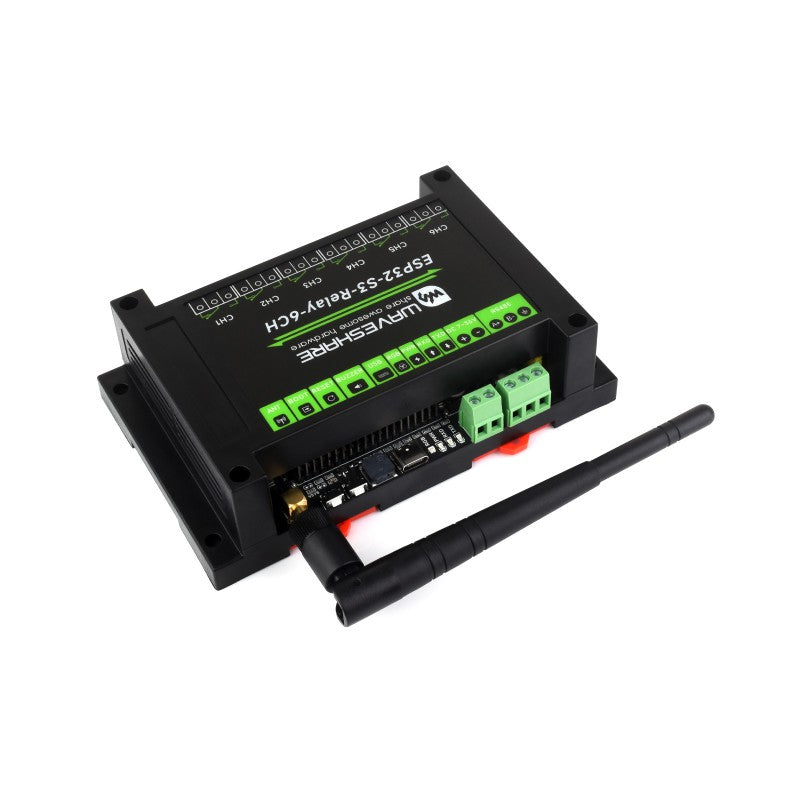

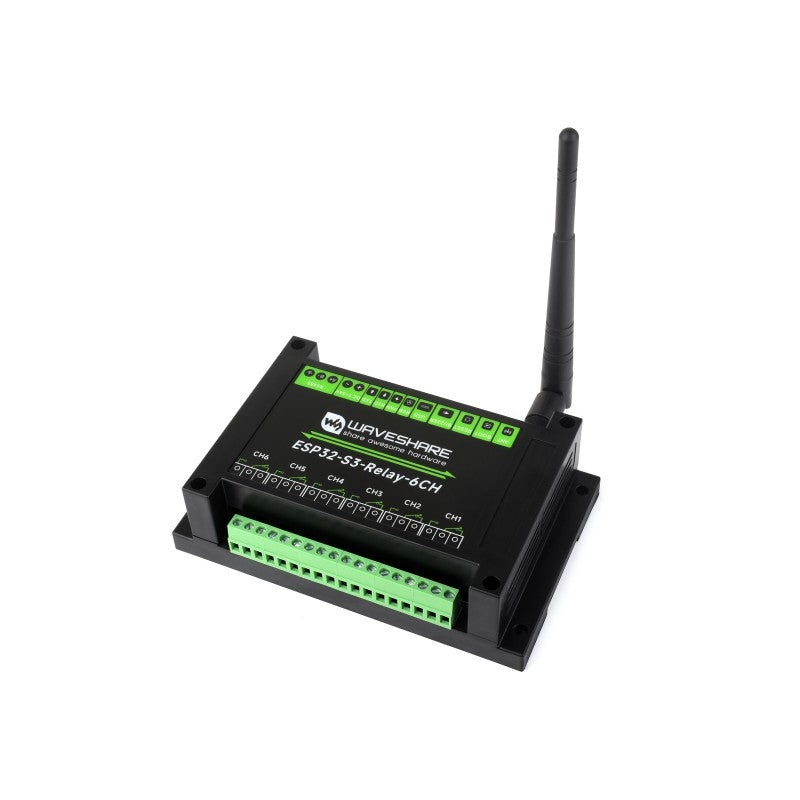

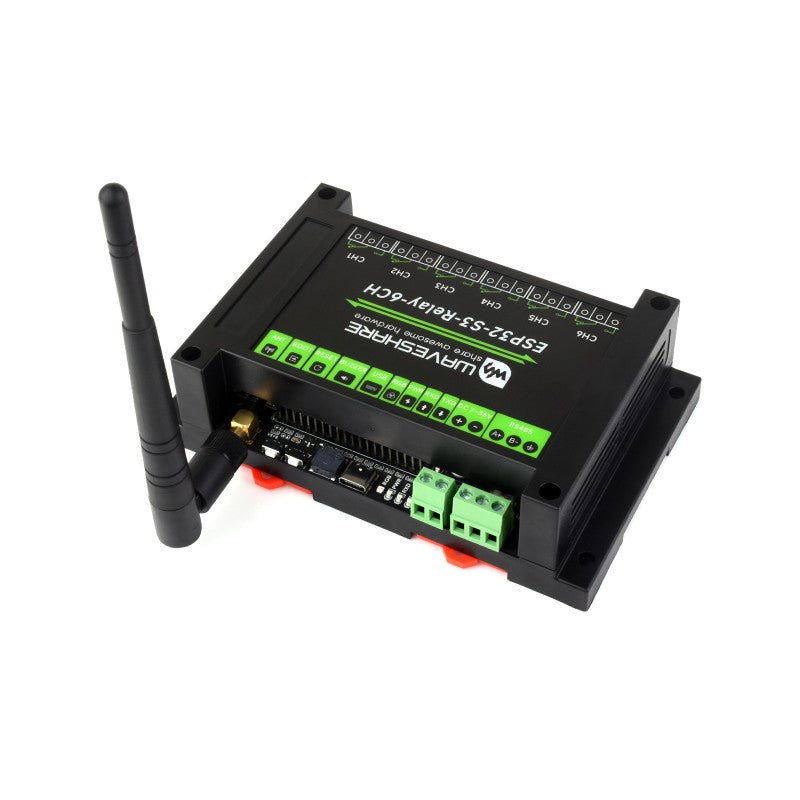

Based on ESP32-S3, Supports WiFi / Bluetooth, Onboard RS485 / Pico HAT interfaces
Built-in protection circuits such as power isolation and optocoupler isolation, Safe & Stable & Reliable
Features
Based on ESP32-S3 microcontroller with Xtensa 32-bit LX7 dual-core processor, capable of running at 240 MHz
Integrated 2.4GHz Wi-Fi and Bluetooth LE dual-mode wireless communication, with superior RF performance
High quality relay, contact rating: ≤10A 250VAC/30VDC
Onboard isolated RS485 interface, for connecting to various RS485 Modbus industrial modules or sensors
Onboard 40PIN header compatible with some Raspberry Pi Pico HAT, for expanding more functions such as RTC / CAN / RS232 / LoRa / sensor, etc.
Onboard USB Type-C port for power supply, firmware downloading and debugging
Onboard power supply screw terminal, supports 7~36V wide voltage input, suitable for industrial applications
Onboard optocoupler isolation to prevent interference from external high-voltage circuit connected to the relay
Onboard digital isolation to prevent interference from external signal
Onboard unibody power supply isolation, providing stable isolated voltage, no extra power supply required for the isolated terminal
Built in buzzer, RGB colorful LED, power supply and RS485 TX/RX indicators for monitoring the operating status of the module
Rail-mounted ABS case, easy to install, safe to use
Specifications
Microcontroller
ESP32-S3 (Default module: ESP32-S3-WROOM-1U-N8, customizable for other modules)
Wireless communicatoin
2.4GHz WiFi (802.11 b/g/n)、Bluetooth 5, BLE
USB
Connector
USB Type-C
Power supply
5V
Functions
Power supply, USB communication, firmware downloading, etc.
ISOLATED RS485
Connector
Screw terminal
Direction control
Hardware automatic control
Protection
TVS diode, surge protection & ESD protection
Resistor
Onboard reserved 120R matching resistor, NC by default, enabled via jumper
Expanded interface
Onboard 40PIN header compatible with some Raspberry Pi Pico HAT, easy to expand other functions such as RTC / CAN / RS232 / LoRa / sensor, etc
Relay
Contact rating
≤10A 250VAC/30VDC
Relay channels
6
Contact form
1NO 1NC
Isolation
Optocoupler isolation
LED indicators
RGB
RGB colorful LED, supports programmable control for display color
PWR
Red power indicator, lights up when there is USB connection and voltage is detected
TXD
Green TX indicator, lights up when the RS485 port sends data
RXD
Blue RX indicator, lights up when the device port sends data back
power supply Screw terminal
Voltage range
7~36V

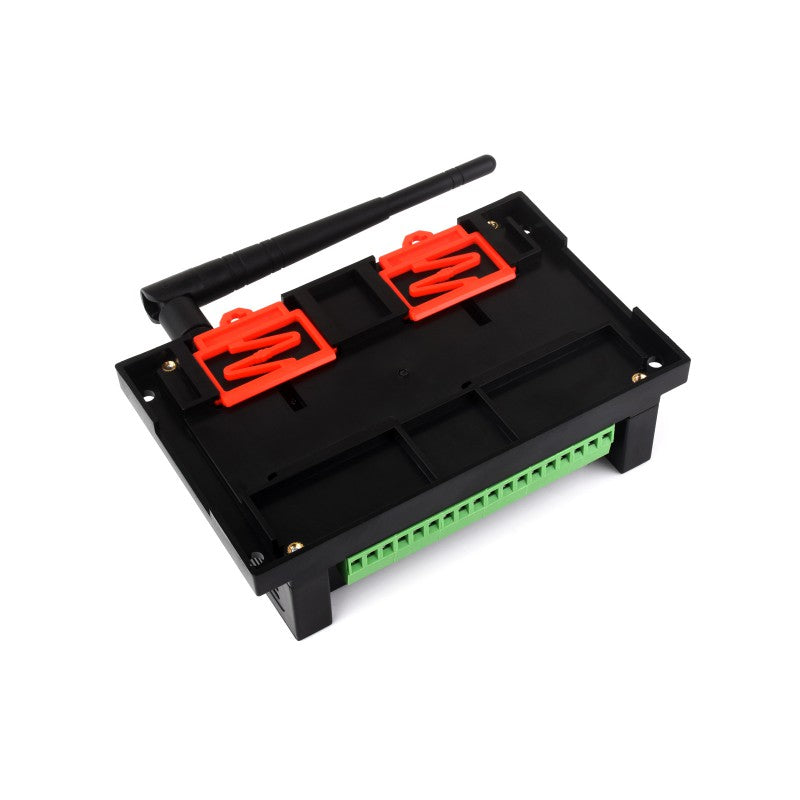

Appearance
Enclosure
Rail-mount ABS protective case
Dimensions
145 × 90 × 30mm
Based on ESP32-S3, Designed for AIoT market
Equipped with Xtensa 32-bit LX7 dual-core processor, capable of running at 240 MHz, with Powerful AI Computing Performance and Security Encryption Mechanism; Integrated 2.4GHz Wi-Fi and Bluetooth LE dual-mode wireless communication
Onboard multiple isolation protection circuit
Multiple protections, more safe and reliable
High quality 6-Ch relays, supports RS485 and Bluetooth / WIFi remote control
Contact rating of the onboard relay up to 10A 250VAC/30VDC Directly controlling 220VAC home appliances, or devices below 30VDC
Onboard Pico HAT compatible interface and RS485 interface for easy expansion
Onboard isolated RS485 interface, for connecting to various RS485 Modbus industrial modules or sensors. Onboard 40PIN header compatible with some Raspberry Pi Pico HAT, for expanding more functions such as RTC / CAN / RS232 / LoRa / sensor, etc.
Supports Arduino, Micropython development
Comprehensive SDK, Dev Resources, And Tutorials To Help You Easily Get Started
Application Examples
Provides Multiple Networking Demos With Waveshare.Cloud, Using The Lightweight MQTT Protocol To Achieve Data Visualization Service

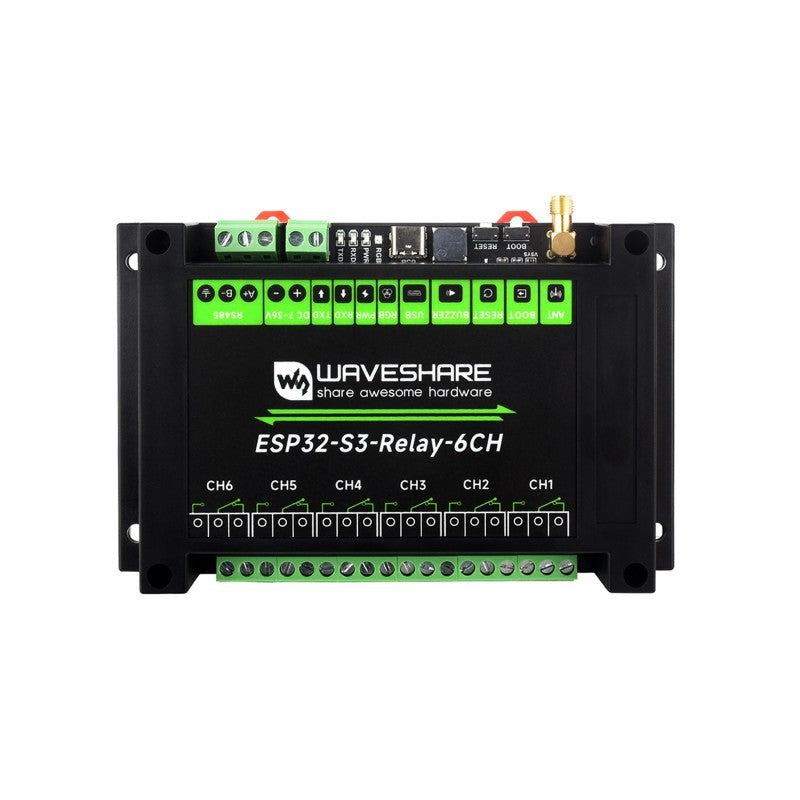

What's On Board
ESP32-S3 up to 240MHz operating frequency, with 2.4GHz WiFi and BLE
6-channel quality relays contact rating per channel: ≤10A 250V AC or ≤10A 30V DC
Optocoupler isolation prevents interference from external high-voltage circuit connected to the relay
Digital isolation prevents interference from external signal
Power supply isolation provides stable isolated voltage, needs no extra power supply for the isolated terminal
TVS diode effectively suppresses surge voltage and transient spike voltage in the circuit
Ceramic gas discharge tube
Relay screw terminals for connecting with user devices
40PIN Raspberry Pi Pico HAT header
RS485 bus interface for connecting to external RS485 devices
Power supply screw terminal Supports DC 7~36V wide voltage input
LED indicators PWR: power indicator RXD: RS485 RX indicator TXD: RS485 TX indicator
WS2812 RGB LED controllable via GPIO38
USB Type-C connector for module power supply, firmware downloading and USB communication
Passive buzzer sound frequency is controllable via GPIO21
ESP32 RESET button
ESP32 BOOT button
External antenna connector SMA female connector, for WiFi and Bluetooth wireless communication
