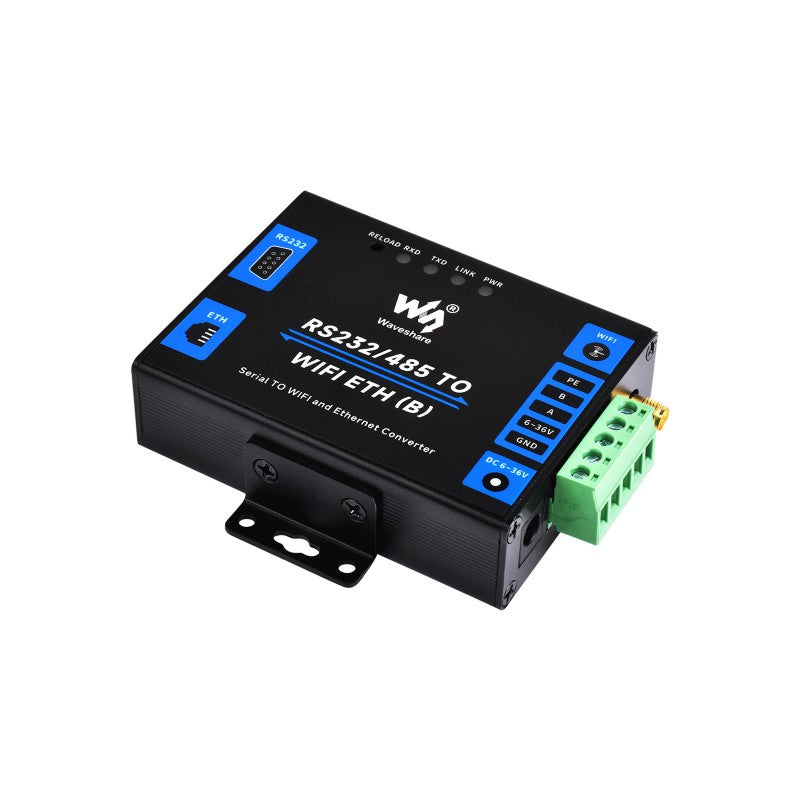

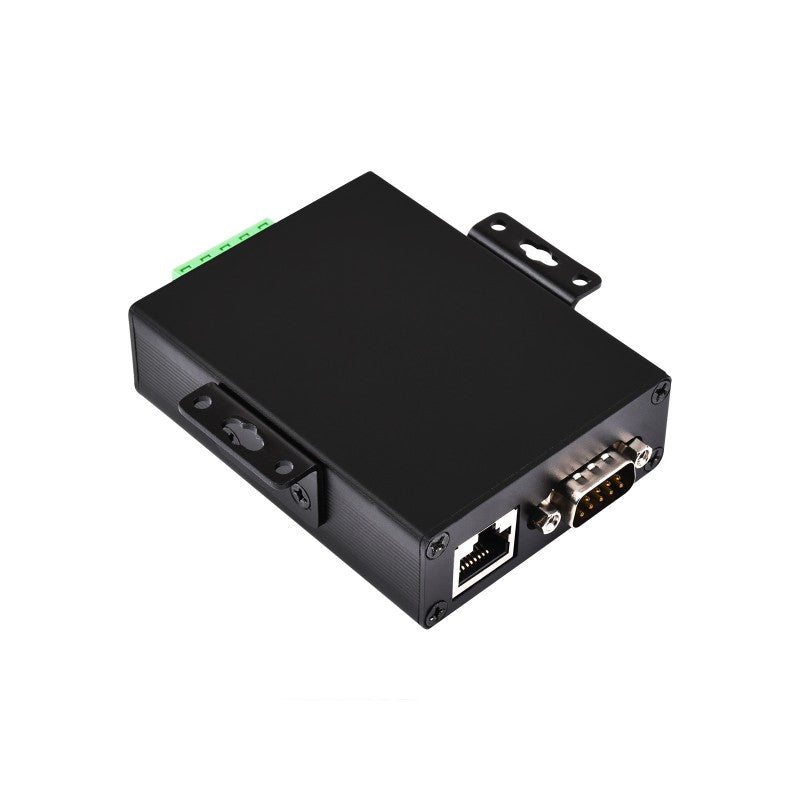

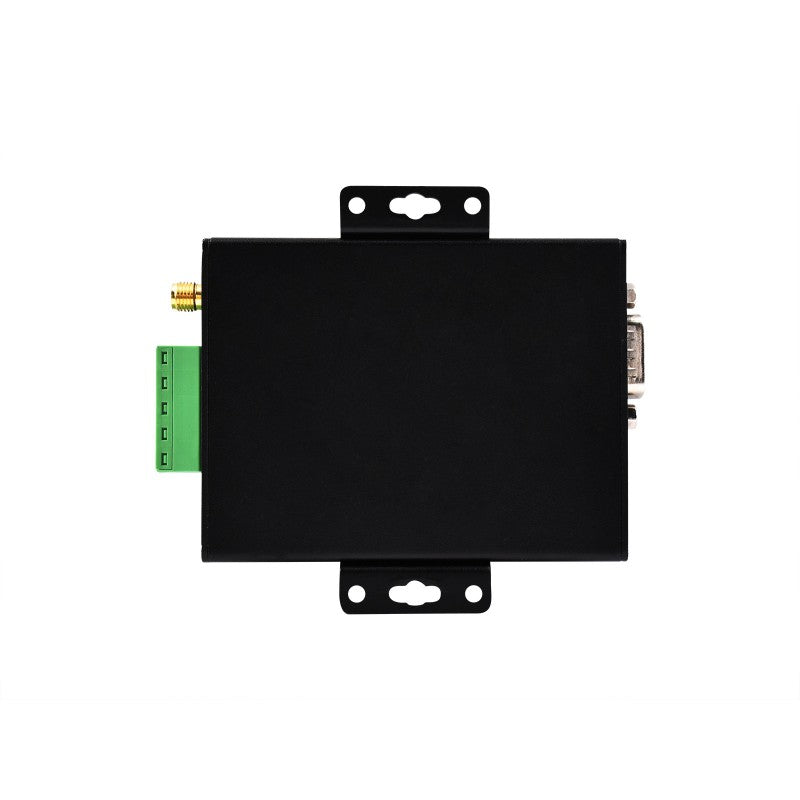

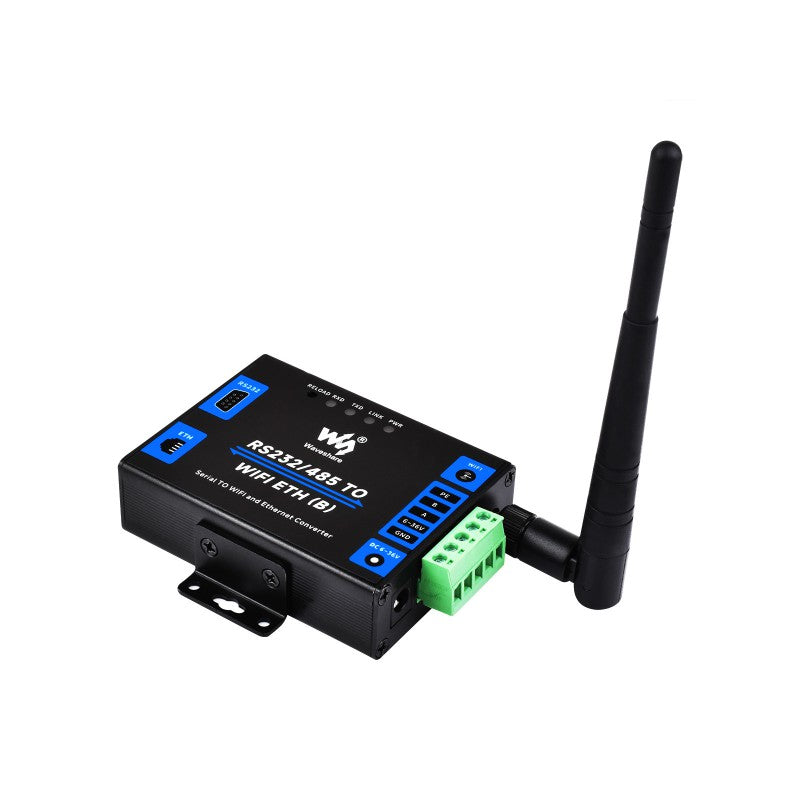

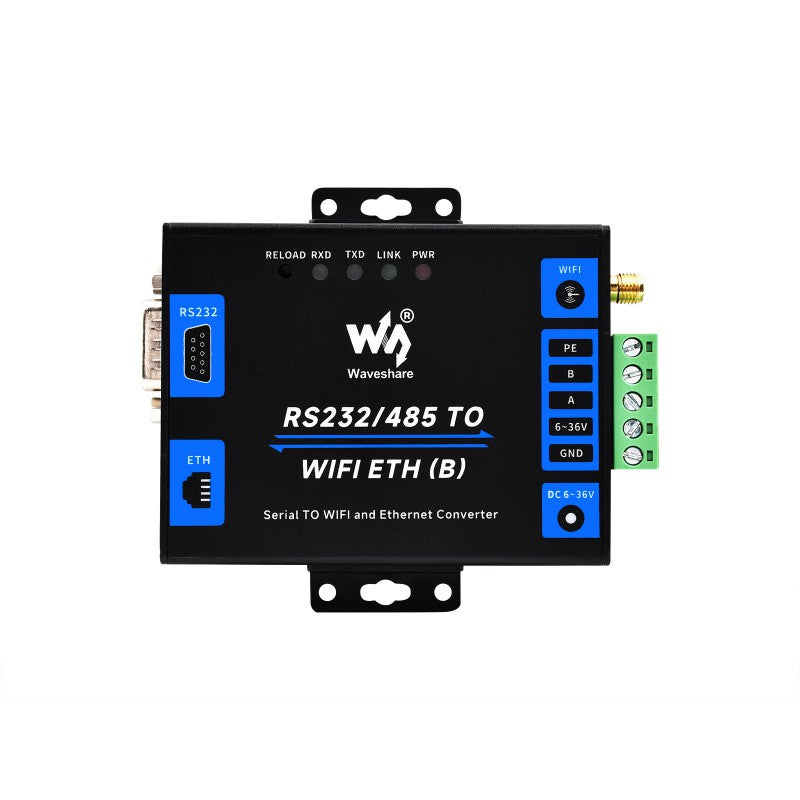

Name: Industrial Grade Serial Server RS232/485 To WiFi and Ethernet, Modbus Gateway, MQTT Gateway
Brand: Waveshare
SKU: ELC3051
Price: 2999.99 INR
Availability: InStock

{"id":8815529361725,"title":"Industrial Grade Serial Server RS232\/485 To WiFi and Ethernet, Modbus Gateway, MQTT Gateway","handle":"industrial-grade-serial-server-rs232-485-to-wifi-and-ethernet-modbus-gateway-mqtt-gateway","description":"\u003cmeta charset=\"utf-8\"\u003e\n\u003ch2 class=\"overviewSec\" style=\"text-align: center;\" data-mce-fragment=\"1\"\u003eIndustrial Grade Serial Server RS232\/485 To WiFi And Ethernet\u003c\/h2\u003e\n\u003ch3 class=\"overviewSec\" style=\"text-align: center;\" data-mce-fragment=\"1\"\u003eModbus Gateway, MQTT Gateway, Metal Case, Wail-Mount And Rail-Mount Support, Optional PoE Function\u003c\/h3\u003e\n\u003cdiv class=\"richWrap\" data-mce-fragment=\"1\"\u003e\n\u003cdiv style=\"text-align: center;\" data-mce-fragment=\"1\"\u003e\n\u003cimg src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/RS232-485-TO-WIFI-ETH-B\/RS232-485-TO-WIFI-ETH-B-details-1.jpg\" style=\"margin-bottom: 16px; float: none;\" data-mce-fragment=\"1\" data-mce-src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/RS232-485-TO-WIFI-ETH-B\/RS232-485-TO-WIFI-ETH-B-details-1.jpg\"\u003e\u003cspan data-mce-fragment=\"1\"\u003e \u003c\/span\u003e\u003cimg src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/RS232-485-TO-WIFI-ETH-B\/RS232-485-TO-WIFI-ETH-B-details-3.jpg\" data-mce-fragment=\"1\" data-mce-src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/RS232-485-TO-WIFI-ETH-B\/RS232-485-TO-WIFI-ETH-B-details-3.jpg\"\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"pdT\" data-mce-fragment=\"1\"\u003e\n\u003ch2 class=\"richTitle\" data-mce-fragment=\"1\"\u003e \u003c\/h2\u003e\n\u003ch2 class=\"richTitle\" data-mce-fragment=\"1\"\u003eFeatures At A Glance\u003c\/h2\u003e\n\u003cdiv class=\"alignl pdTRBL\" data-mce-fragment=\"1\"\u003e\n\u003cp data-mce-fragment=\"1\"\u003eThis is an RS232\/485 device data acquisitor \/ IoT gateway designed for industrial environment. It combines multi functions in one, including serial server, Modbus gateway, MQTT gateway, serial port to HTTPD Client, etc. With RS232, RS485, WIFI and Ethernet interfaces, the module can realize functions such as serial port to WIFI, serial port to Ethernet, Ethernet to WIFI and so on. Onboard multiple power supply interfaces, supports 6~36V wide range power supply, and PoE function optional. Industrial grade metal case design, supports wall-mount and rail-mount installations, small in size, easy to install. It is suitable for applications like data acquisition, IoT gateway, safety \u0026amp; security IoT, and intelligent instrument monitoring...\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"pdT\" data-mce-fragment=\"1\"\u003e\n\u003cdiv class=\"richTitle\" data-mce-fragment=\"1\"\u003e\u003cbr\u003e\u003c\/div\u003e\n\u003cdiv data-mce-fragment=\"1\"\u003e\u003cbr\u003e\u003c\/div\u003e\n\u003c\/div\u003e\n\u003cdiv data-mce-fragment=\"1\"\u003e\n\u003ch2 class=\"richTitle\" data-mce-fragment=\"1\"\u003e \u003c\/h2\u003e\n\u003ch2 class=\"richTitle\" data-mce-fragment=\"1\"\u003eSpecifications\u003c\/h2\u003e\n\u003ctable style=\"width: 80%;\"\u003e\n\u003ctbody data-mce-fragment=\"1\"\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003cth data-mce-fragment=\"1\"\u003ePRODUCT\u003c\/th\u003e\n\u003cth data-mce-fragment=\"1\"\u003e\u003ca href=\"https:\/\/thinkrobotics.com\/products\/industrial-uart-to-wifi-and-ethernet-module\" data-mce-fragment=\"1\" target=\"_blank\"\u003eUART-WIFI232-B2\u003c\/a\u003e\u003c\/th\u003e\n\u003cth data-mce-fragment=\"1\"\u003e\u003ca href=\"https:\/\/www.waveshare.com\/rs485-to-wifi-eth.htm\" data-mce-fragment=\"1\" data-mce-href=\"https:\/\/www.waveshare.com\/rs485-to-wifi-eth.htm\" target=\"_blank\"\u003eRS485 TO WIFI\/ETH\u003c\/a\u003e\u003c\/th\u003e\n\u003cth data-mce-fragment=\"1\"\u003e\u003ca href=\"https:\/\/thinkrobotics.com\/products\/industrial-grade-serial-server-rs232-485-to-wifi-and-ethernet-modbus-gateway-mqtt-gateway\" target=\"_blank\"\u003eRS232\/485 TO WIFI ETH (B)\u003c\/a\u003e\u003c\/th\u003e\n\u003cth data-mce-fragment=\"1\"\u003e\u003ca href=\"https:\/\/thinkrobotics.com\/products\/copy-of-industrial-grade-serial-server-rs232-485-to-wifi-and-ethernet-with-poe-modbus-gateway-mqtt-gateway\" target=\"_blank\"\u003eRS232\/485 TO WIFI POE ETH (B)\u003c\/a\u003e\u003c\/th\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003ctd data-mce-fragment=\"1\"\u003e\u003c\/td\u003e\n\u003ctd data-mce-fragment=\"1\"\u003e\u003cimg src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/UART-WIFI232-B2\/UART-WIFI232-B2-10.jpg\" data-mce-fragment=\"1\" data-mce-src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/UART-WIFI232-B2\/UART-WIFI232-B2-10.jpg\"\u003e\u003c\/td\u003e\n\u003ctd data-mce-fragment=\"1\"\u003e\u003cimg src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/RS485-TO-WIFI-ETH\/RS485-TO-WIFI-ETH-11.jpg\" data-mce-fragment=\"1\" data-mce-src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/RS485-TO-WIFI-ETH\/RS485-TO-WIFI-ETH-11.jpg\"\u003e\u003c\/td\u003e\n\u003ctd data-mce-fragment=\"1\"\u003e\u003cimg src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/RS232-485-TO-WIFI-ETH-B\/RS232-485-TO-WIFI-ETH-B-10.jpg\" data-mce-fragment=\"1\" data-mce-src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/RS232-485-TO-WIFI-ETH-B\/RS232-485-TO-WIFI-ETH-B-10.jpg\"\u003e\u003c\/td\u003e\n\u003ctd data-mce-fragment=\"1\"\u003e\u003cimg src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/RS232-485-TO-WIFI-ETH-B\/RS232-485-TO-WIFI-POE-ETH-B-10.jpg\" data-mce-fragment=\"1\" data-mce-src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/RS232-485-TO-WIFI-ETH-B\/RS232-485-TO-WIFI-POE-ETH-B-10.jpg\"\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003cth colspan=\"5\" data-mce-fragment=\"1\"\u003eOUTLINE\u003c\/th\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003ctd data-mce-fragment=\"1\"\u003e\u003cstrong data-mce-fragment=\"1\"\u003eProduct Description\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd data-mce-fragment=\"1\"\u003eEmbedded module\u003c\/td\u003e\n\u003ctd data-mce-fragment=\"1\"\u003eIndustrial rail-mount module with plastic case\u003c\/td\u003e\n\u003ctd colspan=\"2\" data-mce-fragment=\"1\"\u003eIndustrial rail-mount\/wall-mount module with metal case, PoE function optional\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003ctd data-mce-fragment=\"1\"\u003e\u003cstrong data-mce-fragment=\"1\"\u003ePower supply\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd data-mce-fragment=\"1\"\u003eDC 3.3V (±5%)\u003c\/td\u003e\n\u003ctd data-mce-fragment=\"1\"\u003eDC 5~36V\u003c\/td\u003e\n\u003ctd data-mce-fragment=\"1\"\u003eDC 6~36V\u003c\/td\u003e\n\u003ctd data-mce-fragment=\"1\"\u003eDC 6~36V \/ PoE port\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003ctd data-mce-fragment=\"1\"\u003e\u003cstrong data-mce-fragment=\"1\"\u003ePower supply method\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd data-mce-fragment=\"1\"\u003ePin header\u003c\/td\u003e\n\u003ctd data-mce-fragment=\"1\"\u003eScrew terminal\u003c\/td\u003e\n\u003ctd data-mce-fragment=\"1\"\u003eDC 5.5 power port, screw terminal\u003c\/td\u003e\n\u003ctd data-mce-fragment=\"1\"\u003eDC 5.5 power port, screw terminal, or PoE port\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003ctd data-mce-fragment=\"1\"\u003e\u003cstrong data-mce-fragment=\"1\"\u003eDimensions\u003cbr data-mce-fragment=\"1\"\u003e(L × W × H)\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd data-mce-fragment=\"1\"\u003e25.00×40.00×8.00mm\u003c\/td\u003e\n\u003ctd data-mce-fragment=\"1\"\u003e109.66×28.00×64.71mm\u003c\/td\u003e\n\u003ctd colspan=\"2\" data-mce-fragment=\"1\"\u003e84.00×64.00×24.00mm\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003cth colspan=\"5\" data-mce-fragment=\"1\"\u003e\u003cstrong data-mce-fragment=\"1\"\u003eCOMMUNICATION\u003c\/strong\u003e\u003c\/th\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003ctd data-mce-fragment=\"1\"\u003e\u003cstrong data-mce-fragment=\"1\"\u003eEthernet\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd data-mce-fragment=\"1\"\u003e10 \/ 100M auto-negotiation (Connection via pin header)\u003c\/td\u003e\n\u003ctd colspan=\"3\" data-mce-fragment=\"1\"\u003e10 \/ 100M auto-negotiation RJ45 connector\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003ctd data-mce-fragment=\"1\"\u003e\u003cstrong data-mce-fragment=\"1\"\u003eWIFI\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd colspan=\"4\" data-mce-fragment=\"1\"\u003e802.11b\/g\/n compliant\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003ctd data-mce-fragment=\"1\"\u003e\u003cstrong data-mce-fragment=\"1\"\u003eSerial port\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd data-mce-fragment=\"1\"\u003eUART\u003c\/td\u003e\n\u003ctd data-mce-fragment=\"1\"\u003eRS485 (ESD\/EFT\/surge protection)\u003c\/td\u003e\n\u003ctd colspan=\"2\" data-mce-fragment=\"1\"\u003eRS232 (ESD\/EFT)\u003cbr data-mce-fragment=\"1\"\u003eRS485 (ESD\/EFT\/surge protection)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003cth colspan=\"5\" data-mce-fragment=\"1\"\u003e\u003cstrong data-mce-fragment=\"1\"\u003eWIRELESS SPECIFICATION\u003c\/strong\u003e\u003c\/th\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003ctd data-mce-fragment=\"1\"\u003e\u003cstrong data-mce-fragment=\"1\"\u003eFrequency Band\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd colspan=\"4\" data-mce-fragment=\"1\"\u003e2.412 ~ 2.484 GHz\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003ctd data-mce-fragment=\"1\"\u003e\u003cstrong data-mce-fragment=\"1\"\u003eWireless network\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd colspan=\"4\" data-mce-fragment=\"1\"\u003eStation \/ AP \/ AP+Station Mode\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003ctd data-mce-fragment=\"1\"\u003e\u003cstrong data-mce-fragment=\"1\"\u003eSecurity mechanism\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd colspan=\"4\" data-mce-fragment=\"1\"\u003eWPA-PSK \/ WPA2-PSK\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003ctd data-mce-fragment=\"1\"\u003e\u003cstrong data-mce-fragment=\"1\"\u003eEncryption type\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd colspan=\"4\" data-mce-fragment=\"1\"\u003eTKIP \/ AES\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003ctd data-mce-fragment=\"1\"\u003e\u003cstrong data-mce-fragment=\"1\"\u003eTransmitting power\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd colspan=\"4\" data-mce-fragment=\"1\"\u003e802.11b: +19dBm (Max.@11Mbps)\u003cbr data-mce-fragment=\"1\"\u003e802.11g: +18dBm (Max.@54Mbps)\u003cbr data-mce-fragment=\"1\"\u003e802.11n: +17dBm (Max.@HT20, MCS7); +17dBm (Max.@HT40, MCS7)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003ctd data-mce-fragment=\"1\"\u003e\u003cstrong data-mce-fragment=\"1\"\u003eReceiving sensitivity\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd colspan=\"4\" data-mce-fragment=\"1\"\u003e802.11b: -89dBm (@11Mbps)\u003cbr data-mce-fragment=\"1\"\u003e802.11g: -81dBm (@54Mbps)\u003cbr data-mce-fragment=\"1\"\u003e802.11n: -73dBm (@HT20, MCS7); -71dBm (@HT40, MCS7)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003cth colspan=\"5\" data-mce-fragment=\"1\"\u003e\u003cstrong data-mce-fragment=\"1\"\u003eSERIAL SPECIFICATION\u003c\/strong\u003e\u003c\/th\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003ctd data-mce-fragment=\"1\"\u003e\u003cstrong data-mce-fragment=\"1\"\u003eBaudrate\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd colspan=\"4\" data-mce-fragment=\"1\"\u003e300 ~ 460800 bps\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003ctd data-mce-fragment=\"1\"\u003e\u003cstrong data-mce-fragment=\"1\"\u003eParity bit\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd colspan=\"4\" data-mce-fragment=\"1\"\u003enone, odd, even, mark, space\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003ctd data-mce-fragment=\"1\"\u003e\u003cstrong data-mce-fragment=\"1\"\u003eData bit\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd colspan=\"4\" data-mce-fragment=\"1\"\u003e5 ~ 9 bits\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003ctd data-mce-fragment=\"1\"\u003e\u003cstrong data-mce-fragment=\"1\"\u003eFlow control\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd data-mce-fragment=\"1\"\u003eRTS\/CTS\u003c\/td\u003e\n\u003ctd colspan=\"3\" data-mce-fragment=\"1\"\u003eN\/A\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003cth colspan=\"5\" data-mce-fragment=\"1\"\u003e\u003cstrong data-mce-fragment=\"1\"\u003eSOFTWARE\u003c\/strong\u003e\u003c\/th\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003ctd data-mce-fragment=\"1\"\u003e\u003cstrong data-mce-fragment=\"1\"\u003eProtocol\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd colspan=\"4\" data-mce-fragment=\"1\"\u003eTCP \/ UDP \/ ARP \/ ICMP \/ DHCP \/ DNS \/ HTTP \/ MQTT\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003ctd data-mce-fragment=\"1\"\u003e\u003cstrong data-mce-fragment=\"1\"\u003eConfiguration\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd colspan=\"4\" data-mce-fragment=\"1\"\u003ehost, web browser, serial AT command\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003ctd data-mce-fragment=\"1\"\u003e\u003cstrong data-mce-fragment=\"1\"\u003eCommunication method\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd colspan=\"4\" data-mce-fragment=\"1\"\u003eTCP\/IP direct communication, VCOM\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003ctd data-mce-fragment=\"1\"\u003e\u003cstrong data-mce-fragment=\"1\"\u003eOperating mode\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd colspan=\"4\" data-mce-fragment=\"1\"\u003eTransparent transmission, serial command, HTTPD Client, Modbus TCP to Modbus RTU\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003cth colspan=\"5\" data-mce-fragment=\"1\"\u003e\u003cstrong data-mce-fragment=\"1\"\u003eENVIRONMENT REQUIREMENT\u003c\/strong\u003e\u003c\/th\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003ctd data-mce-fragment=\"1\"\u003e\u003cstrong data-mce-fragment=\"1\"\u003eOperating temperature\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd colspan=\"4\" data-mce-fragment=\"1\"\u003e-40℃ ~ 85℃\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003ctd data-mce-fragment=\"1\"\u003e\u003cstrong data-mce-fragment=\"1\"\u003eHumidity range\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd colspan=\"4\" data-mce-fragment=\"1\"\u003e5% ~ 95% relative humidity\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cbr data-mce-fragment=\"1\"\u003e\n\u003c\/div\u003e\n\u003cdiv style=\"text-align: center;\" class=\"pdT\" data-mce-fragment=\"1\"\u003e\n\u003ch2 style=\"text-align: center;\" class=\"richTitle\" data-mce-fragment=\"1\"\u003e \u003c\/h2\u003e\n\u003ch2 style=\"text-align: center;\" class=\"richTitle\" data-mce-fragment=\"1\"\u003ePrimary Function\u003c\/h2\u003e\n\u003ch4 style=\"text-align: center;\" class=\"richDesc\" data-mce-fragment=\"1\"\u003eSupport RS232\/485 To WIFI And Ethernet, Ethernet To WIFI, Etc.\u003c\/h4\u003e\n\u003cimg style=\"margin-bottom: 16px; float: none;\" src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/RS232-485-TO-WIFI-ETH-B\/RS232-485-TO-WIFI-ETH-B-details-7.jpg\" data-mce-fragment=\"1\" data-mce-src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/RS232-485-TO-WIFI-ETH-B\/RS232-485-TO-WIFI-ETH-B-details-7.jpg\"\u003e\n\u003c\/div\u003e\n\u003cdiv style=\"text-align: center;\" data-mce-fragment=\"1\"\u003e\n\u003ch2 style=\"text-align: center;\" class=\"richTitle\" data-mce-fragment=\"1\"\u003eTwo Different Interfaces\u003c\/h2\u003e\n\u003cp style=\"text-align: center;\" class=\"richDesc\" data-mce-fragment=\"1\"\u003eOnboard RS232 \/ 485 Interfaces, Suitable For More Application Scenarios\u003c\/p\u003e\n\u003cbr data-mce-fragment=\"1\"\u003e\n\u003ch3 style=\"text-align: center;\" class=\"richDesc hilitBlock2 round1234\" data-mce-fragment=\"1\"\u003e\u003cspan style=\"color: #c20000;\"\u003eEthernet Port And WiFi To RS232 \/ 485\u003c\/span\u003e\u003c\/h3\u003e\n\u003cp style=\"text-align: center;\" class=\"richDesc\" data-mce-fragment=\"1\"\u003eThe Ethernet Port And WiFi Can Send Data To The Two Serial Ports At The Same Time\u003c\/p\u003e\n\u003cimg style=\"margin-bottom: 16px; float: none;\" src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/RS232-485-TO-WIFI-ETH-B\/RS232-485-TO-WIFI-ETH-B-details-9.jpg\" data-mce-fragment=\"1\" data-mce-src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/RS232-485-TO-WIFI-ETH-B\/RS232-485-TO-WIFI-ETH-B-details-9.jpg\"\u003e\n\u003cdiv data-mce-fragment=\"1\"\u003e\u003cbr data-mce-fragment=\"1\"\u003e\u003c\/div\u003e\n\u003ch2 style=\"text-align: center;\" class=\"richDesc hilitBlock2 round1234\" data-mce-fragment=\"1\"\u003e\u003cspan style=\"color: #c20001;\"\u003eRS232 \/ 485 To Ethernet Port And WiFi\u003c\/span\u003e\u003c\/h2\u003e\n\u003cp class=\"richDesc\" data-mce-fragment=\"1\"\u003eOnly One Of The RS232 And RS485 Can Send Data To The Ethernet Port And WiFi At The Same Time\u003c\/p\u003e\n\u003cimg style=\"margin-bottom: 16px; float: none;\" src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/RS232-485-TO-WIFI-ETH-B\/RS232-485-TO-WIFI-ETH-B-details-11.jpg\" data-mce-fragment=\"1\" data-mce-src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/RS232-485-TO-WIFI-ETH-B\/RS232-485-TO-WIFI-ETH-B-details-11.jpg\"\u003e\n\u003c\/div\u003e\n\u003cdiv style=\"text-align: center;\" class=\"pdT\" data-mce-fragment=\"1\"\u003e\n\u003ch2 class=\"richTitle\" data-mce-fragment=\"1\"\u003e \u003c\/h2\u003e\n\u003ch2 style=\"text-align: center;\" class=\"richTitle\" data-mce-fragment=\"1\"\u003eMulti Power Supply Methods\u003c\/h2\u003e\n\u003cp style=\"text-align: center;\" class=\"richDesc\" data-mce-fragment=\"1\"\u003eSupport PoE Ethernet Port Power Supply*, Suitable For IEEE 802.3af PoE Standard\u003cbr data-mce-fragment=\"1\"\u003eSupport Screw Terminal And DC 5.5 Power Port For Power Supply, DC 6~36V\u003cbr data-mce-fragment=\"1\"\u003eWide Voltage Range Input\u003c\/p\u003e\n\u003cimg style=\"margin-bottom: 16px; float: none;\" src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/RS232-485-TO-WIFI-ETH-B\/RS232-485-TO-WIFI-ETH-B-details-13.jpg\" data-mce-fragment=\"1\" data-mce-src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/RS232-485-TO-WIFI-ETH-B\/RS232-485-TO-WIFI-ETH-B-details-13.jpg\"\u003e\n\u003cp style=\"text-align: left;\" class=\"note\" data-mce-fragment=\"1\"\u003e\u003cem\u003e\u003cspan style=\"color: #c20000;\"\u003e* This function is only available on the PoE version\u003c\/span\u003e\u003c\/em\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003cdiv style=\"text-align: center;\" class=\"pdT\" data-mce-fragment=\"1\"\u003e\n\u003ch2 style=\"text-align: center;\" class=\"richTitle\" data-mce-fragment=\"1\"\u003e \u003c\/h2\u003e\n\u003ch2 style=\"text-align: center;\" class=\"richTitle\" data-mce-fragment=\"1\"\u003eIndustrial Grade Serial Server\u003c\/h2\u003e\n\u003cp style=\"text-align: center;\" class=\"richDesc\" data-mce-fragment=\"1\"\u003eIndustrial Aluminum Alloy Case, Wall-Mount And Rail-Mount Support\u003cbr data-mce-fragment=\"1\"\u003eSmall In Size, Easy To Install, And Cost-Effective\u003c\/p\u003e\n\u003cimg style=\"margin-bottom: 16px; float: none;\" src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/RS232-485-TO-WIFI-ETH-B\/RS232-485-TO-WIFI-ETH-B-details-15.jpg\" data-mce-fragment=\"1\" data-mce-src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/RS232-485-TO-WIFI-ETH-B\/RS232-485-TO-WIFI-ETH-B-details-15.jpg\"\u003e\u003cbr data-mce-fragment=\"1\"\u003e\n\u003c\/div\u003e\n\u003cdiv style=\"text-align: center;\" data-mce-fragment=\"1\"\u003e\n\u003ch2 style=\"text-align: center;\" class=\"richTitle\" data-mce-fragment=\"1\"\u003e \u003c\/h2\u003e\n\u003ch2 style=\"text-align: center;\" class=\"richTitle\" data-mce-fragment=\"1\"\u003eFunction Block Diagram\u003c\/h2\u003e\n\u003cimg style=\"margin-bottom: 16px; float: none;\" src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/RS232-485-TO-WIFI-ETH-B\/RS232-485-TO-WIFI-ETH-B-details-17.jpg\" data-mce-fragment=\"1\" data-mce-src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/RS232-485-TO-WIFI-ETH-B\/RS232-485-TO-WIFI-ETH-B-details-17.jpg\"\u003e\n\u003c\/div\u003e\n\u003cdiv style=\"text-align: center;\" class=\"pdT\" data-mce-fragment=\"1\"\u003e\n\u003ch2 class=\"richTitle\" data-mce-fragment=\"1\"\u003e \u003c\/h2\u003e\n\u003ch2 style=\"text-align: center;\" class=\"richTitle\" data-mce-fragment=\"1\"\u003eSupport Transparent Transmission Mode\u003c\/h2\u003e\n\u003cp style=\"text-align: center;\" class=\"pdTRBL\" data-mce-fragment=\"1\"\u003eSupport TCP Server, TCP Client, UDP Server, UDP Client\u003c\/p\u003e\n\u003cimg style=\"margin-bottom: 16px; float: none;\" src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/RS232-485-TO-WIFI-ETH-B\/RS232-485-TO-WIFI-ETH-B-details-19.jpg\" data-mce-fragment=\"1\" data-mce-src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/RS232-485-TO-WIFI-ETH-B\/RS232-485-TO-WIFI-ETH-B-details-19.jpg\"\u003e\n\u003c\/div\u003e\n\u003ctable style=\"width: 90%; margin: auto;\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd style=\"border: 0px; vertical-align: top;\"\u003e\n\u003cimg src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/RS232-485-TO-WIFI-ETH-B\/RS232-485-TO-WIFI-ETH-B-details-21.jpg\" class=\"round1234\" data-mce-fragment=\"1\" data-mce-src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/RS232-485-TO-WIFI-ETH-B\/RS232-485-TO-WIFI-ETH-B-details-21.jpg\"\u003e\n\u003cp class=\"alignl pdTRBL\" data-mce-fragment=\"1\"\u003eDevices can subscribe to other MQTT client messages, and can publish topic information to the server. Supports subscription of 6 messages and publication of 6 topics, wider range of use and more applicable scenarios. Users can view device-related information through terminal devices or cloud platforms.\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd style=\"border: 0px; vertical-align: top;\"\u003e\n\u003cimg src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/RS232-485-TO-WIFI-ETH-B\/RS232-485-TO-WIFI-ETH-B-details-23.jpg\" class=\"round1234\" data-mce-fragment=\"1\" data-mce-src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/RS232-485-TO-WIFI-ETH-B\/RS232-485-TO-WIFI-ETH-B-details-23.jpg\"\u003e\n\u003cp class=\"alignl pdTRBL\" data-mce-fragment=\"1\"\u003eAfter the user has set the HTTP header through AT commands or web page, the module can send data to the HTTP server, or obtain data from the HTTP server\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd style=\"border: 0px; vertical-align: top;\"\u003e\n\u003cimg src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/RS232-485-TO-WIFI-ETH-B\/RS232-485-TO-WIFI-ETH-B-details-25.jpg\" class=\"round1234\" data-mce-fragment=\"1\" data-mce-src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/RS232-485-TO-WIFI-ETH-B\/RS232-485-TO-WIFI-ETH-B-details-25.jpg\"\u003e\n\u003cp class=\"alignl pdTRBL\" data-mce-fragment=\"1\"\u003eUsers send data to servers according to the protocol and can send data to different servers without restarting\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd style=\"border: 0px; vertical-align: top;\"\u003e\n\u003cimg src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/RS232-485-TO-WIFI-ETH-B\/RS232-485-TO-WIFI-ETH-B-details-27.jpg\" class=\"round1234\" data-mce-fragment=\"1\" data-mce-src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/RS232-485-TO-WIFI-ETH-B\/RS232-485-TO-WIFI-ETH-B-details-27.jpg\"\u003e\n\u003cp class=\"alignl pdTRBL\" data-mce-fragment=\"1\"\u003eSupport Modbus TCP And Modbus RTU Interconversion Mode\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cdiv style=\"text-align: center;\" class=\"pdT\" data-mce-fragment=\"1\"\u003e\n\u003ch2 style=\"text-align: center;\" class=\"richTitle\" data-mce-fragment=\"1\"\u003e \u003c\/h2\u003e\n\u003ch2 style=\"text-align: center;\" class=\"richTitle\" data-mce-fragment=\"1\"\u003eSupport Multi Wireless Networking Methods\u003c\/h2\u003e\n\u003cp style=\"text-align: center;\" class=\"pdTRBL\" data-mce-fragment=\"1\"\u003eSupport AP mode, STA mode, and AP+STA mode\u003c\/p\u003e\n\u003cimg style=\"margin-bottom: 16px; float: none;\" src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/RS232-485-TO-WIFI-ETH-B\/RS232-485-TO-WIFI-ETH-B-details-29.jpg\" data-mce-fragment=\"1\" data-mce-src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/RS232-485-TO-WIFI-ETH-B\/RS232-485-TO-WIFI-ETH-B-details-29.jpg\"\u003e\u003cspan data-mce-fragment=\"1\"\u003e \u003c\/span\u003e\u003cimg src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/RS232-485-TO-WIFI-ETH-B\/RS232-485-TO-WIFI-ETH-B-details-31.jpg\" data-mce-fragment=\"1\" data-mce-src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/RS232-485-TO-WIFI-ETH-B\/RS232-485-TO-WIFI-ETH-B-details-31.jpg\"\u003e\u003cspan data-mce-fragment=\"1\"\u003e \u003c\/span\u003e\u003cimg style=\"margin-bottom: 16px; float: none;\" src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/RS232-485-TO-WIFI-ETH-B\/RS232-485-TO-WIFI-ETH-B-details-33.jpg\" data-mce-fragment=\"1\" data-mce-src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/RS232-485-TO-WIFI-ETH-B\/RS232-485-TO-WIFI-ETH-B-details-33.jpg\"\u003e\n\u003c\/div\u003e\n\u003cdiv style=\"text-align: center;\" class=\"pdT\" data-mce-fragment=\"1\"\u003e\n\u003ch2 style=\"text-align: center;\" class=\"richTitle\" data-mce-fragment=\"1\"\u003e \u003c\/h2\u003e\n\u003ch2 style=\"text-align: center;\" class=\"richTitle\" data-mce-fragment=\"1\"\u003eSupport Multi Wired Networking Methods\u003c\/h2\u003e\n\u003cp style=\"text-align: center;\" class=\"pdTRBL\" data-mce-fragment=\"1\"\u003eSupport APLAN, APWAN, Router, and Bridge mode\u003c\/p\u003e\n\u003cimg style=\"margin-bottom: 16px; float: none;\" src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/RS232-485-TO-WIFI-ETH-B\/RS232-485-TO-WIFI-ETH-B-details-35.jpg\" data-mce-fragment=\"1\" data-mce-src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/RS232-485-TO-WIFI-ETH-B\/RS232-485-TO-WIFI-ETH-B-details-35.jpg\"\u003e\u003cspan data-mce-fragment=\"1\"\u003e \u003c\/span\u003e\u003cimg style=\"margin-bottom: 16px; float: none;\" src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/RS232-485-TO-WIFI-ETH-B\/RS232-485-TO-WIFI-ETH-B-details-37.jpg\" data-mce-fragment=\"1\" data-mce-src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/RS232-485-TO-WIFI-ETH-B\/RS232-485-TO-WIFI-ETH-B-details-37.jpg\"\u003e\u003cspan data-mce-fragment=\"1\"\u003e \u003c\/span\u003e\u003cimg src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/RS232-485-TO-WIFI-ETH-B\/RS232-485-TO-WIFI-ETH-B-details-39.jpg\" data-mce-fragment=\"1\" data-mce-src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/RS232-485-TO-WIFI-ETH-B\/RS232-485-TO-WIFI-ETH-B-details-39.jpg\"\u003e\u003cspan data-mce-fragment=\"1\"\u003e \u003c\/span\u003e\u003cimg src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/RS232-485-TO-WIFI-ETH-B\/RS232-485-TO-WIFI-ETH-B-details-41.jpg\" data-mce-fragment=\"1\" data-mce-src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/RS232-485-TO-WIFI-ETH-B\/RS232-485-TO-WIFI-ETH-B-details-41.jpg\"\u003e\n\u003c\/div\u003e\n\u003cdiv style=\"text-align: center;\" class=\"pdT\" data-mce-fragment=\"1\"\u003e\n\u003ch2 style=\"text-align: center;\" class=\"richTitle\" data-mce-fragment=\"1\"\u003e \u003c\/h2\u003e\n\u003ch2 style=\"text-align: center;\" class=\"richTitle\" data-mce-fragment=\"1\"\u003eFeatures\u003c\/h2\u003e\n\u003ch3 style=\"text-align: center;\" class=\"richDesc hilitBlock2 round1234\" data-mce-fragment=\"1\"\u003e\u003cspan style=\"color: #c20001;\"\u003eMulti Configuration Methods\u003c\/span\u003e\u003c\/h3\u003e\n\u003ch4 style=\"text-align: center;\" class=\"richDesc\" data-mce-fragment=\"1\"\u003eSupports Multi Configuration Methods Such As Hosts, Web Browser And Serial Port Configuration\u003c\/h4\u003e\n\u003cimg style=\"margin-bottom: 16px; float: none;\" src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/RS232-485-TO-WIFI-ETH-B\/RS232-485-TO-WIFI-ETH-B-details-43.jpg\" data-mce-fragment=\"1\" data-mce-src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/RS232-485-TO-WIFI-ETH-B\/RS232-485-TO-WIFI-ETH-B-details-43.jpg\"\u003e\u003cspan data-mce-fragment=\"1\"\u003e \u003c\/span\u003e\n\u003ch2 class=\"richDesc hilitBlock2 round1234\" data-mce-fragment=\"1\"\u003eAT Command Mode\u003c\/h2\u003e\n\u003cp class=\"richDesc\" data-mce-fragment=\"1\"\u003eThe User Can Query The Current Status Of The Module Or Set Related Parameters By Sending AT Commands\u003c\/p\u003e\n\u003cimg style=\"margin-bottom: 16px; float: none;\" src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/RS232-485-TO-WIFI-ETH-B\/RS232-485-TO-WIFI-ETH-B-details-45.jpg\" data-mce-fragment=\"1\" data-mce-src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/RS232-485-TO-WIFI-ETH-B\/RS232-485-TO-WIFI-ETH-B-details-45.jpg\"\u003e\u003cspan data-mce-fragment=\"1\"\u003e \u003c\/span\u003e\n\u003ch2 class=\"richDesc hilitBlock2 round1234\" data-mce-fragment=\"1\"\u003e \u003c\/h2\u003e\n\u003ch2 class=\"richDesc hilitBlock2 round1234\" data-mce-fragment=\"1\"\u003eSocket Distribution Protocol\u003c\/h2\u003e\n\u003cp class=\"richDesc\" data-mce-fragment=\"1\"\u003eIn The Transparent Transmission Mode, The Serial Device Can Send Data To The Specified Socket Link; The Network Data Of Each Socket Is Sent To The Serial Device Through The Serial Port\u003c\/p\u003e\n\u003cimg src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/RS232-485-TO-WIFI-ETH-B\/RS232-485-TO-WIFI-ETH-B-details-47.jpg\" style=\"margin-bottom: 16px; float: none;\" data-mce-fragment=\"1\" data-mce-src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/RS232-485-TO-WIFI-ETH-B\/RS232-485-TO-WIFI-ETH-B-details-47.jpg\"\u003e\u003cspan data-mce-fragment=\"1\"\u003e \u003c\/span\u003e\n\u003ch2 class=\"richDesc hilitBlock2 round1234\" data-mce-fragment=\"1\"\u003e \u003c\/h2\u003e\n\u003ch2 class=\"richDesc hilitBlock2 round1234\" data-mce-fragment=\"1\"\u003eHardware Protection\u003c\/h2\u003e\n\u003cp class=\"richDesc\" data-mce-fragment=\"1\"\u003ePower Supply Anti-Reverse, Communication Interface ESD And Surge Protection, EFT Electrical Fast Transient\/Burst Protection\u003c\/p\u003e\n\u003cimg src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/RS232-485-TO-WIFI-ETH-B\/RS232-485-TO-WIFI-ETH-B-details-49.jpg\" data-mce-fragment=\"1\" data-mce-src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/RS232-485-TO-WIFI-ETH-B\/RS232-485-TO-WIFI-ETH-B-details-49.jpg\"\u003e\u003cspan data-mce-fragment=\"1\"\u003e \u003c\/span\u003e\n\u003ch2 class=\"richDesc hilitBlock2 round1234\" data-mce-fragment=\"1\"\u003e \u003c\/h2\u003e\n\u003ch2 class=\"richDesc hilitBlock2 round1234\" data-mce-fragment=\"1\"\u003eCustomized Registration Packets, Heartbeat Packets\u003c\/h2\u003e\n\u003cp class=\"richDesc\" data-mce-fragment=\"1\"\u003eThe Registration Package Is Used To Identify The Device Information To The Server, So That The Server Can Identify The Device\u003c\/p\u003e\n\u003cimg src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/RS232-485-TO-WIFI-ETH-B\/RS232-485-TO-WIFI-ETH-B-details-51.jpg\" style=\"margin-bottom: 16px; float: none;\" data-mce-fragment=\"1\" data-mce-src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/RS232-485-TO-WIFI-ETH-B\/RS232-485-TO-WIFI-ETH-B-details-51.jpg\"\u003e\n\u003c\/div\u003e\n\u003cdiv style=\"text-align: center;\" data-mce-fragment=\"1\"\u003e\n\u003ch2 class=\"richTitle\" data-mce-fragment=\"1\"\u003e \u003c\/h2\u003e\n\u003ch2 class=\"richTitle\" style=\"text-align: center;\" data-mce-fragment=\"1\"\u003eInterface\u003c\/h2\u003e\n\u003cimg src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/RS232-485-TO-WIFI-ETH-B\/RS232-485-TO-WIFI-ETH-B-details-intro.jpg\" style=\"margin-bottom: 16px; float: none;\" data-mce-fragment=\"1\" data-mce-src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/RS232-485-TO-WIFI-ETH-B\/RS232-485-TO-WIFI-ETH-B-details-intro.jpg\"\u003e\n\u003c\/div\u003e\n\u003cdiv data-mce-fragment=\"1\"\u003e\n\u003ch2 class=\"richTitle\" data-mce-fragment=\"1\"\u003e \u003c\/h2\u003e\n\u003ch2 class=\"richTitle\" style=\"text-align: center;\" data-mce-fragment=\"1\"\u003eOutline Dimensions\u003cbr\u003e\n\u003c\/h2\u003e\n\u003c\/div\u003e\n\u003cdiv style=\"text-align: center;\" data-mce-fragment=\"1\"\u003e\u003cimg src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/RS232-485-TO-WIFI-ETH-B\/RS232-485-TO-WIFI-ETH-B-details-size.jpg\" style=\"margin-bottom: 16px; float: none;\" data-mce-fragment=\"1\" data-mce-src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/RS232-485-TO-WIFI-ETH-B\/RS232-485-TO-WIFI-ETH-B-details-size.jpg\"\u003e\u003c\/div\u003e\n\u003cdiv data-mce-fragment=\"1\"\u003e\n\u003ch2 class=\"richTitle\" data-mce-fragment=\"1\"\u003e \u003c\/h2\u003e\n\u003ch2 class=\"richTitle\" data-mce-fragment=\"1\"\u003eResources \u0026amp; Services\u003c\/h2\u003e\n\u003cp class=\"bgGrey\" data-mce-fragment=\"1\"\u003e\u003cstrong data-mce-fragment=\"1\"\u003eWiki:\u003cspan data-mce-fragment=\"1\"\u003e \u003c\/span\u003e\u003c\/strong\u003e\u003ca href=\"http:\/\/www.waveshare.com\/wiki\/RS232\/485_TO_WIFI_ETH_(B)\" data-mce-fragment=\"1\" target=\"_blank\" data-mce-href=\"http:\/\/www.waveshare.com\/wiki\/RS232\/485_TO_WIFI_ETH_(B)\"\u003ewww.waveshare.com\/wiki\/RS232\/485_TO_WIFI_ETH_(B)\u003c\/a\u003e\u003c\/p\u003e\n\u003ch2 class=\"bgGrey\" data-mce-fragment=\"1\"\u003e \u003c\/h2\u003e\n\u003ch2 class=\"bgGrey\" data-mce-fragment=\"1\"\u003ePackage Contains:\u003c\/h2\u003e\n\u003cp\u003e\u003cstrong\u003eWeight:\u003cspan\u003e \u003c\/span\u003e\u003c\/strong\u003e\u003cspan\u003e0.157 kg\u003c\/span\u003e\u003c\/p\u003e\n\u003cdiv class=\"std\"\u003e\n\u003ch2\u003eRS232\/485 TO WIFI ETH (B)\u003c\/h2\u003e\n\u003col\u003e\n\u003cli\u003eRS232\/485 TO WIFI ETH (B) x1\u003c\/li\u003e\n\u003cli\u003e2.4G WiFi antenna x1\u003c\/li\u003e\n\u003cli\u003eRail-mount buckle x1\u003c\/li\u003e\n\u003cli\u003eScrewdriver x1\u003c\/li\u003e\n\u003cli\u003eScrews pack x1\u003c\/li\u003e\n\u003cli\u003e\n\u003cmeta charset=\"utf-8\"\u003e \u003cspan style=\"color: #c20000;\"\u003e\u003cem\u003eThe power supply is not included, it is recommended to use with a \u003ca href=\"https:\/\/thinkrobotics.com\/products\/12v-2a-power-adapter\" style=\"color: #c20000;\" target=\"_blank\"\u003e12V Power Adapter\u003c\/a\u003e\u003c\/em\u003e\u003c\/span\u003e\n\u003c\/li\u003e\n\u003c\/ol\u003e\n\u003cdiv\u003e\u003cimg src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/RS232-485-TO-WIFI-ETH-B\/RS232-485-TO-WIFI-ETH-B-details-pack.jpg\"\u003e\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e","published_at":"2023-10-05T16:52:09+05:30","created_at":"2023-10-05T16:48:01+05:30","vendor":"Waveshare","type":"Wireless Communications","tags":["2.4GHz","25222","2GB","4","485","4GB","5Ghz","802.11ac","8GB","band","dual","ETH","Gateway","INDSTRL","industrial","IPEX","JETSONACC","MODBUS","Module","Pi","RS232","RS232\/485 TO WIFI ETH (B)","RS485","SBC2","Serial Server","UART","WAVESHARE","Wifi","WRLS-MOD","WVSH"],"price":299999,"price_min":299999,"price_max":299999,"available":true,"price_varies":false,"compare_at_price":349999,"compare_at_price_min":349999,"compare_at_price_max":349999,"compare_at_price_varies":false,"variants":[{"id":47070412013885,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"ELC3051","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Industrial Grade Serial Server RS232\/485 To WiFi and Ethernet, Modbus Gateway, MQTT Gateway","public_title":null,"options":["Default Title"],"price":299999,"weight":80,"compare_at_price":349999,"inventory_management":"shopify","barcode":"47070412013885","requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/thinkrobotics.com\/cdn\/shop\/files\/rs232-485-to-wifi-eth-b-5.jpg?v=1696504756","\/\/thinkrobotics.com\/cdn\/shop\/files\/rs232-485-to-wifi-eth-b-1.jpg?v=1696504760","\/\/thinkrobotics.com\/cdn\/shop\/files\/rs232-485-to-wifi-eth-b-2.jpg?v=1696504760","\/\/thinkrobotics.com\/cdn\/shop\/files\/rs232-485-to-wifi-eth-b-3.jpg?v=1696504760","\/\/thinkrobotics.com\/cdn\/shop\/files\/rs232-485-to-wifi-eth-b-4.jpg?v=1696504760"],"featured_image":"\/\/thinkrobotics.com\/cdn\/shop\/files\/rs232-485-to-wifi-eth-b-5.jpg?v=1696504756","options":["Title"],"media":[{"alt":null,"id":35242991878461,"position":1,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/rs232-485-to-wifi-eth-b-5.jpg?v=1696504756"},"aspect_ratio":1.0,"height":800,"media_type":"image","src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/rs232-485-to-wifi-eth-b-5.jpg?v=1696504756","width":800},{"alt":null,"id":35242992009533,"position":2,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/rs232-485-to-wifi-eth-b-1.jpg?v=1696504760"},"aspect_ratio":1.0,"height":800,"media_type":"image","src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/rs232-485-to-wifi-eth-b-1.jpg?v=1696504760","width":800},{"alt":null,"id":35242991976765,"position":3,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/rs232-485-to-wifi-eth-b-2.jpg?v=1696504760"},"aspect_ratio":1.0,"height":800,"media_type":"image","src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/rs232-485-to-wifi-eth-b-2.jpg?v=1696504760","width":800},{"alt":null,"id":35242991943997,"position":4,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/rs232-485-to-wifi-eth-b-3.jpg?v=1696504760"},"aspect_ratio":1.0,"height":800,"media_type":"image","src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/rs232-485-to-wifi-eth-b-3.jpg?v=1696504760","width":800},{"alt":null,"id":35242991911229,"position":5,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/rs232-485-to-wifi-eth-b-4.jpg?v=1696504760"},"aspect_ratio":1.0,"height":800,"media_type":"image","src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/rs232-485-to-wifi-eth-b-4.jpg?v=1696504760","width":800}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003cmeta charset=\"utf-8\"\u003e\n\u003ch2 class=\"overviewSec\" style=\"text-align: center;\" data-mce-fragment=\"1\"\u003eIndustrial Grade Serial Server RS232\/485 To WiFi And Ethernet\u003c\/h2\u003e\n\u003ch3 class=\"overviewSec\" style=\"text-align: center;\" data-mce-fragment=\"1\"\u003eModbus Gateway, MQTT Gateway, Metal Case, Wail-Mount And Rail-Mount Support, Optional PoE Function\u003c\/h3\u003e\n\u003cdiv class=\"richWrap\" data-mce-fragment=\"1\"\u003e\n\u003cdiv style=\"text-align: center;\" data-mce-fragment=\"1\"\u003e\n\u003cimg src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/RS232-485-TO-WIFI-ETH-B\/RS232-485-TO-WIFI-ETH-B-details-1.jpg\" style=\"margin-bottom: 16px; float: none;\" data-mce-fragment=\"1\" data-mce-src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/RS232-485-TO-WIFI-ETH-B\/RS232-485-TO-WIFI-ETH-B-details-1.jpg\"\u003e\u003cspan data-mce-fragment=\"1\"\u003e \u003c\/span\u003e\u003cimg src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/RS232-485-TO-WIFI-ETH-B\/RS232-485-TO-WIFI-ETH-B-details-3.jpg\" data-mce-fragment=\"1\" data-mce-src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/RS232-485-TO-WIFI-ETH-B\/RS232-485-TO-WIFI-ETH-B-details-3.jpg\"\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"pdT\" data-mce-fragment=\"1\"\u003e\n\u003ch2 class=\"richTitle\" data-mce-fragment=\"1\"\u003e \u003c\/h2\u003e\n\u003ch2 class=\"richTitle\" data-mce-fragment=\"1\"\u003eFeatures At A Glance\u003c\/h2\u003e\n\u003cdiv class=\"alignl pdTRBL\" data-mce-fragment=\"1\"\u003e\n\u003cp data-mce-fragment=\"1\"\u003eThis is an RS232\/485 device data acquisitor \/ IoT gateway designed for industrial environment. It combines multi functions in one, including serial server, Modbus gateway, MQTT gateway, serial port to HTTPD Client, etc. With RS232, RS485, WIFI and Ethernet interfaces, the module can realize functions such as serial port to WIFI, serial port to Ethernet, Ethernet to WIFI and so on. Onboard multiple power supply interfaces, supports 6~36V wide range power supply, and PoE function optional. Industrial grade metal case design, supports wall-mount and rail-mount installations, small in size, easy to install. It is suitable for applications like data acquisition, IoT gateway, safety \u0026amp; security IoT, and intelligent instrument monitoring...\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"pdT\" data-mce-fragment=\"1\"\u003e\n\u003cdiv class=\"richTitle\" data-mce-fragment=\"1\"\u003e\u003cbr\u003e\u003c\/div\u003e\n\u003cdiv data-mce-fragment=\"1\"\u003e\u003cbr\u003e\u003c\/div\u003e\n\u003c\/div\u003e\n\u003cdiv data-mce-fragment=\"1\"\u003e\n\u003ch2 class=\"richTitle\" data-mce-fragment=\"1\"\u003e \u003c\/h2\u003e\n\u003ch2 class=\"richTitle\" data-mce-fragment=\"1\"\u003eSpecifications\u003c\/h2\u003e\n\u003ctable style=\"width: 80%;\"\u003e\n\u003ctbody data-mce-fragment=\"1\"\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003cth data-mce-fragment=\"1\"\u003ePRODUCT\u003c\/th\u003e\n\u003cth data-mce-fragment=\"1\"\u003e\u003ca href=\"https:\/\/thinkrobotics.com\/products\/industrial-uart-to-wifi-and-ethernet-module\" data-mce-fragment=\"1\" target=\"_blank\"\u003eUART-WIFI232-B2\u003c\/a\u003e\u003c\/th\u003e\n\u003cth data-mce-fragment=\"1\"\u003e\u003ca href=\"https:\/\/www.waveshare.com\/rs485-to-wifi-eth.htm\" data-mce-fragment=\"1\" data-mce-href=\"https:\/\/www.waveshare.com\/rs485-to-wifi-eth.htm\" target=\"_blank\"\u003eRS485 TO WIFI\/ETH\u003c\/a\u003e\u003c\/th\u003e\n\u003cth data-mce-fragment=\"1\"\u003e\u003ca href=\"https:\/\/thinkrobotics.com\/products\/industrial-grade-serial-server-rs232-485-to-wifi-and-ethernet-modbus-gateway-mqtt-gateway\" target=\"_blank\"\u003eRS232\/485 TO WIFI ETH (B)\u003c\/a\u003e\u003c\/th\u003e\n\u003cth data-mce-fragment=\"1\"\u003e\u003ca href=\"https:\/\/thinkrobotics.com\/products\/copy-of-industrial-grade-serial-server-rs232-485-to-wifi-and-ethernet-with-poe-modbus-gateway-mqtt-gateway\" target=\"_blank\"\u003eRS232\/485 TO WIFI POE ETH (B)\u003c\/a\u003e\u003c\/th\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003ctd data-mce-fragment=\"1\"\u003e\u003c\/td\u003e\n\u003ctd data-mce-fragment=\"1\"\u003e\u003cimg src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/UART-WIFI232-B2\/UART-WIFI232-B2-10.jpg\" data-mce-fragment=\"1\" data-mce-src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/UART-WIFI232-B2\/UART-WIFI232-B2-10.jpg\"\u003e\u003c\/td\u003e\n\u003ctd data-mce-fragment=\"1\"\u003e\u003cimg src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/RS485-TO-WIFI-ETH\/RS485-TO-WIFI-ETH-11.jpg\" data-mce-fragment=\"1\" data-mce-src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/RS485-TO-WIFI-ETH\/RS485-TO-WIFI-ETH-11.jpg\"\u003e\u003c\/td\u003e\n\u003ctd data-mce-fragment=\"1\"\u003e\u003cimg src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/RS232-485-TO-WIFI-ETH-B\/RS232-485-TO-WIFI-ETH-B-10.jpg\" data-mce-fragment=\"1\" data-mce-src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/RS232-485-TO-WIFI-ETH-B\/RS232-485-TO-WIFI-ETH-B-10.jpg\"\u003e\u003c\/td\u003e\n\u003ctd data-mce-fragment=\"1\"\u003e\u003cimg src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/RS232-485-TO-WIFI-ETH-B\/RS232-485-TO-WIFI-POE-ETH-B-10.jpg\" data-mce-fragment=\"1\" data-mce-src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/RS232-485-TO-WIFI-ETH-B\/RS232-485-TO-WIFI-POE-ETH-B-10.jpg\"\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003cth colspan=\"5\" data-mce-fragment=\"1\"\u003eOUTLINE\u003c\/th\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003ctd data-mce-fragment=\"1\"\u003e\u003cstrong data-mce-fragment=\"1\"\u003eProduct Description\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd data-mce-fragment=\"1\"\u003eEmbedded module\u003c\/td\u003e\n\u003ctd data-mce-fragment=\"1\"\u003eIndustrial rail-mount module with plastic case\u003c\/td\u003e\n\u003ctd colspan=\"2\" data-mce-fragment=\"1\"\u003eIndustrial rail-mount\/wall-mount module with metal case, PoE function optional\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003ctd data-mce-fragment=\"1\"\u003e\u003cstrong data-mce-fragment=\"1\"\u003ePower supply\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd data-mce-fragment=\"1\"\u003eDC 3.3V (±5%)\u003c\/td\u003e\n\u003ctd data-mce-fragment=\"1\"\u003eDC 5~36V\u003c\/td\u003e\n\u003ctd data-mce-fragment=\"1\"\u003eDC 6~36V\u003c\/td\u003e\n\u003ctd data-mce-fragment=\"1\"\u003eDC 6~36V \/ PoE port\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003ctd data-mce-fragment=\"1\"\u003e\u003cstrong data-mce-fragment=\"1\"\u003ePower supply method\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd data-mce-fragment=\"1\"\u003ePin header\u003c\/td\u003e\n\u003ctd data-mce-fragment=\"1\"\u003eScrew terminal\u003c\/td\u003e\n\u003ctd data-mce-fragment=\"1\"\u003eDC 5.5 power port, screw terminal\u003c\/td\u003e\n\u003ctd data-mce-fragment=\"1\"\u003eDC 5.5 power port, screw terminal, or PoE port\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003ctd data-mce-fragment=\"1\"\u003e\u003cstrong data-mce-fragment=\"1\"\u003eDimensions\u003cbr data-mce-fragment=\"1\"\u003e(L × W × H)\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd data-mce-fragment=\"1\"\u003e25.00×40.00×8.00mm\u003c\/td\u003e\n\u003ctd data-mce-fragment=\"1\"\u003e109.66×28.00×64.71mm\u003c\/td\u003e\n\u003ctd colspan=\"2\" data-mce-fragment=\"1\"\u003e84.00×64.00×24.00mm\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003cth colspan=\"5\" data-mce-fragment=\"1\"\u003e\u003cstrong data-mce-fragment=\"1\"\u003eCOMMUNICATION\u003c\/strong\u003e\u003c\/th\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003ctd data-mce-fragment=\"1\"\u003e\u003cstrong data-mce-fragment=\"1\"\u003eEthernet\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd data-mce-fragment=\"1\"\u003e10 \/ 100M auto-negotiation (Connection via pin header)\u003c\/td\u003e\n\u003ctd colspan=\"3\" data-mce-fragment=\"1\"\u003e10 \/ 100M auto-negotiation RJ45 connector\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003ctd data-mce-fragment=\"1\"\u003e\u003cstrong data-mce-fragment=\"1\"\u003eWIFI\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd colspan=\"4\" data-mce-fragment=\"1\"\u003e802.11b\/g\/n compliant\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003ctd data-mce-fragment=\"1\"\u003e\u003cstrong data-mce-fragment=\"1\"\u003eSerial port\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd data-mce-fragment=\"1\"\u003eUART\u003c\/td\u003e\n\u003ctd data-mce-fragment=\"1\"\u003eRS485 (ESD\/EFT\/surge protection)\u003c\/td\u003e\n\u003ctd colspan=\"2\" data-mce-fragment=\"1\"\u003eRS232 (ESD\/EFT)\u003cbr data-mce-fragment=\"1\"\u003eRS485 (ESD\/EFT\/surge protection)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003cth colspan=\"5\" data-mce-fragment=\"1\"\u003e\u003cstrong data-mce-fragment=\"1\"\u003eWIRELESS SPECIFICATION\u003c\/strong\u003e\u003c\/th\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003ctd data-mce-fragment=\"1\"\u003e\u003cstrong data-mce-fragment=\"1\"\u003eFrequency Band\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd colspan=\"4\" data-mce-fragment=\"1\"\u003e2.412 ~ 2.484 GHz\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003ctd data-mce-fragment=\"1\"\u003e\u003cstrong data-mce-fragment=\"1\"\u003eWireless network\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd colspan=\"4\" data-mce-fragment=\"1\"\u003eStation \/ AP \/ AP+Station Mode\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003ctd data-mce-fragment=\"1\"\u003e\u003cstrong data-mce-fragment=\"1\"\u003eSecurity mechanism\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd colspan=\"4\" data-mce-fragment=\"1\"\u003eWPA-PSK \/ WPA2-PSK\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003ctd data-mce-fragment=\"1\"\u003e\u003cstrong data-mce-fragment=\"1\"\u003eEncryption type\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd colspan=\"4\" data-mce-fragment=\"1\"\u003eTKIP \/ AES\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003ctd data-mce-fragment=\"1\"\u003e\u003cstrong data-mce-fragment=\"1\"\u003eTransmitting power\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd colspan=\"4\" data-mce-fragment=\"1\"\u003e802.11b: +19dBm (Max.@11Mbps)\u003cbr data-mce-fragment=\"1\"\u003e802.11g: +18dBm (Max.@54Mbps)\u003cbr data-mce-fragment=\"1\"\u003e802.11n: +17dBm (Max.@HT20, MCS7); +17dBm (Max.@HT40, MCS7)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003ctd data-mce-fragment=\"1\"\u003e\u003cstrong data-mce-fragment=\"1\"\u003eReceiving sensitivity\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd colspan=\"4\" data-mce-fragment=\"1\"\u003e802.11b: -89dBm (@11Mbps)\u003cbr data-mce-fragment=\"1\"\u003e802.11g: -81dBm (@54Mbps)\u003cbr data-mce-fragment=\"1\"\u003e802.11n: -73dBm (@HT20, MCS7); -71dBm (@HT40, MCS7)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003cth colspan=\"5\" data-mce-fragment=\"1\"\u003e\u003cstrong data-mce-fragment=\"1\"\u003eSERIAL SPECIFICATION\u003c\/strong\u003e\u003c\/th\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003ctd data-mce-fragment=\"1\"\u003e\u003cstrong data-mce-fragment=\"1\"\u003eBaudrate\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd colspan=\"4\" data-mce-fragment=\"1\"\u003e300 ~ 460800 bps\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003ctd data-mce-fragment=\"1\"\u003e\u003cstrong data-mce-fragment=\"1\"\u003eParity bit\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd colspan=\"4\" data-mce-fragment=\"1\"\u003enone, odd, even, mark, space\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003ctd data-mce-fragment=\"1\"\u003e\u003cstrong data-mce-fragment=\"1\"\u003eData bit\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd colspan=\"4\" data-mce-fragment=\"1\"\u003e5 ~ 9 bits\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003ctd data-mce-fragment=\"1\"\u003e\u003cstrong data-mce-fragment=\"1\"\u003eFlow control\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd data-mce-fragment=\"1\"\u003eRTS\/CTS\u003c\/td\u003e\n\u003ctd colspan=\"3\" data-mce-fragment=\"1\"\u003eN\/A\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003cth colspan=\"5\" data-mce-fragment=\"1\"\u003e\u003cstrong data-mce-fragment=\"1\"\u003eSOFTWARE\u003c\/strong\u003e\u003c\/th\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003ctd data-mce-fragment=\"1\"\u003e\u003cstrong data-mce-fragment=\"1\"\u003eProtocol\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd colspan=\"4\" data-mce-fragment=\"1\"\u003eTCP \/ UDP \/ ARP \/ ICMP \/ DHCP \/ DNS \/ HTTP \/ MQTT\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003ctd data-mce-fragment=\"1\"\u003e\u003cstrong data-mce-fragment=\"1\"\u003eConfiguration\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd colspan=\"4\" data-mce-fragment=\"1\"\u003ehost, web browser, serial AT command\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003ctd data-mce-fragment=\"1\"\u003e\u003cstrong data-mce-fragment=\"1\"\u003eCommunication method\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd colspan=\"4\" data-mce-fragment=\"1\"\u003eTCP\/IP direct communication, VCOM\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003ctd data-mce-fragment=\"1\"\u003e\u003cstrong data-mce-fragment=\"1\"\u003eOperating mode\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd colspan=\"4\" data-mce-fragment=\"1\"\u003eTransparent transmission, serial command, HTTPD Client, Modbus TCP to Modbus RTU\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003cth colspan=\"5\" data-mce-fragment=\"1\"\u003e\u003cstrong data-mce-fragment=\"1\"\u003eENVIRONMENT REQUIREMENT\u003c\/strong\u003e\u003c\/th\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003ctd data-mce-fragment=\"1\"\u003e\u003cstrong data-mce-fragment=\"1\"\u003eOperating temperature\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd colspan=\"4\" data-mce-fragment=\"1\"\u003e-40℃ ~ 85℃\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-fragment=\"1\"\u003e\n\u003ctd data-mce-fragment=\"1\"\u003e\u003cstrong data-mce-fragment=\"1\"\u003eHumidity range\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd colspan=\"4\" data-mce-fragment=\"1\"\u003e5% ~ 95% relative humidity\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cbr data-mce-fragment=\"1\"\u003e\n\u003c\/div\u003e\n\u003cdiv style=\"text-align: center;\" class=\"pdT\" data-mce-fragment=\"1\"\u003e\n\u003ch2 style=\"text-align: center;\" class=\"richTitle\" data-mce-fragment=\"1\"\u003e \u003c\/h2\u003e\n\u003ch2 style=\"text-align: center;\" class=\"richTitle\" data-mce-fragment=\"1\"\u003ePrimary Function\u003c\/h2\u003e\n\u003ch4 style=\"text-align: center;\" class=\"richDesc\" data-mce-fragment=\"1\"\u003eSupport RS232\/485 To WIFI And Ethernet, Ethernet To WIFI, Etc.\u003c\/h4\u003e\n\u003cimg style=\"margin-bottom: 16px; float: none;\" src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/RS232-485-TO-WIFI-ETH-B\/RS232-485-TO-WIFI-ETH-B-details-7.jpg\" data-mce-fragment=\"1\" data-mce-src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/RS232-485-TO-WIFI-ETH-B\/RS232-485-TO-WIFI-ETH-B-details-7.jpg\"\u003e\n\u003c\/div\u003e\n\u003cdiv style=\"text-align: center;\" data-mce-fragment=\"1\"\u003e\n\u003ch2 style=\"text-align: center;\" class=\"richTitle\" data-mce-fragment=\"1\"\u003eTwo Different Interfaces\u003c\/h2\u003e\n\u003cp style=\"text-align: center;\" class=\"richDesc\" data-mce-fragment=\"1\"\u003eOnboard RS232 \/ 485 Interfaces, Suitable For More Application Scenarios\u003c\/p\u003e\n\u003cbr data-mce-fragment=\"1\"\u003e\n\u003ch3 style=\"text-align: center;\" class=\"richDesc hilitBlock2 round1234\" data-mce-fragment=\"1\"\u003e\u003cspan style=\"color: #c20000;\"\u003eEthernet Port And WiFi To RS232 \/ 485\u003c\/span\u003e\u003c\/h3\u003e\n\u003cp style=\"text-align: center;\" class=\"richDesc\" data-mce-fragment=\"1\"\u003eThe Ethernet Port And WiFi Can Send Data To The Two Serial Ports At The Same Time\u003c\/p\u003e\n\u003cimg style=\"margin-bottom: 16px; float: none;\" src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/RS232-485-TO-WIFI-ETH-B\/RS232-485-TO-WIFI-ETH-B-details-9.jpg\" data-mce-fragment=\"1\" data-mce-src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/RS232-485-TO-WIFI-ETH-B\/RS232-485-TO-WIFI-ETH-B-details-9.jpg\"\u003e\n\u003cdiv data-mce-fragment=\"1\"\u003e\u003cbr data-mce-fragment=\"1\"\u003e\u003c\/div\u003e\n\u003ch2 style=\"text-align: center;\" class=\"richDesc hilitBlock2 round1234\" data-mce-fragment=\"1\"\u003e\u003cspan style=\"color: #c20001;\"\u003eRS232 \/ 485 To Ethernet Port And WiFi\u003c\/span\u003e\u003c\/h2\u003e\n\u003cp class=\"richDesc\" data-mce-fragment=\"1\"\u003eOnly One Of The RS232 And RS485 Can Send Data To The Ethernet Port And WiFi At The Same Time\u003c\/p\u003e\n\u003cimg style=\"margin-bottom: 16px; float: none;\" src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/RS232-485-TO-WIFI-ETH-B\/RS232-485-TO-WIFI-ETH-B-details-11.jpg\" data-mce-fragment=\"1\" data-mce-src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/RS232-485-TO-WIFI-ETH-B\/RS232-485-TO-WIFI-ETH-B-details-11.jpg\"\u003e\n\u003c\/div\u003e\n\u003cdiv style=\"text-align: center;\" class=\"pdT\" data-mce-fragment=\"1\"\u003e\n\u003ch2 class=\"richTitle\" data-mce-fragment=\"1\"\u003e \u003c\/h2\u003e\n\u003ch2 style=\"text-align: center;\" class=\"richTitle\" data-mce-fragment=\"1\"\u003eMulti Power Supply Methods\u003c\/h2\u003e\n\u003cp style=\"text-align: center;\" class=\"richDesc\" data-mce-fragment=\"1\"\u003eSupport PoE Ethernet Port Power Supply*, Suitable For IEEE 802.3af PoE Standard\u003cbr data-mce-fragment=\"1\"\u003eSupport Screw Terminal And DC 5.5 Power Port For Power Supply, DC 6~36V\u003cbr data-mce-fragment=\"1\"\u003eWide Voltage Range Input\u003c\/p\u003e\n\u003cimg style=\"margin-bottom: 16px; float: none;\" src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/RS232-485-TO-WIFI-ETH-B\/RS232-485-TO-WIFI-ETH-B-details-13.jpg\" data-mce-fragment=\"1\" data-mce-src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/RS232-485-TO-WIFI-ETH-B\/RS232-485-TO-WIFI-ETH-B-details-13.jpg\"\u003e\n\u003cp style=\"text-align: left;\" class=\"note\" data-mce-fragment=\"1\"\u003e\u003cem\u003e\u003cspan style=\"color: #c20000;\"\u003e* This function is only available on the PoE version\u003c\/span\u003e\u003c\/em\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003cdiv style=\"text-align: center;\" class=\"pdT\" data-mce-fragment=\"1\"\u003e\n\u003ch2 style=\"text-align: center;\" class=\"richTitle\" data-mce-fragment=\"1\"\u003e \u003c\/h2\u003e\n\u003ch2 style=\"text-align: center;\" class=\"richTitle\" data-mce-fragment=\"1\"\u003eIndustrial Grade Serial Server\u003c\/h2\u003e\n\u003cp style=\"text-align: center;\" class=\"richDesc\" data-mce-fragment=\"1\"\u003eIndustrial Aluminum Alloy Case, Wall-Mount And Rail-Mount Support\u003cbr data-mce-fragment=\"1\"\u003eSmall In Size, Easy To Install, And Cost-Effective\u003c\/p\u003e\n\u003cimg style=\"margin-bottom: 16px; float: none;\" src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/RS232-485-TO-WIFI-ETH-B\/RS232-485-TO-WIFI-ETH-B-details-15.jpg\" data-mce-fragment=\"1\" data-mce-src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/RS232-485-TO-WIFI-ETH-B\/RS232-485-TO-WIFI-ETH-B-details-15.jpg\"\u003e\u003cbr data-mce-fragment=\"1\"\u003e\n\u003c\/div\u003e\n\u003cdiv style=\"text-align: center;\" data-mce-fragment=\"1\"\u003e\n\u003ch2 style=\"text-align: center;\" class=\"richTitle\" data-mce-fragment=\"1\"\u003e \u003c\/h2\u003e\n\u003ch2 style=\"text-align: center;\" class=\"richTitle\" data-mce-fragment=\"1\"\u003eFunction Block Diagram\u003c\/h2\u003e\n\u003cimg style=\"margin-bottom: 16px; float: none;\" src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/RS232-485-TO-WIFI-ETH-B\/RS232-485-TO-WIFI-ETH-B-details-17.jpg\" data-mce-fragment=\"1\" data-mce-src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/RS232-485-TO-WIFI-ETH-B\/RS232-485-TO-WIFI-ETH-B-details-17.jpg\"\u003e\n\u003c\/div\u003e\n\u003cdiv style=\"text-align: center;\" class=\"pdT\" data-mce-fragment=\"1\"\u003e\n\u003ch2 class=\"richTitle\" data-mce-fragment=\"1\"\u003e \u003c\/h2\u003e\n\u003ch2 style=\"text-align: center;\" class=\"richTitle\" data-mce-fragment=\"1\"\u003eSupport Transparent Transmission Mode\u003c\/h2\u003e\n\u003cp style=\"text-align: center;\" class=\"pdTRBL\" data-mce-fragment=\"1\"\u003eSupport TCP Server, TCP Client, UDP Server, UDP Client\u003c\/p\u003e\n\u003cimg style=\"margin-bottom: 16px; float: none;\" src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/RS232-485-TO-WIFI-ETH-B\/RS232-485-TO-WIFI-ETH-B-details-19.jpg\" data-mce-fragment=\"1\" data-mce-src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/RS232-485-TO-WIFI-ETH-B\/RS232-485-TO-WIFI-ETH-B-details-19.jpg\"\u003e\n\u003c\/div\u003e\n\u003ctable style=\"width: 90%; margin: auto;\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd style=\"border: 0px; vertical-align: top;\"\u003e\n\u003cimg src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/RS232-485-TO-WIFI-ETH-B\/RS232-485-TO-WIFI-ETH-B-details-21.jpg\" class=\"round1234\" data-mce-fragment=\"1\" data-mce-src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/RS232-485-TO-WIFI-ETH-B\/RS232-485-TO-WIFI-ETH-B-details-21.jpg\"\u003e\n\u003cp class=\"alignl pdTRBL\" data-mce-fragment=\"1\"\u003eDevices can subscribe to other MQTT client messages, and can publish topic information to the server. Supports subscription of 6 messages and publication of 6 topics, wider range of use and more applicable scenarios. Users can view device-related information through terminal devices or cloud platforms.\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd style=\"border: 0px; vertical-align: top;\"\u003e\n\u003cimg src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/RS232-485-TO-WIFI-ETH-B\/RS232-485-TO-WIFI-ETH-B-details-23.jpg\" class=\"round1234\" data-mce-fragment=\"1\" data-mce-src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/RS232-485-TO-WIFI-ETH-B\/RS232-485-TO-WIFI-ETH-B-details-23.jpg\"\u003e\n\u003cp class=\"alignl pdTRBL\" data-mce-fragment=\"1\"\u003eAfter the user has set the HTTP header through AT commands or web page, the module can send data to the HTTP server, or obtain data from the HTTP server\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd style=\"border: 0px; vertical-align: top;\"\u003e\n\u003cimg src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/RS232-485-TO-WIFI-ETH-B\/RS232-485-TO-WIFI-ETH-B-details-25.jpg\" class=\"round1234\" data-mce-fragment=\"1\" data-mce-src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/RS232-485-TO-WIFI-ETH-B\/RS232-485-TO-WIFI-ETH-B-details-25.jpg\"\u003e\n\u003cp class=\"alignl pdTRBL\" data-mce-fragment=\"1\"\u003eUsers send data to servers according to the protocol and can send data to different servers without restarting\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd style=\"border: 0px; vertical-align: top;\"\u003e\n\u003cimg src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/RS232-485-TO-WIFI-ETH-B\/RS232-485-TO-WIFI-ETH-B-details-27.jpg\" class=\"round1234\" data-mce-fragment=\"1\" data-mce-src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/RS232-485-TO-WIFI-ETH-B\/RS232-485-TO-WIFI-ETH-B-details-27.jpg\"\u003e\n\u003cp class=\"alignl pdTRBL\" data-mce-fragment=\"1\"\u003eSupport Modbus TCP And Modbus RTU Interconversion Mode\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cdiv style=\"text-align: center;\" class=\"pdT\" data-mce-fragment=\"1\"\u003e\n\u003ch2 style=\"text-align: center;\" class=\"richTitle\" data-mce-fragment=\"1\"\u003e \u003c\/h2\u003e\n\u003ch2 style=\"text-align: center;\" class=\"richTitle\" data-mce-fragment=\"1\"\u003eSupport Multi Wireless Networking Methods\u003c\/h2\u003e\n\u003cp style=\"text-align: center;\" class=\"pdTRBL\" data-mce-fragment=\"1\"\u003eSupport AP mode, STA mode, and AP+STA mode\u003c\/p\u003e\n\u003cimg style=\"margin-bottom: 16px; float: none;\" src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/RS232-485-TO-WIFI-ETH-B\/RS232-485-TO-WIFI-ETH-B-details-29.jpg\" data-mce-fragment=\"1\" data-mce-src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/RS232-485-TO-WIFI-ETH-B\/RS232-485-TO-WIFI-ETH-B-details-29.jpg\"\u003e\u003cspan data-mce-fragment=\"1\"\u003e \u003c\/span\u003e\u003cimg src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/RS232-485-TO-WIFI-ETH-B\/RS232-485-TO-WIFI-ETH-B-details-31.jpg\" data-mce-fragment=\"1\" data-mce-src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/RS232-485-TO-WIFI-ETH-B\/RS232-485-TO-WIFI-ETH-B-details-31.jpg\"\u003e\u003cspan data-mce-fragment=\"1\"\u003e \u003c\/span\u003e\u003cimg style=\"margin-bottom: 16px; float: none;\" src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/RS232-485-TO-WIFI-ETH-B\/RS232-485-TO-WIFI-ETH-B-details-33.jpg\" data-mce-fragment=\"1\" data-mce-src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/RS232-485-TO-WIFI-ETH-B\/RS232-485-TO-WIFI-ETH-B-details-33.jpg\"\u003e\n\u003c\/div\u003e\n\u003cdiv style=\"text-align: center;\" class=\"pdT\" data-mce-fragment=\"1\"\u003e\n\u003ch2 style=\"text-align: center;\" class=\"richTitle\" data-mce-fragment=\"1\"\u003e \u003c\/h2\u003e\n\u003ch2 style=\"text-align: center;\" class=\"richTitle\" data-mce-fragment=\"1\"\u003eSupport Multi Wired Networking Methods\u003c\/h2\u003e\n\u003cp style=\"text-align: center;\" class=\"pdTRBL\" data-mce-fragment=\"1\"\u003eSupport APLAN, APWAN, Router, and Bridge mode\u003c\/p\u003e\n\u003cimg style=\"margin-bottom: 16px; float: none;\" src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/RS232-485-TO-WIFI-ETH-B\/RS232-485-TO-WIFI-ETH-B-details-35.jpg\" data-mce-fragment=\"1\" data-mce-src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/RS232-485-TO-WIFI-ETH-B\/RS232-485-TO-WIFI-ETH-B-details-35.jpg\"\u003e\u003cspan data-mce-fragment=\"1\"\u003e \u003c\/span\u003e\u003cimg style=\"margin-bottom: 16px; float: none;\" src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/RS232-485-TO-WIFI-ETH-B\/RS232-485-TO-WIFI-ETH-B-details-37.jpg\" data-mce-fragment=\"1\" data-mce-src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/RS232-485-TO-WIFI-ETH-B\/RS232-485-TO-WIFI-ETH-B-details-37.jpg\"\u003e\u003cspan data-mce-fragment=\"1\"\u003e \u003c\/span\u003e\u003cimg src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/RS232-485-TO-WIFI-ETH-B\/RS232-485-TO-WIFI-ETH-B-details-39.jpg\" data-mce-fragment=\"1\" data-mce-src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/RS232-485-TO-WIFI-ETH-B\/RS232-485-TO-WIFI-ETH-B-details-39.jpg\"\u003e\u003cspan data-mce-fragment=\"1\"\u003e \u003c\/span\u003e\u003cimg src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/RS232-485-TO-WIFI-ETH-B\/RS232-485-TO-WIFI-ETH-B-details-41.jpg\" data-mce-fragment=\"1\" data-mce-src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/RS232-485-TO-WIFI-ETH-B\/RS232-485-TO-WIFI-ETH-B-details-41.jpg\"\u003e\n\u003c\/div\u003e\n\u003cdiv style=\"text-align: center;\" class=\"pdT\" data-mce-fragment=\"1\"\u003e\n\u003ch2 style=\"text-align: center;\" class=\"richTitle\" data-mce-fragment=\"1\"\u003e \u003c\/h2\u003e\n\u003ch2 style=\"text-align: center;\" class=\"richTitle\" data-mce-fragment=\"1\"\u003eFeatures\u003c\/h2\u003e\n\u003ch3 style=\"text-align: center;\" class=\"richDesc hilitBlock2 round1234\" data-mce-fragment=\"1\"\u003e\u003cspan style=\"color: #c20001;\"\u003eMulti Configuration Methods\u003c\/span\u003e\u003c\/h3\u003e\n\u003ch4 style=\"text-align: center;\" class=\"richDesc\" data-mce-fragment=\"1\"\u003eSupports Multi Configuration Methods Such As Hosts, Web Browser And Serial Port Configuration\u003c\/h4\u003e\n\u003cimg style=\"margin-bottom: 16px; float: none;\" src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/RS232-485-TO-WIFI-ETH-B\/RS232-485-TO-WIFI-ETH-B-details-43.jpg\" data-mce-fragment=\"1\" data-mce-src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/RS232-485-TO-WIFI-ETH-B\/RS232-485-TO-WIFI-ETH-B-details-43.jpg\"\u003e\u003cspan data-mce-fragment=\"1\"\u003e \u003c\/span\u003e\n\u003ch2 class=\"richDesc hilitBlock2 round1234\" data-mce-fragment=\"1\"\u003eAT Command Mode\u003c\/h2\u003e\n\u003cp class=\"richDesc\" data-mce-fragment=\"1\"\u003eThe User Can Query The Current Status Of The Module Or Set Related Parameters By Sending AT Commands\u003c\/p\u003e\n\u003cimg style=\"margin-bottom: 16px; float: none;\" src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/RS232-485-TO-WIFI-ETH-B\/RS232-485-TO-WIFI-ETH-B-details-45.jpg\" data-mce-fragment=\"1\" data-mce-src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/RS232-485-TO-WIFI-ETH-B\/RS232-485-TO-WIFI-ETH-B-details-45.jpg\"\u003e\u003cspan data-mce-fragment=\"1\"\u003e \u003c\/span\u003e\n\u003ch2 class=\"richDesc hilitBlock2 round1234\" data-mce-fragment=\"1\"\u003e \u003c\/h2\u003e\n\u003ch2 class=\"richDesc hilitBlock2 round1234\" data-mce-fragment=\"1\"\u003eSocket Distribution Protocol\u003c\/h2\u003e\n\u003cp class=\"richDesc\" data-mce-fragment=\"1\"\u003eIn The Transparent Transmission Mode, The Serial Device Can Send Data To The Specified Socket Link; The Network Data Of Each Socket Is Sent To The Serial Device Through The Serial Port\u003c\/p\u003e\n\u003cimg src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/RS232-485-TO-WIFI-ETH-B\/RS232-485-TO-WIFI-ETH-B-details-47.jpg\" style=\"margin-bottom: 16px; float: none;\" data-mce-fragment=\"1\" data-mce-src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/RS232-485-TO-WIFI-ETH-B\/RS232-485-TO-WIFI-ETH-B-details-47.jpg\"\u003e\u003cspan data-mce-fragment=\"1\"\u003e \u003c\/span\u003e\n\u003ch2 class=\"richDesc hilitBlock2 round1234\" data-mce-fragment=\"1\"\u003e \u003c\/h2\u003e\n\u003ch2 class=\"richDesc hilitBlock2 round1234\" data-mce-fragment=\"1\"\u003eHardware Protection\u003c\/h2\u003e\n\u003cp class=\"richDesc\" data-mce-fragment=\"1\"\u003ePower Supply Anti-Reverse, Communication Interface ESD And Surge Protection, EFT Electrical Fast Transient\/Burst Protection\u003c\/p\u003e\n\u003cimg src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/RS232-485-TO-WIFI-ETH-B\/RS232-485-TO-WIFI-ETH-B-details-49.jpg\" data-mce-fragment=\"1\" data-mce-src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/RS232-485-TO-WIFI-ETH-B\/RS232-485-TO-WIFI-ETH-B-details-49.jpg\"\u003e\u003cspan data-mce-fragment=\"1\"\u003e \u003c\/span\u003e\n\u003ch2 class=\"richDesc hilitBlock2 round1234\" data-mce-fragment=\"1\"\u003e \u003c\/h2\u003e\n\u003ch2 class=\"richDesc hilitBlock2 round1234\" data-mce-fragment=\"1\"\u003eCustomized Registration Packets, Heartbeat Packets\u003c\/h2\u003e\n\u003cp class=\"richDesc\" data-mce-fragment=\"1\"\u003eThe Registration Package Is Used To Identify The Device Information To The Server, So That The Server Can Identify The Device\u003c\/p\u003e\n\u003cimg src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/RS232-485-TO-WIFI-ETH-B\/RS232-485-TO-WIFI-ETH-B-details-51.jpg\" style=\"margin-bottom: 16px; float: none;\" data-mce-fragment=\"1\" data-mce-src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/RS232-485-TO-WIFI-ETH-B\/RS232-485-TO-WIFI-ETH-B-details-51.jpg\"\u003e\n\u003c\/div\u003e\n\u003cdiv style=\"text-align: center;\" data-mce-fragment=\"1\"\u003e\n\u003ch2 class=\"richTitle\" data-mce-fragment=\"1\"\u003e \u003c\/h2\u003e\n\u003ch2 class=\"richTitle\" style=\"text-align: center;\" data-mce-fragment=\"1\"\u003eInterface\u003c\/h2\u003e\n\u003cimg src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/RS232-485-TO-WIFI-ETH-B\/RS232-485-TO-WIFI-ETH-B-details-intro.jpg\" style=\"margin-bottom: 16px; float: none;\" data-mce-fragment=\"1\" data-mce-src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/RS232-485-TO-WIFI-ETH-B\/RS232-485-TO-WIFI-ETH-B-details-intro.jpg\"\u003e\n\u003c\/div\u003e\n\u003cdiv data-mce-fragment=\"1\"\u003e\n\u003ch2 class=\"richTitle\" data-mce-fragment=\"1\"\u003e \u003c\/h2\u003e\n\u003ch2 class=\"richTitle\" style=\"text-align: center;\" data-mce-fragment=\"1\"\u003eOutline Dimensions\u003cbr\u003e\n\u003c\/h2\u003e\n\u003c\/div\u003e\n\u003cdiv style=\"text-align: center;\" data-mce-fragment=\"1\"\u003e\u003cimg src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/RS232-485-TO-WIFI-ETH-B\/RS232-485-TO-WIFI-ETH-B-details-size.jpg\" style=\"margin-bottom: 16px; float: none;\" data-mce-fragment=\"1\" data-mce-src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/RS232-485-TO-WIFI-ETH-B\/RS232-485-TO-WIFI-ETH-B-details-size.jpg\"\u003e\u003c\/div\u003e\n\u003cdiv data-mce-fragment=\"1\"\u003e\n\u003ch2 class=\"richTitle\" data-mce-fragment=\"1\"\u003e \u003c\/h2\u003e\n\u003ch2 class=\"richTitle\" data-mce-fragment=\"1\"\u003eResources \u0026amp; Services\u003c\/h2\u003e\n\u003cp class=\"bgGrey\" data-mce-fragment=\"1\"\u003e\u003cstrong data-mce-fragment=\"1\"\u003eWiki:\u003cspan data-mce-fragment=\"1\"\u003e \u003c\/span\u003e\u003c\/strong\u003e\u003ca href=\"http:\/\/www.waveshare.com\/wiki\/RS232\/485_TO_WIFI_ETH_(B)\" data-mce-fragment=\"1\" target=\"_blank\" data-mce-href=\"http:\/\/www.waveshare.com\/wiki\/RS232\/485_TO_WIFI_ETH_(B)\"\u003ewww.waveshare.com\/wiki\/RS232\/485_TO_WIFI_ETH_(B)\u003c\/a\u003e\u003c\/p\u003e\n\u003ch2 class=\"bgGrey\" data-mce-fragment=\"1\"\u003e \u003c\/h2\u003e\n\u003ch2 class=\"bgGrey\" data-mce-fragment=\"1\"\u003ePackage Contains:\u003c\/h2\u003e\n\u003cp\u003e\u003cstrong\u003eWeight:\u003cspan\u003e \u003c\/span\u003e\u003c\/strong\u003e\u003cspan\u003e0.157 kg\u003c\/span\u003e\u003c\/p\u003e\n\u003cdiv class=\"std\"\u003e\n\u003ch2\u003eRS232\/485 TO WIFI ETH (B)\u003c\/h2\u003e\n\u003col\u003e\n\u003cli\u003eRS232\/485 TO WIFI ETH (B) x1\u003c\/li\u003e\n\u003cli\u003e2.4G WiFi antenna x1\u003c\/li\u003e\n\u003cli\u003eRail-mount buckle x1\u003c\/li\u003e\n\u003cli\u003eScrewdriver x1\u003c\/li\u003e\n\u003cli\u003eScrews pack x1\u003c\/li\u003e\n\u003cli\u003e\n\u003cmeta charset=\"utf-8\"\u003e \u003cspan style=\"color: #c20000;\"\u003e\u003cem\u003eThe power supply is not included, it is recommended to use with a \u003ca href=\"https:\/\/thinkrobotics.com\/products\/12v-2a-power-adapter\" style=\"color: #c20000;\" target=\"_blank\"\u003e12V Power Adapter\u003c\/a\u003e\u003c\/em\u003e\u003c\/span\u003e\n\u003c\/li\u003e\n\u003c\/ol\u003e\n\u003cdiv\u003e\u003cimg src=\"https:\/\/www.waveshare.com\/img\/devkit\/accBoard\/RS232-485-TO-WIFI-ETH-B\/RS232-485-TO-WIFI-ETH-B-details-pack.jpg\"\u003e\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e"}

PRODUCT	UART-WIFI232-B2	RS485 TO WIFI/ETH	RS232/485 TO WIFI ETH (B)	RS232/485 TO WIFI POE ETH (B)

OUTLINE
Product Description	Embedded module	Industrial rail-mount module with plastic case	Industrial rail-mount/wall-mount module with metal case, PoE function optional
Power supply	DC 3.3V (±5%)	DC 5~36V	DC 6~36V	DC 6~36V / PoE port
Power supply method	Pin header	Screw terminal	DC 5.5 power port, screw terminal	DC 5.5 power port, screw terminal, or PoE port
Dimensions (L × W × H)	25.00×40.00×8.00mm	109.66×28.00×64.71mm	84.00×64.00×24.00mm
COMMUNICATION
Ethernet	10 / 100M auto-negotiation (Connection via pin header)	10 / 100M auto-negotiation RJ45 connector
WIFI	802.11b/g/n compliant
Serial port	UART	RS485 (ESD/EFT/surge protection)	RS232 (ESD/EFT) RS485 (ESD/EFT/surge protection)
WIRELESS SPECIFICATION
Frequency Band	2.412 ~ 2.484 GHz
Wireless network	Station / AP / AP+Station Mode
Security mechanism	WPA-PSK / WPA2-PSK
Encryption type	TKIP / AES
Transmitting power	802.11b: +19dBm (Max.@11Mbps) 802.11g: +18dBm (Max.@54Mbps) 802.11n: +17dBm (Max.@HT20, MCS7); +17dBm (Max.@HT40, MCS7)
Receiving sensitivity	802.11b: -89dBm (@11Mbps) 802.11g: -81dBm (@54Mbps) 802.11n: -73dBm (@HT20, MCS7); -71dBm (@HT40, MCS7)
SERIAL SPECIFICATION
Baudrate	300 ~ 460800 bps
Parity bit	none, odd, even, mark, space
Data bit	5 ~ 9 bits
Flow control	RTS/CTS	N/A
SOFTWARE
Protocol	TCP / UDP / ARP / ICMP / DHCP / DNS / HTTP / MQTT
Configuration	host, web browser, serial AT command
Communication method	TCP/IP direct communication, VCOM
Operating mode	Transparent transmission, serial command, HTTPD Client, Modbus TCP to Modbus RTU
ENVIRONMENT REQUIREMENT
Operating temperature	-40℃ ~ 85℃
Humidity range	5% ~ 95% relative humidity

Industrial Grade Serial Server RS232/485 To WiFi and Ethernet, Modbus Gateway, MQTT Gateway

Industrial Grade Serial Server RS232/485 To WiFi And Ethernet

Modbus Gateway, MQTT Gateway, Metal Case, Wail-Mount And Rail-Mount Support, Optional PoE Function

Features At A Glance

Specifications

Primary Function

Support RS232/485 To WIFI And Ethernet, Ethernet To WIFI, Etc.

Two Different Interfaces

Ethernet Port And WiFi To RS232 / 485

RS232 / 485 To Ethernet Port And WiFi

Multi Power Supply Methods

Industrial Grade Serial Server

Function Block Diagram

Support Transparent Transmission Mode

Support Multi Wireless Networking Methods

Support Multi Wired Networking Methods

Features

Multi Configuration Methods

Supports Multi Configuration Methods Such As Hosts, Web Browser And Serial Port Configuration

AT Command Mode

Socket Distribution Protocol

Hardware Protection

Customized Registration Packets, Heartbeat Packets

Interface

Outline Dimensions

Resources & Services

Package Contains:

RS232/485 TO WIFI ETH (B)

Want to buy in bulk?

Customer Reviews

Custom Requirements?

Download the ThinkRobotics Mobile App

We are here to serve you! Reach us at:

Popular Links

Shopping Cart

Let customers speak for us

Devices can subscribe to other MQTT client messages, and can publish topic information to the server. Supports subscription of 6 messages and publication of 6 topics, wider range of use and more applicable scenarios. Users can view device-related information through terminal devices or cloud platforms.	After the user has set the HTTP header through AT commands or web page, the module can send data to the HTTP server, or obtain data from the HTTP server
Users send data to servers according to the protocol and can send data to different servers without restarting	Support Modbus TCP And Modbus RTU Interconversion Mode
