Industrial Isolated USB To 4 Channel RS232/485 Converter
Industrial USB To 4-Ch RS232/485 Converter
USB To 4-Ch RS232 or USB To 2-Ch RS232 + 2-Ch RS485
FT4232HL | Stable Transmission | Multiple Devices Applicable | Multi-OS Compatible
Features
Adopts original FT4232HL chip, fast communicating, stable and reliable, better compatibility
Supports USB to 2-ch isolated RS232/485 + 2-ch isolated RS232
Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal
Onboard unibody digital isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption
Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & ESD protection
Onboard self-recovery fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock proof performance
Onboard 120R terminal resistor on the RS485 interface, enabled/disabled via jumper
9 LEDs for indicating the power and transceiver status
Industrial grade metal case, supports wall-mount and rail-mount installation, solid and beautiful, easy to install
Specifications
PRODUCT TYPE
Industrial USB to RS232/485 digital isolated converter
HOST PORT
USB
DEVICE PORT
RS232/485
USB
Operating voltage
5V
Connector
USB-B
Protection
200mA self-recovery fuse, isolated output
ISOLATED RS232
Connector
Screw terminal
Protection
TVS diode, surge protection & ESD protection, power isolation and signal isolation
Transmission mode
Point-to-point
Baud rate
300bps ~ 921600bps
ISOLATED RS485
Connector
Screw terminal
Direction control
Hardware automatic control
Protection
TVS diode, surge protection & ESD protection, power isolation and signal isolation
Resistor
Onboard reserved 120R matching resistor, NC by default, enabled via jumper
Transmission mode
Point-to-multipoints (up to 32 nodes, it is recommended to use repeaters for 16 nodes or more)
Baud rate
300bps ~ 921600bps
INDICATORS
PWR
Red power indicator, light up when there is USB connection and voltage is detected
TX1~TX4
Green TX indicator, light up when the USB port sends data
RX1~RX4
Blue RX indicator, light up when the device ports send data back
OPERATING ENVIRONMENT
Temperature range
-40 ~ 85℃
Humidity range
5%RH~95%RH
OPERATING SYSTEM
Mac, Linux, Android, Windows 11 / 10 / 8.1 / 8 / 7
Basic Function
Supports USB To 4-Ch Multi-Functional Serial Port, Convenient For Expanding Or Debugging Various Industrial Serial Port Devices; Supports USB To 2-Ch Isolated RS232/485 + 2-Ch Isolated RS232
Original Industrial Grade Chip
Onboard Original FT4232HL Chip, Fast Communication, Stable & Reliable, Better Compatibility
Safer Isolated Design
Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal
Onboard unibody digital isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption
Multiple Protection, Safe And Stable
Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & ESD protection. Onboard self-recovery fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock proof performance.
Multi System Support
Supports Mac, Linux, Android, Windows 11 / 10 / 8.1 / 8 / 7, Etc.
Aluminium Alloy Enclosure
Aluminium Alloy Enclosure With Sand Blasting And Anodic Oxidation, Solid And Durable; Wall-Mount & Rail-Mount Support, More Flexible For Industrial Installation

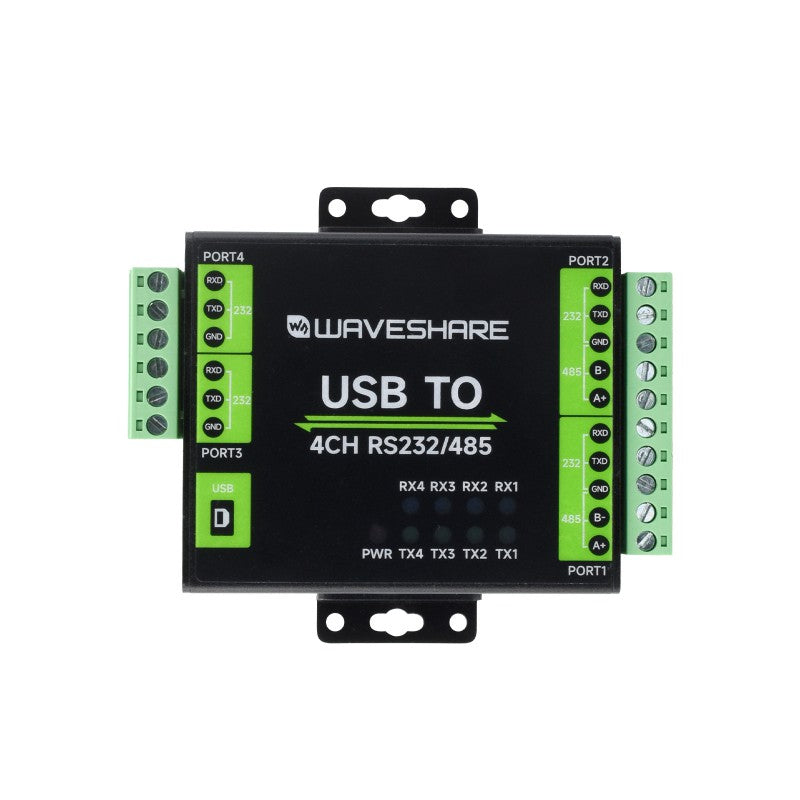

Pin Definition
Outline Dimensions
